Range Hood CXW-320-D3G1

Custom Super Suction Smart Range Hood for Home and Hotel Low Decibel Top/Side Exhaust Automatic Cleaning No Noise

7 Shape series Model: CXW-320-D3G1

Overview Features Frequently Asked Questions You May Also Like

This range hood boasts DC variable - frequency power for strong, smooth suction - exhaust. With 25m³ stir - frying air volume, 1000Pa static pressure to break flue resistance, it ensures instant oil - fume removal. Top - side dual suction enables flush cabinet mounting. Linked with stoves, it auto - starts. Nano - coated impeller self - cleans. Low - noise operation, three air - volume gears for diverse cooking, plus a large oil cup cutting dumping frequency, making it a smart, efficient kitchen helper.

Features

6 Core Advantages - Upgrade to a Clean Kitchen

Full-range Ultra-thin Flush Installation: No cabinet modification needed
AI Variable Frequency Constant Suction: Algorithm-level smoke purification
1000Pa Strong Wind Pressure: No backflow during peak hours
25m³/min High Suction: Effortless stir-frying
0-Motion Smart Purification: Smoke purification without manual operation
Smart Cyclone Wash: Clean without disassembly

Macro/Comfort 「Dual Strong Wind」Ultra-thin Dual-suction Range Hood D3G1
Ultra-thin Flush Installation, High-efficiency Dual Purification
40-year brand, serving 100 million Chinese users

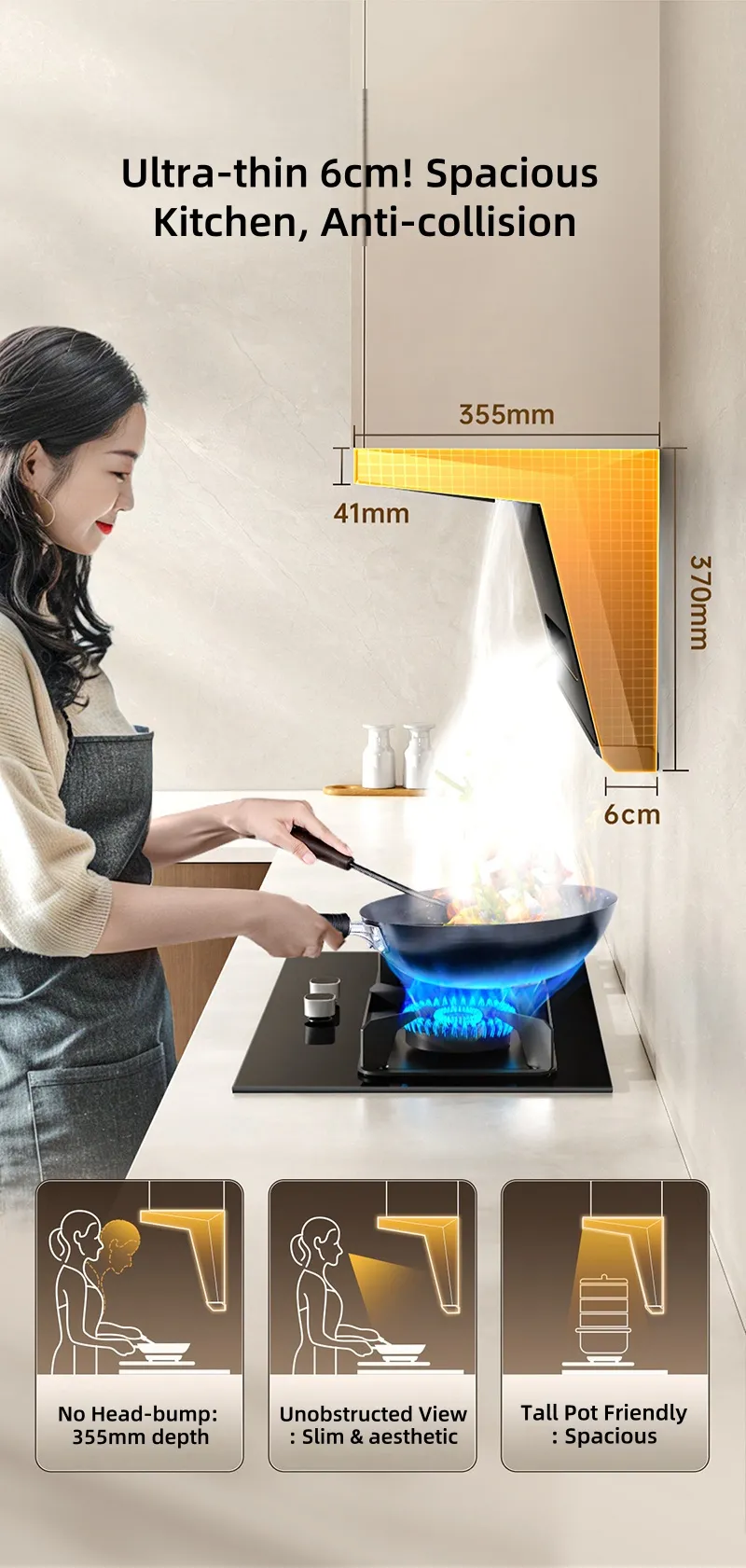

Ultra-thin! Only 6cm thick! Spacious Kitchen, Avoid Collisions

No Head-bumping: 355mm depth
Unobstructed View: Slim body, more aesthetic
No Interference with Tall Pots: Spacious space

25m³/min Top & Side Dual Strong Suction, Dual Air Ducts for Instant Suction

High-position Collection: Strongly collect escaped smoke
Low-altitude Instant Suction: Powerful direct suction near smoke source

3 Air Volume Gears - For Different Cooking Scenarios

Low Gear (10m³/min): Energy-saving for steaming
High Gear (20m³/min): Fast suction for frying
Stir-frying Gear (25m³/min): Instant suction for stir-frying
*Data measured in standard environment; max 25m³/min for stir-frying

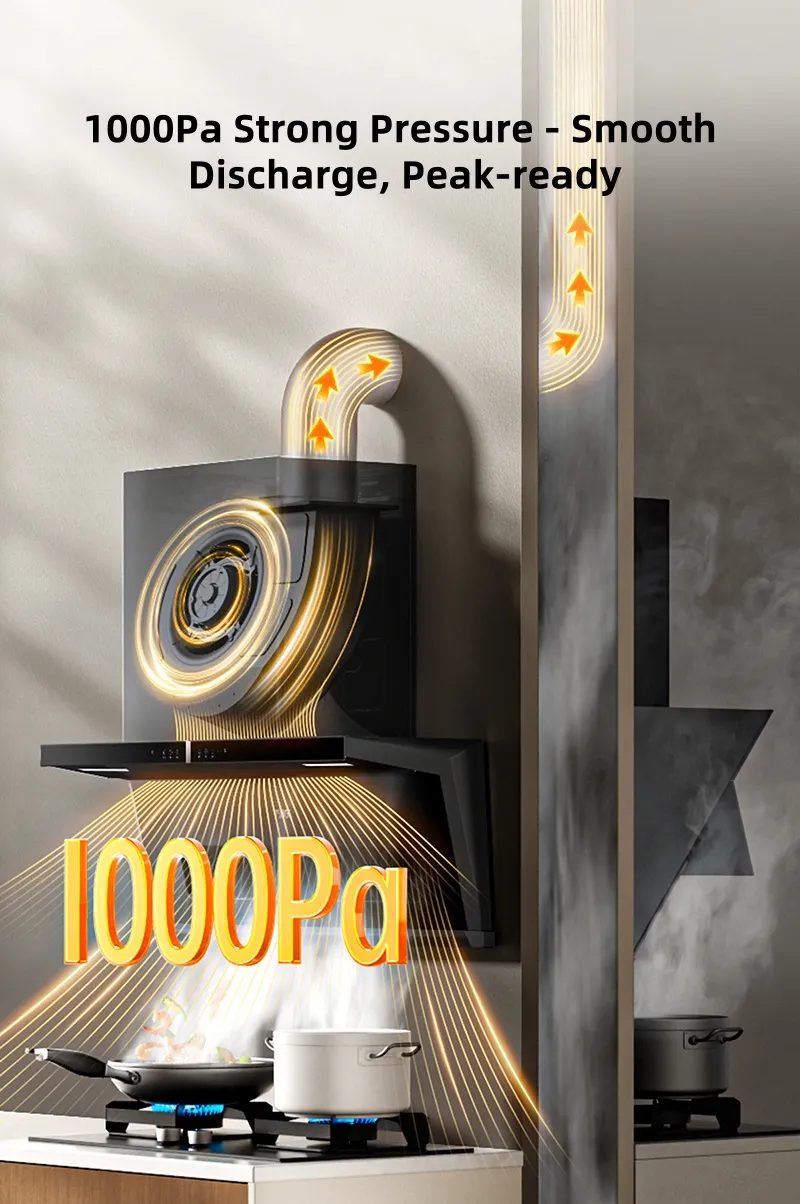

1000Pa Strong Wind Pressure - Smooth Discharge, No Fear of Peak Cooking Hours

AI Variable Frequency Cruise - Algorithm-level Automatic Smoke Discharge

AI intelligently adjusts wind power
0 manual operation
DC variable frequency motor

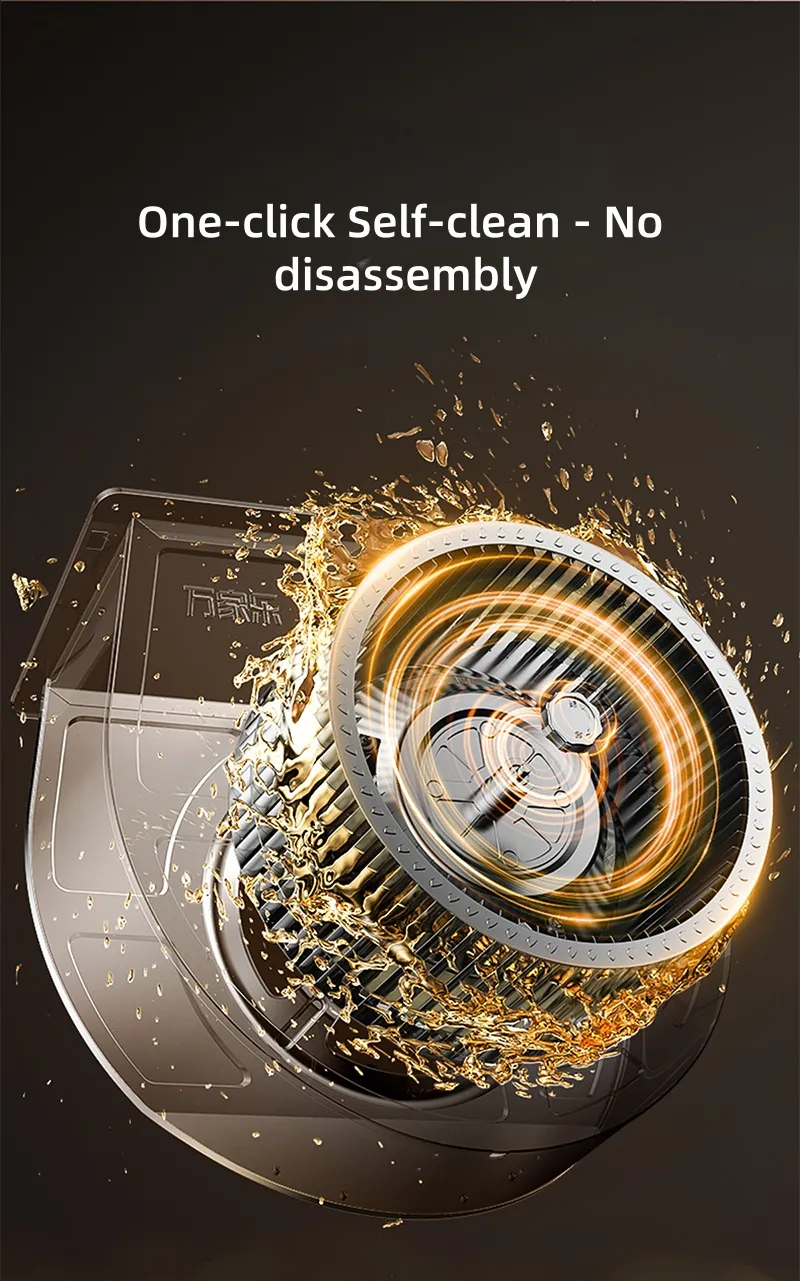

One-click Refresh - Self-cleaning Without Disassembly

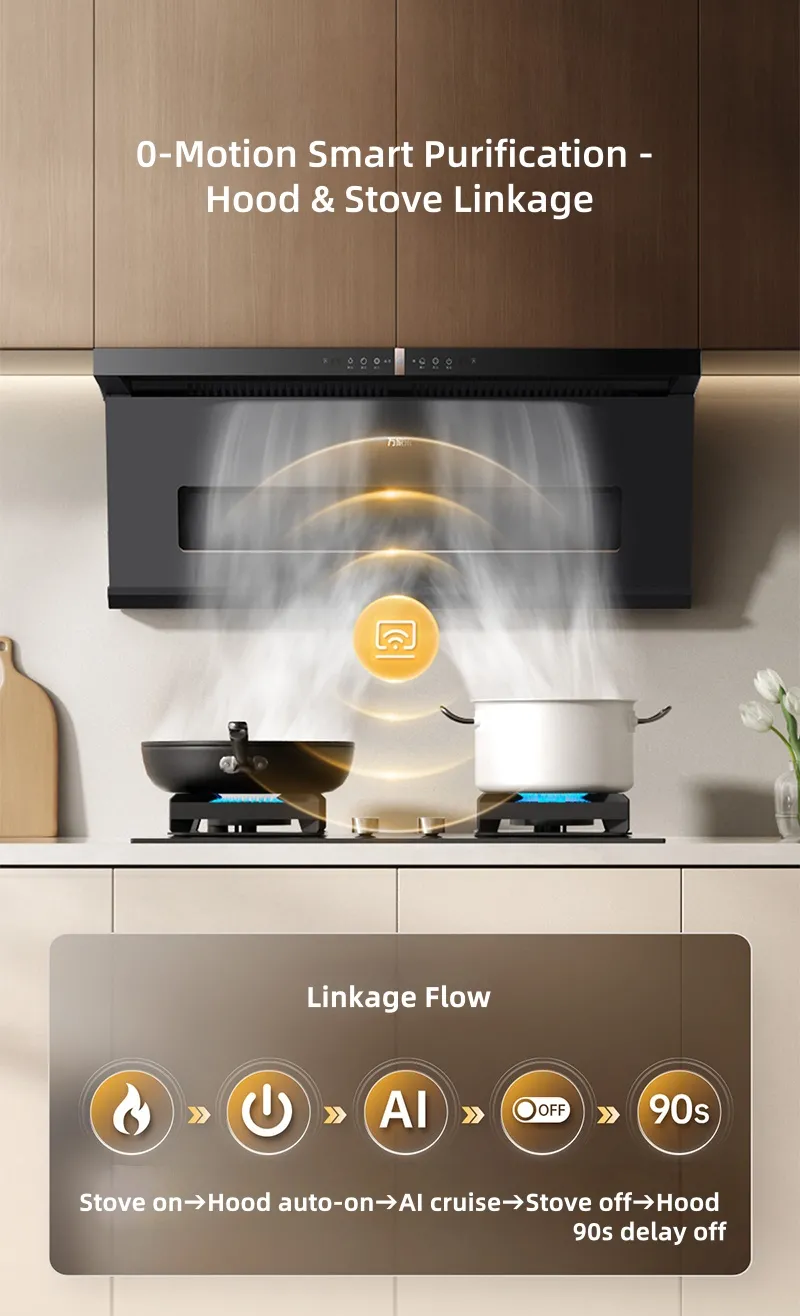

0-Motion Smart Purification - Range Hood & Stove Linkage, No Manual Operation
Smart Linkage:
Stove ignition → Range hood auto-on → Enter AI variable frequency cruise mode → Stove off → Range hood delays 90s to shut down
*Requires pairing with Macro/Comfort linkage gas stove. Consult customer service for models

AI Gesture Control - Zero Touch, No Marks

Swipe right once: Start range hood
Repeat right swipe: Switch 3 air gears
Swipe left once: 90s delay shutdown
Swipe left twice: Turn off range hood
*Long press 【Lighting】+【Power】in shutdown state to enable/disable gesture control

42dB(A) Low - Noise Quiet Suction, Enjoy Cooking and Chatting Happily
Volute Noise - Reduction Air Duct
Shock - Absorbing Noise - Reduction Sealed Motor Shell
Noise - Reduction Structured Impeller

Parameter	Specification	Parameter	Specification
Low - speed Air Volume	10	Total Pressure Efficiency at 7m³/min	28%
Low - speed Semi - anechoic Noise	54dB(A)	Maximum Total Pressure Efficiency	38%
High - speed Air Volume	20	Air Speed Gears	Stir - frying + 2 Gears + Cruise
Nominal Semi - anechoic Noise (A)	63dB(A)	Control Method	Touch, Gesture, Linkage
Maximum Stir - frying Air Volume	25	Air Outlet Diameter (mm)	180
Semi - anechoic Noise during Stir - frying	68dB(A)	Smoke Pipe Length (m)	1.8
Working Air Volume	12	Smoke Pipe Material	Aluminum Foil
Working Noise (A)	70dB(A)	Motor Input Power	320
Constant Suction/Cruise Air Volume	14	Lighting Lamp Power	2W*2
Maximum Static Pressure (Pa)	1000	Net Weight (kg)	23.5kg
Steady - state Odor Reduction	95%	Gross Weight (kg)	28.5kg

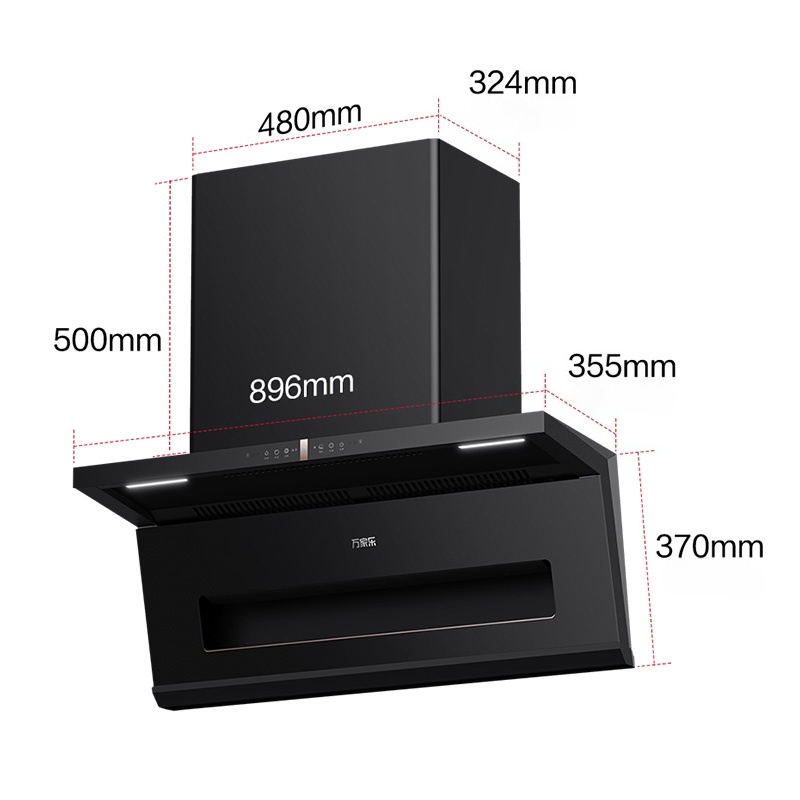

Transient Odor Reduction	60%	Overall Dimensions (mm)	896355870mm
Oil - fat Separation Rate	90%	Baffle Dimensions	480315500mm
Outer Package Dimensions	996419981mm

Frequently Asked Questions

Q: How often should I clean my range hood filters?

A:
Grease filters: Clean every 1-3 months (or monthly for heavy cooking) with hot soapy water or dishwasher.
Charcoal filters (ductless models): Replace every 3-6 months.
Deep cleaning: Schedule professional servicing annually.
Q: Why is my range hood so noisy?

A:
Check for loose parts (tighten screws or mounting brackets).
Clean clogged filters (blocked airflow increases noise).
Lower fan speed if possible; higher speeds are louder.
If noise persists, the motor or fan blades may need repair.
Q: What’s the difference between ducted vs. ductless range hoods?

A:
Ducted: Vents smoke outdoors (more efficient, requires ductwork).
Ductless: Recirculates air through charcoal filters (easier installation, but less effective for heavy cooking).
Tip: Ducted is preferred for gas stoves; ductless suits electric stoves in apartments.
Q: How do I choose the right CFM (power) for my range hood?

A:
Calculate minimum CFM = Stove width (inches) × 10 (e.g., 30" stove → 300 CFM).
Gas stoves: Add 100 CFM for heavy cooking (e.g., stir-frying).
High-end models: 400-900 CFM for professional kitchens.
Q: Why is my range hood not sucking smoke properly?

A:
Common causes:
Clogged filters (clean or replace).
Duct obstructions (check for blockages).
Incorrect installation height (ideal: 24-30" above stove).
Weak motor (upgrade CFM if undersized).
