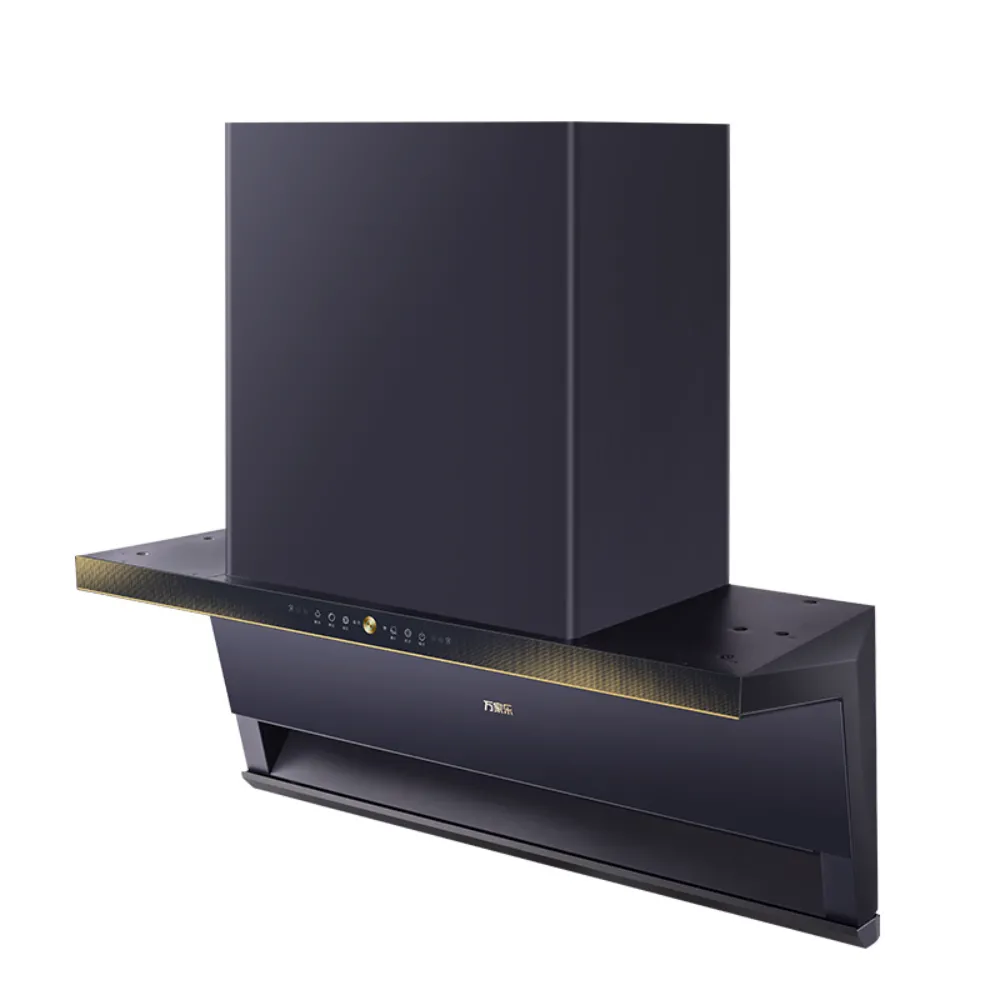

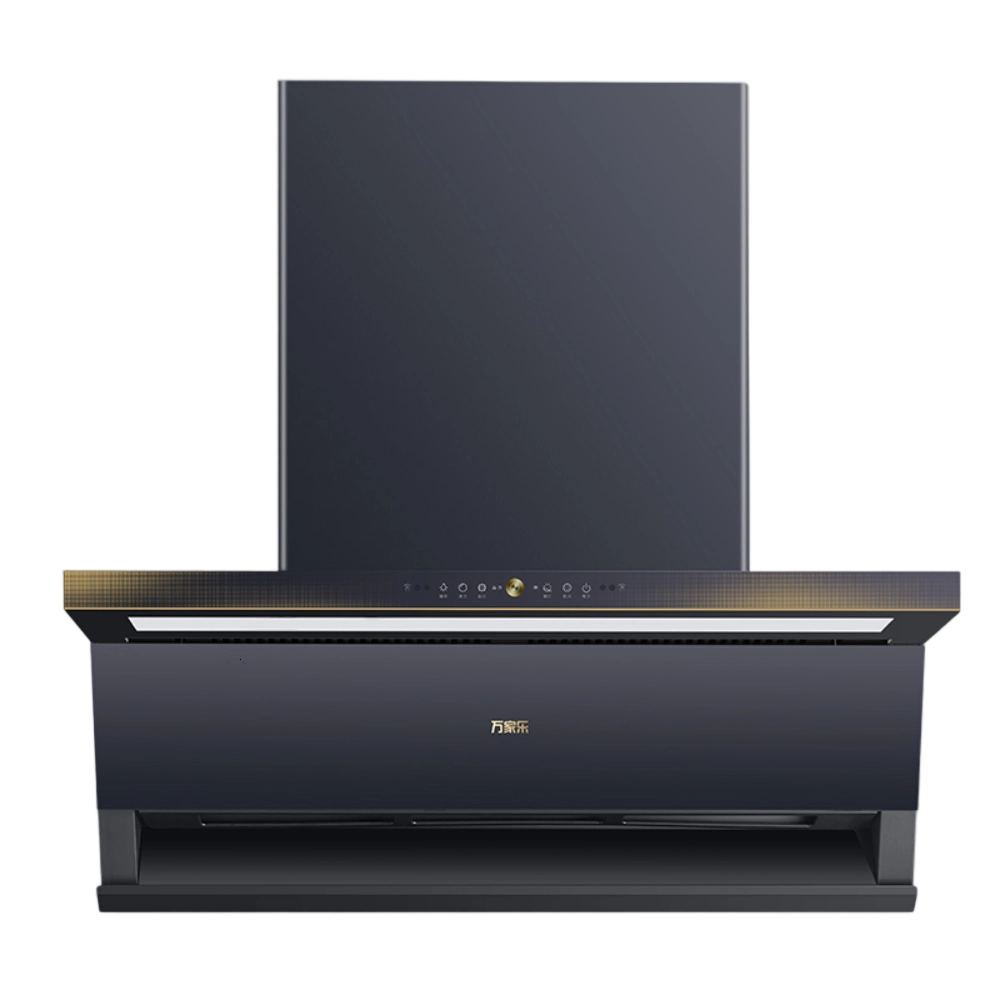

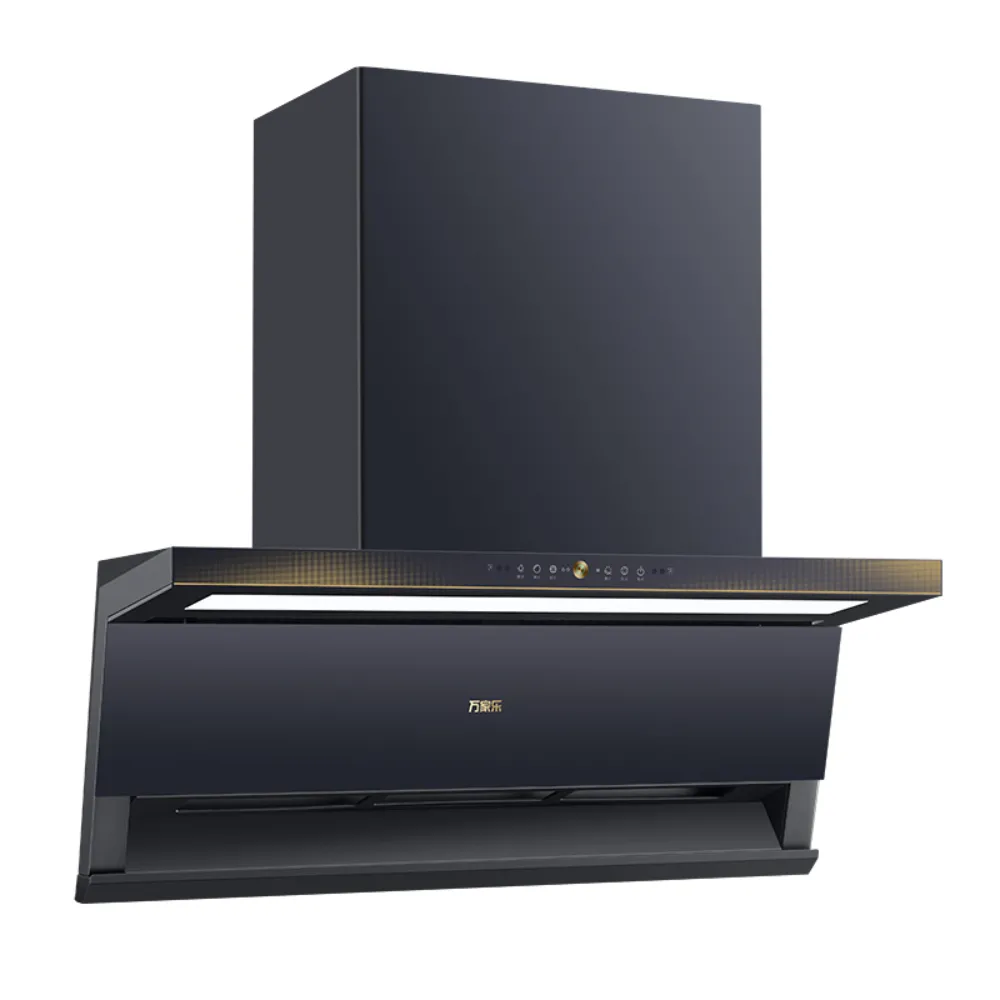

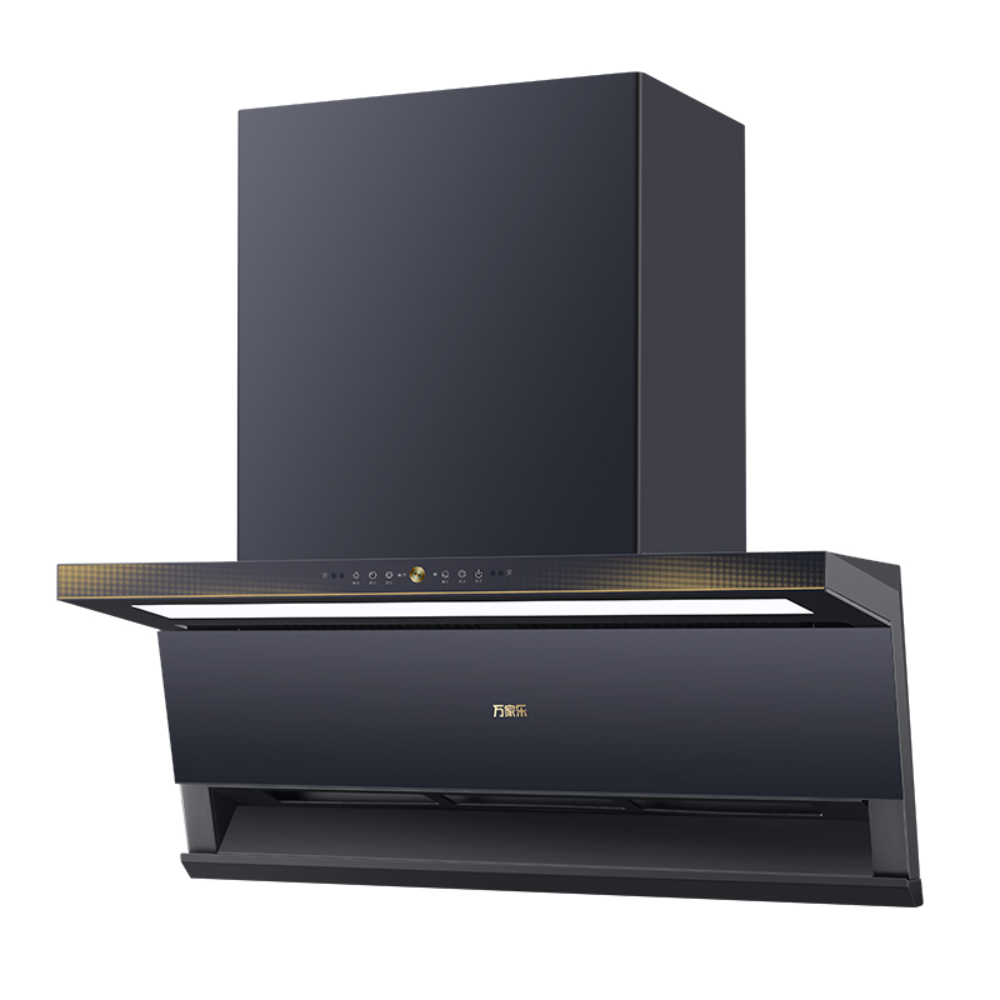

Range Hood CXW-320-F5C1

Ultra-powerful & Low Noise Range Hood

7 Shape series Model: CXW-320-F5C1

Overview Features Frequently Asked Questions You May Also Like

The Range Hood features a top+side suction design for efficient smoke capture, while the nano-coating impeller enables smart self-cleaning for long-lasting performance. Its cruise control function automatically adjusts airflow for optimal ventilation. The front glass panel lifts easily for convenient access.

Additional smart functions include: screen lock (prevents accidental touches during cleaning), oil pour reminder, and delay shut-off timer. With a max airflow of 1700m³/h and low noise at 50dB, it ensures a quiet yet powerful kitchen experience. The touch & gesture controls and three-speed + cruise settings offer effortless operation. Made of galvanized steel spray, it combines durability with sleek design.

Features

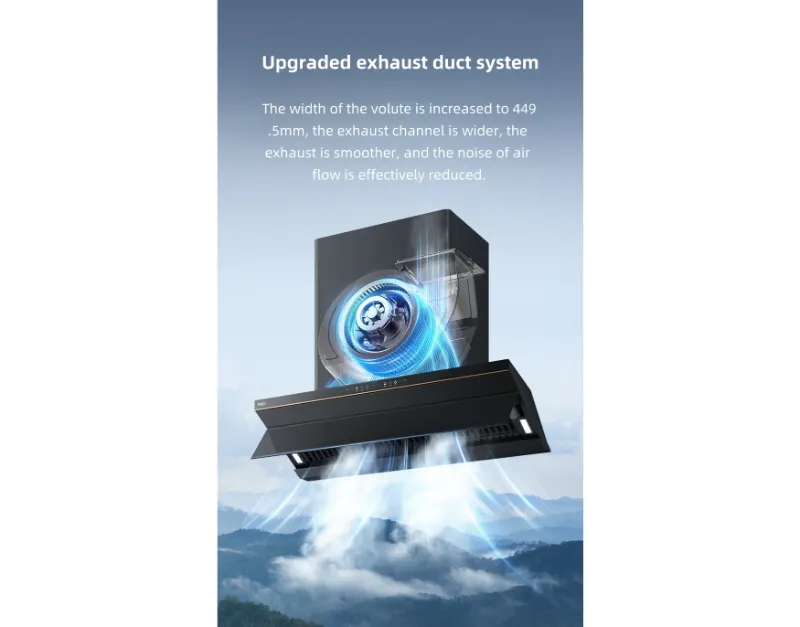

Upgraded exhaust duct system

The width of the volute is increased to 449.5mm, the exhaust channel is wider, the exhaust is smoother, and the noise of air flow is effectively reduced.

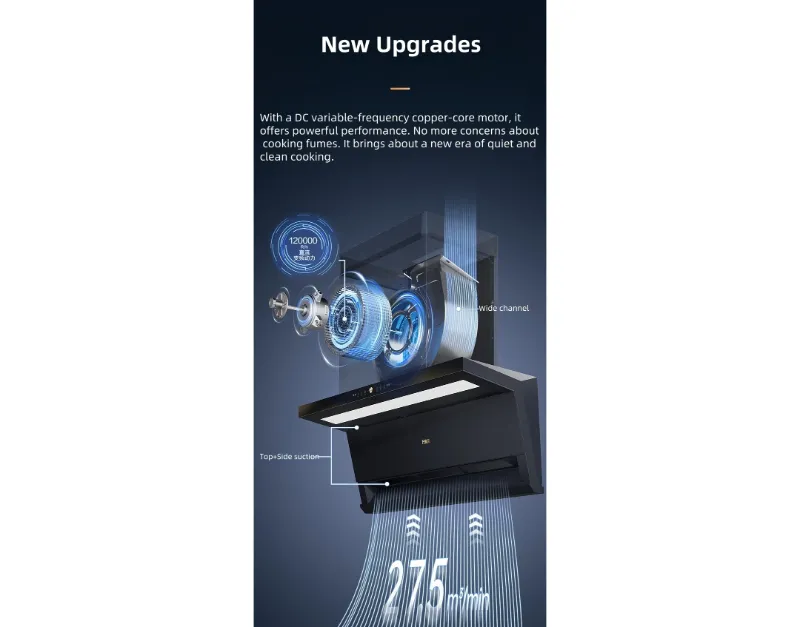

New Upgrades

With a DC variable-frequency copper-core motor, it offers powerful performance. No more concerns about cooking fumes. It brings about a new era of quiet and clean cooking.

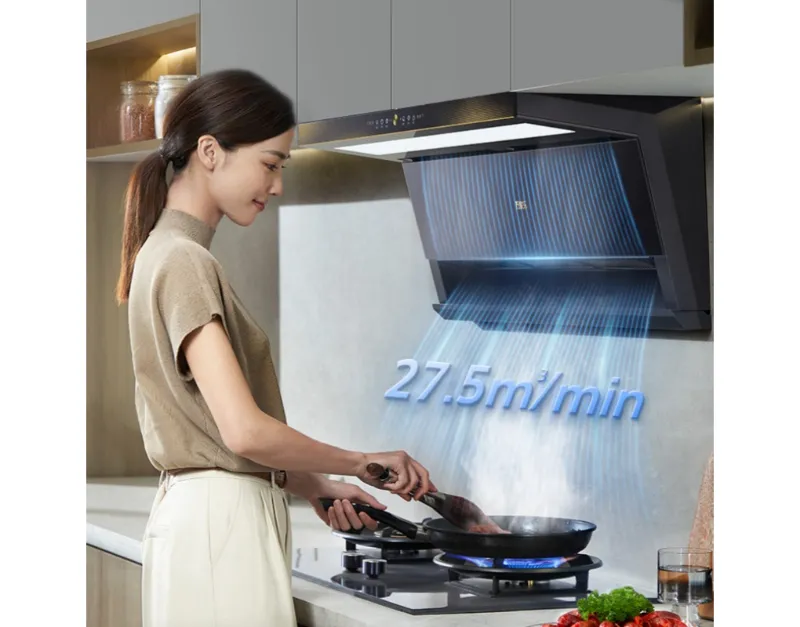

27.5m³/min

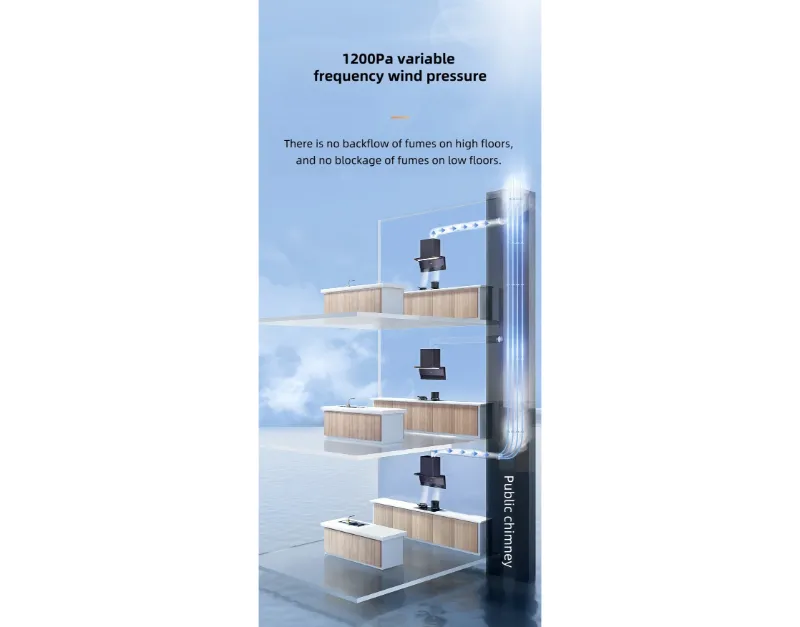

1200Pa variable frequency wind pressure

There is no backflow of fumes on high floors, and no blockage of fumes on low floors.

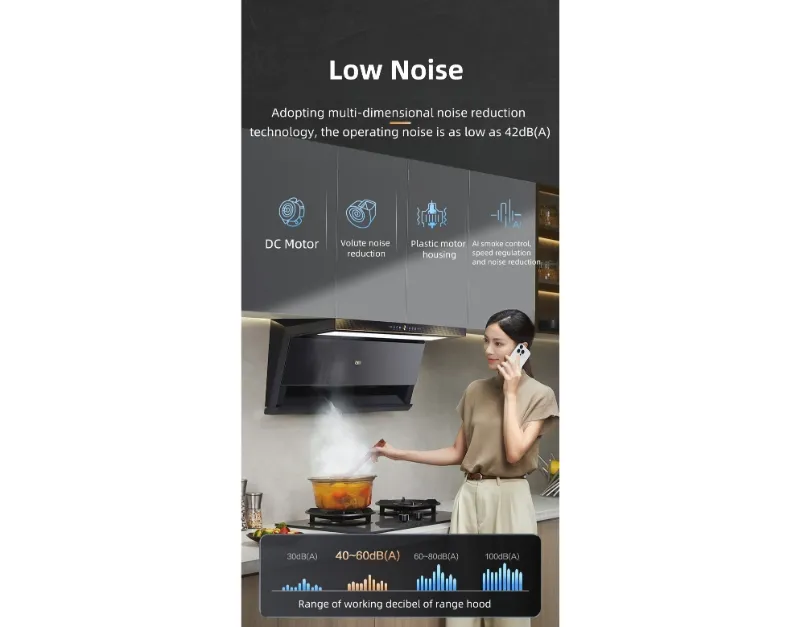

Low Noise

Adopting multi-dimensional noise reduction technology, the operating noise is as low as 42dB(A)

DC Motor

Volute noise reduction

Plastic motor housing

AI smoke control, speed regulation and noise reduction

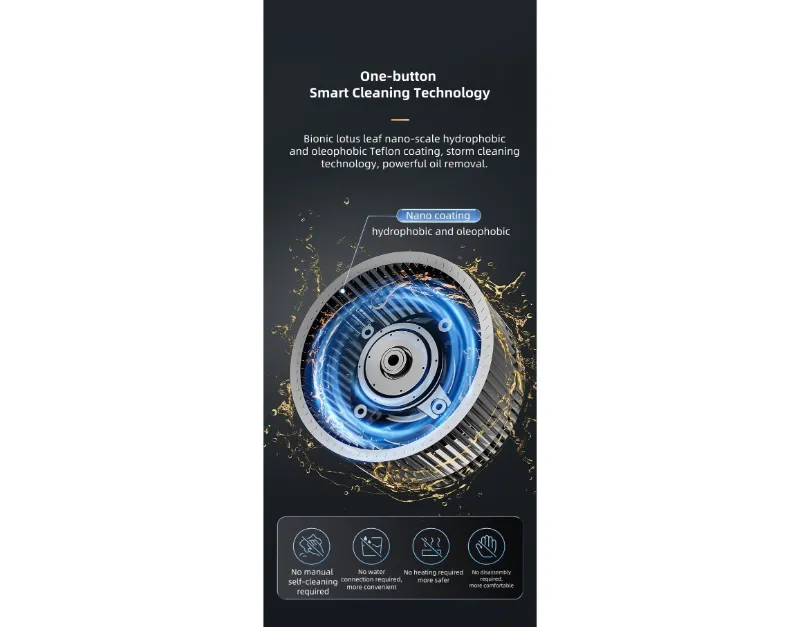

One-button Smart Cleaning Technology

Bionic lotus leaf nano-scale hydrophobic and oleophobic Teflon coating, storm cleaning technology, powerful oil removal.

Nano coating hydrophobic and oleophobic

No manual self-cleaning required

No water connection required, more convenient

No heating required, more safer

No disassembly required, more comfortable

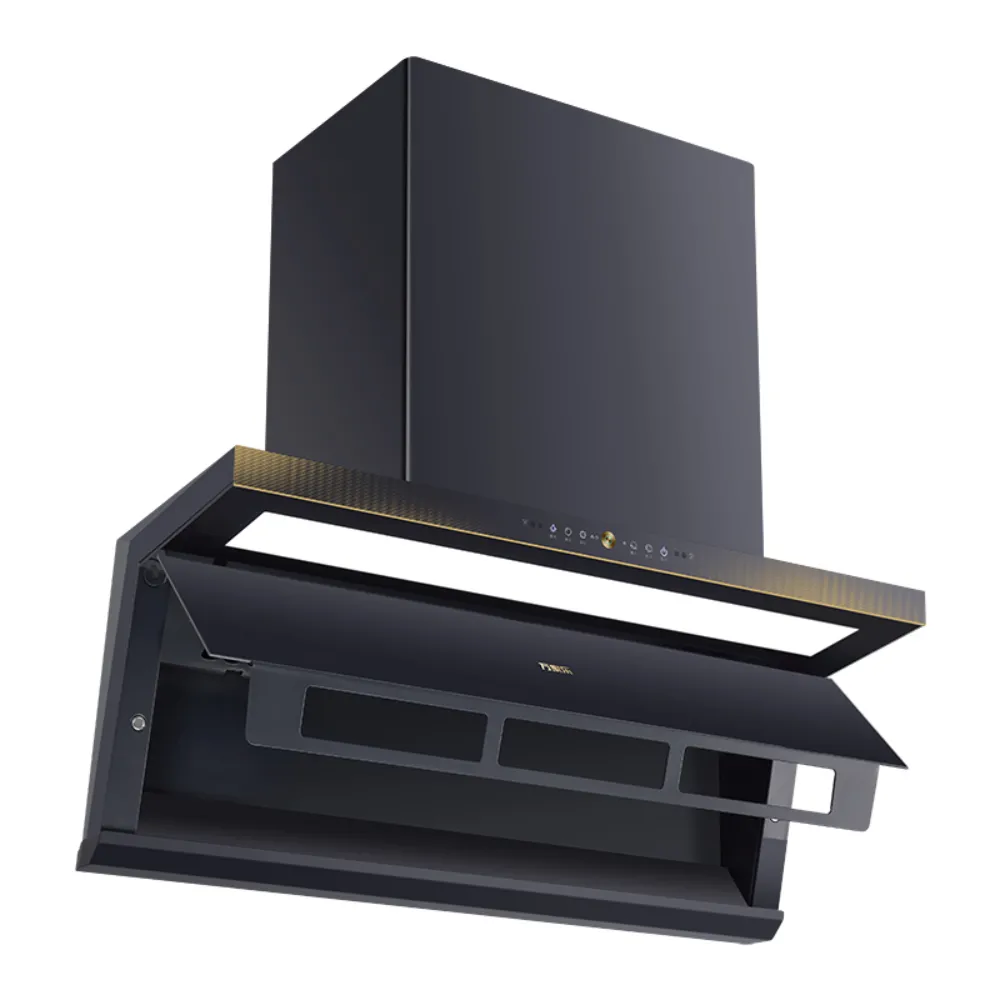

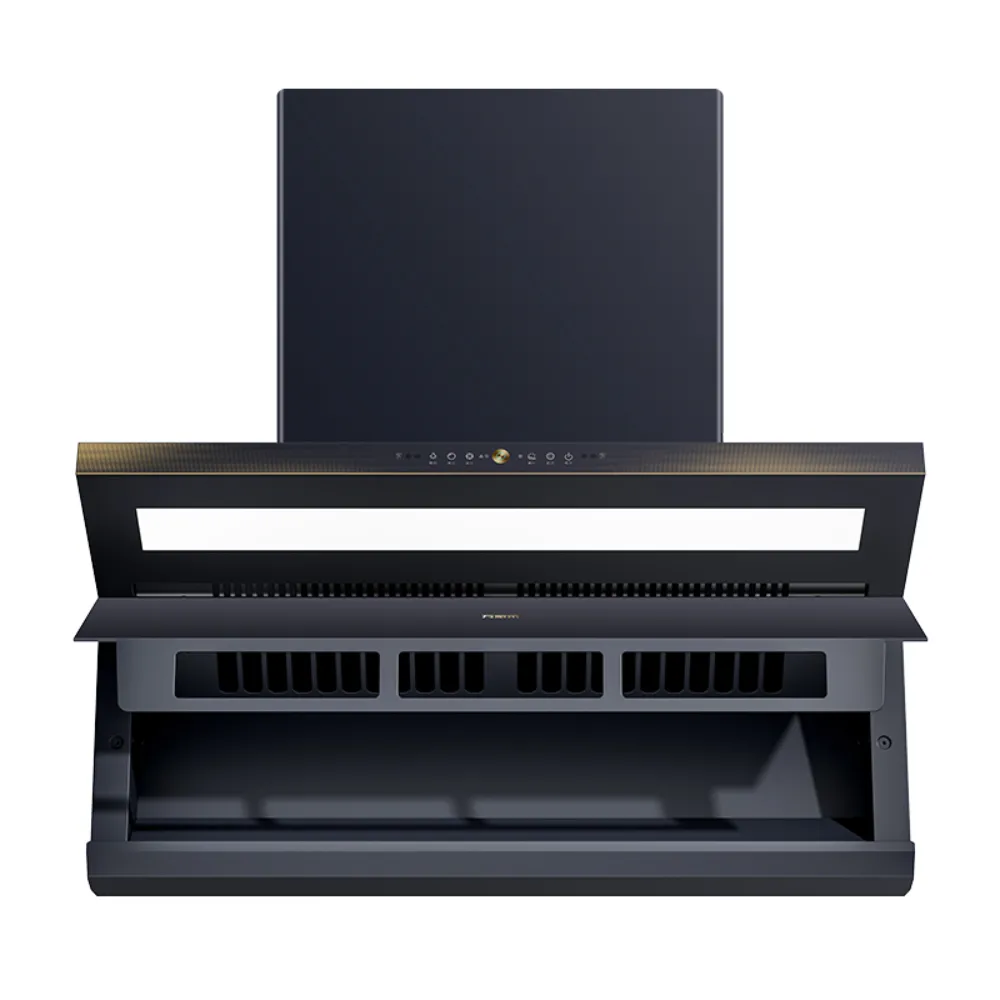

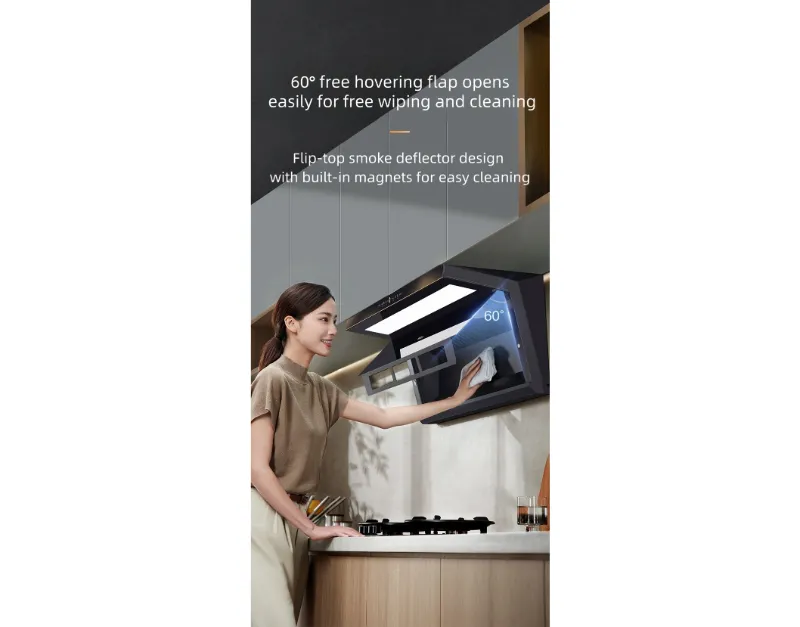

60° free hovering flap opens easily for free wiping and cleaning

Flip-top smoke deflector design with built-in magnets for easy cleaning

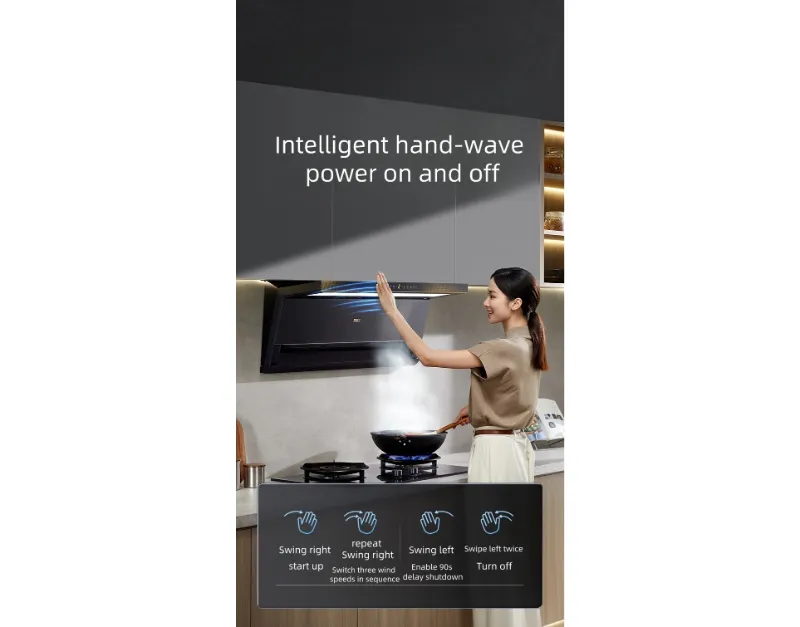

Intelligent hand-wave power on and off

Swing right start up

repeat Swing right Switch three wind speeds in sequence

Swing left Enable 90s delay shutdown

Swipe left twice Turn off

Parameter	Specification	Parameter	Specification
Low - speed Air Volume	10	Panel Material	Toughened Glass
Low - speed Semi - anechoic Noise	54dB(A)	Air Speed Gears	3 Gears + Cruise
High - speed Air Volume	20	Control Method	Touch, Gesture, Linkage
Semi - anechoic Noise (Nominal) (A)	64dB(A)	Air Outlet Diameter (mm)	180
Max Stir - frying Air Volume	27.5	Smoke Pipe Length (m)	1.8
Stir - frying Semi - anechoic Noise	68dB(A)	Smoke Pipe Material	Aluminum Foil
Working Air Volume	12	Motor Input Power	320
Working Noise (A)	70dB(A)	Lighting Power	10
Maximum Static Pressure (Pa)	1200Pa	Net Weight (kg)	27.5kg
Total Pressure Efficiency at 7m³/min	30%	Gross Weight (kg)	32.5kg
Maximum Total Pressure Efficiency	40%	Overall Dimensions (mm)	896355870mm
Main Body Material	Galvanized Sheet with Powder Coating	Baffle Dimensions	480×315×500
Outer Package Dimensions	996419981mm

Frequently Asked Questions

Q: How often should I clean my range hood filters?

A:
Grease filters: Clean every 1-3 months (or monthly for heavy cooking) with hot soapy water or dishwasher.
Charcoal filters (ductless models): Replace every 3-6 months.
Deep cleaning: Schedule professional servicing annually.
Q: Why is my range hood so noisy?

A:
Check for loose parts (tighten screws or mounting brackets).
Clean clogged filters (blocked airflow increases noise).
Lower fan speed if possible; higher speeds are louder.
If noise persists, the motor or fan blades may need repair.
Q: What’s the difference between ducted vs. ductless range hoods?

A:
Ducted: Vents smoke outdoors (more efficient, requires ductwork).
Ductless: Recirculates air through charcoal filters (easier installation, but less effective for heavy cooking).
Tip: Ducted is preferred for gas stoves; ductless suits electric stoves in apartments.
Q: How do I choose the right CFM (power) for my range hood?

A:
Calculate minimum CFM = Stove width (inches) × 10 (e.g., 30" stove → 300 CFM).
Gas stoves: Add 100 CFM for heavy cooking (e.g., stir-frying).
High-end models: 400-900 CFM for professional kitchens.
Q: Why is my range hood not sucking smoke properly?

A:
Common causes:
Clogged filters (clean or replace).
Duct obstructions (check for blockages).
Incorrect installation height (ideal: 24-30" above stove).
Weak motor (upgrade CFM if undersized).
