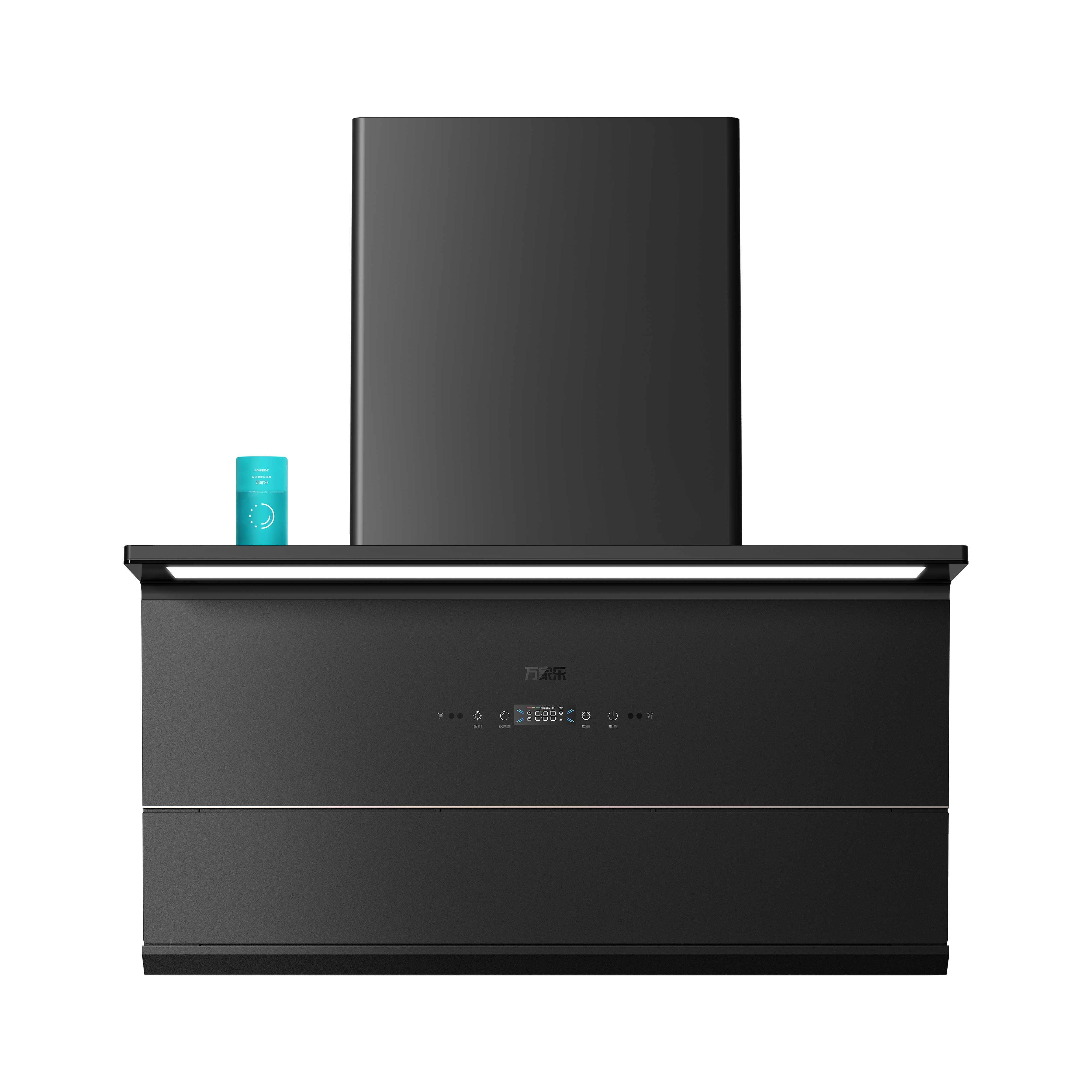

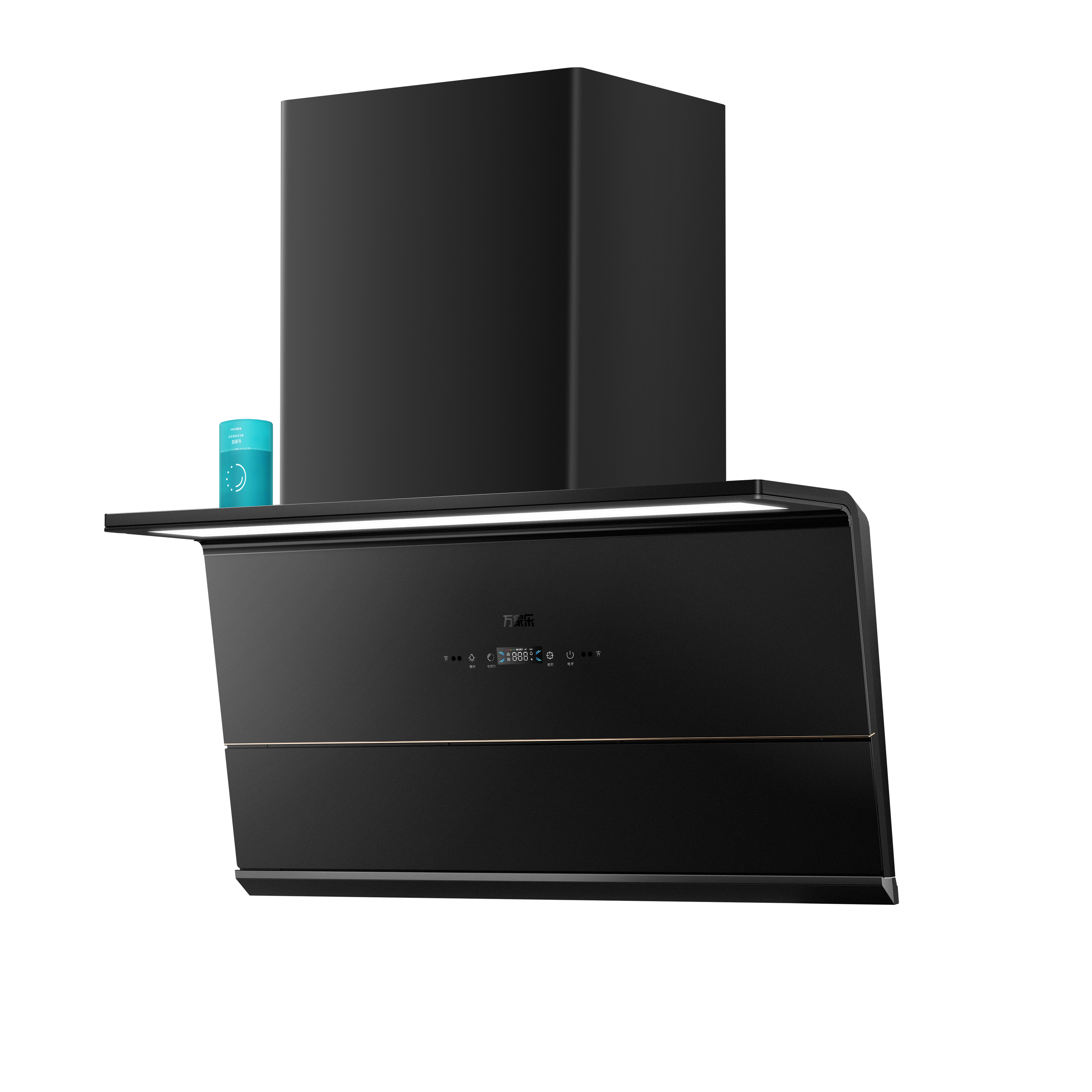

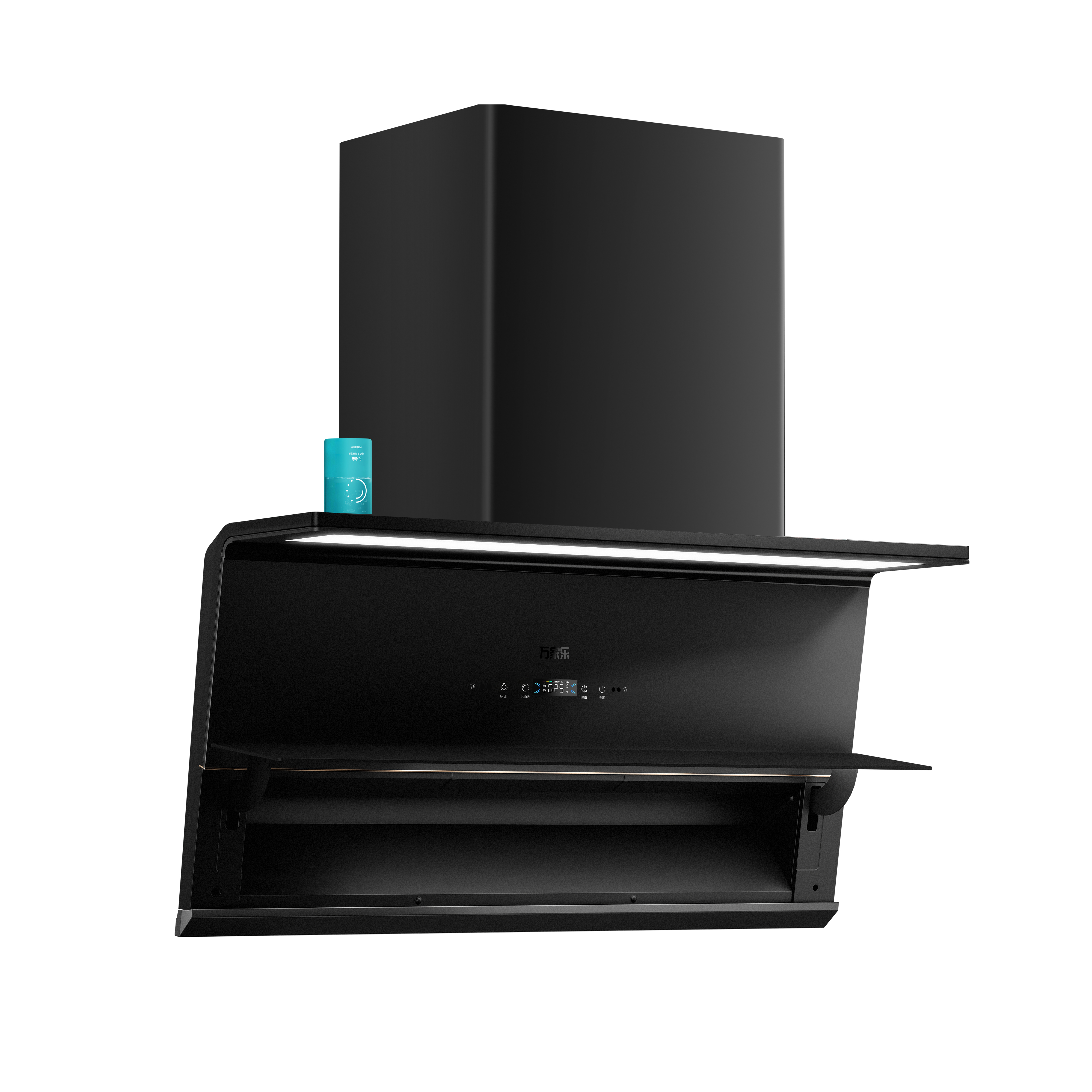

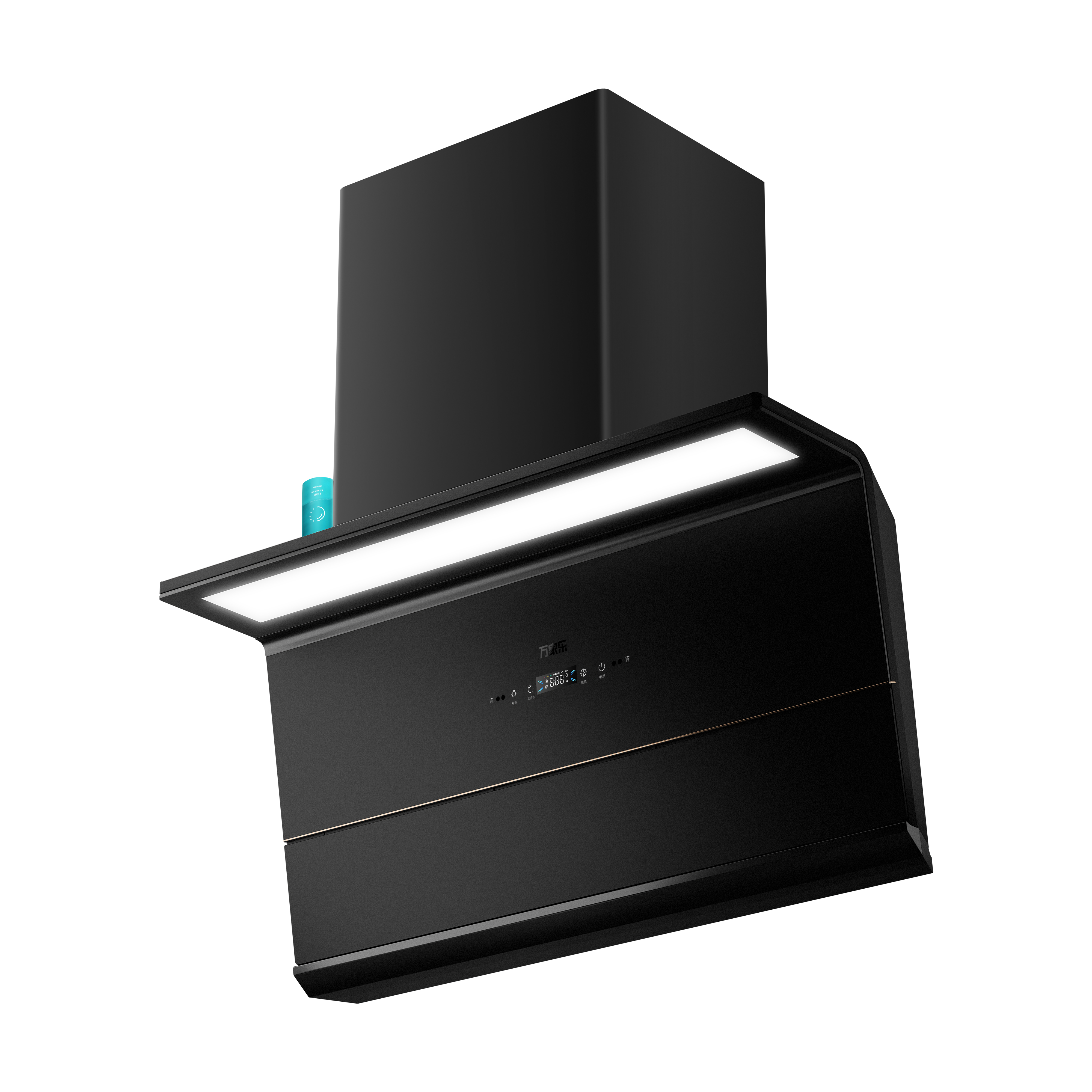

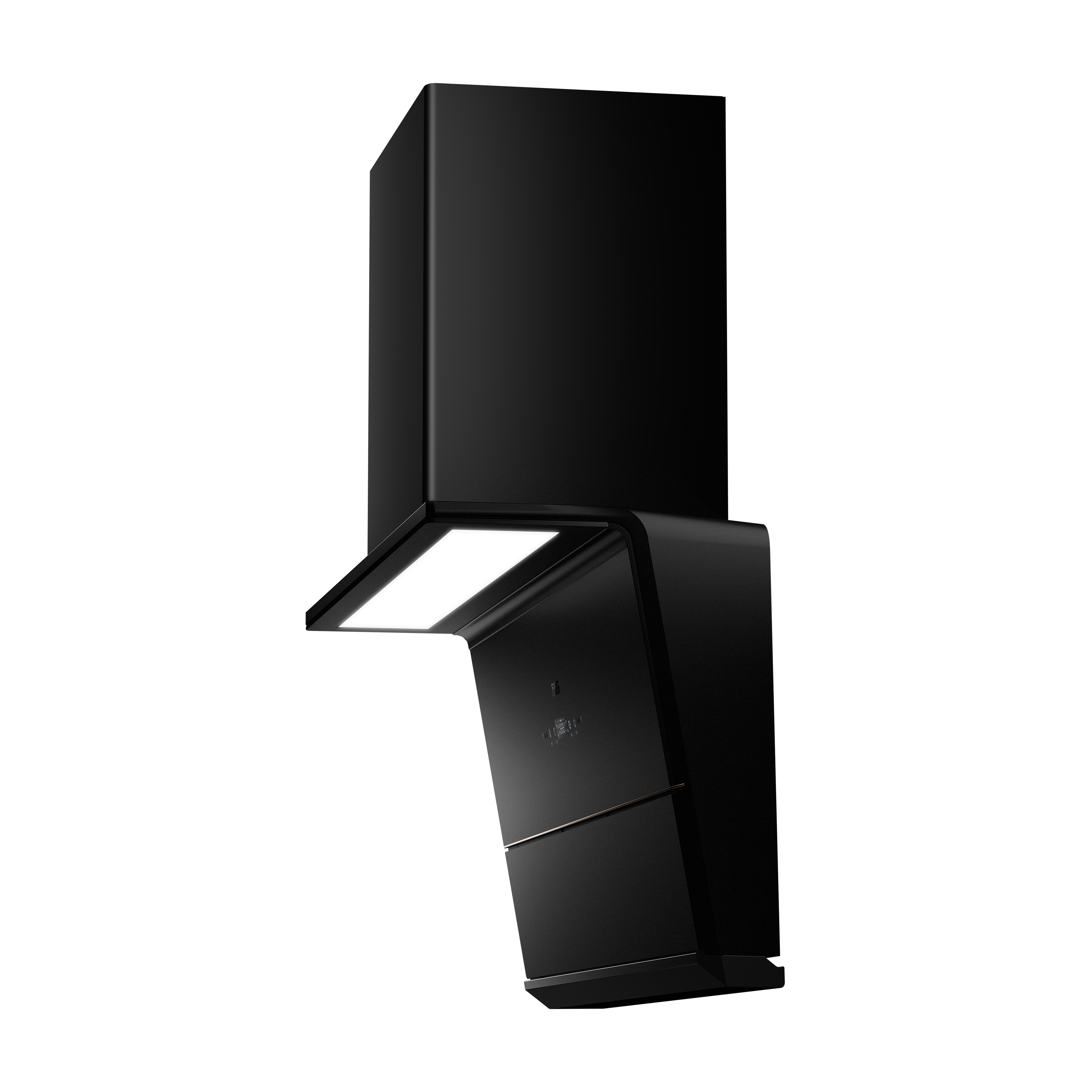

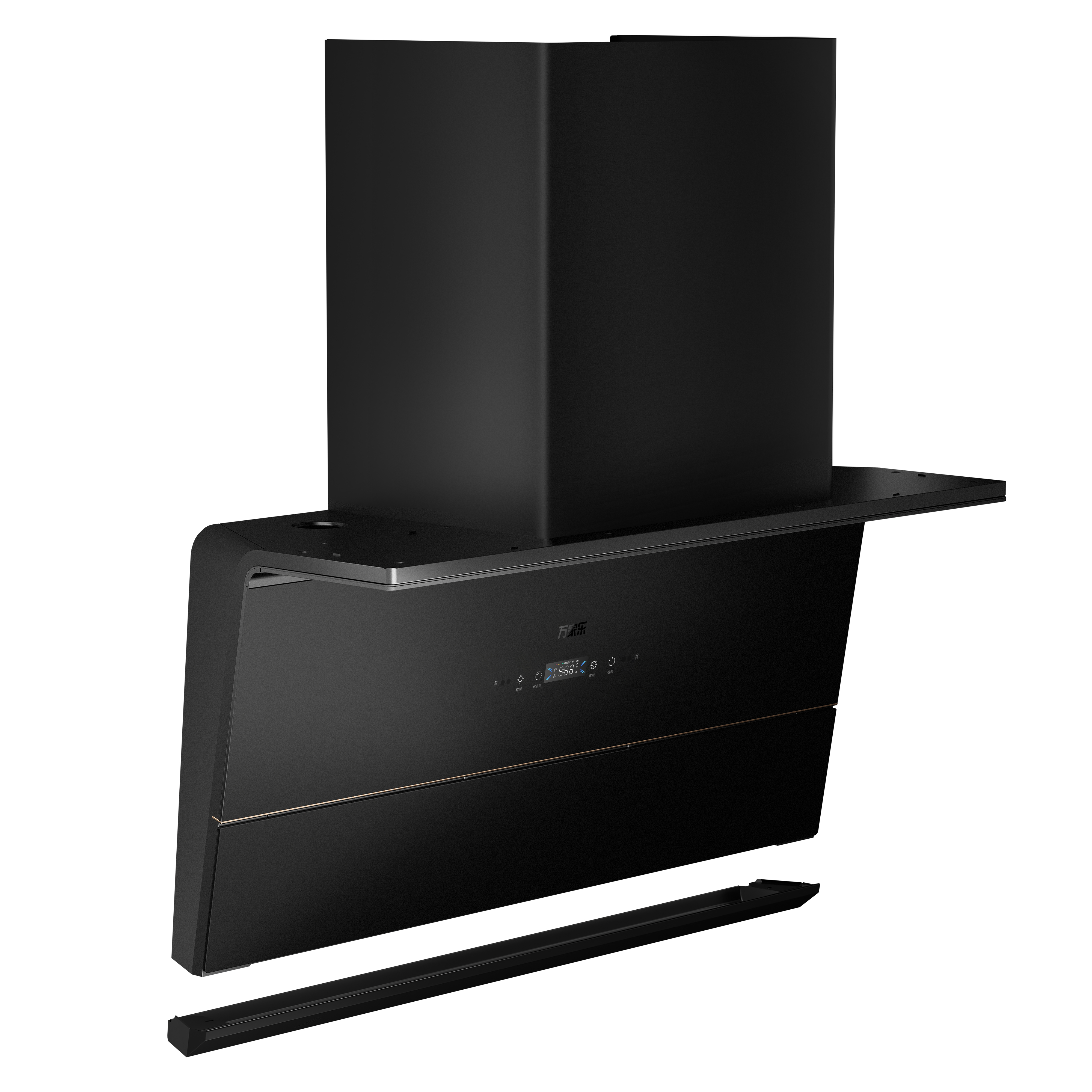

Range Hood CXW-320-W6C2

Custom Super Suction Smart Range Hood for Home and Hotel Low Decibel Top/Side Exhaust Automatic Cleaning No Noise

7 Shape series Model: CXW-320-W6C2

Overview Features Frequently Asked Questions You May Also Like

This range hood features a stylish phantom seamless matte appearance. With 28m³/min strong suction, 1100Pa max static pressure, and a four - stage pressurization system, it efficiently exhausts oil fume even during fierce stir - frying. Ultra - thin and flush - mounted, it doesn’t block views or bump heads. Equipped with super bubble oil - dissolving cleaning, variable frequency cruise, and intelligent linkage, it ensures long - lasting power and automatic operation. Low - altitude close suction, 41dB low noise, wide - frequency lighting, and an oil pouring reminder make cooking immersive and convenient.

Features

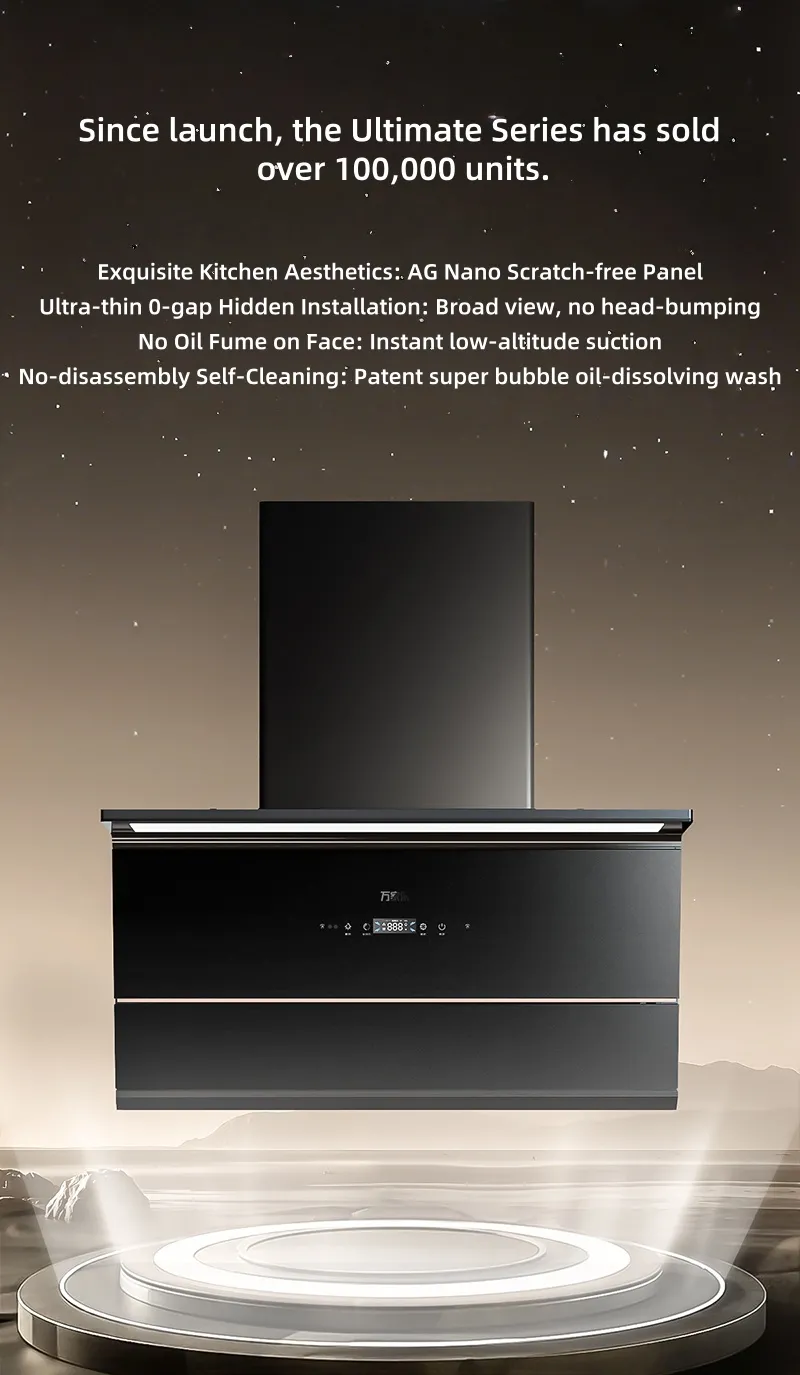

Since launch, the Ultimate Series has sold over 100,000 units.

Exquisite Kitchen Aesthetics: AG Nano Scratch-free Panel
Ultra-thin 0-gap Hidden Installation: Broad view, no head-bumping
No Oil Fume on Face: Instant low-altitude suction
No-disassembly Self-Cleaning: Patent super bubble oil-dissolving wash

Annual best-seller fully upgraded for ultimate experience.

Appearance: Flush installation, skin-friendly texture
Smoke Purification: Intelligent instant suction, 12% higher hurricane suction (28m³/min), 5% higher wind pressure (1100Pa)

Cleanliness: Super bubble oil wash + AG nano scratch-free panel
Experience: Zero-motion smoke purification, low-noise cooking

Macro/Comfort Ultimate JOY Series・Ultra - thin Smoke Purifier W6C2

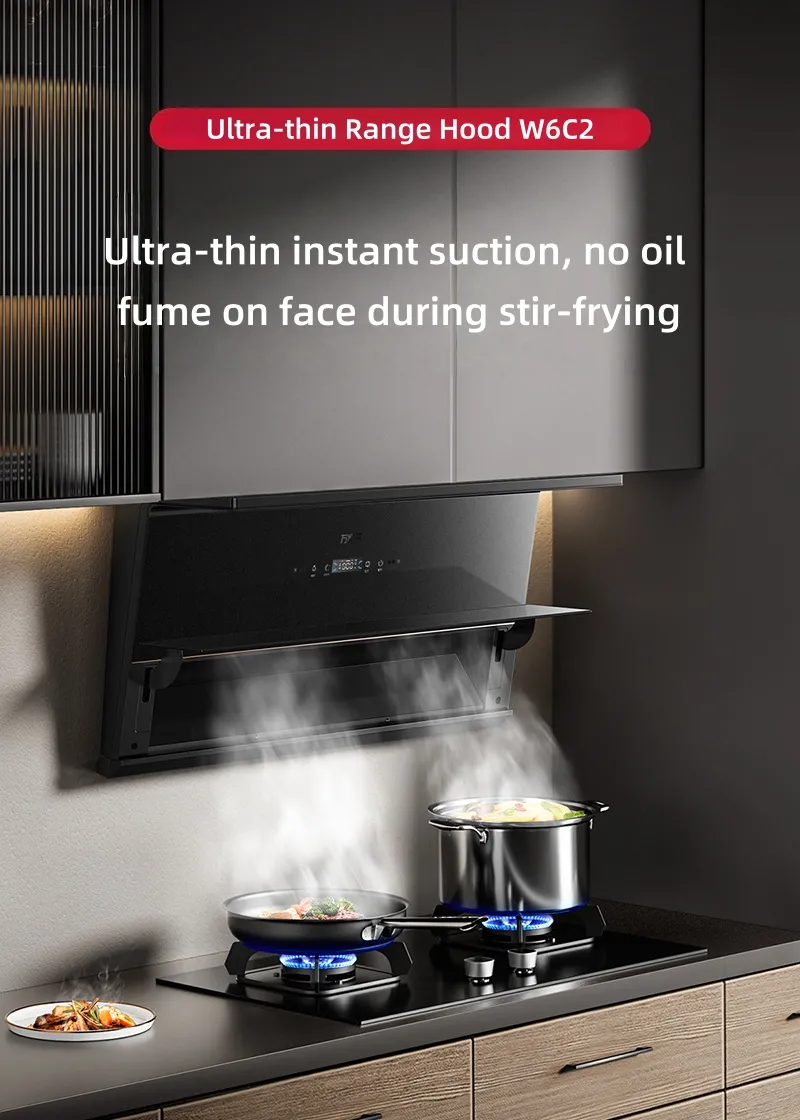

Ultra - thin Instant Suction, No Stir - frying Oil Fume on the Face

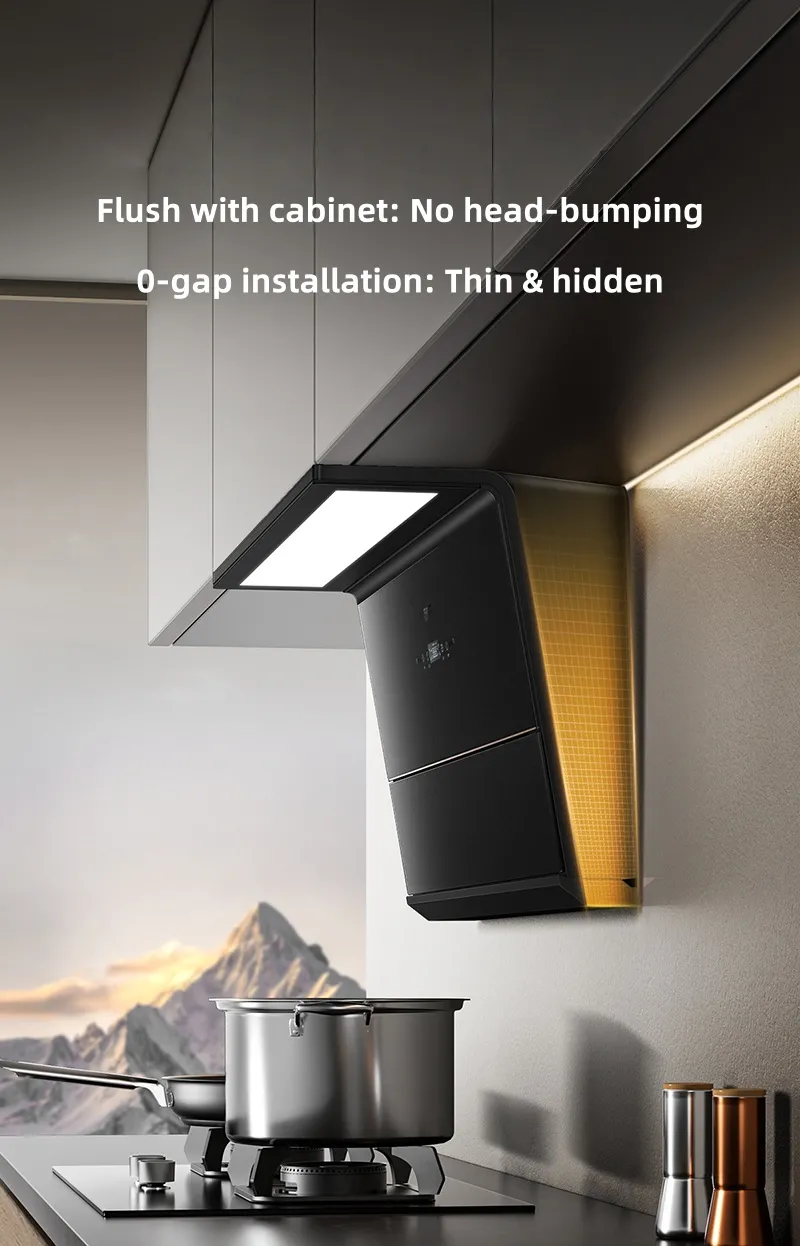

Ultra - thin 0 - Gap Flush Installation - Broaden Kitchen View
Flush with Cabinet - No Head - bumping
0 - Gap Installation - Thin and Hidden
Installation Instructions

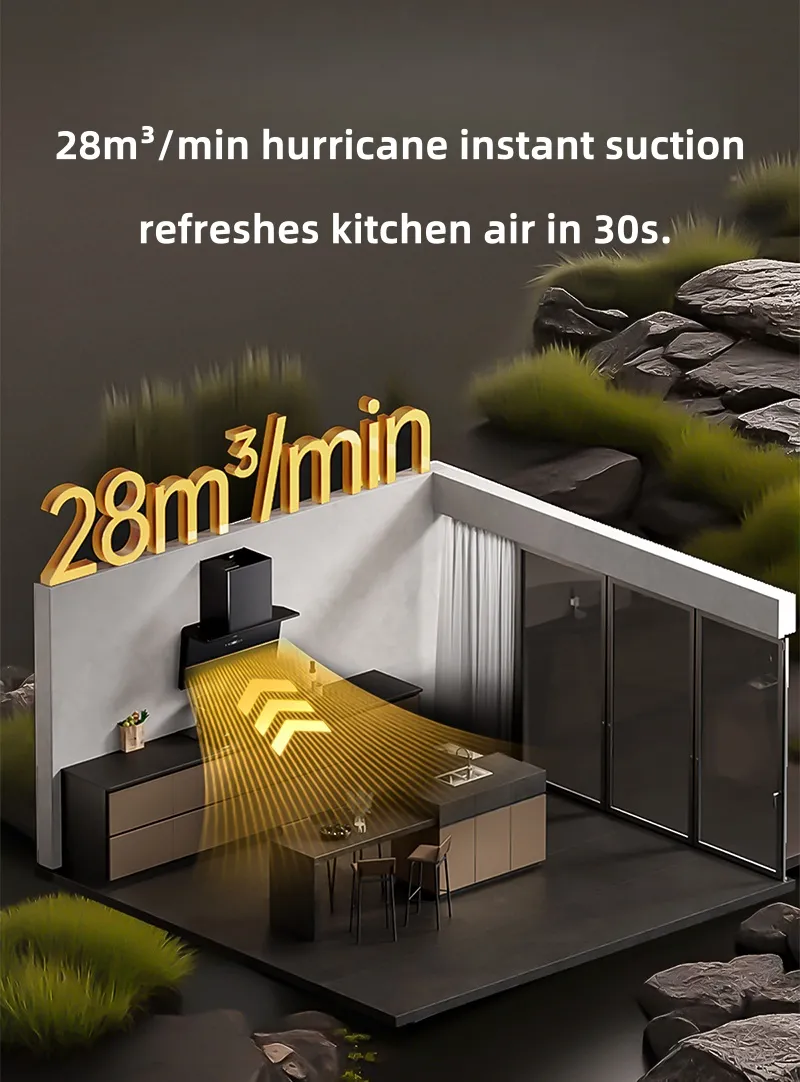

28m³/min Hurricane Instant Suction - Refresh Kitchen Air in 30s
① Data calculated based on a standard kitchen of 6m² and a floor height of 2.4m: 6×2.4/28 = 0.5min. The actual air refresh time varies according to the kitchen area and floor height.
② 28m³/min refers to the operating air volume of the range hood during stir - frying.
③ The above data is from the Macro/Comfort Laboratory.

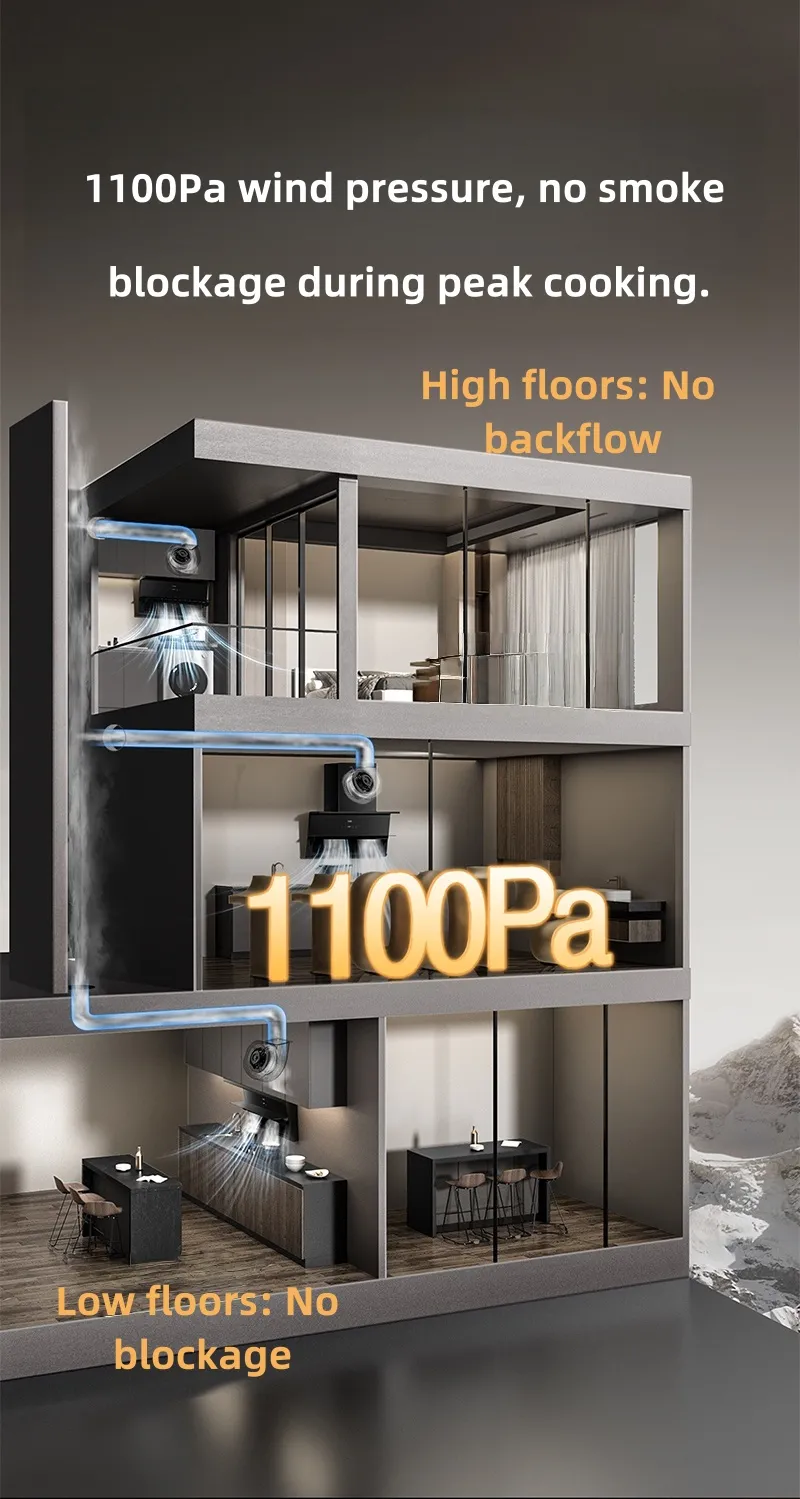

1100Pa Wind Pressure - No Smoke Blockage, Fresh Cooking During Peak Hours
No Smoke Blockage on Low Floors
No Backflow on High Floors

Patent Super Bubble Oil - dissolving Wash - Hand - wash - like Cleanliness, Long - lasting Strong Suction
Bacteriostasis Rate 99.9%

Swipe Right Once - Start the Range Hood
Repeat Swiping Right - Switch Three Air Volume Gears in Turn
Swipe Left Once - Turn on 90s [Delay Shutdown]
Swipe Left Twice - Turn off the Range Hood
Large Suction, Low Noise - Comfortable Cooking Without Disturbance

Noise Level as Low as 41dB(A)
Nine Major Noise - Reduction Technologies
1 Program for Noise Reduction
2 Major Noise - Reduction Materials - Sound - absorbing Cotton, Saw - toothed Impeller Imitating Aircraft Tail
6 Structural Optimizations - Motor Noise Reduction, Double - layer Wind Wheel, Bionic Volute Air Duct, Diffuser Design, Precision Assembly, Figure - eight Air - guiding Design
Thoughtful Detail Design - Enjoy a Clean Kitchen

Parameter	Specification	Parameter	Specification
Low - speed Air Volume	11	Maximum Static Pressure (Pa)	1100
Low - speed Semi - anechoic Noise	53dB(A)	Steady - state Odor Reduction	95%
High - speed Air Volume	20	Transient Odor Reduction	60%
Nominal Semi - anechoic Noise (A)	65dB(A)	Oil - fat Separation Rate	90%
Maximum Stir - frying Air Volume	28	Total Pressure Efficiency at 7m³/min	31%
Working Air Volume	12	Maximum Total Pressure Efficiency	40%
Working Noise (A)	68dB(A)	Air Speed Gears	3 Gears + Cruise
Constant Suction/Cruise Air Volume	17	Control Method	Linkage, Gesture, Touch
Overall Dimensions (mm)	896920356mm	Air Outlet Diameter (mm)	180
Baffle Dimensions	420324500 (Including Foot Pads)	Smoke Pipe Length (m)	1.8
Outer Package Dimensions	9601030413mm	Smoke Pipe Material	Aluminum Foil
Net Weight (kg)	27.5	Motor Input Power	320
Gross Weight (kg)	32.5	Lighting Lamp Power	10

Frequently Asked Questions

Q: How often should I clean my range hood filters?

A:
Grease filters: Clean every 1-3 months (or monthly for heavy cooking) with hot soapy water or dishwasher.
Charcoal filters (ductless models): Replace every 3-6 months.
Deep cleaning: Schedule professional servicing annually.
Q: Why is my range hood so noisy?

A:
Check for loose parts (tighten screws or mounting brackets).
Clean clogged filters (blocked airflow increases noise).
Lower fan speed if possible; higher speeds are louder.
If noise persists, the motor or fan blades may need repair.
Q: What’s the difference between ducted vs. ductless range hoods?

A:
Ducted: Vents smoke outdoors (more efficient, requires ductwork).
Ductless: Recirculates air through charcoal filters (easier installation, but less effective for heavy cooking).
Tip: Ducted is preferred for gas stoves; ductless suits electric stoves in apartments.
Q: How do I choose the right CFM (power) for my range hood?

A:
Calculate minimum CFM = Stove width (inches) × 10 (e.g., 30" stove → 300 CFM).
Gas stoves: Add 100 CFM for heavy cooking (e.g., stir-frying).
High-end models: 400-900 CFM for professional kitchens.
Q: Why is my range hood not sucking smoke properly?

A:
Common causes:
Clogged filters (clean or replace).
Duct obstructions (check for blockages).
Incorrect installation height (ideal: 24-30" above stove).
Weak motor (upgrade CFM if undersized).
