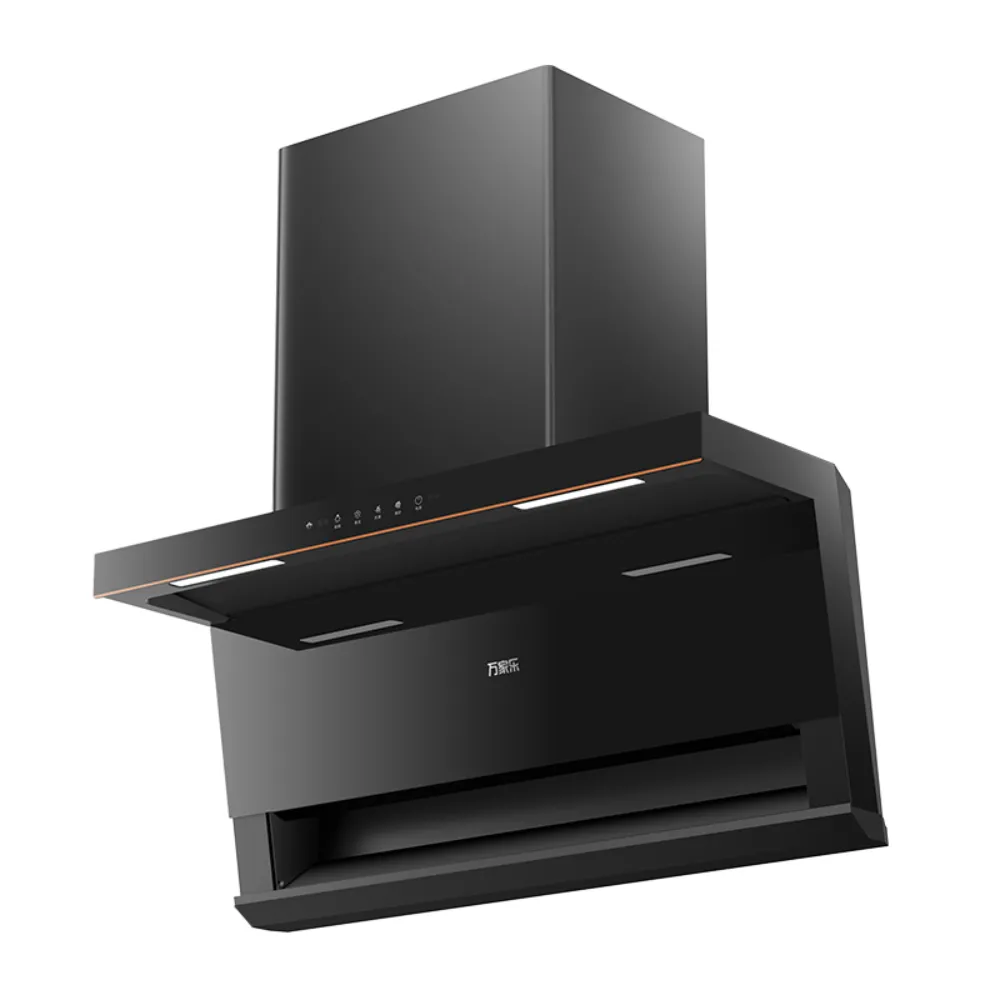

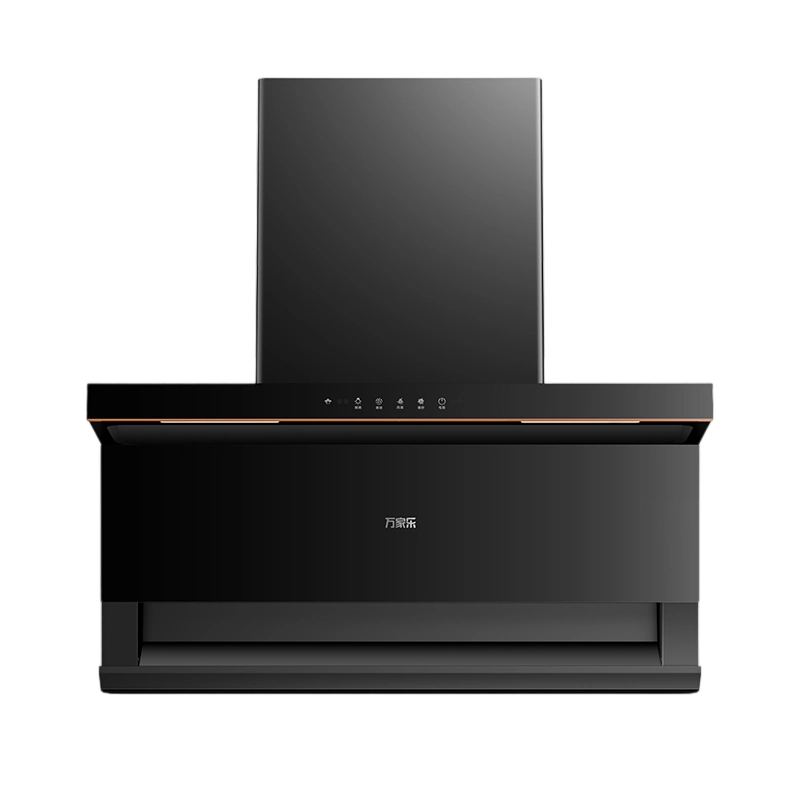

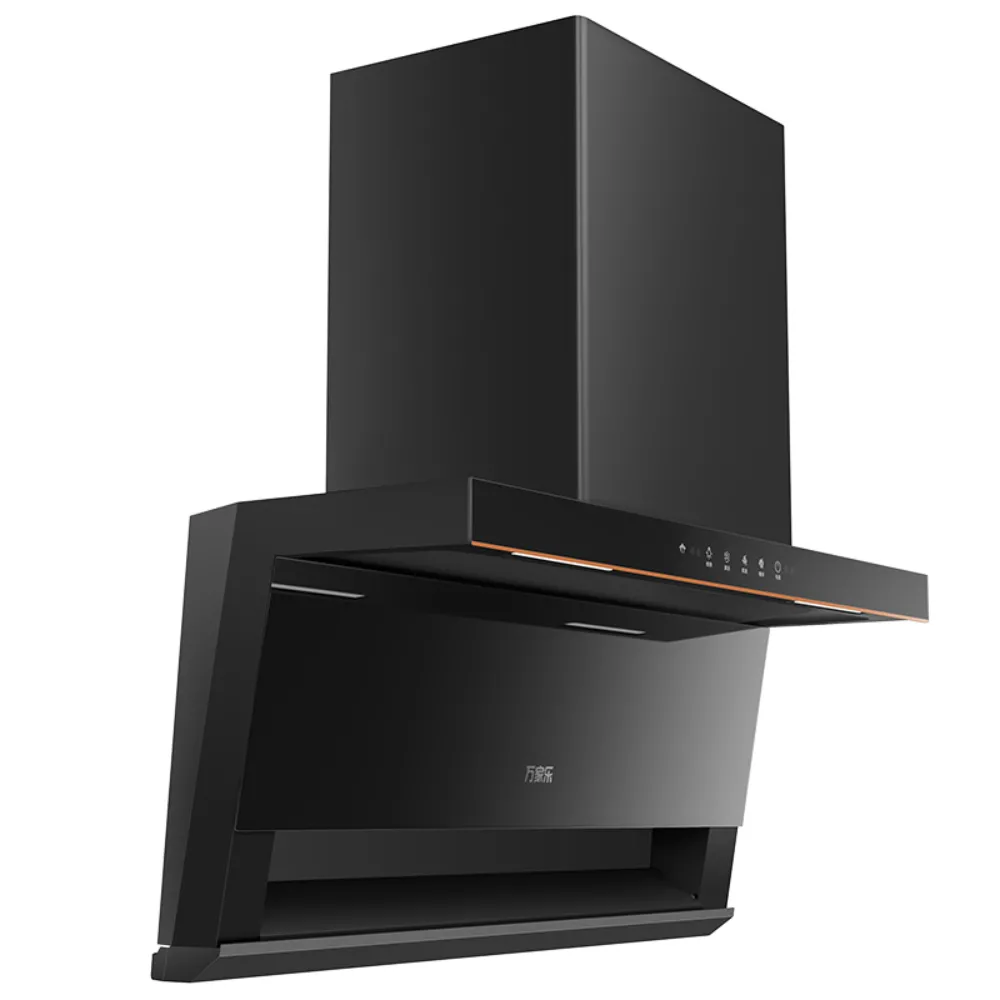

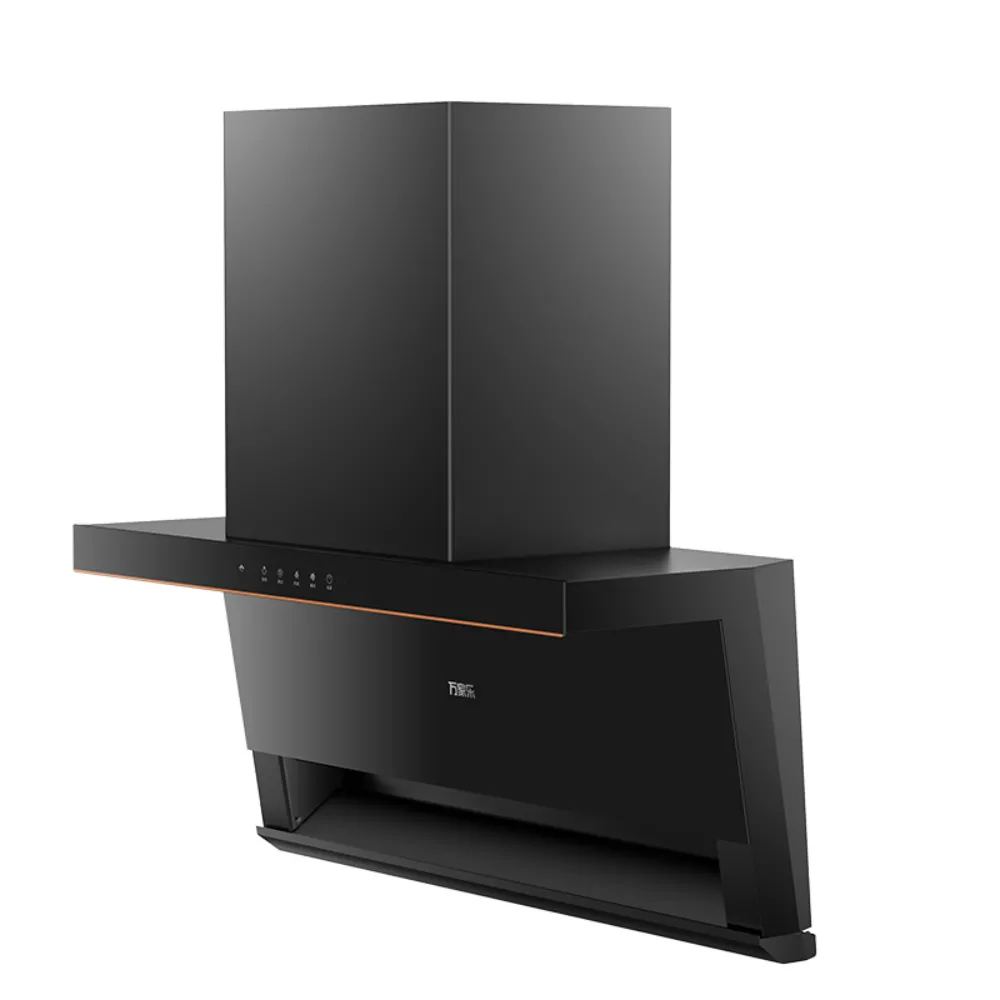

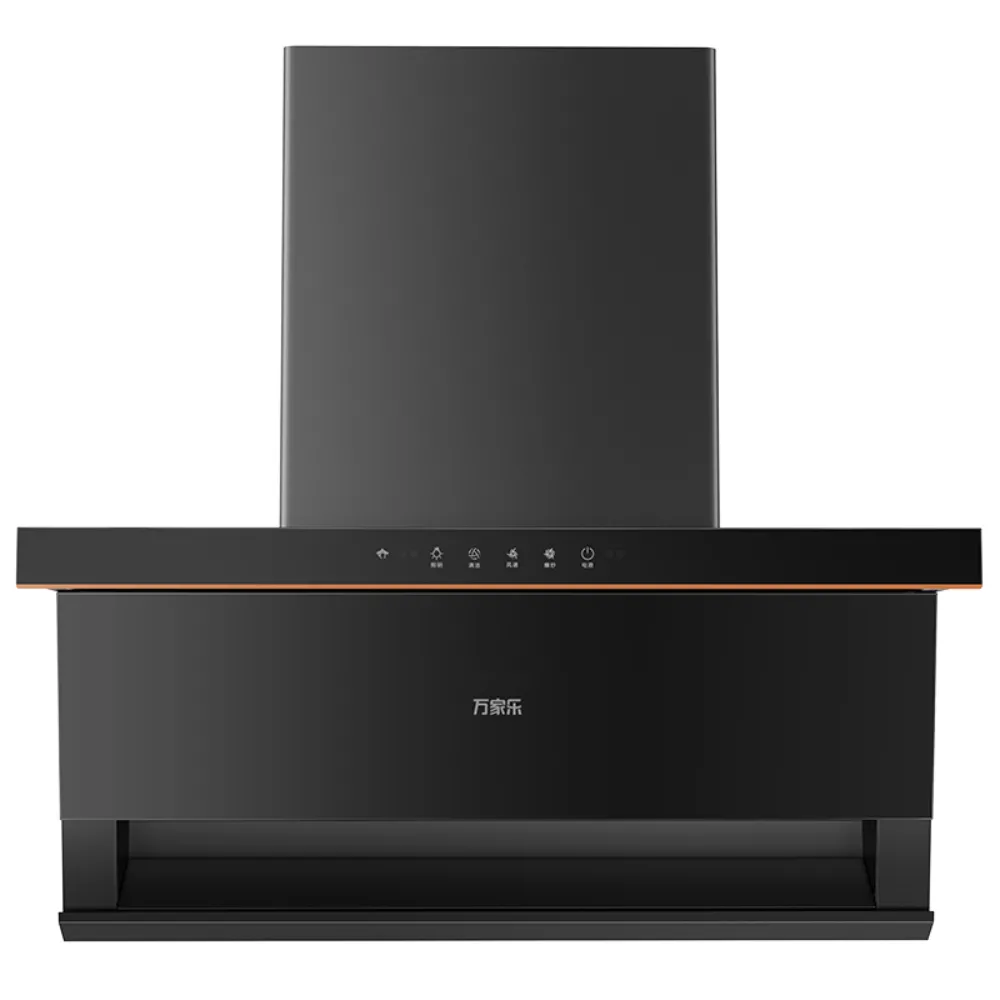

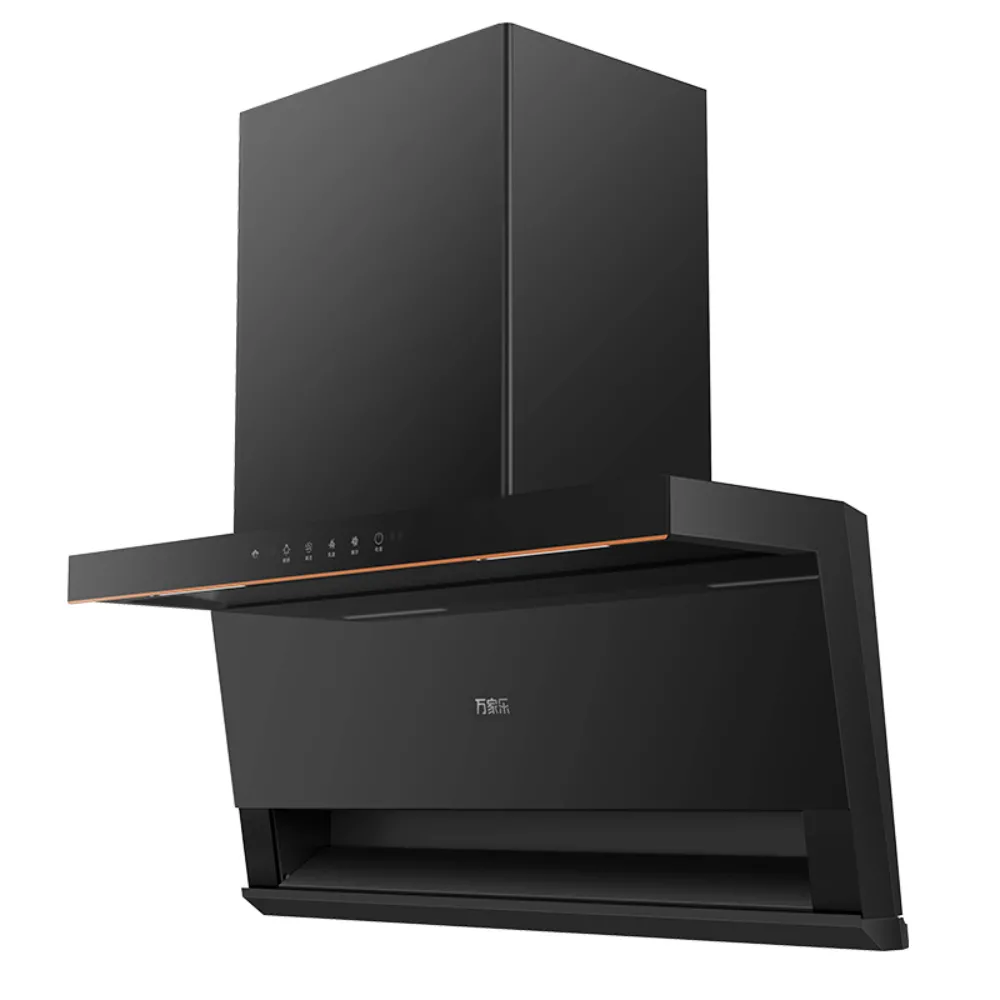

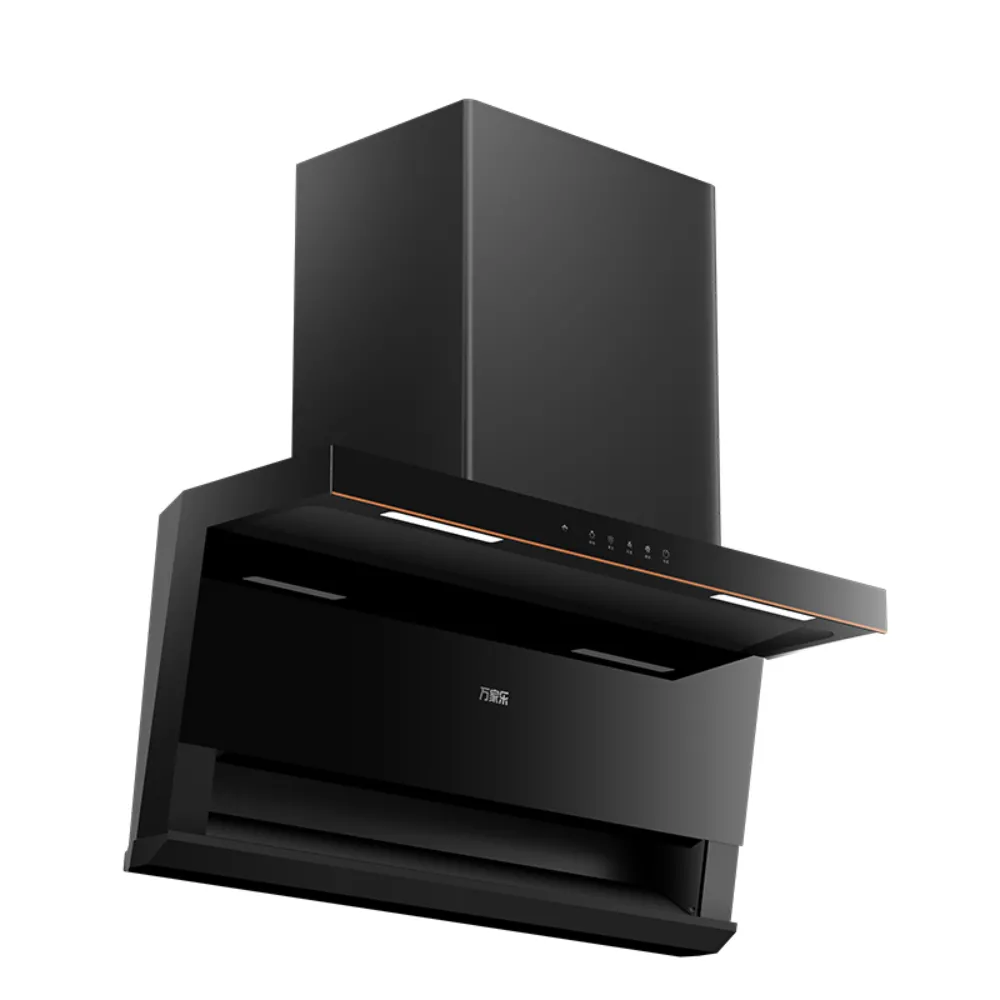

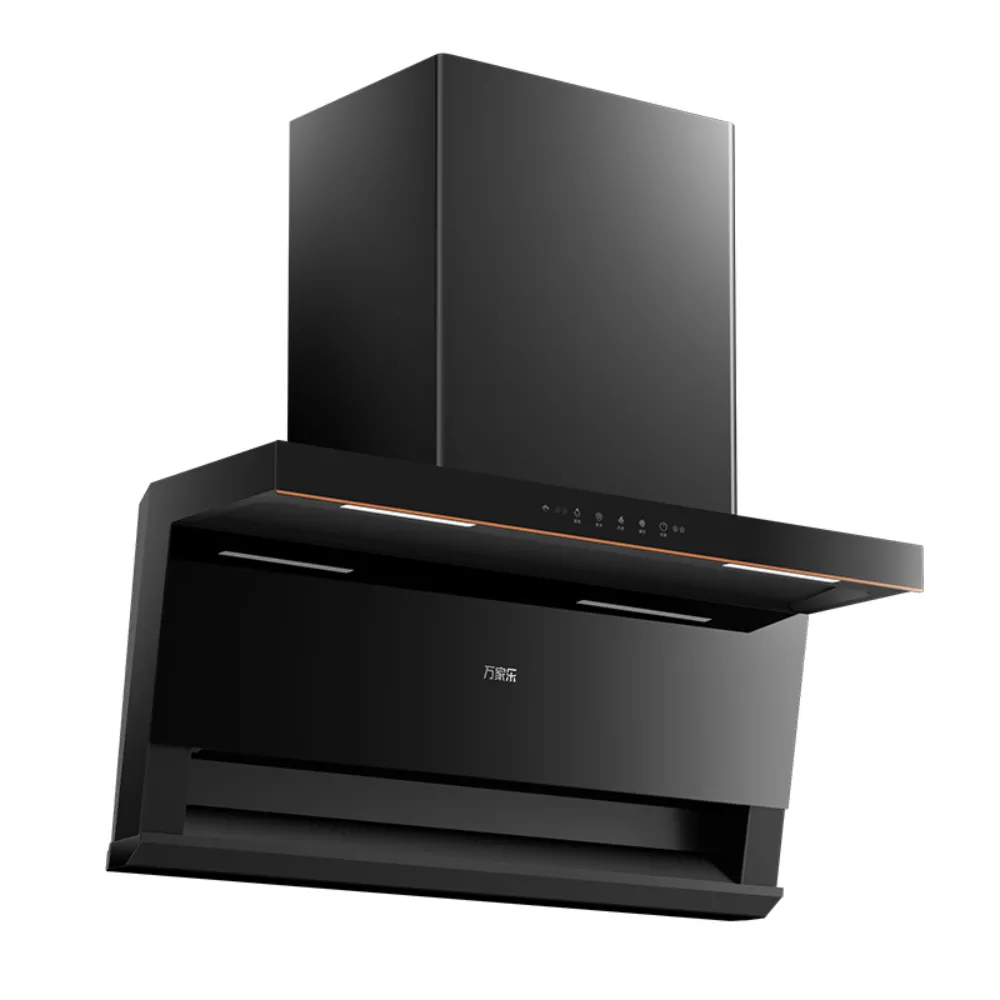

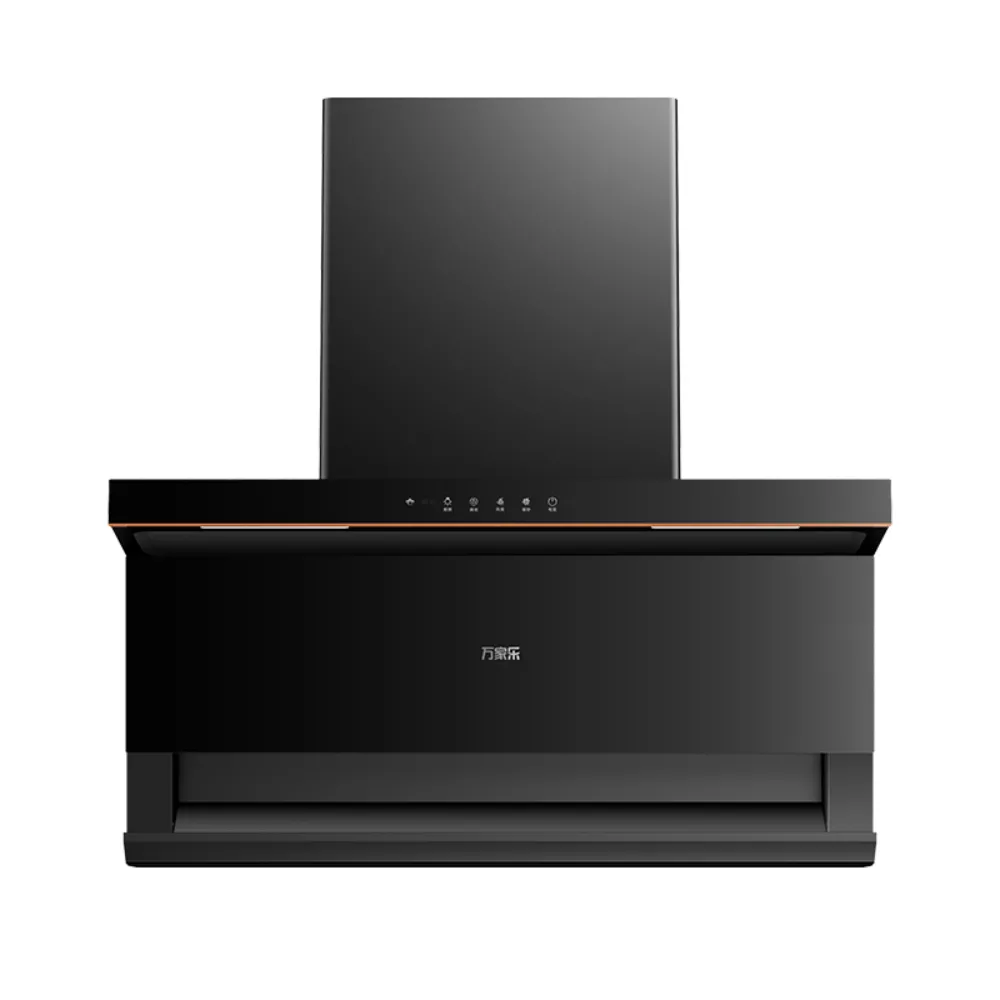

Range Hood CXW-360-W3

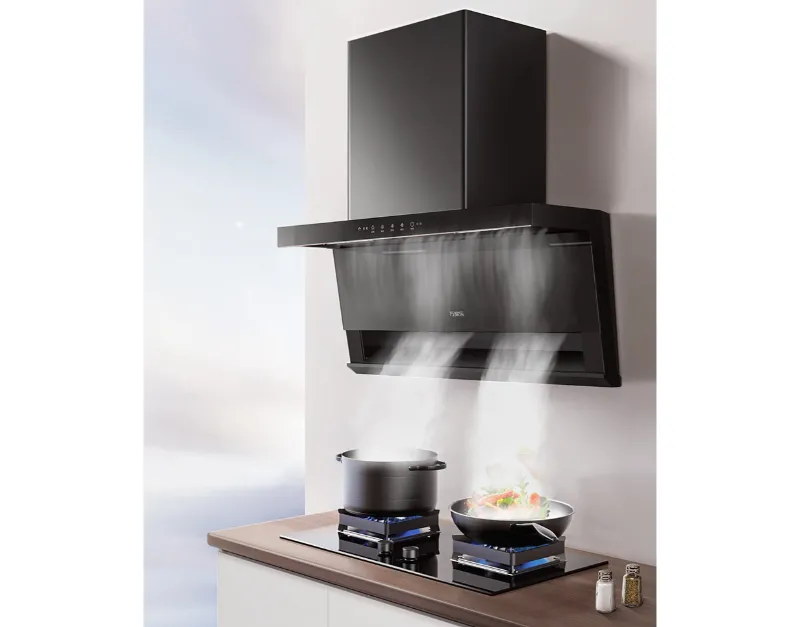

· "7" Shape design, double suction from both top and low side of case
· Maximum air volume of 23m³/min, maximum static pressure of 500Pa
· Nano treatment impeller, smart self-cleaning
· Smart control by hand gestures
· delay shutdown

Model: CXW-360-W3

Innovate

Authentication

Add to Cart Buy Now

Features Specifications Frequently Asked Questions You May Also Like

Range Hood CXW-360-W3

Buy Now

Features

Shadow of Cloud
Set Double Suction inlet efficient exhaustion

Macro W3 hood model

Double Suction from both top side and down side

Slim body

23m³/min strong power

500Pa big Pressure

Intelligent cleaning

Smart gestures control

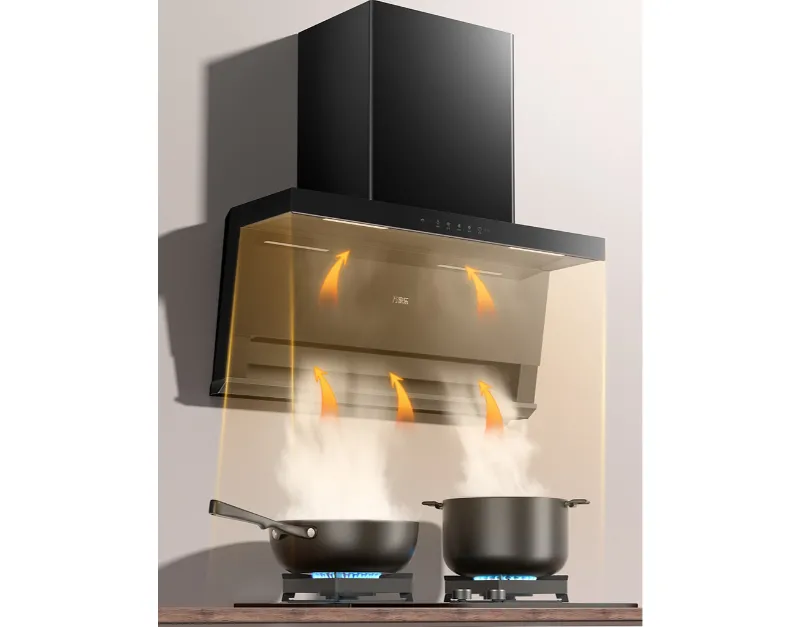

Double Suction from both top side and down side
All-around control of smoke, bringing the clean air

Big suction power in down side, for flash exhaust of most smoke, the residual smoke left to the top side suction, effective zoning smoke control, bringing complete exhaustion.

Low position suction)

No smoke in face)

High position suction

Complete smoke absorption

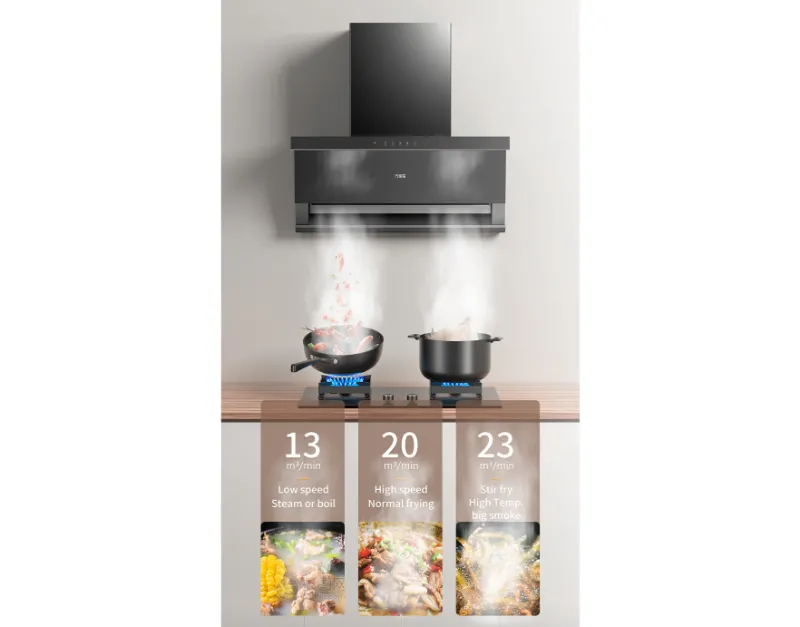

23m³/min storm suction
Wanton stir-frying like hurricane

13 m³/min Low speed Steam or boil

20 m³/min High speed Normal frying

23 m³/min Stir fry High Temp. big smoke

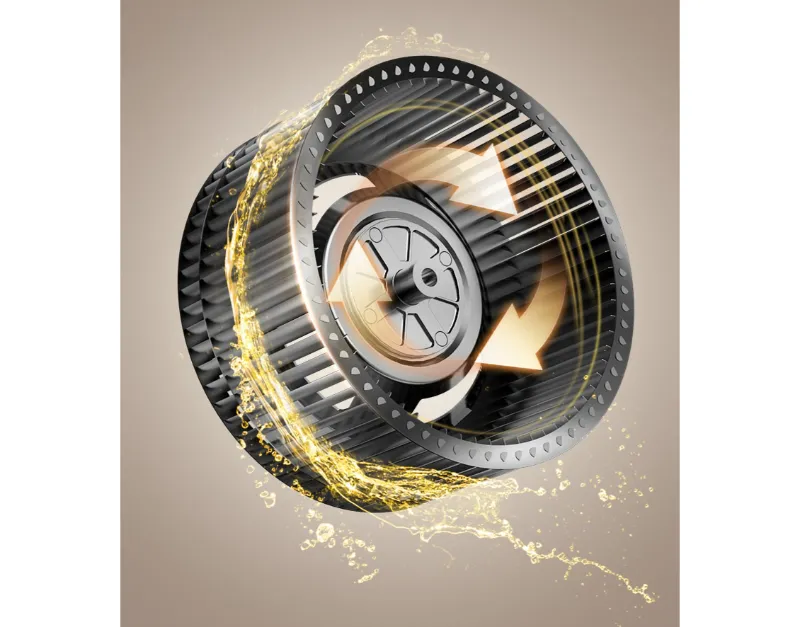

Nano treatment Impeller for Self-Cleaning without disassembling

Using intelligent algorithm, the range hood automatically

run the self-cleaning process when the hood is in use up

to 10 hours. By centrifugal force generated by ultra-high

speed, the grease attached to the impeller is removed.

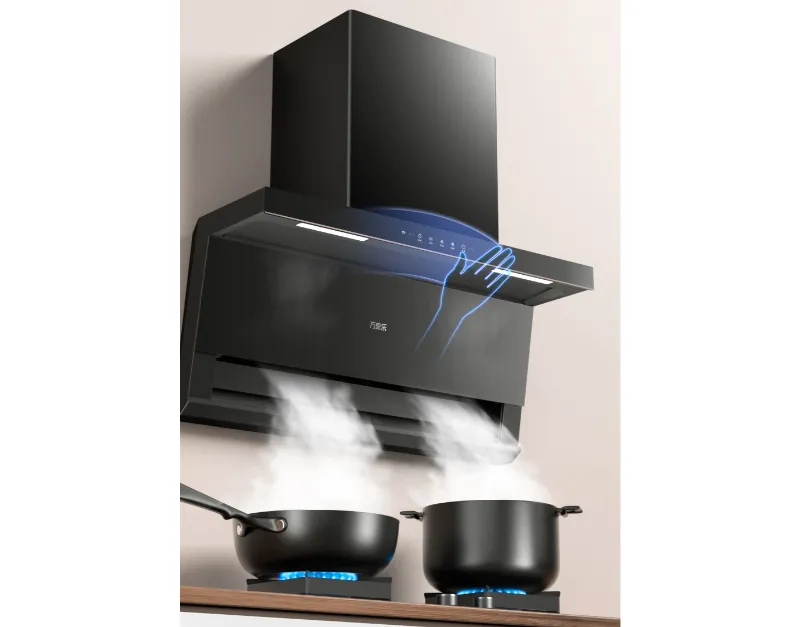

Smart Hand Gesture Control
Control by a simple waving of hand

With the highly sensitive gesture control system, the control of hood becomes easy, bringing more fun to cooking.

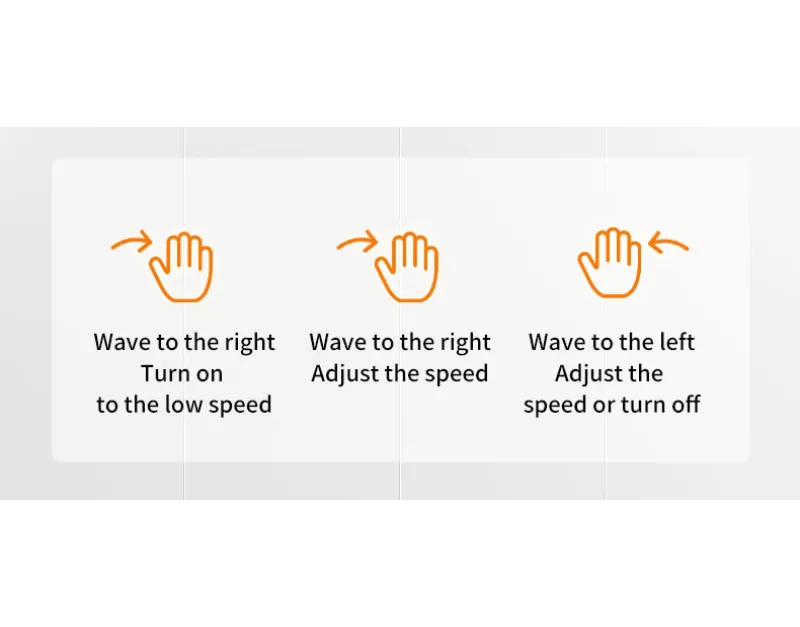

Wave to the right Turn on to the low speed

Wave to the right Adjust the speed

Wave to the left Adjust the speed or turn off

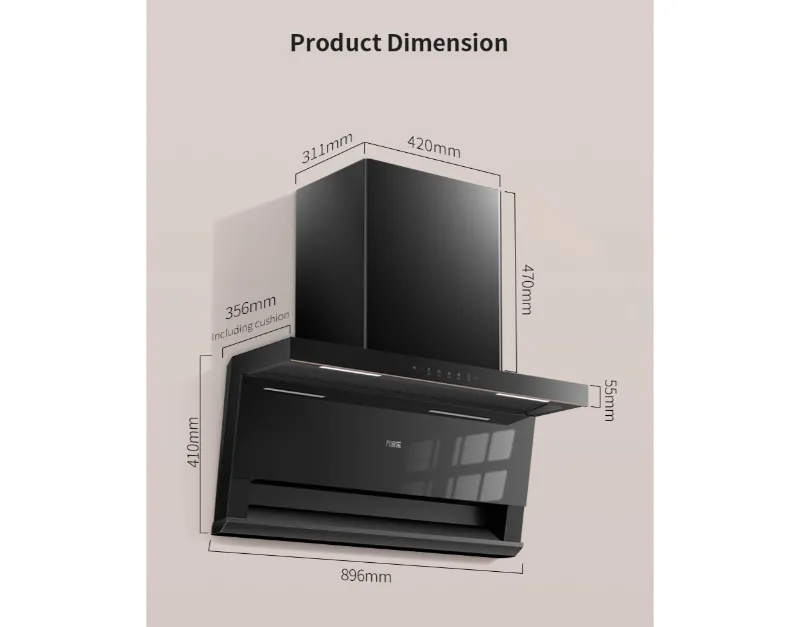

Product Dimension

49dB* silent running
Preparing breakfast without disturbing early morning sleep of family members

Multiple group noise reduction design keeps away
from the hustle of cooking; and the kitchen no longer roars,
so you can enjoy an immersive cooking experience.

Specifications

Model	CXW-360-W3
Nominal air volume m³/h	1200
Max. air volume m³/h	1380
Noise (dB)	56
Main material	Tempered glass + cold plate spraying
Number of Power level	Two speed + stir fry
Control Type	Touch Control，hand gestures control
Chimney pipe diameter(mm)	180
Length of chimney pipe(Meter)	1.8
Motor input power(W)	360
Net weight (kg)	23
Gross weight (kg)	28
Dimensions(mm)	896×880×356
Package size (mm)	960980413

Frequently Asked Questions

Q: How often should I clean my range hood filters?

A:
Grease filters: Clean every 1-3 months (or monthly for heavy cooking) with hot soapy water or dishwasher.
Charcoal filters (ductless models): Replace every 3-6 months.
Deep cleaning: Schedule professional servicing annually.
Q: Why is my range hood so noisy?

A:
Check for loose parts (tighten screws or mounting brackets).
Clean clogged filters (blocked airflow increases noise).
Lower fan speed if possible; higher speeds are louder.
If noise persists, the motor or fan blades may need repair.
Q: What’s the difference between ducted vs. ductless range hoods?

A:
Ducted: Vents smoke outdoors (more efficient, requires ductwork).
Ductless: Recirculates air through charcoal filters (easier installation, but less effective for heavy cooking).
Tip: Ducted is preferred for gas stoves; ductless suits electric stoves in apartments.
Q: How do I choose the right CFM (power) for my range hood?

A:
Calculate minimum CFM = Stove width (inches) × 10 (e.g., 30" stove → 300 CFM).
Gas stoves: Add 100 CFM for heavy cooking (e.g., stir-frying).
High-end models: 400-900 CFM for professional kitchens.
Q: Why is my range hood not sucking smoke properly?

A:
Common causes:
Clogged filters (clean or replace).
Duct obstructions (check for blockages).
Incorrect installation height (ideal: 24-30" above stove).
Weak motor (upgrade CFM if undersized).
