Gas Hob JZT-Q6C1G

1. 5.2kW high firepower, 65% first-level energy efficiency, high efficiency and energy saving;2. The industry's first guide ring technology, accurate oxygen supplementation and more complete combustion;The industry's first guide ring patent technology (patent application is pending, and external printing materials cannot be used for the time being), the air required for the outer ring fire and the center fire is secondary differentiated and diverted to achieve accurate oxygen supplementation and a more uniform mixed gas;3. Mechanical flow control valve, 240° wide-angle civil and military fire stepless regulation, fierce fire and uniform fire precise control;

Two burner gas cooker series

Model: JZT-Q6C1G

Overview Features Specifications You May Also Like

Gas Hob JZT-Q6C1G

This gas stove boasts 5.2kW strong firepower and 65% Level 1 energy efficiency, ensuring high efficiency and energy savings. It adopts the innovative flow - guiding ring technology (patent pending), which distinguishes and guides the air for outer and central flames again, enabling precise oxygen supply and more uniform gas mixture. With a mechanical flow control valve, it allows 240° wide - angle stepless adjustment of fierce and gentle fire, for accurate firepower control.

Features

5.2kW Intense Flame Concentration
Quick Cooking to Lock in Freshness, Enjoy Deliciousness

②. Innovative Epoxy Flow - guiding Ring
Designed based on the chimney effect and thermodynamics, it accurately supplements oxygen to the outer ring and central flame.

③. Extra - large Premixed Gas Distribution Chamber
With a heightened gas distribution plate design, the mixture is more sufficient, and the combustion is more complete.

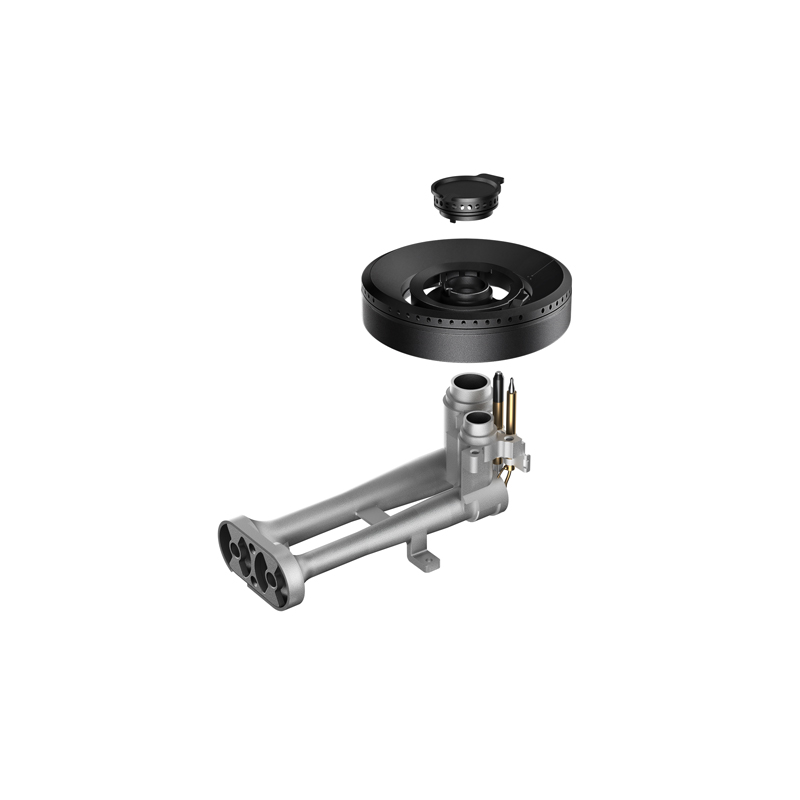

④. Straight - section Turbulent Ejector Pipe
The gas + air mixture is rapidly injected into the straight - section turbulent ejector pipe, making the premixing more sufficient and uniform.

65% Ultra - high Thermal Efficiency, Level 1 Energy Efficiency for Superior Energy Savings

Red - dot Temperature - sensing Anti - scald, Color Change for Safety Protection

Dual - protection Pot Support, Stable Without Slipping, Heat - Insulated to Protect the Abdomen
Stable Without Slipping
Heat - Insulated to Protect the Abdomen

X - shaped Pot Support Design, Stable Without Slipping
Clamping Structure, Firmly Lock the Support Base

Detachable Structure Design, Wipe Off Oil Stains After Cooking Easily

Visor - type Anti - (Liquid Accumulation) Burner Cap
Prevent Overflow - caused Flameout and Soup Blockage

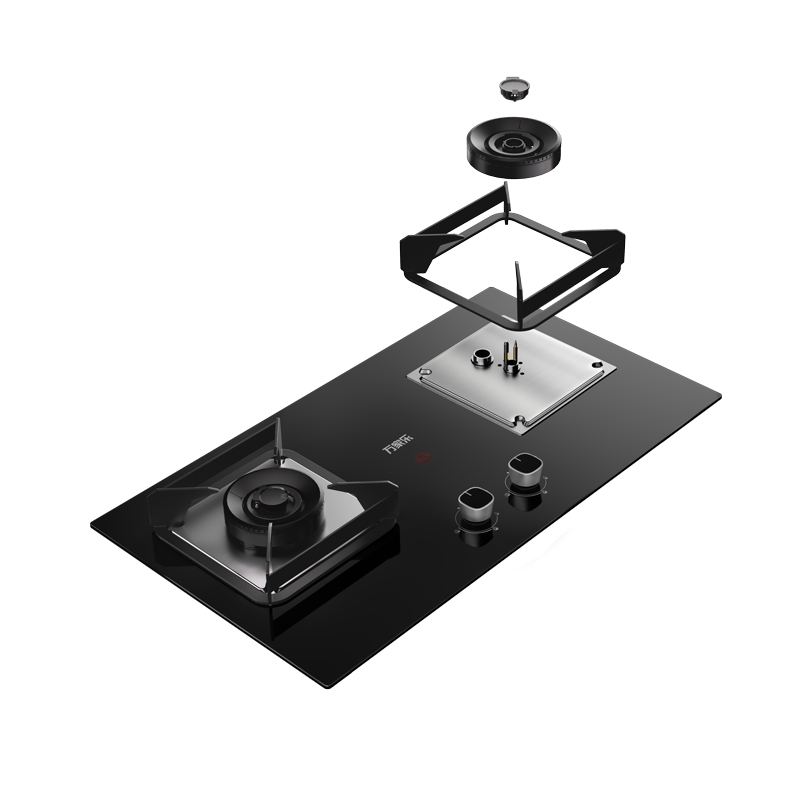

Detachable Integrated Burner
Durable and Safer

Flat - steel Pot Support
Durable Material, Easy to Clean

Upward - convex Stainless Steel Liquid - holding Plate
Wear - resistant, Scratch - resistant and Easier to Clean

Seven - layer Safety Explosion - proof Panel, Detailed Protection for Worry - free Cooking

Tempered Glass
High - temperature Resistant and Impact - resistant Ink Coating
High - temperature, Acid and Alkali Resistant Ink Coating
Explosion - proof Glue
Explosion - proof Fiber Net
Buffer Alloy Cloth
Anti - fouling and Shock - absorbing Pad

Fast, Stable and Accurate Ignition, Instant Ignition, No Long Waiting

Exquisite Craftsmanship, Considerate Details

01 Ignition Needle with Copper Sleeve Shell
Sturdy and Impact - resistant, More Durable

02 Thermocouple Flameout Protection
Automatically Cut Off Gas in Case of Accidental Flameout

03 Safety Child Lock Protection
Prevent Children from Accidental Opening

04 Zinc Alloy Knob
Good - looking and Not Hot to Touch

05 Anti - seepage Silicone Pad
Prevent Soup from Seeping into the Panel

06 Suitable for Both Countertop and Built - in Installation
Suitable for Various Kitchens

Specifications

Parameter	Specification	Parameter	Specification
Energy Efficiency Grade	12T/20Y: ≥65%	Burner Cap Type	Direct Flame
Heat Load	12T: 5.2KW; 20Y: 5.0KW	Burner Head Structure	Split and Detachable
Cooktop Material	Glass	Distance Between Burners	450
Gas Source	20Y/12T	Pot Support Shape	Square with Front and Rear Baffles
Conversion Connector	Dual - purpose	Pot Support Material	Q235
Structure	Direct - insert Type	Pot Support Function	Anti - slip
Ignition Method	Quick Ignition	Thermocouple Flameout Protection	Supported
Air Inlet Method	Full Air Inlet	Net Weight	10.3kg
Burner Cap Material	Copper	Gross Weight	12.4kg
Packaging Dimensions	850505216	Overall Dimensions	760×430×146
Opening Dimensions	(630 - 680)(330 - 360)R20
