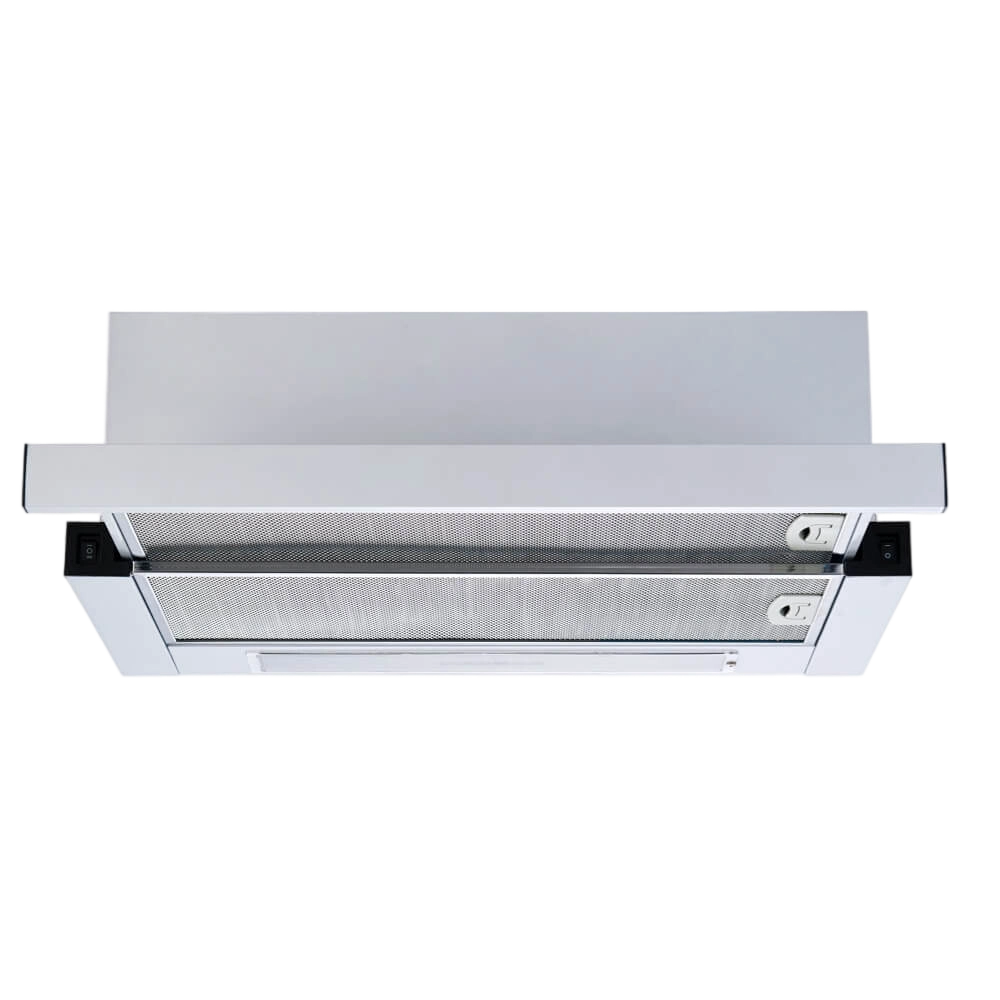

Stainless Steel Used Slim Range Kitchen Hood Under Cabinet Ultra Thin Cooker Hood
・Level 2 energy efficiency
・4 layer Aluminium filter
・AC Capacitor Motor
Model: CXW-200-CT0
Features

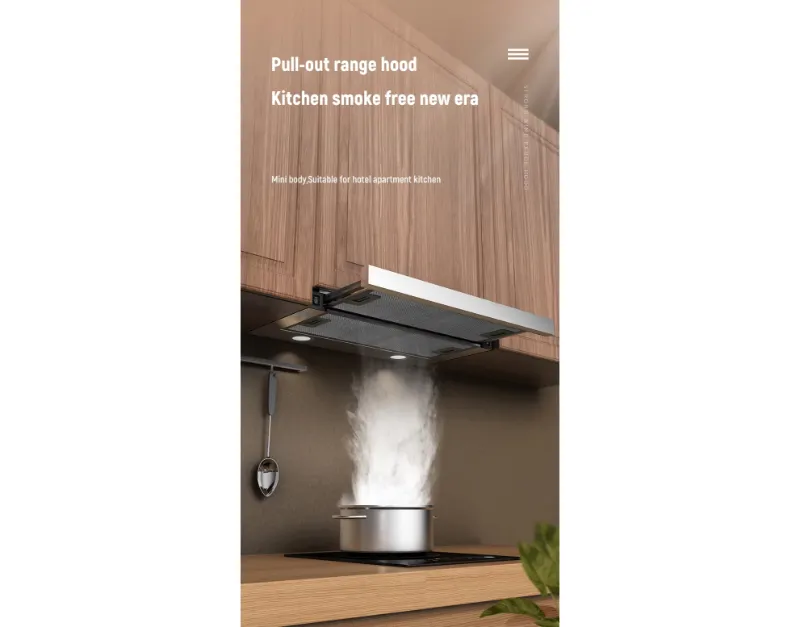

Pull-out range hood
Kitchen smoke free new era
Mini body, Suitable for hotel apartment kitchen
Strong twin wind wheels
Wide smoking area
Mini body size
Internal circulation mode
Copper wire motor
LED lights

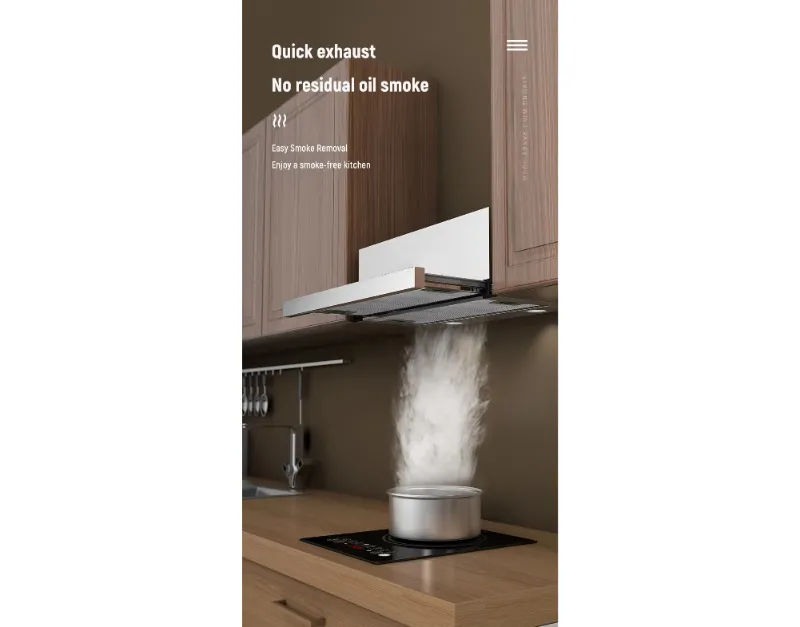

Quick exhaust
No residual oil smoke
Easy Smoke Removal
Enjoy a smoke-free kitchen

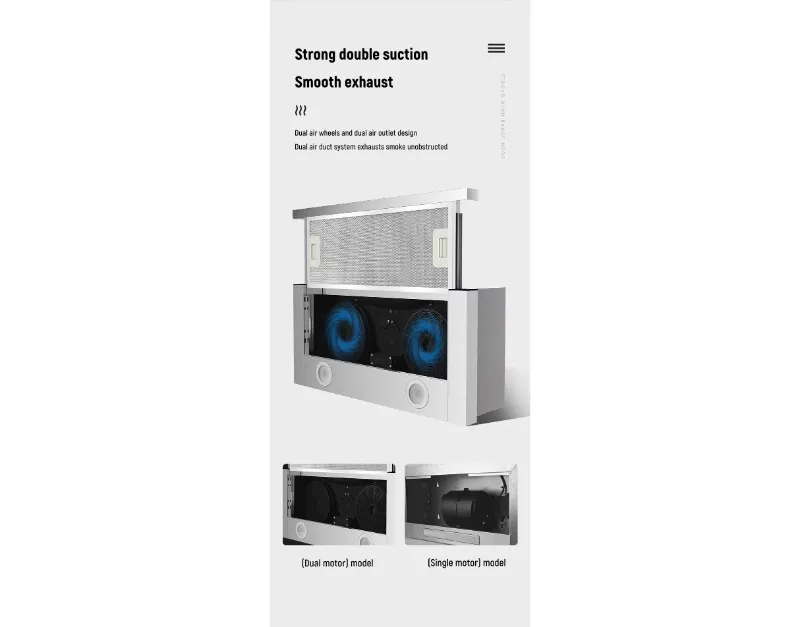

Strong double suction
Smooth exhaust
Dual air wheels and dual air outlet design
Dual air duct system exhausts smoke unobstructed

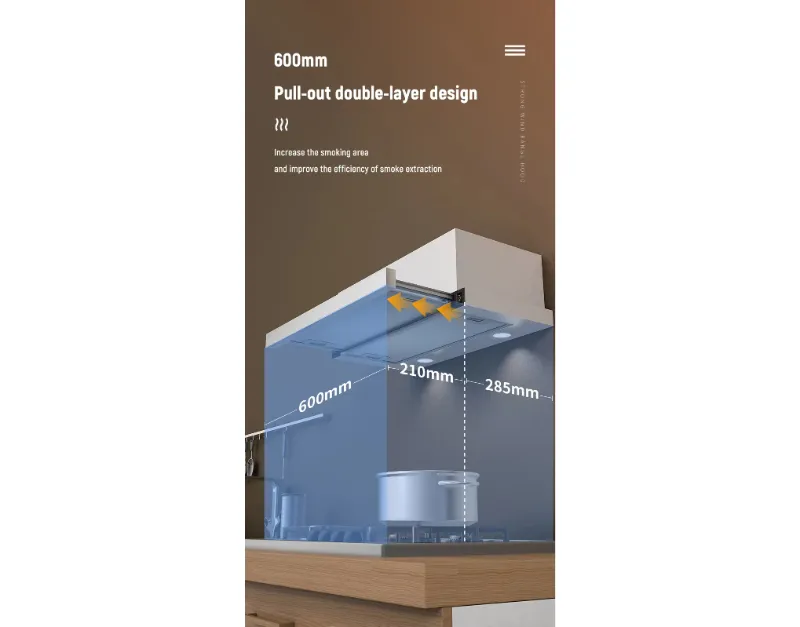

600mm

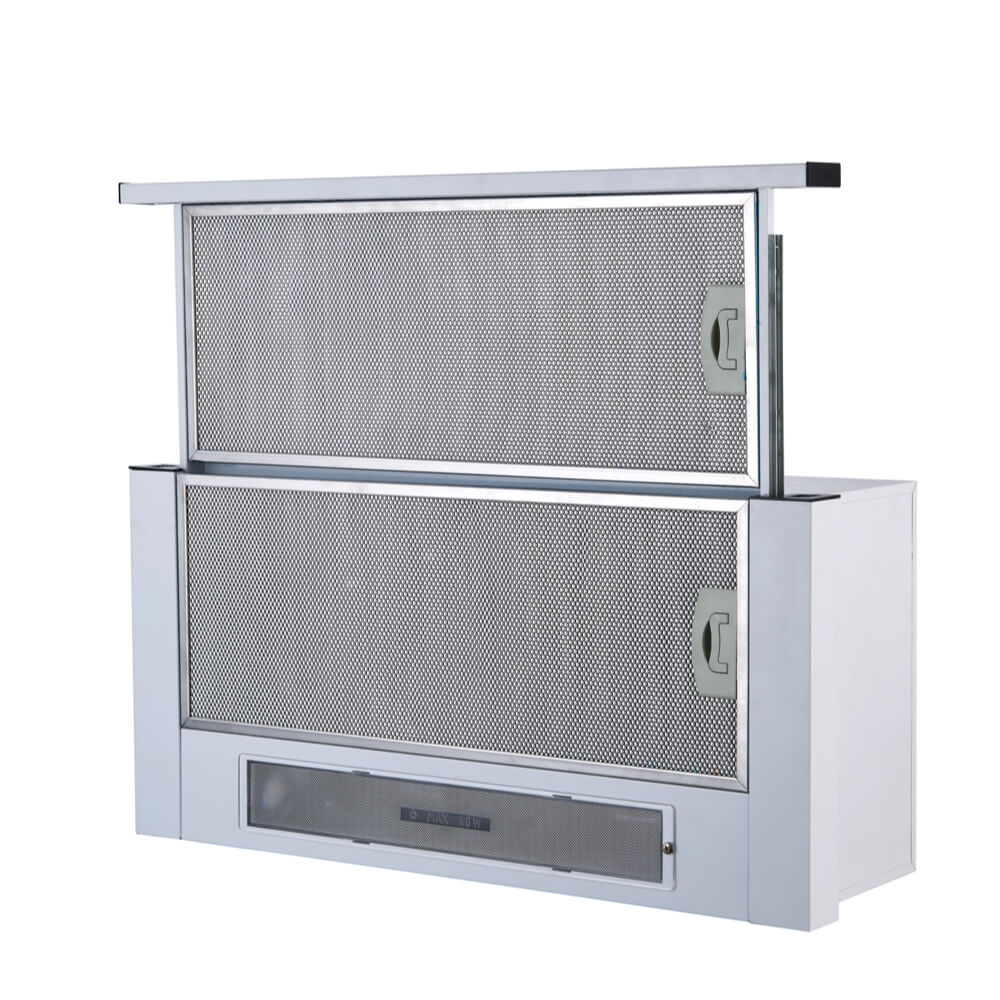

Pull-out double-layer design
Increase the smoking area and improve the efficiency of smoke extraction

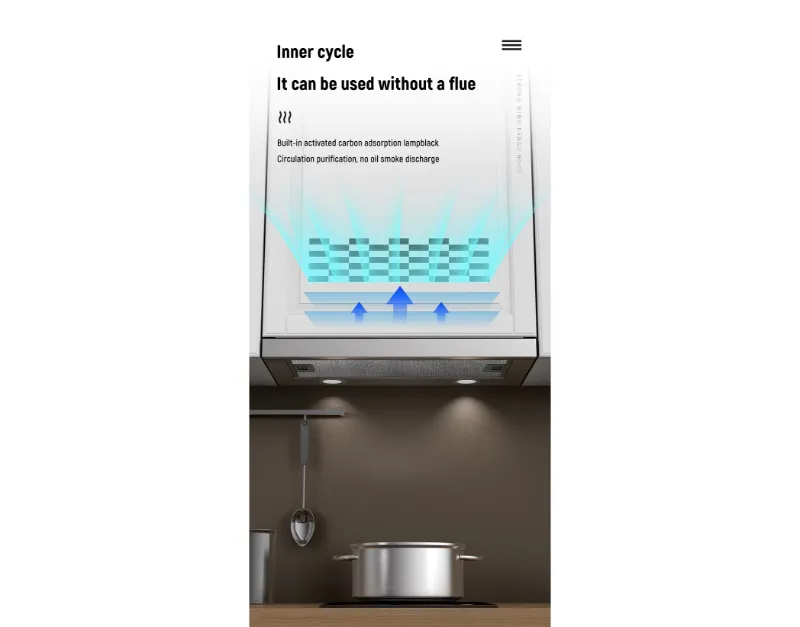

Inner cycle
It can be used without a flue
Built-in activated carbon adsorption lampblack
Circulation purification, no oil smoke discharge

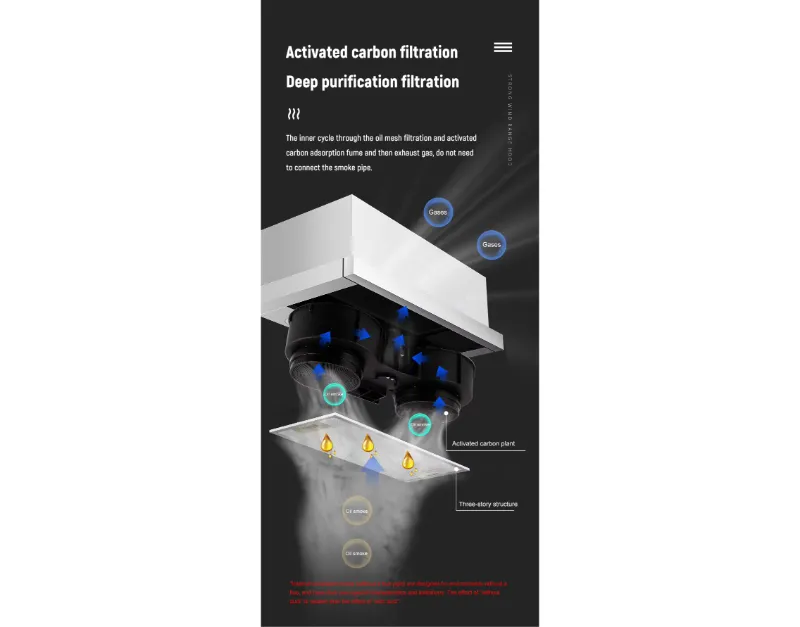

Activated carbon filtration
Deep purification filtration
The inner cycle through the oil mesh filtration and activated carbon adsorption fume and then exhaust gas, do not need to connect the smoke pipe.
"Internal circulation hoods (without a flue pipe) are designed for environments without a flue, and have their own special characteristics and limitations. The effect of "without duct" is weaker than the effect of "with duct".

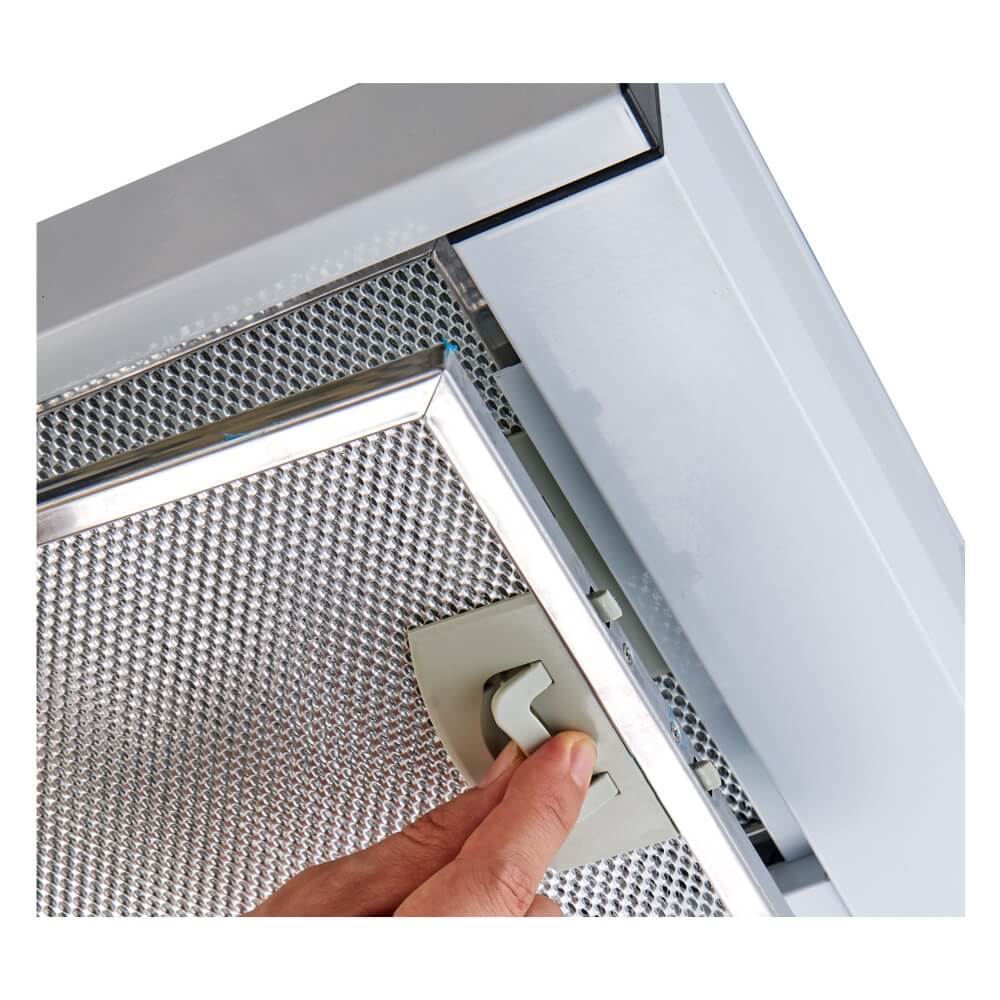

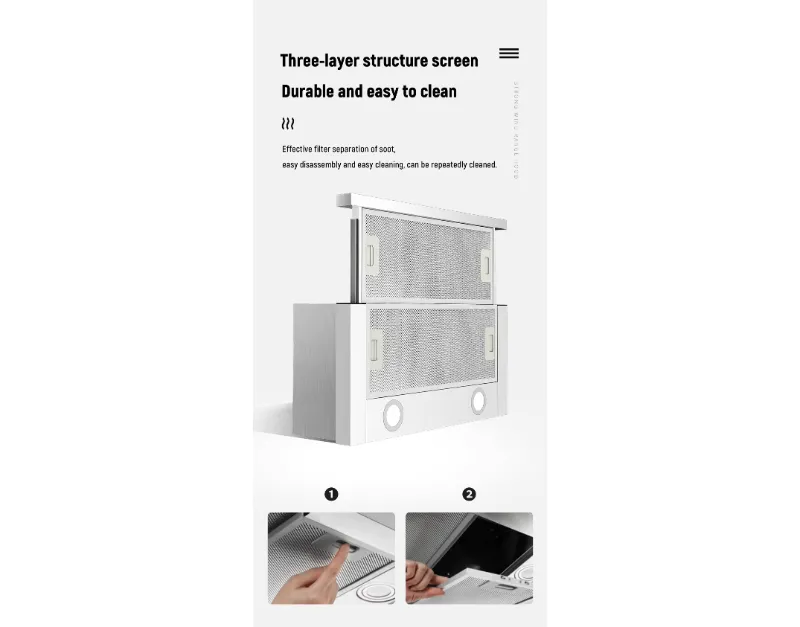

Three-layer structure screen
Durable and easy to clean
Effective filter separation of soot, easy disassembly and easy cleaning, can be repeatedly cleaned.

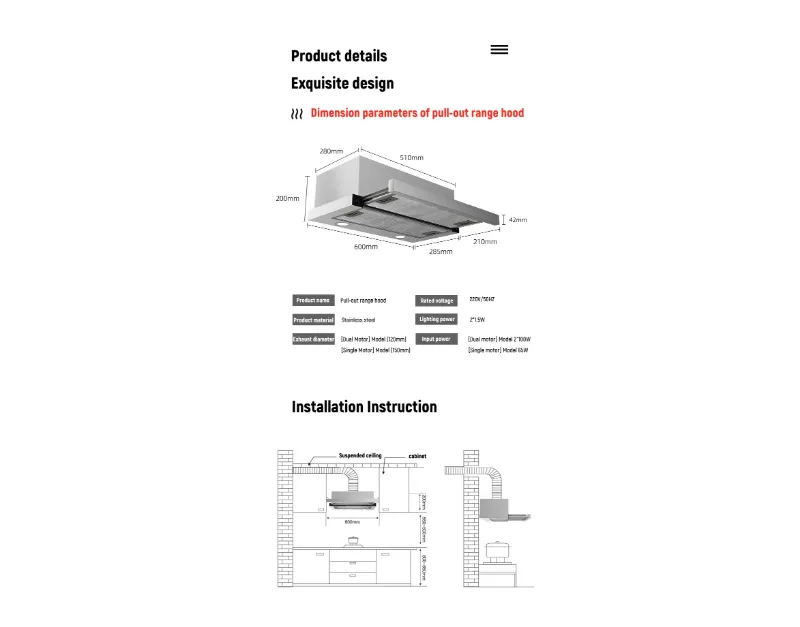

Product details
Exquisite design
Dimension parameters of pull-out range hood
Product name: Pull-out range hood
Rated voltage: 220V/50HZ
Product material: Stainless steel
Lighting power: 2*1.5W
Exhaust diameter:
[Dual motor] Model 2*100W
[Single motor] Model 65W
Input power:
[Dual Motor] Model (120mm)
[Single Motor] Model (150mm)
Specifications
| Model | CXW-200-CT0 |
| Nominal air volume m³/h | 227 |
| Max. air volume m³/h | 380 |
| Noise (dB) | 65.4 |
| Main material | Powder coating in drak gray + SS Handle |
| Number of Power level | Two speed |
| Control Type | Rocker switchs |
| Chimney pipe diameter(mm) | 150 |
| Length of chimney pipe(Meter) | - |
| Motor input power(W) | 70 |
| Net weight (kg) | 7.1 |
| Gross weight (kg) | 8.2 |
| Dimensions(mm) | 598X300X211 |
| Package size (mm) | 645*297*348 |
Frequently Asked Questions
Q: How often should I clean my range hood filters?
Grease filters: Clean every 1-3 months (or monthly for heavy cooking) with hot soapy water or dishwasher.
Charcoal filters (ductless models): Replace every 3-6 months.
Deep cleaning: Schedule professional servicing annually.
Q: Why is my range hood so noisy?
Check for loose parts (tighten screws or mounting brackets).
Clean clogged filters (blocked airflow increases noise).
Lower fan speed if possible; higher speeds are louder.
If noise persists, the motor or fan blades may need repair.
Q: What’s the difference between ducted vs. ductless range hoods?
Ducted: Vents smoke outdoors (more efficient, requires ductwork).
Ductless: Recirculates air through charcoal filters (easier installation, but less effective for heavy cooking).
Tip: Ducted is preferred for gas stoves; ductless suits electric stoves in apartments.
Q: How do I choose the right CFM (power) for my range hood?
Calculate minimum CFM = Stove width (inches) × 10 (e.g., 30" stove → 300 CFM).
Gas stoves: Add 100 CFM for heavy cooking (e.g., stir-frying).
High-end models: 400-900 CFM for professional kitchens.
Q: Why is my range hood not sucking smoke properly?
Common causes:
Clogged filters (clean or replace).
Duct obstructions (check for blockages).
Incorrect installation height (ideal: 24-30" above stove).
Weak motor (upgrade CFM if undersized).
