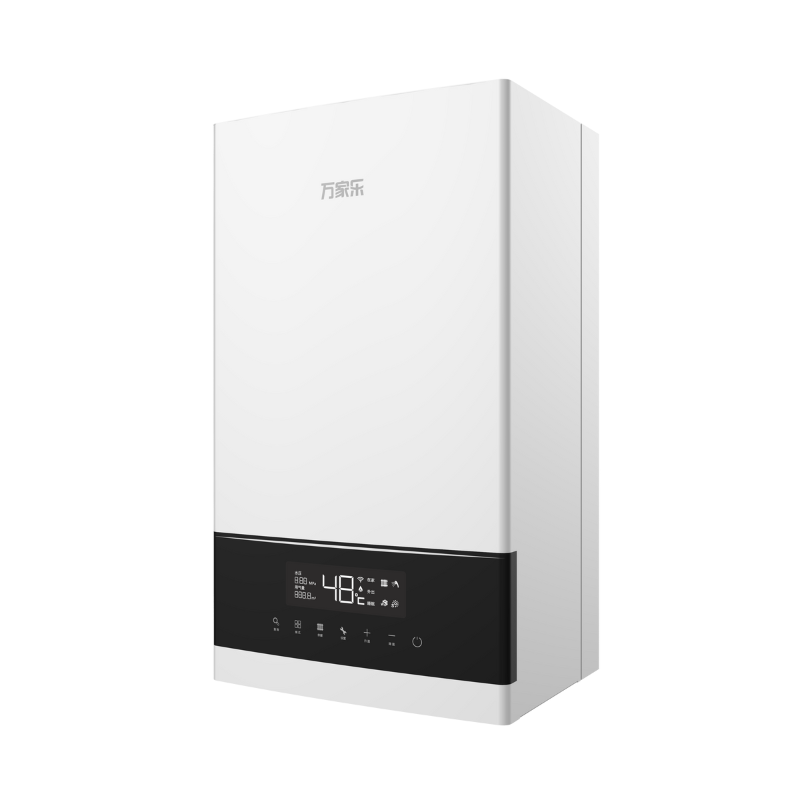

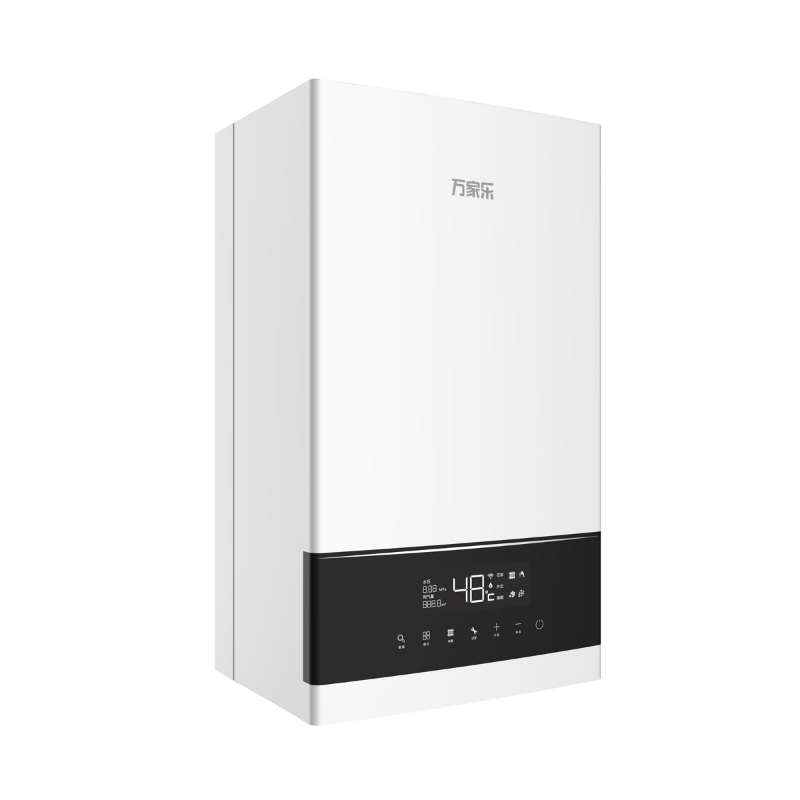

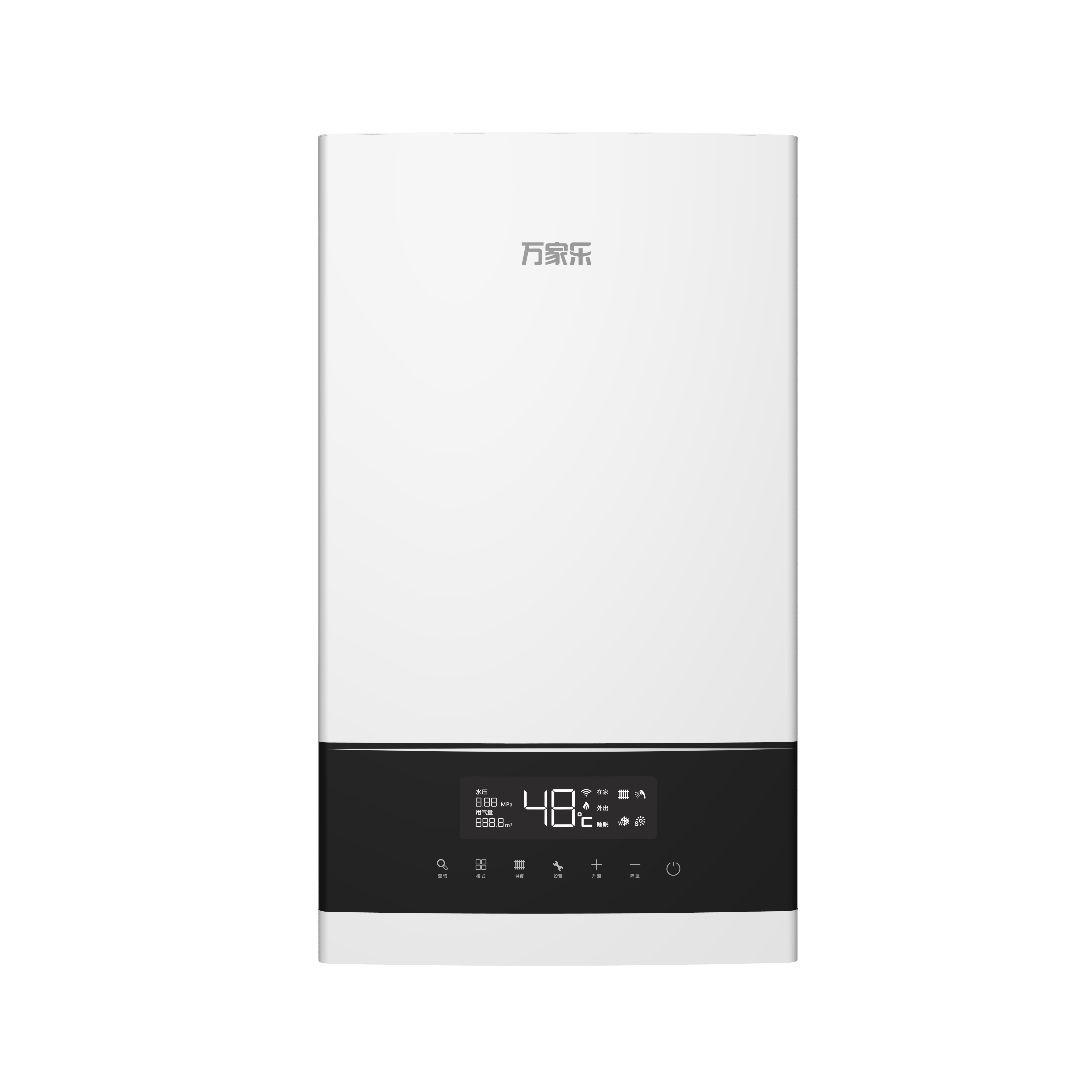

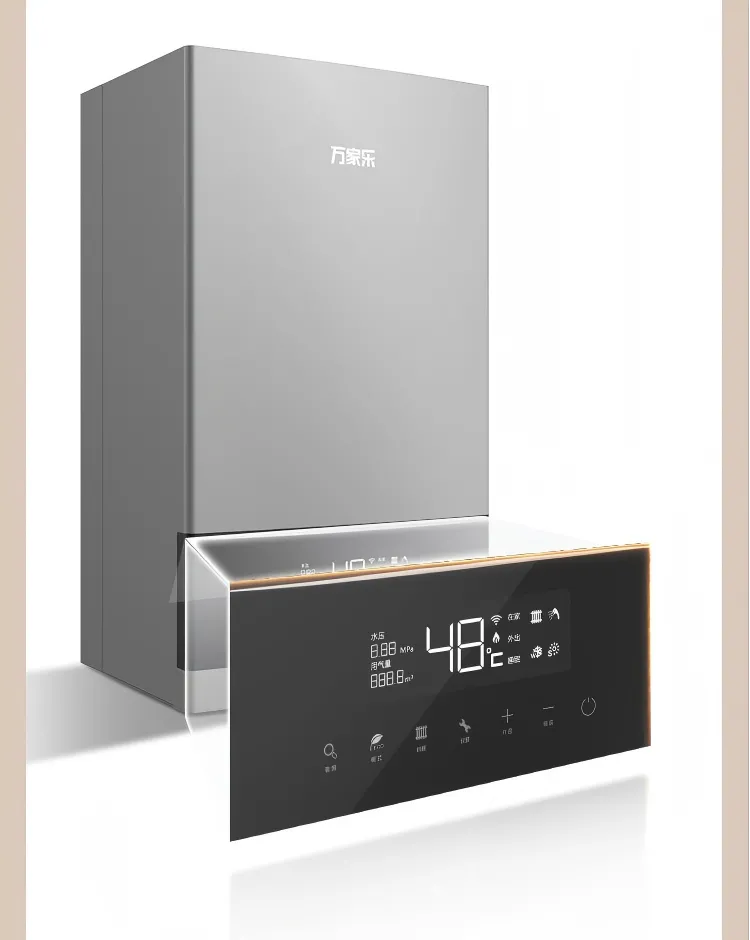

Wall-hung Gas Boiler B5A

The B5A series wall - hung boilers stand as a paragon of advanced heating and hot water solutions. Outfitted with imported renowned key components, four - temperature sensors, and three heating modes, they deliver efficient, precise, and reliable performance. With segmental combustion, ECO - friendly operation, and 48 - hour safety protection, they redefine comfort and security for modern homes.

Model: B5A

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

Wall-hung Gas Boiler B5A

The B5A series wall - hung boilers represent the pinnacle of innovation in home climate control and domestic hot water provision. At their core lie imported famous key parts, the bedrock of their stable and long - lasting operation. Four temperature sensors act as vigilant sentinels, constantly monitoring and adjusting to ensure accurate temperature regulation, while three distinct heating modes empower users to customize heating based on seasonal shifts, usage patterns, or personal preferences.

Segmental combustion technology, paired with a high - efficiency heat exchanger, is a masterstroke in energy optimization. It ensures that fuel is burned thoroughly, minimizing waste and maximizing heat output, which translates to lower energy bills and a reduced environmental footprint. The power - off memory function is a thoughtful touch, preserving user - set configurations through unexpected outages, so there’s no need for tedious re - adjustments. ECO mode takes energy efficiency a step further, automatically fine - tuning operations to slash unnecessary consumption during periods of lighter use. And with a noise - reduction design, these boilers operate discreetly, never disrupting the tranquility of your home. The 48 - hour safe protection mechanism is a constant guardian, ready to intervene and prevent potential hazards, offering unparalleled peace of mind.

Available in models L1PB20 - 18B5A, L1PB26 - 24B5A, and L1PB30 - 28B5A, the series caters to a wide spectrum of residential needs. Whether you have a cozy apartment or a spacious family home, there’s a B5A model to match. From the heating system’s rated heat load and output specifications that adapt to different heating area requirements (ranging from 60 - 150 ㎡ to 90 - 230 ㎡) to the domestic hot water capabilities that ensure a steady supply of hot water for showers, cleaning, and more, every detail is engineered for excellence. The expansion water tank capacity, rated power, enclosure protection class, net weight, and product dimensions are all meticulously designed to fit seamlessly into various home setups, be it a compact utility room or a dedicated boiler closet. In essence, the B5A series wall - hung boilers are not just appliances; they are a comprehensive solution for a comfortable, efficient, and safe home environment.

Features

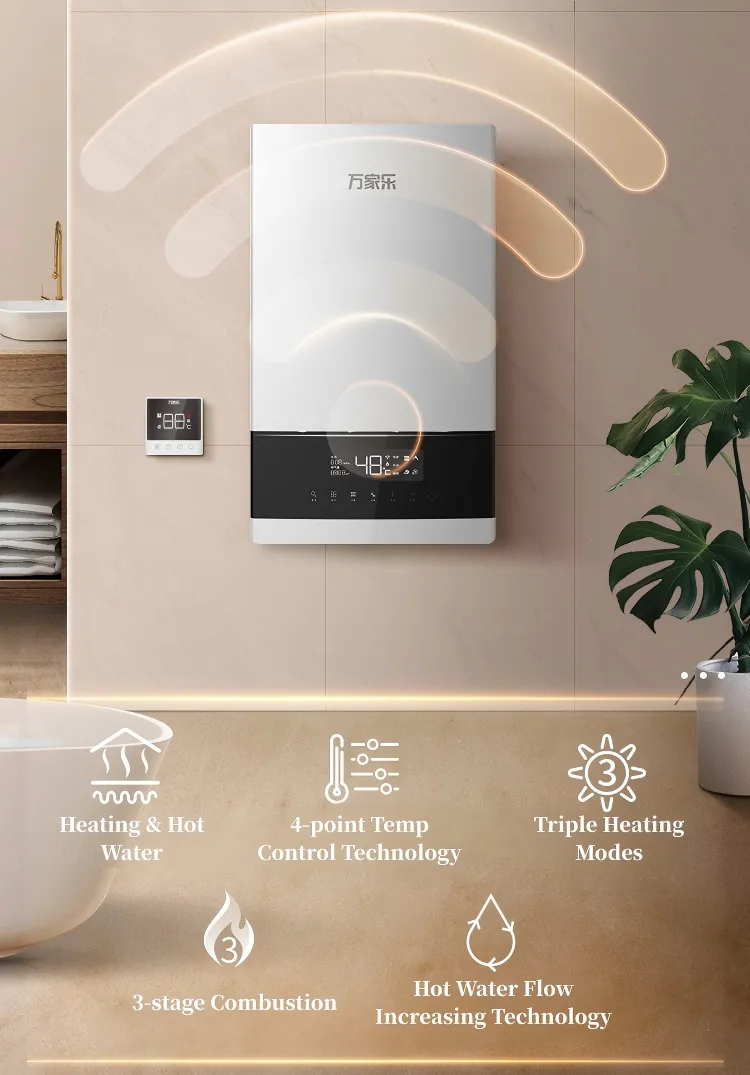

Constant-temp Bathing Smart Heating

Macro B5A [Intelligent Flow-increasing] Heating Furnace

Heating & Hot Water Intelligent Control of the Whole House Temperature

Heating and bathroom adopt four-point temperature control technology,
effectively controlling temperature and shortening heating time.
Bath water temperature difference is as low as ±1℃.
There are 3 heating modes for different needs, saving time and energy.
The 3-stage combustion technology (combustion load ratio 1:8) allows adjustable firepower,
solving winter hot-water-not-hot-enough and summer hot-water-too-hot issues,
ensuring a comfortable bathing experience always.

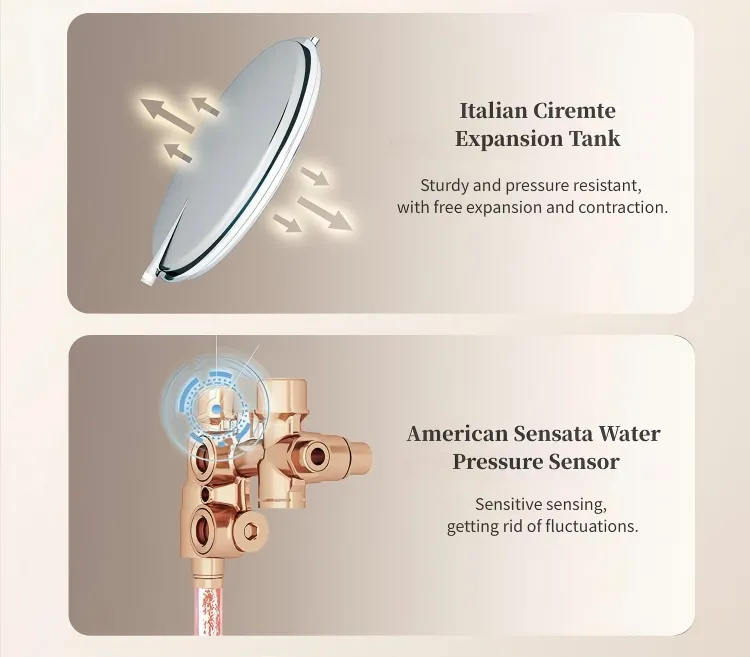

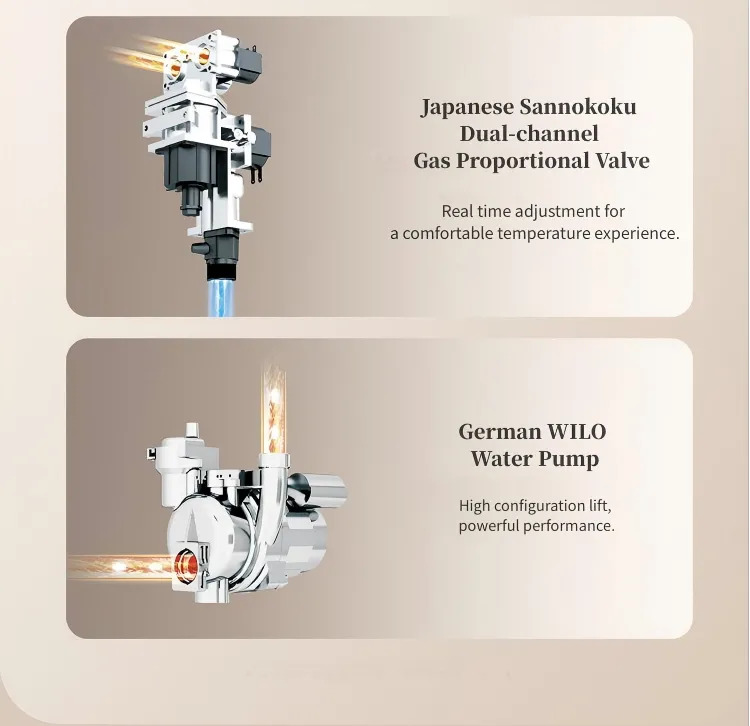

Imported High Standard Components Quality Guaranteed

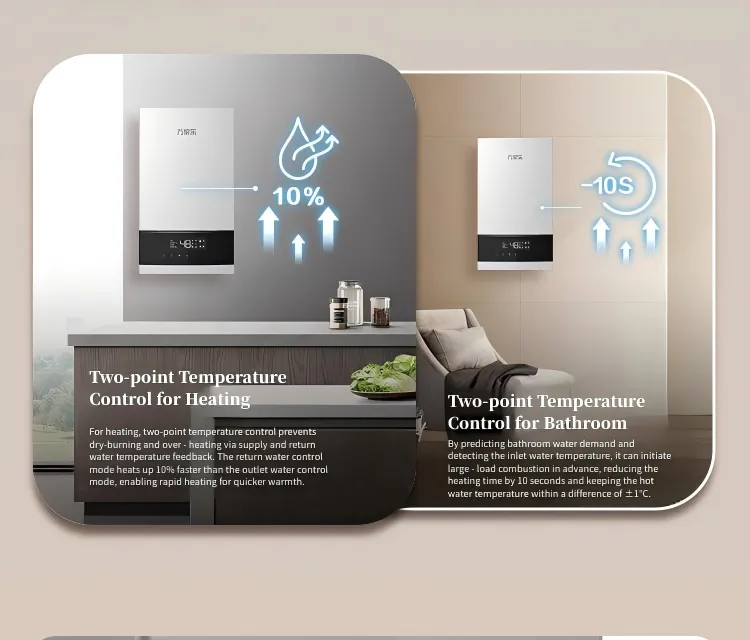

Four-point Temperature Control Technology Faster heating, bath water temperature difference ±1°C

By monitoring the heating temperature at multiple points, itcan adjust the heating status in real-time.

While ensuring rapid heating, it achieves a constant hot water output temperature.

Triple Heating Modes Match different heating needs, save time and energy

Three heating modes are provided: Home, Away, and Sleep.
Users can switch freely among them.

While ensuring comfortable heating, it can effectively save energy consumption and match different heating demands.

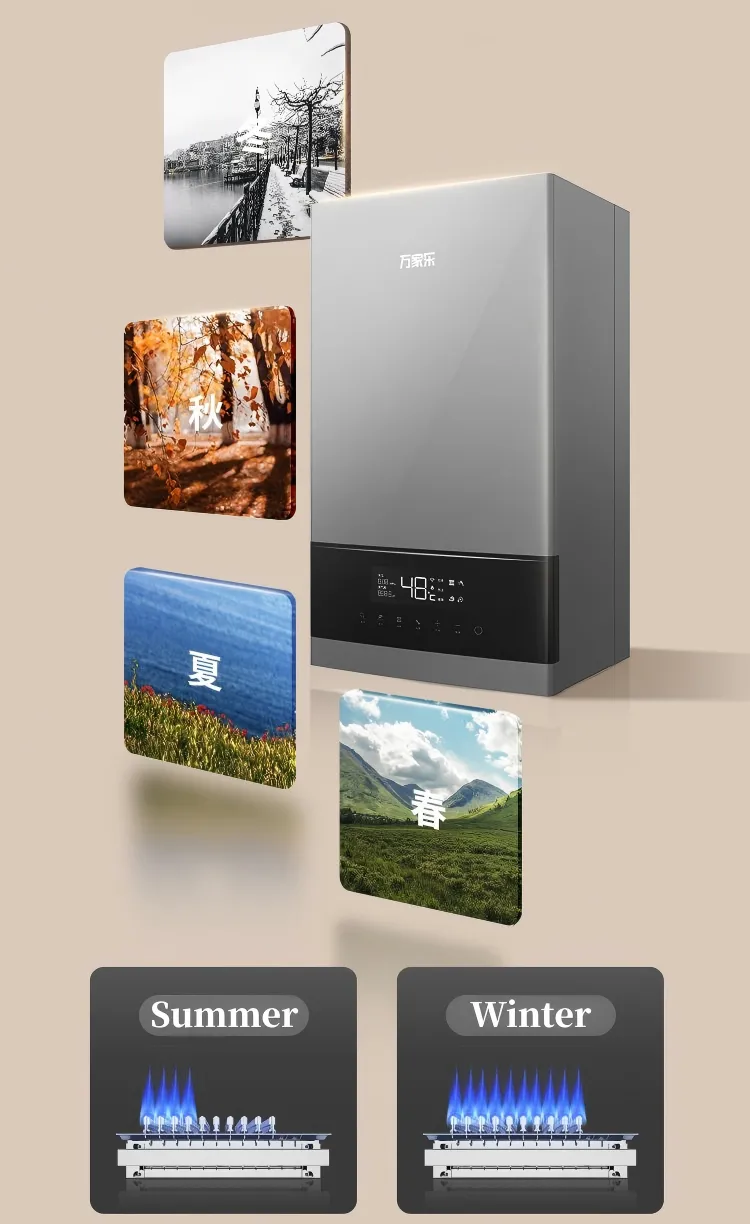

3-stage Combustion Comfortable bathing in summer without overheating, full - load heating in winter

With intelligent 3-stage firepower adjustment, the minimum temperature rise is as low as 6K.

It easily achieves a stable hot water temperature rise in summer and a powerful firepower for a comfortable bathing experience in winter.

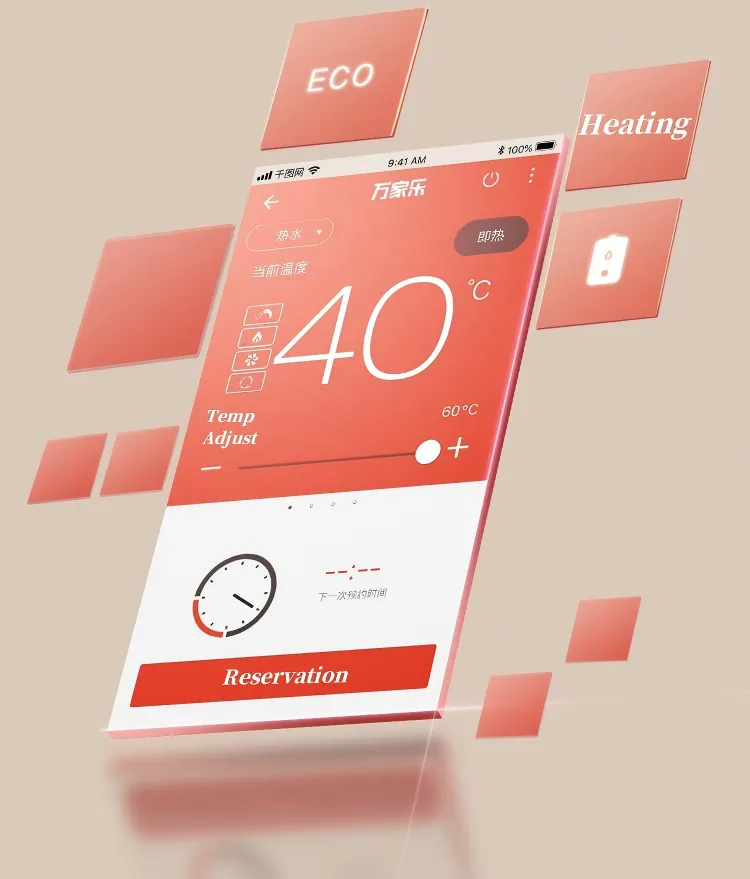

WIFI Remote Intelligent Control Remote scheduling for ultimate comfort

Connect to the wall - hung boiler remotely via a mobile app to achieve convenient functions such as scheduled heating and bathing. You can adjust output parameters with just one click, so you don't have to wait long for warmth.

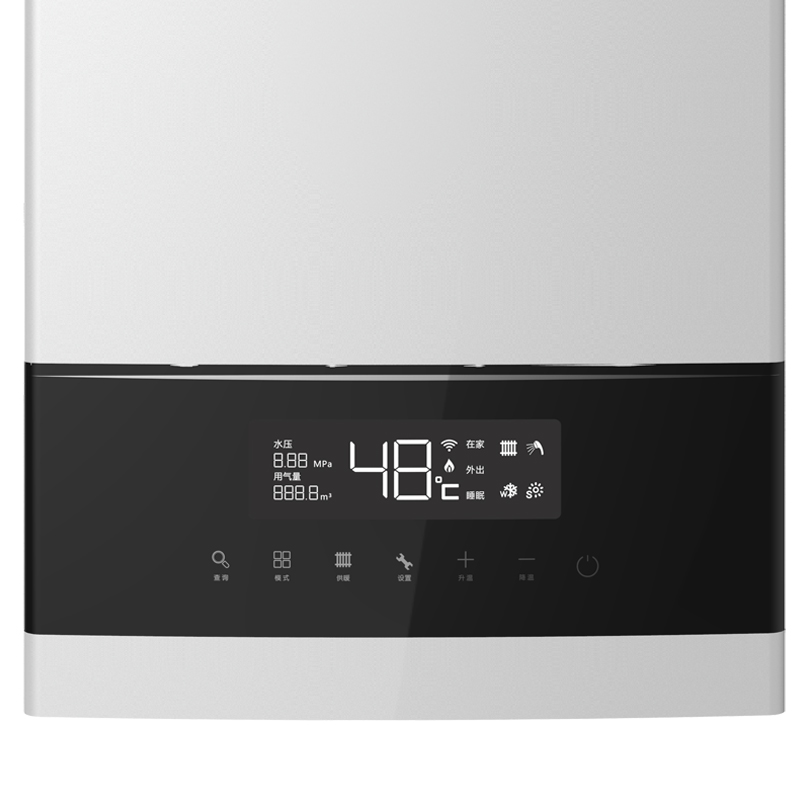

Laminated High-precision Screen Intuitive operation and clear parameter display

The high-precision screen adopts In-Mold Decoration (IMD) technology.
Based on traditional touch - screen products, it optimizes display clarity and touch-screen feel. With a gentle touch, you can easily complete operations, and the intuitive parameter display eliminates the need for repeated confirmation.

42dB Low-noise Operation Quiet heating without disturbing family

It adopts a low-vibration design structure and sealed material treatment, suppressing the operating noise from the source and
structure, allowing users to enjoy a quieter environment.

Power-off Memory No need to reset when powered off, remembers your temperature settings

It intelligently backs up the working status.
After a power failure and restart, it automatically reads the working status information before the power outage, eliminating the need for re-setting.
Simplify your life and enjoy a more worry-free and comfortable experience.

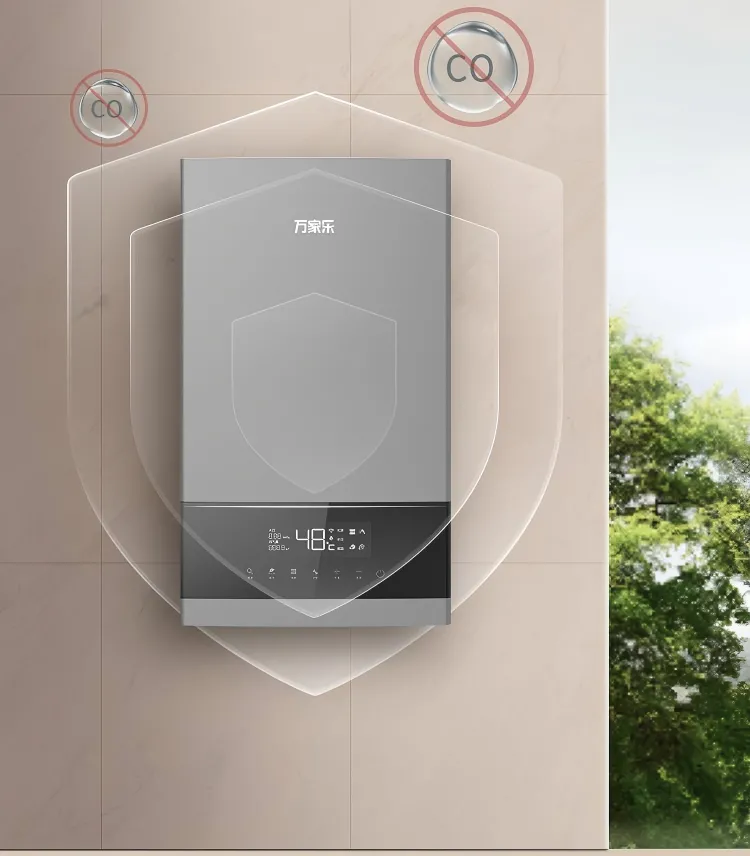

Condensing-specific Balanced Flue Pipe Complete combustion, no fear of strong winds on high floors

The wall - hung boiler has an overall sealed design.

Utilizing the pressure difference inits structure, it uses a double - layer balanced flue pipe.

The inner layer actively expels combustion exhaust outdoors, preventing indoor leakage and exhaust - gas - related poisoning.

The outer layer draws in outside oxygen for combustion, ensuring stable burning without affecting indoor air.

Specifications

MODEL		L1PB20-18B5A	L1PB26-24B5A	L1PB30-28B5A
Heating	Heating system rated max. heat load (Kw)	20	26	30
	Heating system rated max. heat output (Kw)	18	24	28
	Heating system rated min. heat load (Kw)	8	11.2	12.5
	Heating system rated min. heat output (Kw)	7	9.5	10.7
	Heating water temp. adjustment range℃	Radiator 30-80; Floor heat 25-60
	Heating area reference (㎡)	60-150	80-200	90-230
Domestic hot water	DHW rated heat load (Kw)	24	28.8	32
	Hot water capacity (△t=25K)	12	15	16
	Hot water capacity (△t=30K)	10	12.5	13.5
	DHW pressure range	0.02-0.8MPa	0.02-0.8MPa	0.02-0.8MPa
	DHW temp. adjustment range℃	35-60	35-60	35-60
Expansion water tank capacity (L)		6	6	10
Rated power (W)		100	110	120
Enclosure protection class		IPX4	IPX4	IPX4
Net weight (Kg)		34	34	35.5
Product dimension LWH (mm)		720420312	720420312	720420335

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
