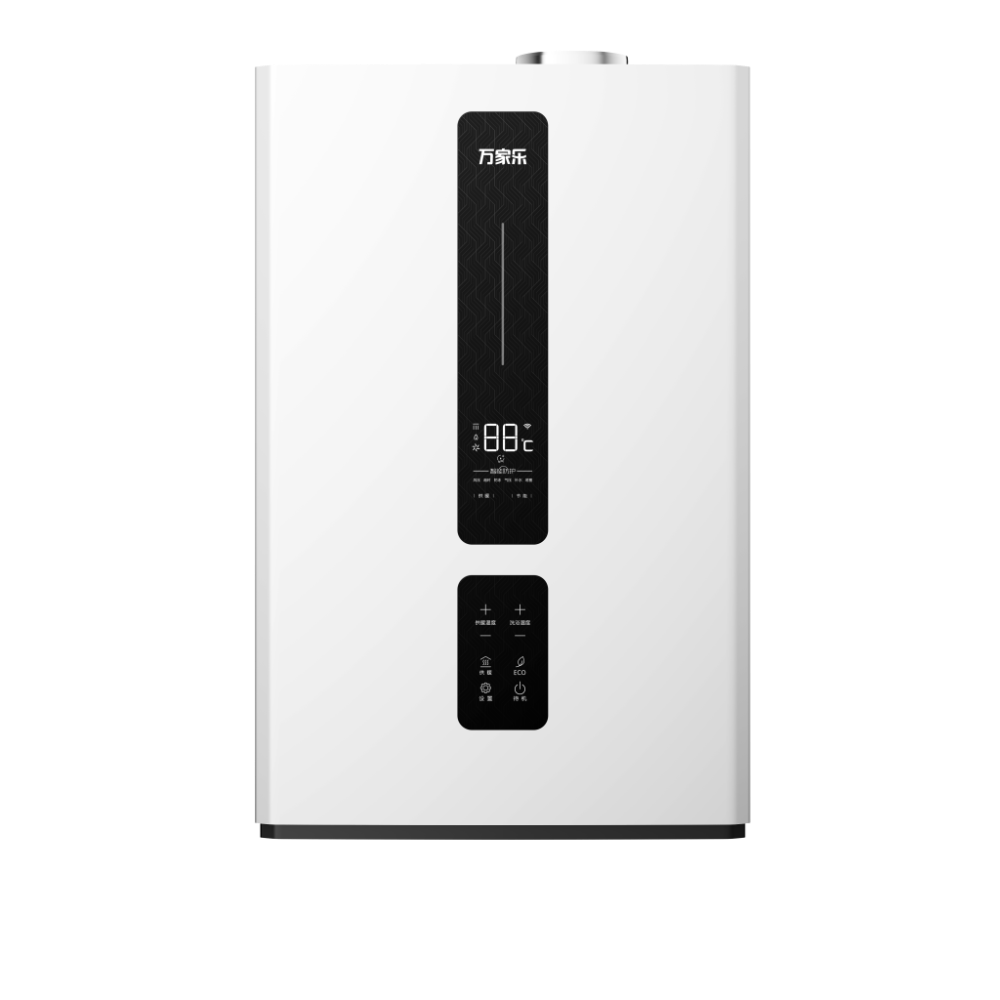

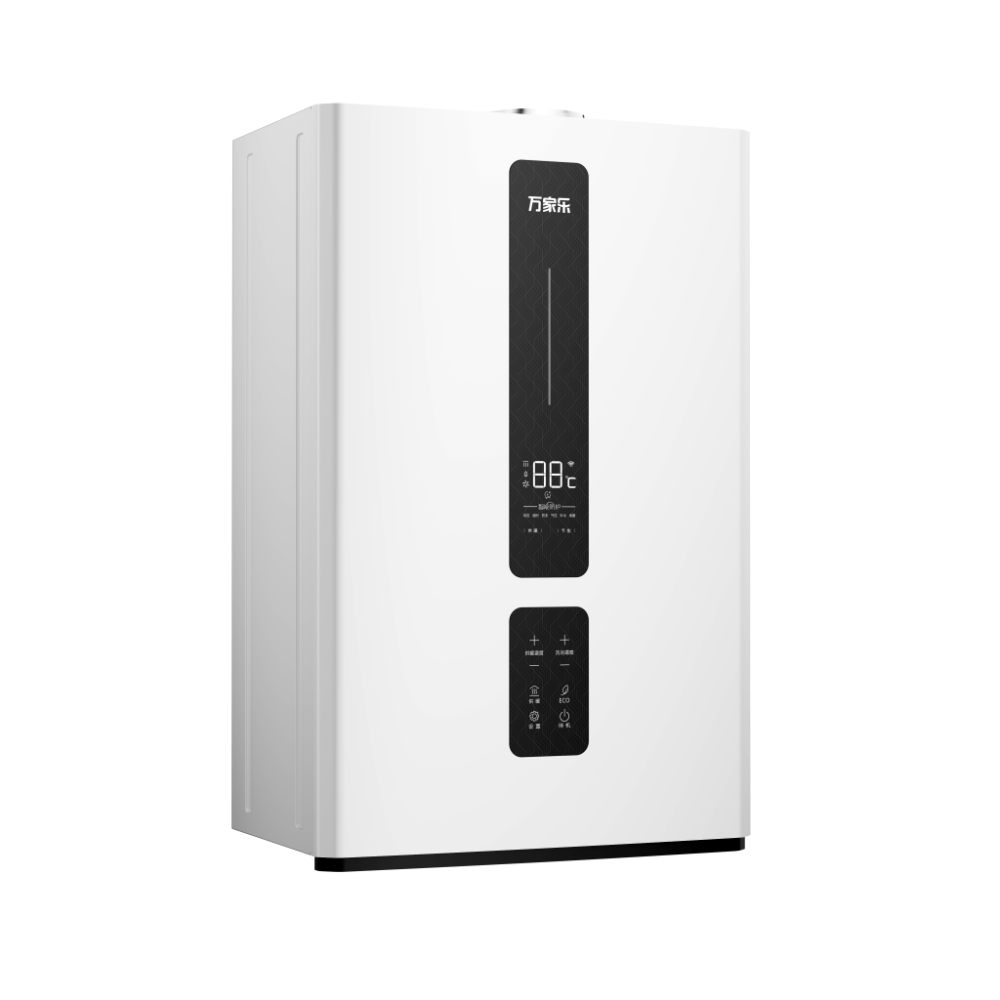

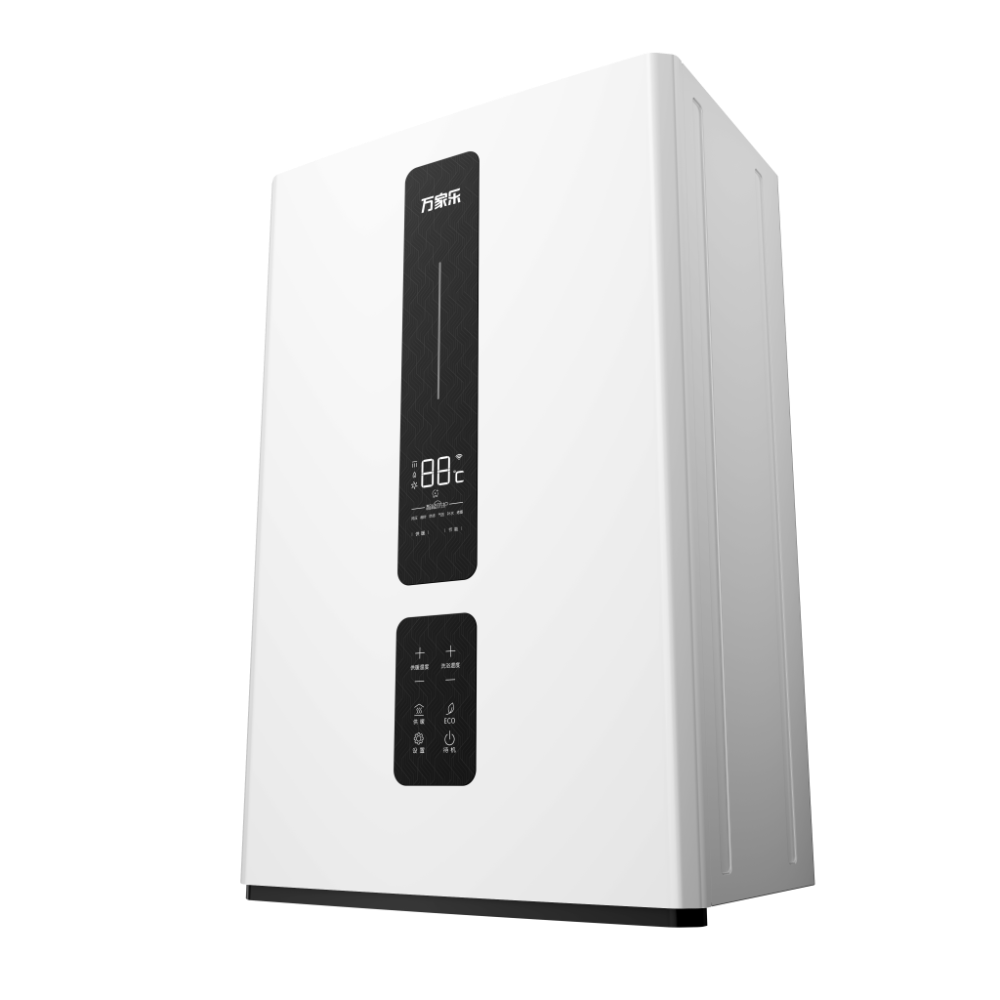

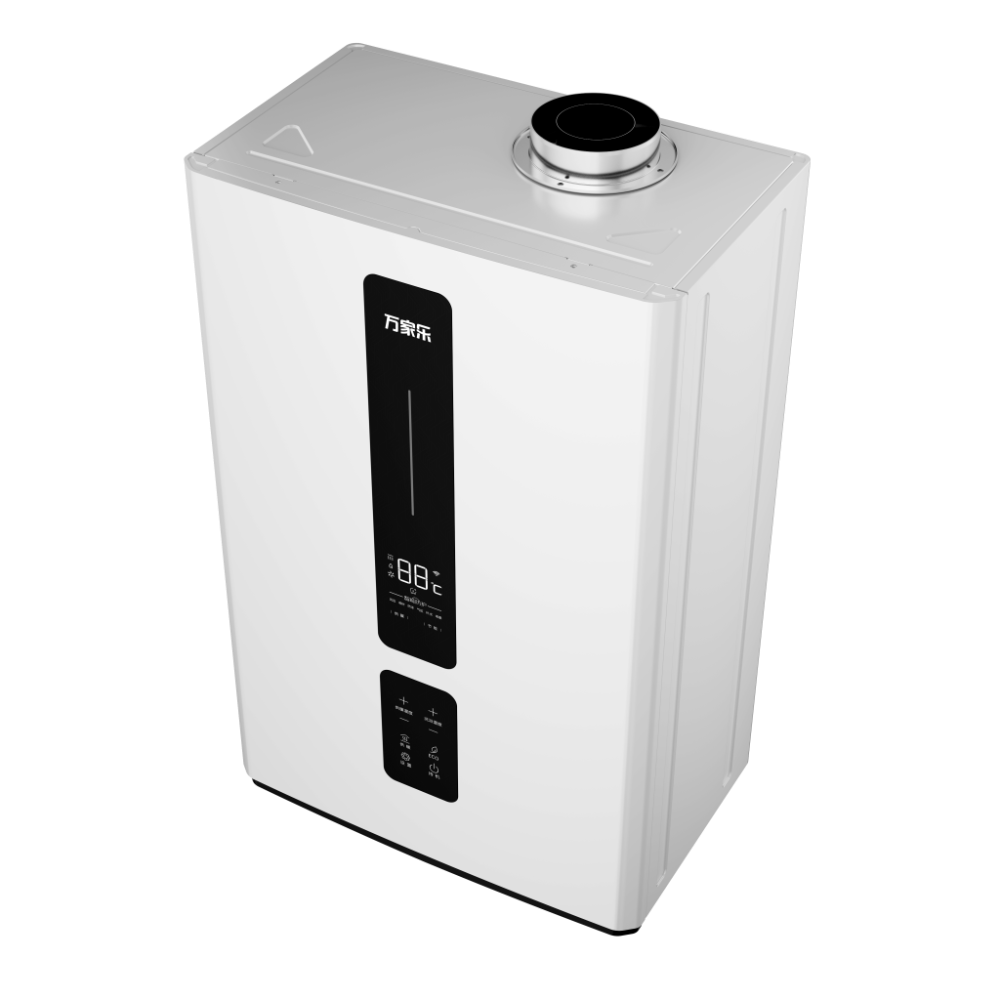

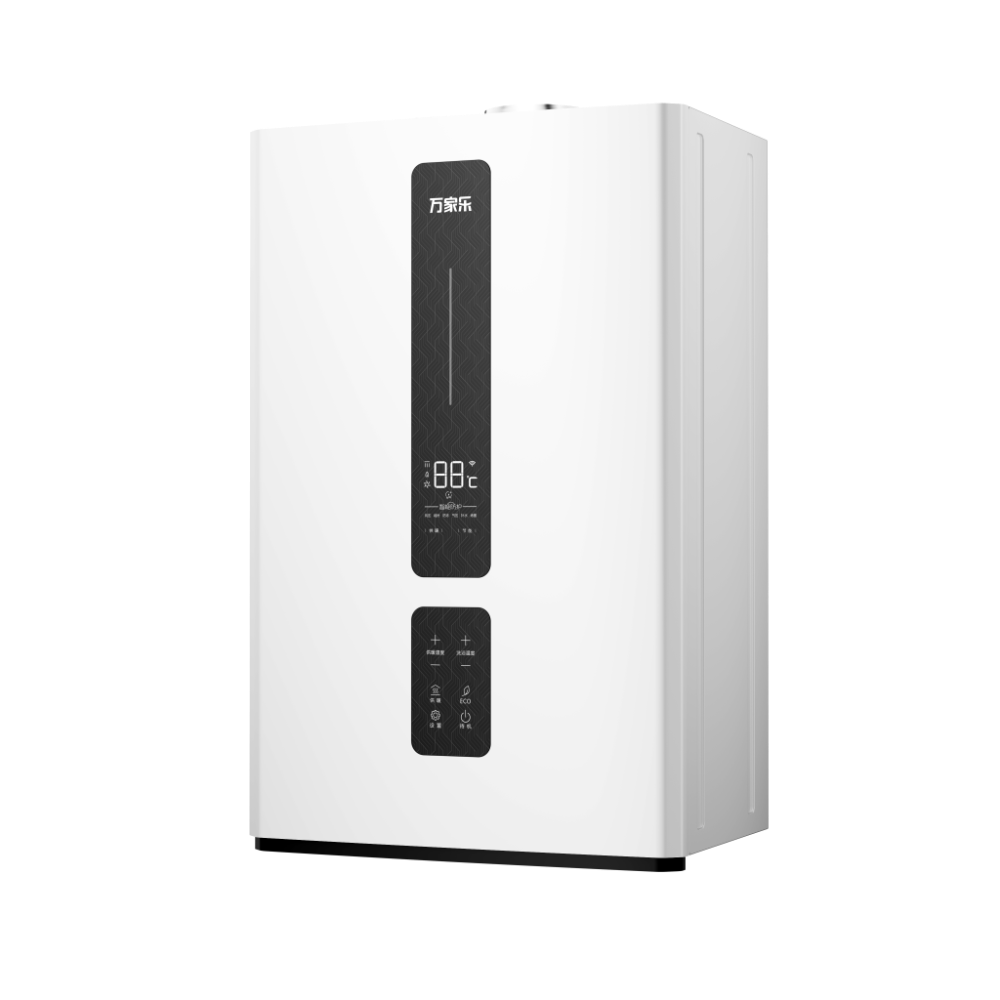

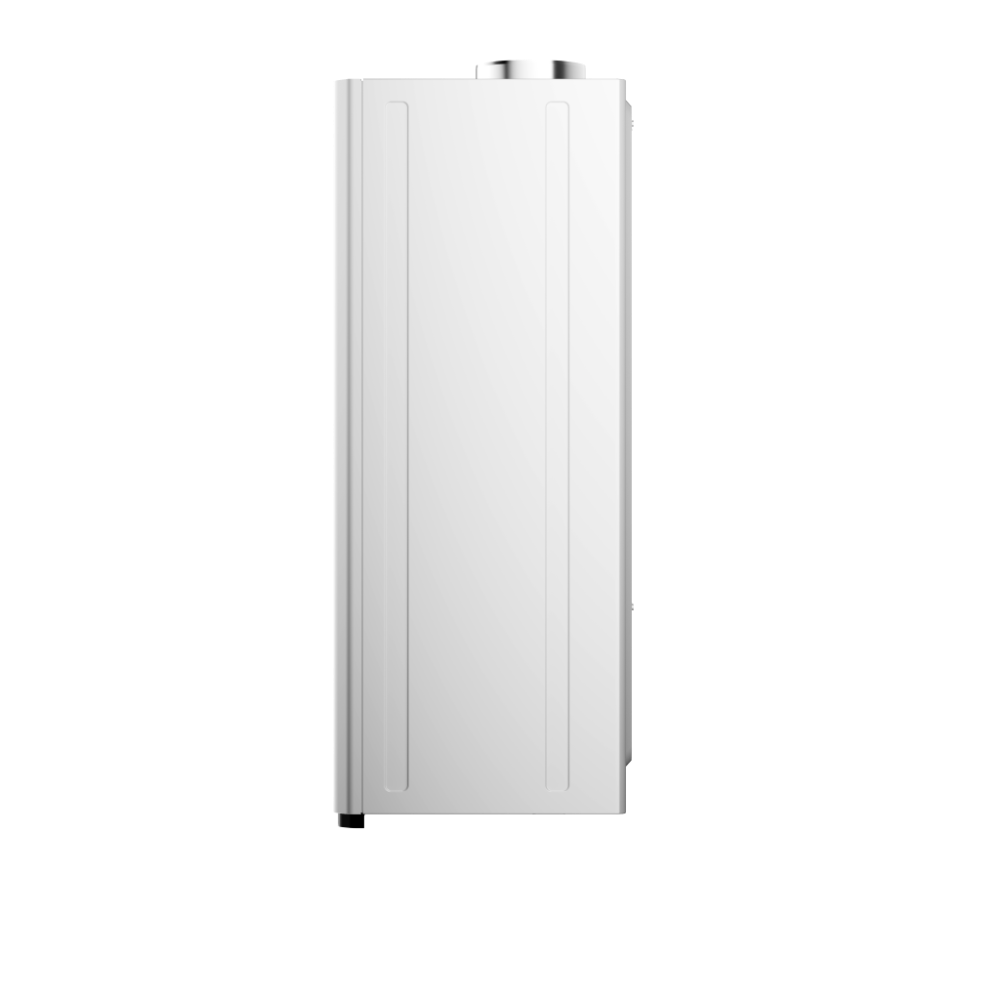

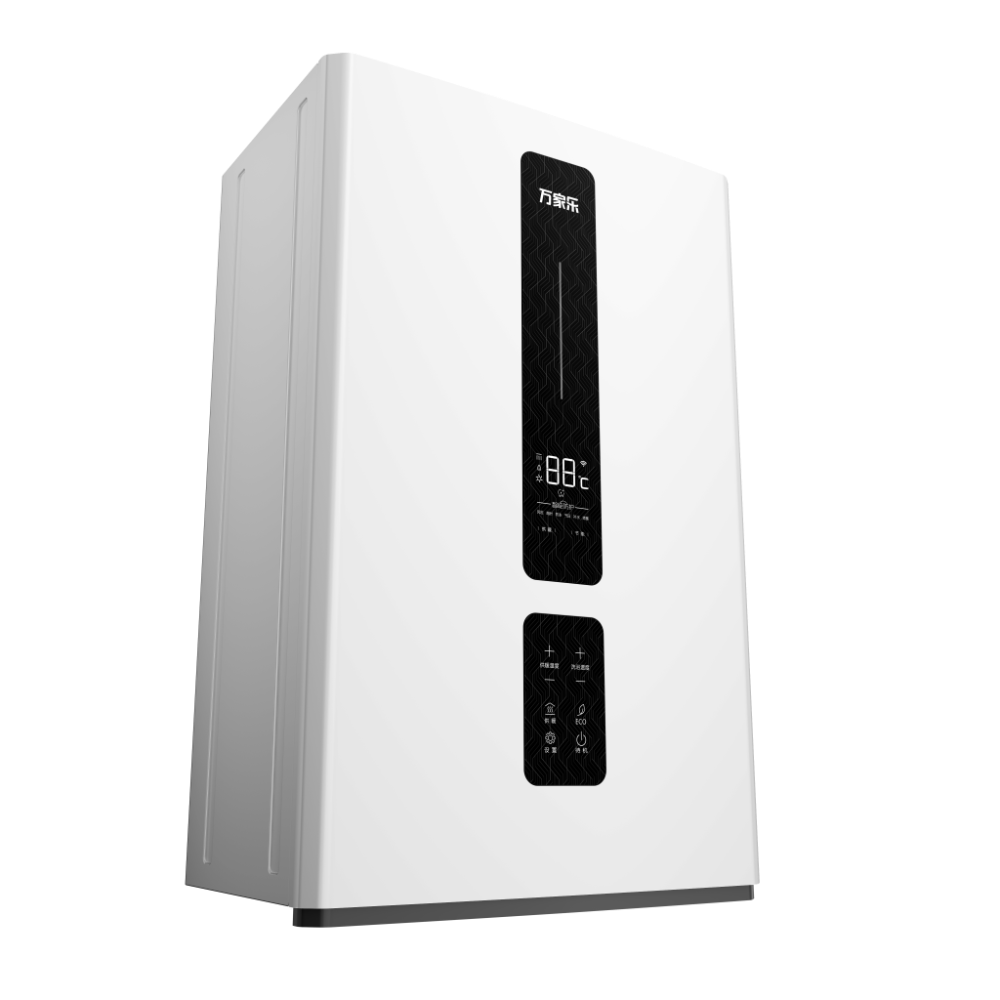

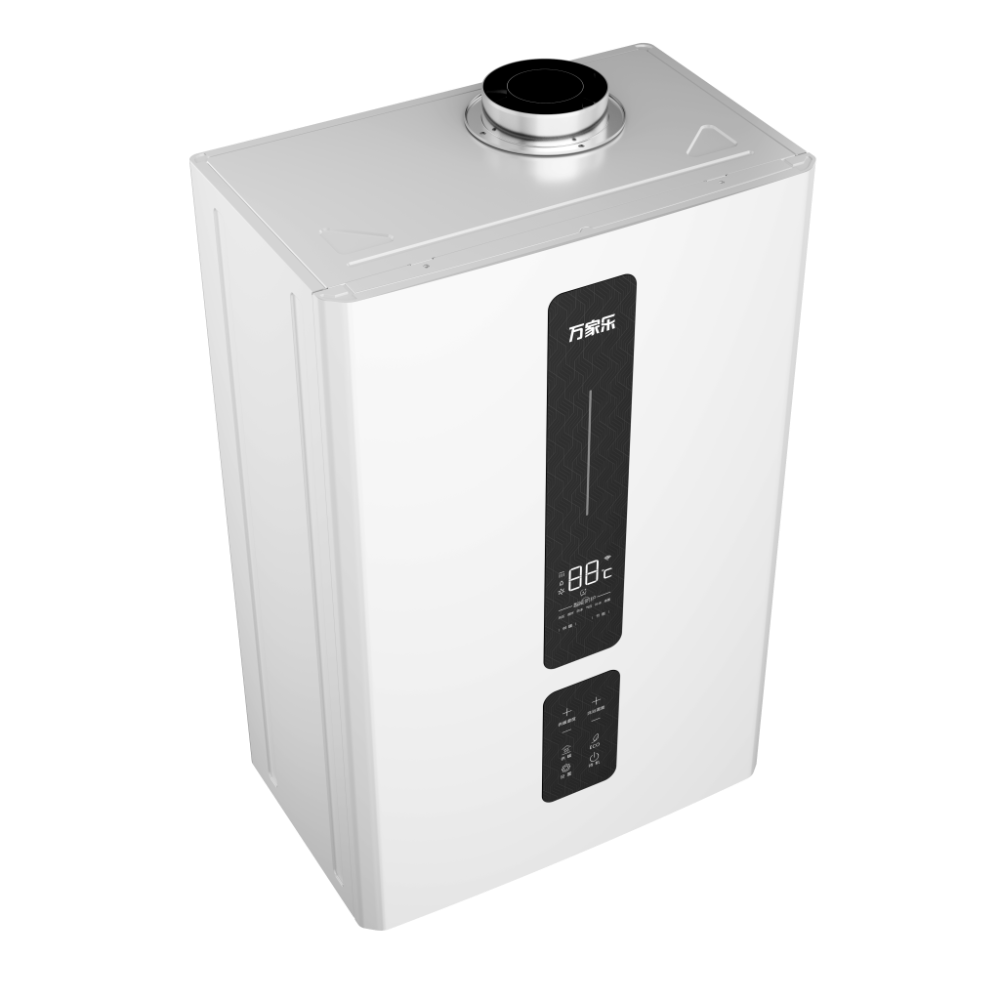

Wall-hung Gas Boiler R1

The R1 series boilers (models L1PB20 - 18R1 & L1PB26 - 24R1) are high - performance heating and DHW solutions. Boasting features like one - key ECO mode, ±0.5℃ precise constant temperature, and segmental combustion, they ensure efficiency and comfort. Equipped with DC inverter fan motors, 48 - hour safe protection, and electronic control via a touch panel, these units offer quiet operation (noise reduction design) and utilize high - efficient heat exchanger tech. They deliver adjustable heat input/output for heating, stable DHW performance, and meet diverse heating & hot water needs for various spaces.

Model: R1

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

Wall-hung Gas Boiler R1

The R1 series boilers redefine home comfort with advanced tech and versatile functionality. Available in L1PB20 - 18R1 and L1PB26 - 24R1 models, they integrate multiple innovative features. The one - key ECO mode optimizes energy use, while ±0.5℃ precise constant temperature ensures consistent comfort. Segmental combustion and DC inverter fan motors enhance efficiency, adapting to different heating demands.

For heating, they offer rated max/min heat input (20 - 8Kw for L1PB20 - 18R1; 26 - 9Kw for L1PB26 - 24R1) and output (18 - 7Kw; 23.5 - 8Kw), with controlled gas consumption. In DHW, rated heat input reaches 20Kw and 26Kw respectively, supporting sufficient hot water capacity (10/8.5L for △t=25K/30K; 13/11L).

Safety is ensured via 48 - hour protection, and the noise - reduction design guarantees quiet operation. Electronic control and a touch panel enable easy operation. Relying on high - efficient heat exchanger tech, these boilers balance performance, energy saving, and safety, making them ideal for modern households seeking reliable heating and hot water solutions.

Features

Simple High-gloss White Embodies Oriental Elegance Clever Volume Reduction Usher in a New Chapter of Home Living

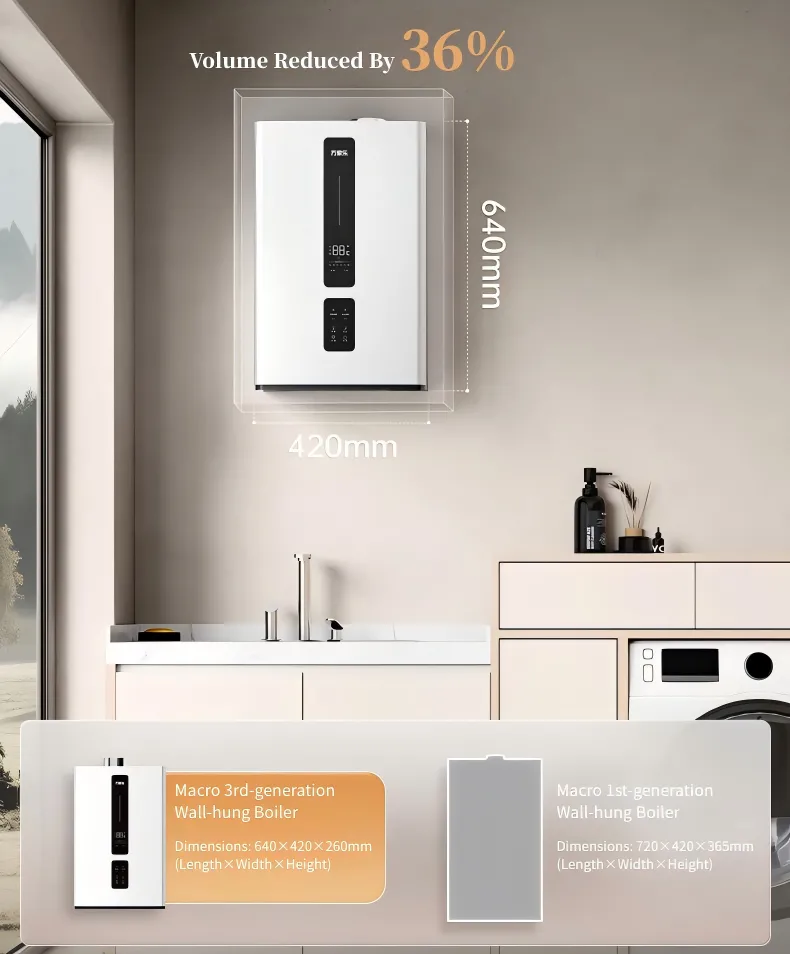

Volume Reduced By 36%
releases more living space

Simple High-gloss White
versatile for home decor and easy to clean

Concise Touch-control Large Screen
making operation easy & convenient for family

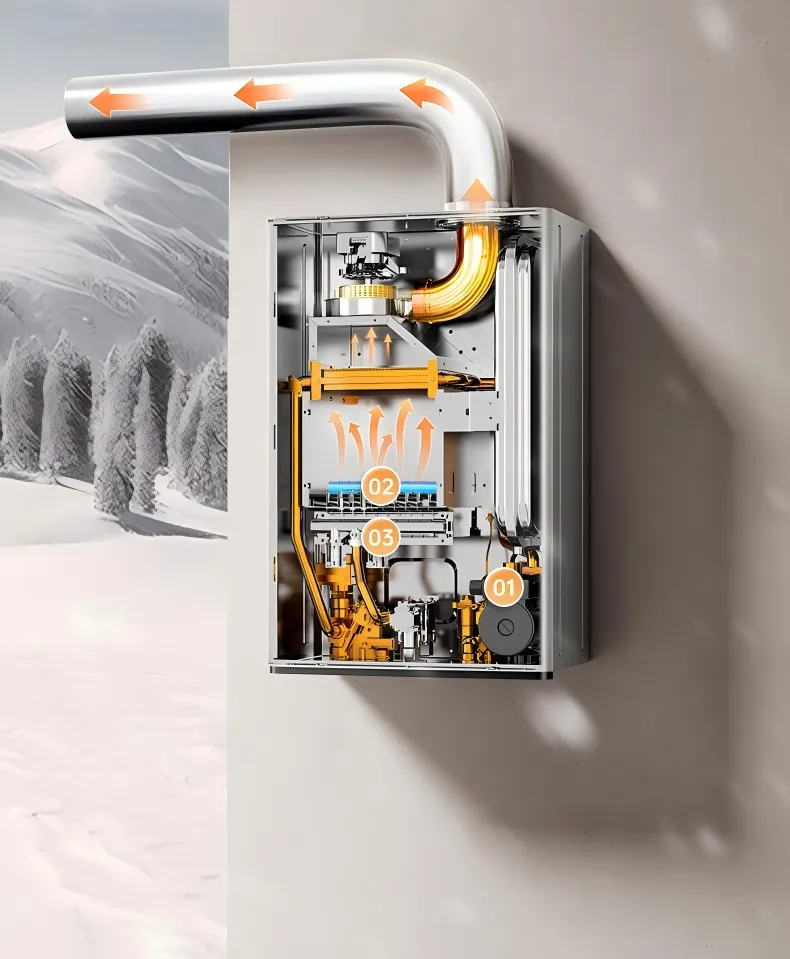

Smart Dual-frequency Conversion Scientific Heat Exchange for Greater Energy-efficiency

DC Variable-frequency Fan
Automatically adjusts to resist wind and ensure stable combustion

High-precision VFP valve
Precisely controls gas for energy and gas savings

Thermal Efficiency
Up To 93% High energy efficiency means gas savings

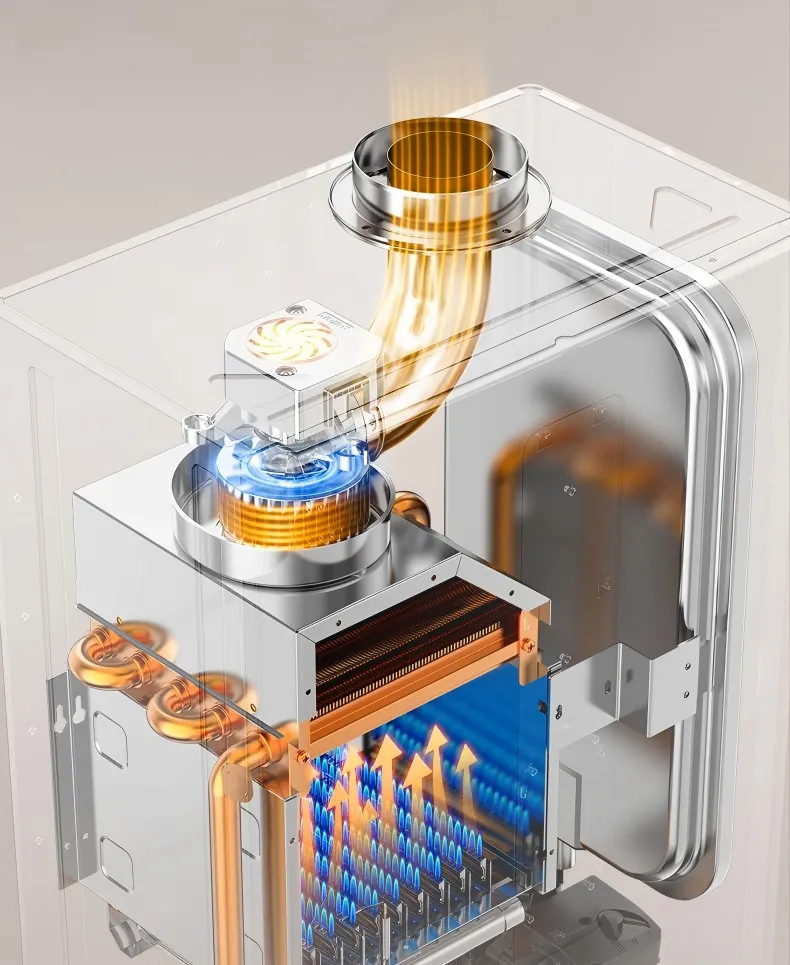

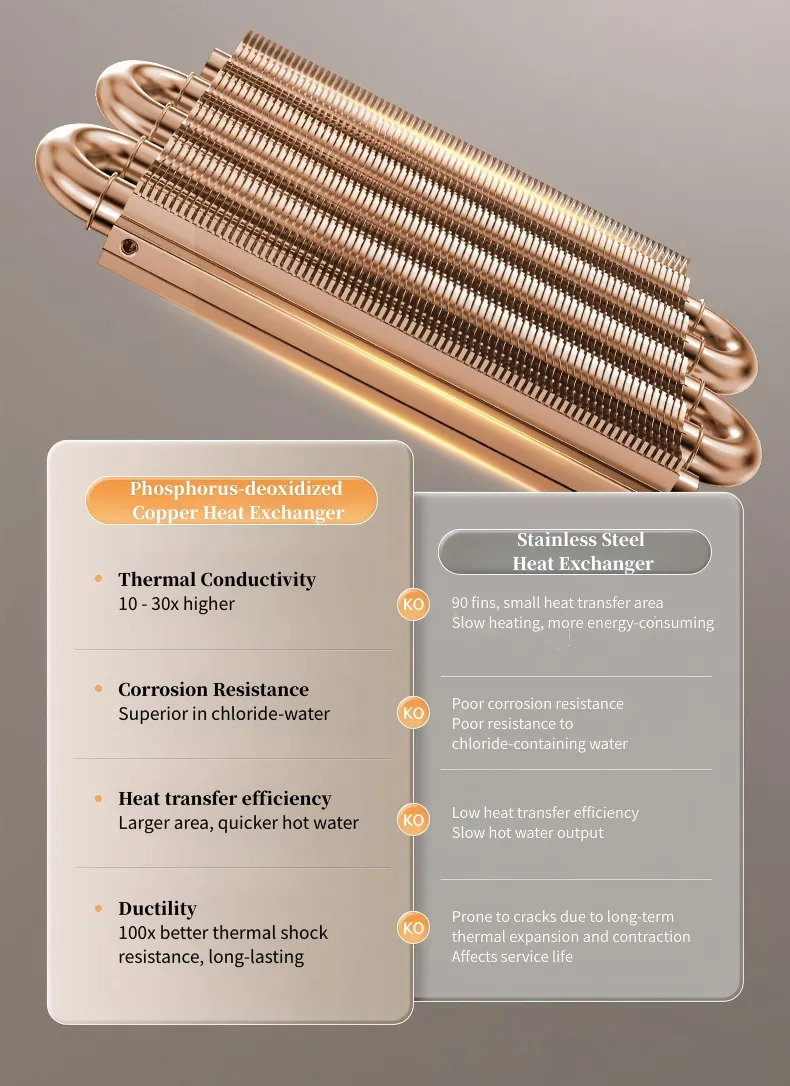

Phosphorus-deoxidized Copper Heat Exchanger Efficient Heat Transfer Corrosion Resistant & Durable

Fast Heat Transfer
Saves gas

Uniform Conduction
Avoids local temp issues

Strong Corrosion Resistance

Long-lasting

WIFI Remote Intelligent Control Freely Control Home Temperature

Advanced Booking
Enjoy warmth as soon as you get home

Real-time Monitoring
Prevent potential issues

Remote Adjustment
Provide comfort for the elderly at home

One-click ECO Energy-saving Reducing the Burden for Smart and Warm Living

Quick Heating
Warmth intensifies during the day

Comfort
Low temperature at night without dryness

Energy-saving
Up to 15% gas savings

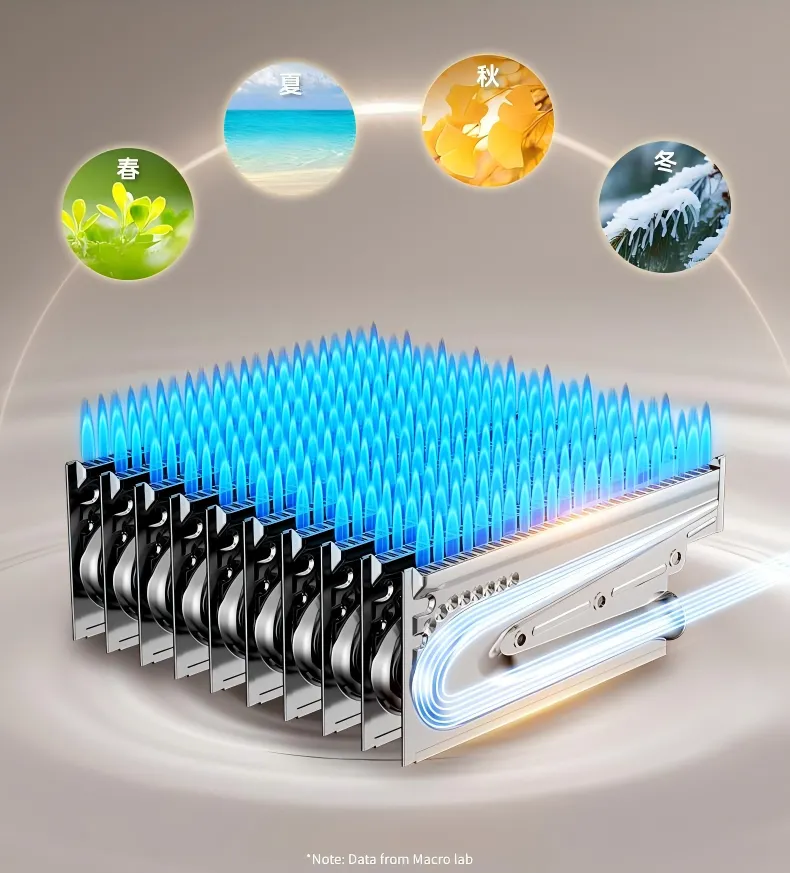

Intelligent Segmented Combustion Tech Winter Warmth, Summer Comfort, Energy - Saving & Constant Temp

2-stage Micro Flame
Comfy summer bathing

4-stage Small Flame
Warm early autumn feel

8-stage Medium Flame
Spring & autumn comfort, cost-effective

10-stage Intense Flame
Winter bath warmth

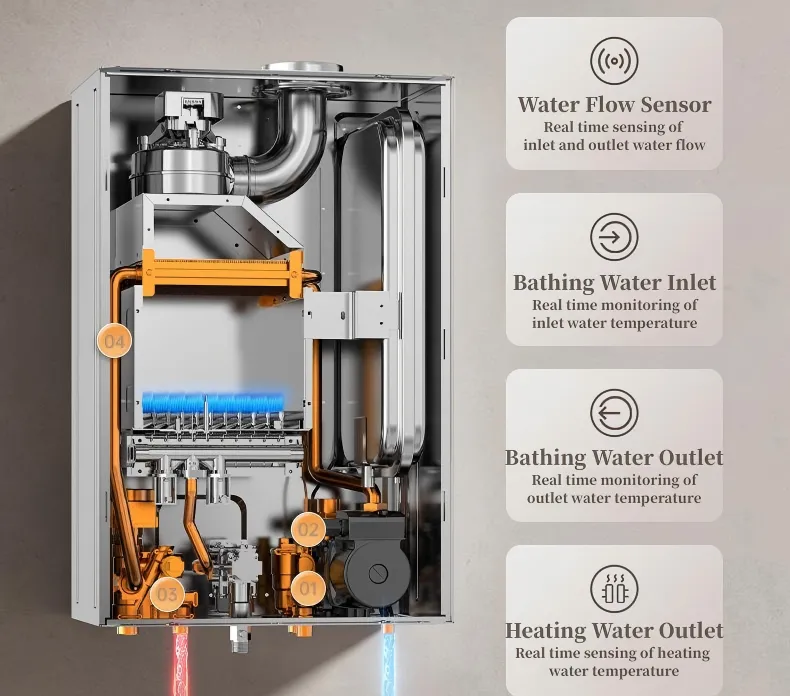

Four-point Precise Temperature Control Technology Permanent Comfort for Heating & Hot Water

Water Flow Sensor
Real time sensing of inlet and outlet water flow

Bathing Water Inlet
Real time monitoring of inlet water temperature

Bathing Water Outlet
Real time monitoring of outlet water temperature

Heating Water Outlet
Real time sensing of heating water temperature

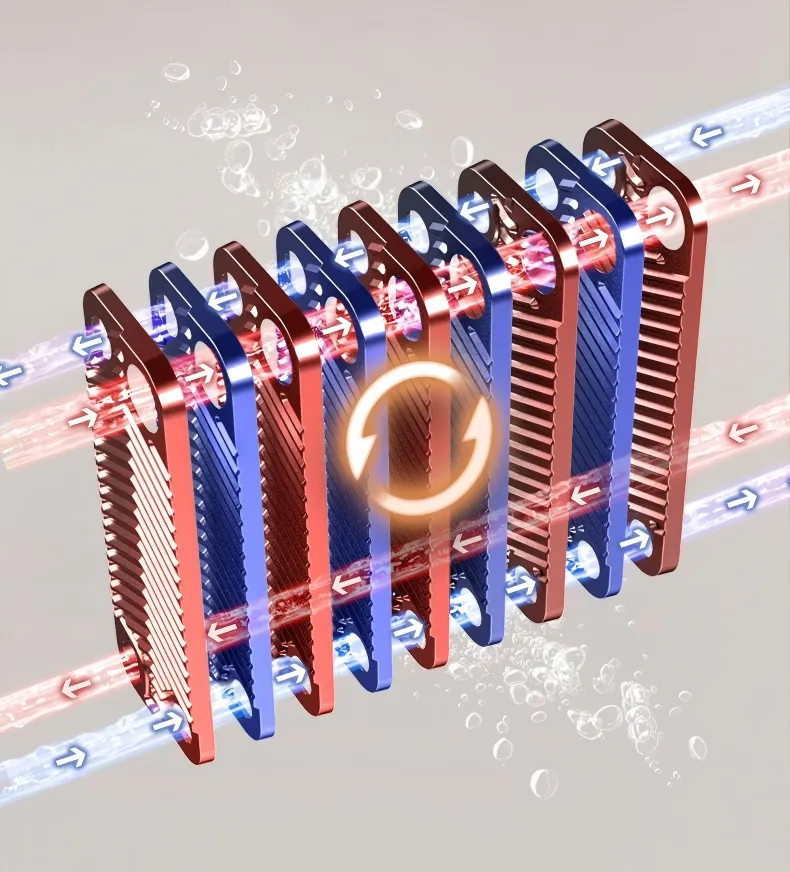

Honeycomb Plate Heat Exchange Technology Comfortable Hot Water for Constant Temp Bathing

Fast Heating
Large heat-exchange area, rapid temperature increase

Stability
Water temperature fluctuation within ±1℃

Durability
Less prone to scaling, long service life

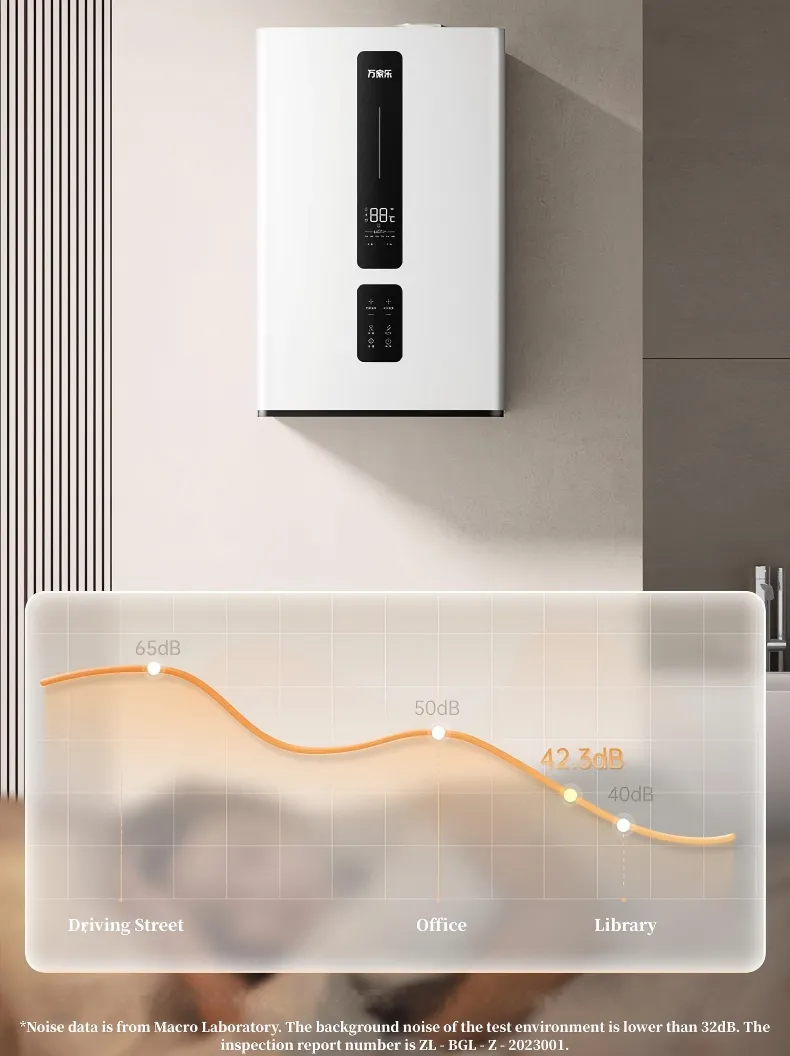

Operating as Quiet as 42.3dB Quiet Nights, Peaceful Sleep

5-fold Source-level Sound Insulation
Targeting noise sources one by one

3-fold Propagation Process Noise Reduction
Blocking noise from spreading outward

Three-level Anti-freeze Protection Continuous Warmth in Bitter Cold

Level 1 Anti-freeze Protection
When the water temperature drops to 9℃, the circulation pump starts. It exits anti - freeze protection when the water temperature reaches 11℃

Level 2 Anti-freeze Protection
When the water temperature drops to 7℃, the system ignites. It shuts off after the water temperature reaches 30℃

Level 3 Anti-freeze Protection
When the water temperature drops to 1℃, the device alarms to remind users to drain water and avoid pipe icing

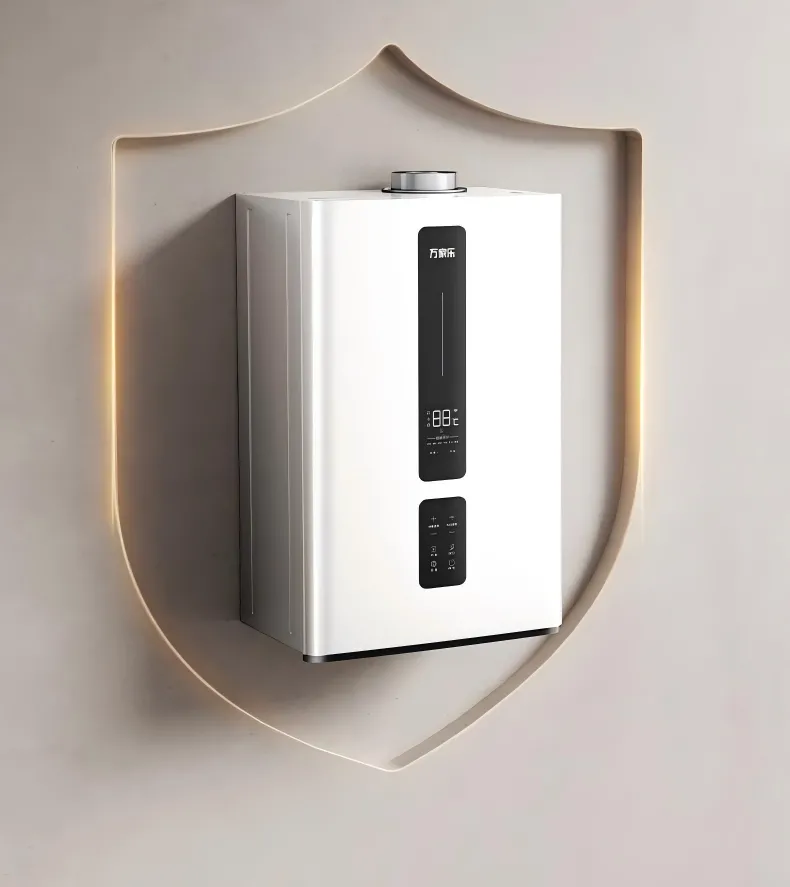

48-fold Intelligent Protection Warmth Accompanied, Safety Ensured

Gas Use Protection

Water Use Protection

Power Use Protection

Equipment Protection

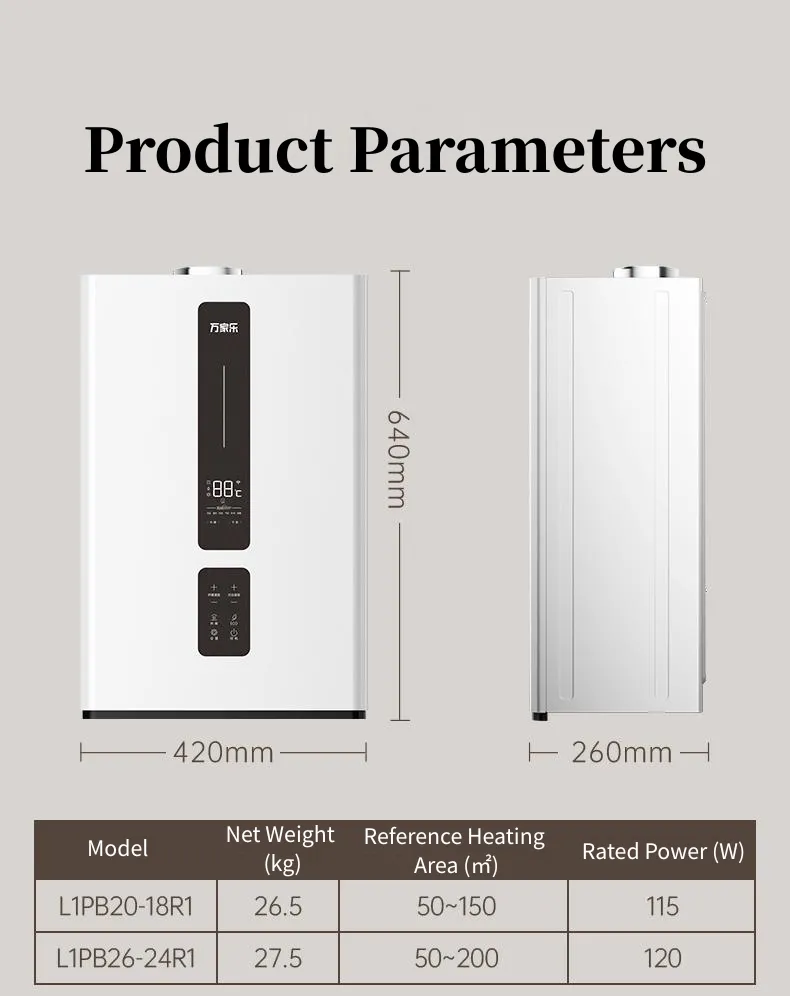

Specifications

MODEL		L1PB20-18R1		L1PB26-24R1
Heaing	Rated max./min.heat input(Kw)	20	8	26	9
	Max.gas consumption/secondary pressure (m³/h,Pa)	2	1020	2.6	1098
	Min gas consumption/secondary pressure (m³/h,Pa)	0.8	288	0.9	207
	Rated max./min.heat output(Kw)	18	7	23.5	8
DHW	Rated heat input(Kw)	20		26
Max.gas consumption/secondary pressure (m³/h,Pa)		2	1020	2.6	1098
Rated electric power(W)		115		170
Standby electric power(W)		3		3
Hot water capacity(△t=25K)		10		13
Hot water capacity(△t=30K)		8.5		11

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
