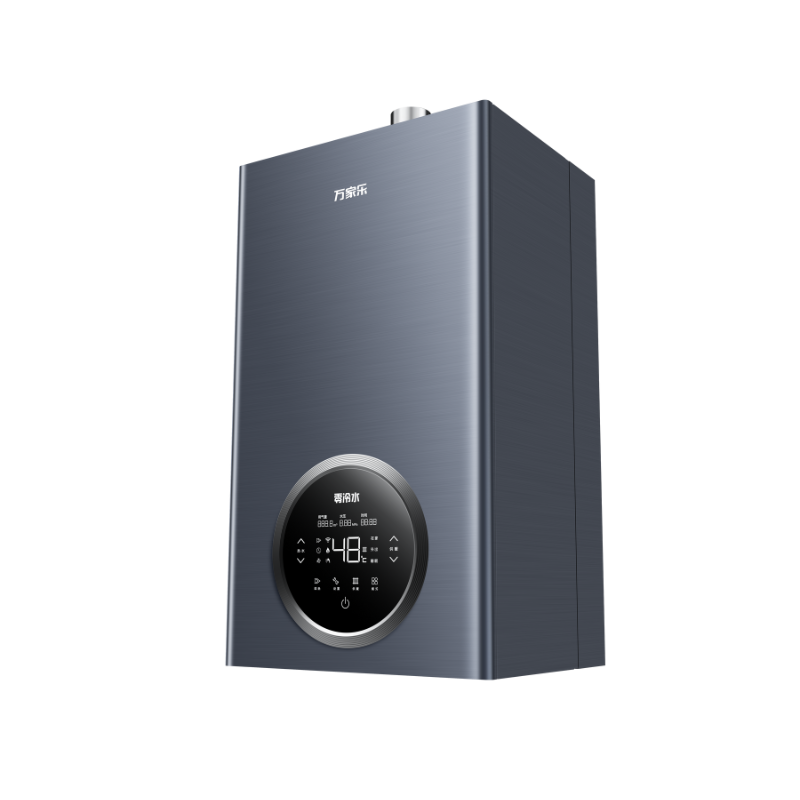

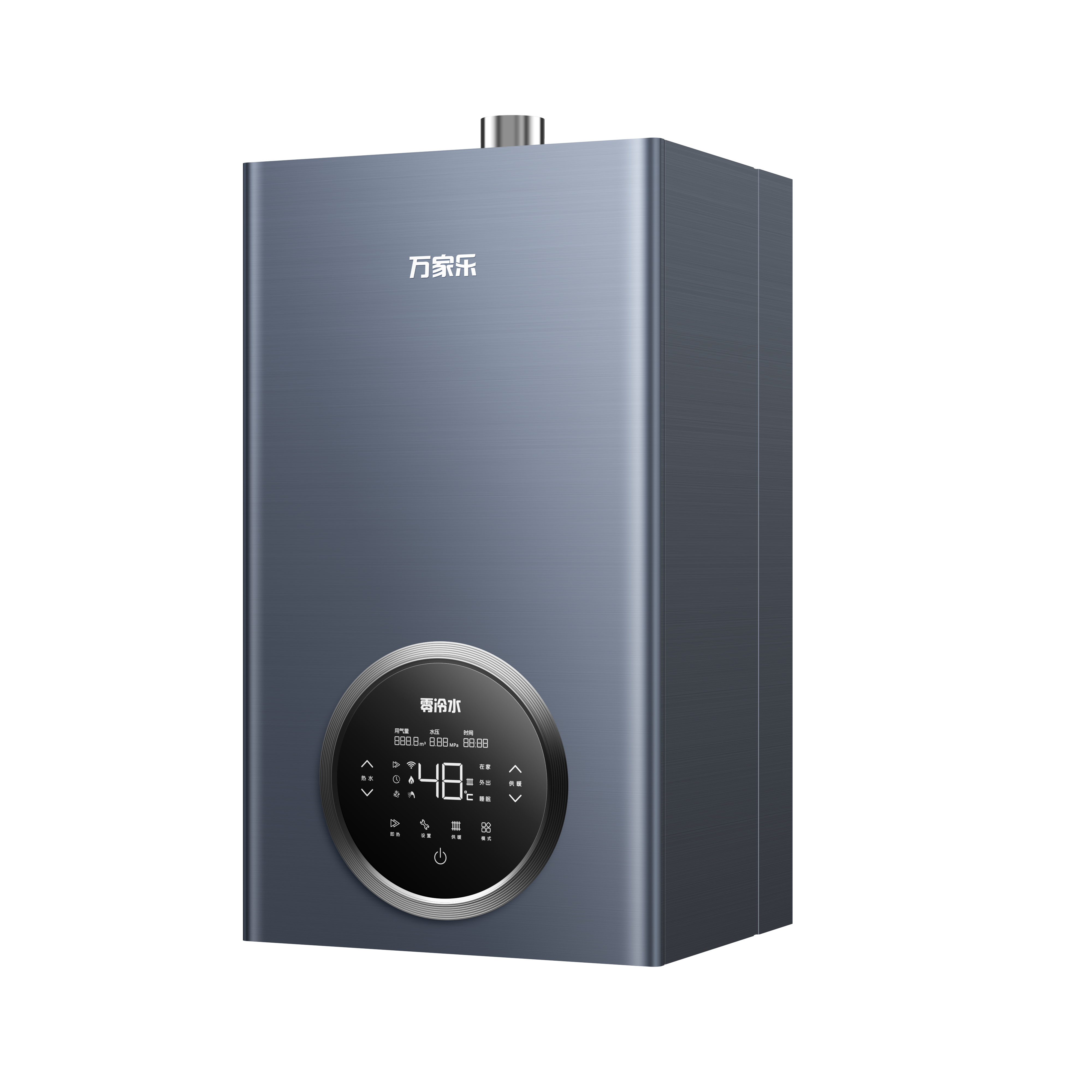

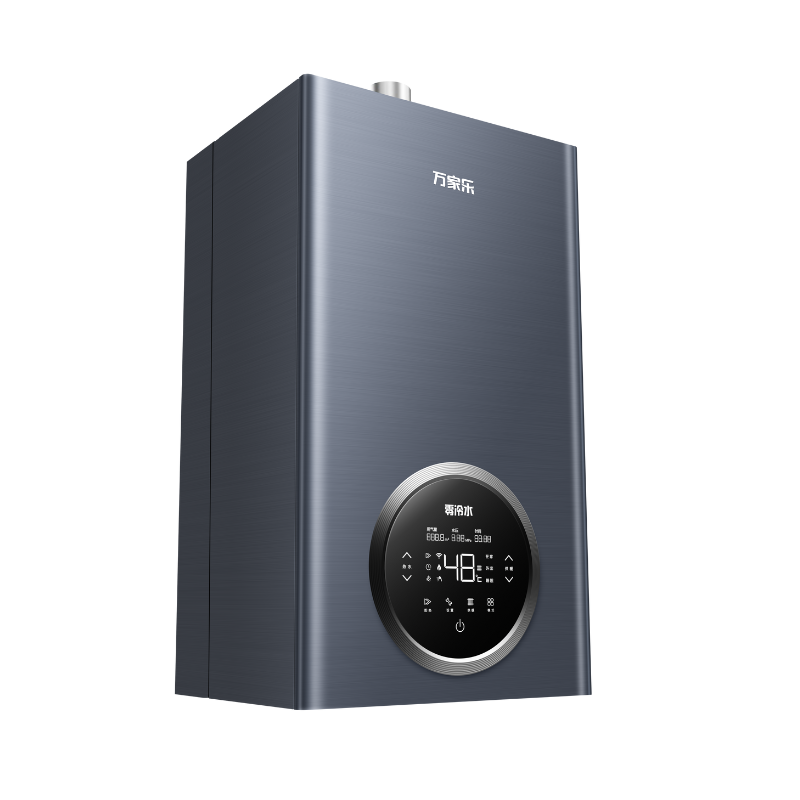

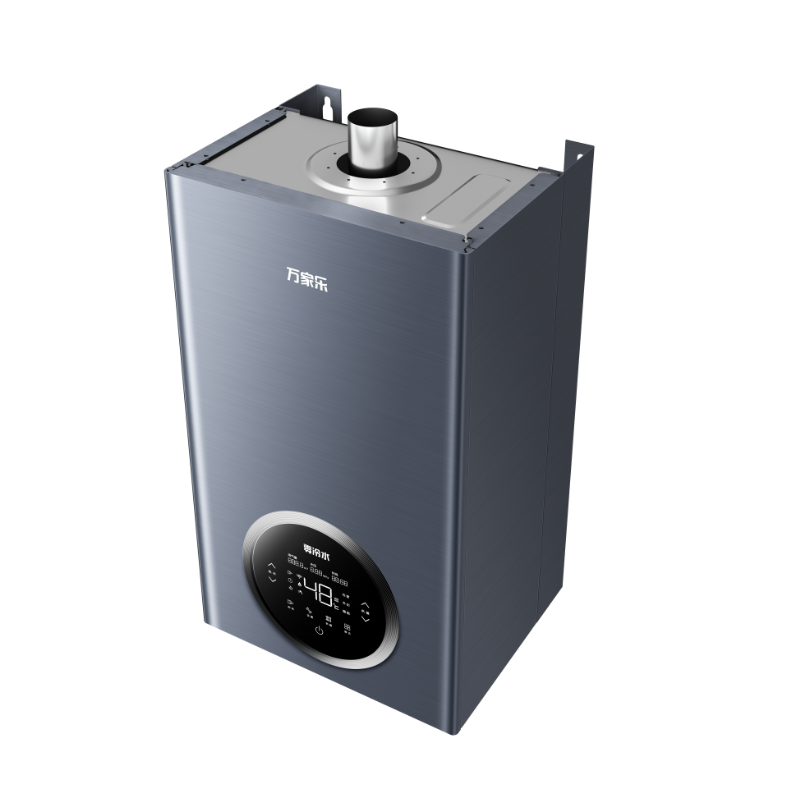

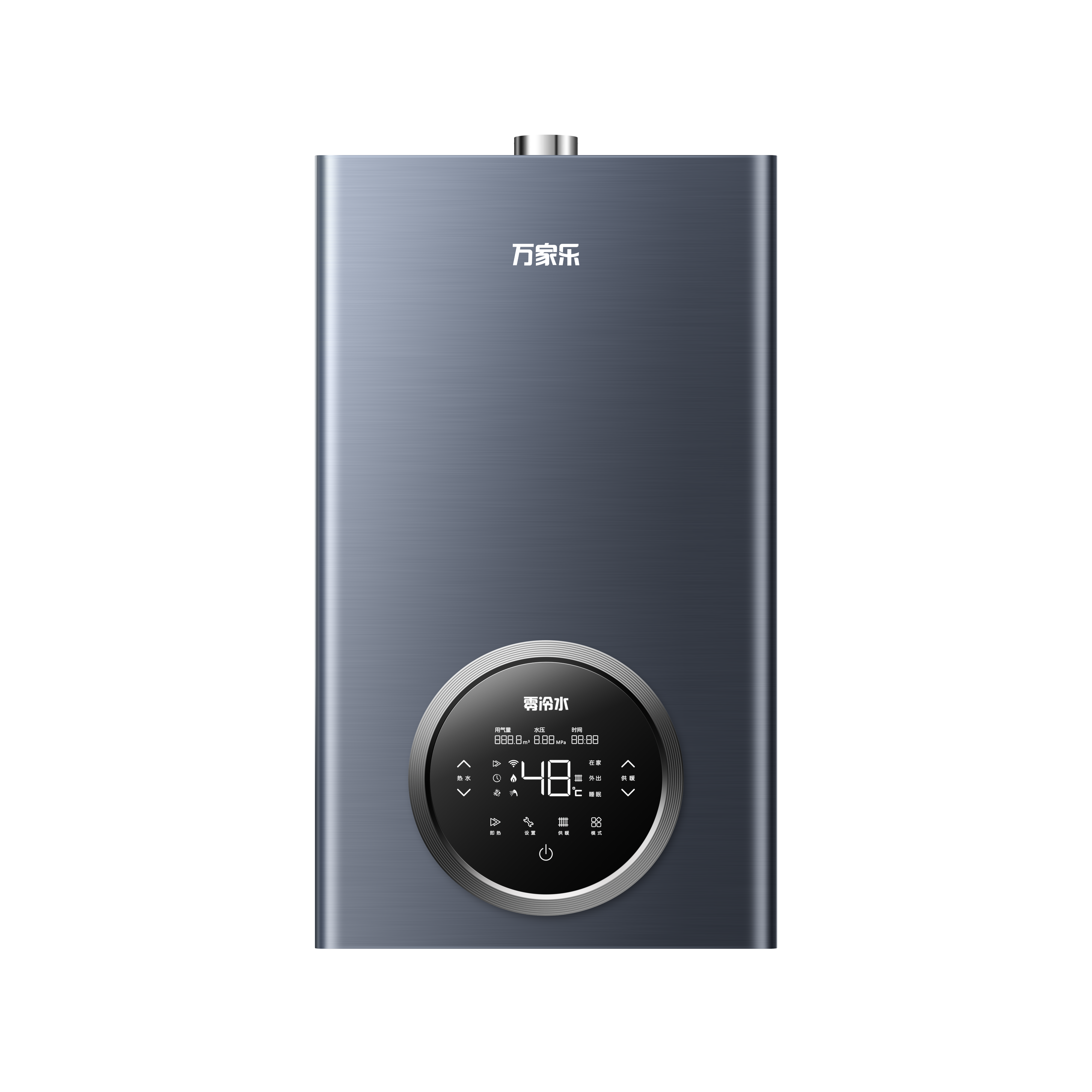

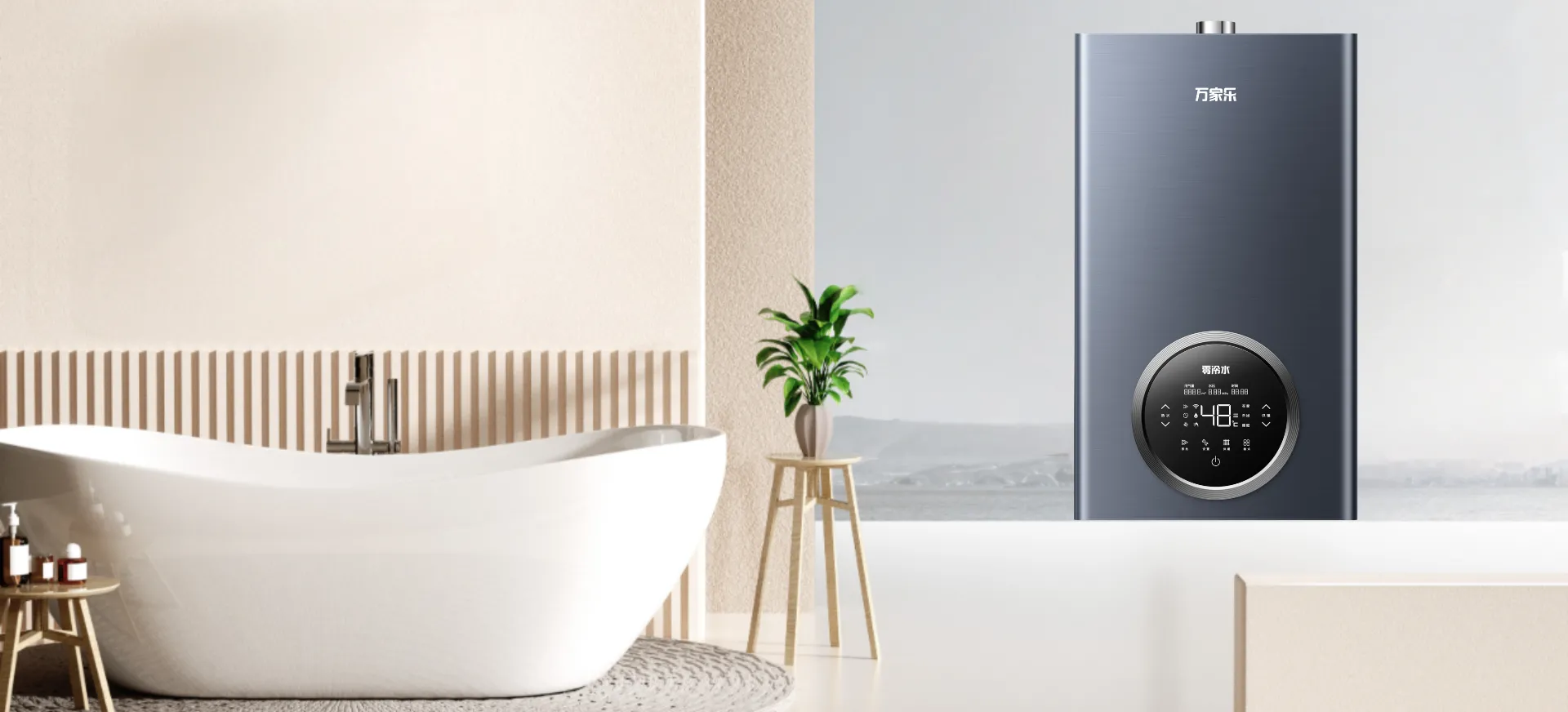

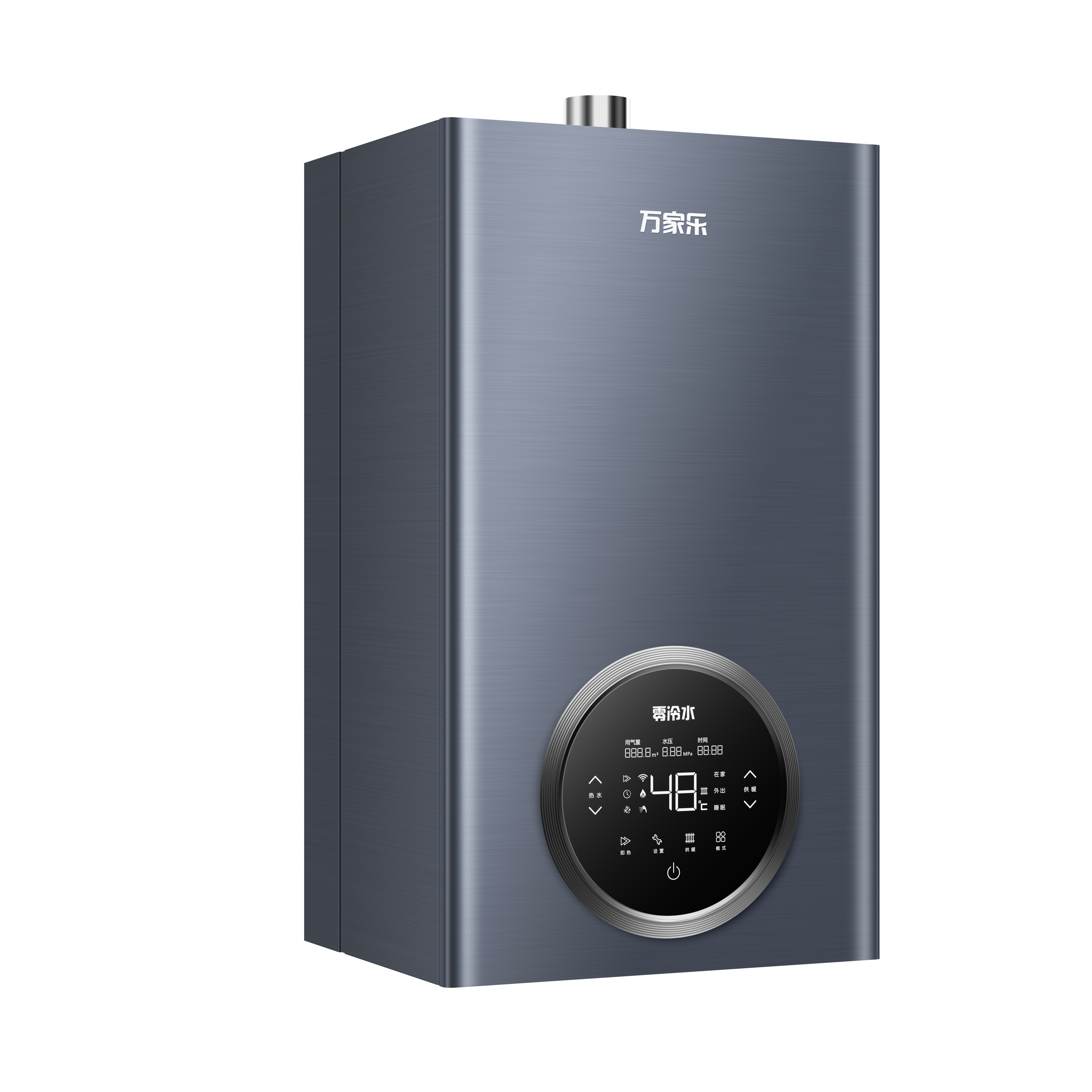

Wall-hung Gas Boiler R5L

The R5L Series Gas Heating & Hot Water Boiler delivers 24kW/28kW of reliable power for homes between 80–230㎡. It combines a plate heat exchanger with a German Wilo circulation pump and Japanese Mikuni gas valve for efficient performance and long-lasting durability. With WiFi remote control, 48 layers of safety protection, and a 2nd-class energy efficiency rating, it ensures both comfort and savings. The boiler offers three heating modes and app scheduling, allowing you to customize your home’s temperature anytime, anywhere.

Model: R5L

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

Wall-hung Gas Boiler R5L

The R5L Series Gas Heating & Hot Water Boiler is designed to meet the demands of modern home heating, offering a perfect blend of efficiency, intelligence, and safety. Available in 24kW and 28kW models, it provides consistent heating for radiators (30–80℃) and underfloor systems (25–60℃), while delivering a steady supply of hot water (35–60℃) with a 10L/min flow rate. Its compact, Arctic Blue brushed metal design, with a touchscreen display, adds a sleek, modern look to any home.

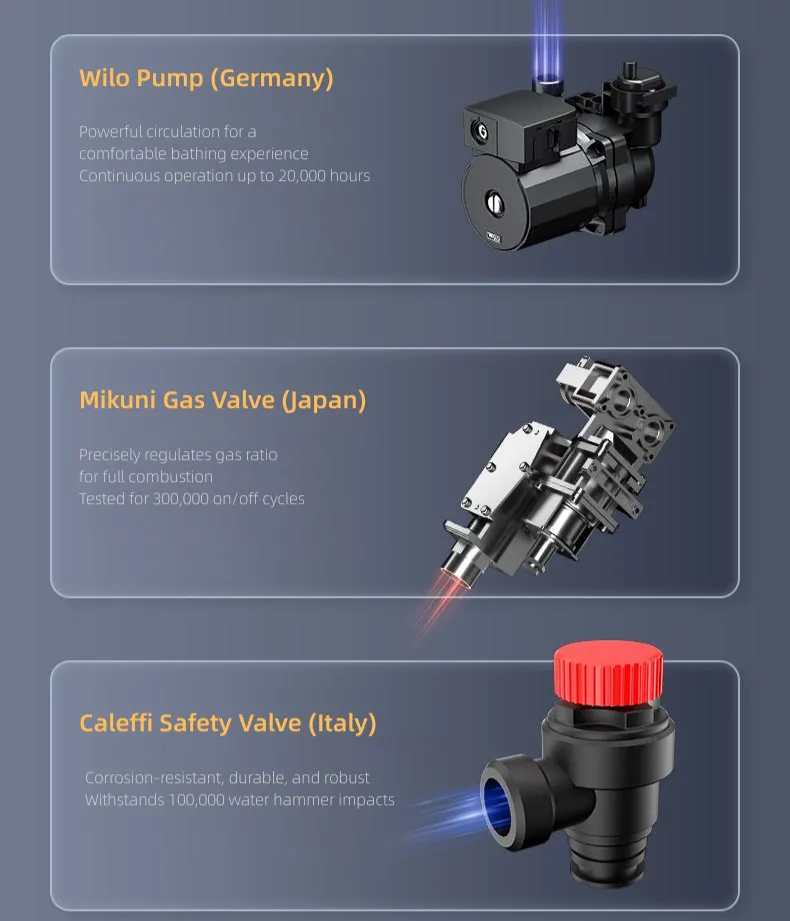

At its core, the R5L Series features a plate heat exchanger paired with a German Wilo circulation pump and a Japanese Mikuni gas valve, ensuring optimal heat transfer, precise gas regulation, and reliable performance even under heavy use. The boiler’s forced ventilation system and IPX4D protection rating make it safe for installation in bathrooms and other humid environments, while its 48 layers of safety protection—including anti-freeze, anti-dry burn, and pressure relief features—provide round-the-clock peace of mind.

Smart technology is at the heart of the R5L experience. With WiFi connectivity, you can control your boiler remotely via a mobile app, adjust temperatures, set schedules, and switch between “At Home,” “Away,” and “Sleep” modes from anywhere. The four-point temperature control system minimizes hot water fluctuations, ensuring a consistent and comfortable bathing experience, while the gas consumption monitoring feature helps you track and reduce energy use.

The R5L Series is also engineered for longevity and low maintenance. Its stainless steel coaxial flue and corrosion-resistant components can withstand 100,000 water hammer impacts, and the gas valve is tested for 300,000 on/off cycles. With a 2nd-class energy efficiency rating and a three-stage modulation system, it adapts to your heating needs to save energy and lower utility bills. Whether you’re upgrading your home heating or building a new property, the R5L Series Gas Heating & Hot Water Boiler is a smart, reliable choice that combines performance, safety, and style.

Features

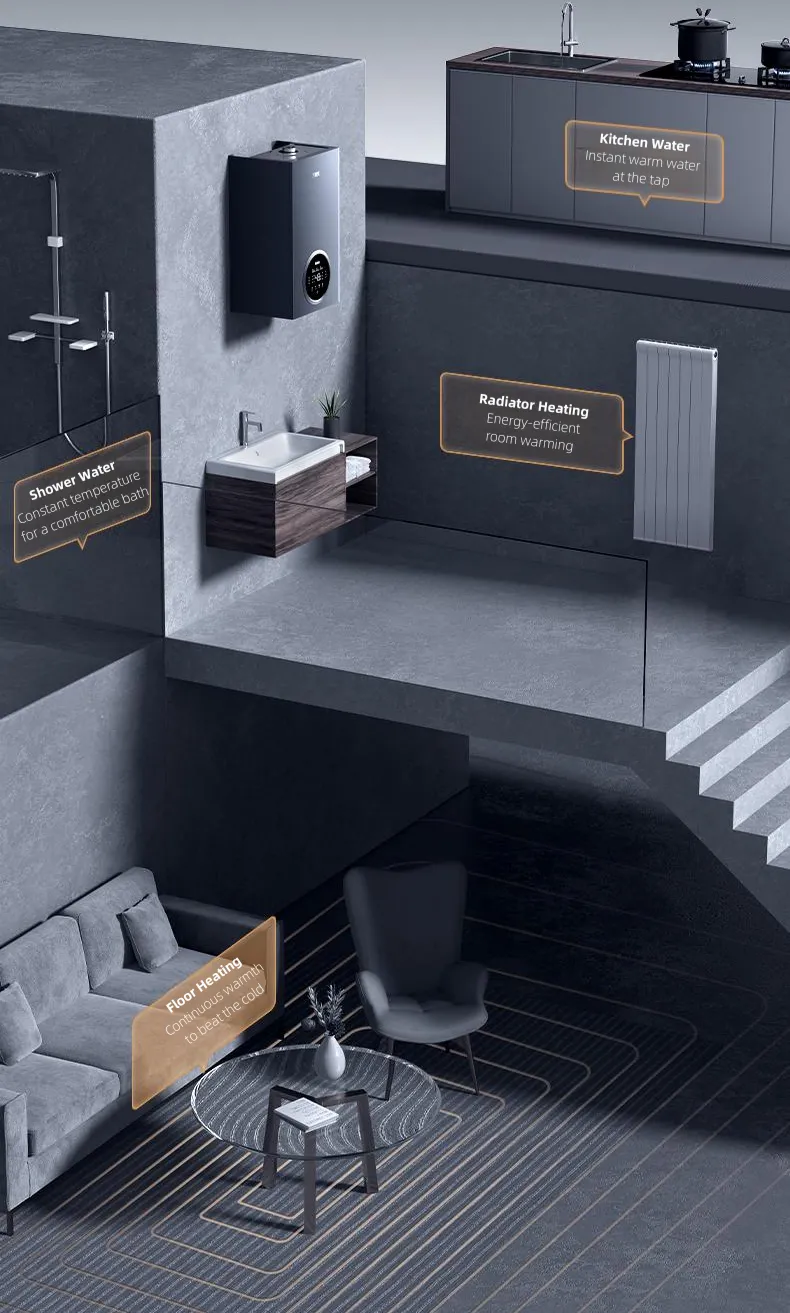

One Device, Multiple Uses Heating & Showering, All Covered

Multi-scenario application: one device for heating,

showering and kitchen water supply.

All-in-one flexibility:smart control for cost & energy savings.

Multi-scenario application: one device for heating, showering and kitchen water supply. All-in-one flexibility:smart control for cost & energy savings

Equipped with a DC inverter water pump that recycles cold water in thepipes,

then delivers constant-temperature hot water quickly to every tap.

Enjoy comfortable hot water instantly when you turn on the faucet.

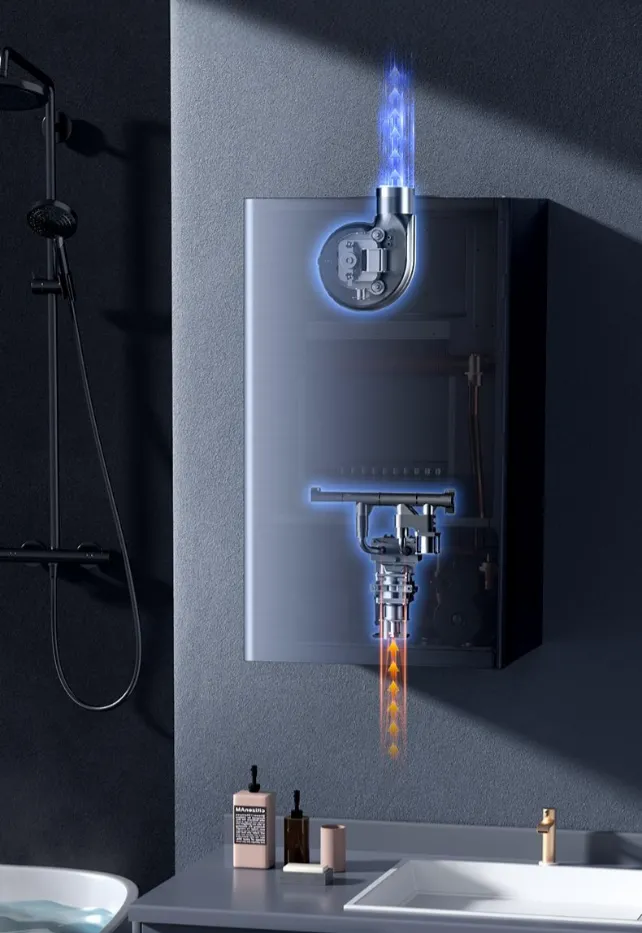

Upgraded Inverter 3.0 System High Efficiency, Energy Saving & Gas Saving

Equipped with an inverter fan and high-precision inverter gas valve,

it ensures full combustion of gas and prevents excess air from carrying away heat,

maintaining a combustion efficiencyof over 90% for high-performance operation.

The built-in inverter water pump adjusts watertemperature for a comfortable,

zero-cold water shower experience.

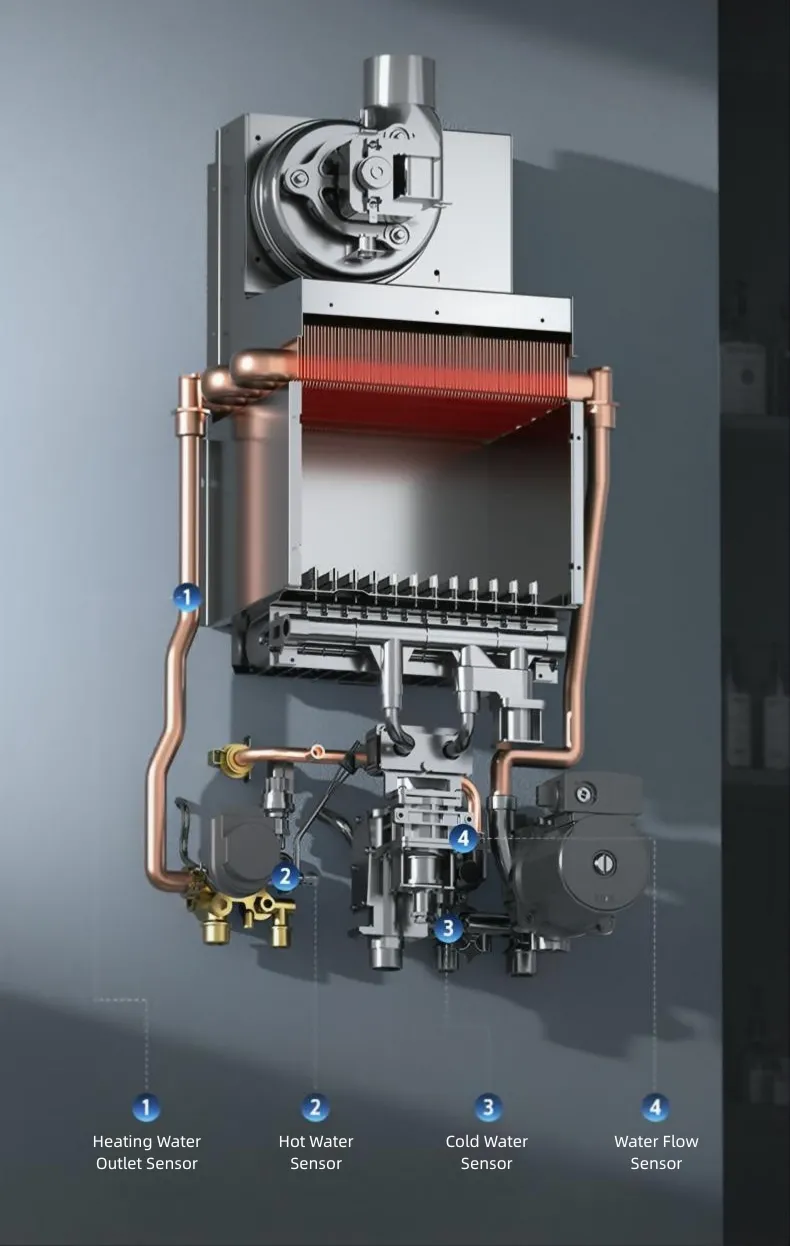

4-Point Constant Temperature TechnologyPrecision Control for Stable Water Temperature

Equipped with 4 high-precision water temperature sensors,

combinedwith signals from the water flow sensor,

it accurately matches combustionload to quickly reach and maintain your set temperature within 0.5C,

ensuring a steady, comfortable heating and showering experience.

Three Heating ModesA New Experience ofComfort & Energy Efficiency

Three heating modes to match different daily scenarios,

delivering both energy savings and a comfortable living environment.

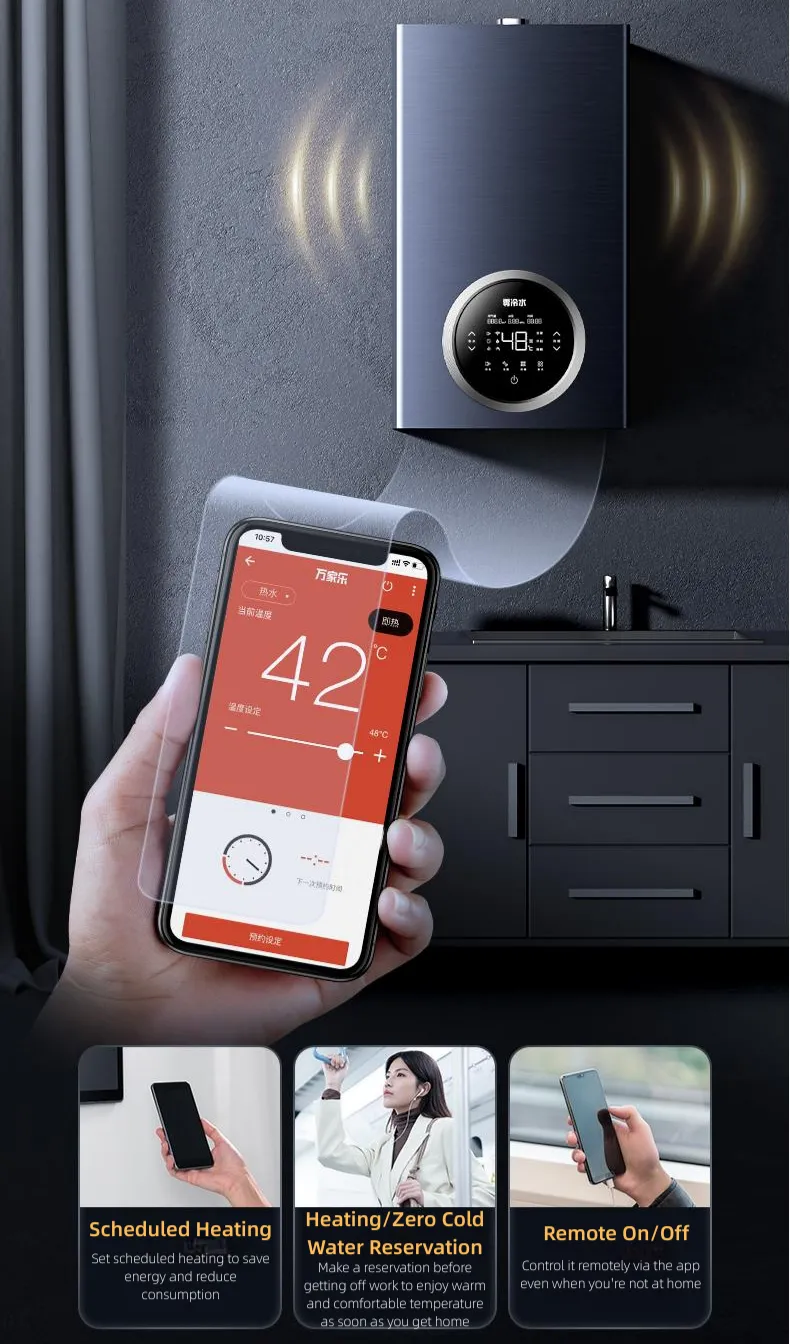

WiFi Remote Smart Control Adjust Your Home Temperature Anytime, Anywhere

With the remote smart control function via the mobile app,

you can regulate your home boiler from anywhere,

breakingthe limits of distance and time to enjoy a smart new life.

With the remote smart control function via the mobile app,you can regulate your home boiler.from anywhere, breakingthe limits of distance and time to enjoy a smart new life

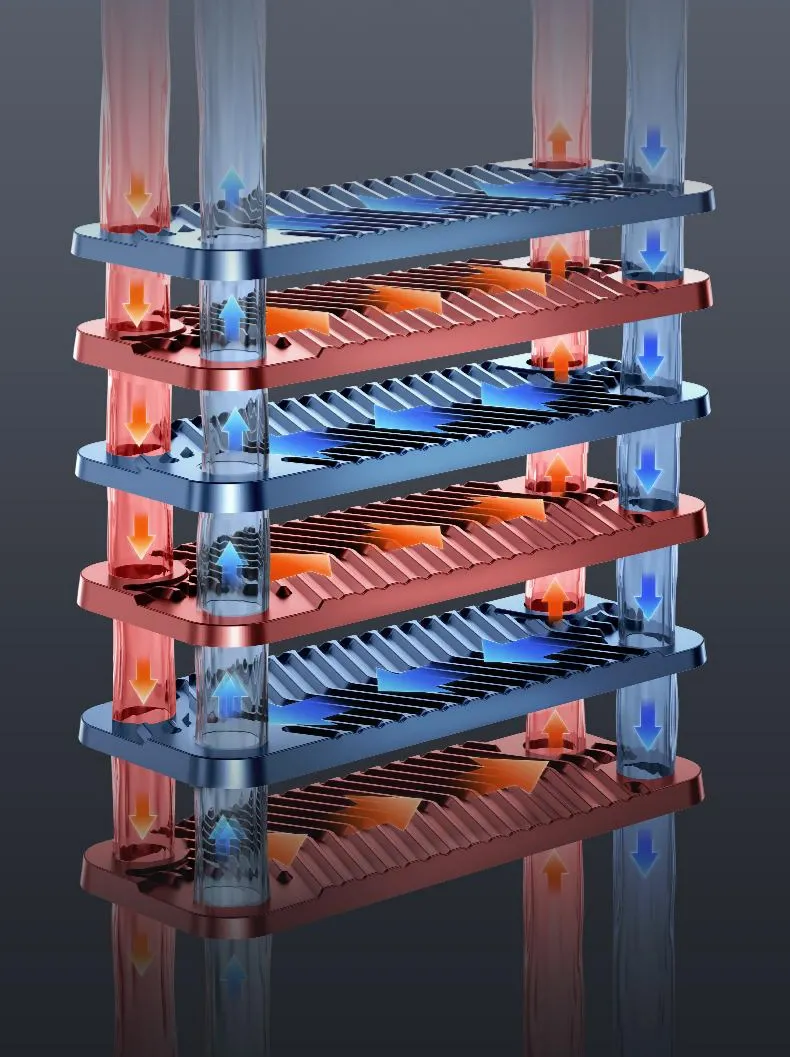

Adopting honeycomb layered plate heat exchangetechnology,

hot water flows in cross convection,

resulting inhigher thermal efficiency,

greater energy savings,

and stablewater temperature with minimal fluctuation.

Multi-layer Noise Reduction DesignEnjoy Your Private Quiet Space

The silent combustion system consists of an inverter fan and low-noiseburner,

combined with three-layer cavity noise reduction,

effectivelyreducing the overall operating volume to 40dB, as quiet as a library.

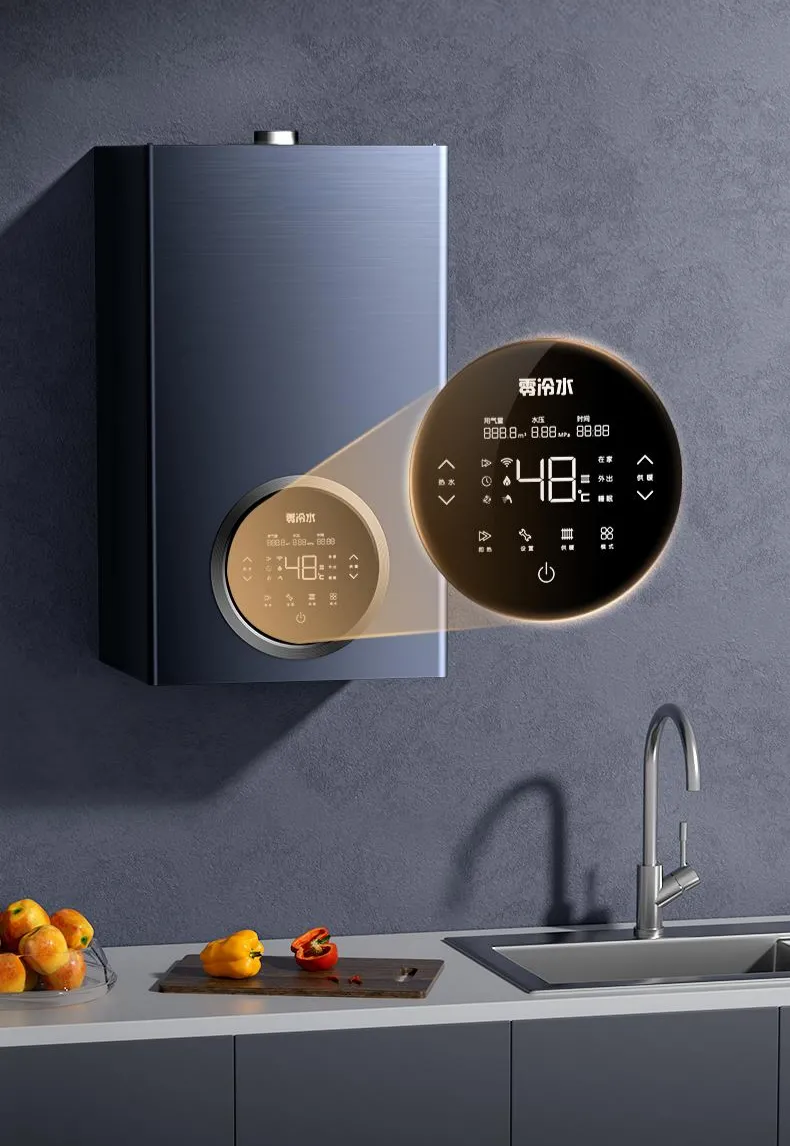

Independent Temperature Controlfor Heating & Shower Large Screen Display for Effortless Operation

It features independent water regulation,

preventing confusionbetween heating and shower water.

Users can customize their heatingschedules to save gas and energy, with visible efficiency gains.

Refine Every Craft DetailStrive to Be the Industry Benchmark

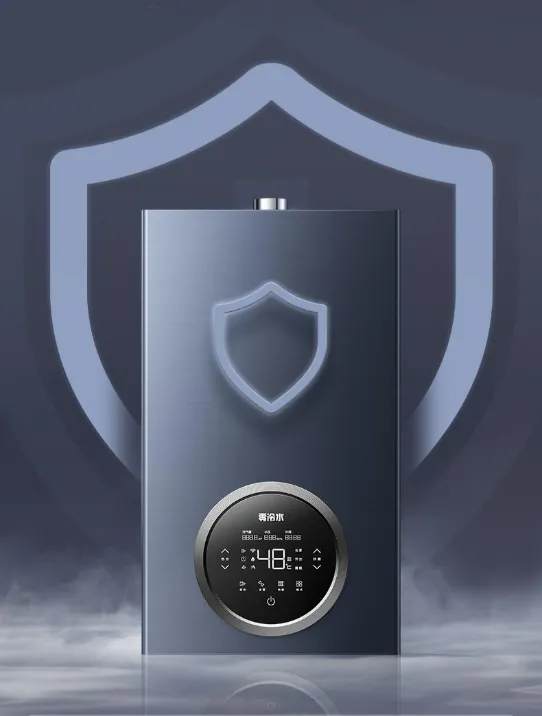

48 Layers of Safety Protection Dedicated to Protecting Your Home Safety

Comprehensive protection against water, gas,fire,and

electrical hazards delivers reliable peace of mind,

creating a comfortable home life for you and your family.

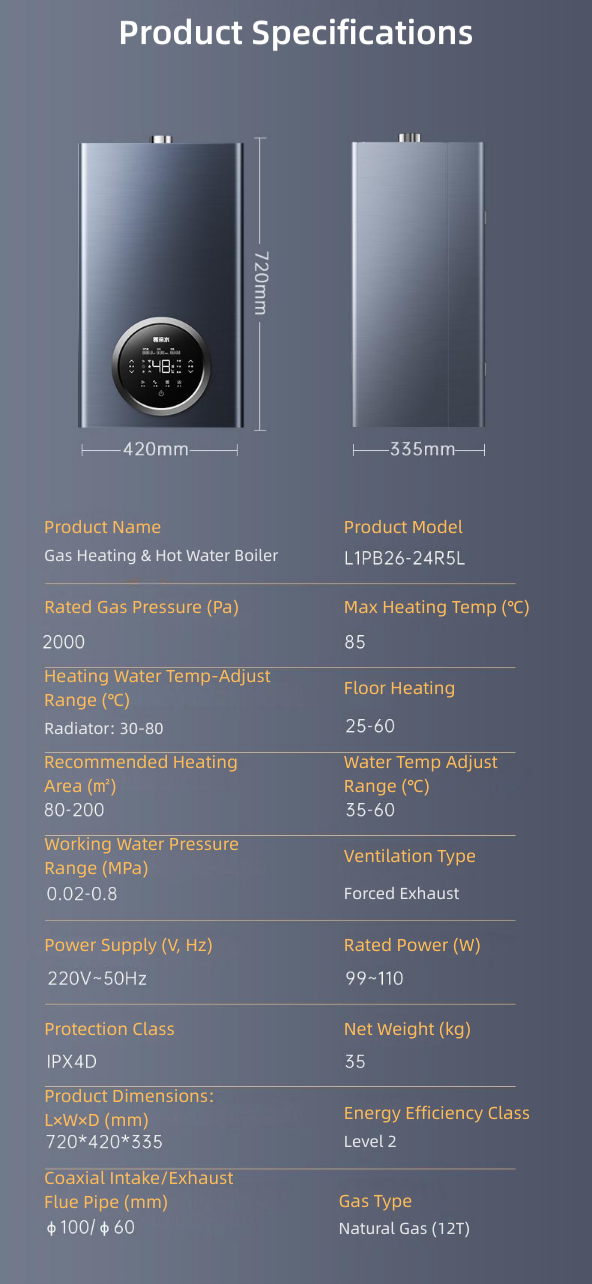

Specifications

17(1).png 17(2).png

Frequently Asked Questions

Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can I install a Macro wall - hung boiler by myself?

A:
We strongly advise against self - installation. Wall - hung boilers involve gas or electrical connections and complex plumbing work. Professional installers are trained to ensure proper installation in accordance with safety standards and local building codes. They can also perform necessary commissioning to make sure the boiler operates safely and efficiently. If you attempt to install it yourself, it may void the warranty and pose safety risks.
Q: What are the key safety features of your wall - hung boilers?

A:
Our wall-hung boilers are equipped with multiple safety protection measures, typically around 48 types. These include over-temperature protection, which prevents the boiler from overheating; anti-freeze protection to safeguard against damage in cold weather; and pressure relief protection to maintain safe operating pressures. Additionally, features like flame failure protection ensure that the gas supply is cut off if the flame goes out unexpectedly.
Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
