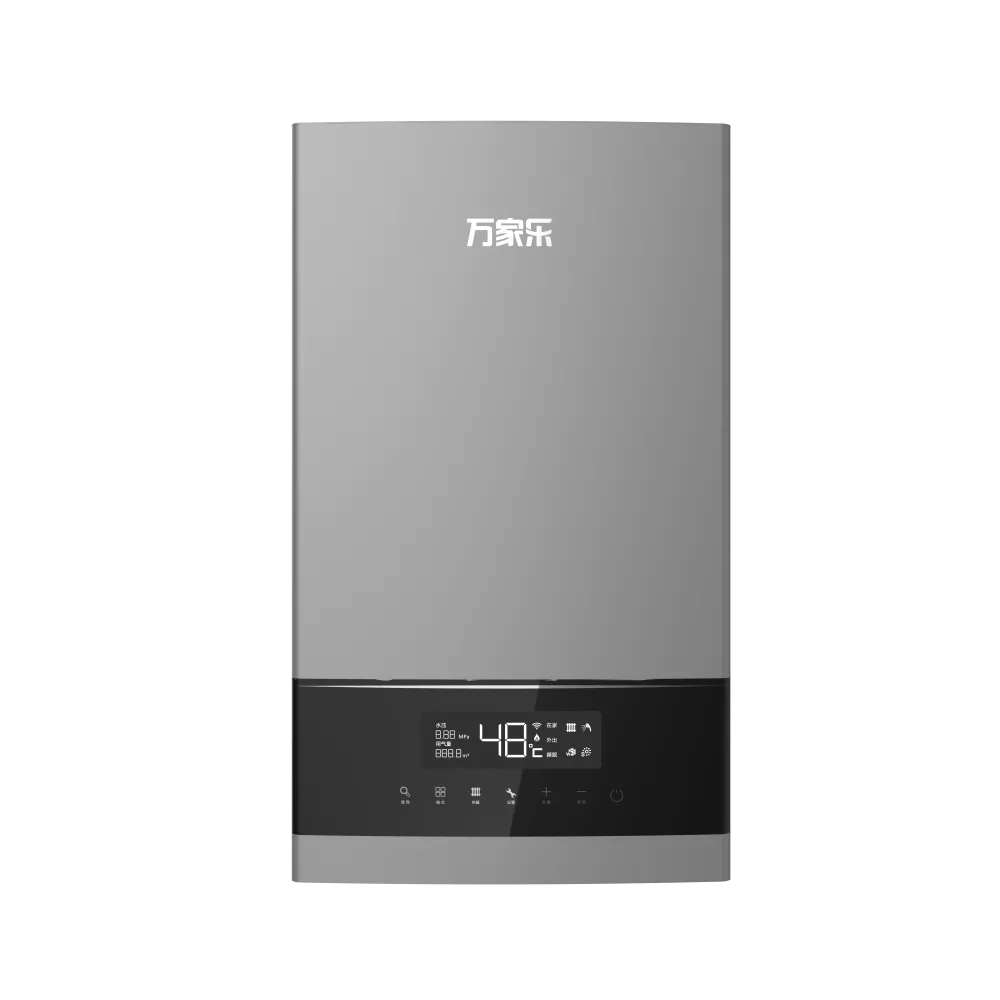

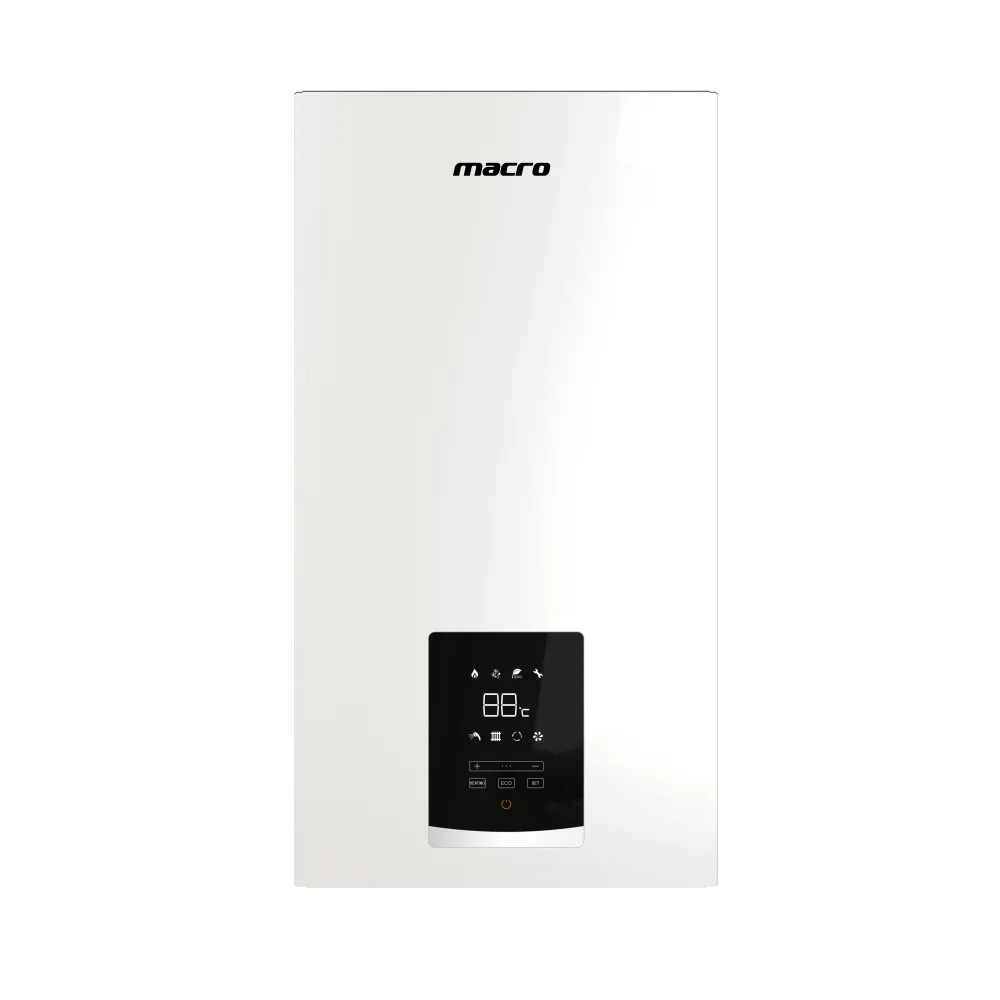

Wall-hung Gas Boiler R6

The R6 series boilers (LL1PBD20 - 20R6, LL1PBD26 - 26R6, LL1PBD30 - 30R6) offer efficient heating and DHW solutions. Equipped with touch panel, electronic control, and functions like heating, DHW, radiator/floor heat, they feature high - efficient heat exchanger tech, ECO mode, and 48 - safe protection. With adjustable heat input/output, wide temp ranges, and strong efficiency (up to 104.06% heating efficiency), they suit 60 - 220㎡ areas. Quiet design and multiple protections ensure comfort and safety.

Model: R6

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

Wall-hung Gas Boiler R6

The R6 boiler series, consisting of LL1PBD20 - 20R6, LL1PBD26 - 26R6, and LL1PBD30 - 30R6, is a comprehensive solution for heating and domestic hot water.

It comes with a touch panel, electronic control, and diverse functions including heating, DHW, and support for radiator and floor heat. The high - efficient heat exchanger technology, ECO mode, and noise - reduction design enhance performance.

In heating, the max/min heat load input powers range from 20/7.5Kw to 29.6/10.8Kw, with output powers adjustable for different temperature ranges. Heating efficiencies reach up to 104.06%, ensuring energy - efficient operation. For DHW, max heat load input powers are 20 - 29.6Kw, with efficiencies up to 96.25%.

With enclosure protection class IPX4D, adjustable water temps, and system pressures, they cover heating areas from 60 - 220㎡. The hot water capacity and pressure are well - optimized. Weighing 36.5 - 40.5Kg, with compact product dimensions and package sizes, the R6 series combines functionality, efficiency, and safety, catering to various heating and hot water demands for a comfortable living experience.

Features

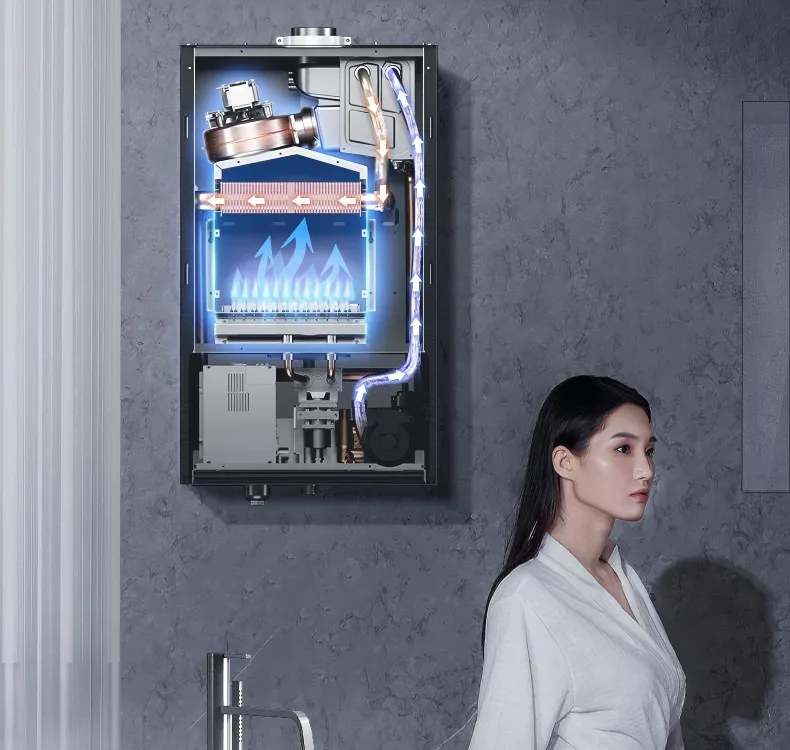

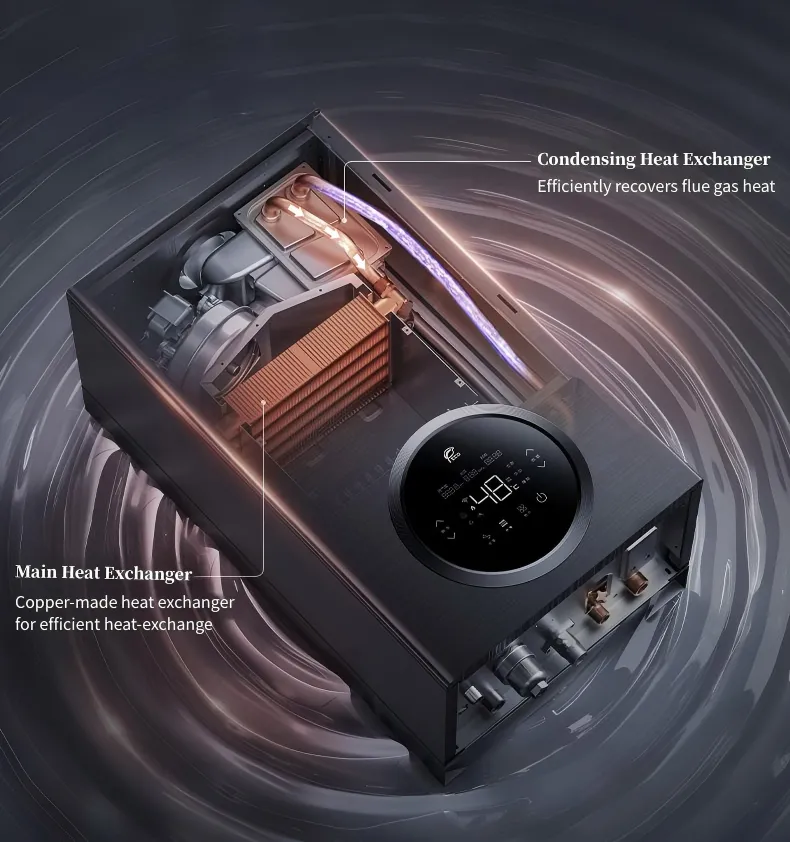

Condensing Heat Exchange Technology Thermal Efficiency Up to 104%

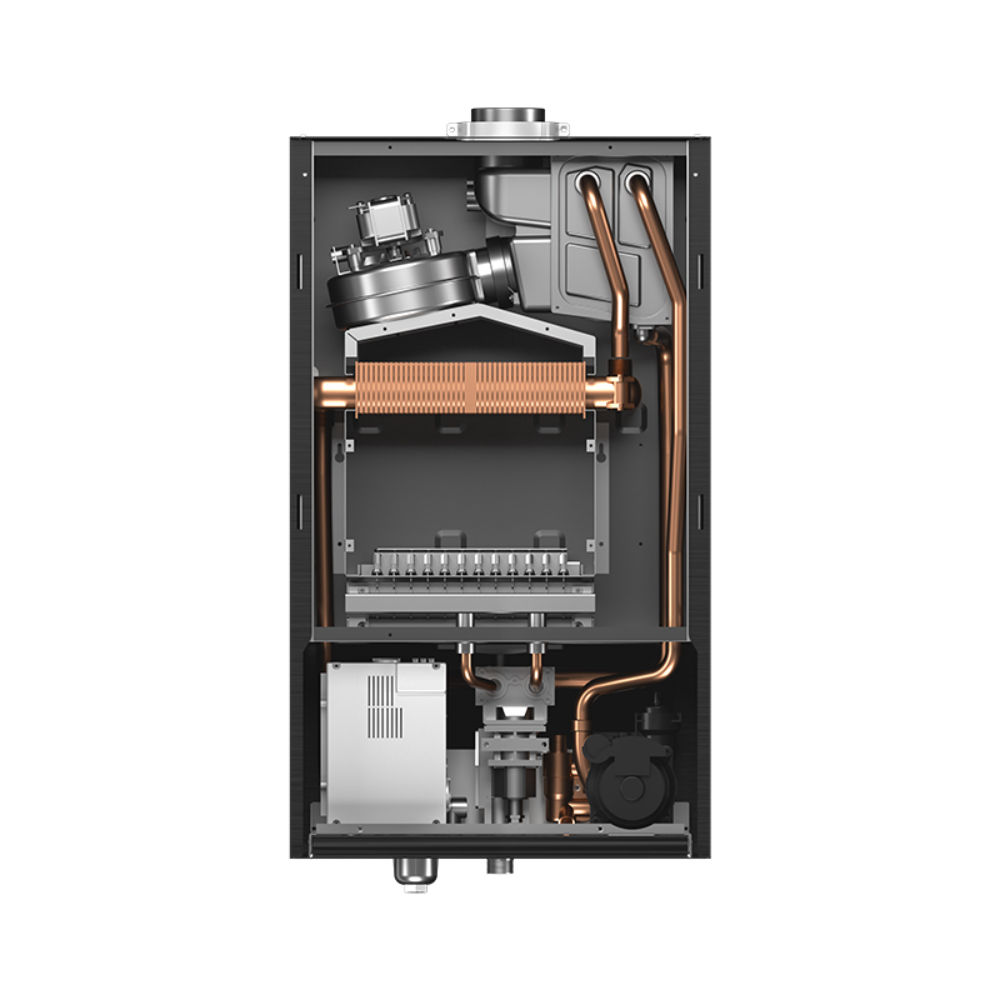

Adopting a self-cleaning stainless steel smooth tube condensing heat exchanger,

it reduces the impact of condensed water adhering to the heat exchange tube walls on condensing heat exchange,

lowers the flue gas resistance, and improves the condensing heat exchange efficiency.

Upgraded Dual-inverter Technology Efficient Combustion For Greater Energy Savings

Equipped with an inverter fan and an inverter gas valve,

it ensures full combustion and heat-exchange of gas.

Moreover, there is no excess air carrying away heat,
maintaining the system's continuous and efficient operation.

Three Heating Modes Enjoy Comfort & Energy-savings

Three heating modes can be intelligently switched and selected to match different life scenarios,

efficiently reducing energy consumption.

Achieve both energy-savings and comfort,
creating a high-quality energy-efficient and green lifestyle.

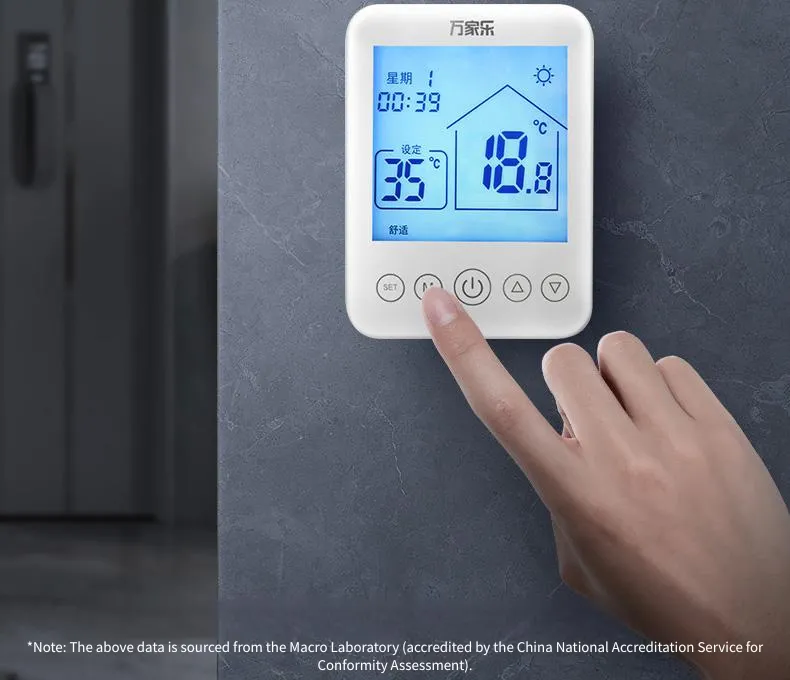

Optional Macro "Warm Cube" Thermostat An Additional 10% Energy Savings

Precisely controls the indoor temperature,

maintains a constant room temperature,

enhances comfort,

and avoids waste caused by excessively high temperatures.

Three-stage Micro-flame Enjoy Comfortable Hot Water Throughout The Year

The three-stage micro-flame achieves a load adjustment ratio of 1:9.
It can output comfortable hot water even in extremely hot summer days,
and in winter, it operates at full capacity to ensure sufficient hot water supply.

Robust Hot Water Capacity Expansion Enjoy Waterfall Like Showers Anytime

The R6 features a high hot water production rate.

Compared to regular boilers of the same power,

it produces ≥1L more hot water per minute.

Precise Temperature Control Throughout Constant Water Temperature For a Comfortable Shower

Multiple sensors accurately detect the water temperature.
The CPU combines with the water flow signal to precisely match the combustion load,

enabling the water temperature to quickly reach the user-required value and remain constant within ±1°C.

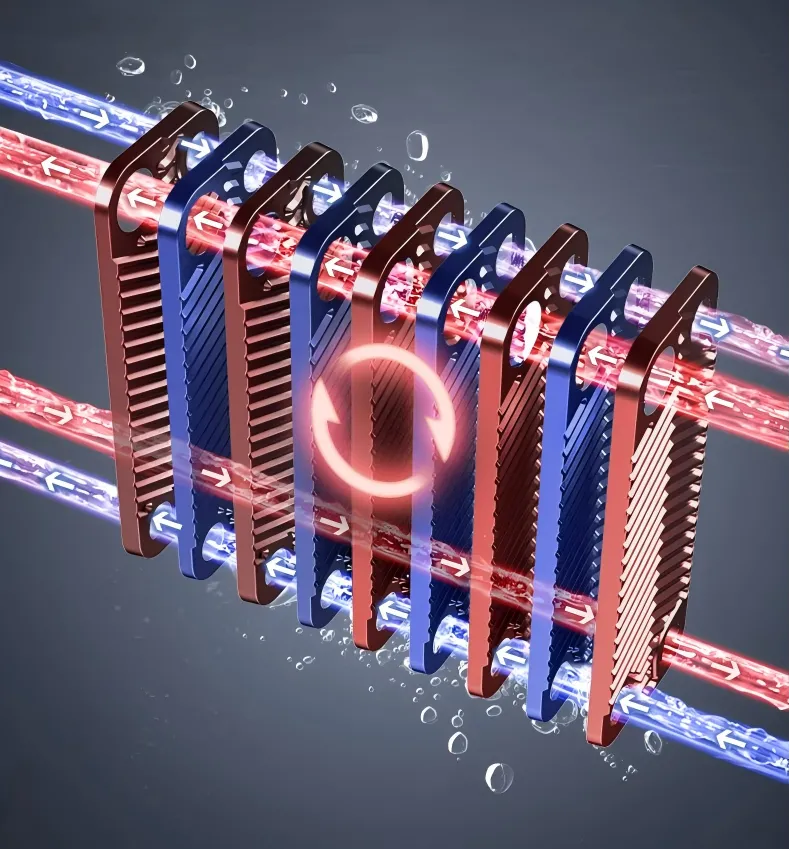

Honeycomb Plate Heat-exchange Tech Hot Water Faster, Temp More Stable

Honeycomb-layered plates enable cross-convection,
boosting thermal effi. & keeping temp steady.

Multiple Noise-reduction Designs Operation Noise As Gentle As Flowing Water

Equipped with a DC inverter fan, a low-noise combustion grate,

and a triple-cavity noise-reduction design.

It effectively reduces the overall operation noise to 40dB,

as quiet as a library.

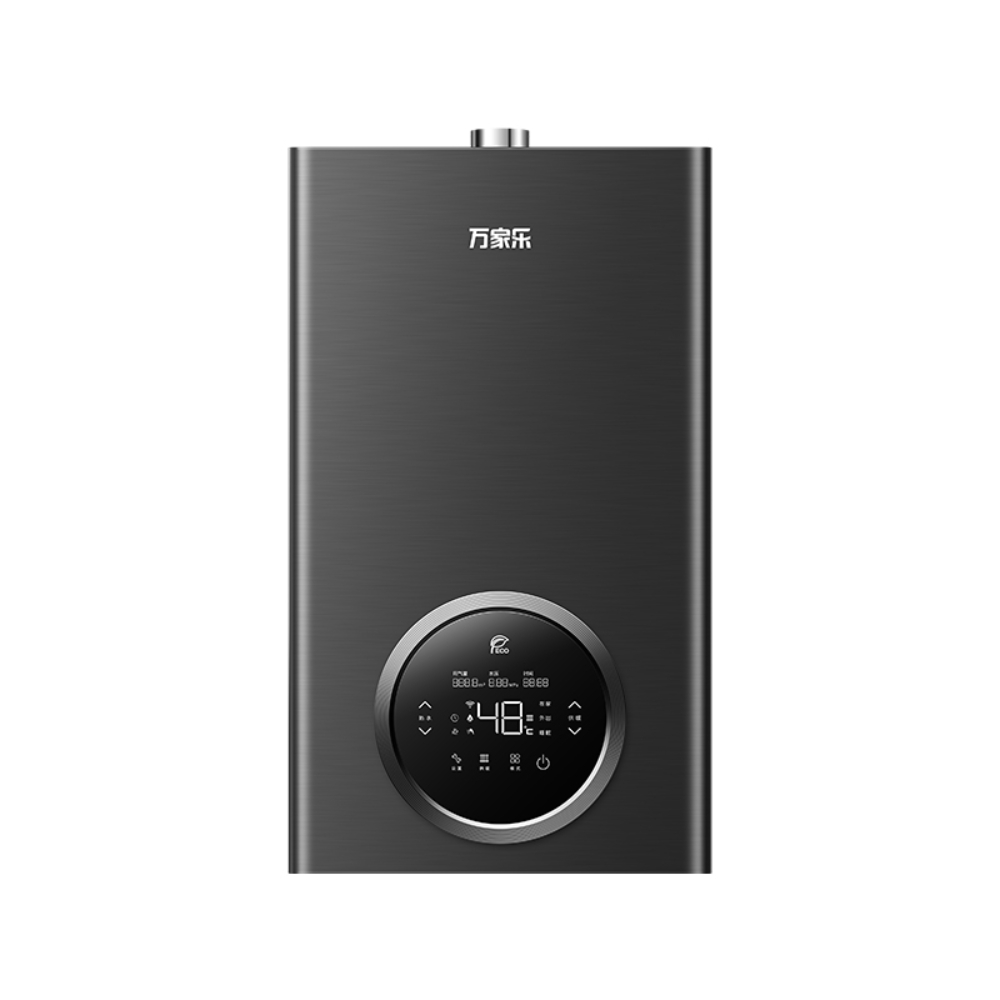

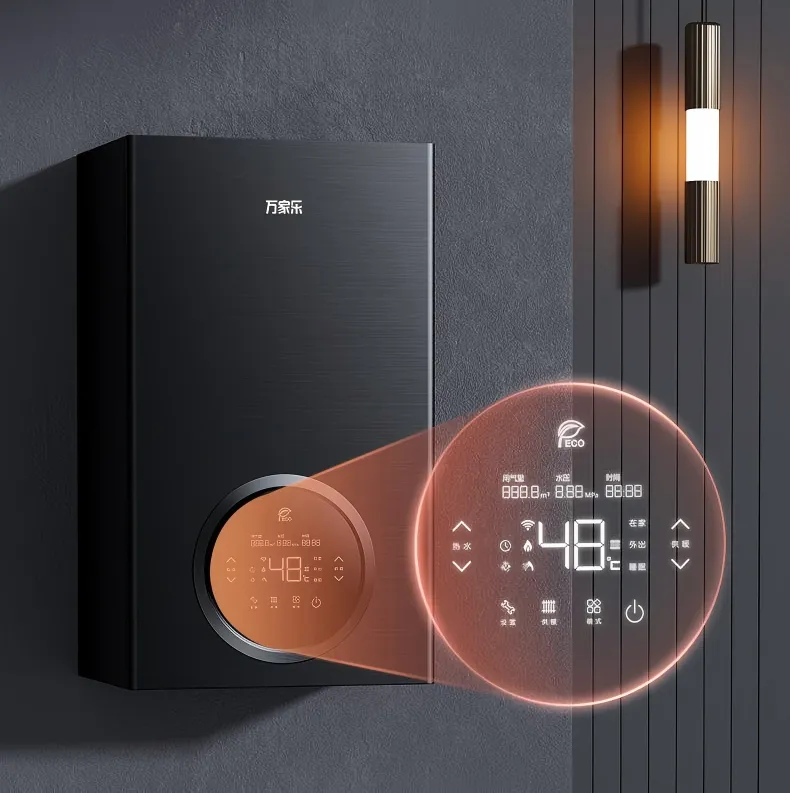

High-definition LCD Intelligent Large Screen Work Status At a Glance

Heating, bathing, and water temperature can be adjusted independently,
which is not easy to confuse. Users can adjust suitable heating plans on
their own. Gas-saving and energy-efficiency are visually displayed on the
screen, and the gas-saving effect is clear at a glance.

48-fold Safety Protection No Slack In Home Safety

Comprehensive protection, covering water, gas, fire, and electricity.
It creates a comfortable home life for you and your family.

Specifications

MODEL		LL1PBD20-20R6	LL1PBD26-26R6	LL1PBD30-30R6
Max./min. heat load input power (Kw)		20/7.5	25.6/8.5	29.6/10.8
Heating	Max. heat load output power (80-60℃) (Kw)	19	24.6	28.5
	Max. heat load output power (50-30℃) (Kw)	20	26	30
	Min. heat load output power (80-60℃) (Kw)	7	7.8	10.2
	Min. heat load output power (50-30℃) (Kw)	7.2	8.2	10.5
DHW Max. heat load input power (Kw)		20	25.6	29.6
DHW efficiency (%)		96.02%	96.08%	96.25%
Heating efficiency (%)		104.06%	102.23%	102.79%
Rated Max./min. power (W)		108/95	115/98	120/105
Enclosure protection class		IPX4D	IPX4D	IPX4D
Heating performance	Highest water temp. (℃)	85	85	85
	Water temp adjustment range (℃)	Radiator 30-80;Floor heat 25-60
	System Max. water pressure (Mpa)	0.3	0.3	0.3
	Expansion tank volume (L)	6	6	10
	Heating area reference (㎡)	60-160	80-220	80-220
DHW performance	Water temp adjustment range (℃)	35-60	35-60	35-60
	Hot water capacity △t=25K	11	14	16
	Hot water capacity △t=30K	9	11	13
	Water pressure (Mpa)	0.02-0.8	0.02-0.8	0.02-0.8
Net weight (Kg)		36.5	37.5	40.5
Product dimension LWH (mm)		720420312	720420312	720420335
Package dimension LWH (mm)		830515420	830515420	830515443

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
