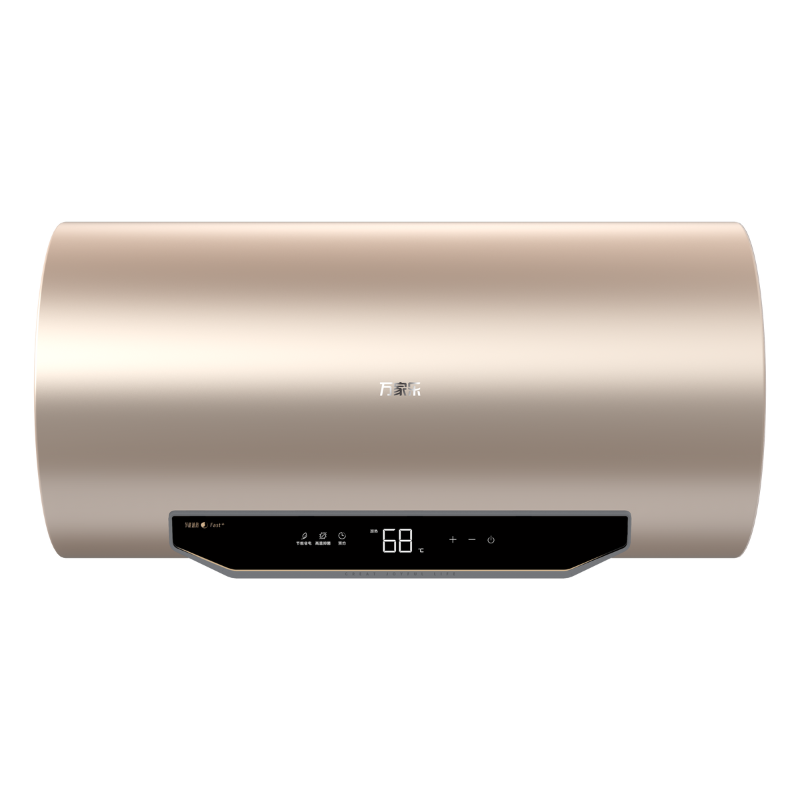

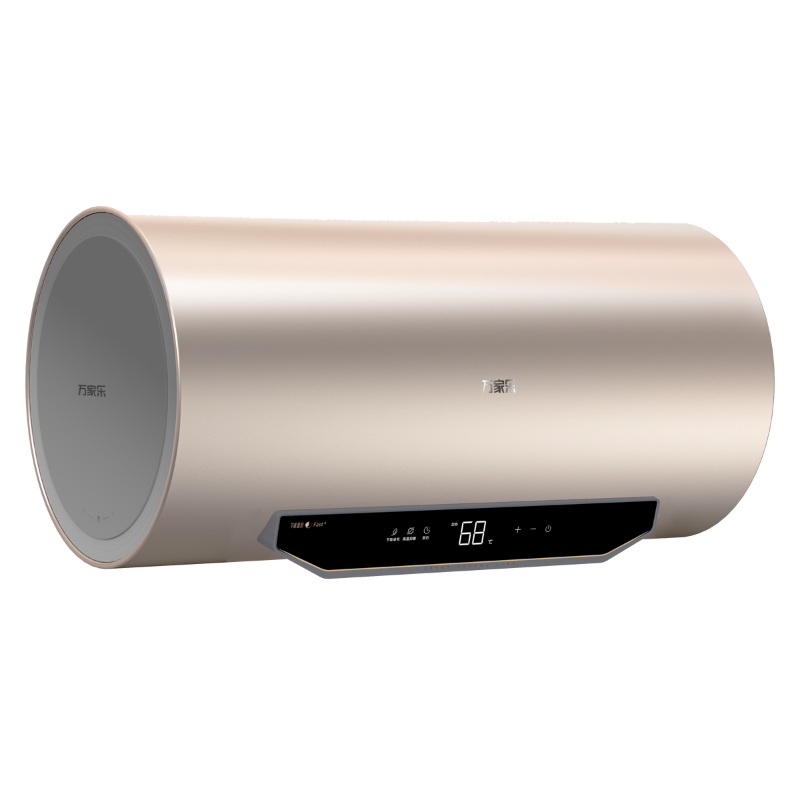

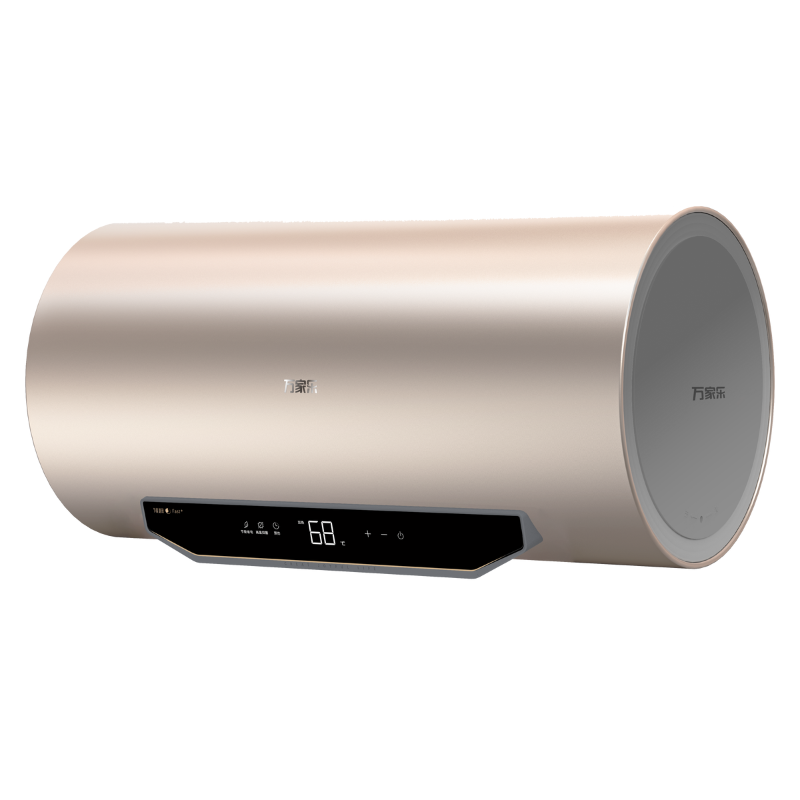

Electric Water Heater G5C1

G5C1: Fast - Heating Electric Water Heater

Smart self-adaption constant temperature

Smoke forced exhaust

Smart self-adaption constant temperature

Electric Water Heater G5C1

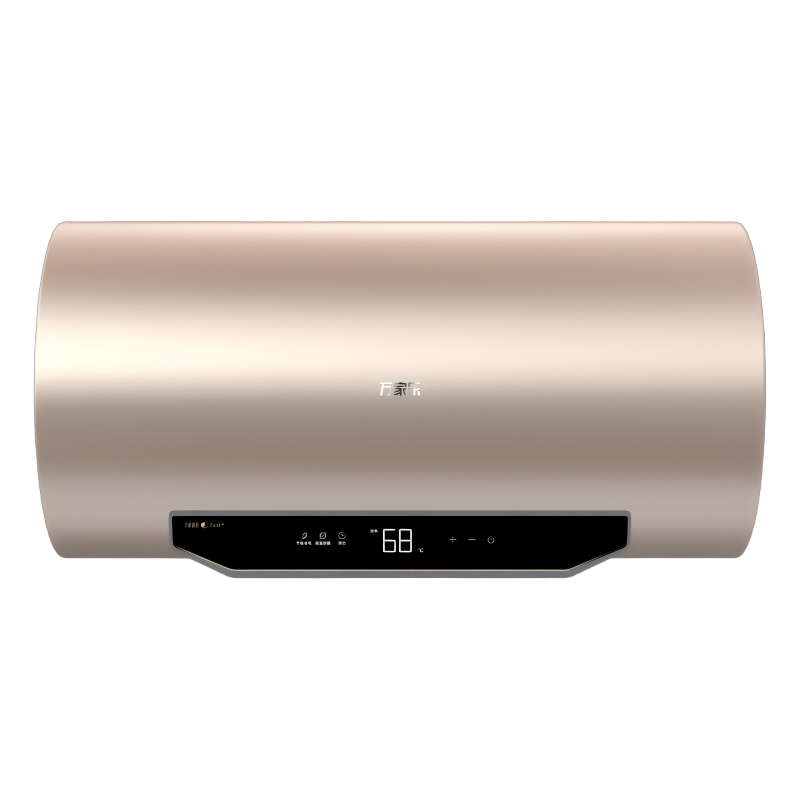

The G5C1 electric water heater, a fast - heating model, features a stylish 流光金 PCM (Streamer Gold PCM) finish. With a rated voltage of 220V and frequency of 50Hz, it offers a temperature range of 30 - 75℃. Available in 50L, 60L, and 80L capacities, it has an 80% (50L/60L) or 75% (80L) hot water output rate. Equipped with touch + remote control, it ensures convenient operation. The enamel inner tank and multiple safety protections guarantee durability and safety.

Model: G5C1

Color: Champagne Gold

Innovate

Authentication

The G5C1 electric water heater is a standout product in the fast - heating series, designed for offline conventional channels. Its sleek round - barrel shape and  PCM (Streamer Gold PCM) color not only add a touch of fashion to any bathroom but also ensure easy integration with various decors.


In terms of performance, it operates at a rated voltage of 220V and 50Hz frequency, with a rated pressure of 0.8MPa. The temperature can be adjusted from 30℃ to 75℃ to meet different hot water needs. It comes in three capacities: 50L, 60L, and 80L. The hot water output rate is 80% for 50L and 60L models, and 75% for the 80L one, ensuring sufficient hot water supply.


The G5C1 is equipped with advanced features. The control method combines a computer version with touch + remote operation, making it extremely user - friendly. The single -tank enamel inner tank ensures efficient heating and long - term use. With a 3300W power, it achieves level 1 energy efficiency, being both energy - saving and cost - effective. Safety is a top priority, with eight - fold protection and functions like an anti - electric wall and ground wire live indication. Additionally, it offers features such as appointment, high - temperature bacteriostasis, and energy - saving, providing a comprehensive and safe hot water solution for users.


Features

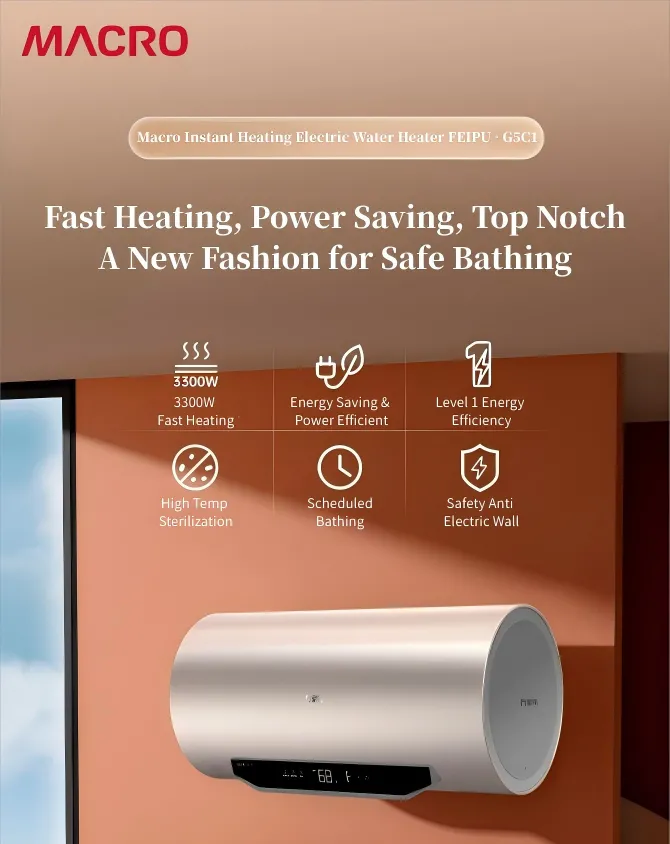

Macro Instant Heating Electric Water Heater FEIPU·G5C1

Fast Heating, Power Saving, Top Notch
A New Fashion for Safe Bathing

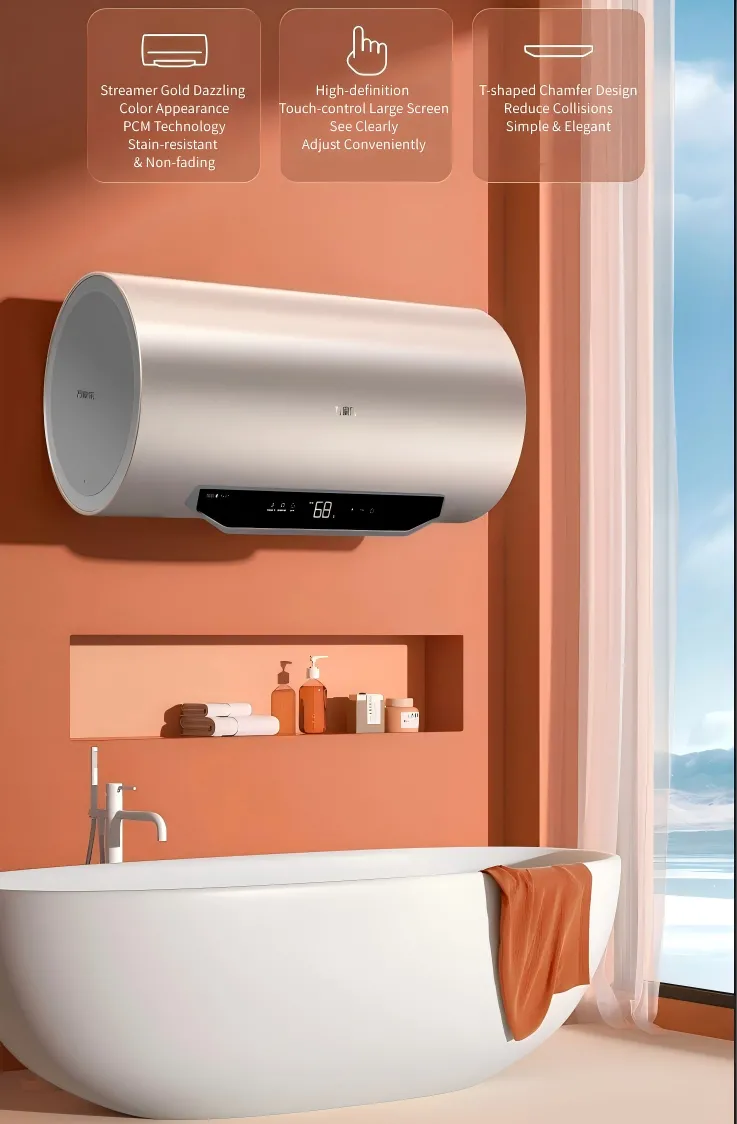

The One with Outstanding Appearance A New Trend that Matches Any Bathroom

Heats Up Very Quickly Less Waiting, More Care

3.3kW High Power Fast Heating

Submersible Heating Design Higher Efficiency

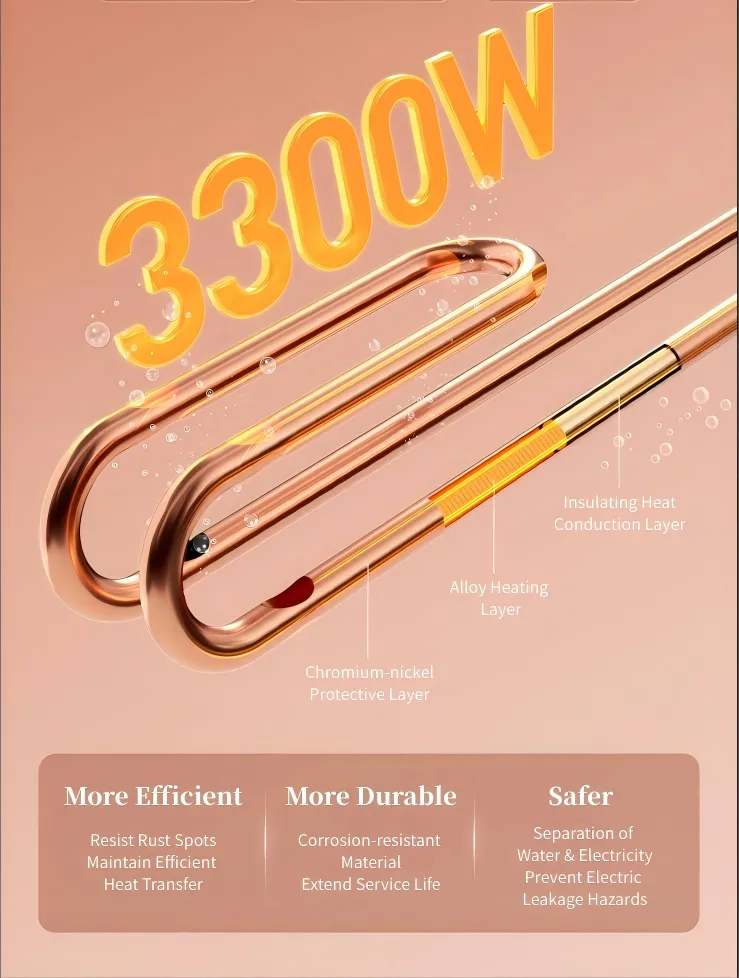

Gold - shield Heating Tube Efficient, Durable & Safe

Ten-Fold Capacity Increase Enjoy A 120-Minute Shower

Super First-Class Energy Efficiency Super Peace of Mind & Power-Saving

80% Hot Water Output Rate Higher than National Standard

24-hour Energy Consumption Coefficient: 0.6 More Power-Saving

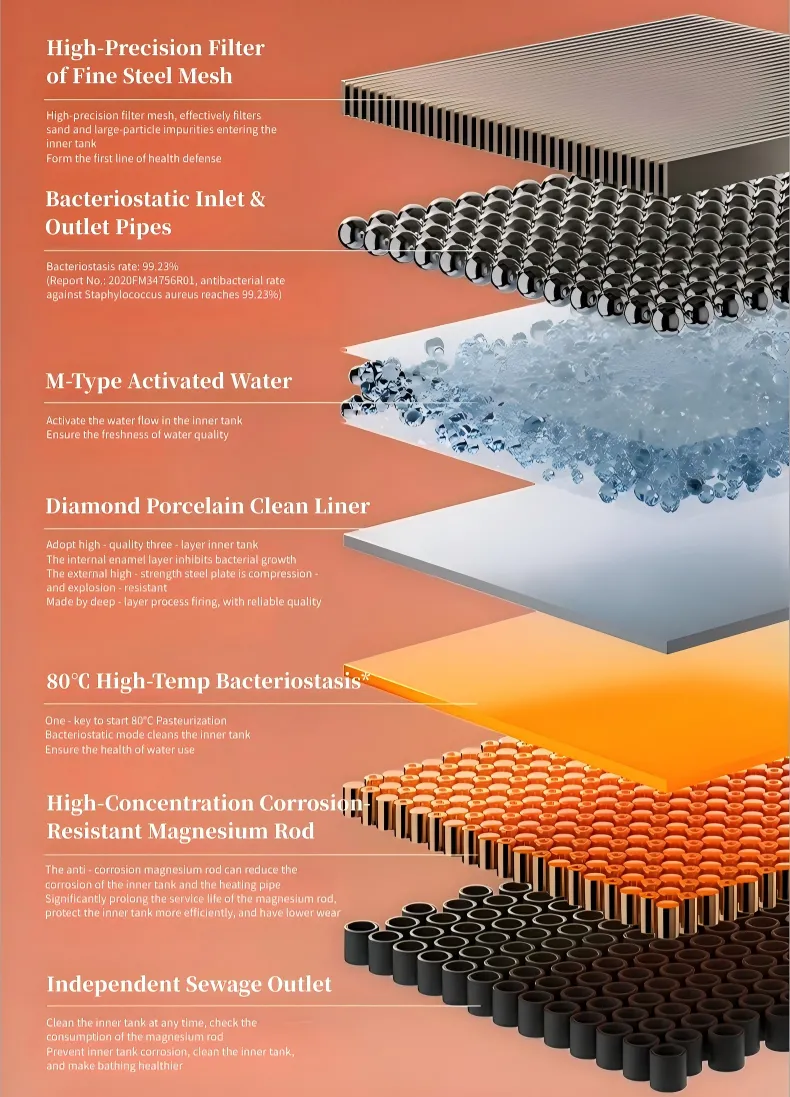

Seven-Layer Water Quality Purification Healthily Protect the Skin

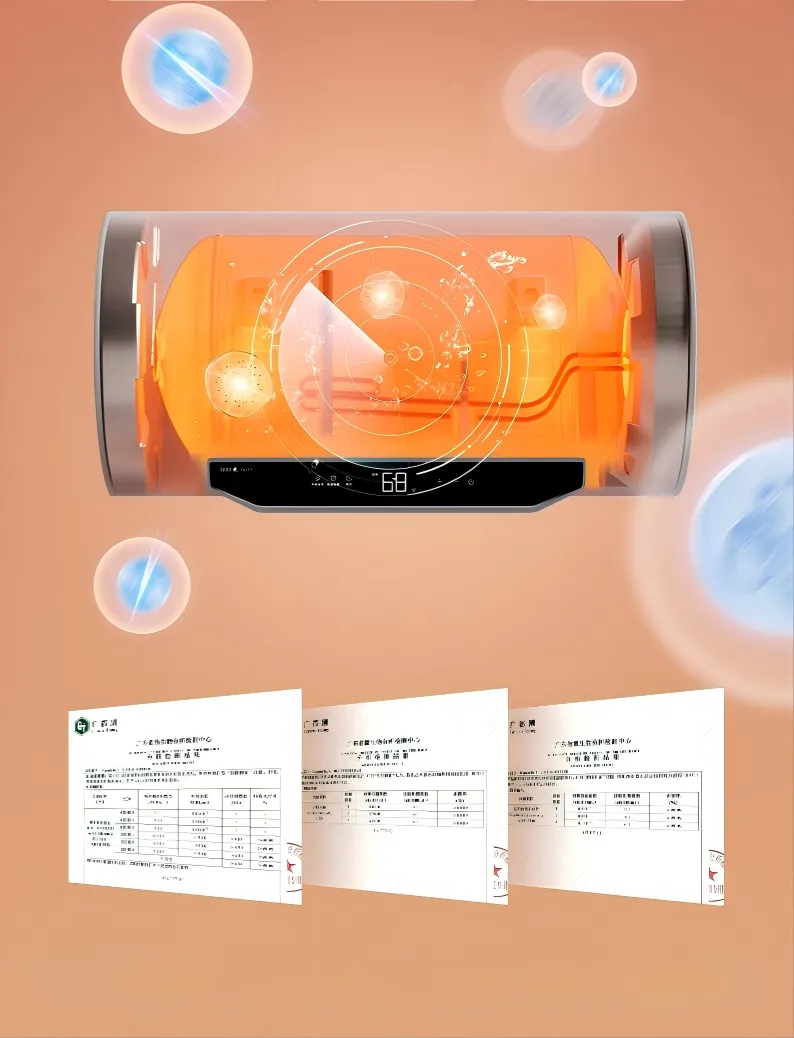

High-Temp Bacteriostasis Truly Reassuring

80℃ High-Temp Bacteriostasis

99.99% Bacteriostasis Rate

Effective Killing of Microorganisms in Water

One-Click Energy Saving Warm Water Ready Anytime

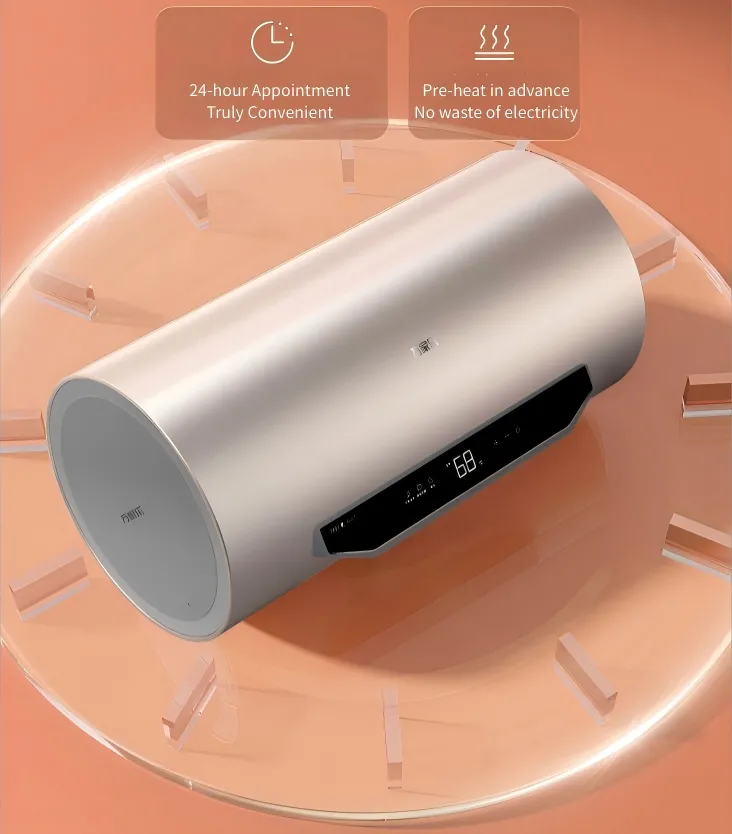

Custom Scheduled Washing More Convenient Water Use

Wake up in the morning

Full of energy

Exercise in the evening

Regain vitality

Work overtime at night

Wash away fatigue

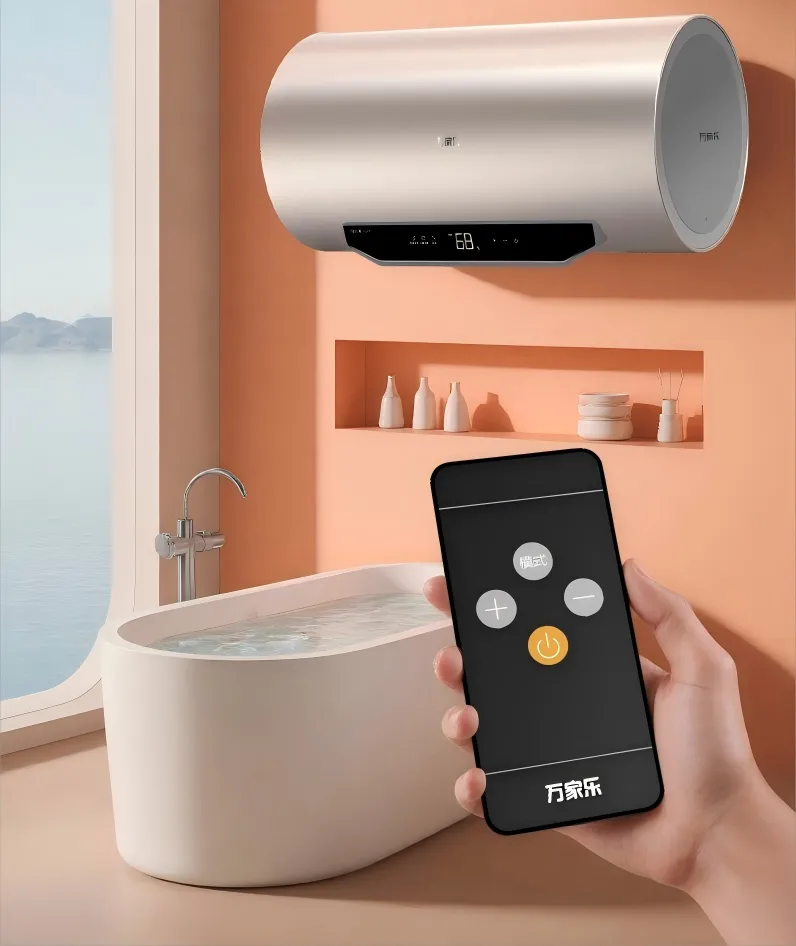

Touch + Remote Control Dual-Control Operation for Greater Convenience

Large - screen touch control is convenient, and remote control operation saves you from bending down.

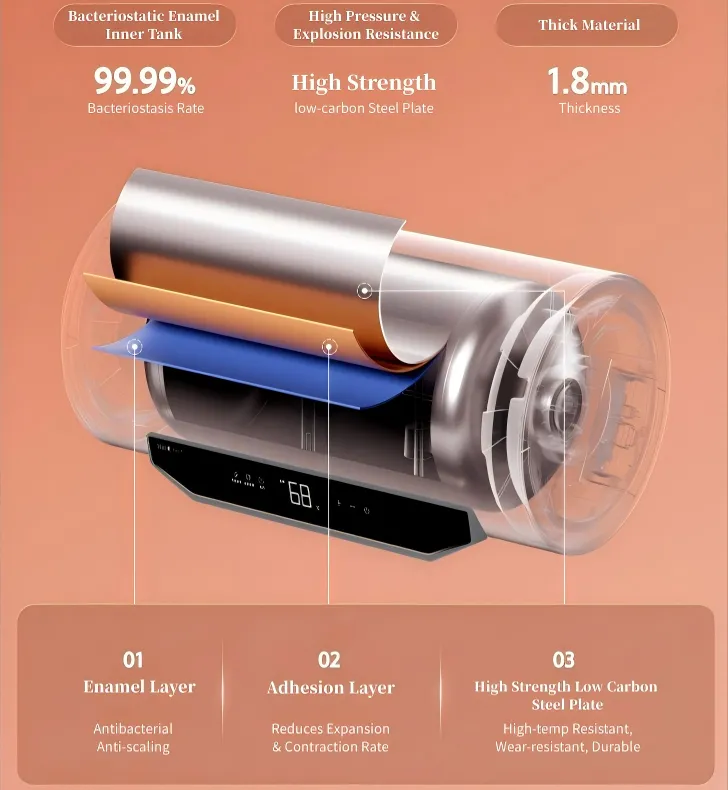

Diamond Porcelain Clean Inner Tank Pressure-resistant, Anti-corrosion, Bacteriostatic & Anti - scaling

The bacteriostatic diamond porcelain inner tank is smooth (no scale buildup), corrosion - resistant and pressure - resistant. It purifies water from
the source, cares for skin, and maintains long - term cleanliness.

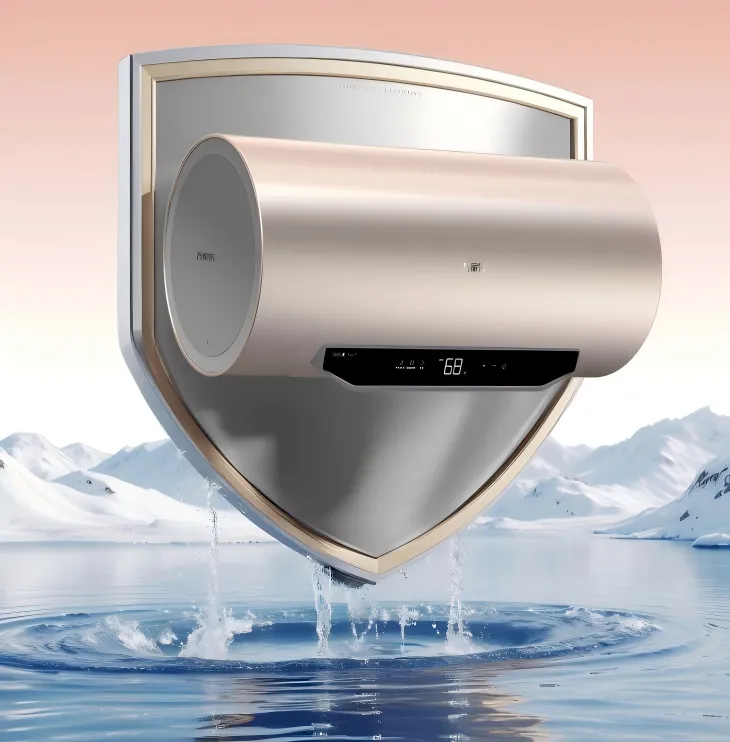

Eight - Fold Safety Protection Always Safeguard Your Bathing Time

Freeze Protection

Over-temp Protection

Over-pressure Protection

Drip-splash Protection

Dry-burning Protection

Lightning Strike Protection

Backflow Protection

Sensor Fault Protection

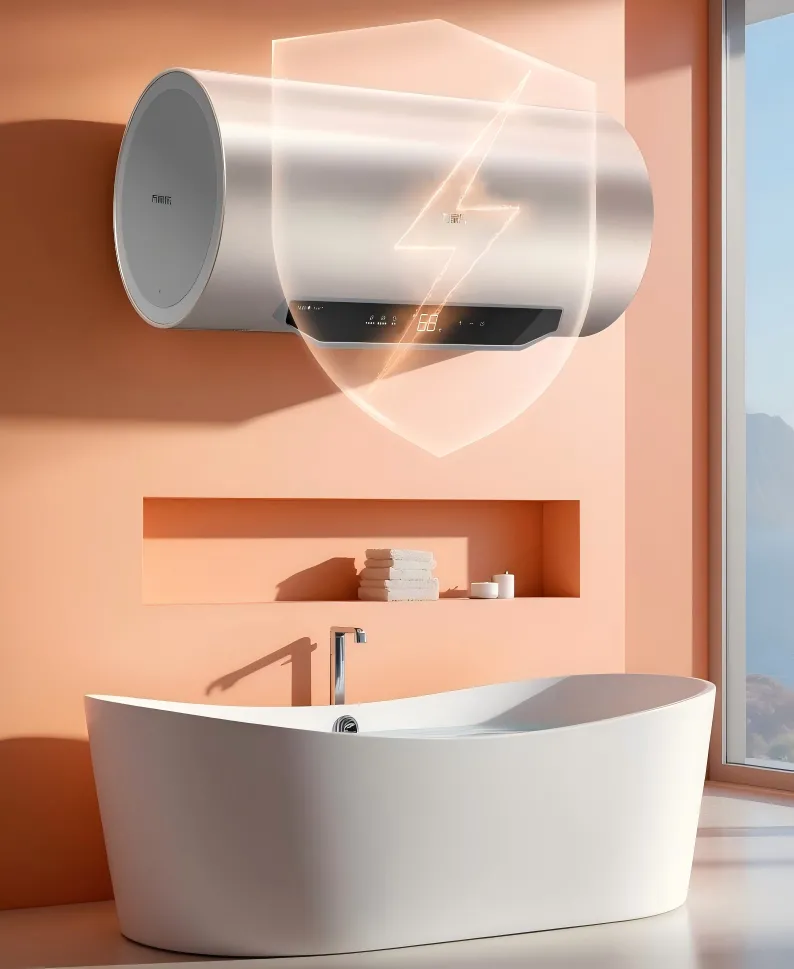

Upgraded and Enlarged Electric Leakage Protection Wall Thoughtfully Safeguard Bathing Safety

Once an electric leakage is detected, the current will instantly drop to a safe level below 5mA, effectively avoiding the risk of electricshock and comprehensively protecting your bathing safety.

Whole House Circuit Monitoring

Self - inspection on Startup + Whole - house Circuit Monitoring
From the Source to the Process, Ensure the Safety of Every Detail

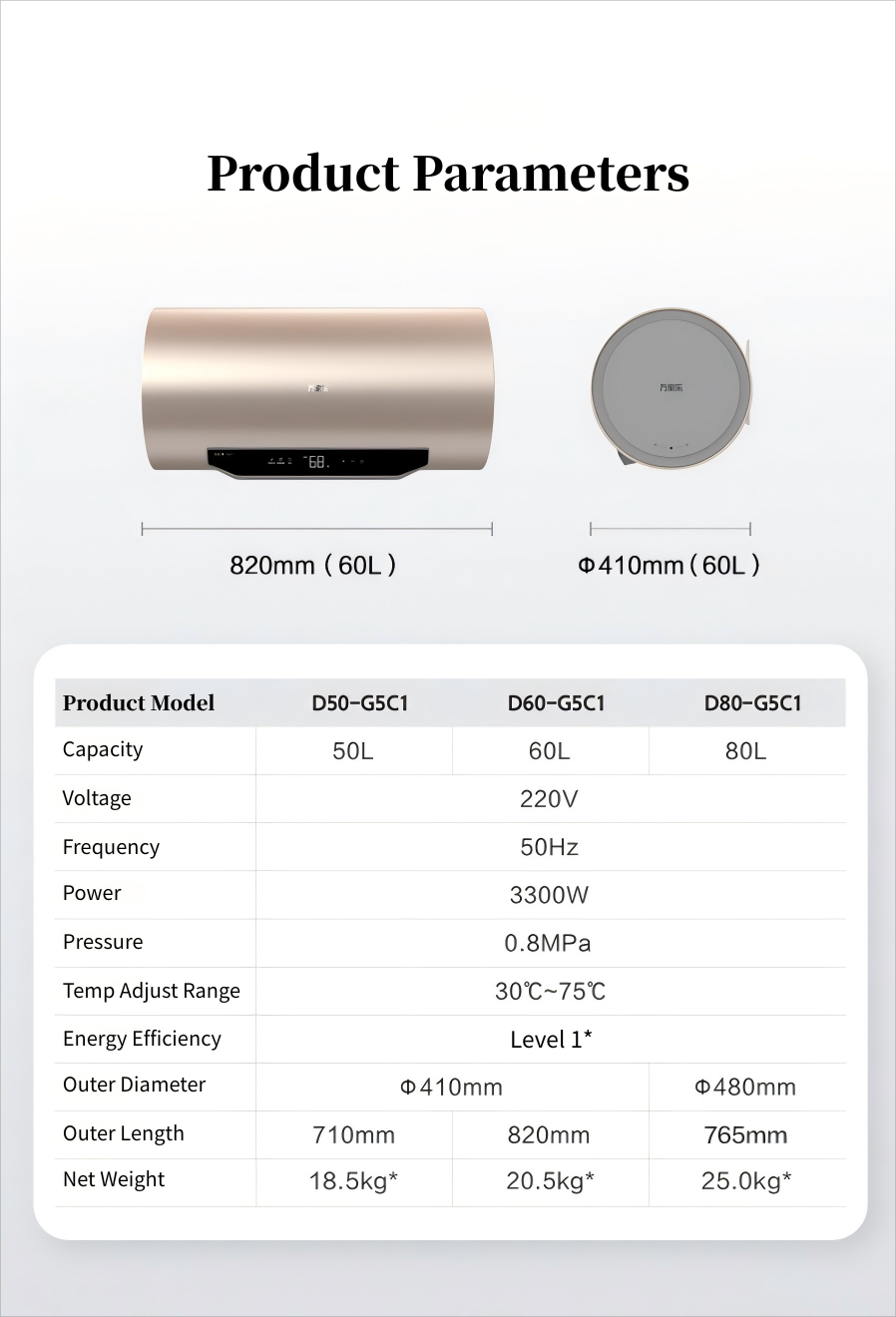

Specifications

Electric Water Heater G5C1

Electric Water Heater G5C1

Electric Water Heater G5C1


Frequently Asked Questions

  • Q: How do I choose the right gas water heater capacity for my household?

    A:

    The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.

  • Q: What's the difference between a forced-draft and a balance-type gas water heater?

    A:

    A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.

  • Q: How can I ensure the safety of using a gas water heater?

    A:

    Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.

  • Q: Can the gas water heater maintain a stable water temperature?

    A:

    Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.

  • Q: How energy - efficient are these gas water heaters?

    A:

    Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.

  • Q: Can the gas water heater work in low-water-pressure conditions?

    A:

    Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.

Electric Water Heater G5C1
