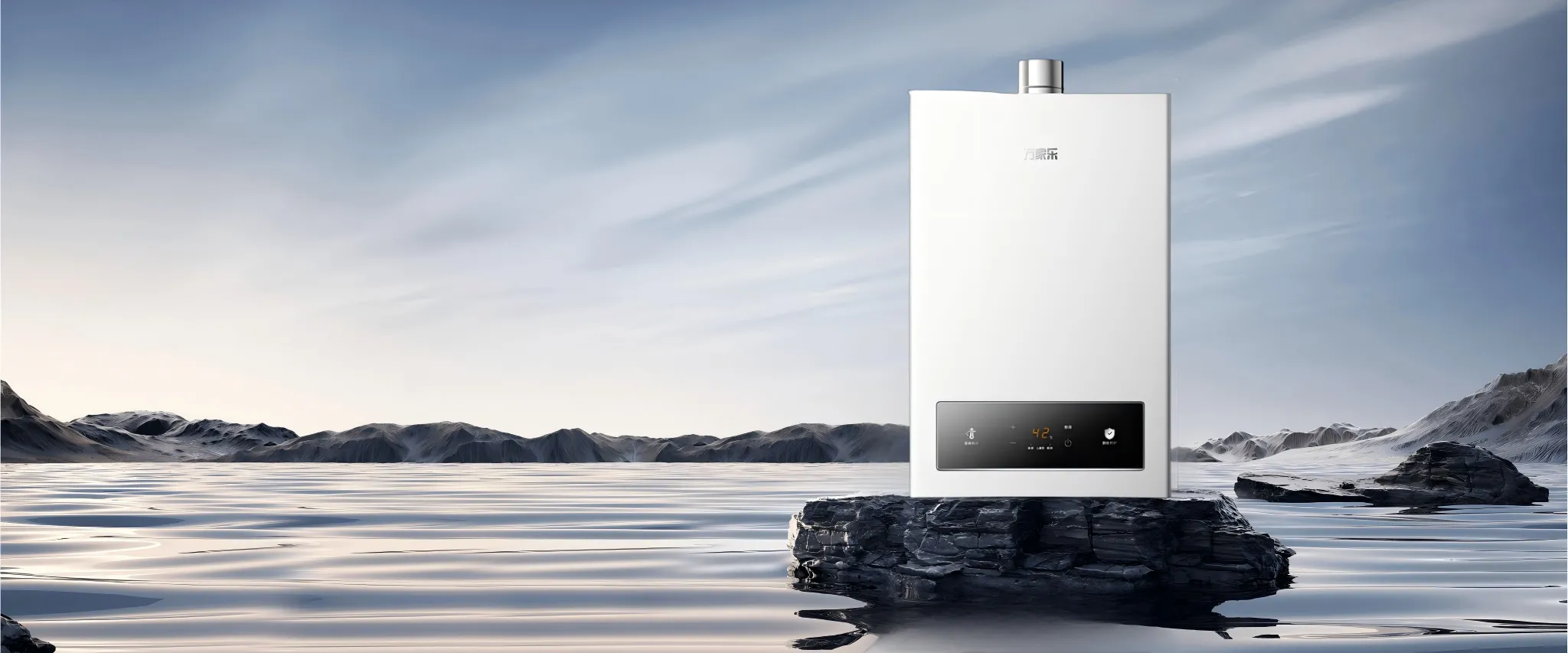

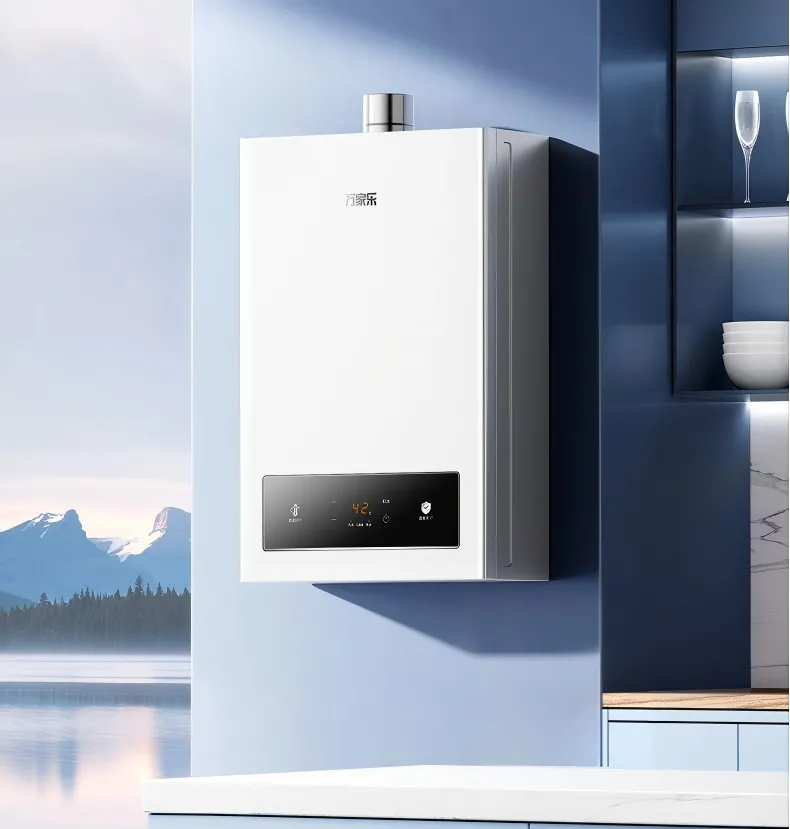

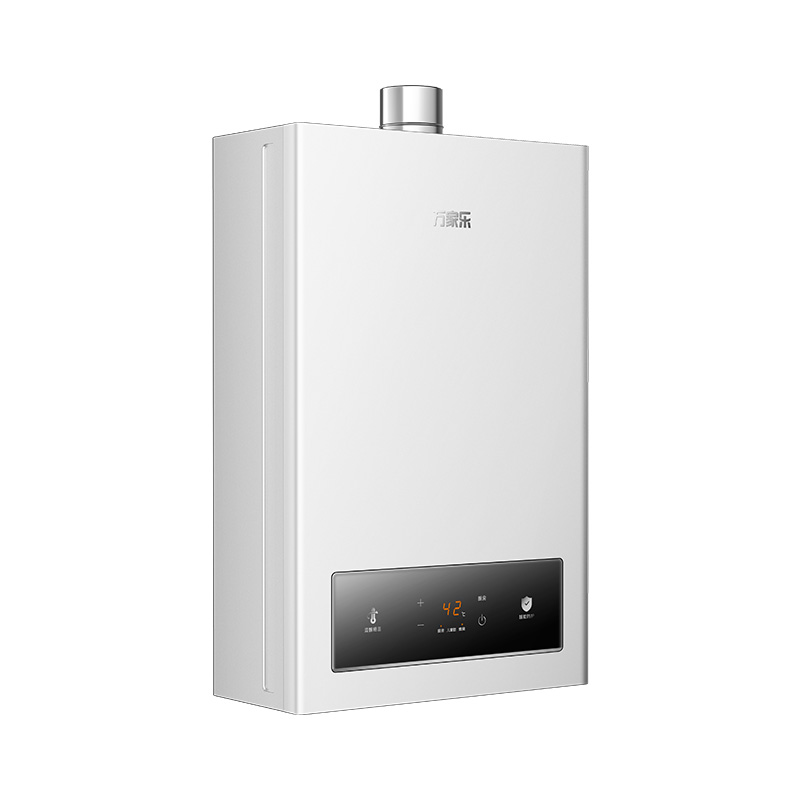

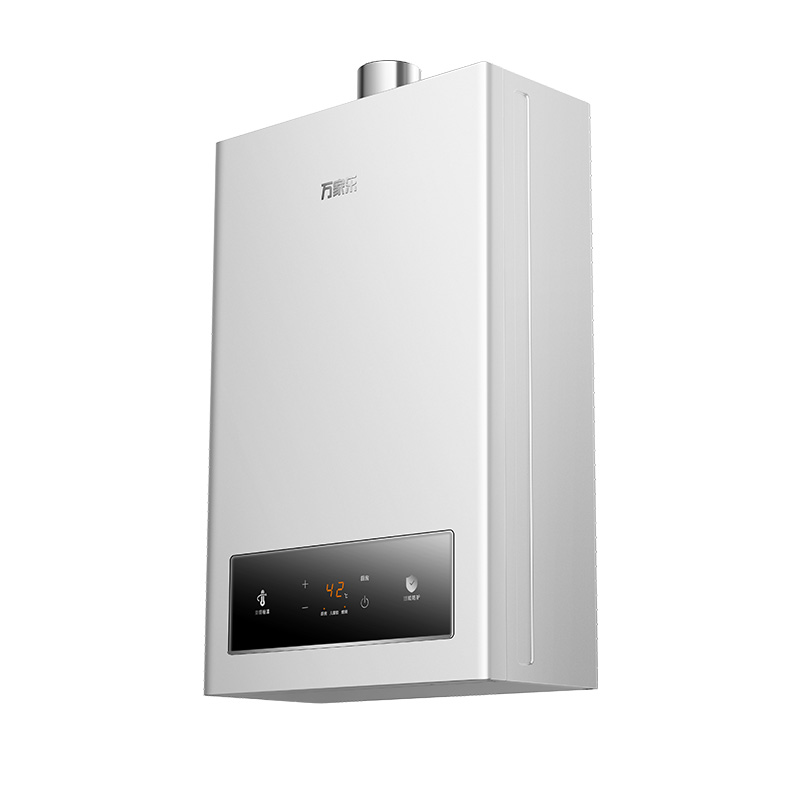

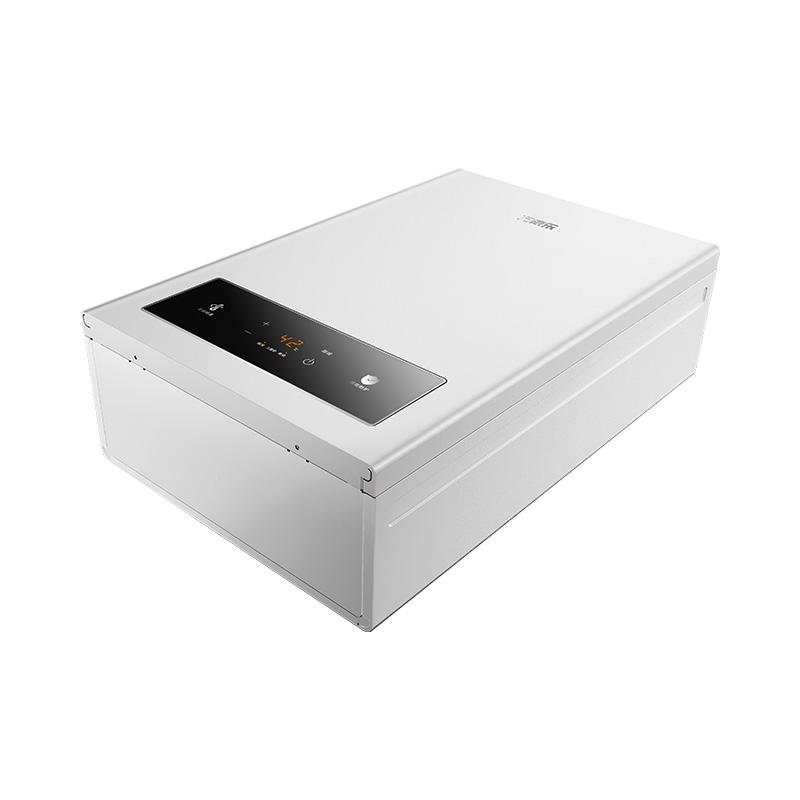

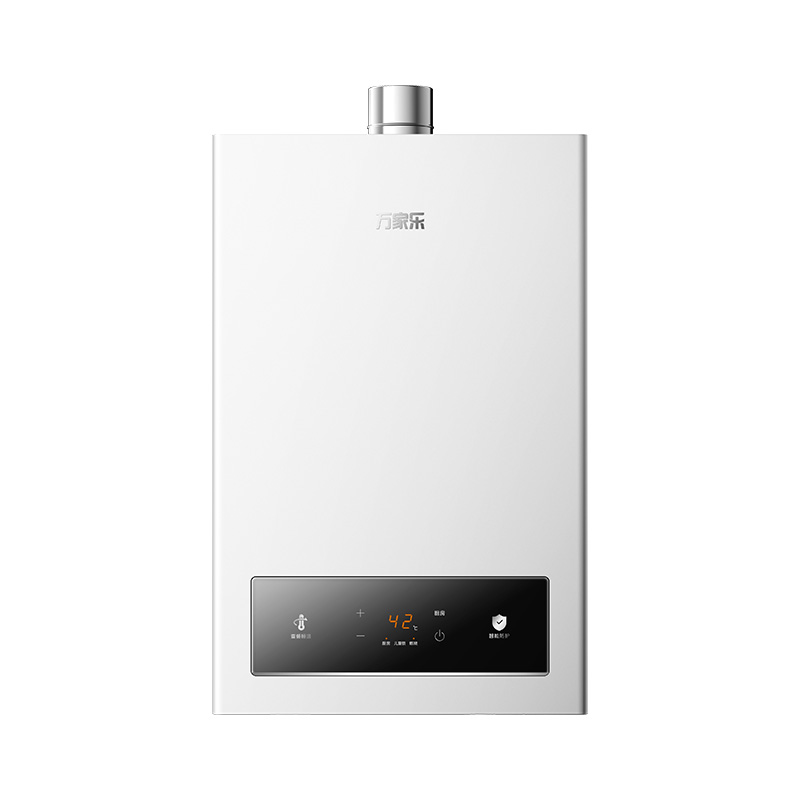

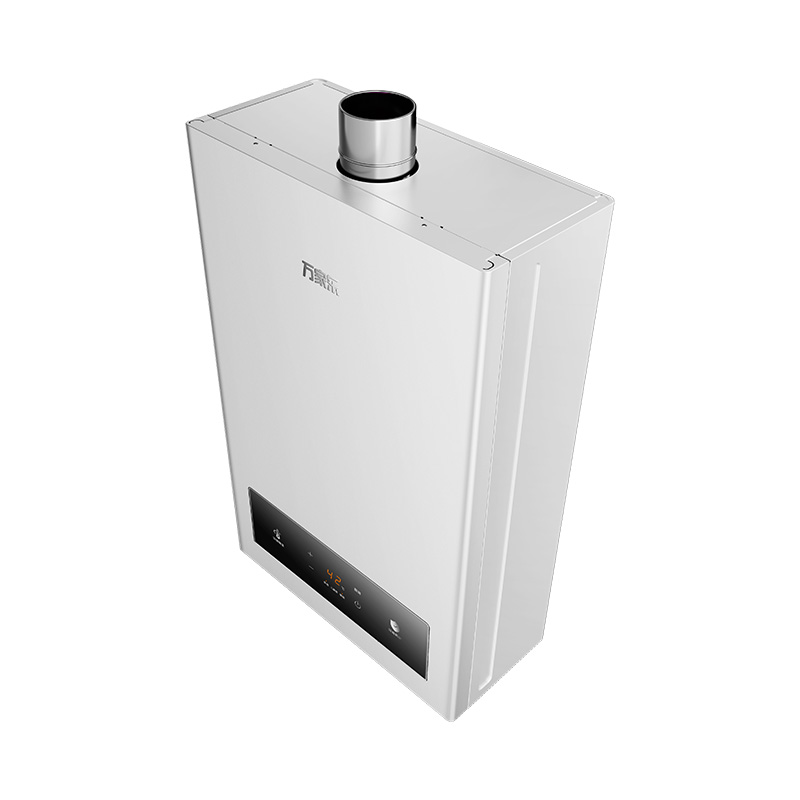

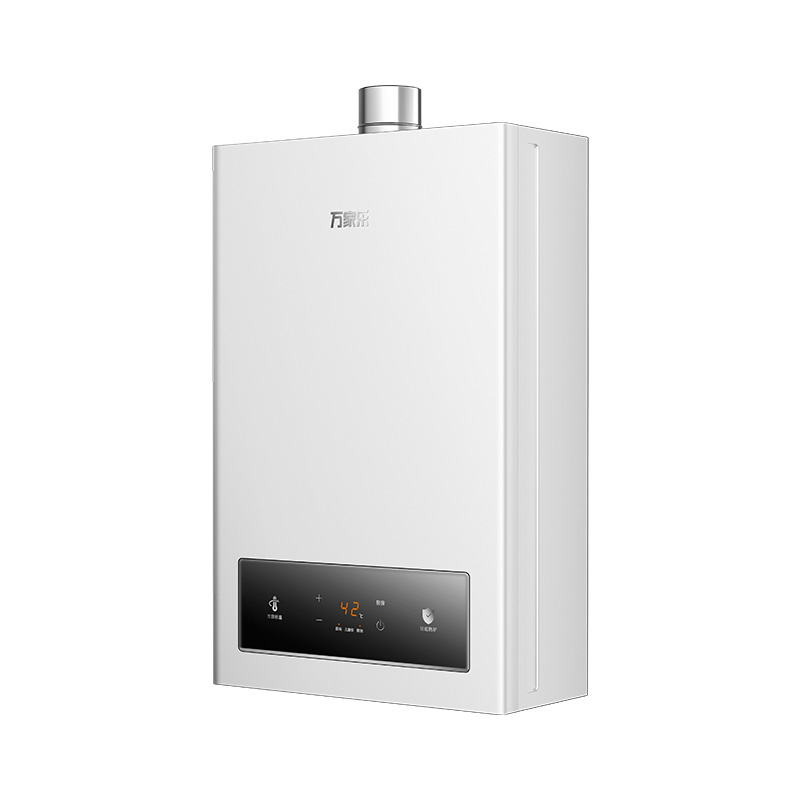

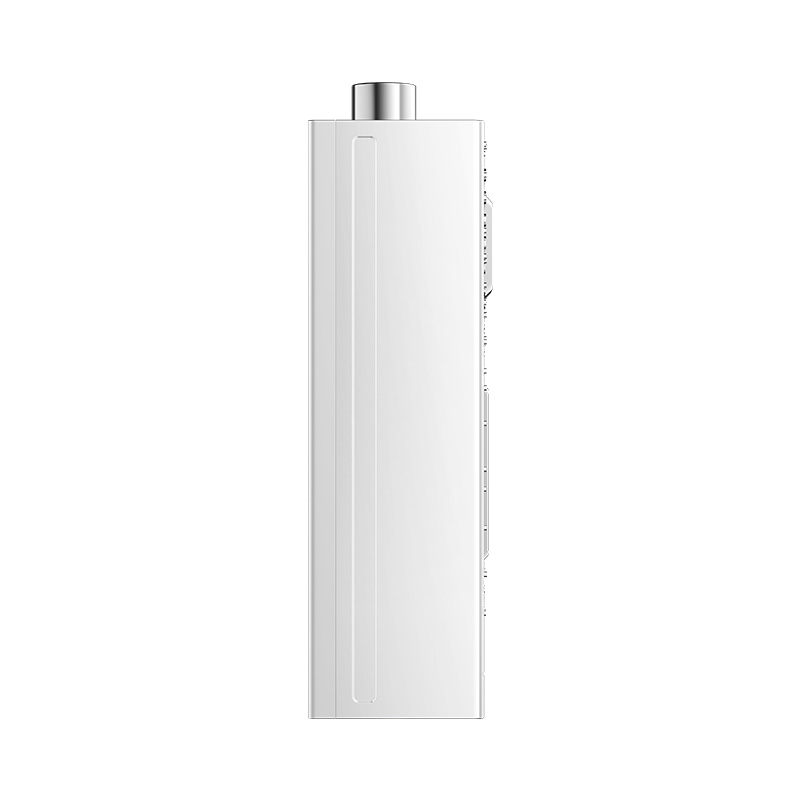

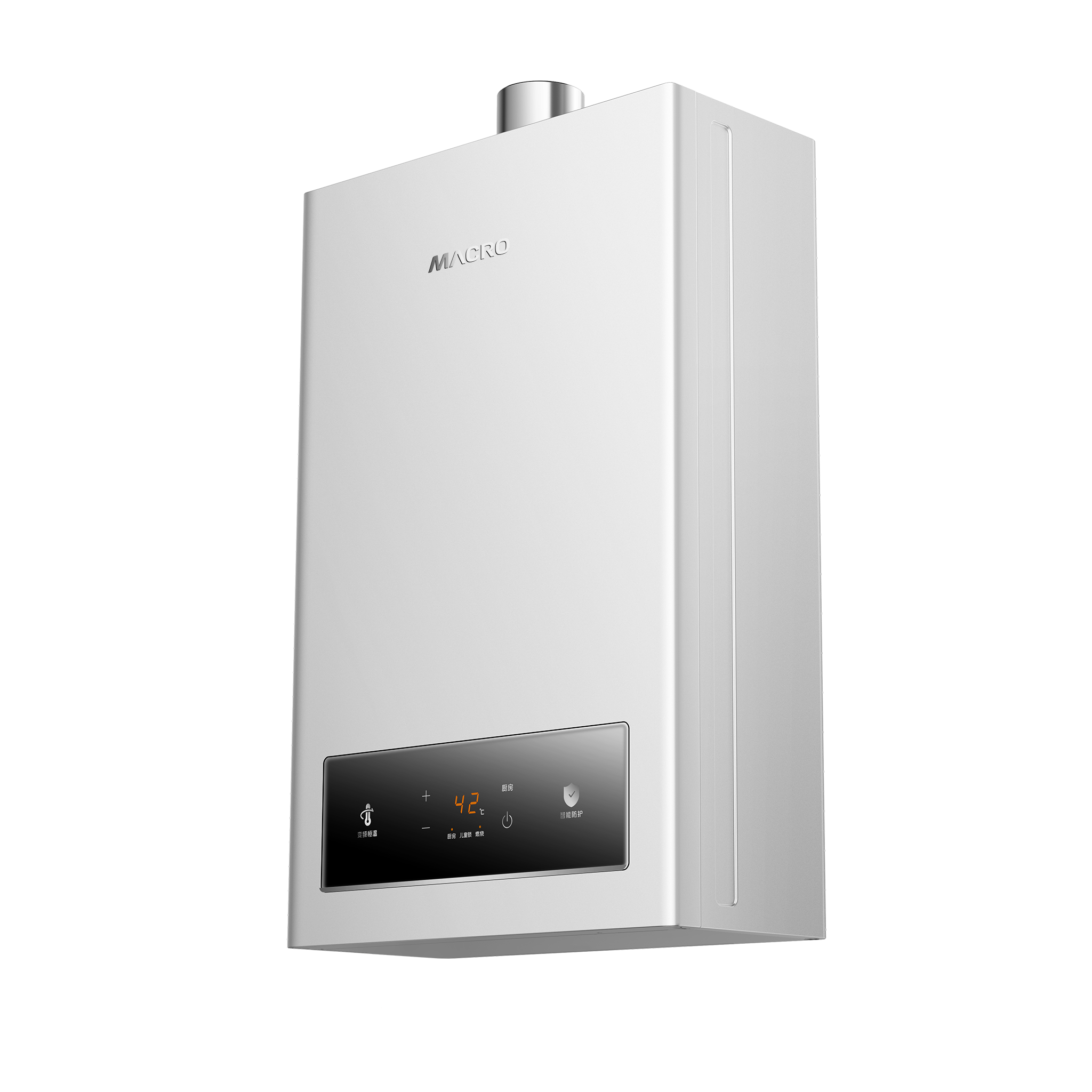

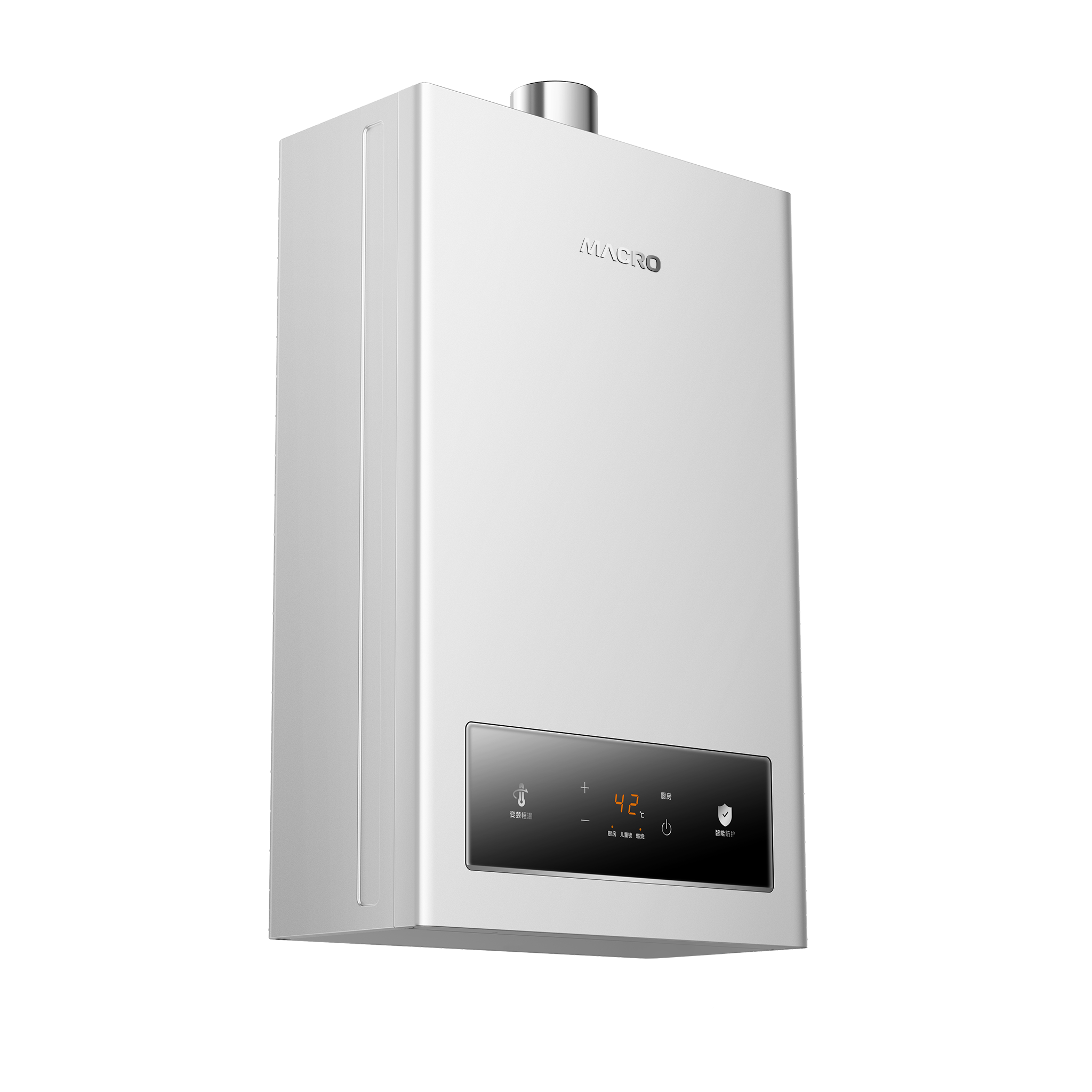

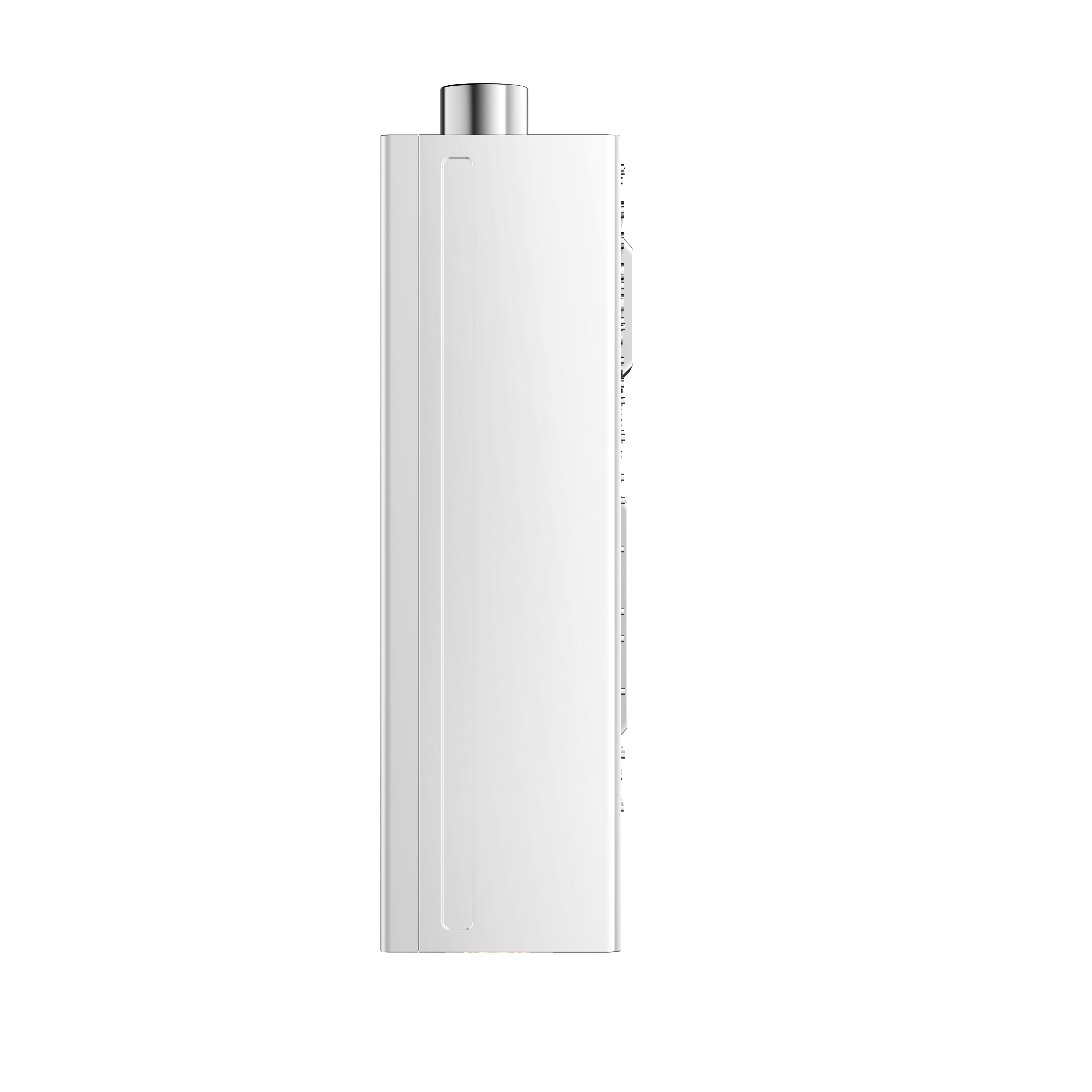

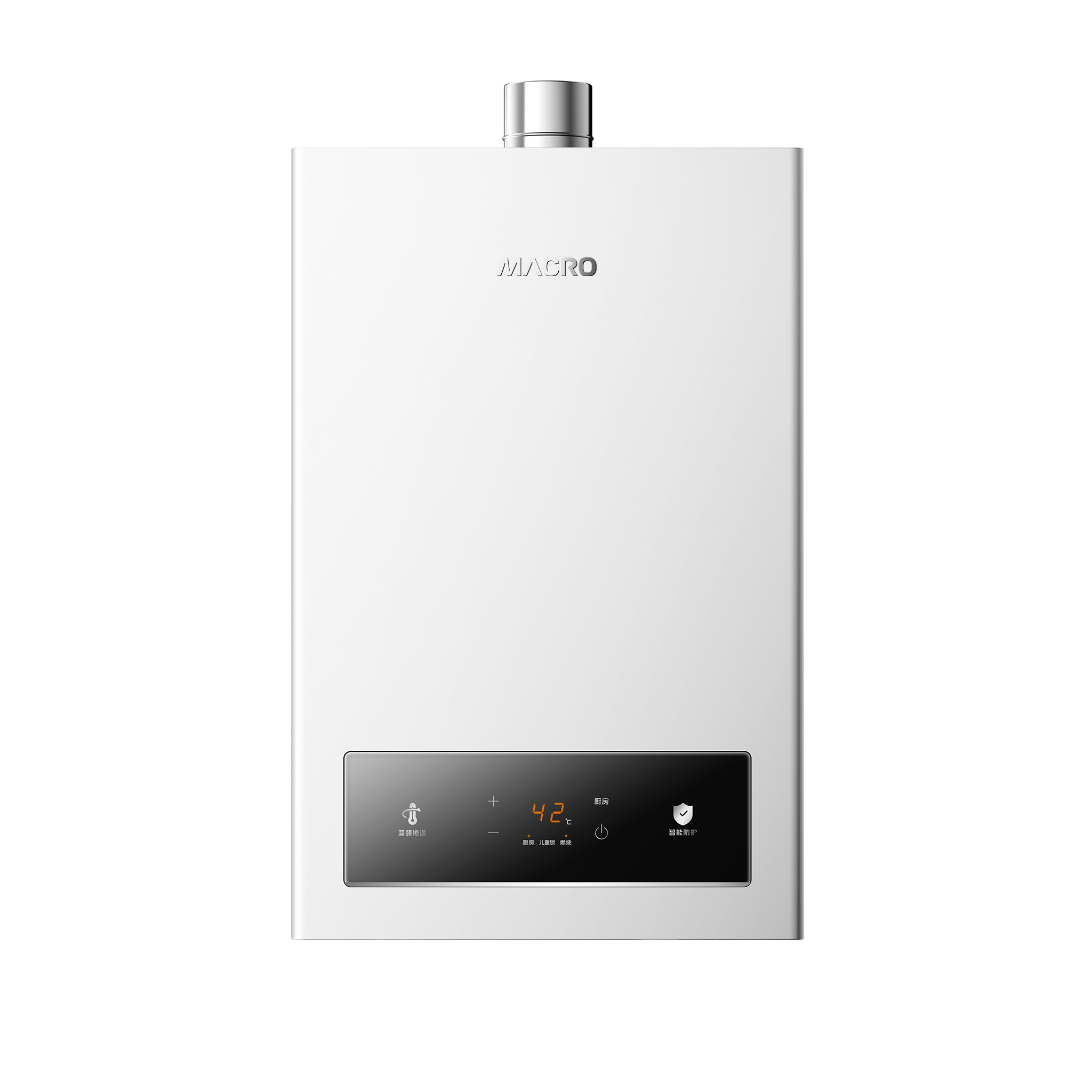

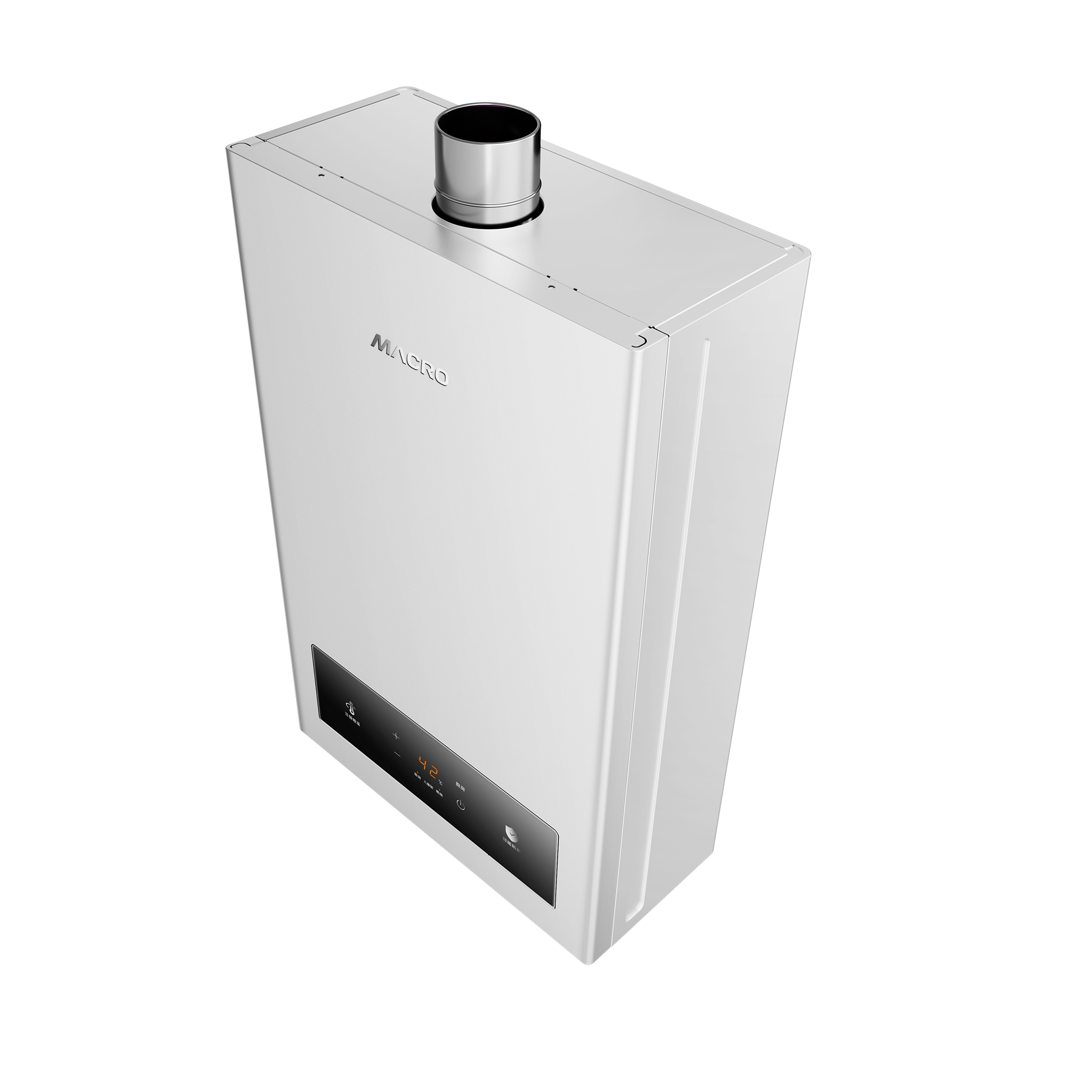

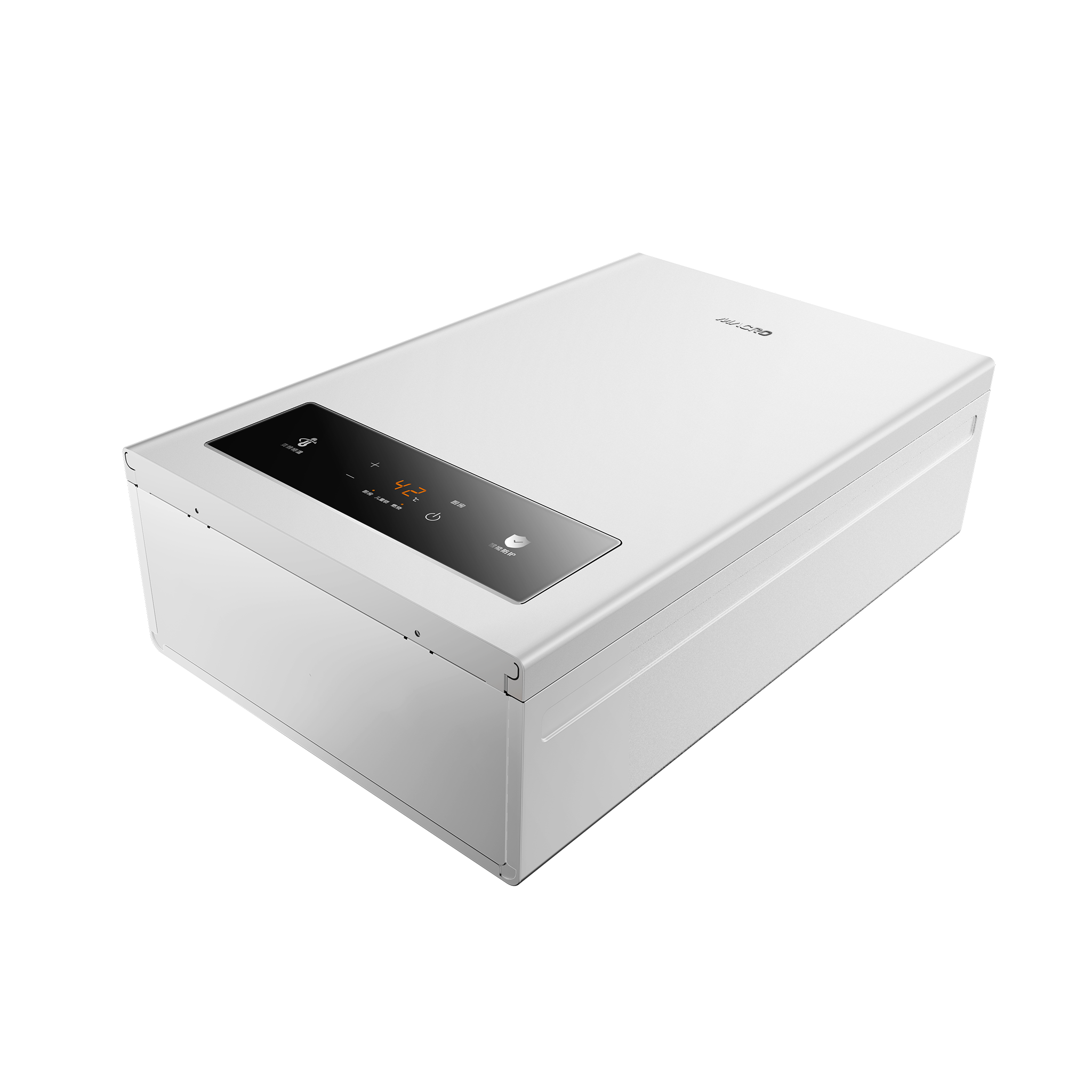

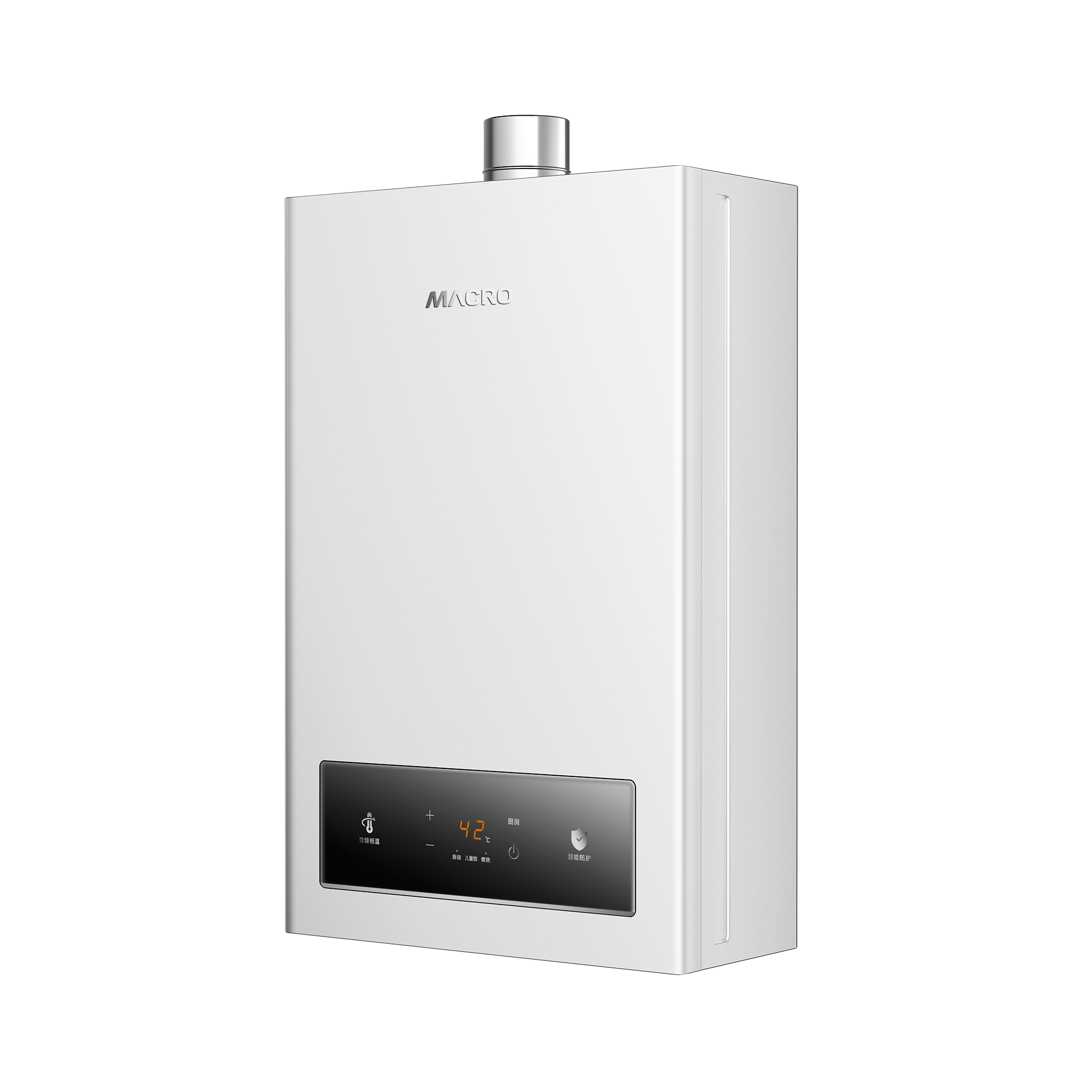

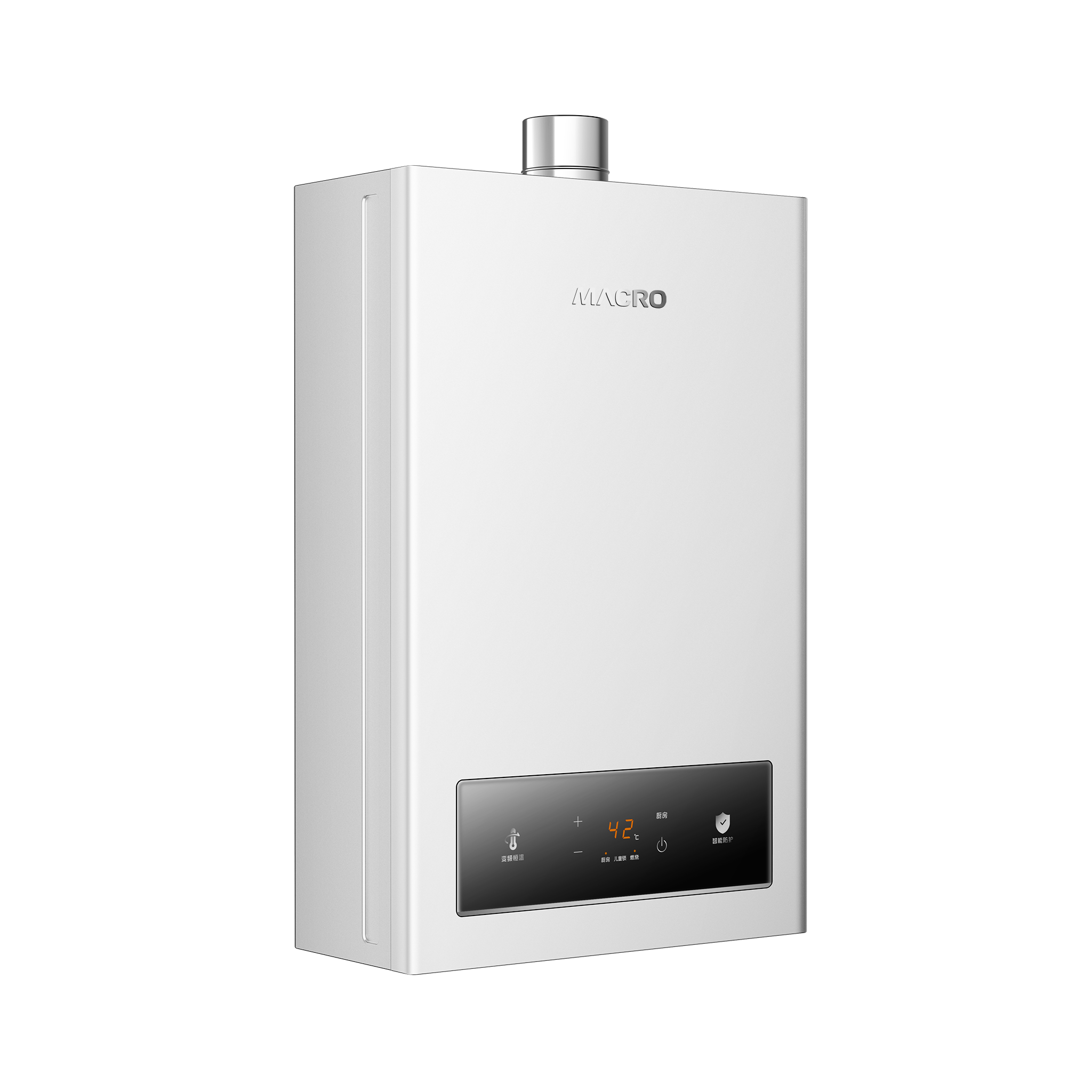

Gas Water Heater K1C1

Macro K1C1 Gas Heater: Variable Frequency Temp Stability, Wind Resistant Burn. Ultra Low 1-row Flame: Cool Summer, Warm Winter.

Model: K1C1

Color: Bright Moon White

Innovate

Authentication

Specifications Frequently Asked Questions You May Also Like

Gas Water Heater K1C1

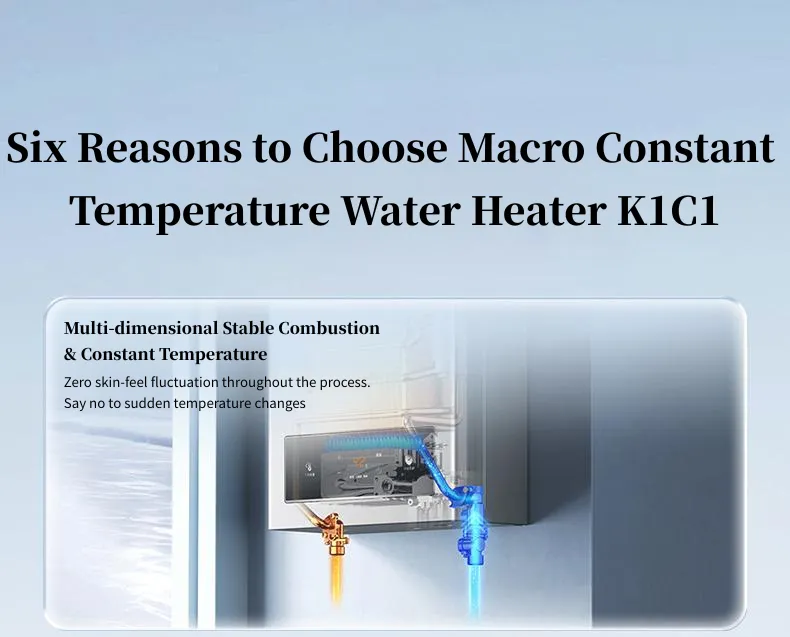

Six Reasons to Choose Macro Constant Temperature Water Heater K1C1

One-key Kitchen Wash

High-efficiency Energy-saving Technology

48℃ Child Lock

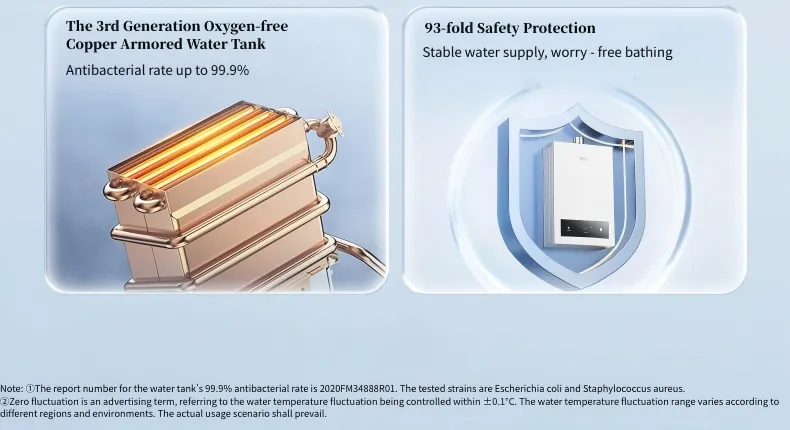

The 3rd Generation Oxygen-free Copper Armored Water Tank

93-fold Safety Protection

Gentle Flame 3.0

DC Inverter Fan

Constant-temp Chip Macro 3.0

Dual Temperature Probes

On-off Constant Temperature

Precise Control of Water and Gas

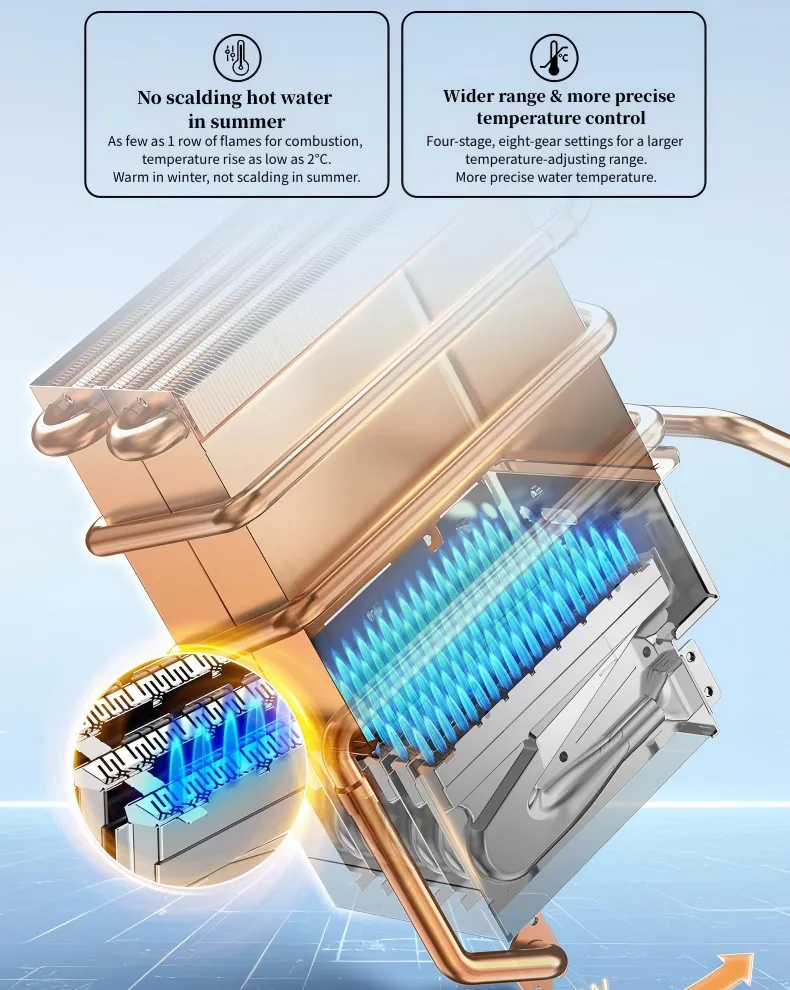

Gentle Flame 3.0 Technology Water Won't Scald In Summer

No scalding hot water in summer

Wider range & more precise temperature control

Zero Skin Feel Fluctuation Throughout The Process

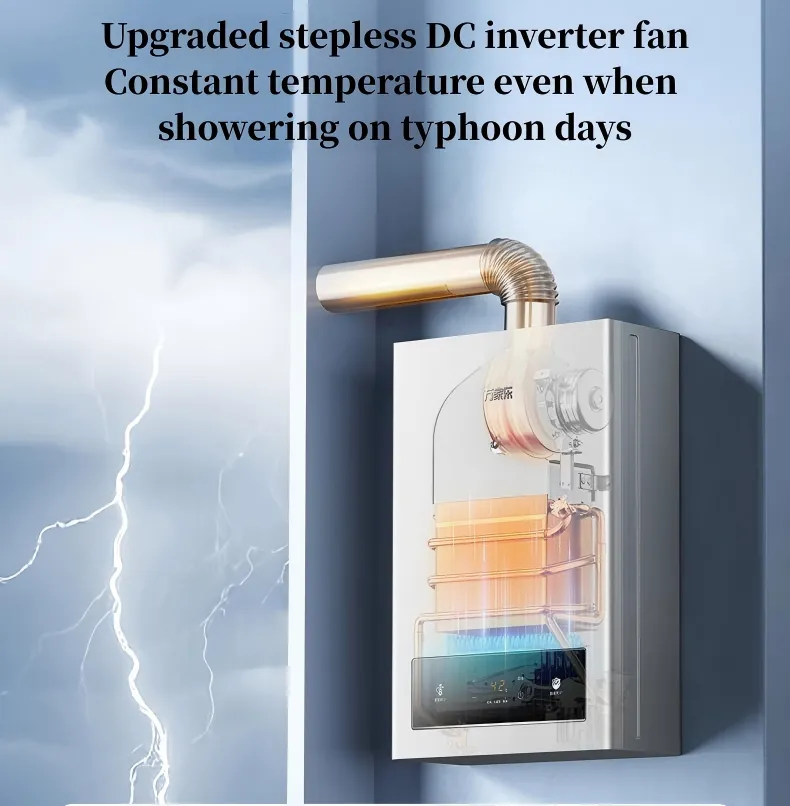

Upgraded stepless DC inverter fan
Constant temperature even when showering on typhoon days

Macro3.0 Constant-temperature Super-computing Chip

Active Temperature Control For a Constant & Comfortable Water Temperature

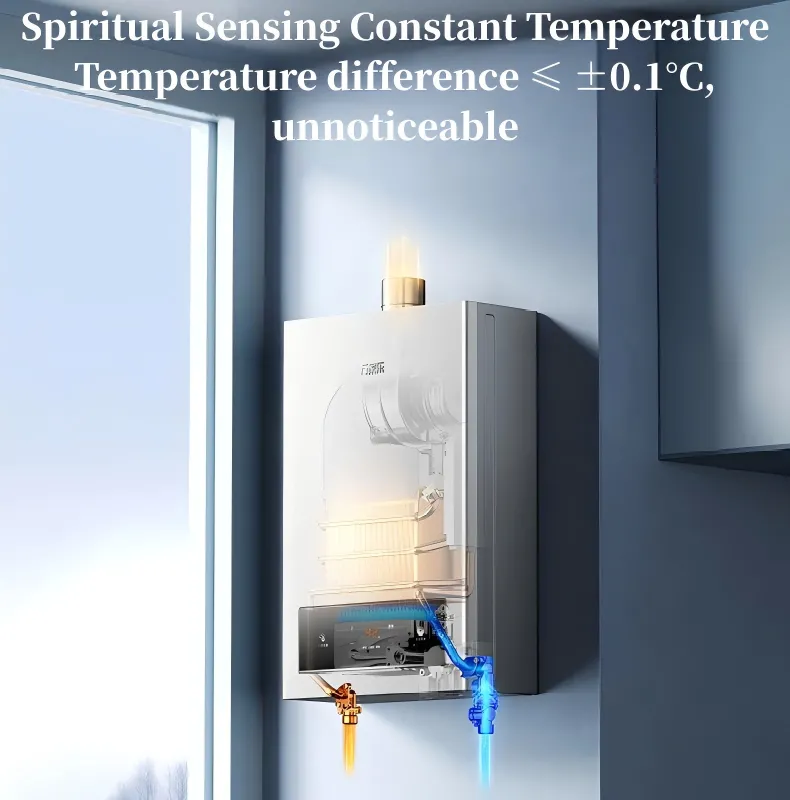

Spiritual Sensing Constant Temperature

Temperature difference ≤ ±0.1°C, unnoticeable

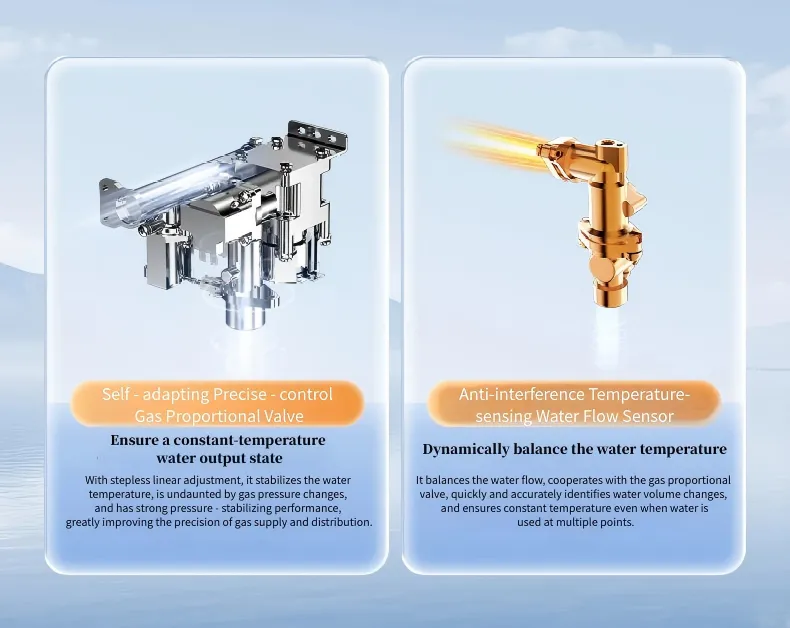

Precise Dual Control of Water and Gas for Constant Temperature

Say goodbye to water temperature fluctuations during peak peak water-usage hours.

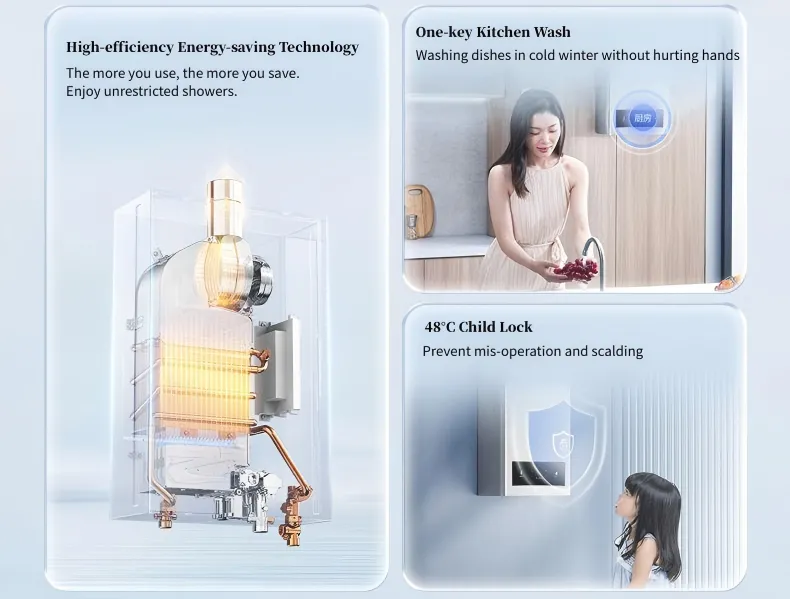

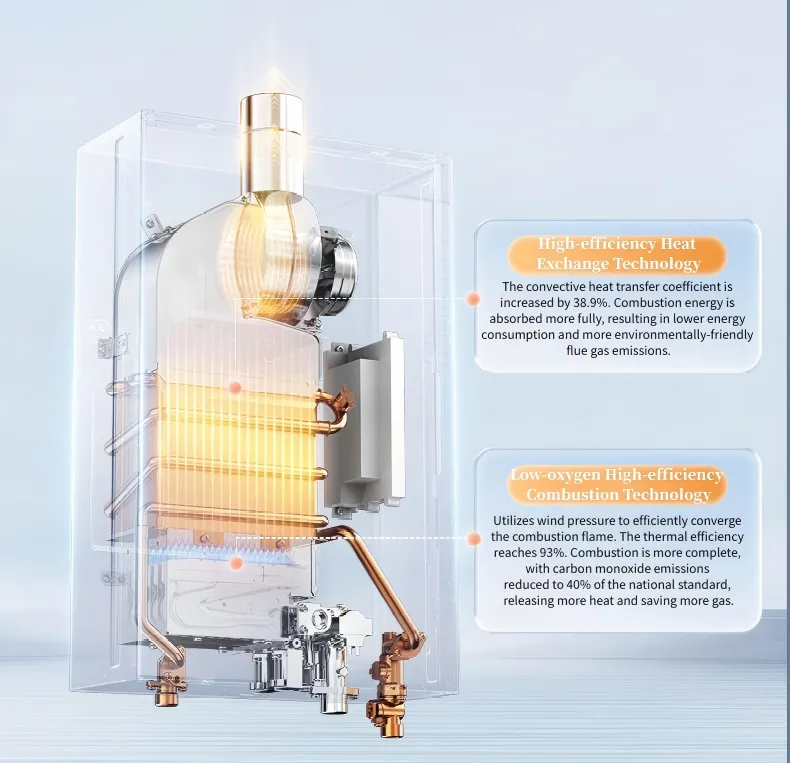

High-efficiency Energy-saving Technology Enjoy Showers While Saving Gas

One-touch Kitchen Wash No More Cold Hands When Washing Dishes In Winter

Use warm water to wash dishes and remove oil stains, without hurting hands in winter.

Use warm water to wash fruits and vegetables, without losing nutrients.

48°C Child Lock Safer Protection Against Scalds

Automatically locks when the temperature exceeds 48°C to avoid scalds from incorrect temperature adjustment

Human-centered design, no need to worry about children randomly pressing buttons

Specifications

MODEL	JSQ20-10K1C1	JSQ24-12K1C1	JSQ32-16K1CA	JSQ38-20K1C1
Gas Type	NG/LPG	NG/LPG	NG/LPG	NG/LPG
Rated Hot Water Capacity(△T=25K)	10L/min	12L/min	16L/min	20L/min
Nominal Power/Rated Heat Input(kW)	20	24	32	38
Activated water flow rate	2.5L/min	2.5L/min	2.5L/min	2.5L/min
Flue Pipe/Chimney Diameter(mm)	φ60	φ60	2.5L/min	2.5L/min
Efficiency	85%	85%	85%	85%
N.W(kg)	8.7	8.7	9	10.5
G.W(kg)	11	11	11.3	12.7
Product Dimensions(mm)	525340155	525340155	525340155	525340155
Packaging Dimensions(mm)	676418310	676418310	676418310	676418310
Loading Qty(20GP/40GP/40HQ)	357/750/857	357/750/857	357/750/857	357/750/857

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
