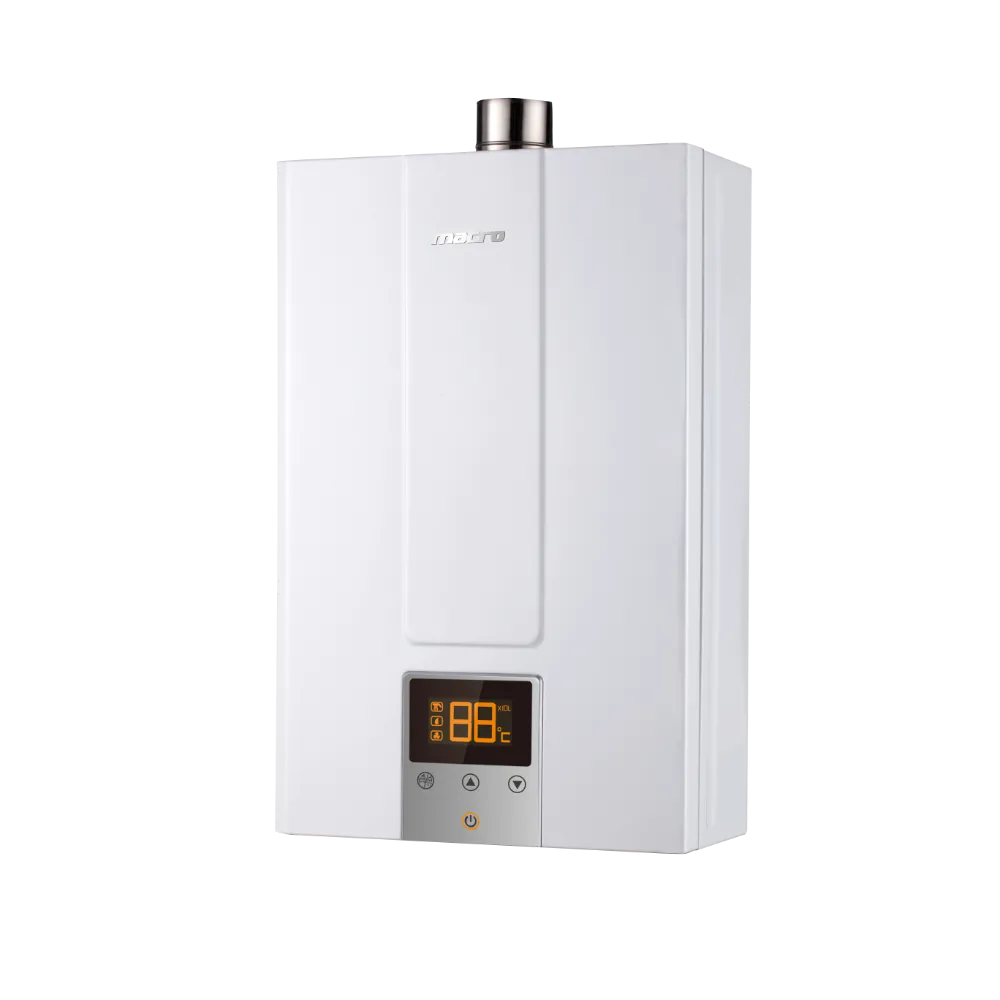

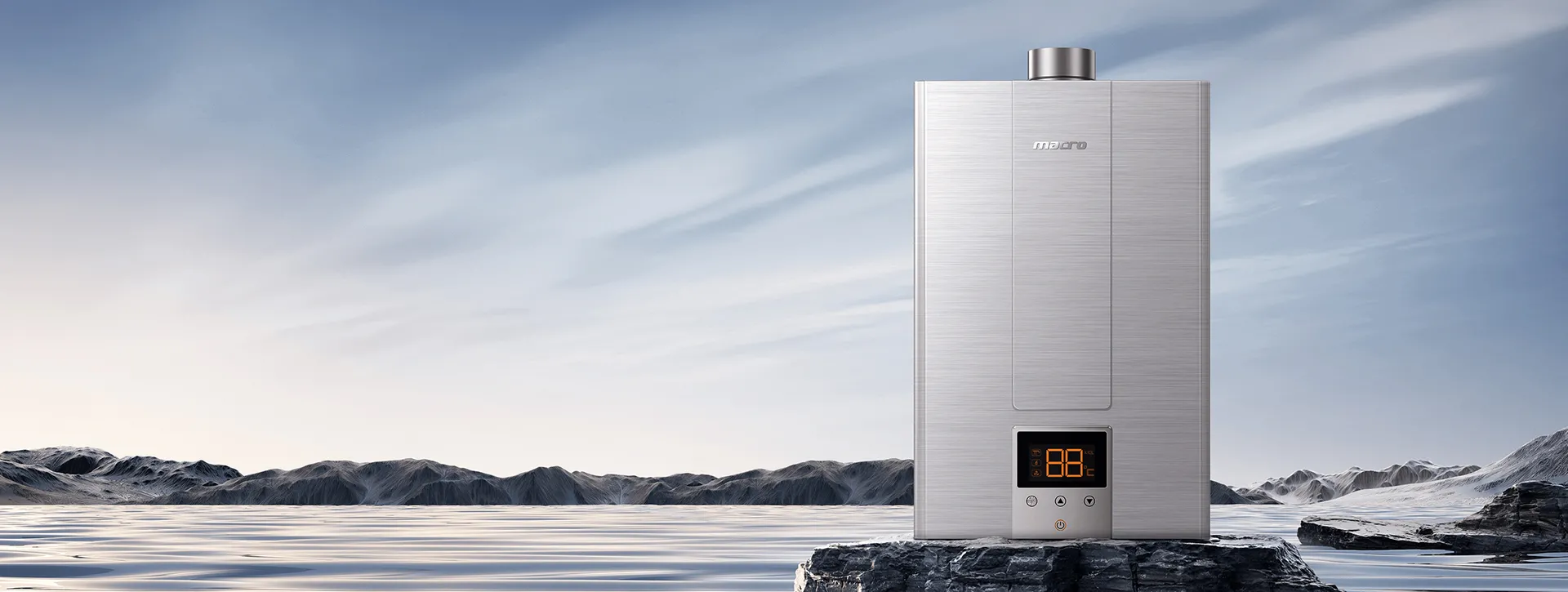

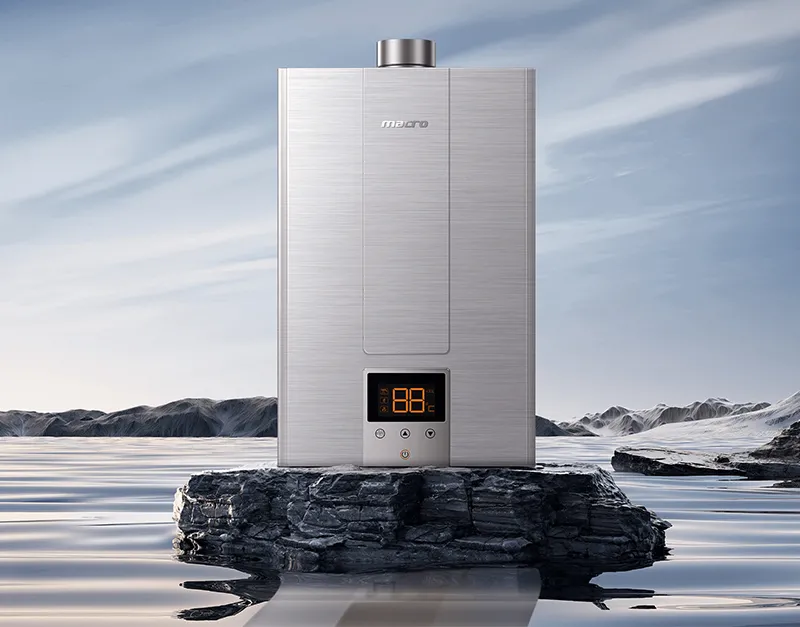

K3S Gas Water Heater: Efficiency Meets Advanced Heating
Smart self-adaption constant temperature
Smoke forced exhaust
Smart self-adaption constant temperature
K3S force flue type, which adopts smart digital control system with advanced inverter technology, realize smart self-adapation to stablize temperature, birng the best hot water experience.

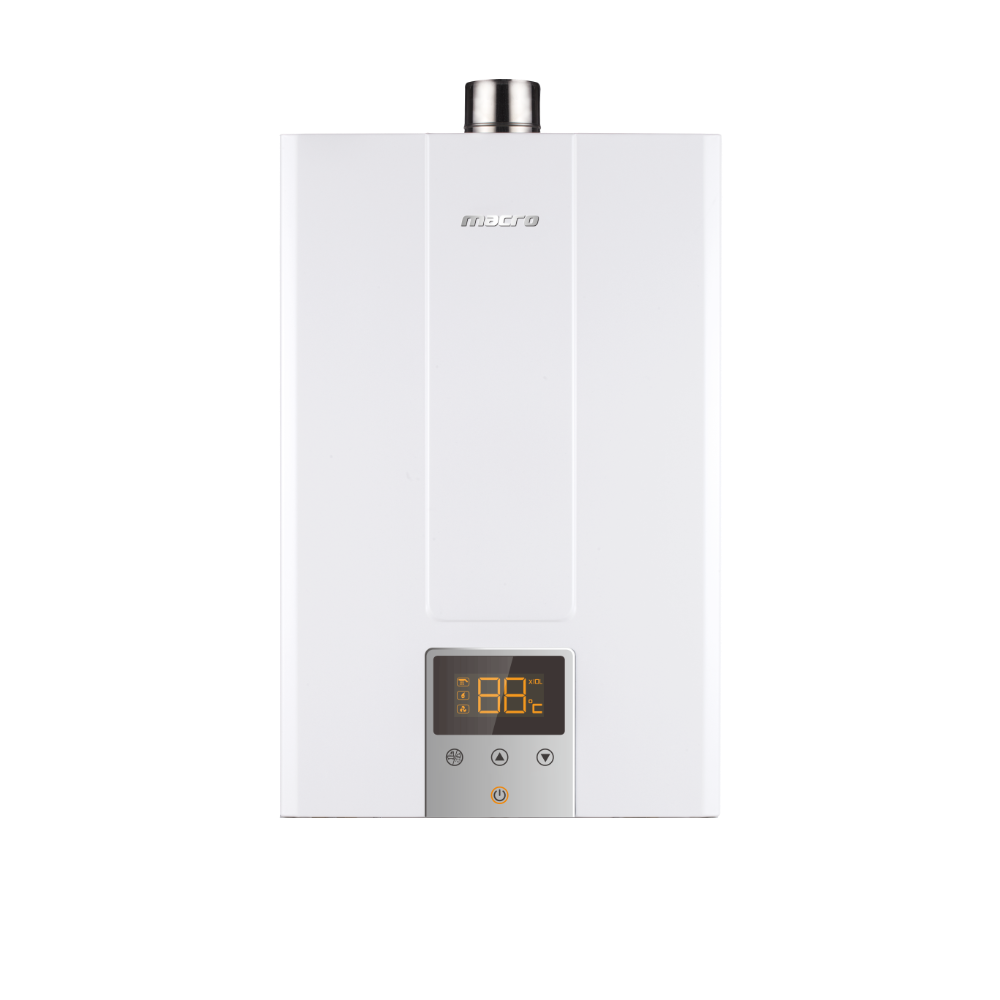

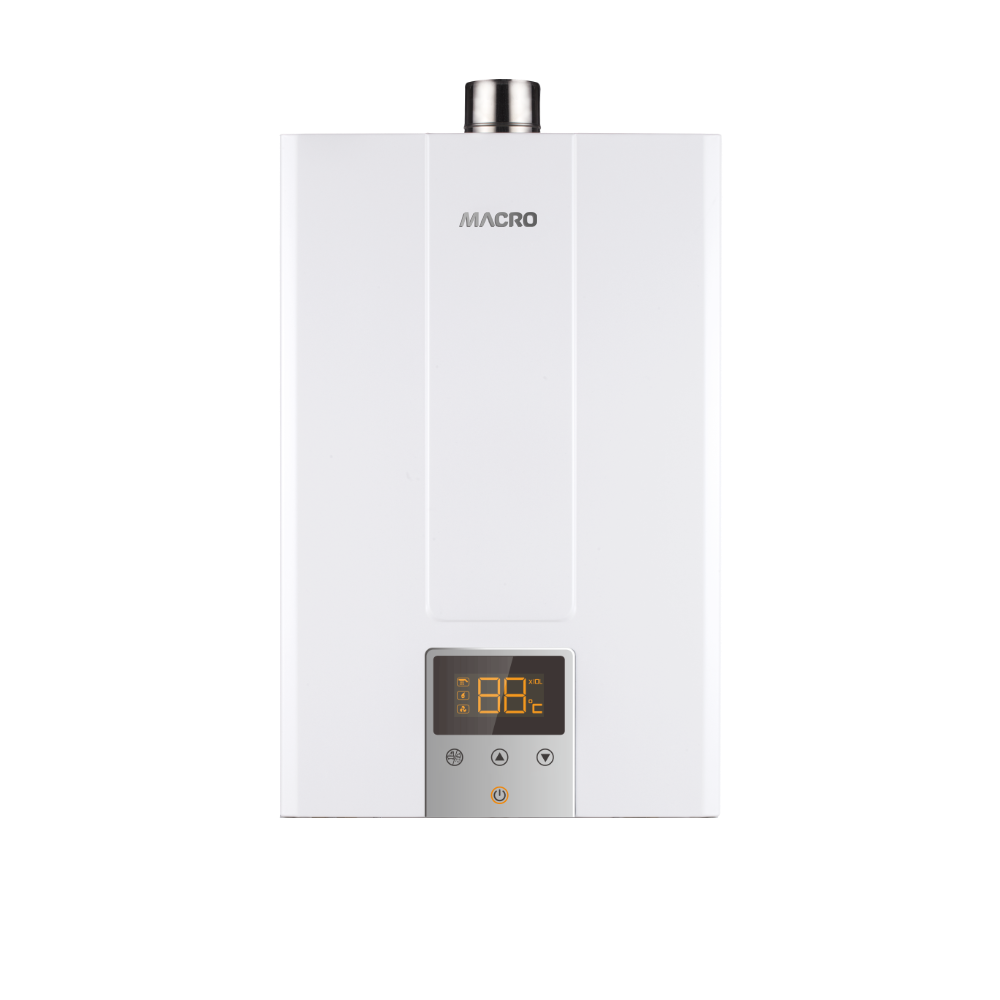

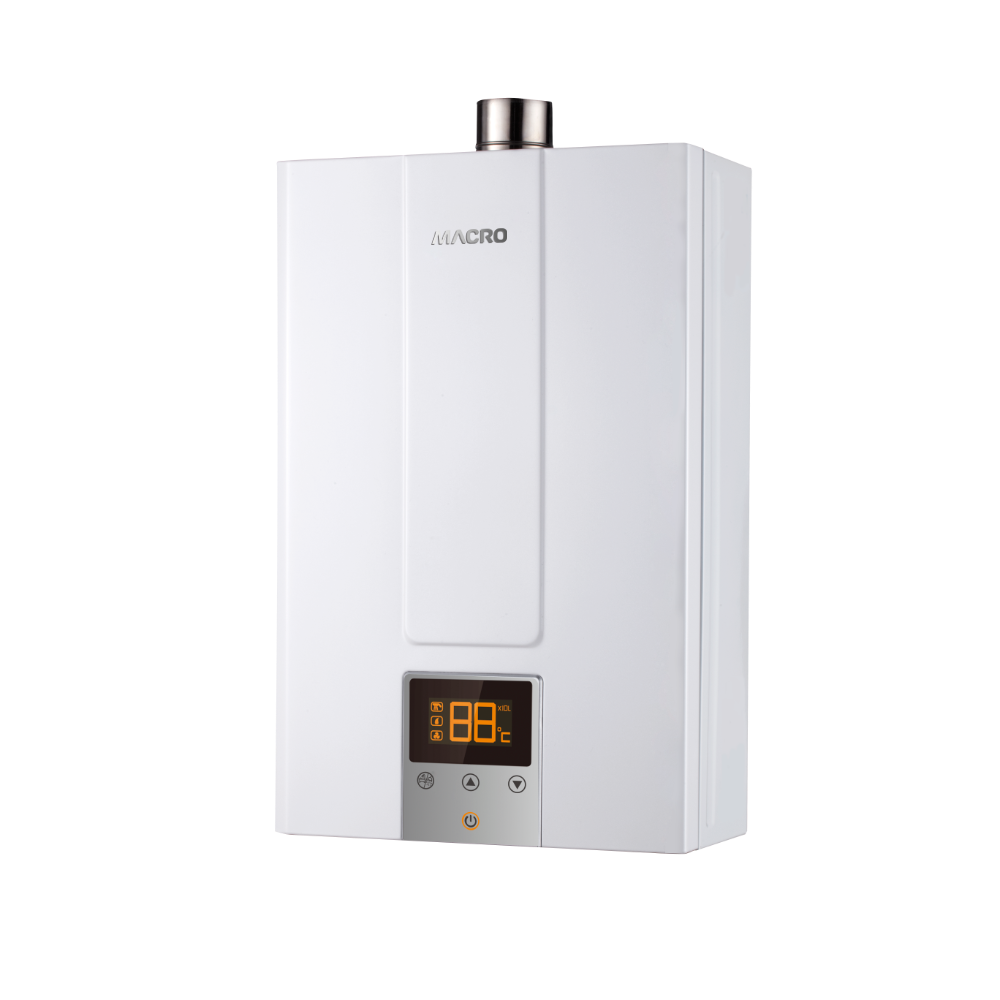

Model: K3S
Color: Silver /White
Innovate
Authentication
Features
Smart digital control
Macro K3S series gas water heater
Precise temperature control
Special stable temperature control technology, cozy and relax.

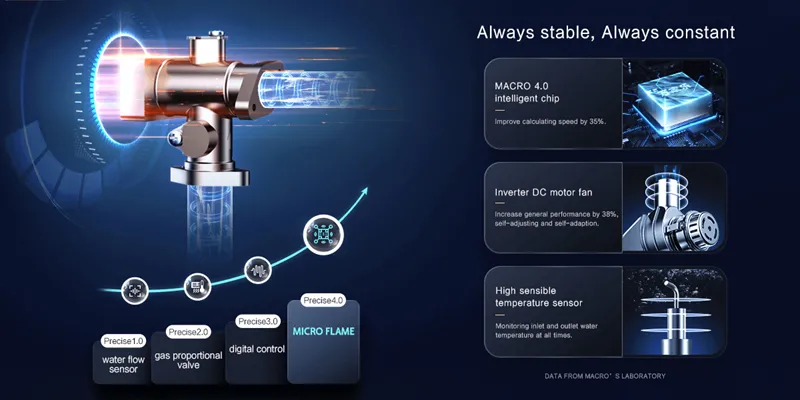

Precise temperature control 4.0, enjoy stable hot water
Integrated with 3 core control components, realize optimal gas and water match, precisely static and dynamic control, keep hot water always stable.
Stable temperature between turn off and turn on

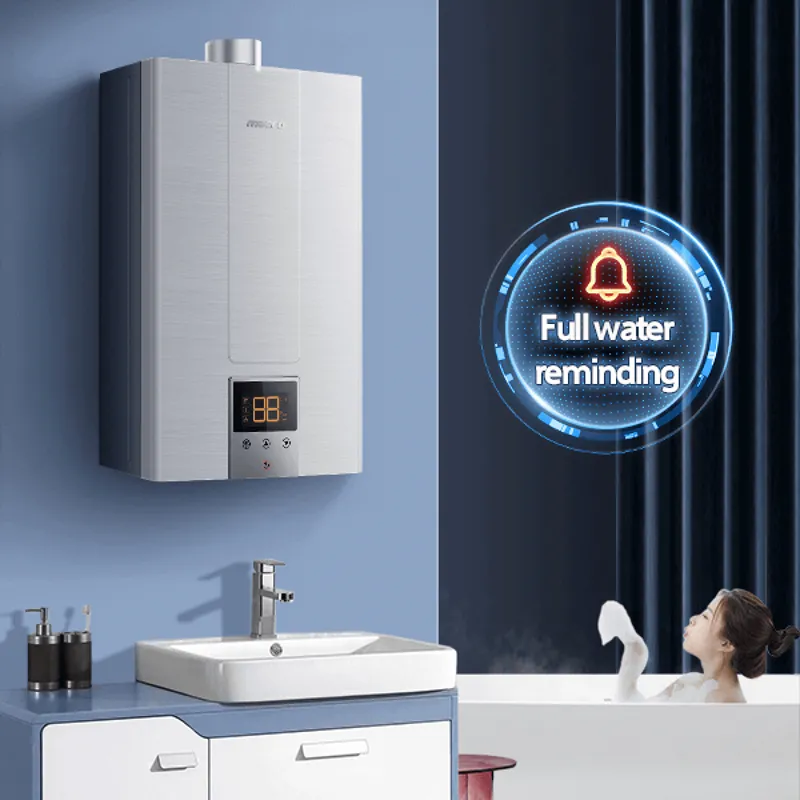

Cozy bathtub mode
Special bathtub mode, realize easily fill bathtub with satisfied hot water, enjoy more fun in bath.

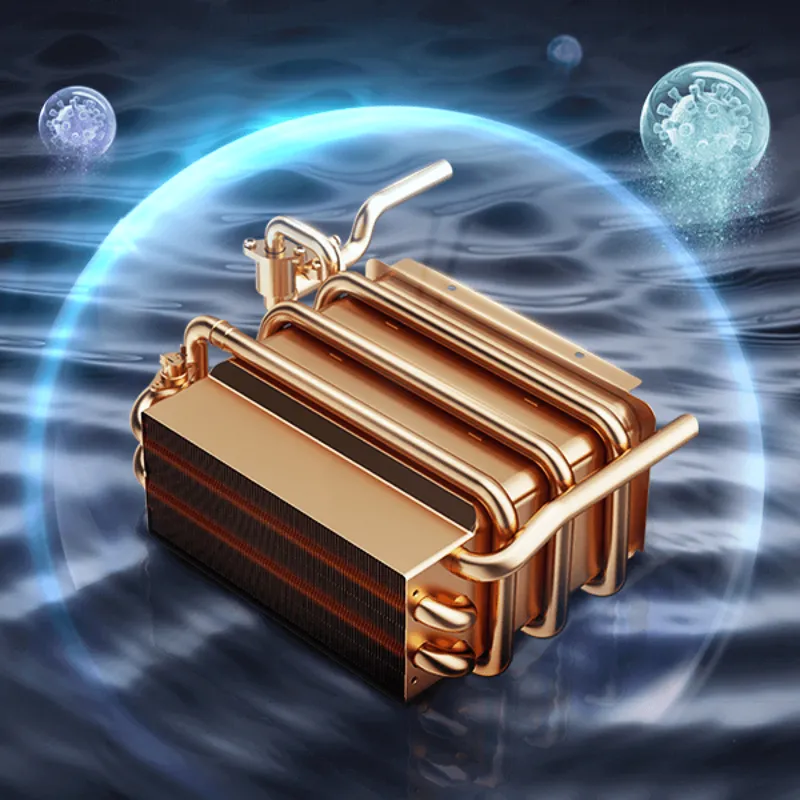

Healthy OFC heat exchanger, caring more about hygiene of water
High purity of OFC heat exchanger,
having higher heat efficiency and bacteriostat effect.
Specifications
| Model | JSQ24-12K3S | JSQ30-16K3S | JSQ36-20K3S |
| Gas Type | NG/LPG | NG/LPG | NG/LPG |
| Rated How WaterCapacity(ΔT=25K) | 12L/min | 16L/min | 20L/min |
| Nominal Power/Rated Heat Input(kW) | 24 | 30 | 36 |
| Activated water flow rate | 2.5L/min | 2.5L/min | 2.5L/min |

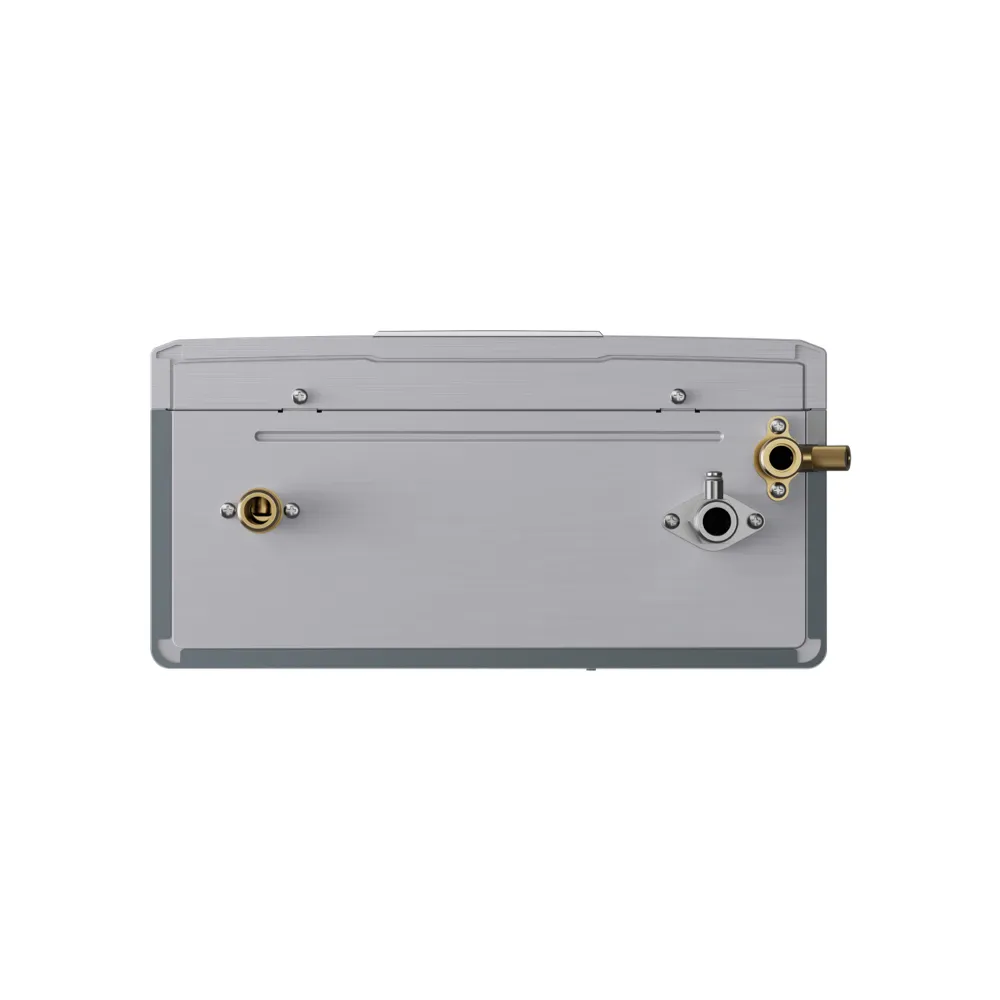

| Gas Inlet | G1/2 | G1/2 | G1/2 |
| Cold Water Inlet | G1/2 | G1/2 | G1/2 |
| Hot Water Outlet | G1/2 | G1/2 | G1/2 |

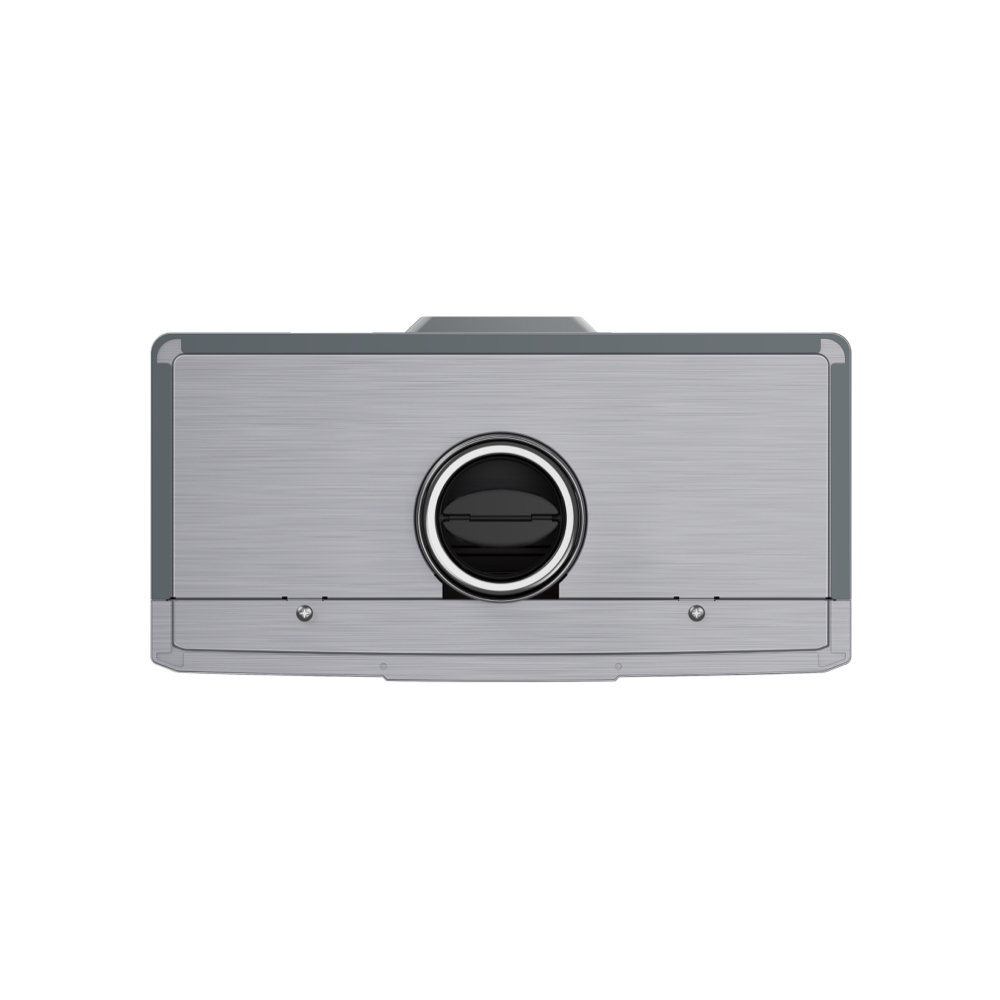

| Flue Pipe / Chimney Diameter(mm) | Φ60 | Φ60 | Φ80 |
| Efficiency | >88% | >88% | >88% |
| N.W(kg) | 9.3kg | 9.9kg | 10.5kg |
| G.W(kg) | 11.5kg | 12.1kg | 12.7kg |
| Product Dimensions(mm) | 525*340*170 | 525*340*170 | 525*340*170 |
| Pakaging Dimensions(mm) | 718*413*271 | 718*413*271 | 718*413*271 |
| Loading Qty(20GP/40GP/40HQ) | 397/819/931 | 397/819/931 | 397/819/931 |
Frequently Asked Questions
Q: How do I choose the right gas water heater capacity for my household?
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
