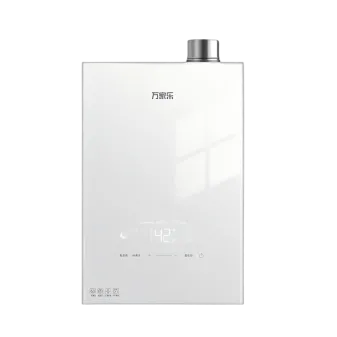

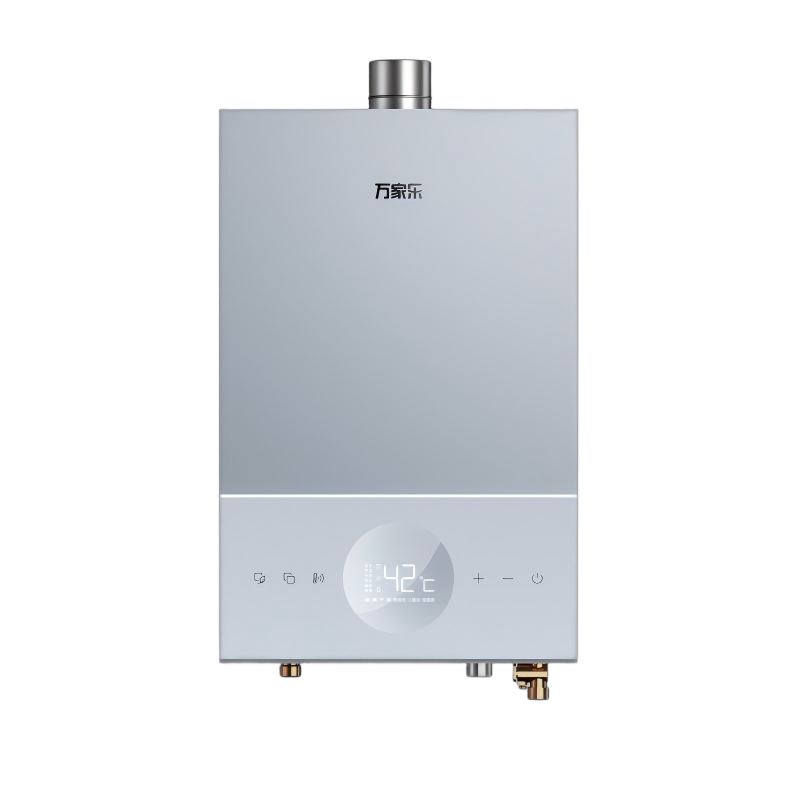

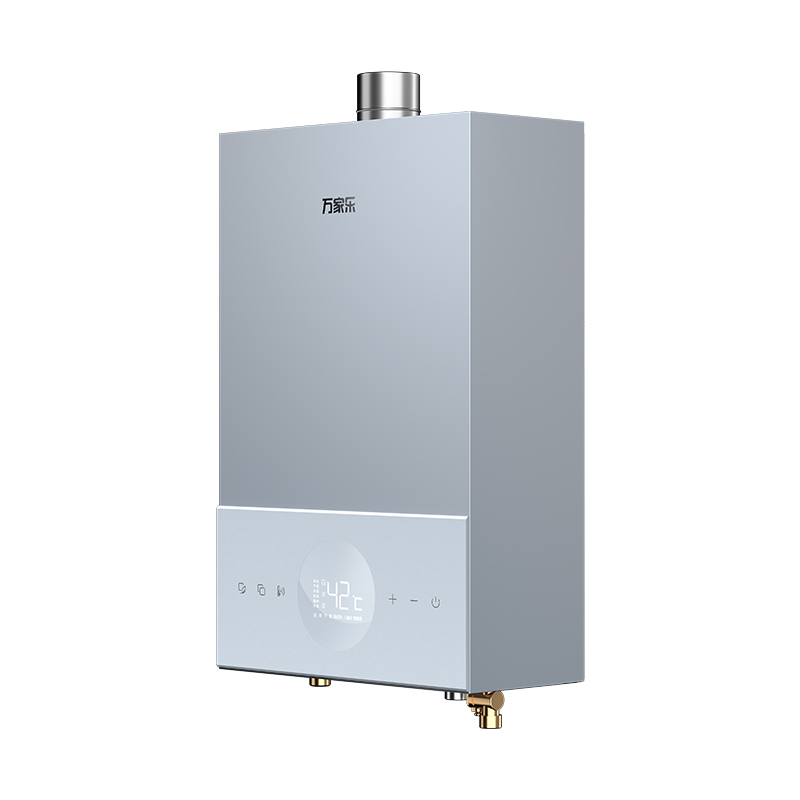

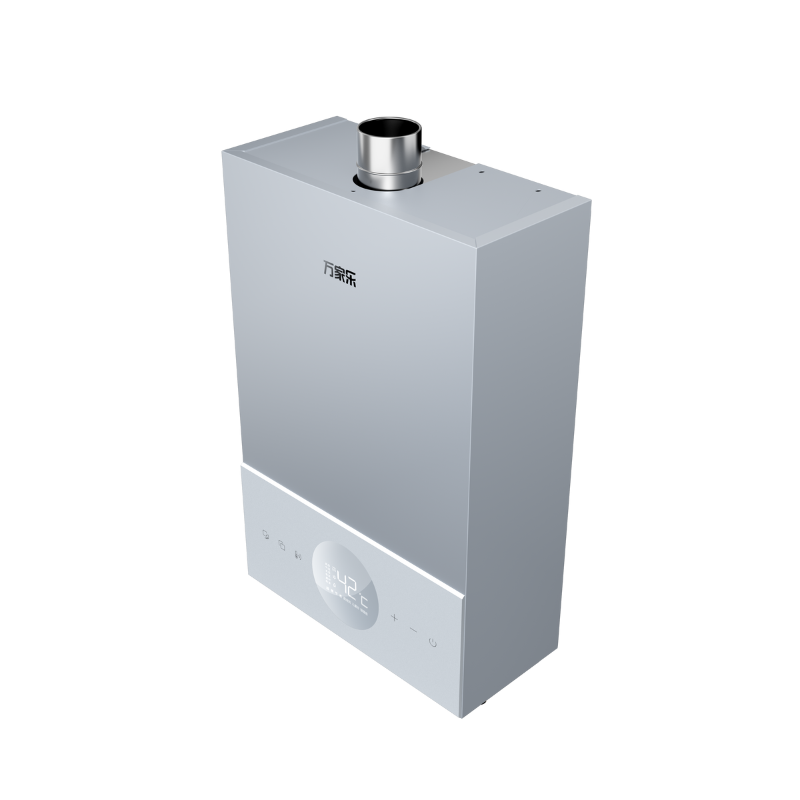

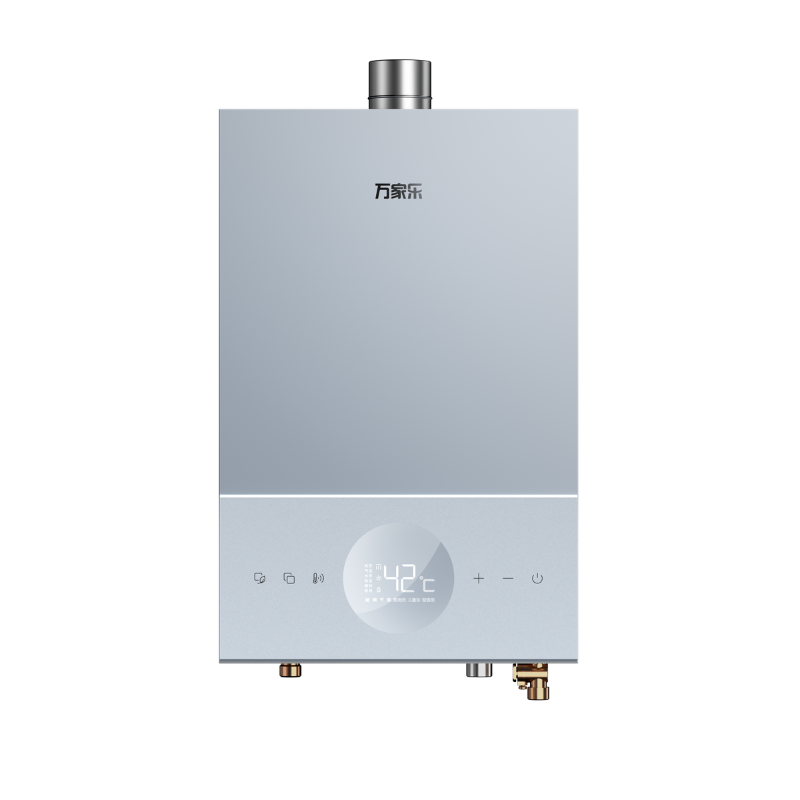

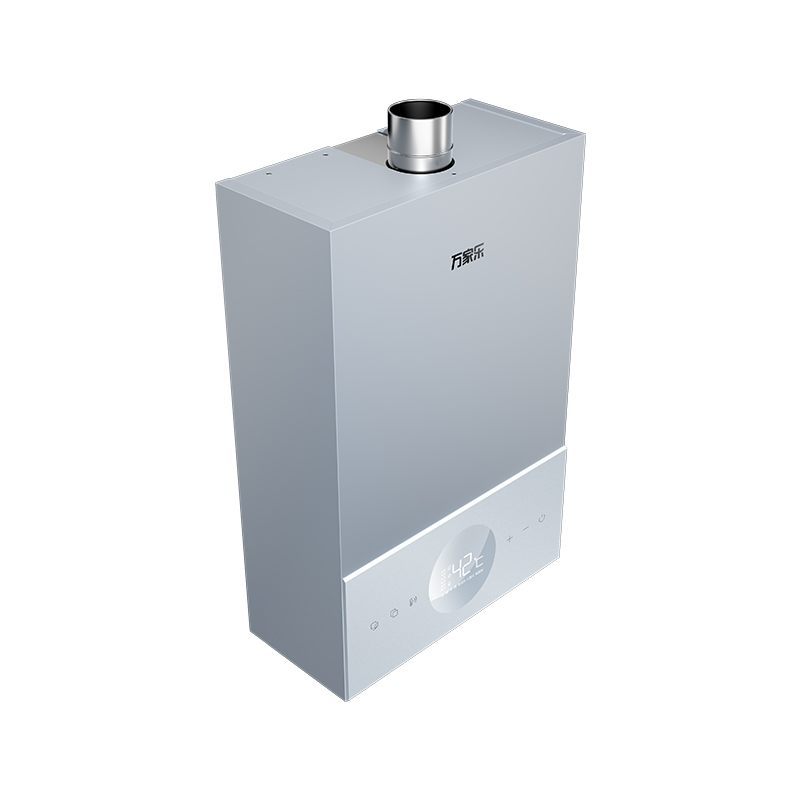

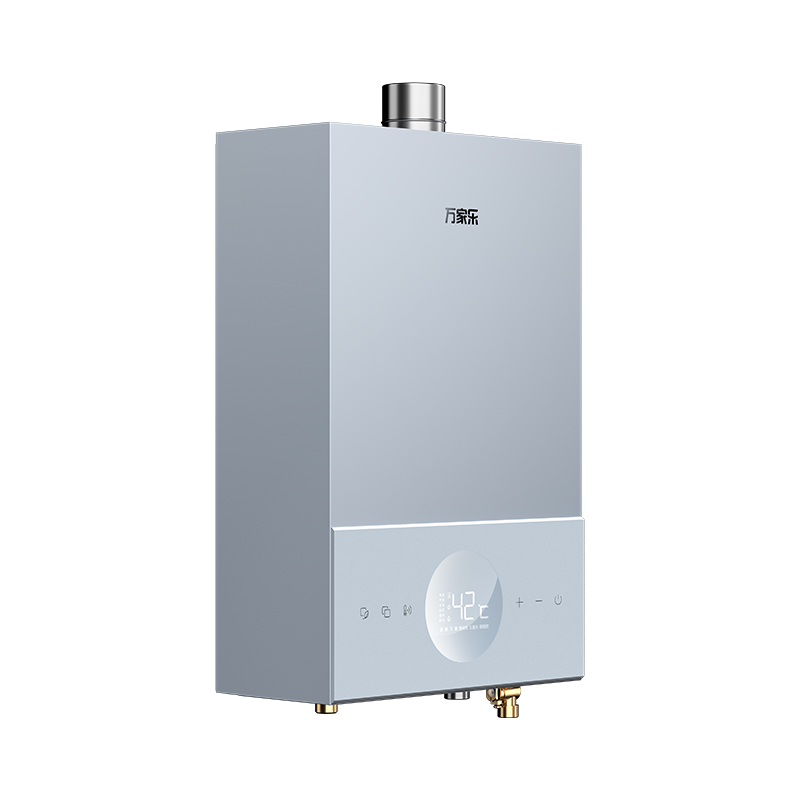

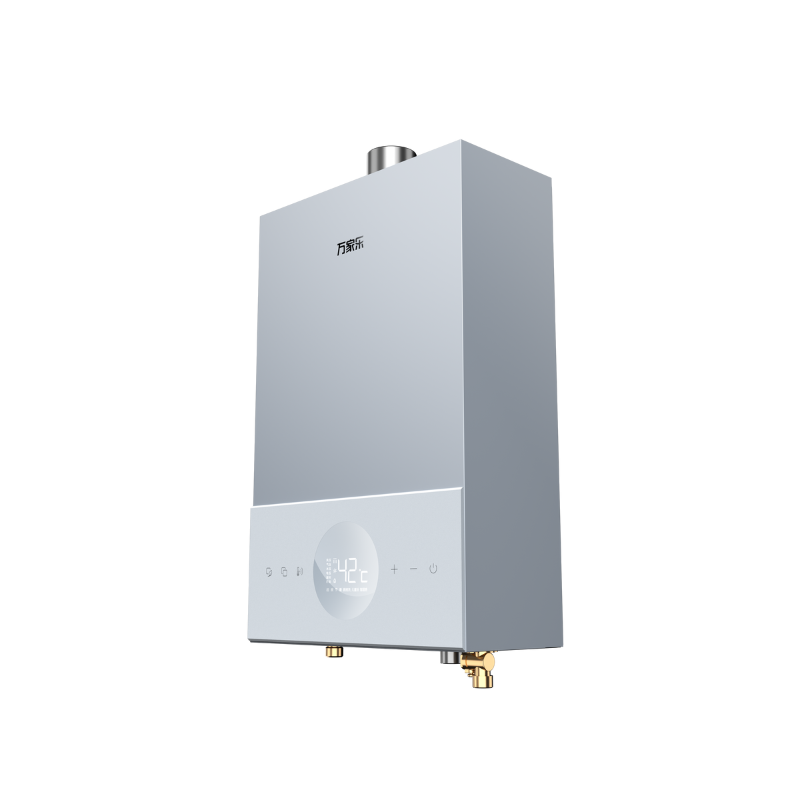

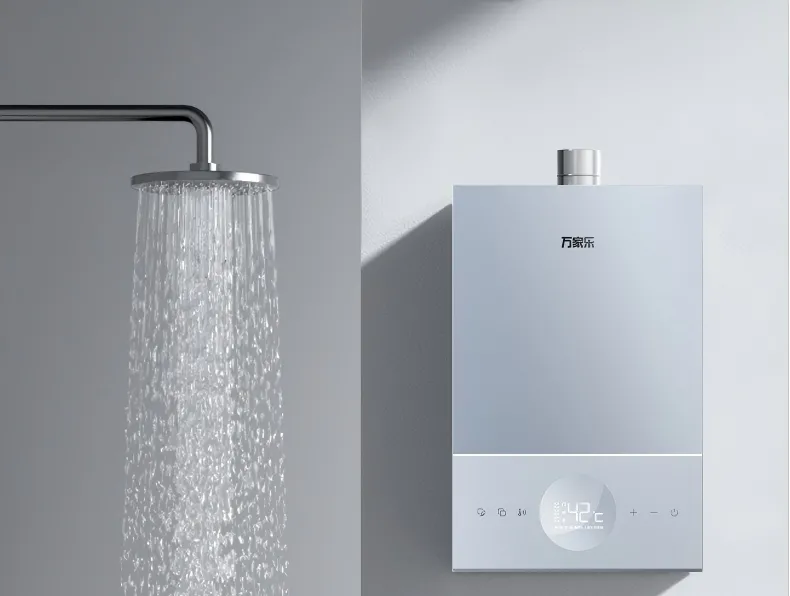

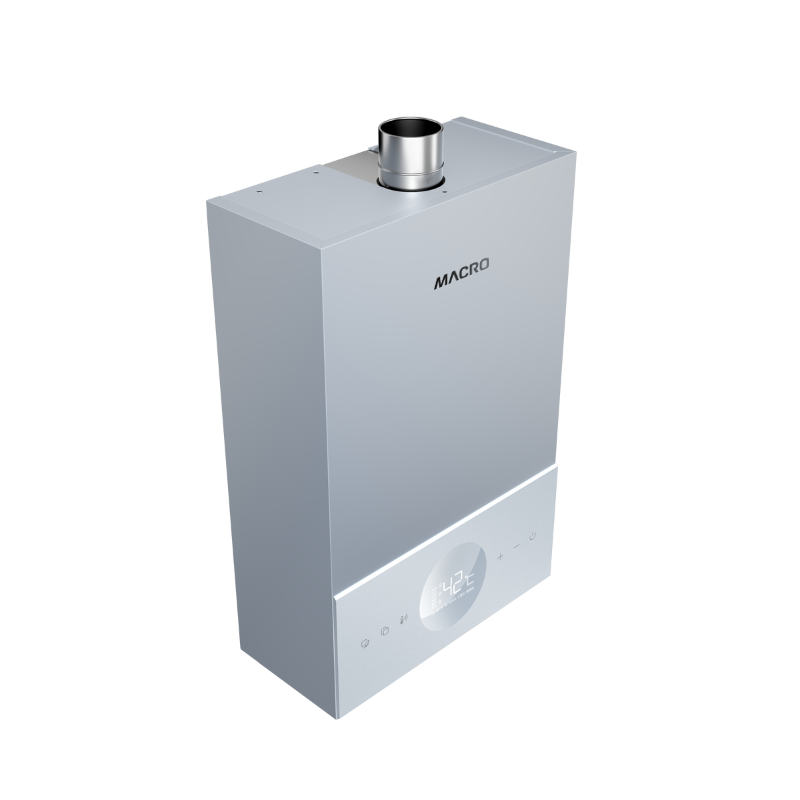

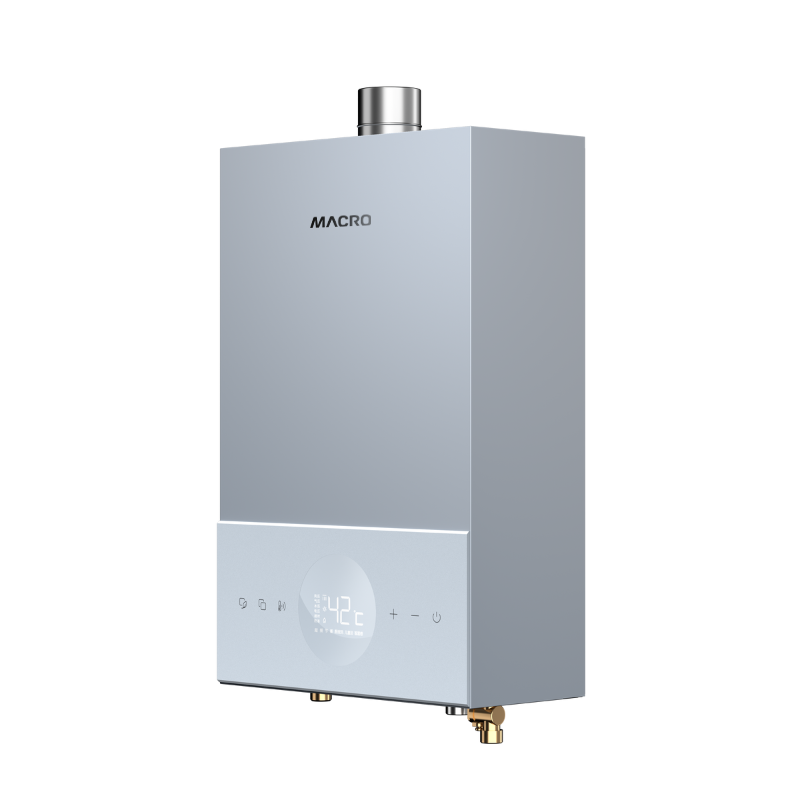

Gas Water Heater KM7

The KM7 series elevates performance with its upgraded modular design, featuring a quick-release back panel for effortless maintenance and part replacement.

Powered by AI-driven inverter technology, it delivers ultra-precise temperature control with zero fluctuation (±0.1°C), adapting instantly to water pressure and environmental changes.

Innovative S-E Turbo Mode boosts efficiency while cutting energy use by 20%, and the oxygen-free copper "Armor Tank" ensures corrosion-resistant, bacteria-free heating.

With 77 multi-layer safety protections, 39°C Child Lock, and 12-level wind resistance, the KM7 guarantees uninterrupted comfort for high-rises and old neighborhoods alike.

Model: KM7

Color: lake blue

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

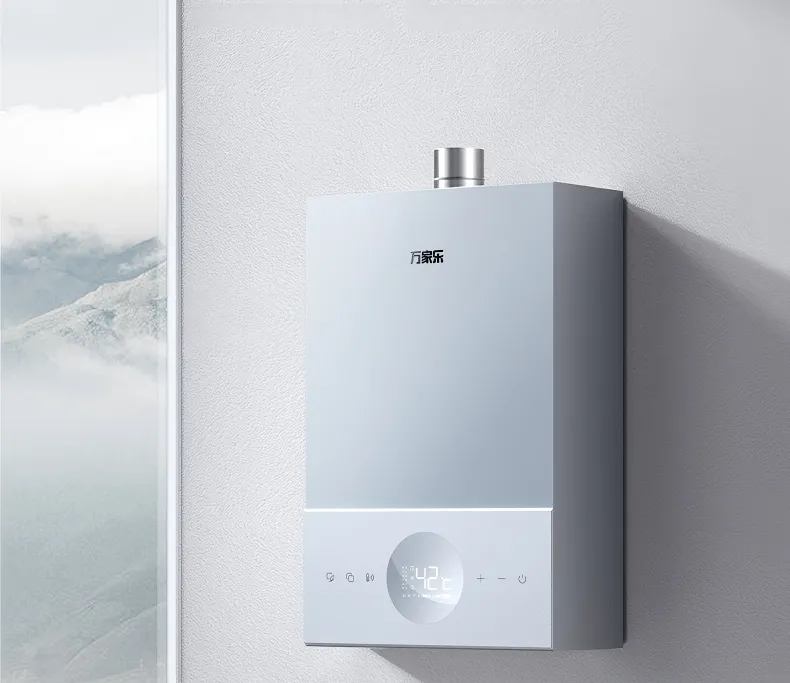

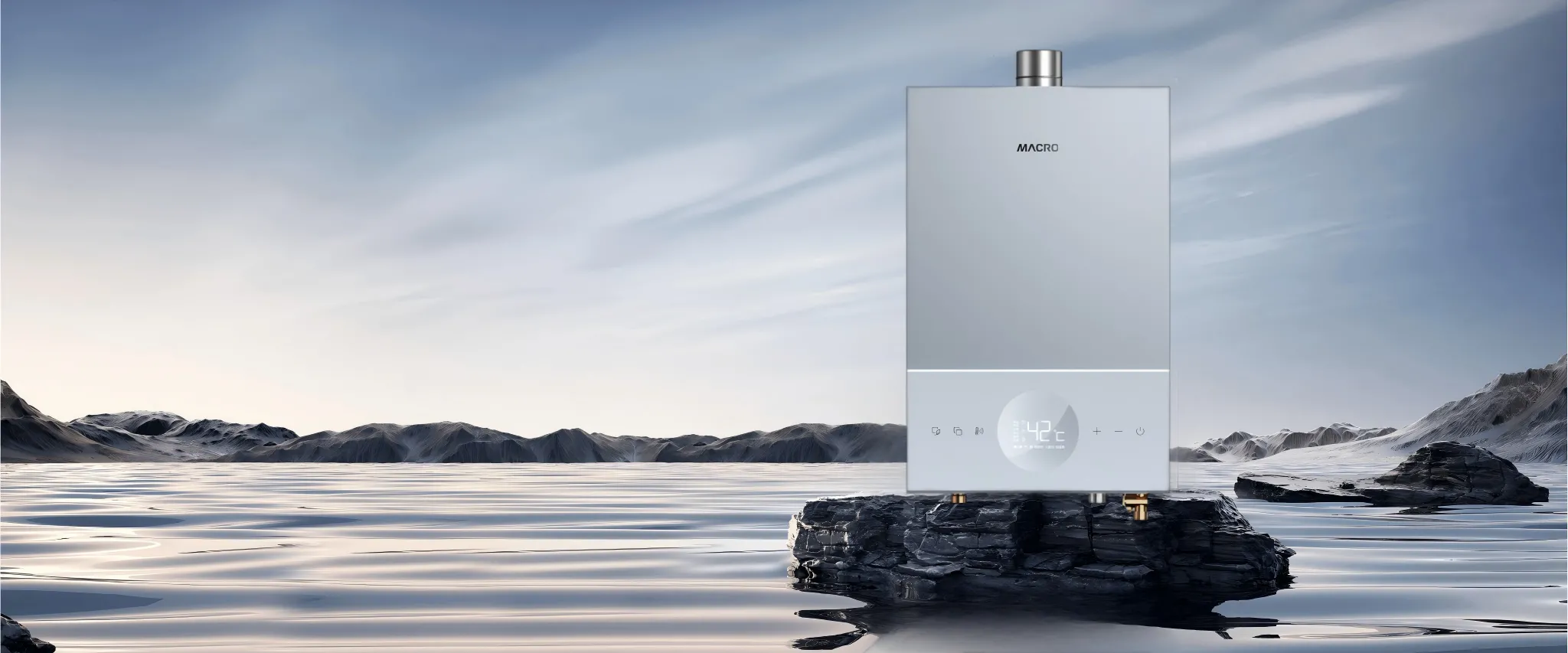

Gas Water Heater KM7

The KM7 redefines modern living with AI-powered precision, military-grade durability, and spa-like indulgence.

Designed for discerning households, it combines industry-first technologies with effortless maintenance—delivering zero-compromise performance in any environment.

Features

Variable-Frequency Constant Temperature

The environment changes, but the water temperature remains constant.

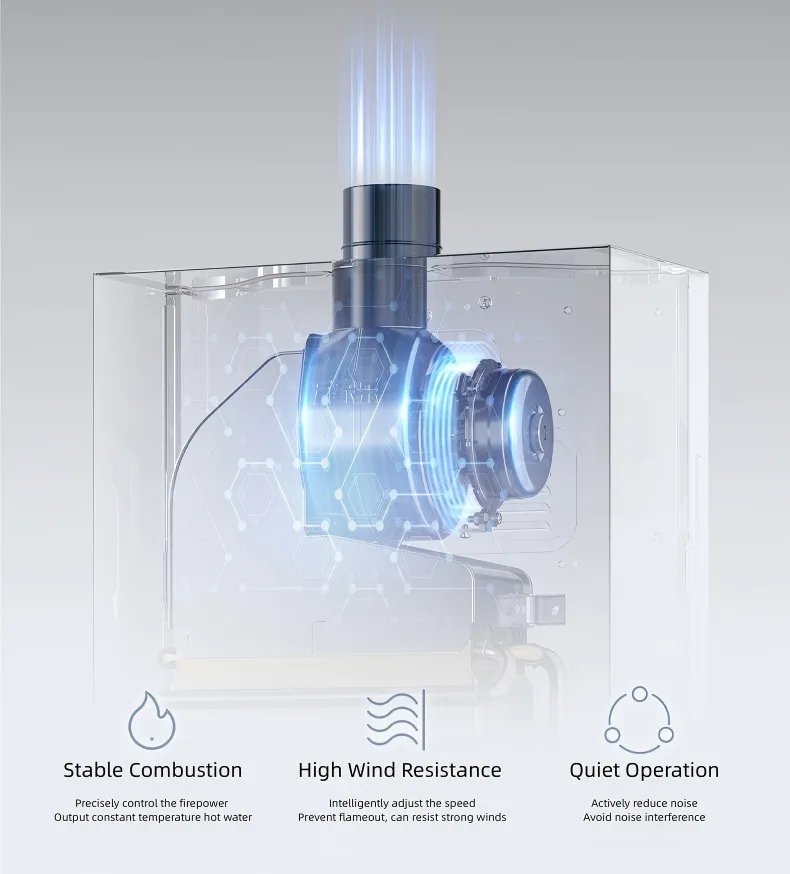

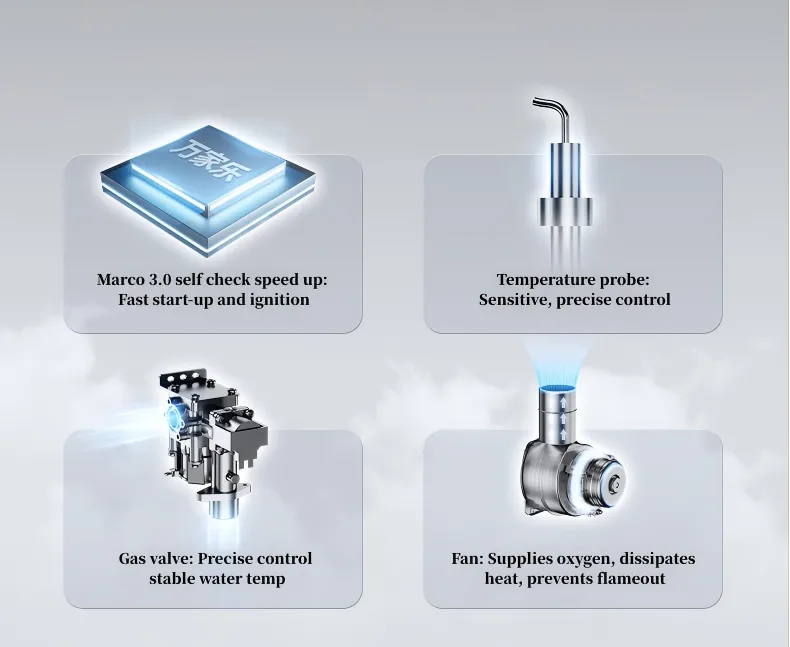

Equipped with a DC variable-frequency fan, it can intelligently adjust the fan speed, ensuring sufficient and stable combustion.

It is not afraid of multi-point water use and water pressure fluctuations, and realizes a zero-skin-temperature-difference bathing experience.

Smart Water Heater: Unstoppable in Any Condition

Typhoon Days

Wind-resistant and anti-backflow, not afraid of typhoon attacks.

Severely Cold Days

Unaffected by the outside world, ensuring stable combustion.

Water Usage Peak Period

Operates normally under low water pressure, with constant water temperature.

The secret of not getting scalded in dog days lies in the simmering micro-flame technology

The simmering micro-flame segmented fire control technology adjusts the gas volume in real-time.

It ensures comfortable, non-scalding water in hot summers and warm showers in winters.

Zero-fluctuation on-off Say goodbye to water temperature swings.

When water is shut off, the DC variable-frequency fan expels residual heat fast.

When turned on again, the ignition probe quickly adjusts temperature, ensuring constant comfort.

Energy Saving Super Frequency Wash Low-consumption and Enjoyable Bathing

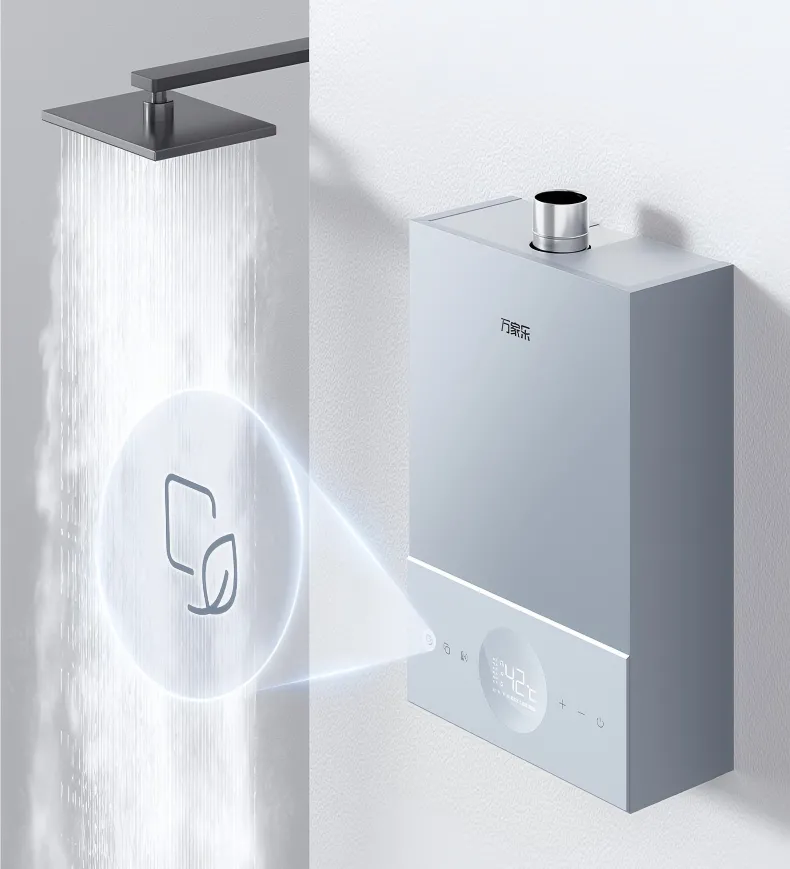

It has an S-E mode, which includes Super high flow and ECO energy saving modes.

One-click switch. The water heater automatically switches to the appropriate gearaccording

to the inlet water temperature, being energy efficient andenvironmentally friendly.

Kitchen Wash & Kids' Bath One-click Customized Comfortable Temperature

Adjusts water output automatically for different scenarios.

Whether for kitchen use or kids' bath, one-click for comfort and energy saving.

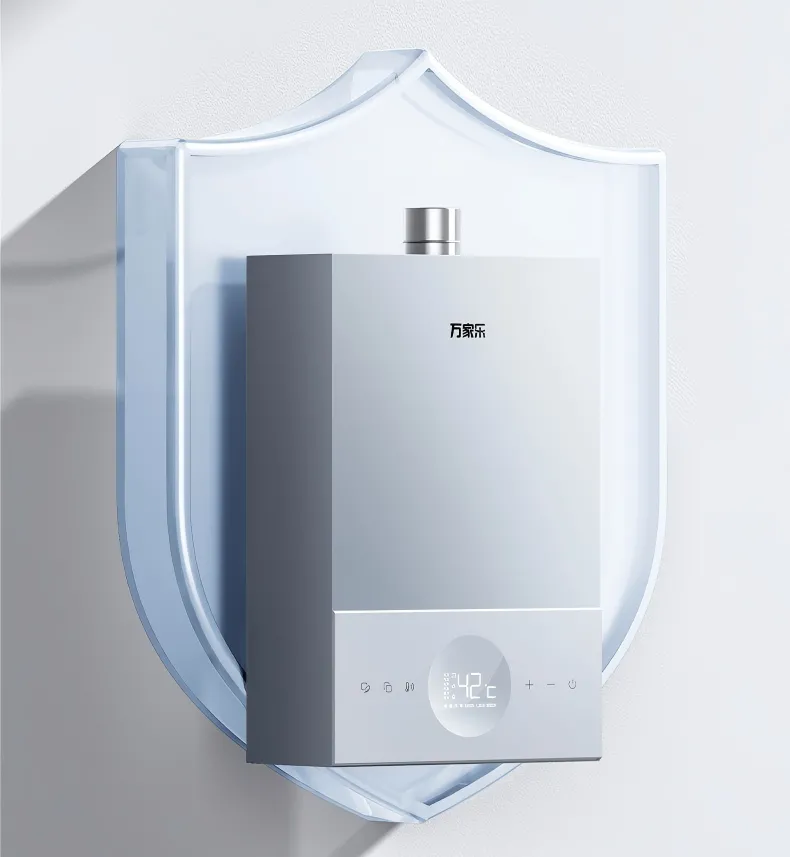

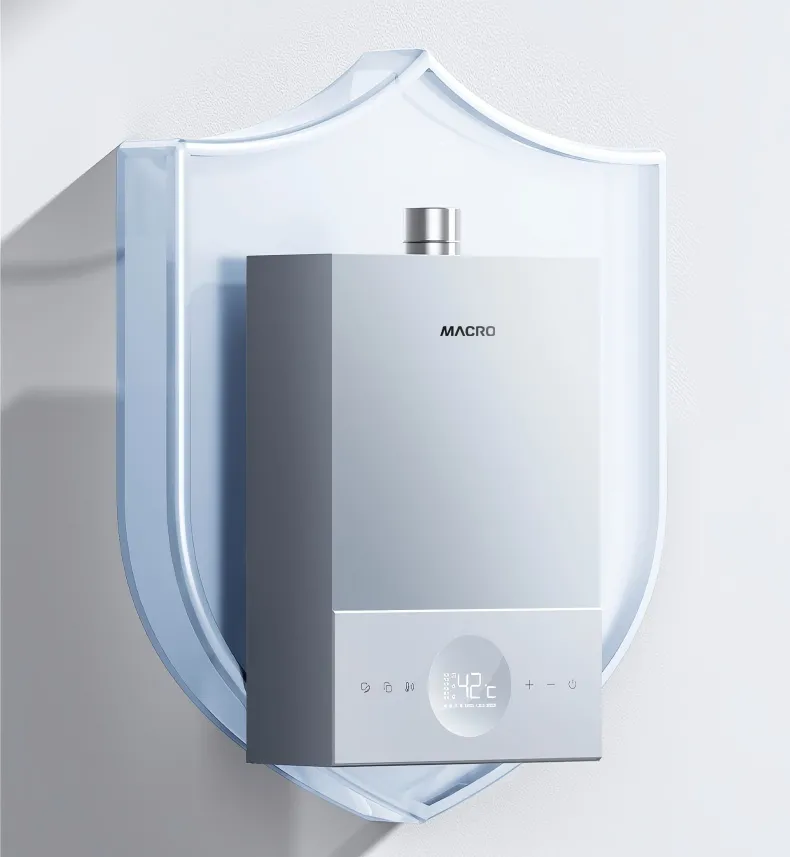

5 + 77 fold Safety Protection Safeguarding the whole family's bathing safety

Real-time monitoring of gas, electricity, water, etc.

With omnipresent safety protection,it guards the family's bathing time.

Abnormal Wind Pressure Protection

Abnormal Gas Pressure Protection

Abnormal Water Pressure Protection

Overtime Safety Protection

Anti-freeze Warning Safety Protection

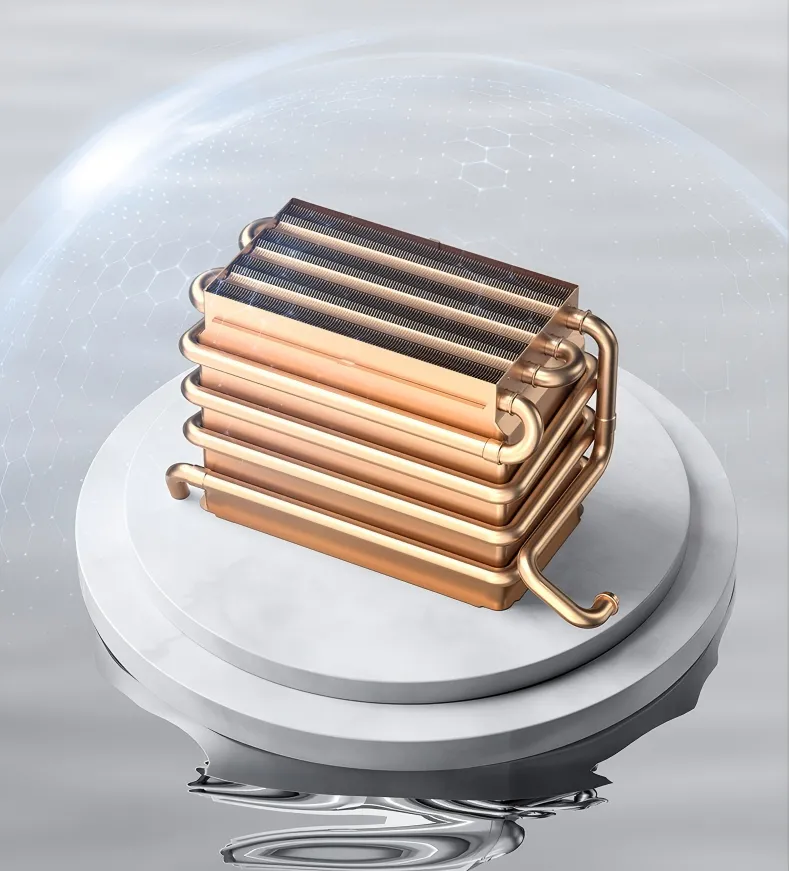

Oxygen-Free Copper Antibacterial Water Tank 99.9% Antibacterial Rate, Assured Water Quality

Made of high grade oxygen-free copper: antioxidant, great heat conductor, long-lasting.

Powerful antibacterial.

No harmful substances when heated.
Clean, skin-friendly water.

Specifications

Model	JSQ26-13KM7	JSQ30-16KM7
Gas Type	NG/LPG	NG/LPG
Rated How Water Capacity(ΔT=25K)	13L/min	16L/min
Nominal Power / Rated Heat Input(kW)	26	30
Activated water flow rate	2.5L/min	2.5L/min
Gas Inlet	G1/2	G1/2
Cold Water Inlet	G1/2	G1/2
Hot Water Outlet	G1/2	G1/2
Flue Pipe / Chimney Diameter(mm)	Φ60	Φ60
Efficiency	>88%	>88%
N.W(kg)	10	13
G.W(kg)	10.5	13.5
Product Dimensions(mm)	525340155	525340155
Pakaging Dimensions(mm)	718490251	718490251
Loading Qty(20GP/40GP/40HQ)	320/668/802	320/668/802

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
