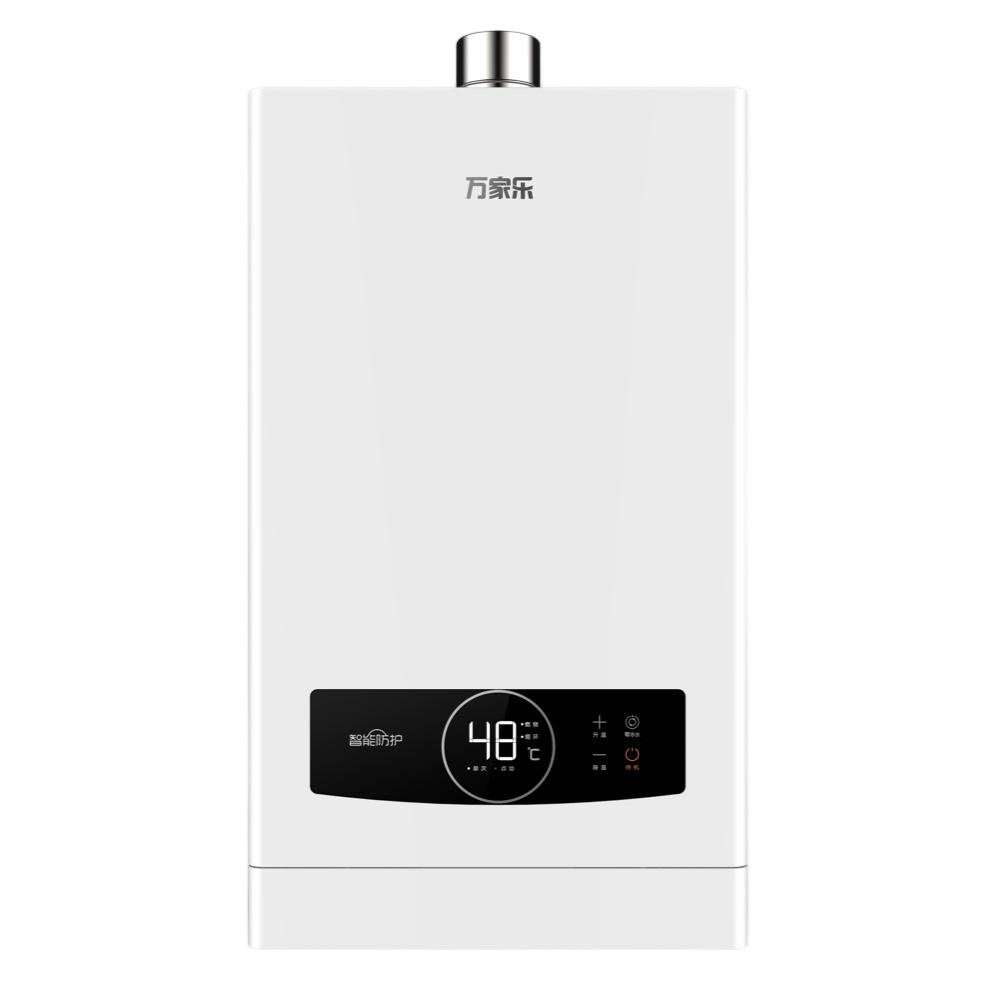

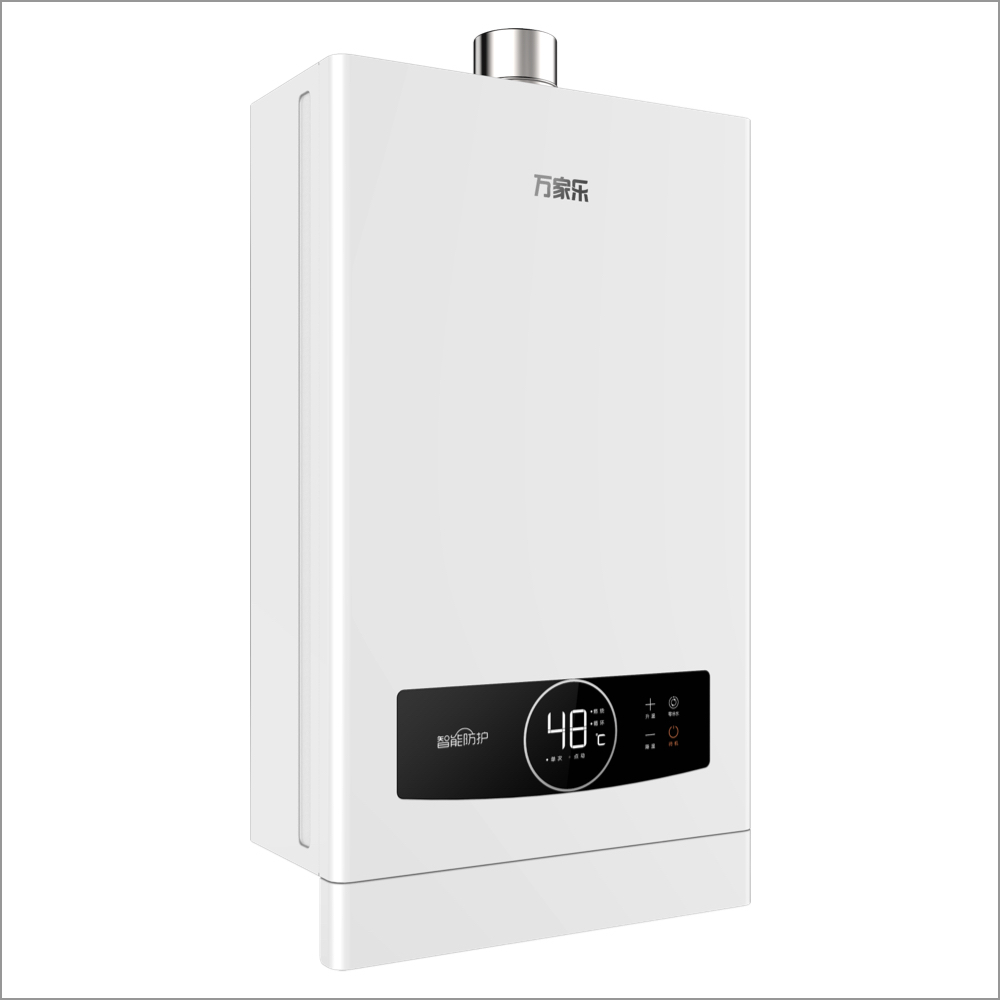

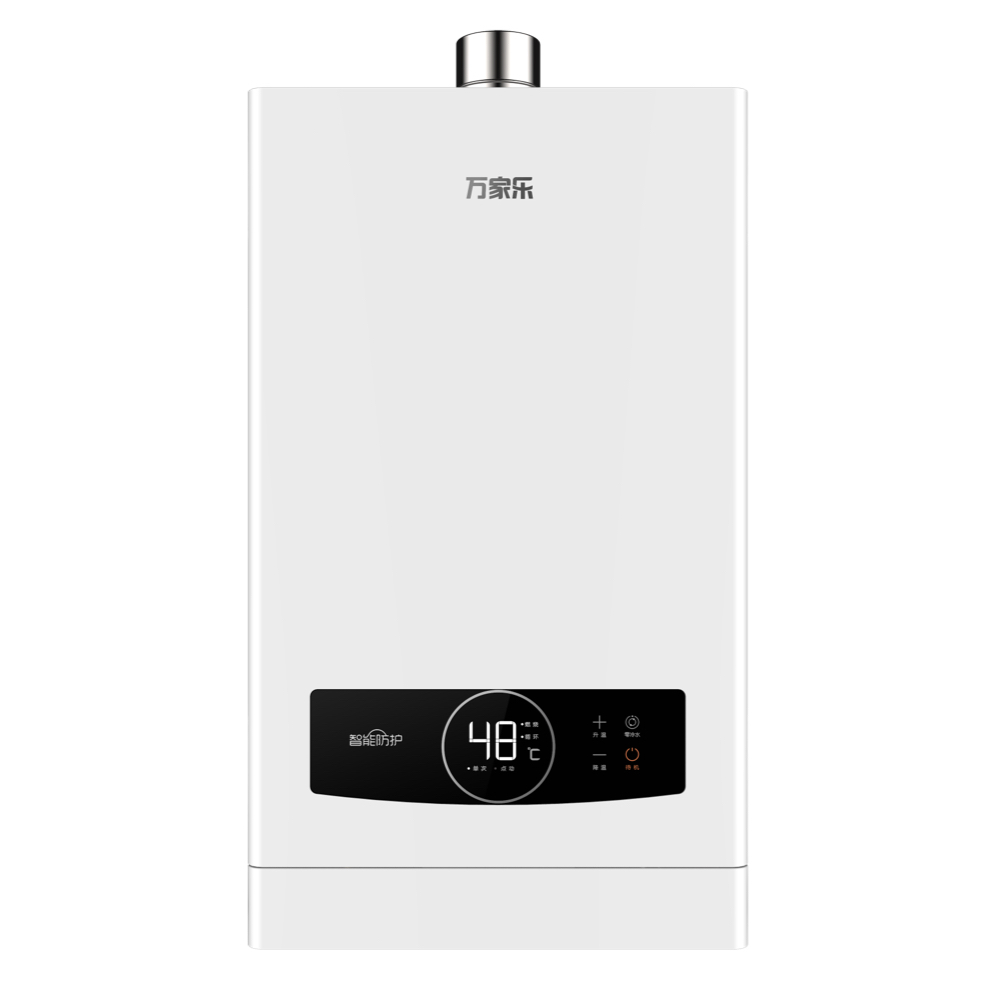

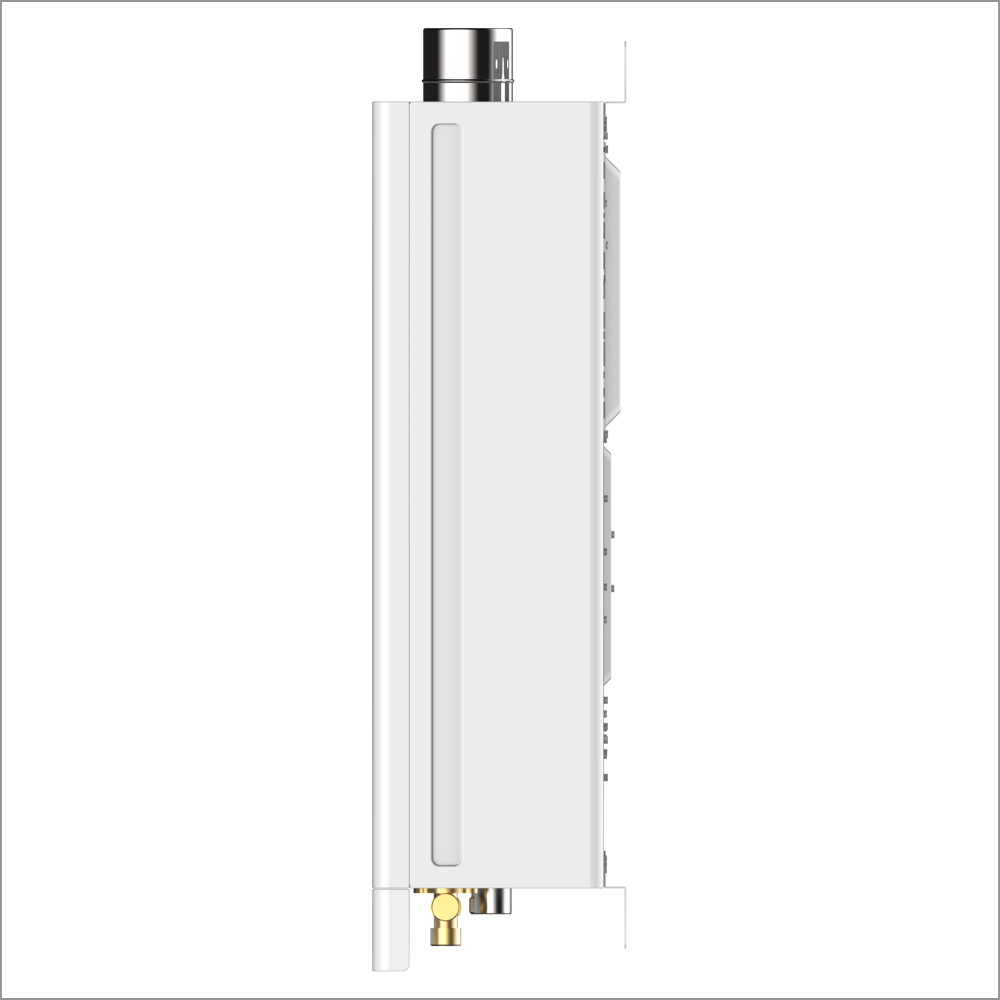

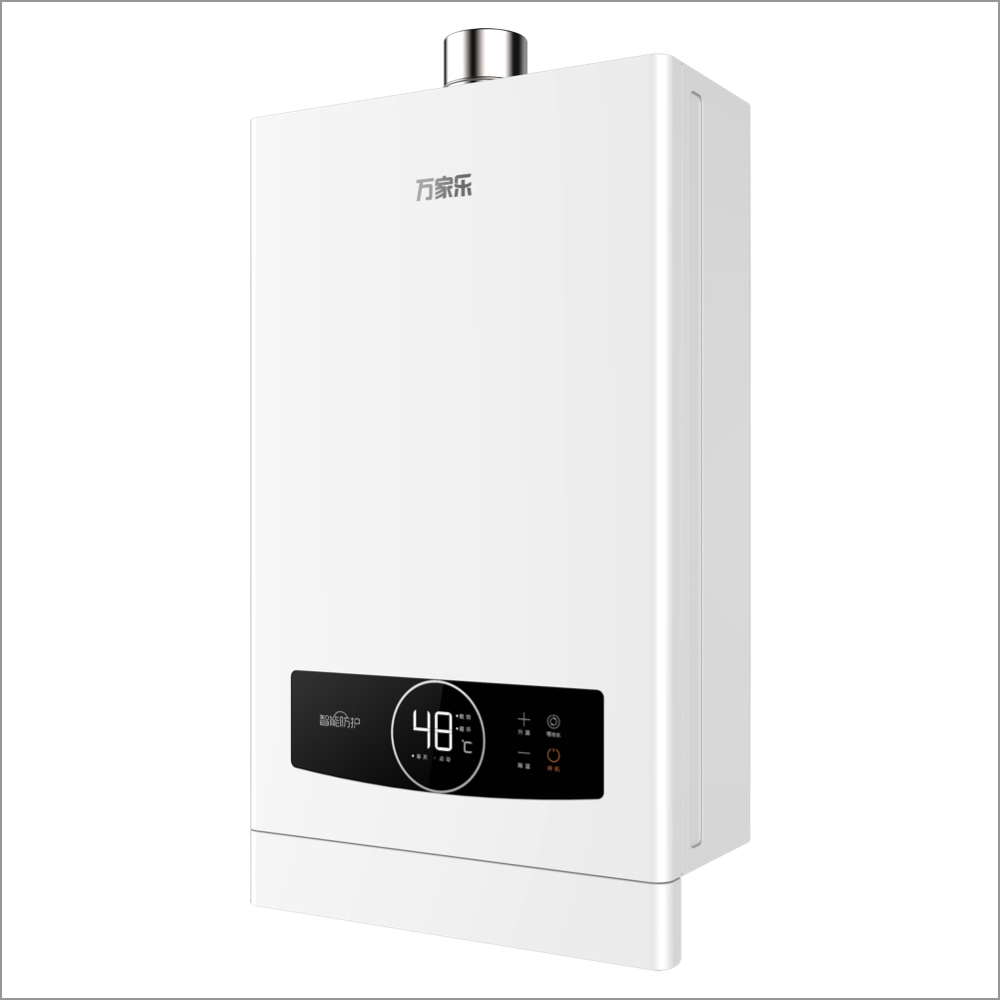

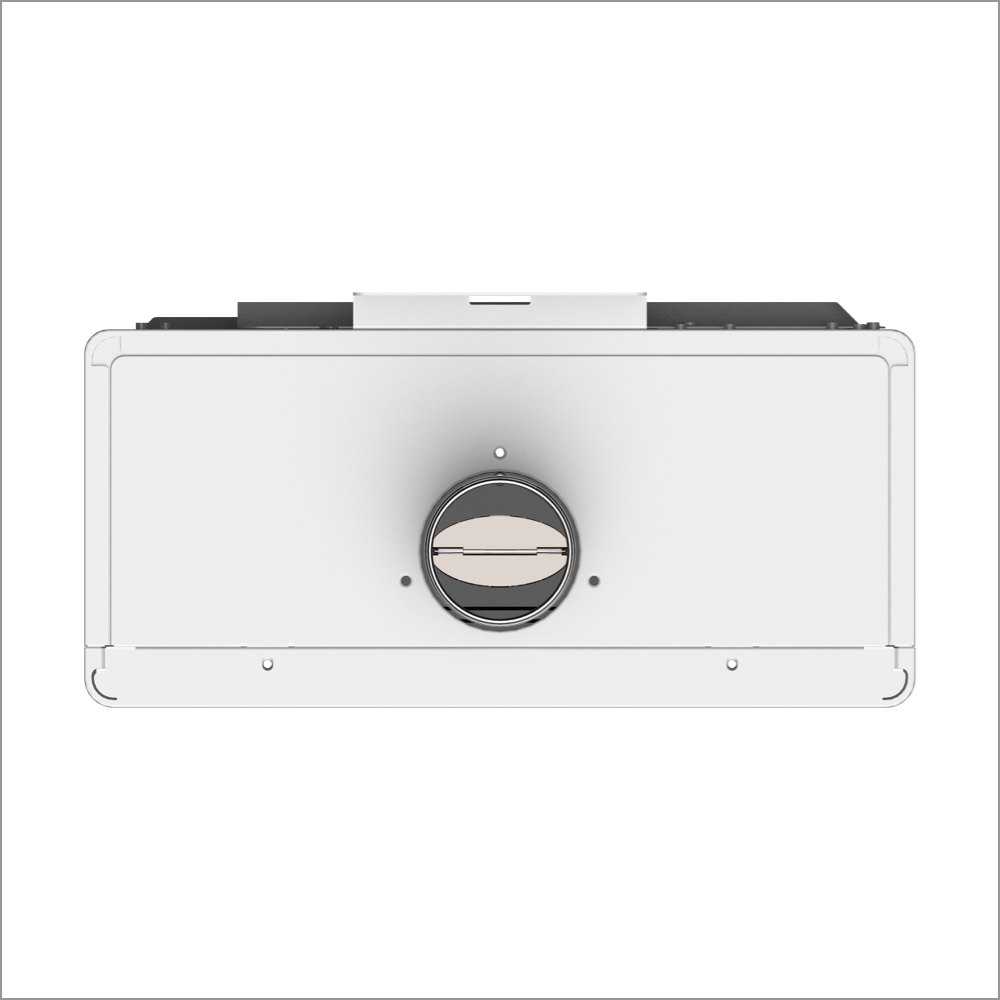

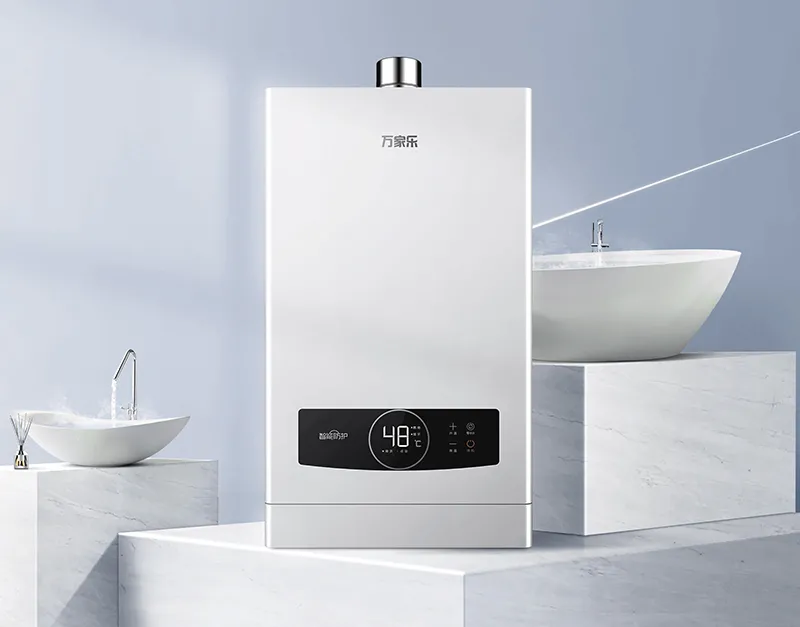

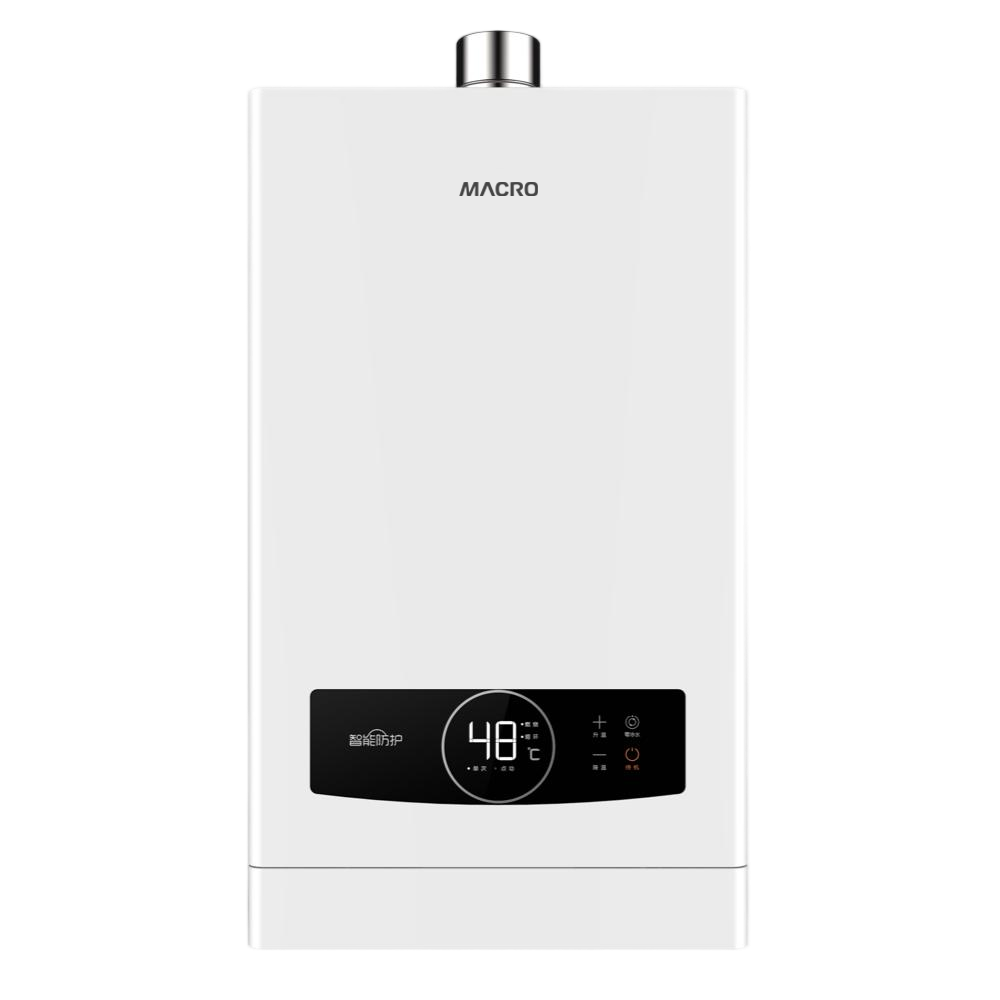

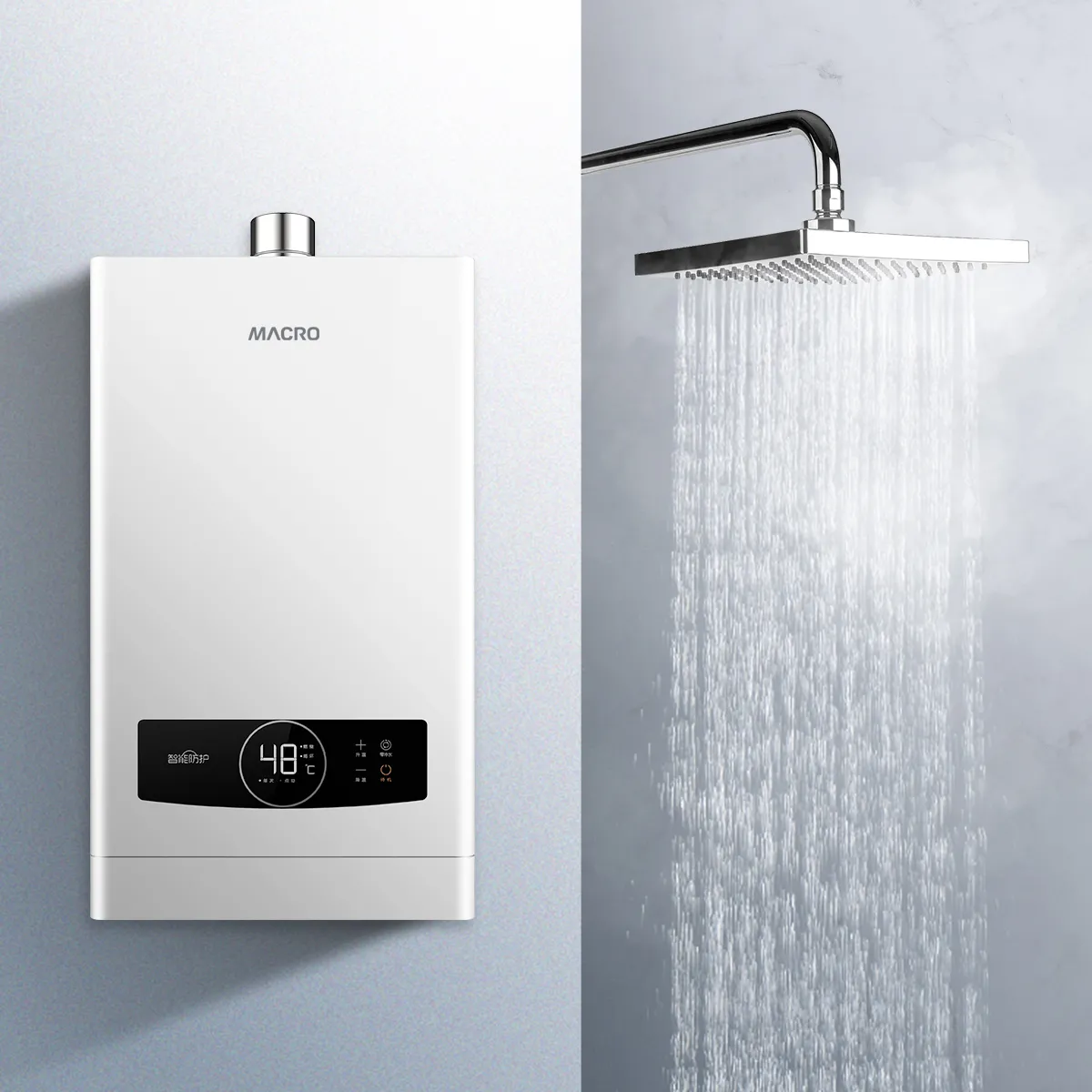

Z2 Gas Water Heater: Compact Design, Powerful Performance
Smart self-adaption constant temperature
Smoke forced exhaust
Smart self-adaption constant temperature
Z2 force flue type, special zero cold design, support preheating function, make sure hot water comes out at once, meanwhile adopting smart digital control system with advanced inverter technology, realize smart self-adapation to stablize temperature, bringing the best hot water experience.

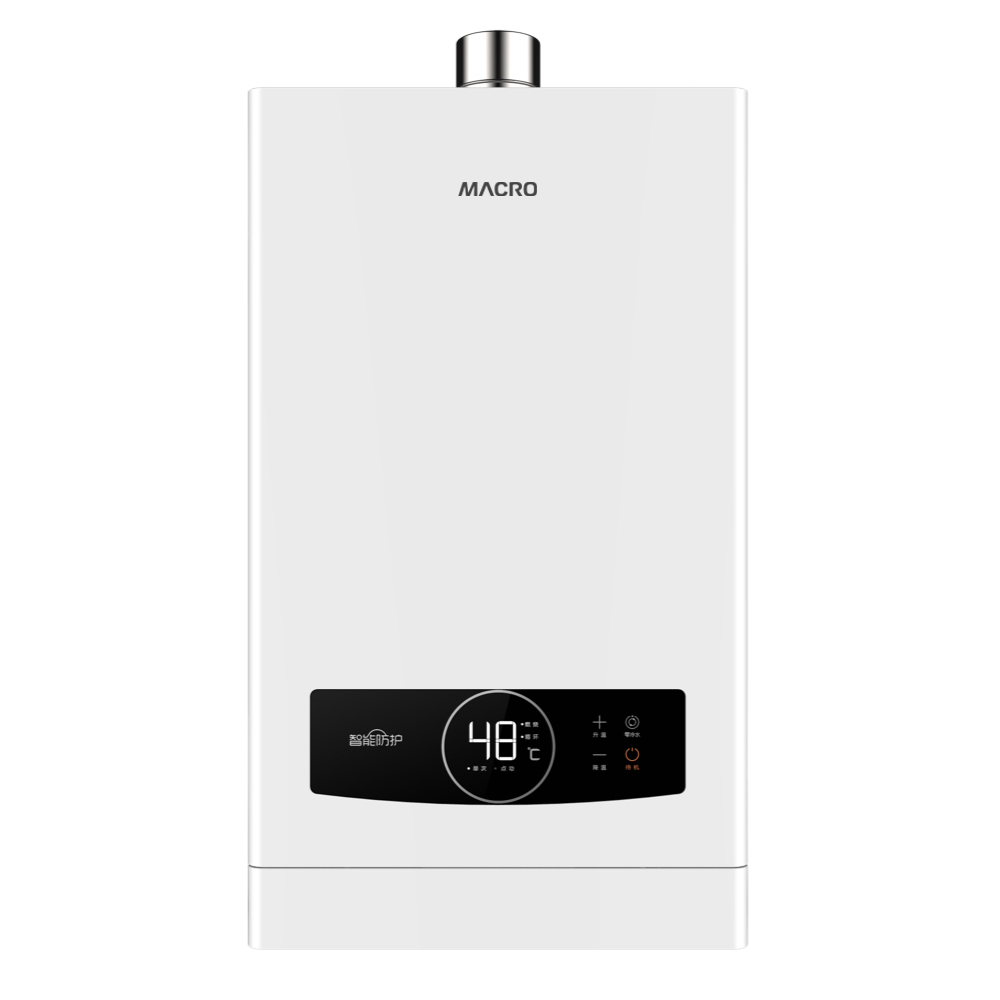

Model: Z2
Color: White/Pink
Innovate
Authentication
Features
Zero Cold Constant temperature
Macro Z2 zero cold gas water heater

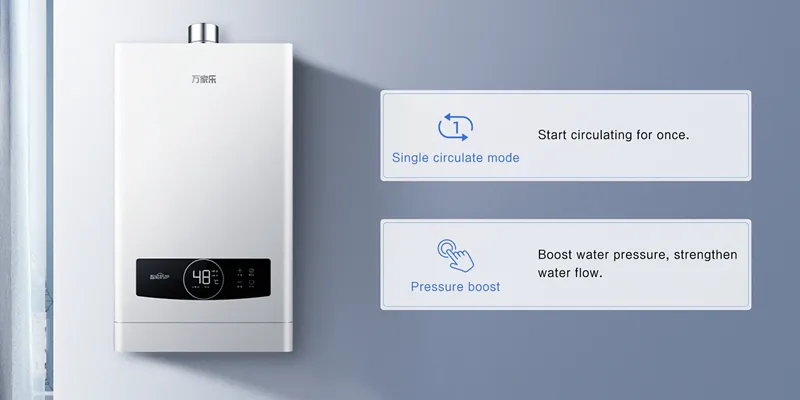

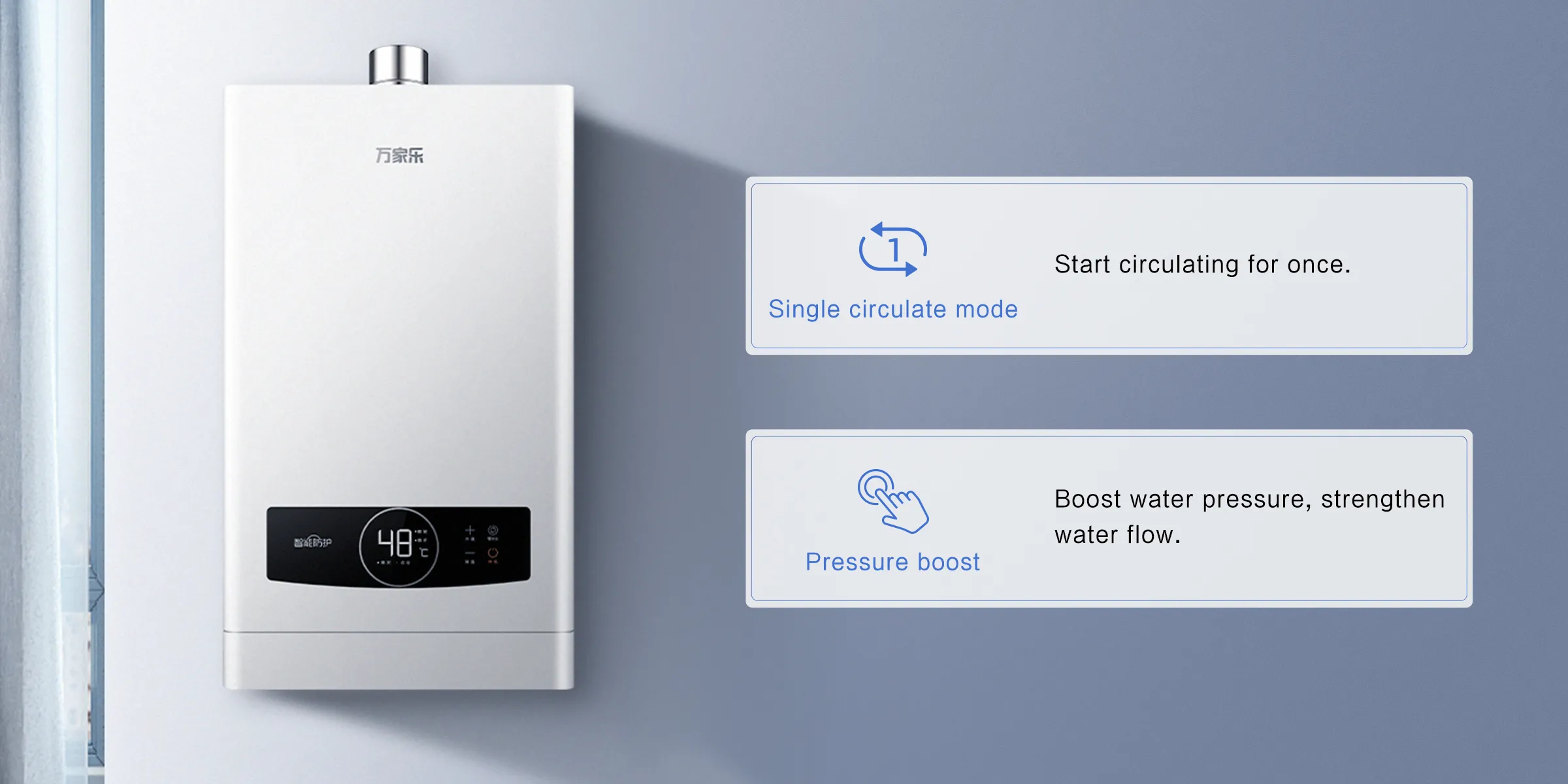

Constant zero cold
Comfortable hot water, come at once.

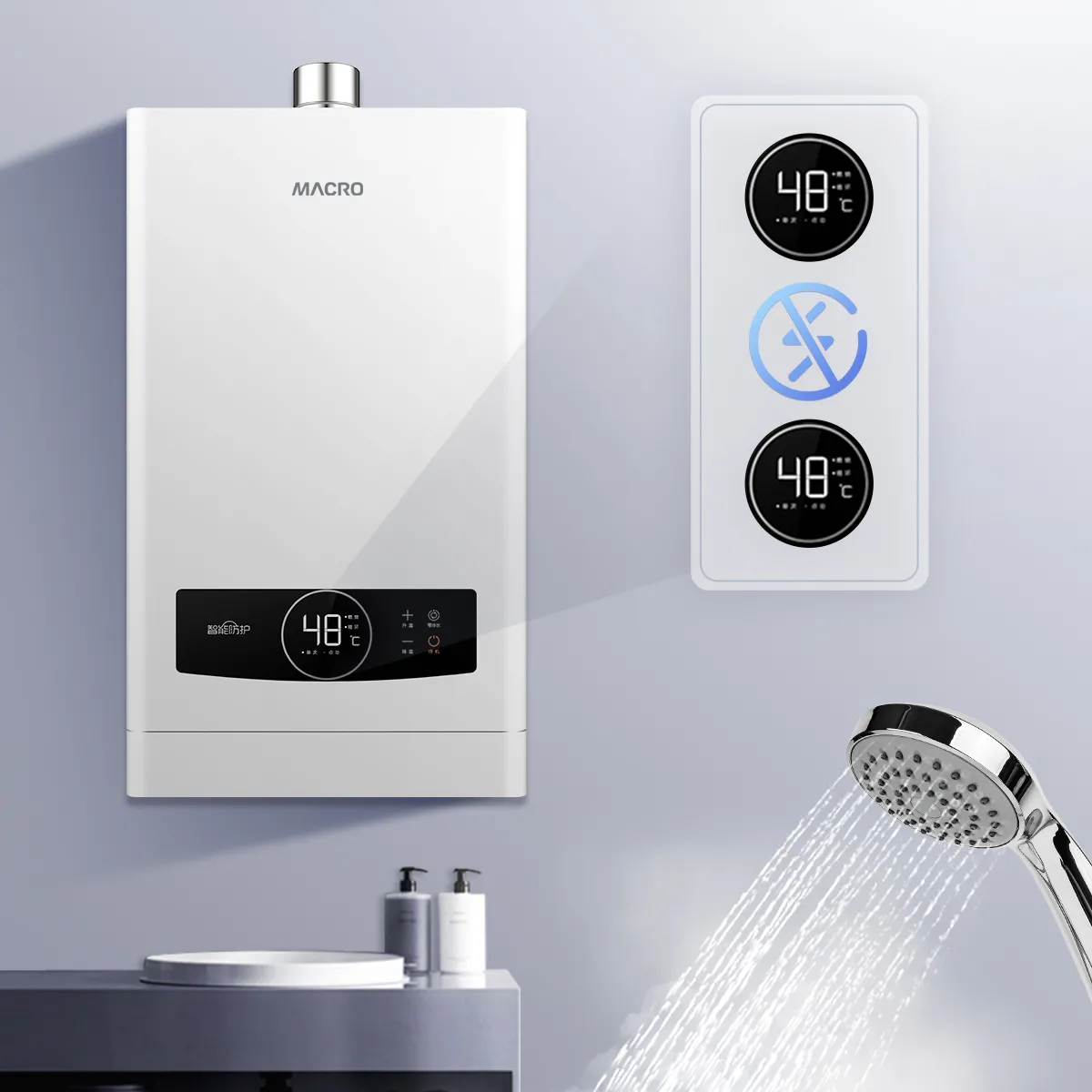

Precise temperature control
Always stable, always constant
Sensible temperature probe, water temperature change only
within ±1℃, make you feel cozy all the time.
Inverter DC booster pump, constant stable big flow
Adopting inverter pump, 11m lift,
120m circulating distance, big flow hot water.

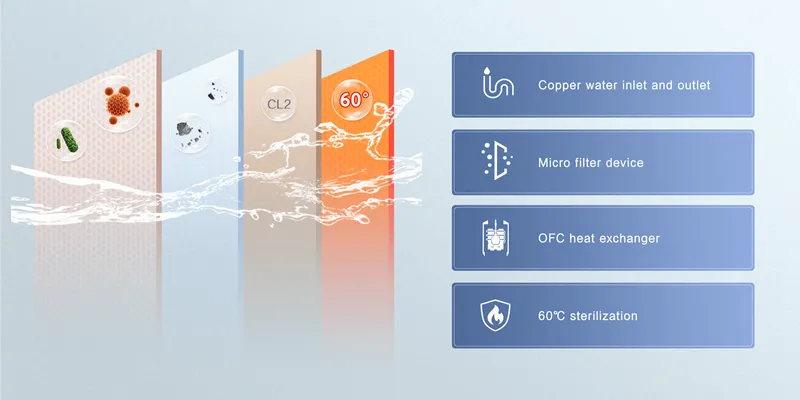

Four bacteriostat measure
reach 99.9% bacteriostat rate.
OFC heat exchanger, higher heating efficiency
Healthy OFC heat exchanger, caring more about hygiene of
water having higher heat efficiency and bacteriostat effect.

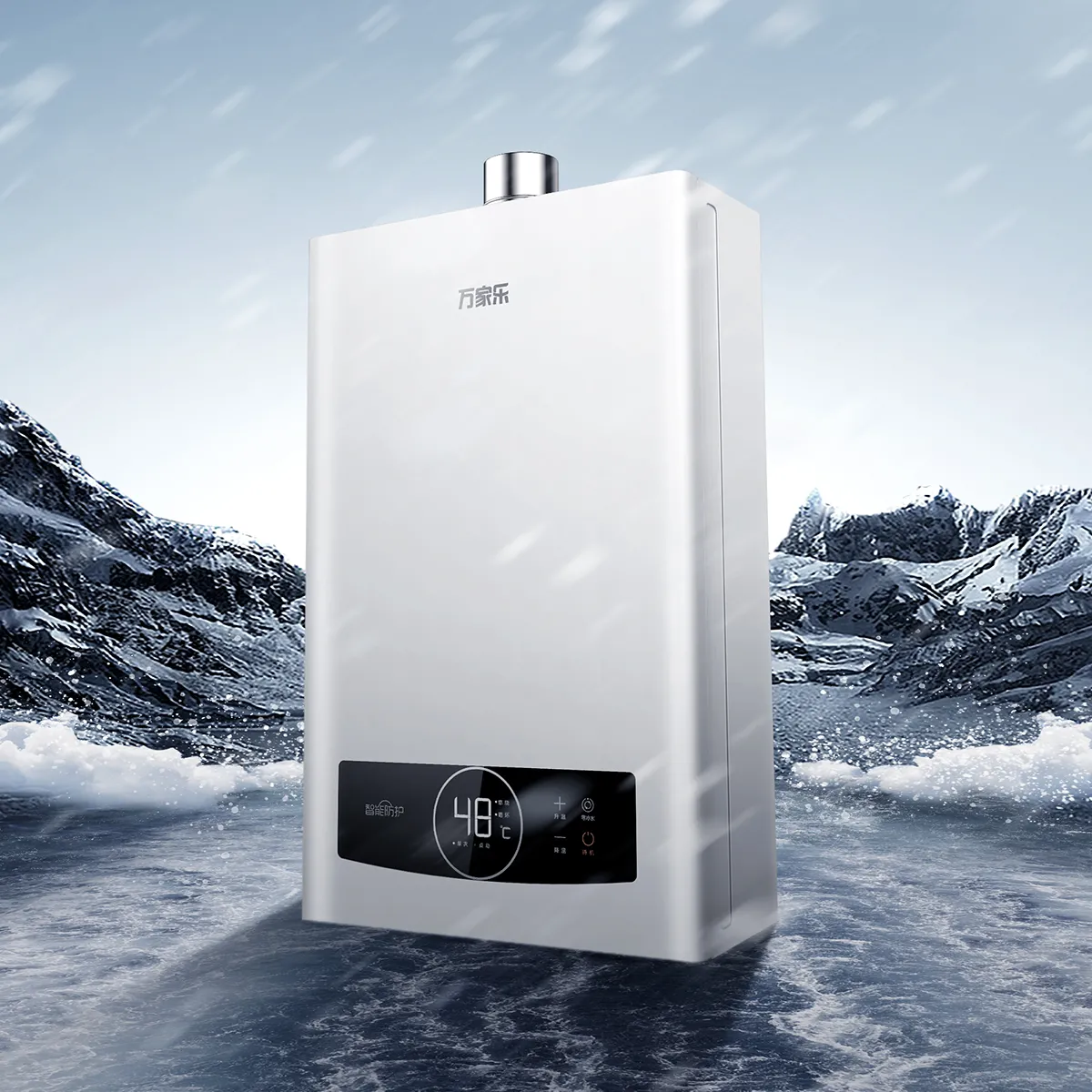

Integrated anti-freeze system Standing still in frozen area
Overall anti-freeze measure,
keep gas water heater running normally even in cold winter,
guarantee the hot water supply.
Smart power-off recovery
After electricity cut off and recover again,
the heater will automatically recover to the last status.

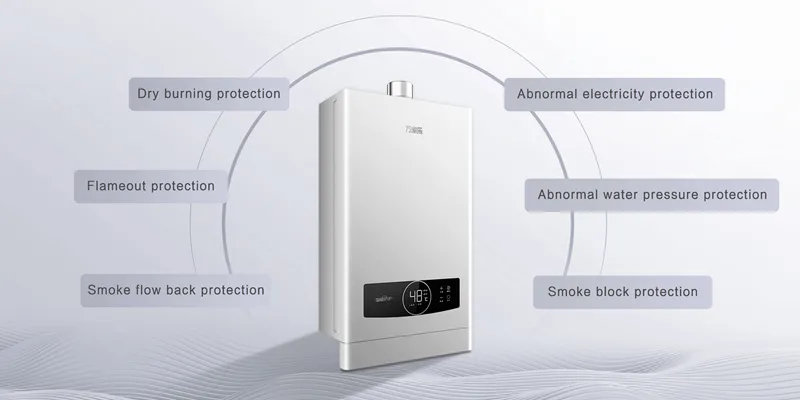

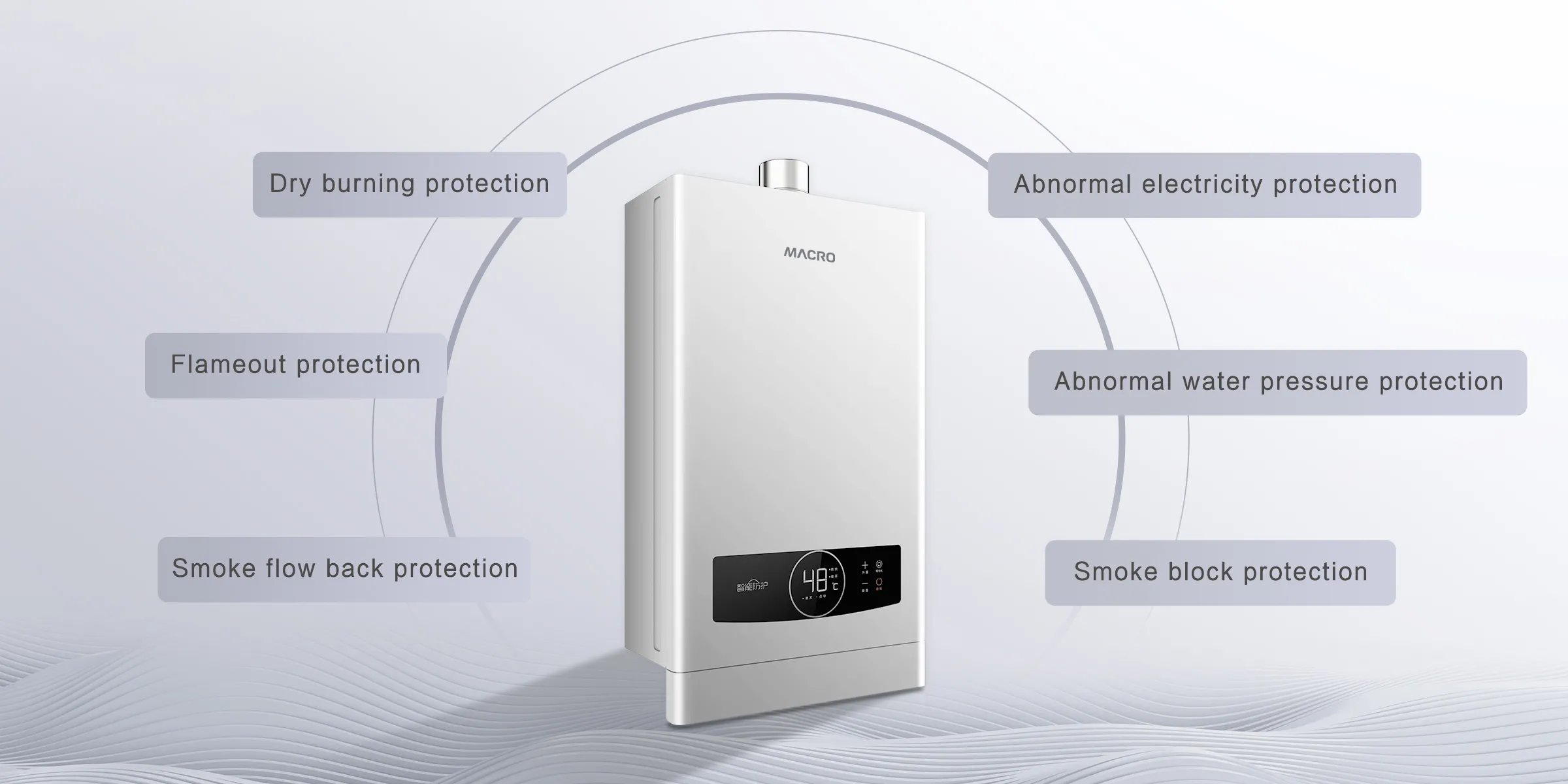

Multiple safe protection
Specifications
| Model | JSQ26-13Z2 | JSQ30-16Z2 |
| Gas Type | NG/LPG | NG/LPG |
| Rated How Water Capacity(ΔT=25K) | 13 | 16 |
| Nominal Power / Rated Heat Input(kW) | 26 | 30 |
| Activated water flow rate | 2.5L/min | 2.5L/min |
| Gas Inlet | G1/2 | G1/2 |
| Cold Water Inlet | G1/2 | G1/2 |
| Hot Water Outlet | G1/2 | G1/2 |
| Flue Pipe / Chimney Diameter(mm) | Φ60 | Φ60 |
| Efficiency | >88% | >88% |
| N.W(kg) | 11.5 | 12 |
| G.W(kg) | 13 | 14 |
| Product Dimensions(mm) | 525*340*155 | 525*340*155 |
| Pakaging Dimensions(mm) | 708*515*240 | 708*515*240 |
| Loading Qty(20GP/40GP/40HQ) | 355/730/810 | 355/730/810 |
Frequently Asked Questions
Q: How do I choose the right gas water heater capacity for my household?
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
