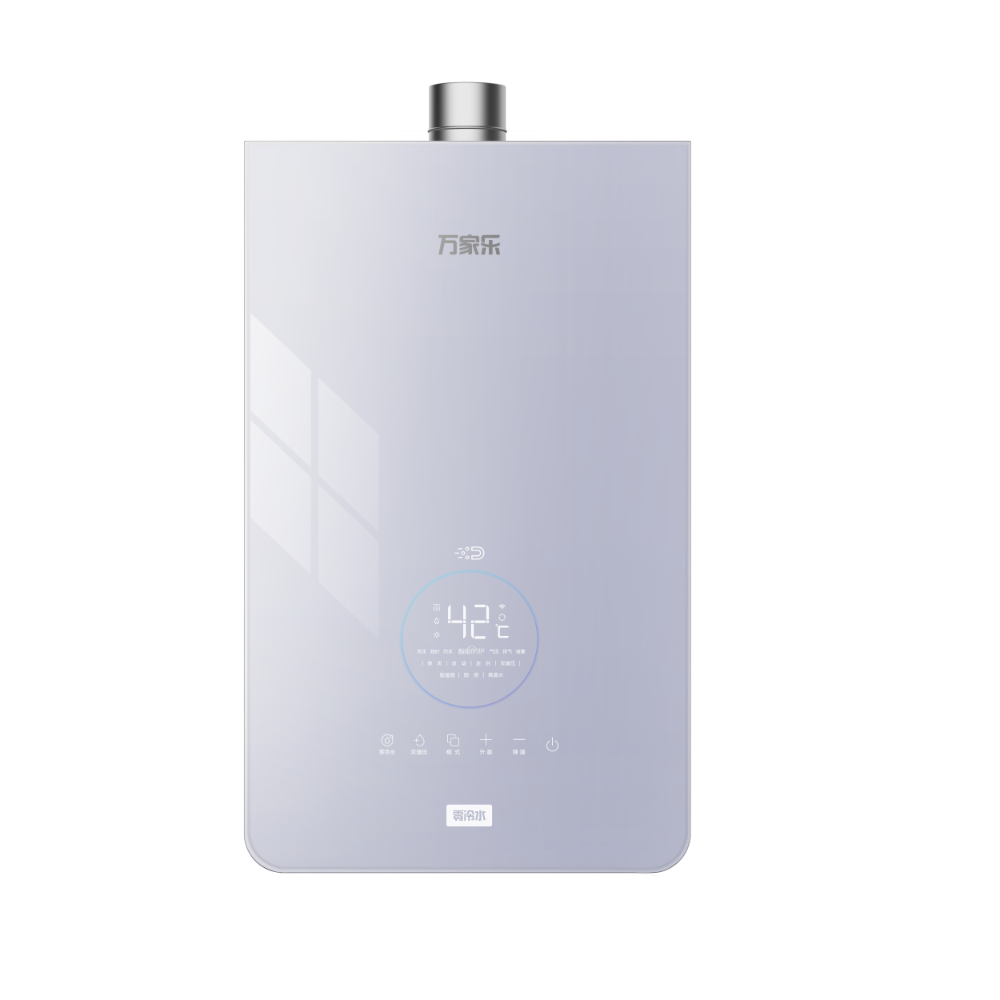

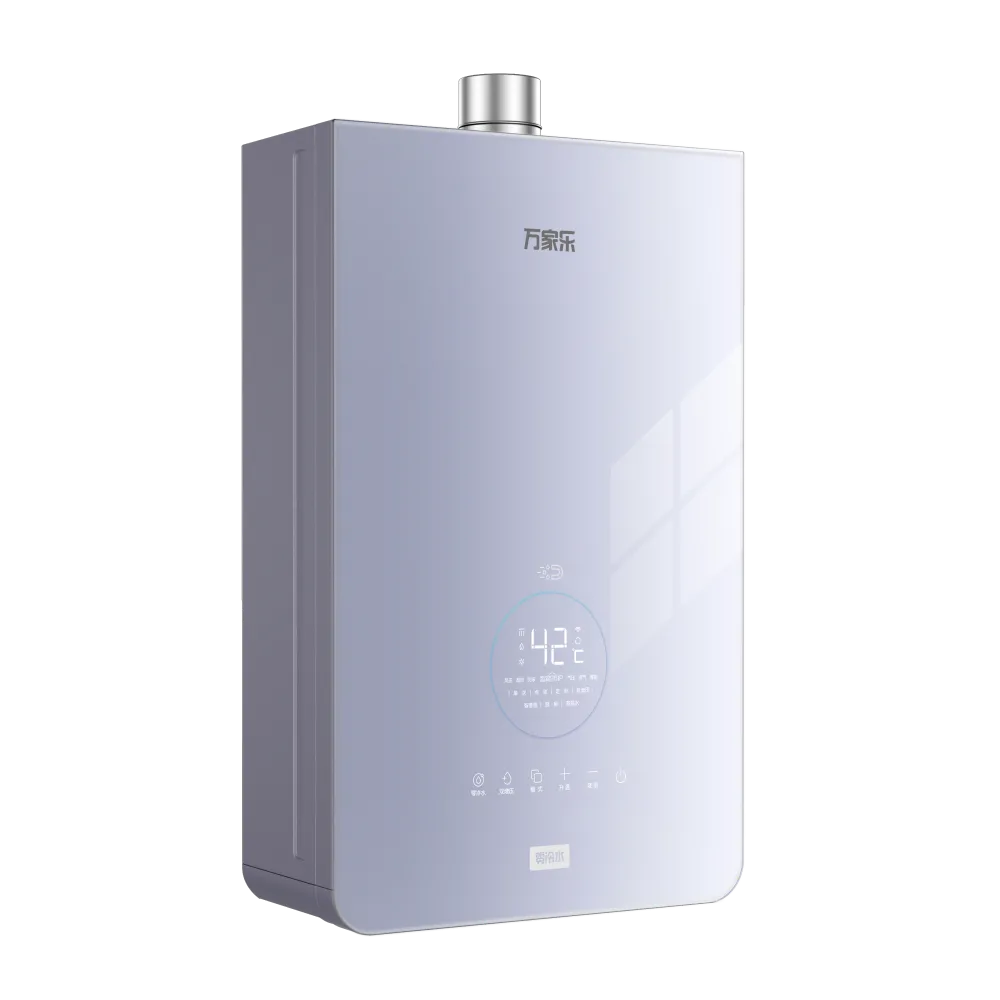

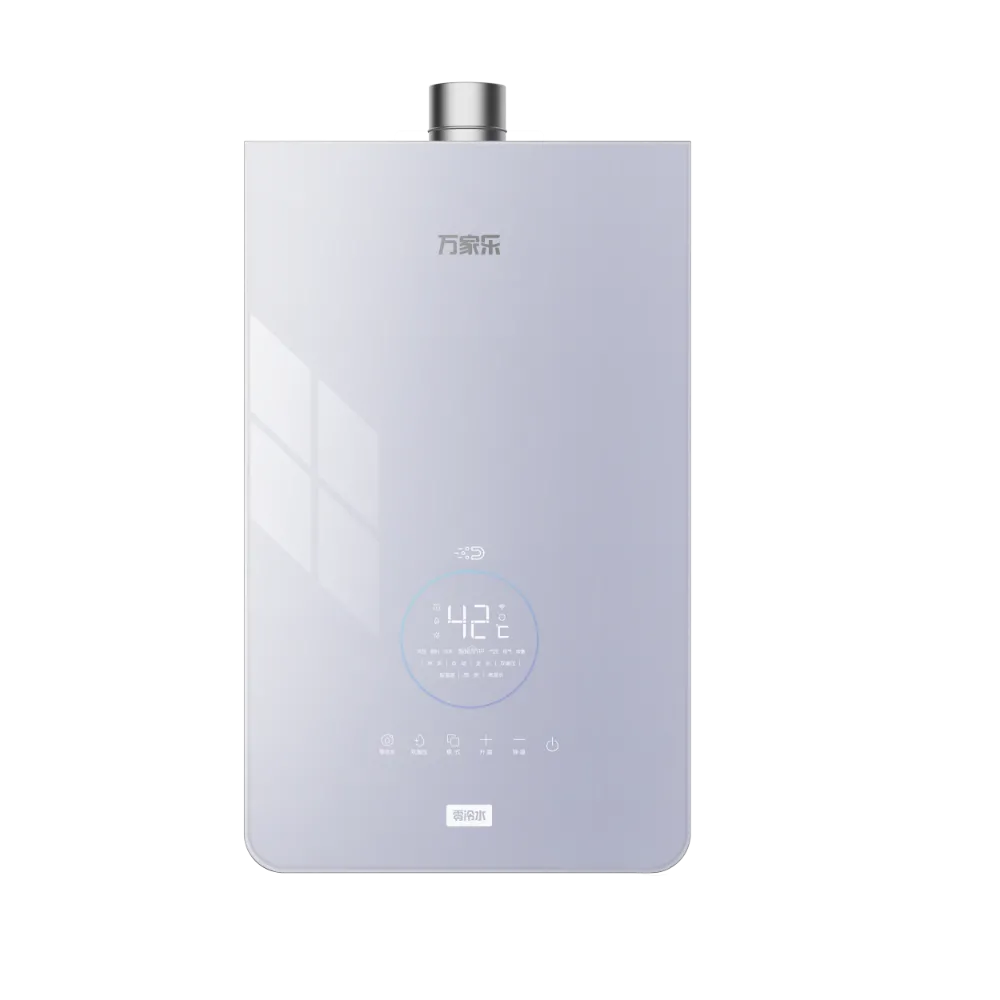

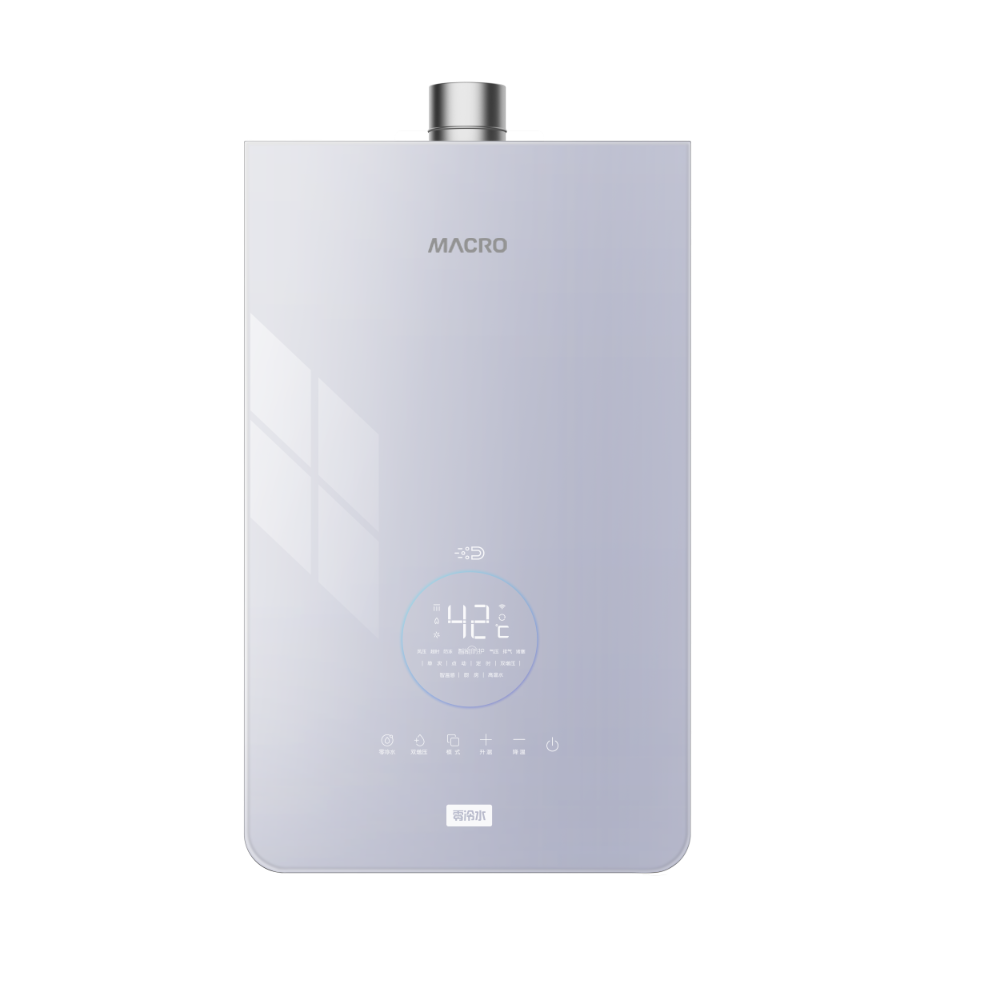

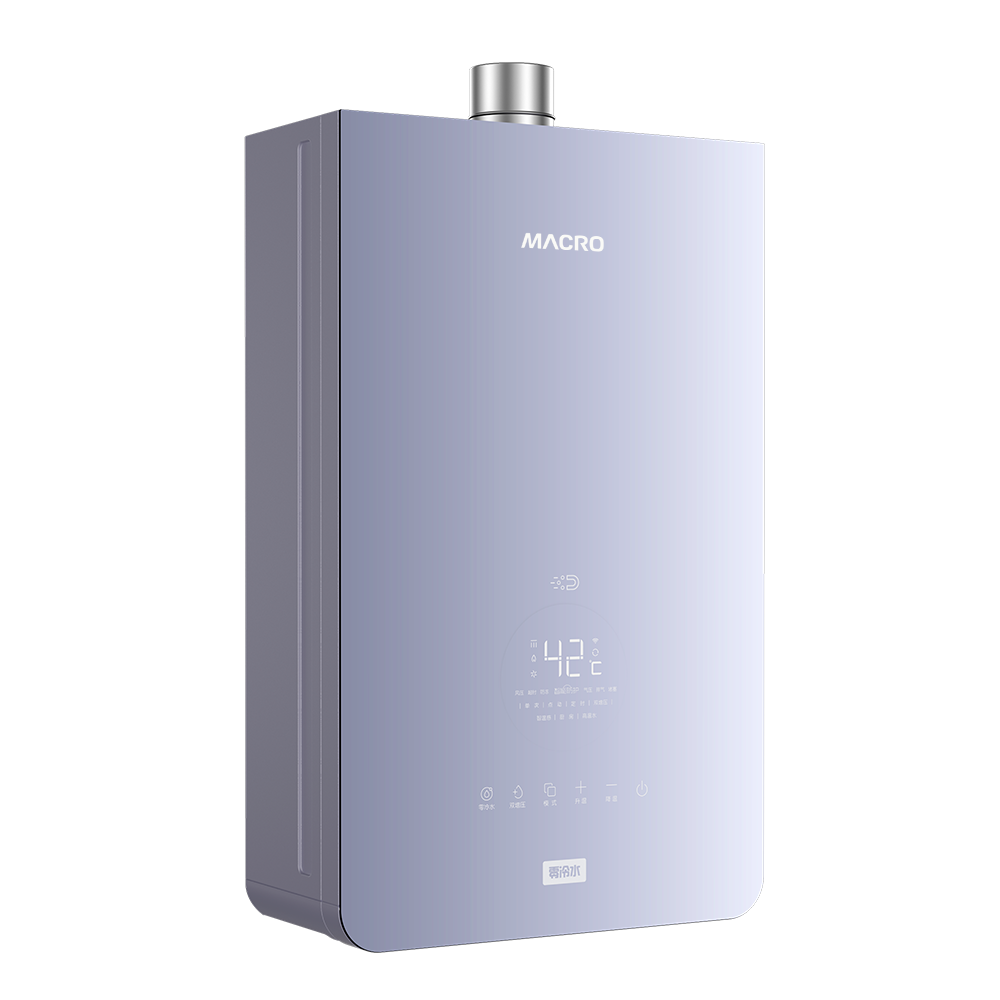

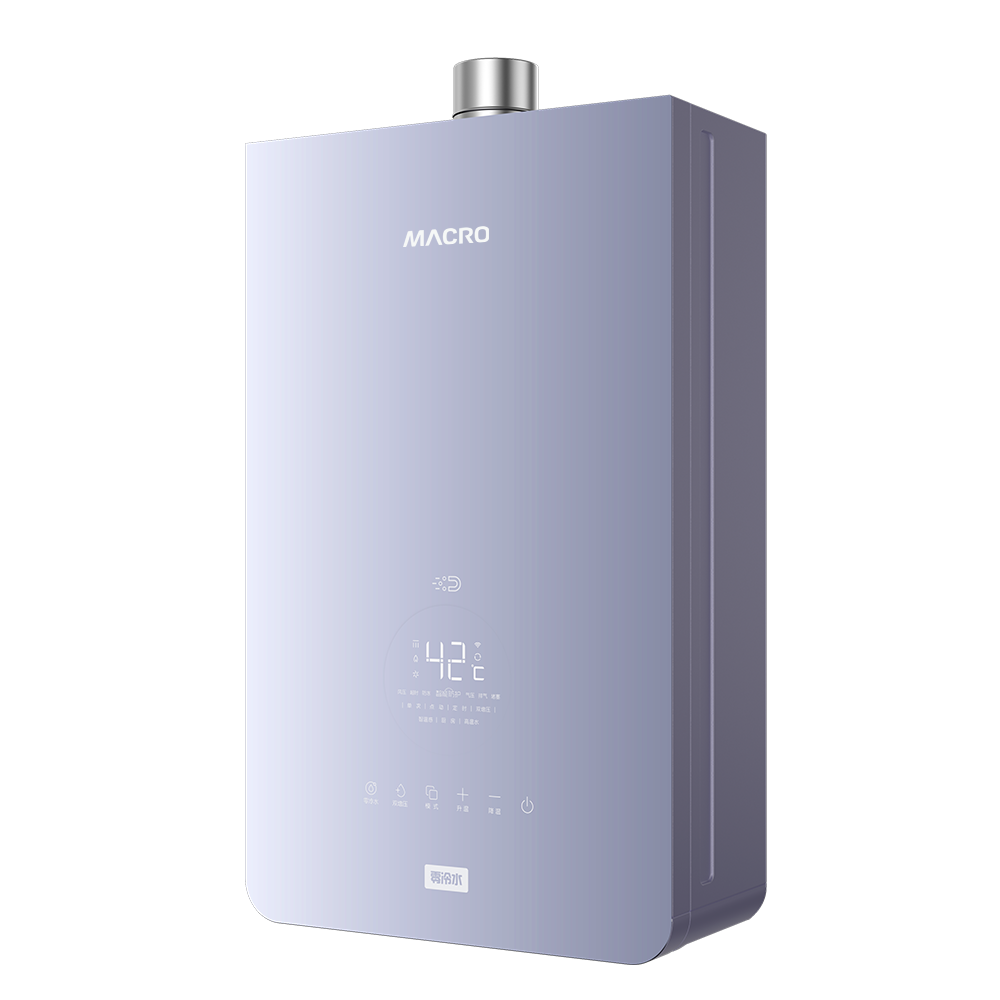

Gas Water Heater Z6L

Factory Hot Sale Gas Water Heater Zero Cold Force Fuel 16-18L Gas Water Heater

Model: Z6L

Color: Sky Blue

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

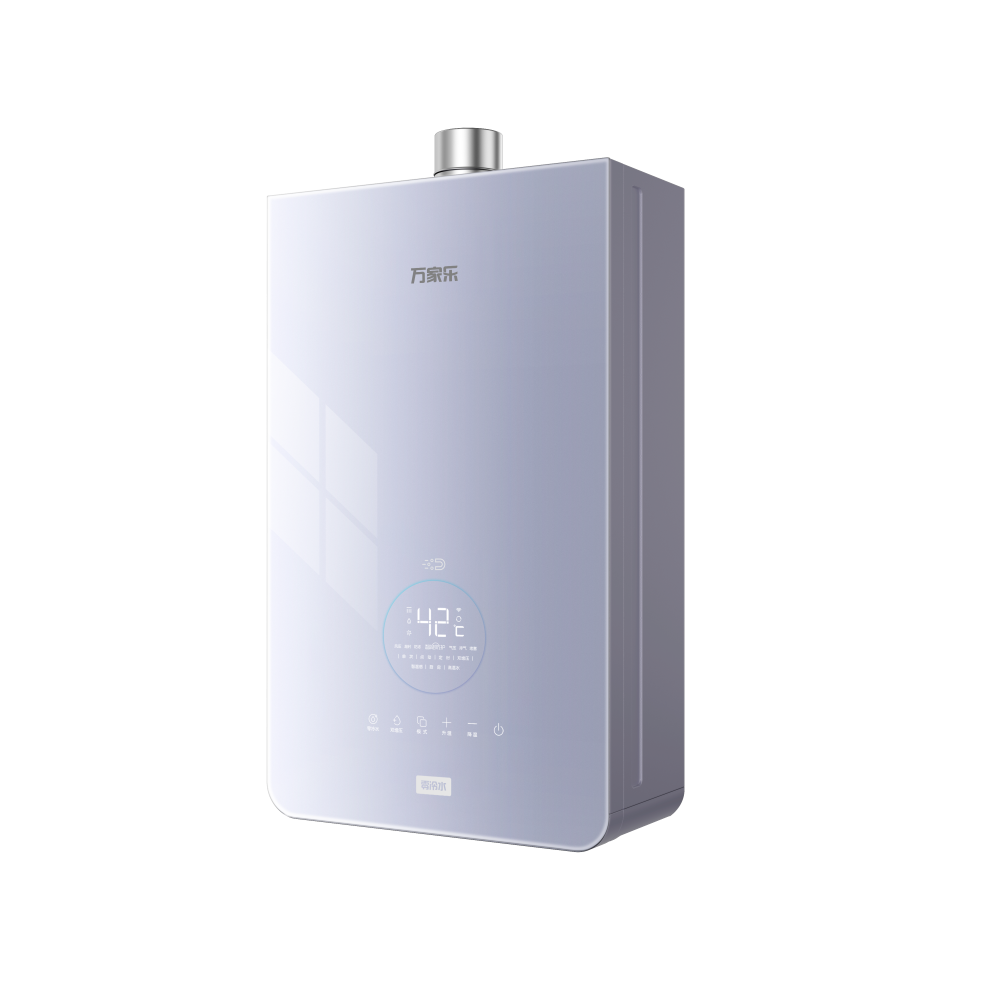

Gas Water Heater Z6L

The Z6L Smart Gas Water Heater redefines bathing comfort with cutting-edge purification and intelligent temperature control technologies. Featuring Magnetic Purification Skin Care System, it effectively removes rust, chlorine, and impurities while eliminating bacteria for healthier skin. The 6-layer Antibacterial Protection ensures every shower nourishes your skin.

Enjoy instant hot water with zero-cold-water function (single-use, touch-activated, or scheduled modes) and AI Pipe Adaptation that enables half-pipe preheating to save time and gas. The Dual Water-Gas Pressure Boost guarantees strong flow with one-touch temperature locking, while Multi-Stable Combustion Technology (Zero Fluctuation Ignition, Micro-Flame Control, and Smart Temperature Sensing) delivers uninterrupted comfort.

Designed for convenience, it offers one-touch presets for kitchen use and high-temperature needs, plus WiFi remote control for easy operation anywhere. Built to withstand challenges, its high wind resistance suits high-rise installations, and 3D Anti-Freeze Protection ensures winter reliability. With 89 safety safeguards, enjoy complete peace of mind 24/7.

Features

Magnetized Skin-Nourishing Technology Powerful Water Purification

Macro link has developed the magnetized skin-nourishing technology C-skin Care Touch:With a high-density strong magnetic field, it doubles the adsorption and purification of iron based impurities (such as rust, iron filings, etc.), optimizes water quality, and effectively protects skin - sensitive groups such as pregnant women, infants, and the elderly.

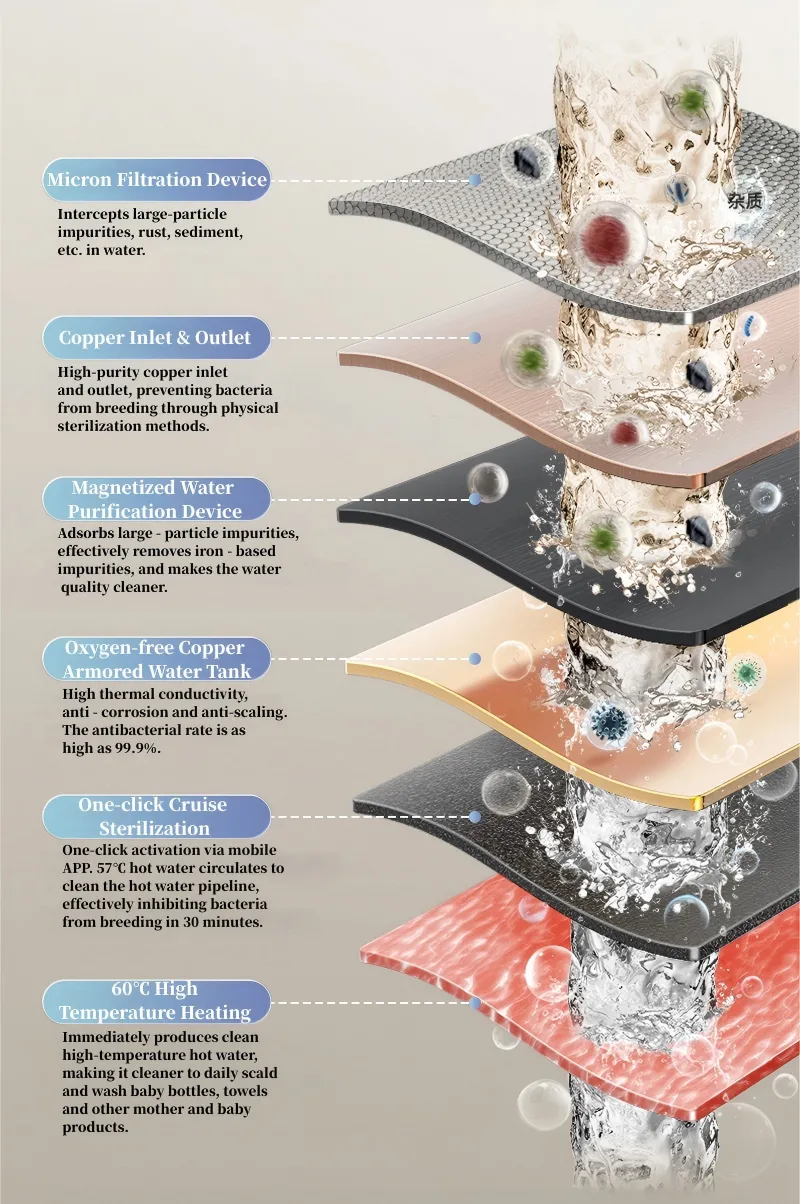

Six-fold Highly Effective Antibacterial Clean Water Quality, Healthy Bathing

The entire waterway is filtered layer by layer to prevent bacteria from breeding, ensuring clean water quality in the pipeline, caring for sensitive and fragile skin, and enjoying a skin - friendly bath.

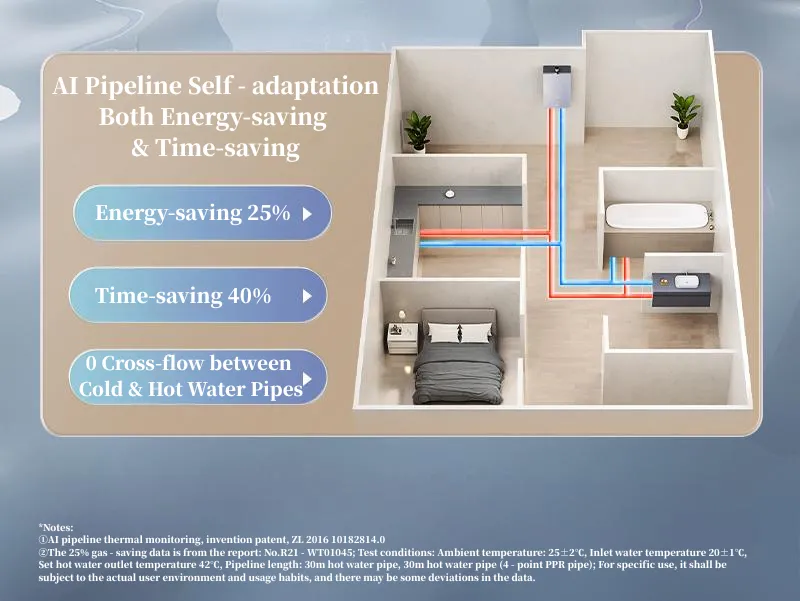

AI Pipeline Self-adaptation Both Energy-saving & Time-saving

Energy-saving 25%

Time-saving 40%

0 Cross-flow between Cold & Hot Water Pipes

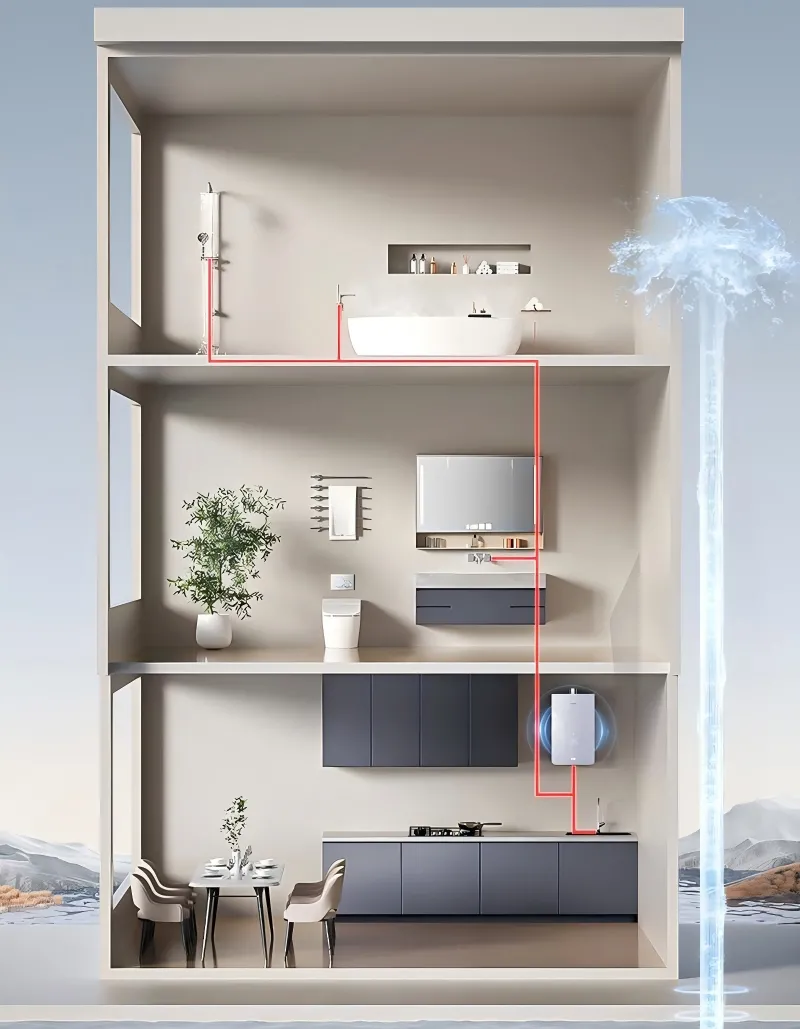

Dual-drive Pressure-boosting For Large Water Volume For Villas & Mansions, Sufficient Hot Water

Dual-boost for water outlet and heat. Increase water volume and heatload, maintain stable water temperature.

Enjoy hot water instantly throughout the house, with non-interfering multi-point water use.

Wi-Fi Remote Interconnection Hot Water at Your Fingertips

Macro Link ONE+APP enables intelligent remote linkage. You can control
the water heater anytime, anywhere. Even when away, you can adjust the
hot water for your family via your mobile phone.

89-fold Safety Protection Double The Peace Of Mind, Protecting Every Home

77-fold safety protection, plus 12-fold special protection.
Multidimensional care for the safety of family members during water use and bathing, providing double the peace of mind 24 hours a day.

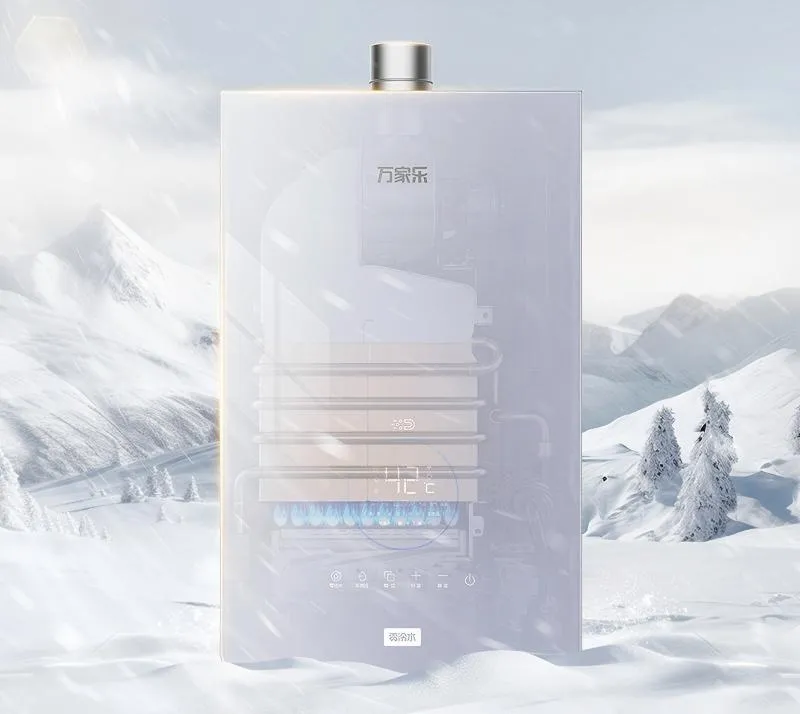

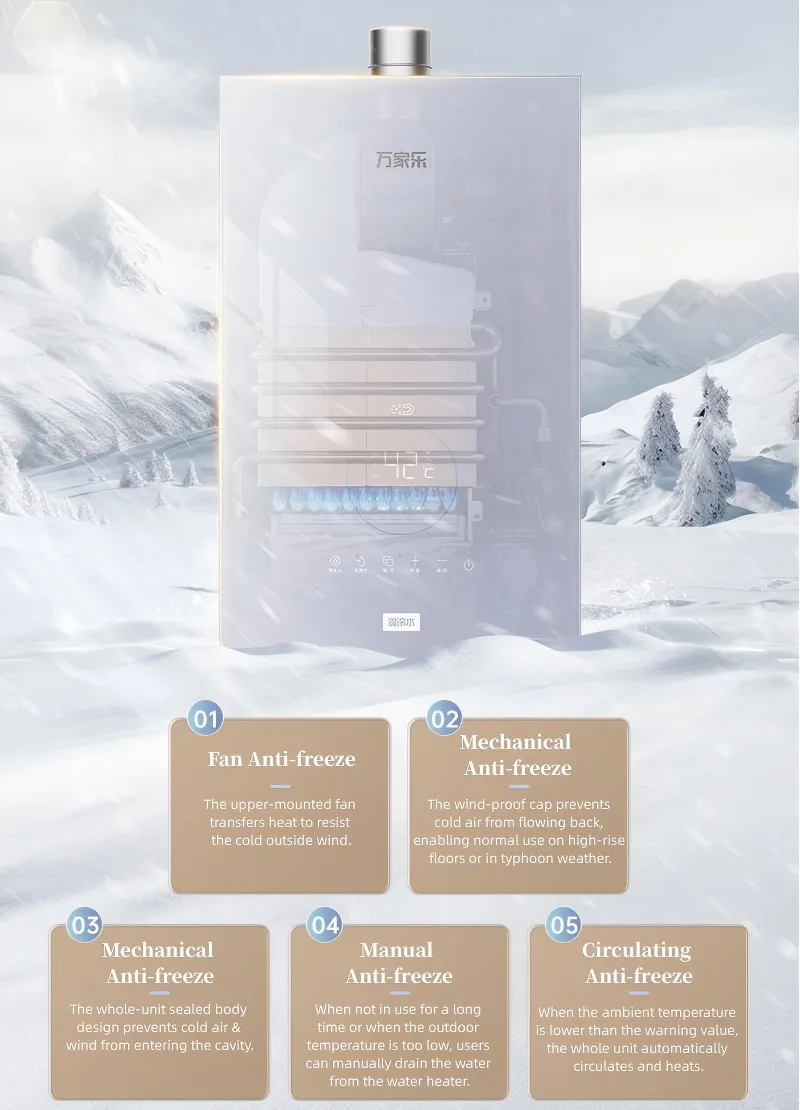

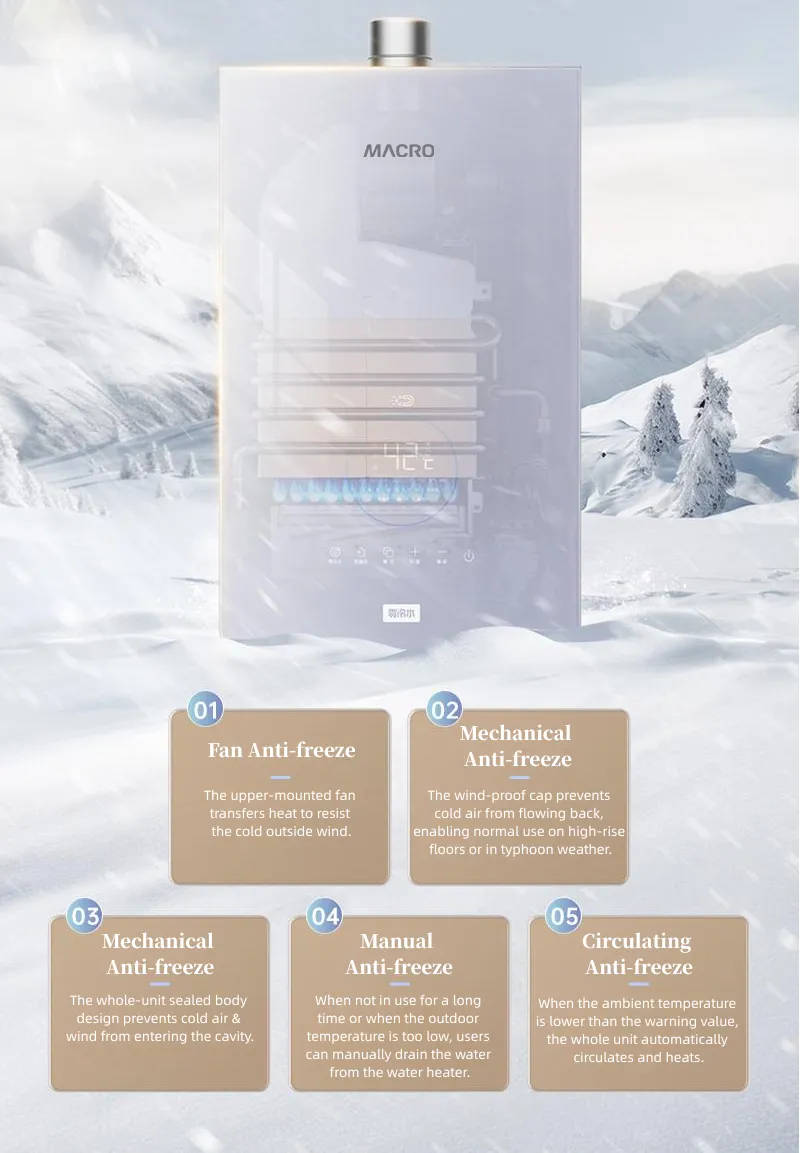

Three-Dimensional Anti-freeze System Continuous Warm Baths, a Worry-free Winter

Supported by five-dimensional anti-freeze technology, fearless of cold winter days.

Stable hot water output ensures uninterrupted warm baths.

Specifications

MODEL	JSQ30-16Z6L	JSQ36-18Z6L
Gas Type	NG/LPG	NG/LPG
Rated Hot Water Capacity(△T=25K)	16L/min	18L/min
Nominal Power/Rated Heat Input(kW)	30	36
Activated water flow rate	2.5L/min	2.5L/min
Flue Pipe/Chimney Diameter(mm)	φ60	φ60
Efficiency	>88%	>88%
N.W(kg)	11.5	12.1
G.W(kg)	13.6	14.2
Product Dimensions(mm)	558340160	558340160
Packaging Dimensions(mm)	718490251	718490251
Loading Qty(20GP/40GP/40HQ)	310/660/770	310/660/770

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
