Gas boiler H6

The MACRO H6 Series Wall Hung Gas Boiler is designed to provide reliable home heating and domestic hot water with outstanding energy efficiency. Featuring a compact body, intelligent WiFi control, low-pressure ignition technology and an efficient plate heat exchanger, the H6 delivers stable performance while saving installation space. Available in both elegant glass and classic white finishes, it blends seamlessly into modern living environments and offers an ideal solution for residential heating applications.

Model: H6

H6 Series Smart Wall Hung Gas Boiler Features You May Also Like

Gas boiler H6

The H6 Series combines advanced heating technology with modern aesthetics to deliver dependable heating and domestic hot water for residential applications. Designed with a compact footprint and smart control functions, it supports flexible installation in kitchens, utility rooms or balconies while ensuring comfortable performance under varying water and gas pressure conditions.

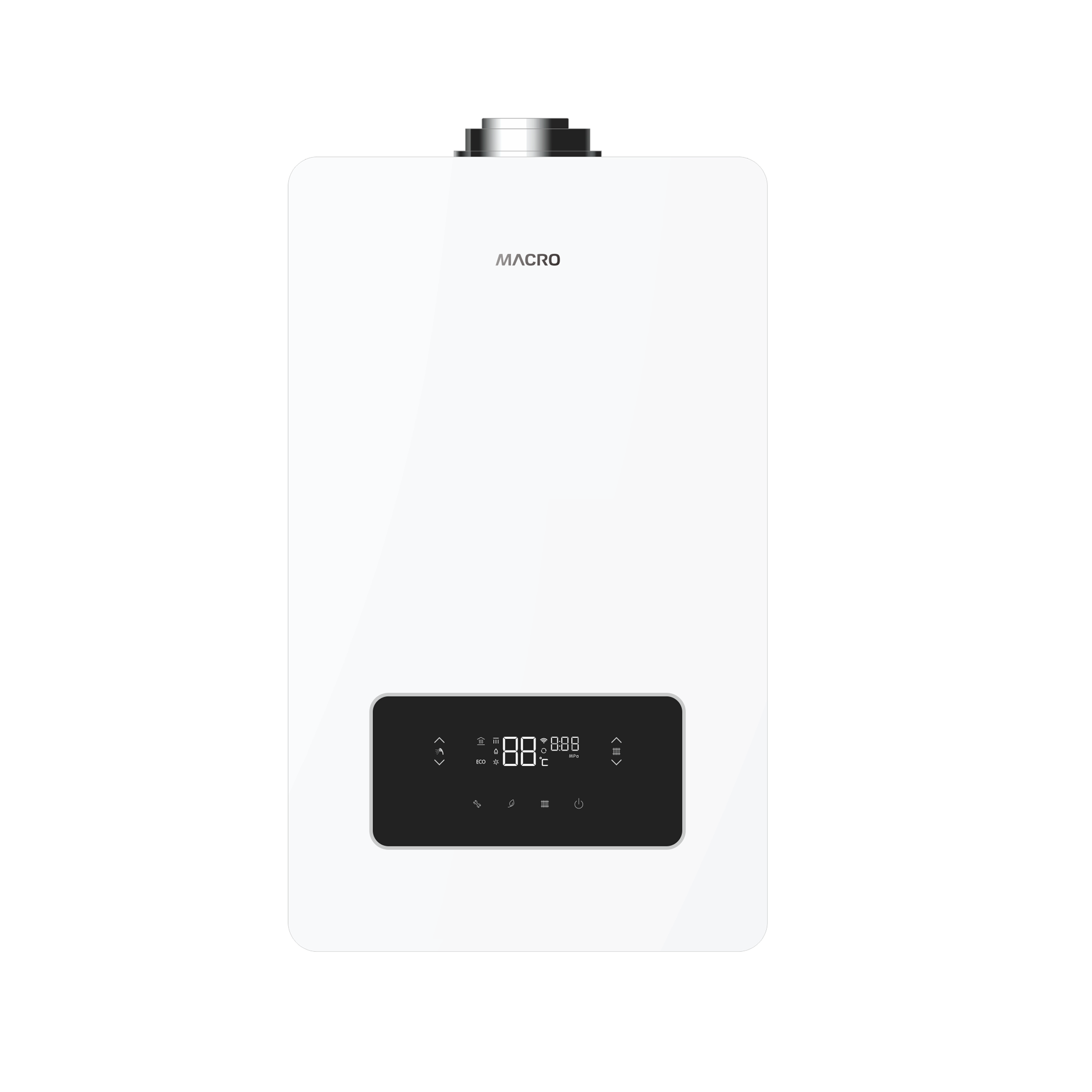

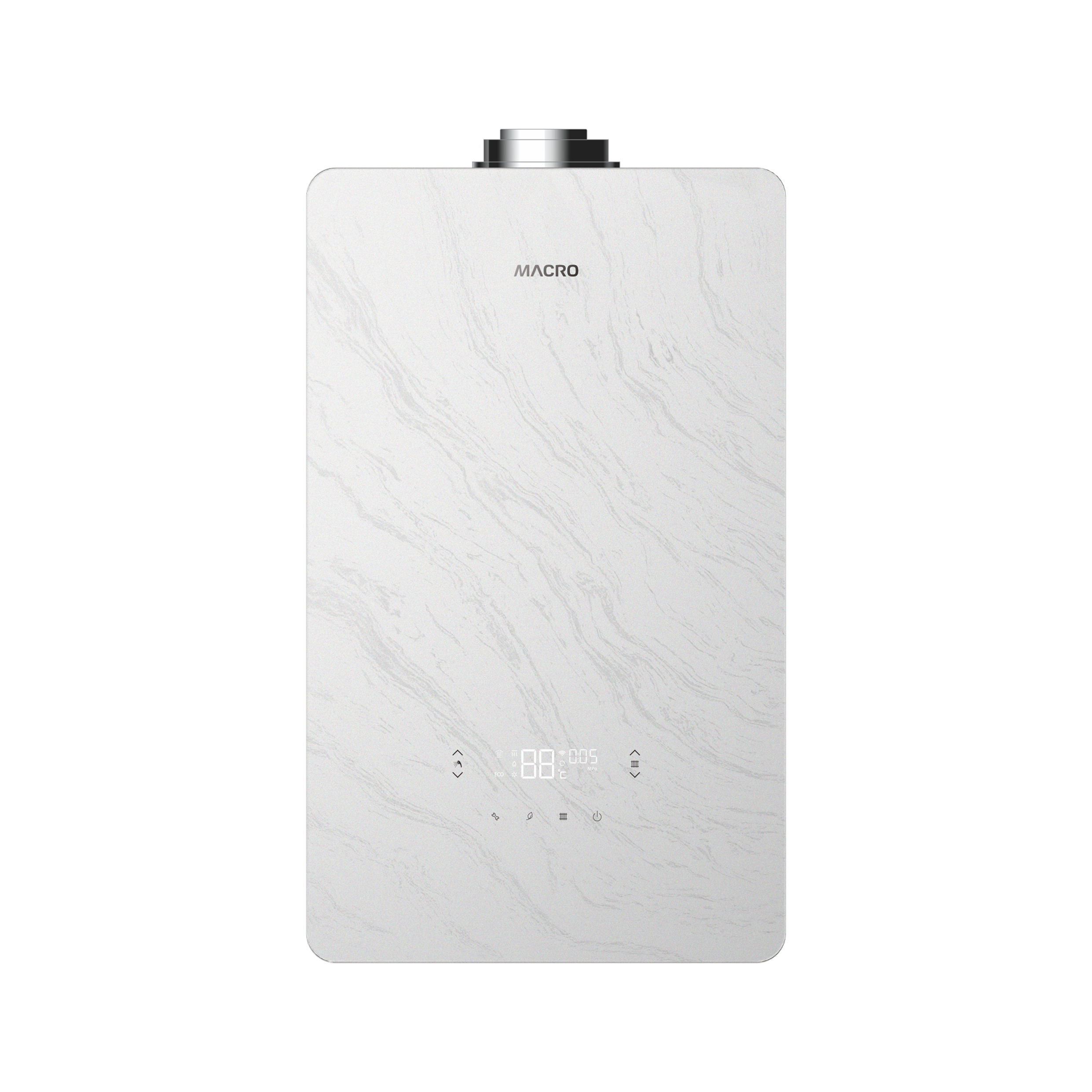

Its optimized internal layout simplifies maintenance, reduces service costs and improves long-term reliability. Two stylish front panel options—Classic White and Premium Glass—allow homeowners to match different interior styles.

Features

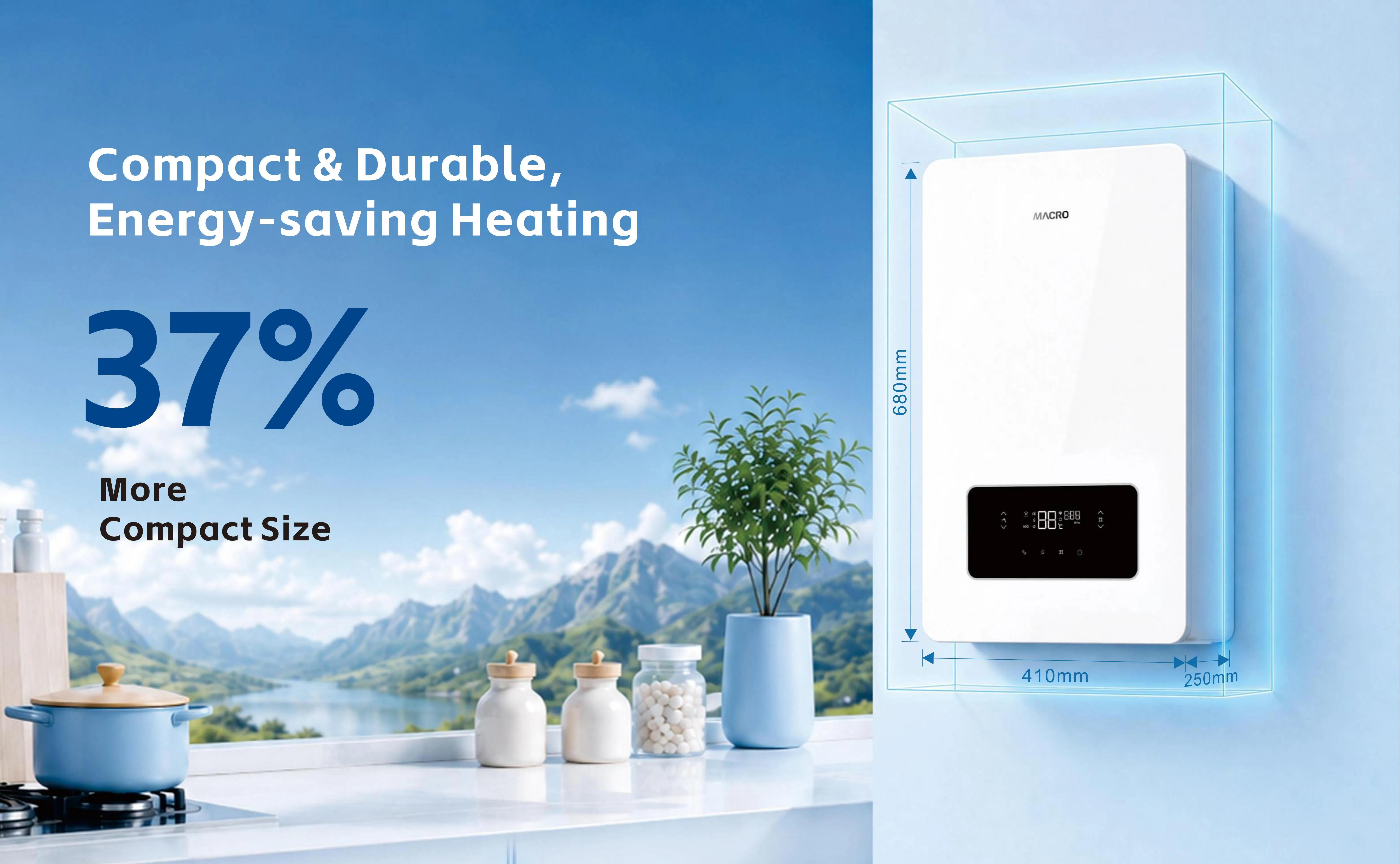

Compact Space-Saving Design

37% more compact design allows flexible installation in kitchens, balconies and utility rooms.

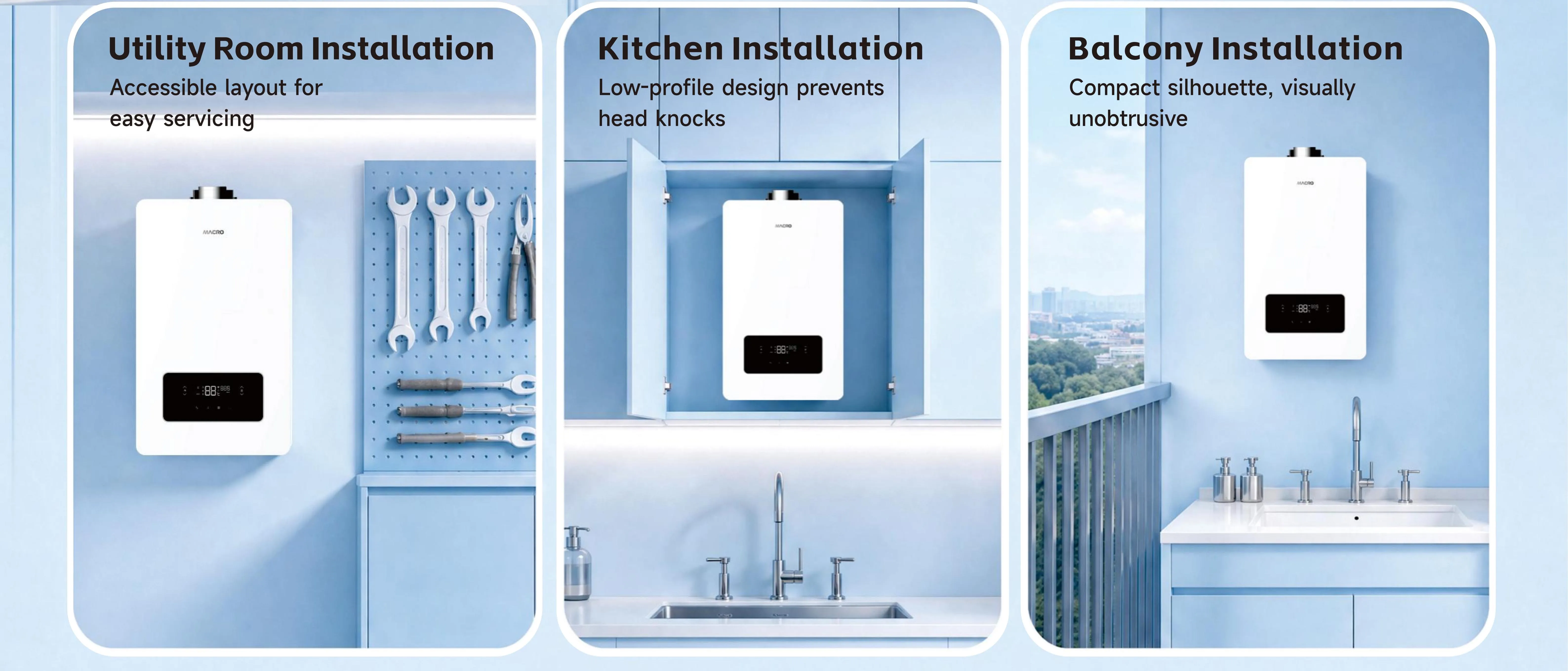

Multiple Installation Options

Designed with a compact footprint (410 × 250 × 680 mm), the H6 Series fits easily into a variety of residential spaces, including kitchens, balconies, utility rooms and service rooms. Its space-saving design provides greater installation flexibility while maintaining easy access for servicing.

Optimized Container Loading

The compact structure not only saves installation space but also maximizes transportation efficiency. With optimized packaging dimensions, the H6 Series allows up to 576 units per 40HQ container, helping distributors and OEM partners reduce logistics costs and improve shipping efficiency.

Low-Pressure Operation

Supports ignition at 1000Pa gas pressure and stable combustion down to 500Pa without flame-out, while also enabling reliable startup at 0.02MPa water pressure for dependable heating and hot water performance.

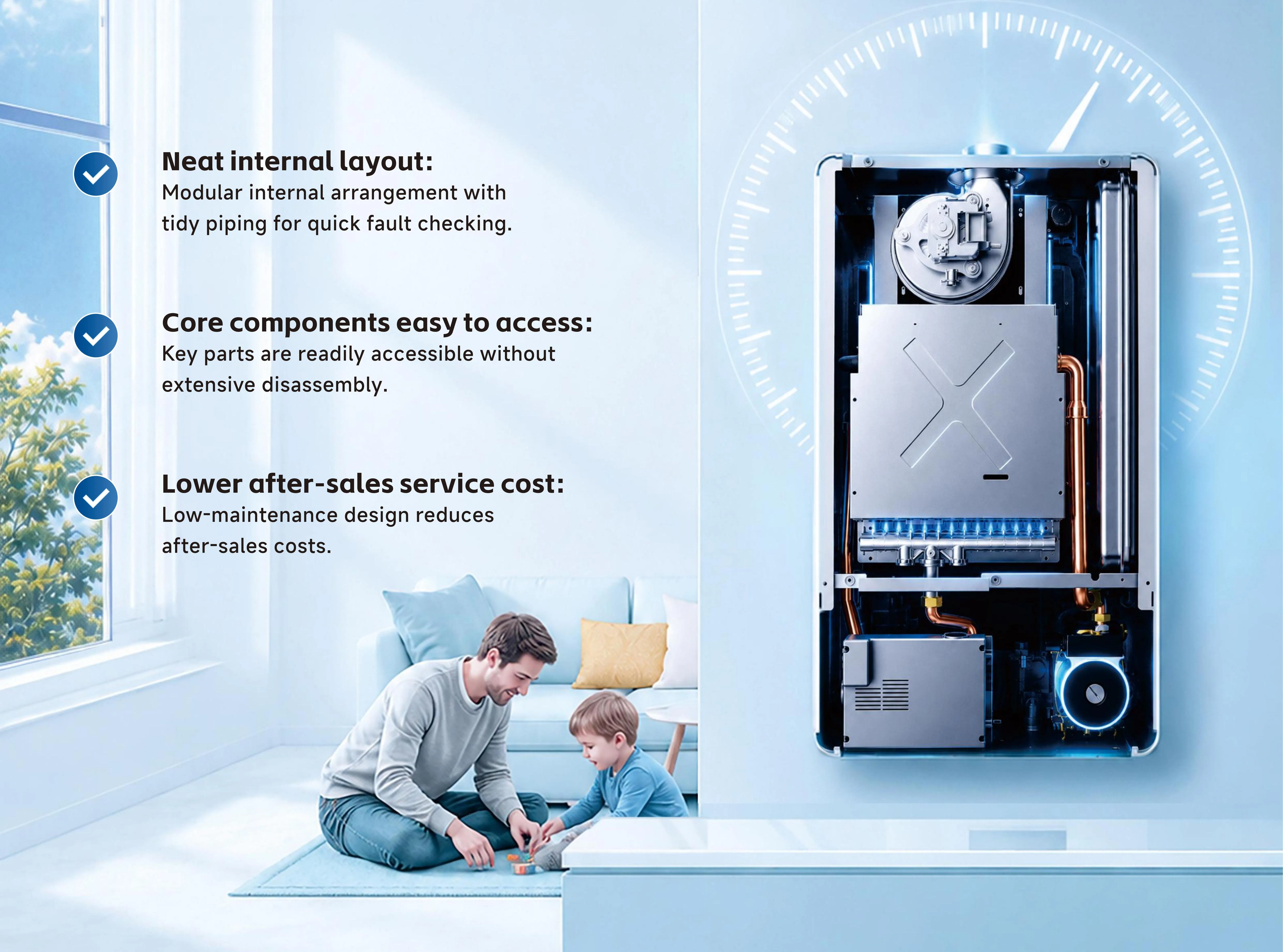

Easy Maintenance & Lower Service Cost

· Modular internal structure and organized piping layout provide quick access to key components, reducing maintenance time.

· Simplified internal design minimizes maintenance requirements and lowers after-sales service costs.

Model		L1PB16-14H6	L1PB18-16H6	L1PB20-18H6	L1PB26-24H6	L1PB32-28H6
Gas Type / Rated Pressure		NG / 2000Pa
Nominal/minimal heat input (kW)		16 / 7.5	18 / 7.5	20 / 8	26.4 / 11.2	32 / 12.5
Nominal/minimal heat output (kW)		14.5 / 6.7	16.2 / 6.3	18 / 7	24 / 9.5	28.5 / 10.5
Heating	Max. Heating Temp. (℃) / Max. System Pressure (MPa)	85/0.3
	Heating Water Temp. Range (℃)	Radiator: 30-80; Floor Heat: 25-60
	Heating System Type	Sealed
	Expansion Vessel Volume (L) / Pre-charge Pressure (Mpa)	5/0.1		6/0.1
DHW	Hot Water Capacity (ΔT = 25K)	8	9	10	13	16
	Hot Water Capacity (ΔT = 30K)	6.5	7.5	8.5	11	13.5
	DHW Temperature Range (℃)	35-60
	DHW Working Pressure (Mpa)	0.02-0.8
Ventilation Type		Forced Balanced Flue
Ignition Type		Automatic Pulse Ignition
Water Temperature Control / Display		Automatic Gas Proportional Valve / LED Display
Power Supply Type		220V / 50Hz
Rate Power (w)		115	115	120	125	130
Enclosure Protection Class		IPX4D
Dimension (LWH) (mm)		680410250
40HQ Loading qty (pcs)		576
N.W./G.W. (Kg)		30 / 33
Pipe Connections	Gas Inlet / DHW Outlet / DHW Inlet	G1/2 "
	Heating Outlet / Heating Return	G3/4 "
