High Efficiency Condensing Gas Boiler | Q5 Series
Double Circuit;
Combination of heating & domestic hot water.
The gas boiler Q5 series with compact design, thermal Efficiency up to 108.7%, 5 point precise temp-contorl and 4 heating modes function.

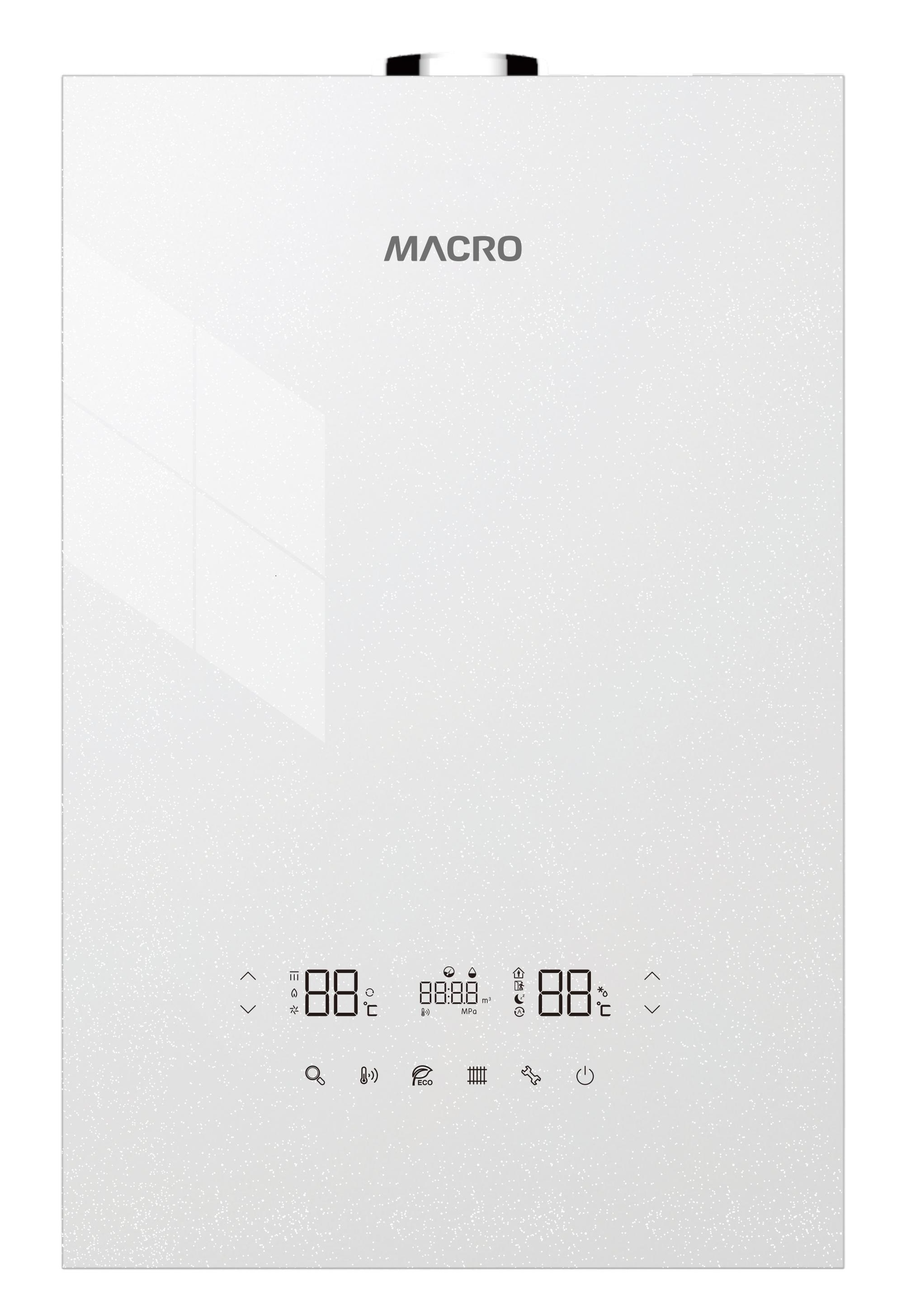

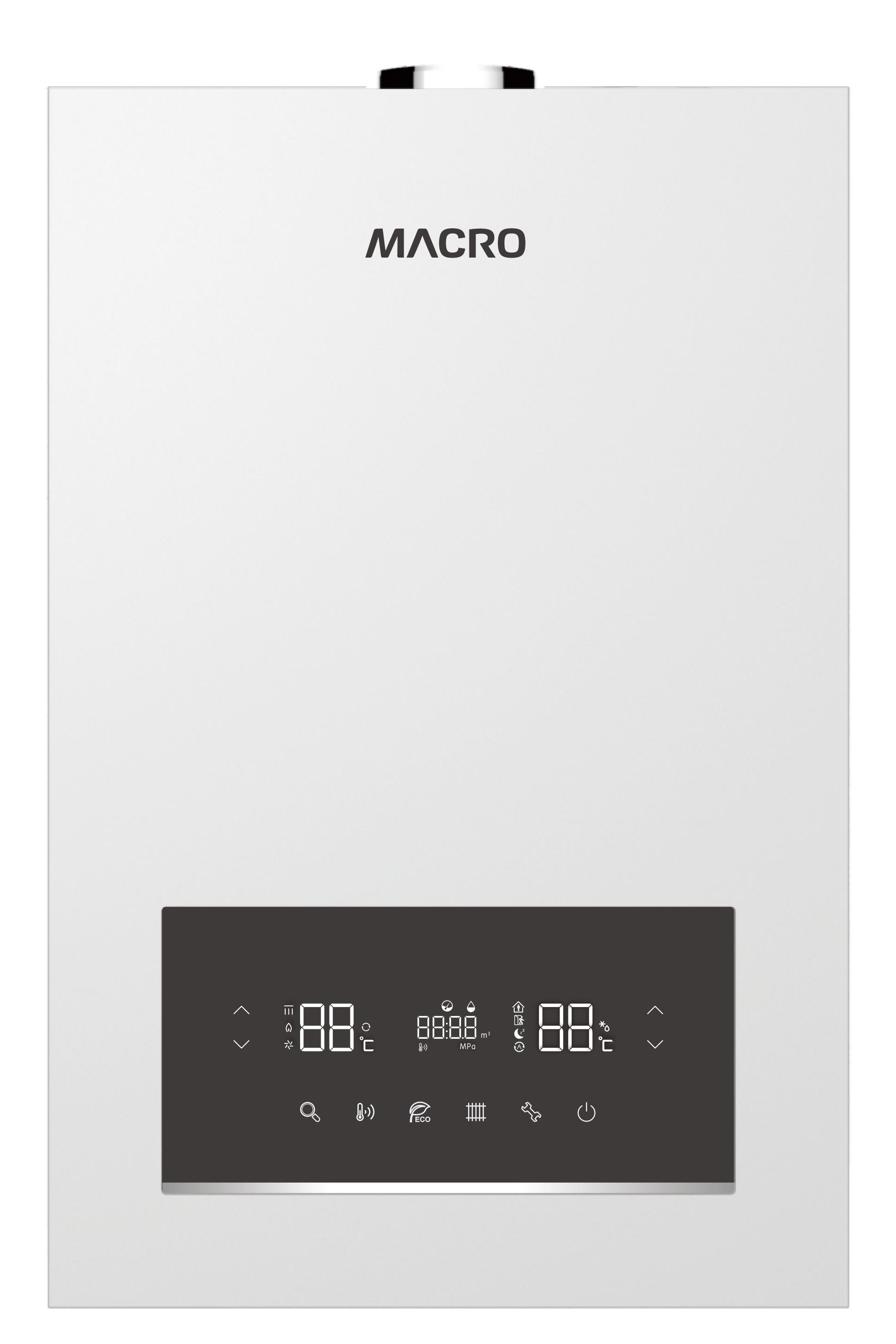

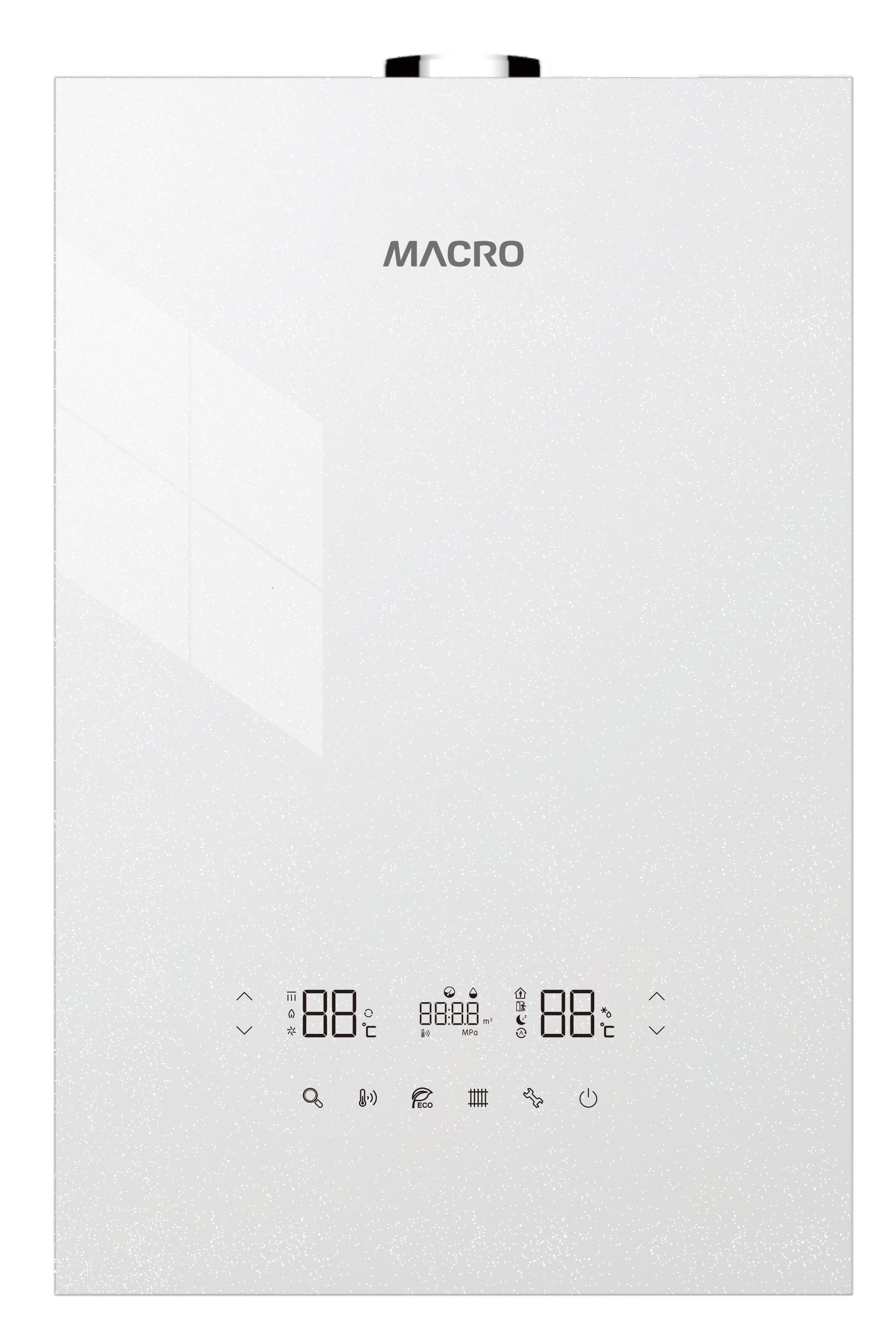

Model: Q5
MACRO Q5 is a high-efficiency premix condensing wall-hung gas boiler equipped with premium European core components, including French Sermeta heat exchanger and Italy SIT fan motor & gas valve, with maximum thermal efficiency hitting 108.7% to cut gas consumption effectively.
Built with precise 5-point temperature sensing control, it keeps outlet water fluctuation within ±1℃ for stable constant hot water supply. Four switchable working modes (Auto/Home/Outside/Sleep) plus one-touch ECO sleep mode realize intelligent temperature adjustment according to users’ living habits for outstanding energy conservation.
Outstanding technical advantages cover wide load regulation (minimum domestic hot water input down to 4kW), full 68 safety protection programs, 8-dimensional mute treatment and 360° blue flame purification combustion system. Compact dimension enables high container loading to lower clients’ logistics cost, while simplified internal structure brings convenient daily maintenance. It is a reliable heating solution for residential wholesale and global heating projects.

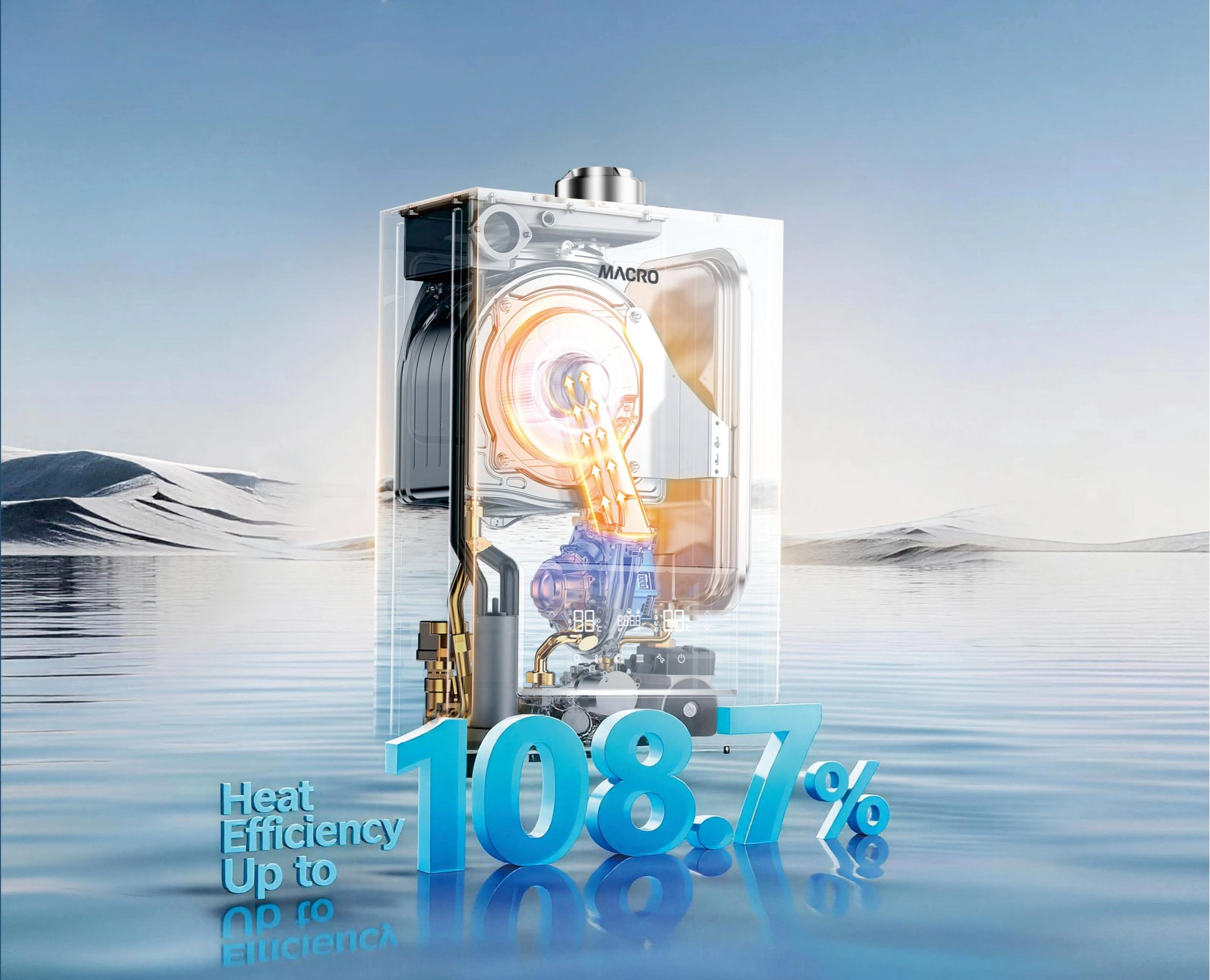

Heat Efficiency Up to 108.7%
· With a thermal efficiency of up to 108.1%, it is
industry-leading energy efficiency and saves more gas!
· Lower CO and NOX emissions make it more environmentally friendly!

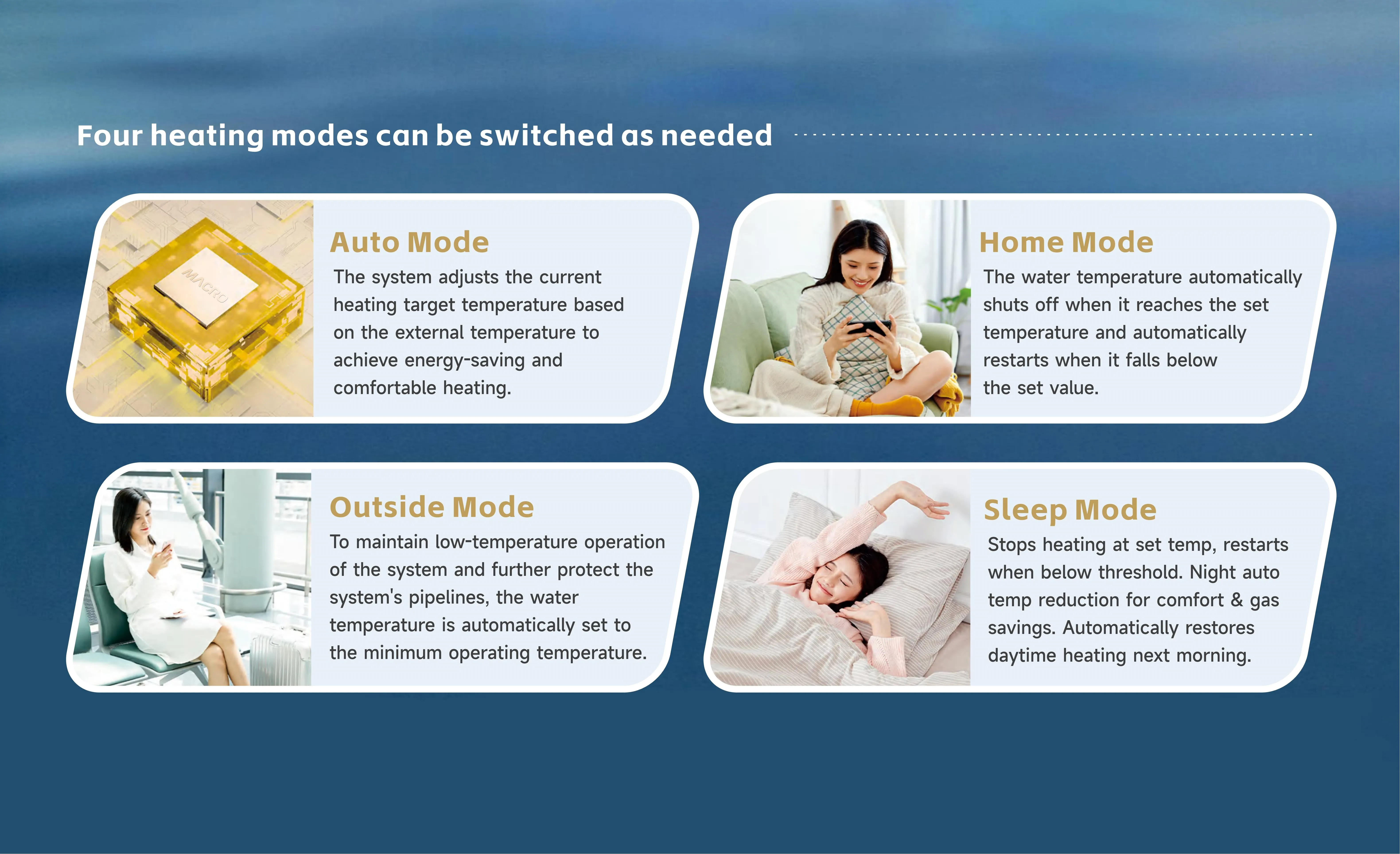

Four Heating Modes Can Be Switched As Needed
· Home Mode
· Outside Mode
· Sleep Mode
· Auto Mode

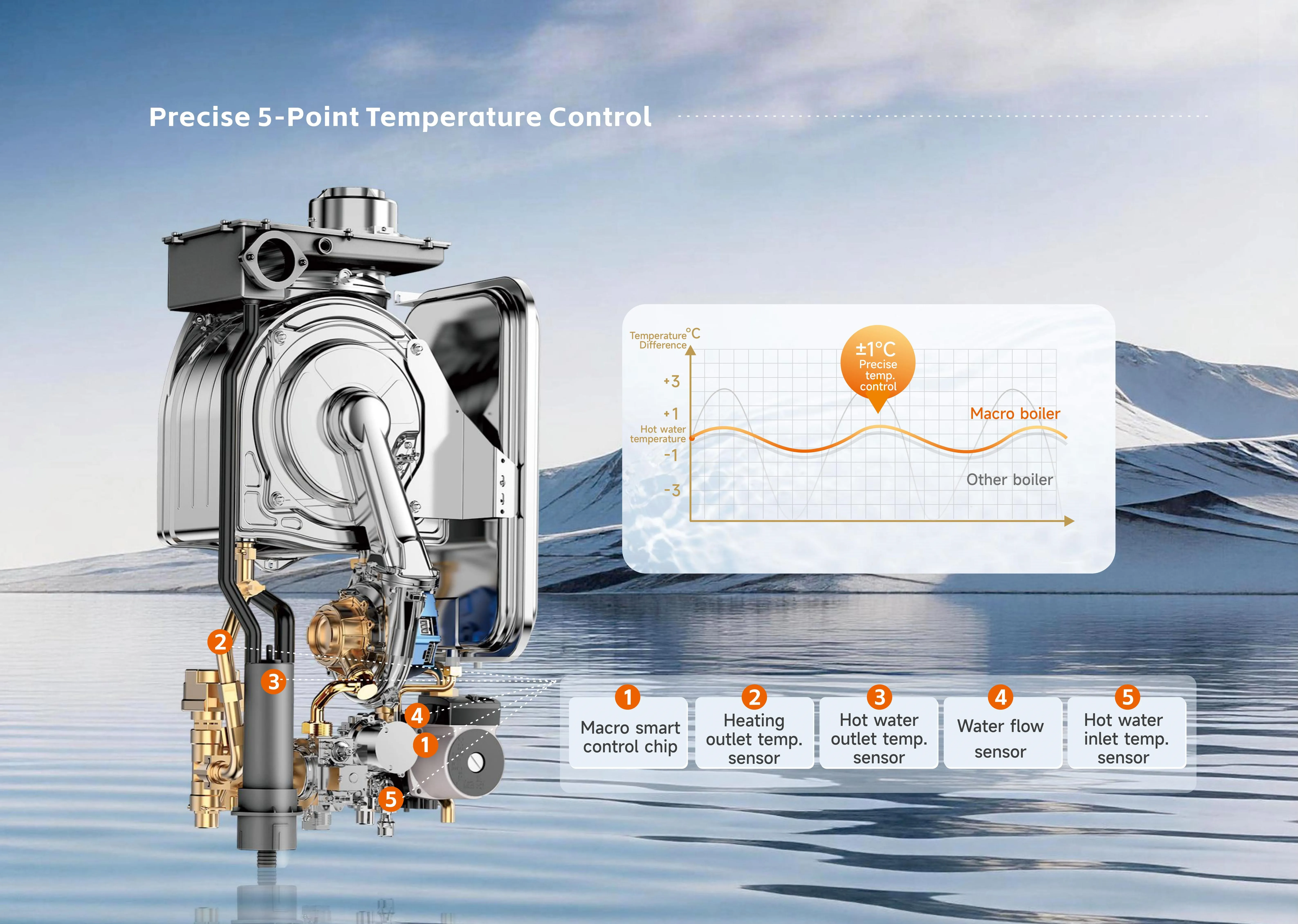

Precise Temp. Control At Five Points
· Temperature sensors are installed at the inlet and outlet of th
hotwater/heating system to monitor water temperature changes in real time.
· Equipped with a water flow sensor, it senses the water flow in and out in real time.
· The core control unit, Macro smart control chip, anticipates hot water load
requirements and adjusts the load accordingly in real time, keeping water
temperature fluctuations within ±1℃.

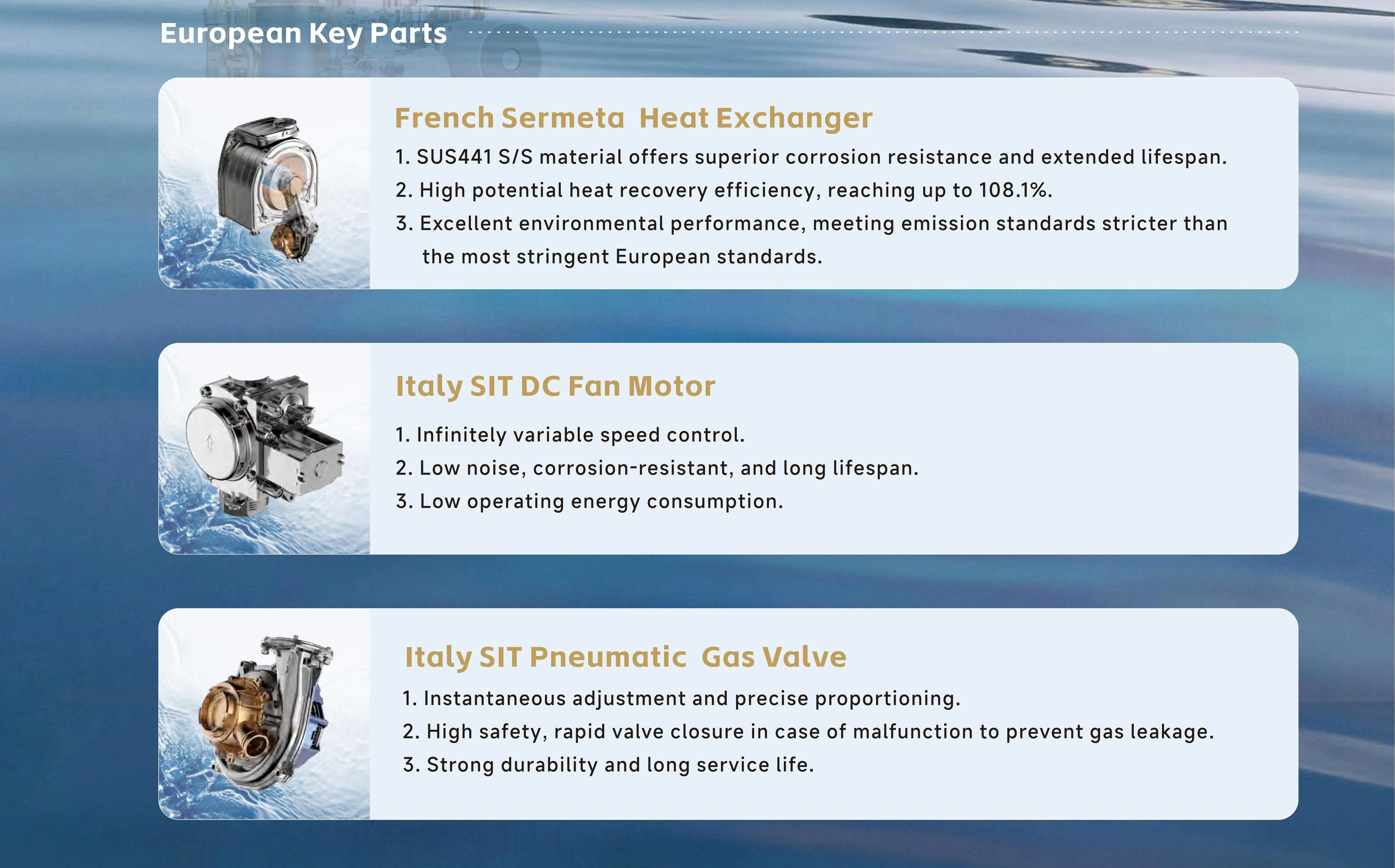

European Key Parts
· French Sermeta Heat Exchanger
· Italy SIT DC Fan Motor
· Italy SIT Pneumatic gas valve
Specifications
| Model | LL1GBQ24-24Q5 | LL1GBQ28-28Q5 | |
| Gas Type / Rated Pressure | Natural Gas-12T / 2000Pa | ||
| Heating | Rated Heating Heat Input (kW) | 4~24 | 4.8~28 |
| Rated Heating Output (80/60℃) (kW) | 3.8~22.9 | 4.6~26.8 | |
| Rated Heating Output (50/30℃) (kW) | 4.2~25.2 | 5~29.4 | |
| Max. / Min.Gas Consumption (m³/ h) | 2.46/0.41 | 2.87/0.49 | |
| Max. Heating Temp. (℃) / Max. System Pressure (MPa) | 85/0.3 | ||
| Heating Water Temp. Range (℃) | Radiator: 30-80; Floor Heat: 25-60 | ||
| Heating System Type | Sealed | ||
| Expansion Vessel Volume (L) / Pre-charge Pressure (Mpa) | 6/0.1 | ||
| Recommended Heating Area (㎡) | 80~180 | 120~220 | |
| DHW | Rate Heat Input (kW) | 4~24 | 4.8~28 |
| Max.Gas Consumption (m³/ h) | 2.46 | 2.87 | |
| Hot Water Capacity (ΔT = 25K) | 13 | 15 | |
| Hot Water Capacity (ΔT = 30K) | 10.8 | 12.5 | |
| DHW Temperature Range (℃) | 35-60 | ||
| DHW Working Pressure (Mpa) | 0.02-1.0 | ||
| Ventilation Type | Forced Balanced Flue | ||
| Ignition Type | Automatic Pulse Ignition | ||
| Water Temperature Control / Display | Automatic Gas Proportional Valve / LED Display | ||
| Power Supply Type | 220V / 50Hz | ||
| Rate Power (w) | 150 | 155 | |
| Electric Power at Minimum Heat Load (w) | 100 | 105 | |
| Standby Power (w) | 3 | ||
| Enclosure Protection Class | IPX4D | ||
| Dimension (L*W*H) (mm) | 640*420*251 | ||
| Net Wegit (Kg) | 30 | ||
| Pipe Connections | Gas Inlet / DHW Outlet / DHW Inlet | G1/2 " | |
| Heating Outlet / Heating Return | G3/4 " | ||
| Coaxial Air Intake & Exhaust Flue (mm) | Φ60 / Φ100 (Max. length 3m) | ||
