Gas water heaters are widely used in residential and light commercial buildings because they can deliver stable hot water with strong recovery performance and relatively predictable operating costs. Although product designs vary by region and application, most gas water heaters share the same engineering logic: burn fuel safely, transfer heat efficiently, control temperature accurately, and vent combustion byproducts reliably.

Below is a clear breakdown of how a gas water heater works—from ignition to heat transfer, control systems, and safety protections.

The Core Job: Convert Gas Energy Into Hot Water

A gas water heater performs two conversions:

Chemical energy → thermal energy
Natural gas (or LPG/propane) combusts in a burner, producing heat.

Thermal energy → heated water
That heat is transferred through a metal heat exchanger (or tank surface/flue) into the water stream or stored water volume.

The rest of the system exists to make these conversions efficient, stable, and safe.

Two Main Architectures: Storage Tank vs. Tankless

A. Storage (Tank-Type) Gas Water Heater

A storage heater keeps a volume of water (e.g., 50–300 L) hot in an insulated tank.

Basic sequence:

Cold water enters the tank through a dip tube (to the bottom).

A thermostat detects the tank temperature.

If temperature drops below the setpoint, the gas valve opens and the burner fires.

Heat warms the tank water; hotter water rises to the top.

Hot water exits from the top outlet when a tap is opened.

Combustion gases rise through a central flue (or flue channels) and are vented out.

Strengths: stable delivery, simpler hydraulics, tolerant of variable flow.
Tradeoff: standby heat loss (even with insulation).

B. Tankless (Instant) Gas Water Heater

A tankless heater heats water only when there is demand.

Basic sequence:

Opening a hot tap creates water flow through the heater.

A flow sensor (or differential pressure sensor) signals the control board.

The gas valve modulates and the burner ignites.

Water passes through a high-efficiency heat exchanger and exits at target temperature.

Burner output continuously adjusts based on flow rate, inlet temperature, and setpoint.

Strengths: high efficiency, no standby loss, compact size.
Tradeoff: output is limited by maximum burner capacity and heat exchanger size; temperature stability depends on control quality and installation conditions.

Step-by-Step: What Happens When You Need Hot Water?

While details differ by type, the operating logic typically follows this chain:

Step 1 — Demand Is Detected

Tank-type: a thermostat senses that stored water temperature fell below setpoint.

Tankless: a flow sensor detects that water is moving through the unit.

Step 2 — Safety Checks and System “Permission”

Before ignition, modern units confirm basic safety conditions:

adequate water flow (tankless)

correct fan/airflow (forced-draft models)

correct vent pressure or flue condition (sealed combustion systems)

proper sensor status (overheat sensor, flame sensor, etc.)

If conditions are not met, the unit locks out to prevent unsafe operation.

macro gas geyser QS6

Step 3 — Gas Metering and Ignition

The control system opens a gas valve and supplies gas to the burner.

Ignition occurs via:

Electronic ignition (common today): spark igniter + flame sensor confirmation

Pilot flame (older designs): a small flame stays lit to ignite the main burner

Once flame is detected, the controller maintains combustion.

Step 4 — Combustion and Heat Transfer

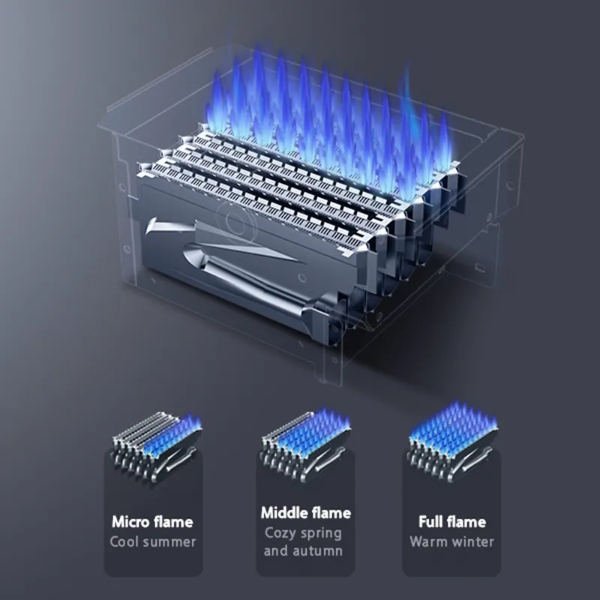

The burner produces a controlled flame pattern. Heat transfers through metal surfaces:

Tank-type: heat passes into the tank wall/flue channel and heats surrounding water.

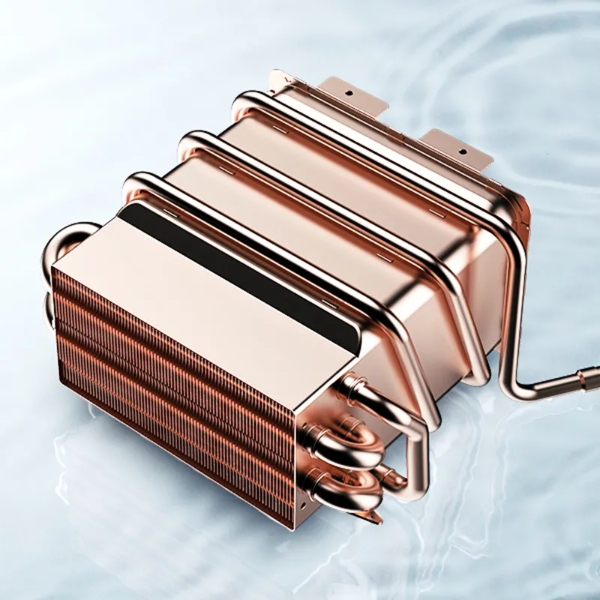

Tankless: heat passes into a compact heat exchanger (copper/stainless steel). Water flows through internal tubes/fins, picking up heat rapidly.

Good heat exchanger design improves:

thermal efficiency

temperature stability

resistance to scaling and corrosion

Step 5 — Temperature Control and Modulation

Modern gas heaters aim for steady outlet temperature:

Sensors measure inlet/outlet water temperature.

The control board adjusts:

gas valve opening (fuel rate)

sometimes fan speed (air rate) in premix or forced-draft systems

This maintains the setpoint despite changes in:

inlet water temperature (seasonal variation)

flow rate (one tap vs. multiple taps)

gas pressure fluctuations (within allowable range)

Step 6 — Exhaust/Venting of Combustion Byproducts

Combustion generates CO₂, water vapor, and trace byproducts; these must be safely vented.

Typical venting styles:

Atmospheric venting: hot gases rise naturally through a flue (common on older tank units).

Forced draft (fan-assisted): a fan pushes exhaust through sealed venting (common on high-efficiency and tankless units).

Sealed combustion: intake air comes from outside; exhaust goes outside—improves safety and stability in tight buildings.

Step 7 — Shutdown

When demand stops (tap closed) or setpoint is reached:

gas valve closes

burner turns off

fan may run briefly for post-purge (some designs)

Key Components and What They Do

Here are the major “functional blocks” you’ll see across most gas water heaters:

• Burner assembly: mixes gas and air and creates a stable flame pattern.

• Gas valve / regulator: controls fuel flow; may be modulating (variable output).

• Ignition system: spark igniter or pilot; paired with flame sensing.

• Heat exchanger or tank heat path: transfers heat into water efficiently.

• Temperature sensors & thermostat: measure and control water temperature.

• Flow sensor (tankless): confirms demand and minimum activation flow.

• Draft hood / fan / venting: manages combustion air and exhaust removal.

Safety devices:

flame failure device / flame sensor

overheat limit switch

pressure relief valve (tank-type)

freeze protection (many tankless models)

combustion air and vent pressure monitoring (sealed systems)

Why Installation Conditions Matter So Much

In real projects, “how it works” is also shaped by site conditions:

Gas supply capacity: undersized gas lines can cause weak heating, instability, or lockouts.

Water pressure and flow: tankless heaters need sufficient and stable flow; very low flow can fail to trigger ignition or cause temperature swings.

Water hardness (scaling): scale reduces heat transfer and can overheat exchangers. Hard-water regions often require periodic descaling for tankless systems.

Venting design: incorrect vent length, slope, or termination can affect combustion and safety.

Air supply: tight mechanical rooms may require sealed combustion or dedicated make-up air.

These factors don’t change the basic physics, but they dramatically affect performance, efficiency, and lifespan.

Efficiency in Simple Terms: Where the Heat Goes

Not all heat ends up in your hot water. Main losses include:

exhaust losses: heat leaving in flue gas

standby losses (tank-type): heat leaking through tank insulation over time

short cycling: frequent on/off operation reduces effective efficiency

scale-related losses: insulating scale layer reduces transfer and increases burner runtime

High-efficiency designs reduce these losses through:

better heat exchanger geometry

improved insulation (tank)

smarter modulation controls

sealed combustion + optimized air/fuel mixing

Conclusion

A gas water heater works by coordinating combustion, heat transfer, temperature control, and safe venting into one reliable system. Whether it’s a storage tank model maintaining a set temperature or a tankless unit firing only when water flows, the underlying principle is the same: deliver hot water safely and consistently by converting fuel energy into usable heat with precise control and layered safety protection.
