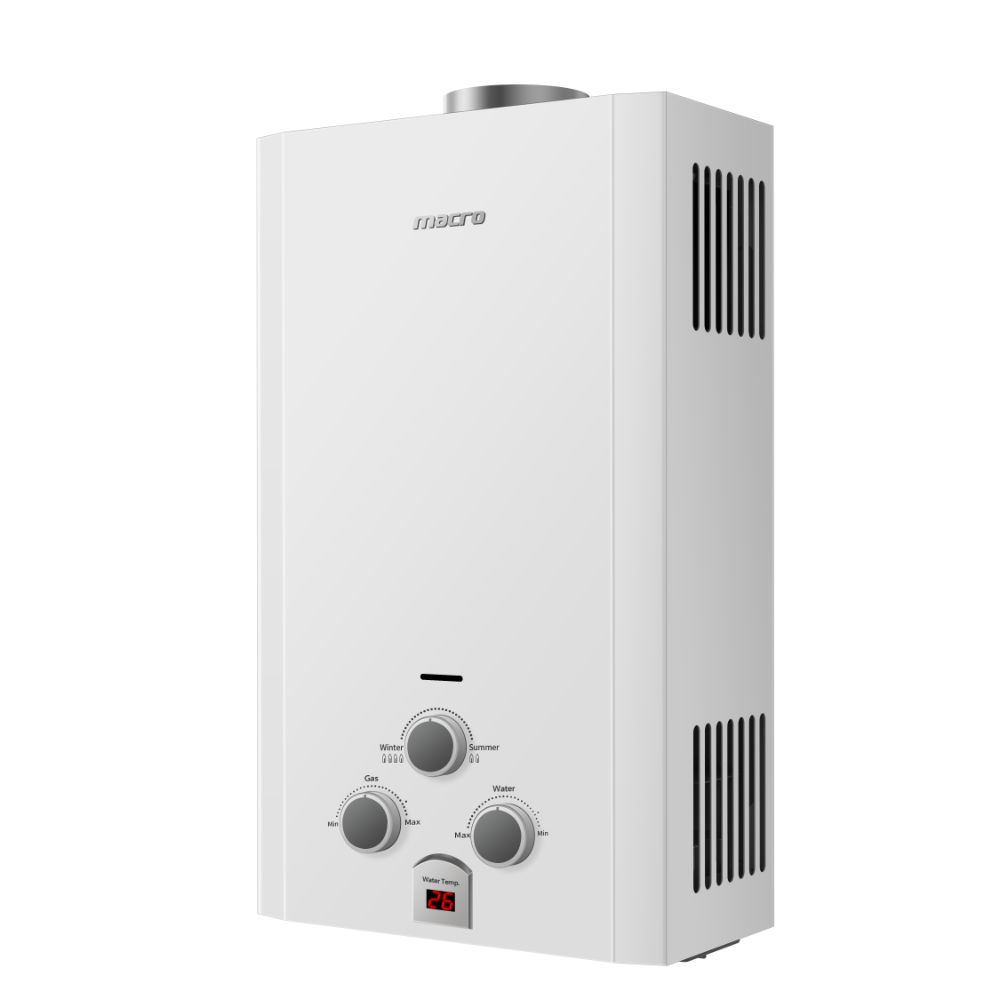

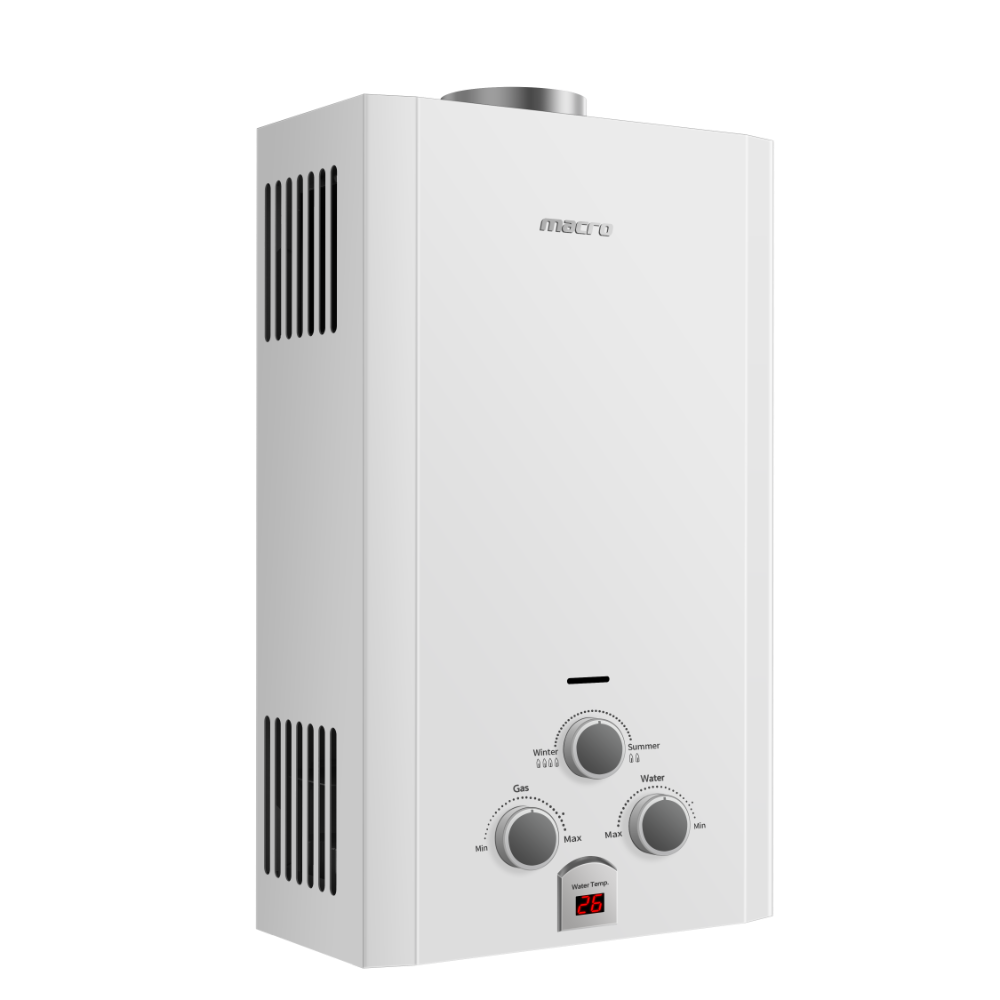

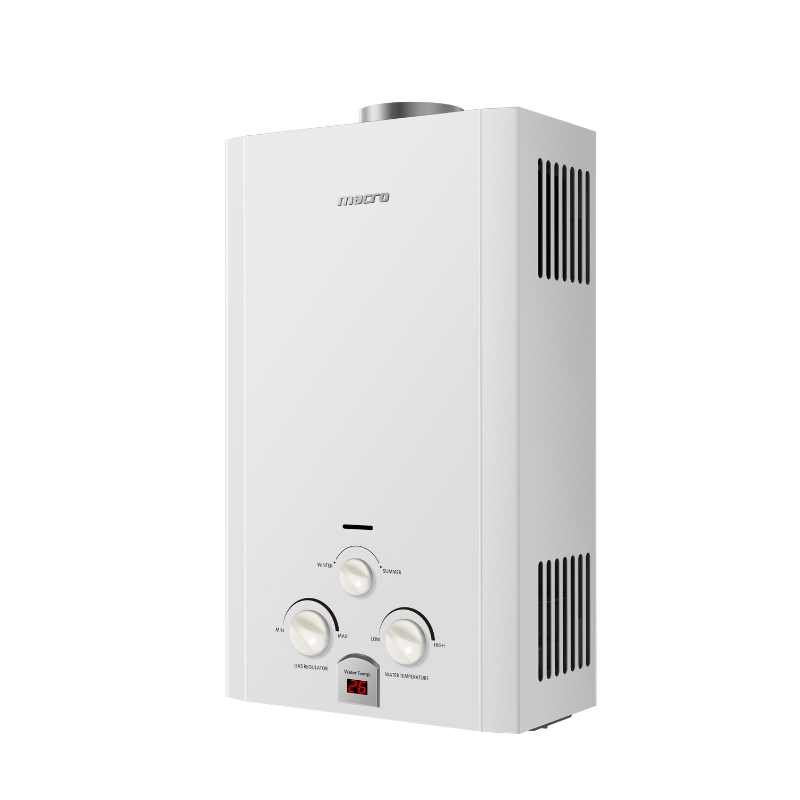

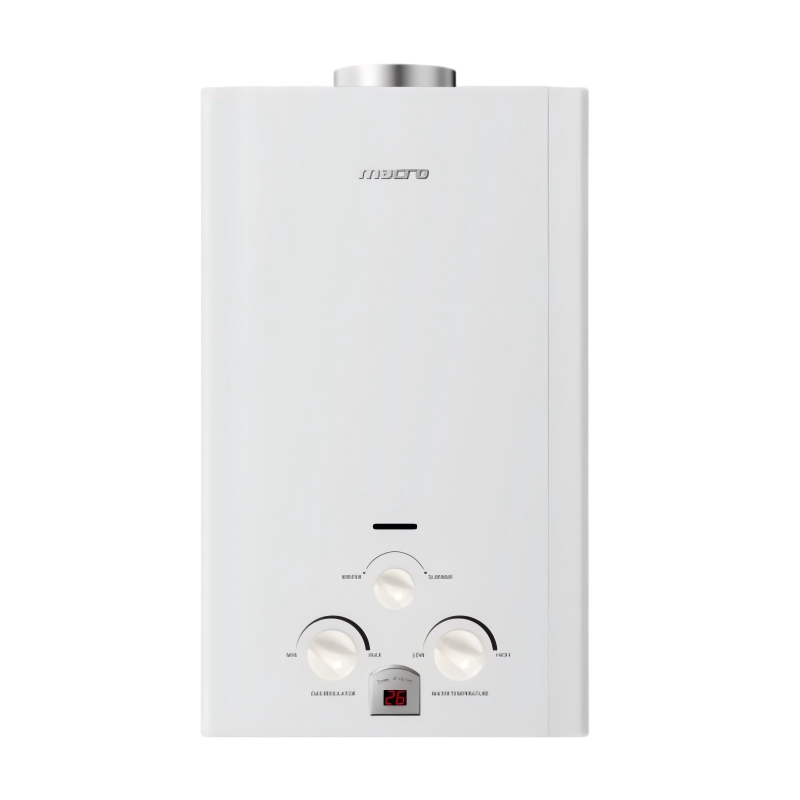

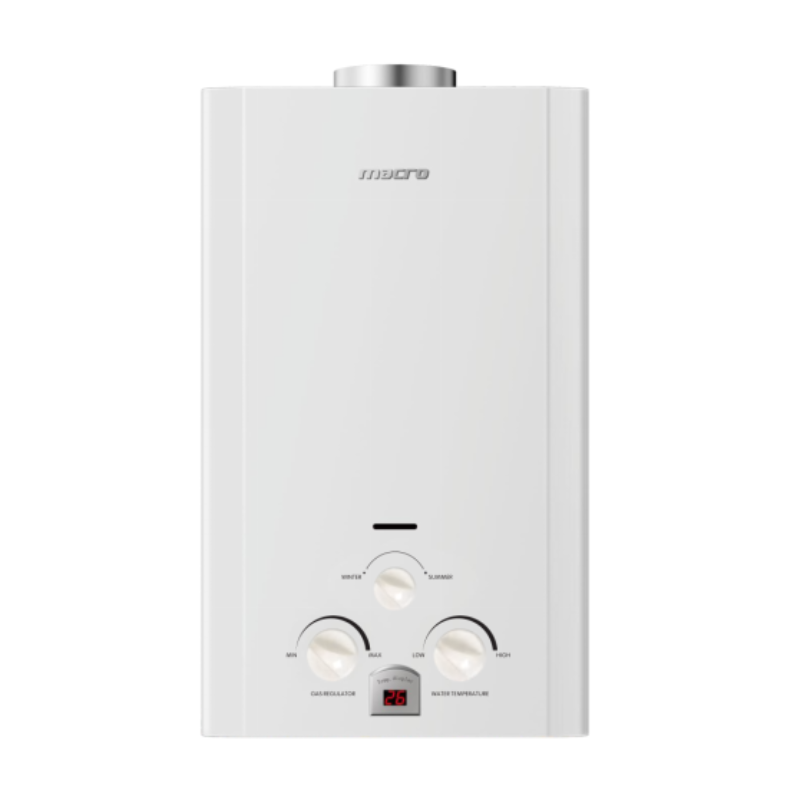

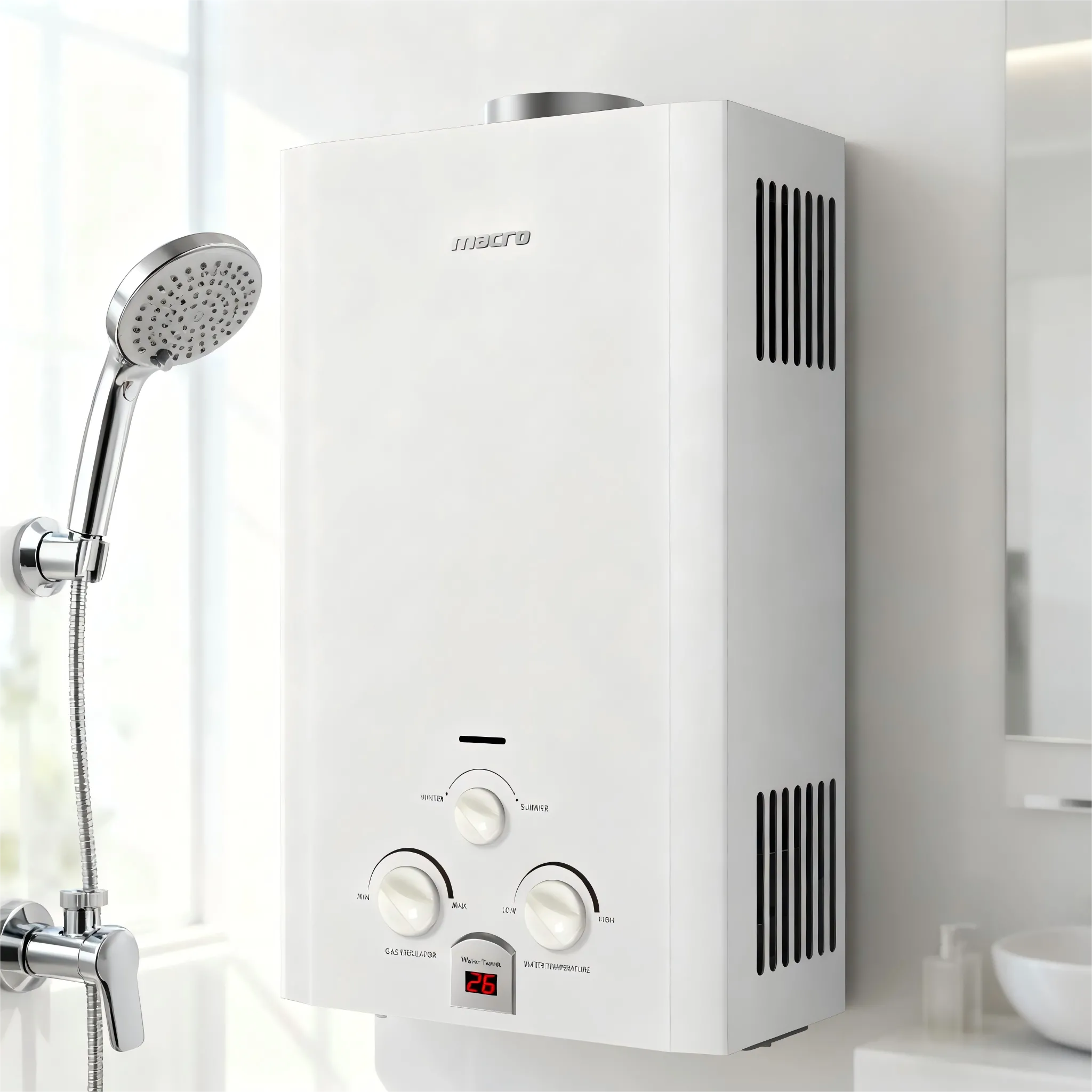

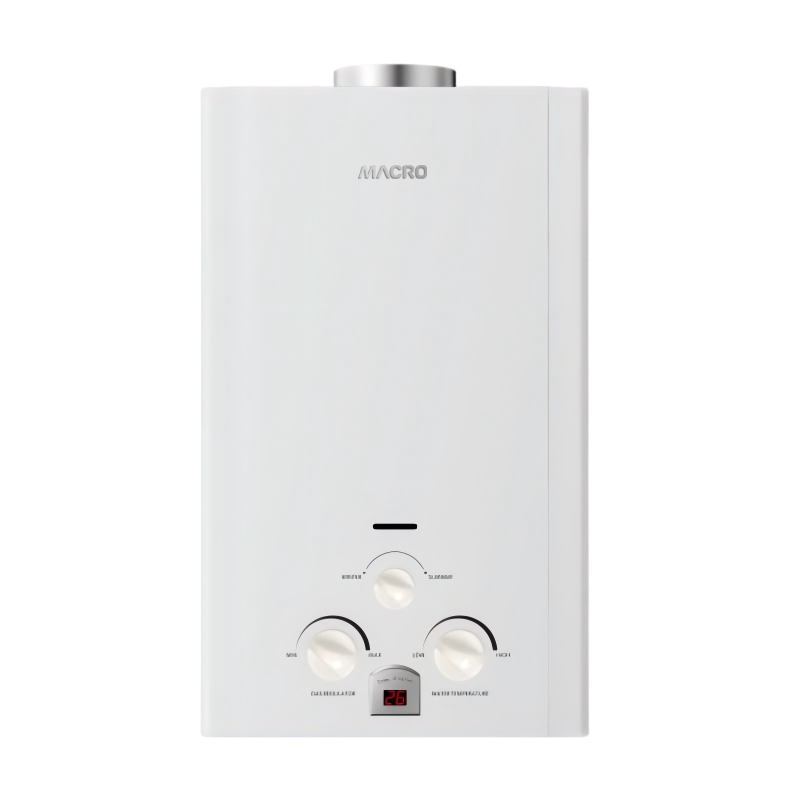

Gas Water Heater T1

Introducing the T1 Series Gas Water Heater from Micro, a perfect blend of efficiency, safety, and convenience for your daily hot water needs. Available in three models—JSD12-6T1, JSD20-10T1, and JSD24-12T1—this series caters to different hot water demands with rated capacities of 6L/min, 10L/min, and 12L/min respectively. Compatible with both NG and LPG, it features multi-protection, LED water temperature indicator, water pressure release device, summer/winter modes, and double ignition, ensuring reliable performance and user-friendly operation.

Model: T1

Color: White

Innovate

Authentication

Specifications Frequently Asked Questions You May Also Like

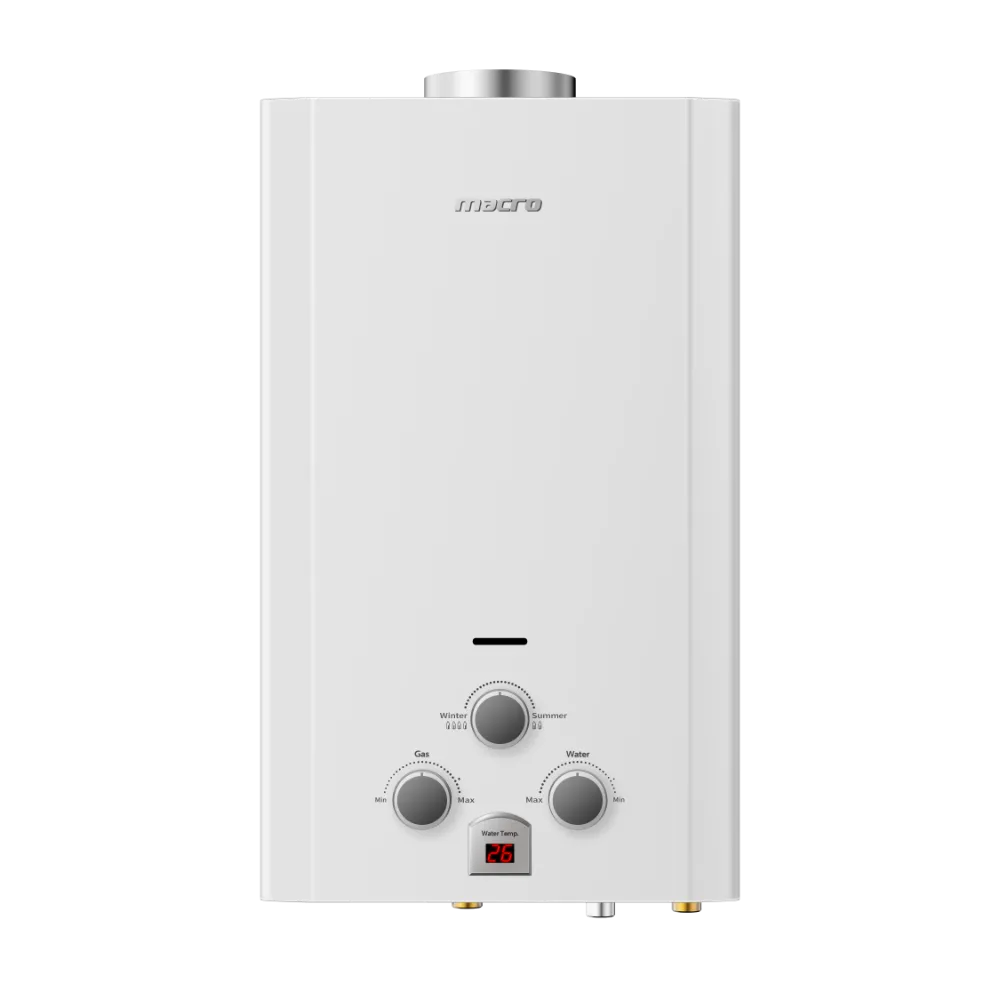

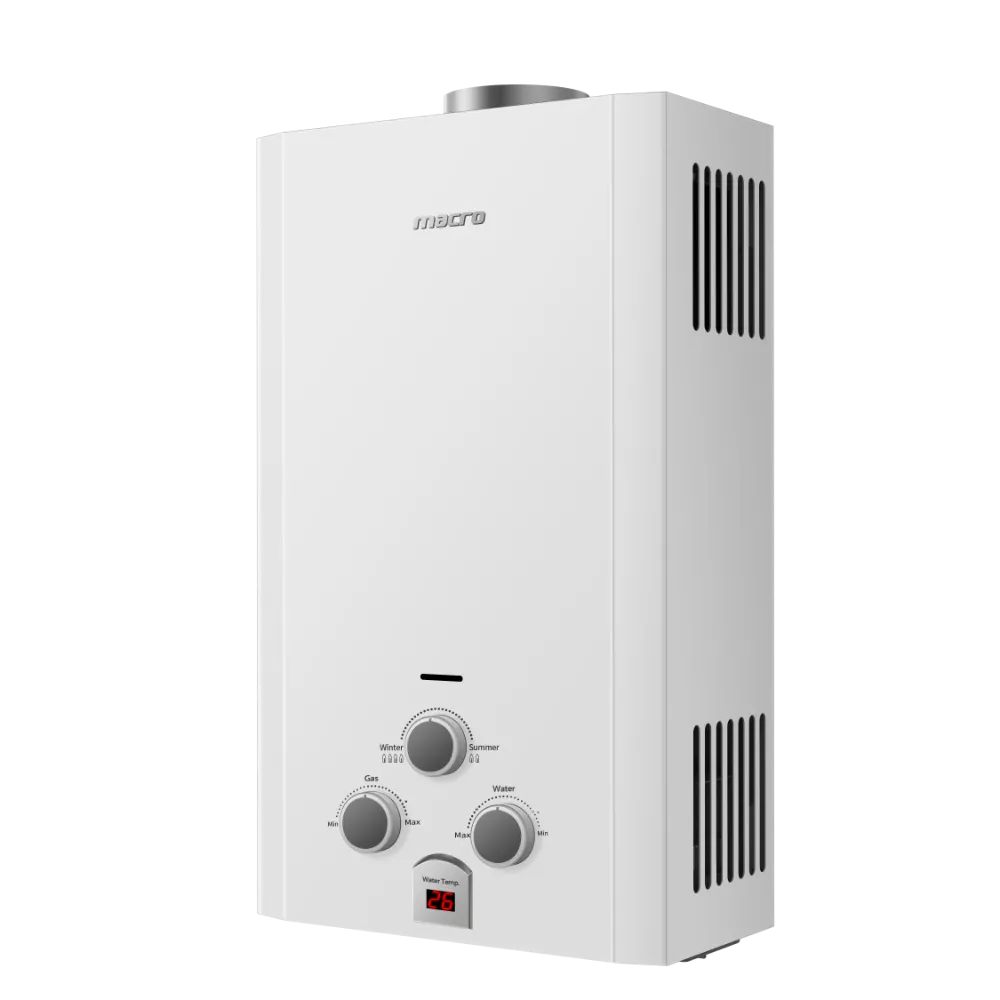

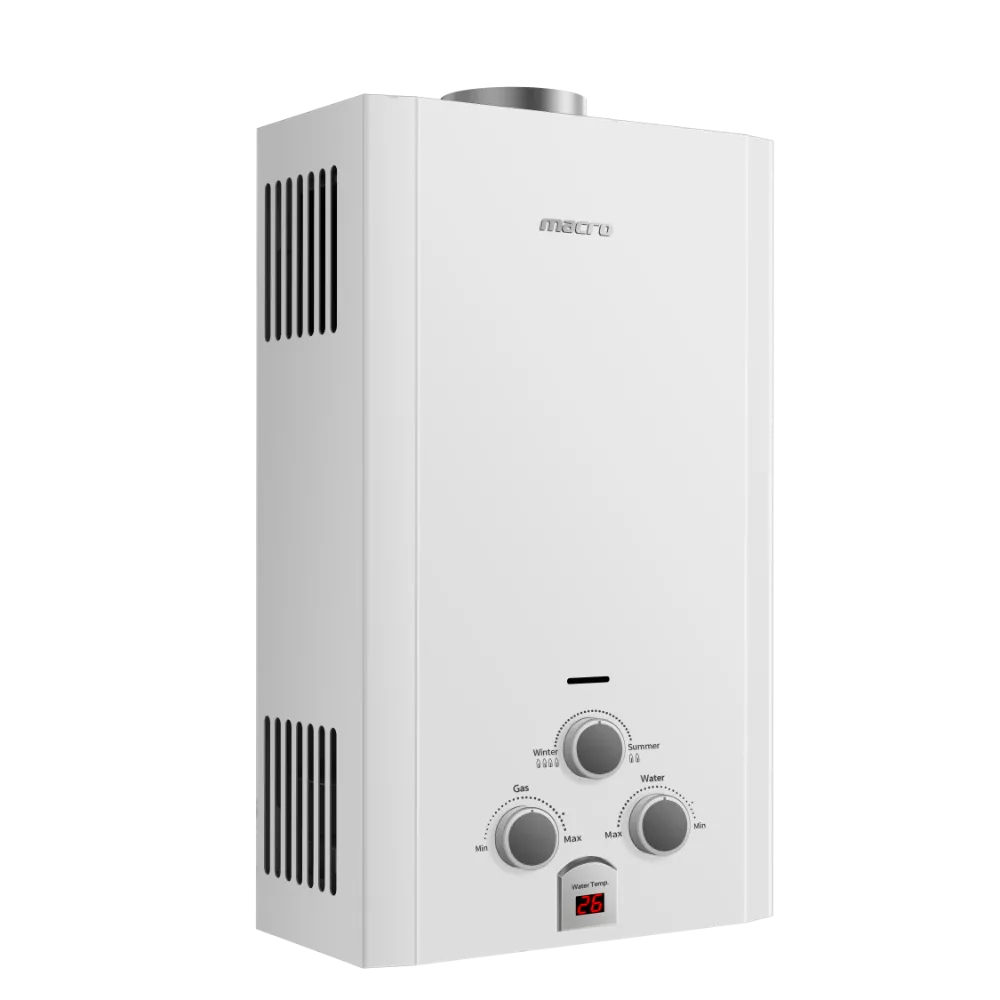

Gas Water Heater T1

The T1 Series Gas Water Heater stands out as a flagship product line designed to redefine your hot water experience. Engineered with precision, it offers three models (JSD12-6T1, JSD20-10T1, JSD24-12T1) to match varying household or commercial requirements, with hot water capacities ranging from 6L/min to 12L/min.

Powered by either natural gas (NG) or liquefied petroleum gas (LPG), the series boasts nominal powers of 12kW, 20kW, and 24kW, all achieving an efficiency rate of over 84%—guaranteeing energy-saving performance without compromising on heating speed.

Safety is paramount: the multi-protection system and water pressure release device work synergistically to prevent hazards, while the double ignition feature ensures quick and stable startup every time. For user convenience, the LED water temperature indicator provides real-time readings, and the summer/winter modes allow you to adjust performance based on seasonal temperature changes, optimizing both comfort and energy use.

In terms of design, the T1 Series balances aesthetics and practicality. The product dimensions vary across models (445305127mm to 610350188mm), ensuring a fit for different installation spaces, while the net weights (5.2kg to 9.6kg) and gross weights (6kg to 11.8kg) make handling and installation hassle-free. Packaging dimensions are optimized for logistics, and the loading quantities (up to 1610 units for 40HQ containers) cater to bulk orders efficiently.

Whether you need a reliable hot water solution for a small family, a mid-sized household, or a commercial setting, the T1 Series delivers consistent performance, safety, and efficiency—making it an indispensable addition to any space that values comfort and reliability.

LED Water Temperature Indicator

Specifications

MODEL	JSD12-6T1	JSD20-10T1	JSD24-12T1
Gas Type	NG/LPG	NG/LPG	NG/LPG
Rated Hot Water Capacity(△T=25K)	6L/min	10L/min	12L/min
Nominal Power/Rated Heat Input(kW)	12	20	24
Efficiency	>84%	>84%	>84%
N.W(kg)	5.2	8.5	9.6
G.W(kg)	6	9.8	11.8
Product Dimensions(mm)	445305127	550330198	610350188
Packaging Dimensions(mm)	570362202	688393247	734413248
Loading Qty(20GP/40GP/40HQ)	660/1380/1610	410/810/1010	320/680/800

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
