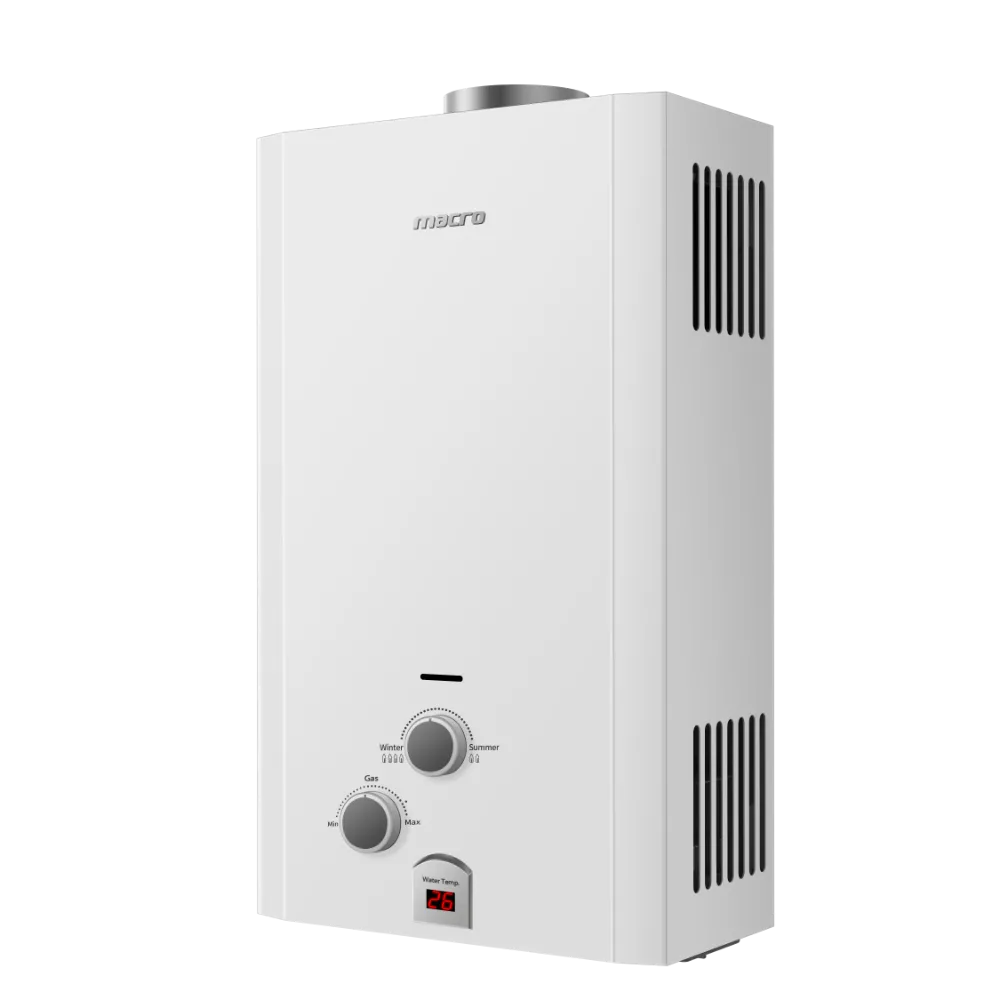

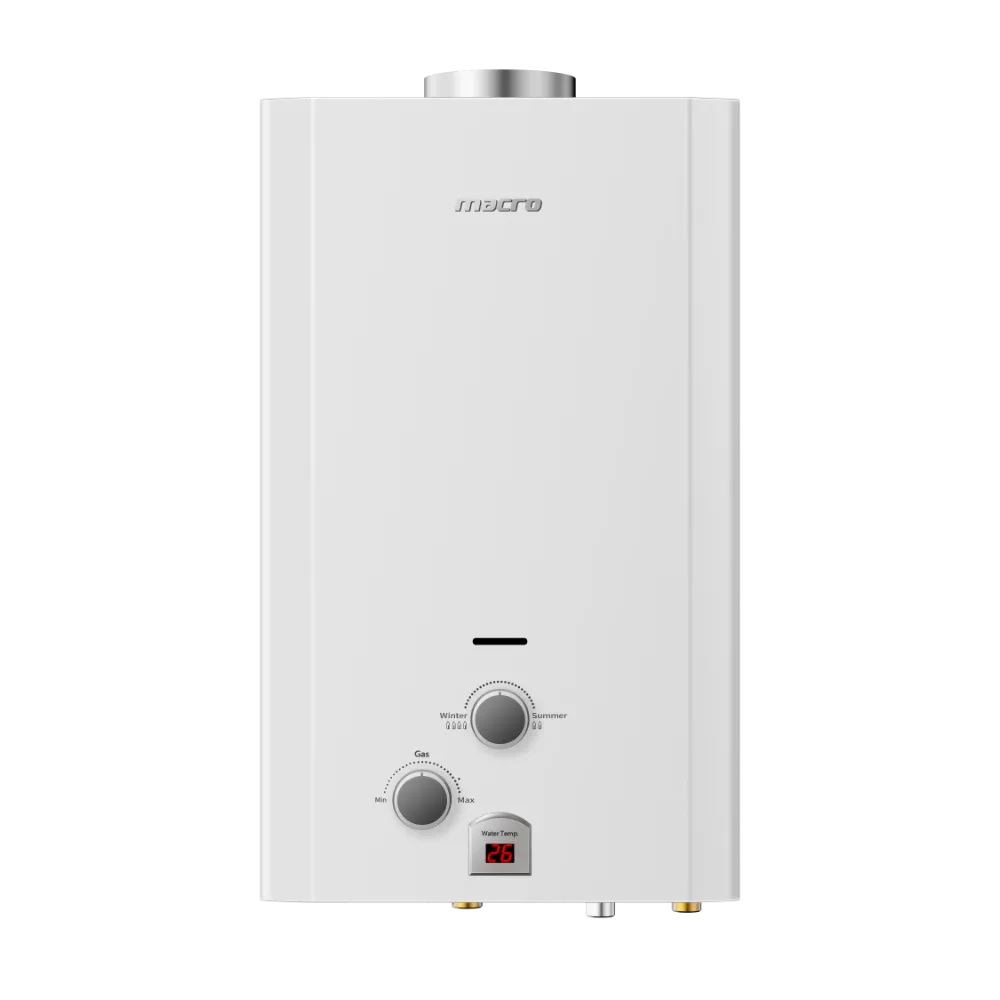

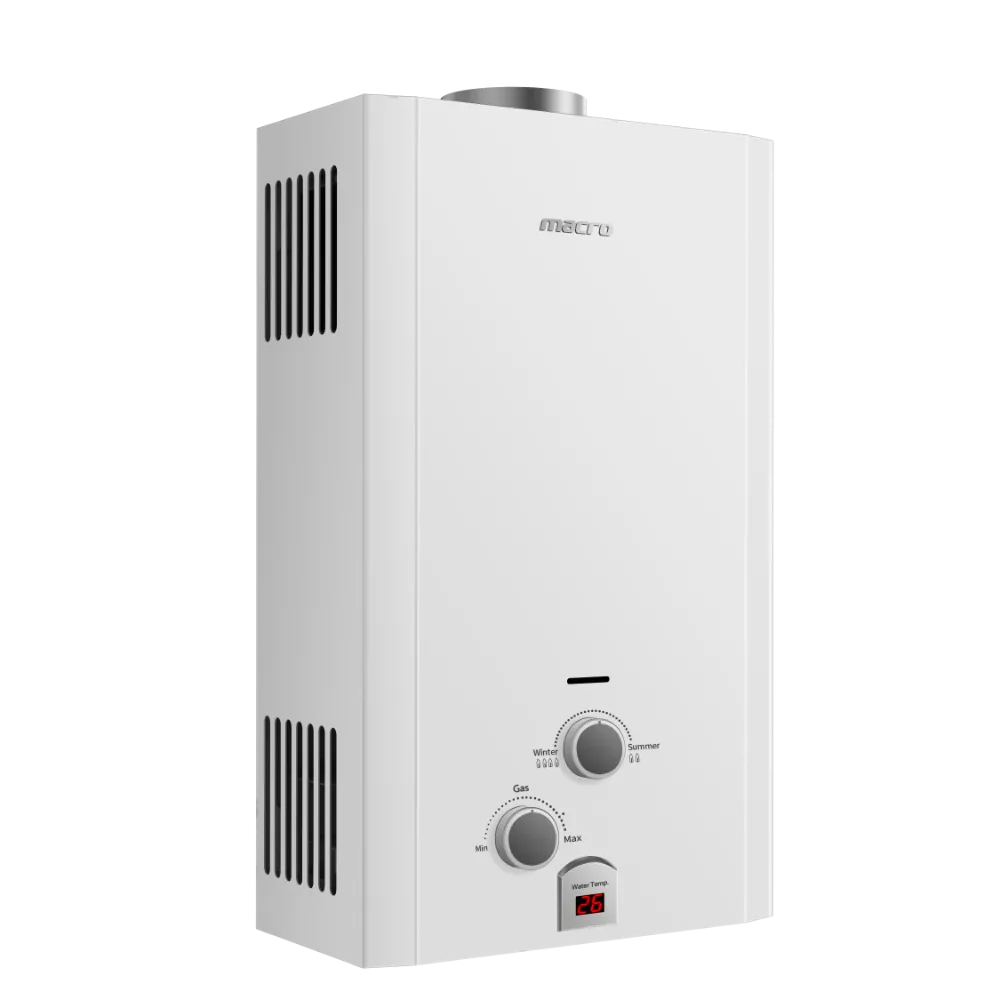

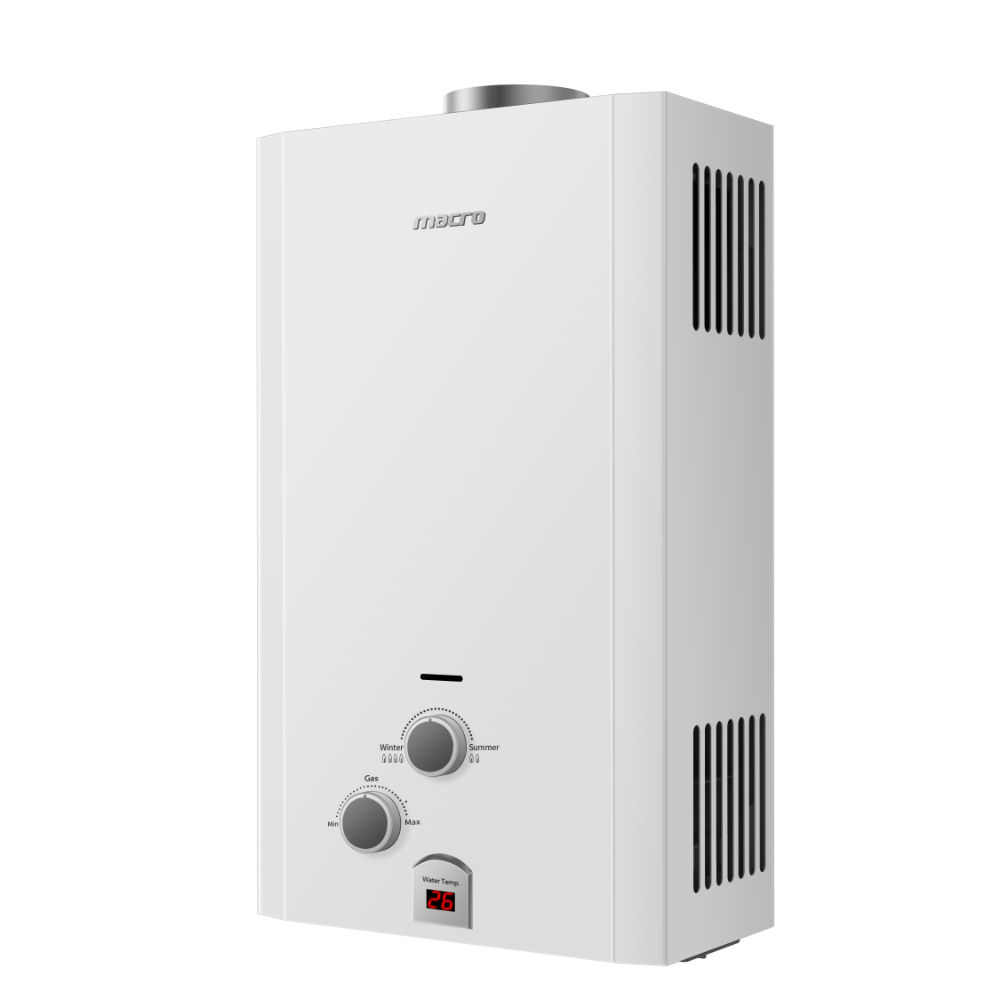

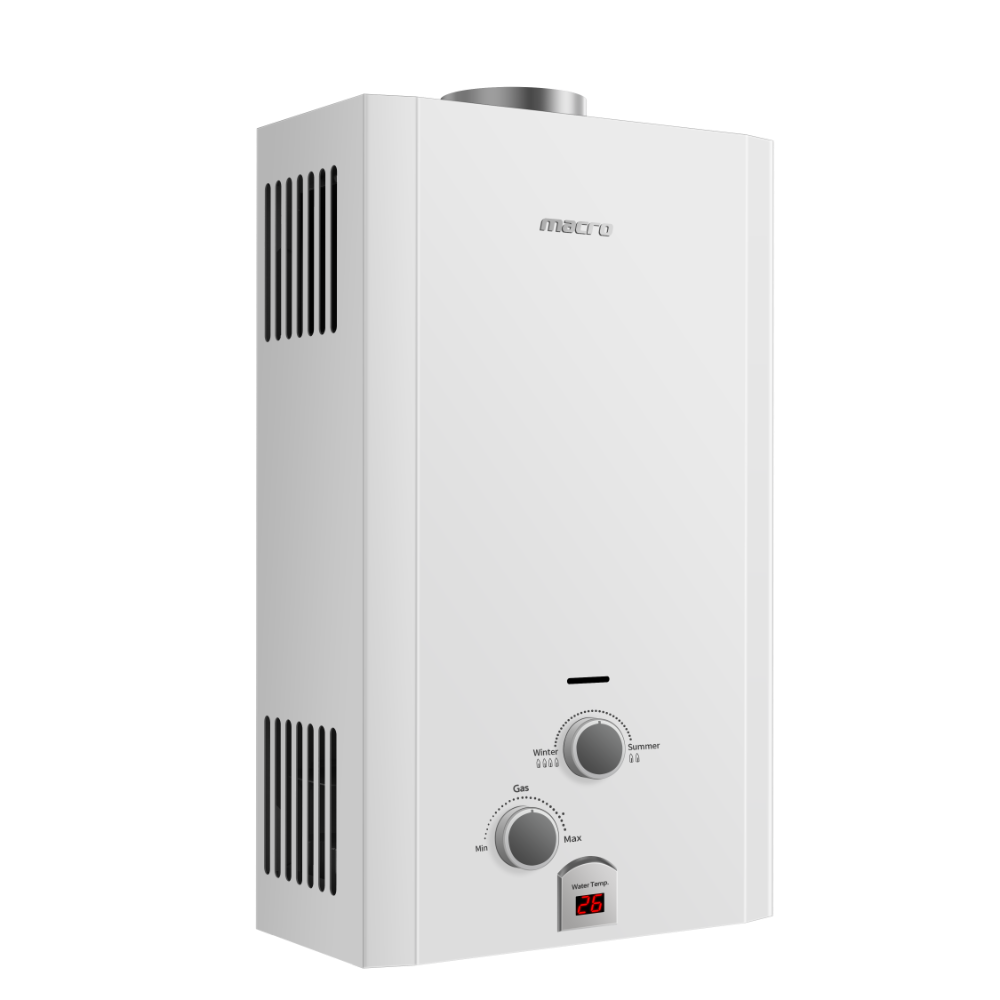

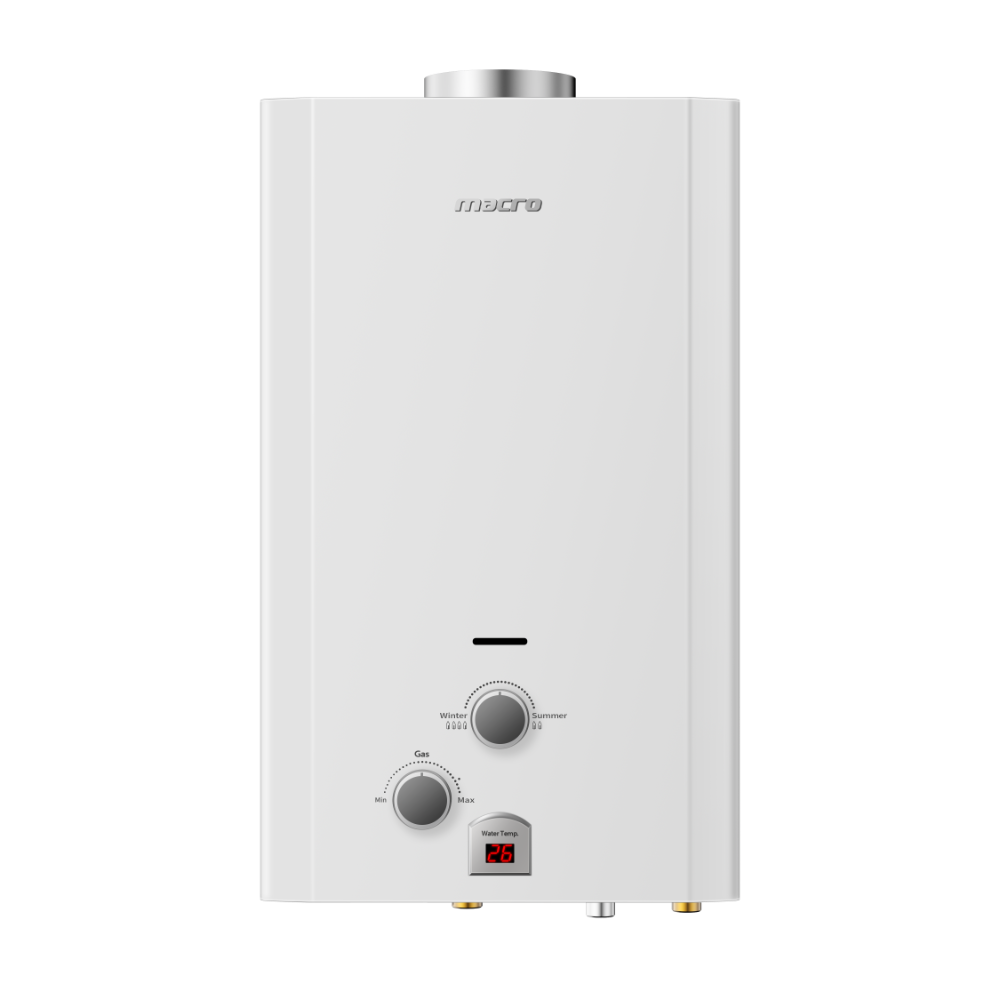

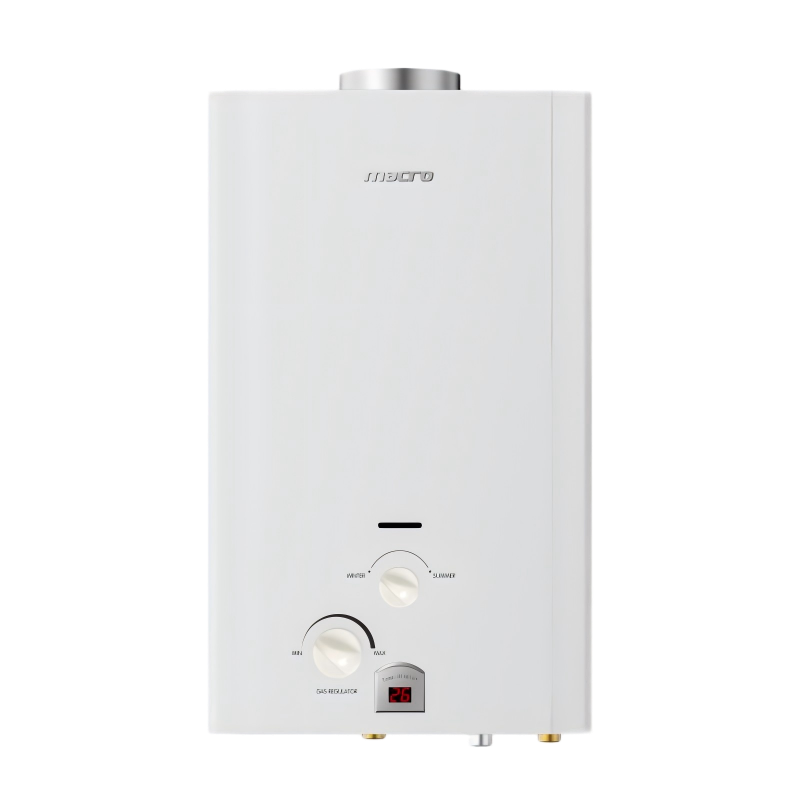

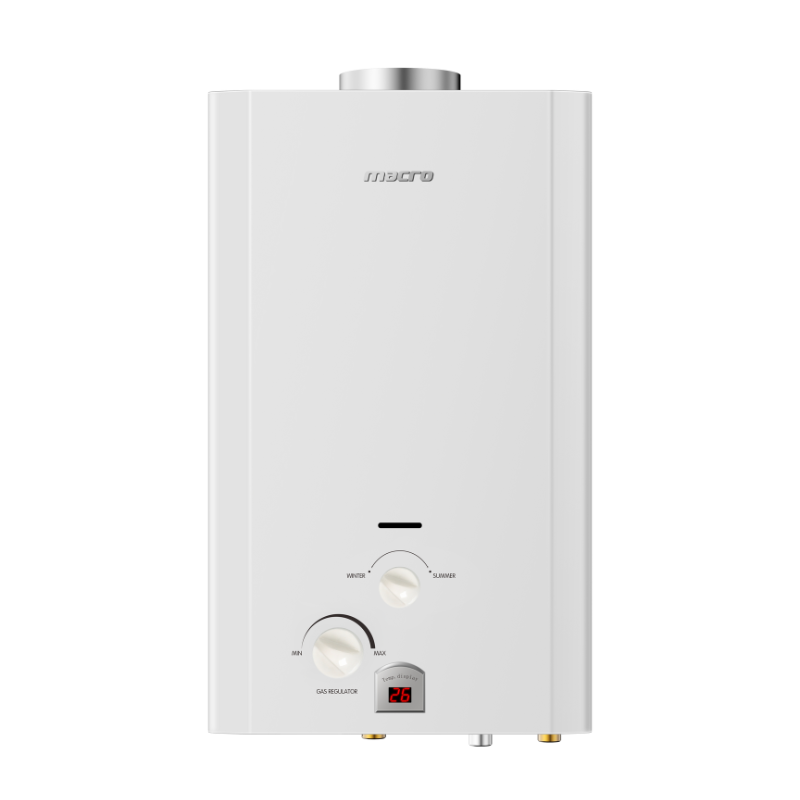

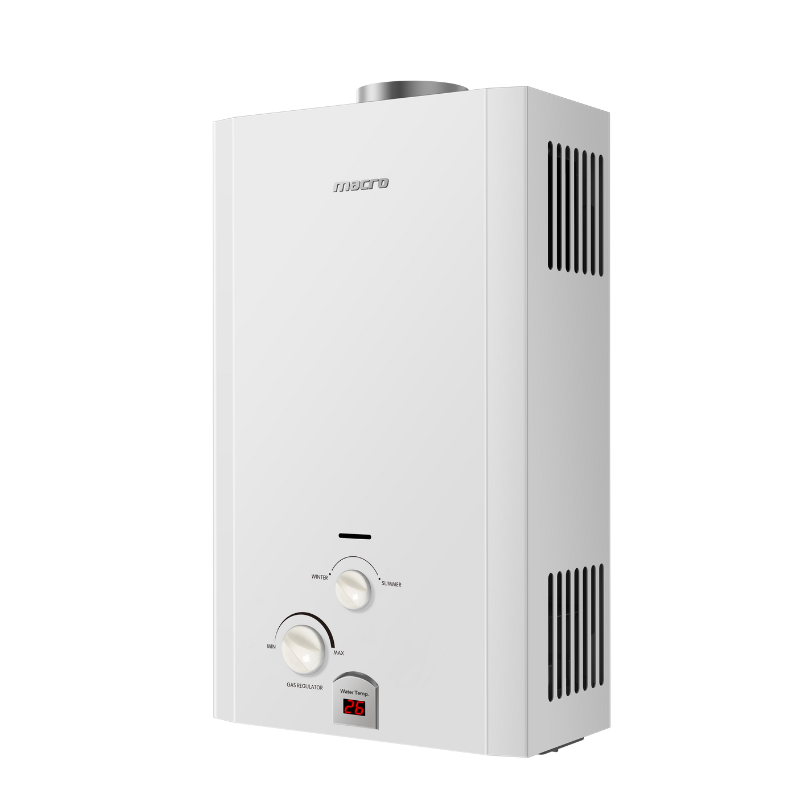

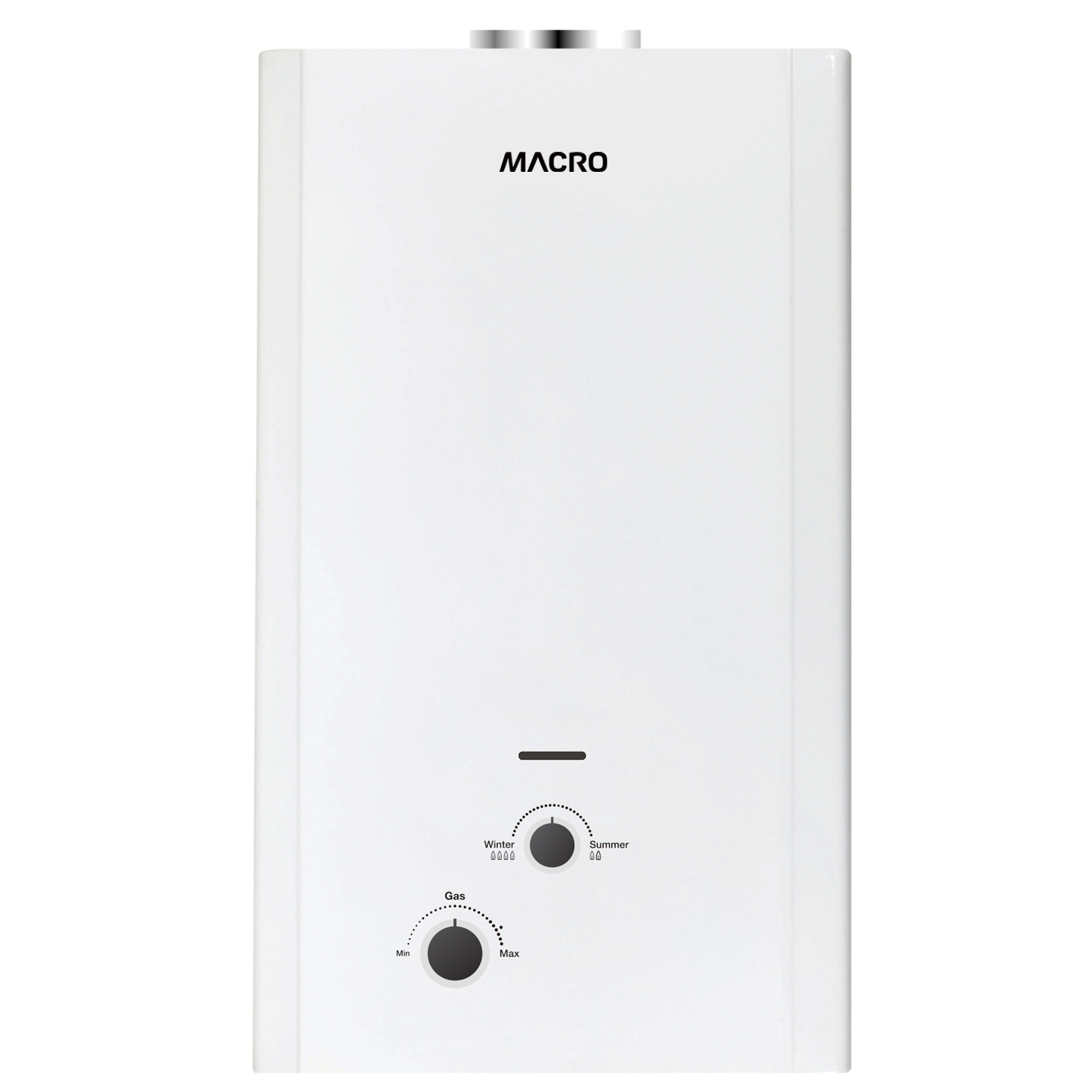

Gas Water Heater T6

Introducing the T6 Series Gas Water Heater from Macro, a cutting-edge solution for efficient and reliable hot water supply. Available in three models—JSD12-6T6, JSD20-10T6, and JSD24-12T6—this series offers rated hot water capacities of 6L/min, 10L/min, and 12L/min, compatible with both NG and LPG. It features multi-protection, LED water temperature indicator, water pressure release device, summer/winter modes, double ignition, and low water pressure adaptability, ensuring top-tier performance, safety, and convenience for diverse usage scenarios.

Model: T6

Color: White

Innovate

Authentication

Specifications Frequently Asked Questions You May Also Like

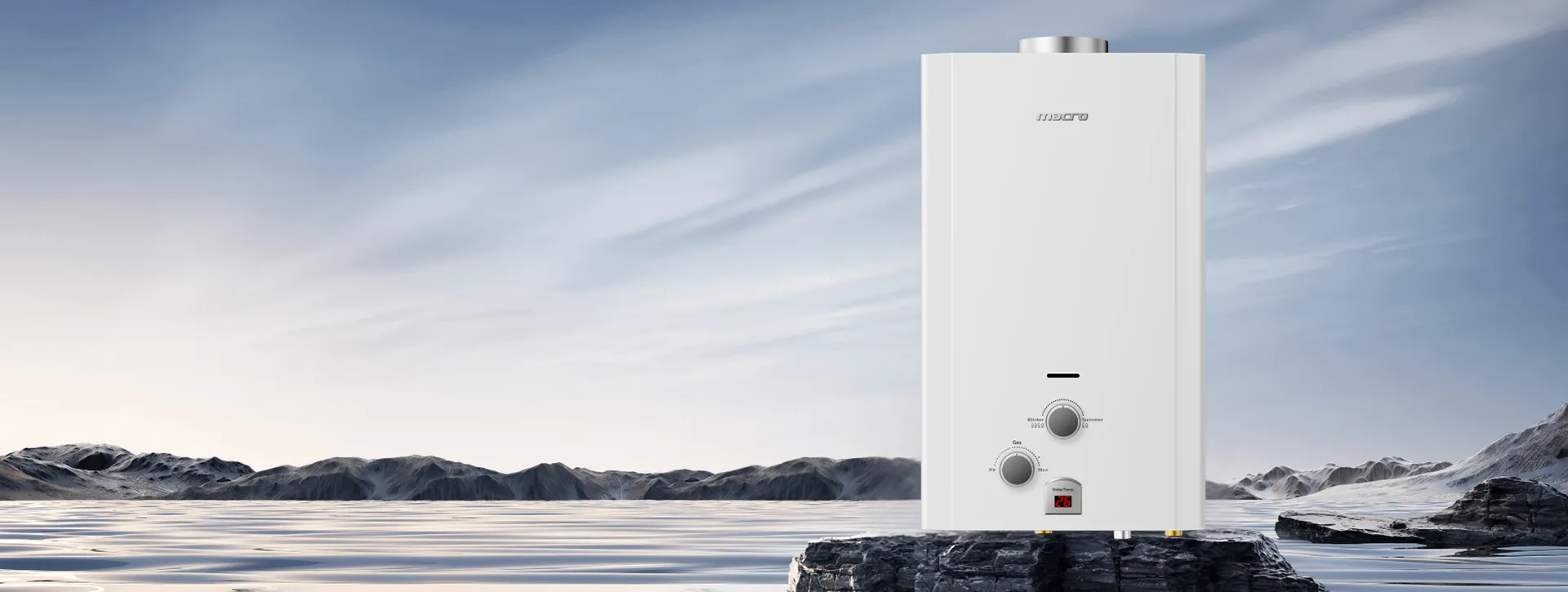

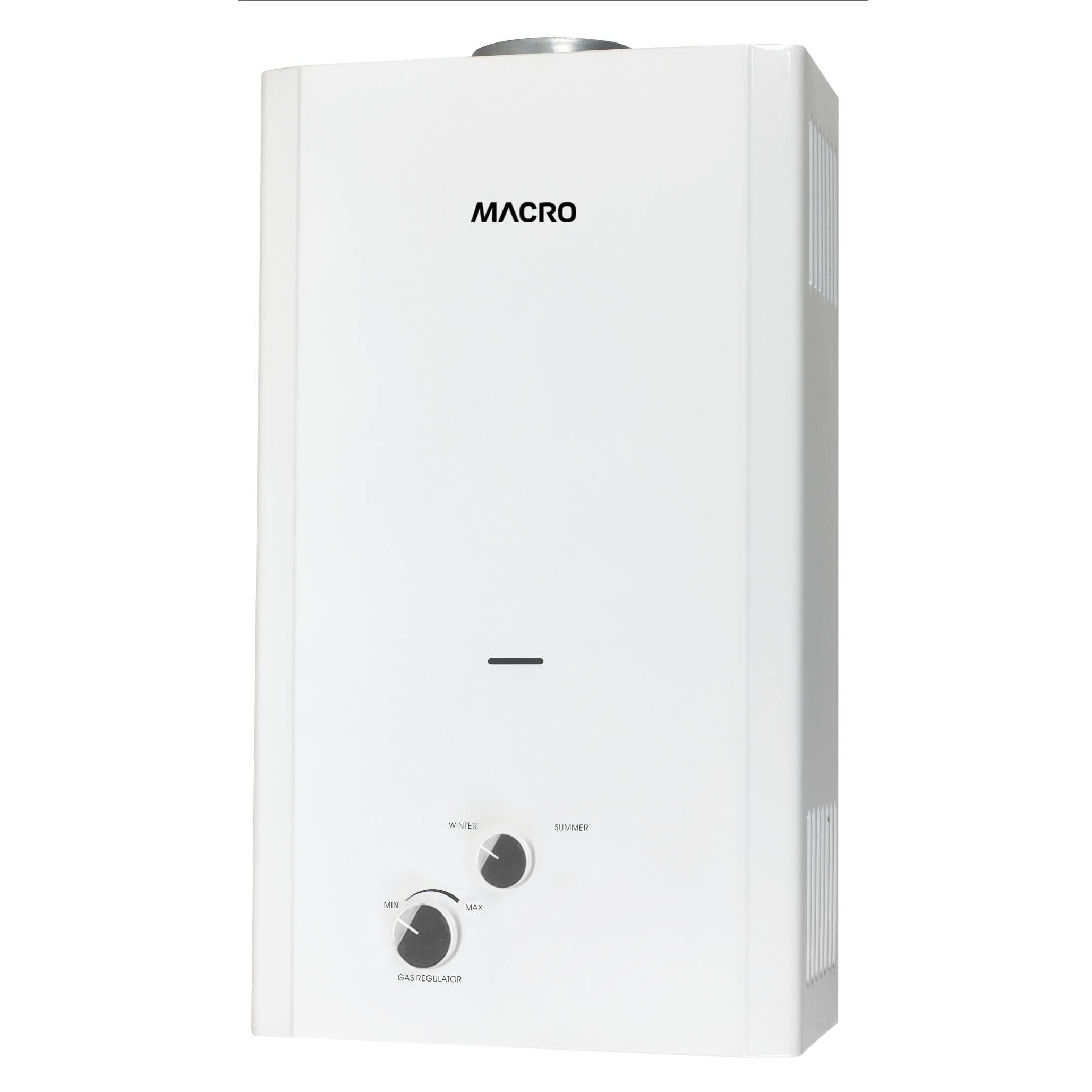

Gas Water Heater T6

The T6 Series Gas Water Heater is a premium lineup engineered to elevate your hot water experience with its blend of efficiency, safety, and versatility. Available in three models (JSD12-6T6, JSD20-10T6, JSD24-12T6), it caters to varying demands with hot water capacities ranging from 6L/min to 12L/min, making it suitable for households, small businesses, and beyond.

Powered by natural gas (NG) or liquefied petroleum gas (LPG), the series delivers nominal powers of 12kW, 20kW, and 24kW, all boasting an efficiency rate of over 84%. This ensures rapid heating while minimizing energy consumption, making it an eco-friendly and cost-effective choice.

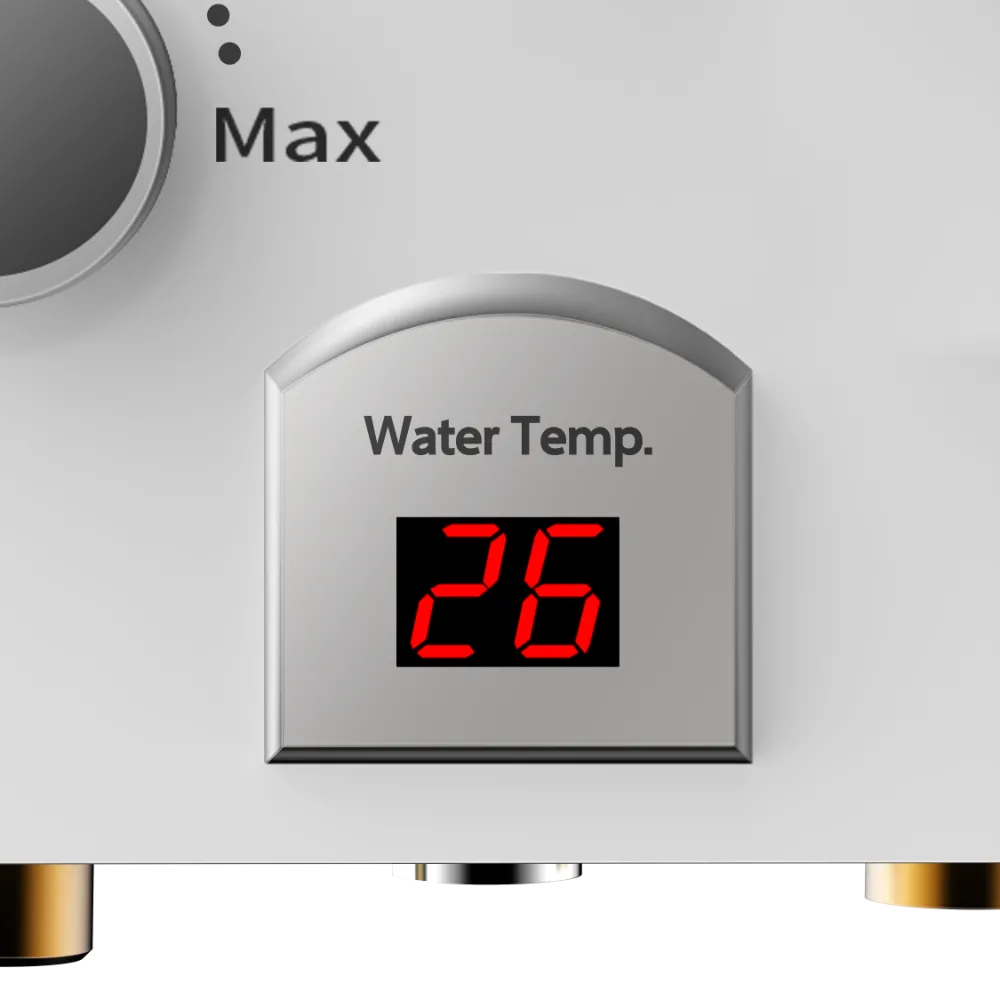

Safety and reliability are at the core of the T6 Series. The multi-protection system, water pressure release device, and double ignition work in tandem to prevent risks and ensure stable startup. The LED water temperature indicator provides real-time visibility into water temperature, while summer and winter modes allow for seasonal adjustment, optimizing comfort and energy use. Additionally, its low water pressure adaptability ensures consistent performance even in areas with unstable water supply.

In terms of design and practicality, the T6 Series is built to impress. Product dimensions range from 445305127mm to 610350188mm, fitting seamlessly into different installation spaces. Net weights (5.7kg to 9.6kg) and gross weights (6.5kg to 11.8kg) facilitate easy handling and installation. Packaging dimensions are optimized for logistics, and loading quantities (up to 1610 units for 40HQ containers) support efficient bulk ordering.

Whether you need a dependable hot water solution for a small family, a busy household, or a commercial environment, the T6 Series delivers consistent performance, advanced safety features, and remarkable efficiency—establishing itself as an essential addition to any space that prioritizes comfort, reliability, and smart energy use.

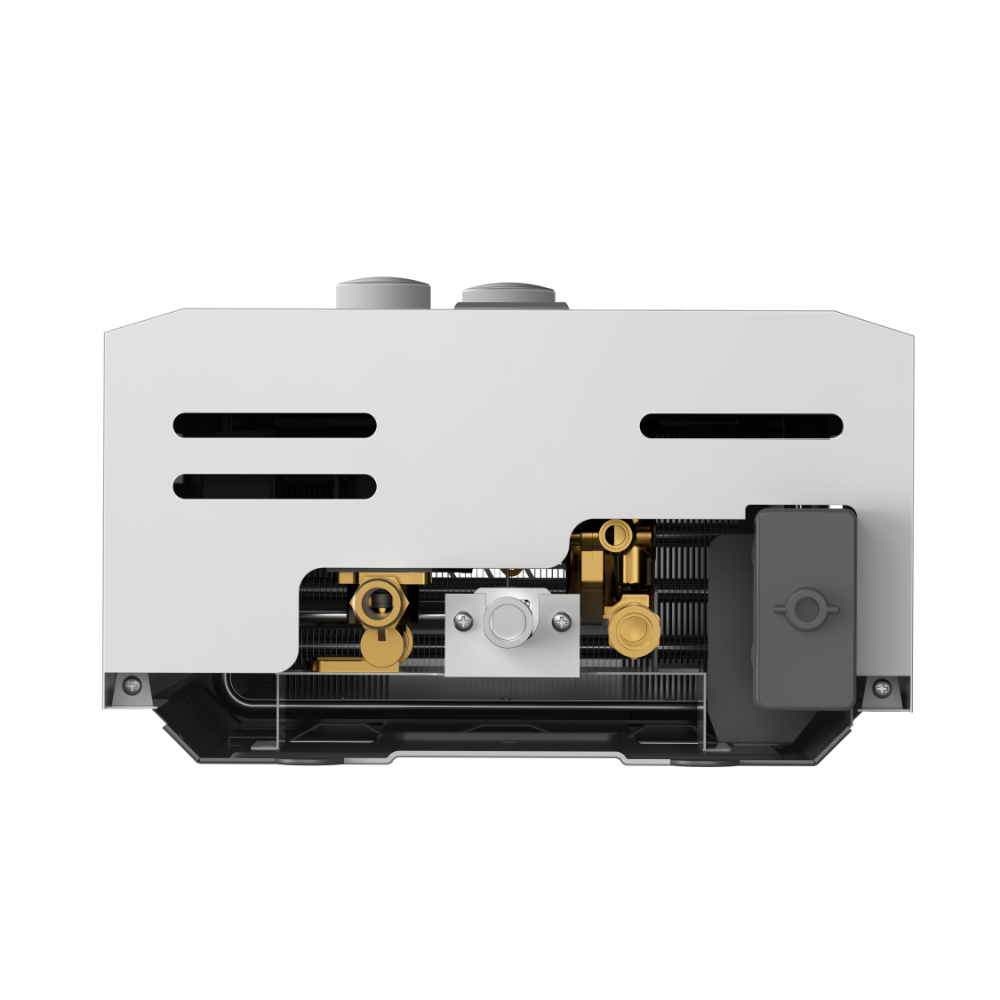

Water Pressure Release Device

Specifications

MODEL	JSD12-6T6	JSD20-10T6	JSD24-12T6
Gas Type	NG/LPG	NG/LPG	NG/LPG
Rated Hot Water Capacity(△T=25K)	6L/min	10L/min	12L/min
Nominal Power/Rated Heat Input(kW)	12	20	24
Efficiency	>84%	>84%	>84%
N.W(kg)	5.7	8.5	9.6
G.W(kg)	6.5	9.8	11.8
Product Dimensions(mm)	445305127	550330198	610350188
Packaging Dimensions(mm)	570362202	688393247	734413248
Loading Qty(20GP/40GP/40HQ)	660/1380/1610	410/810/1010	320/680/800

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
