Prefilter Series

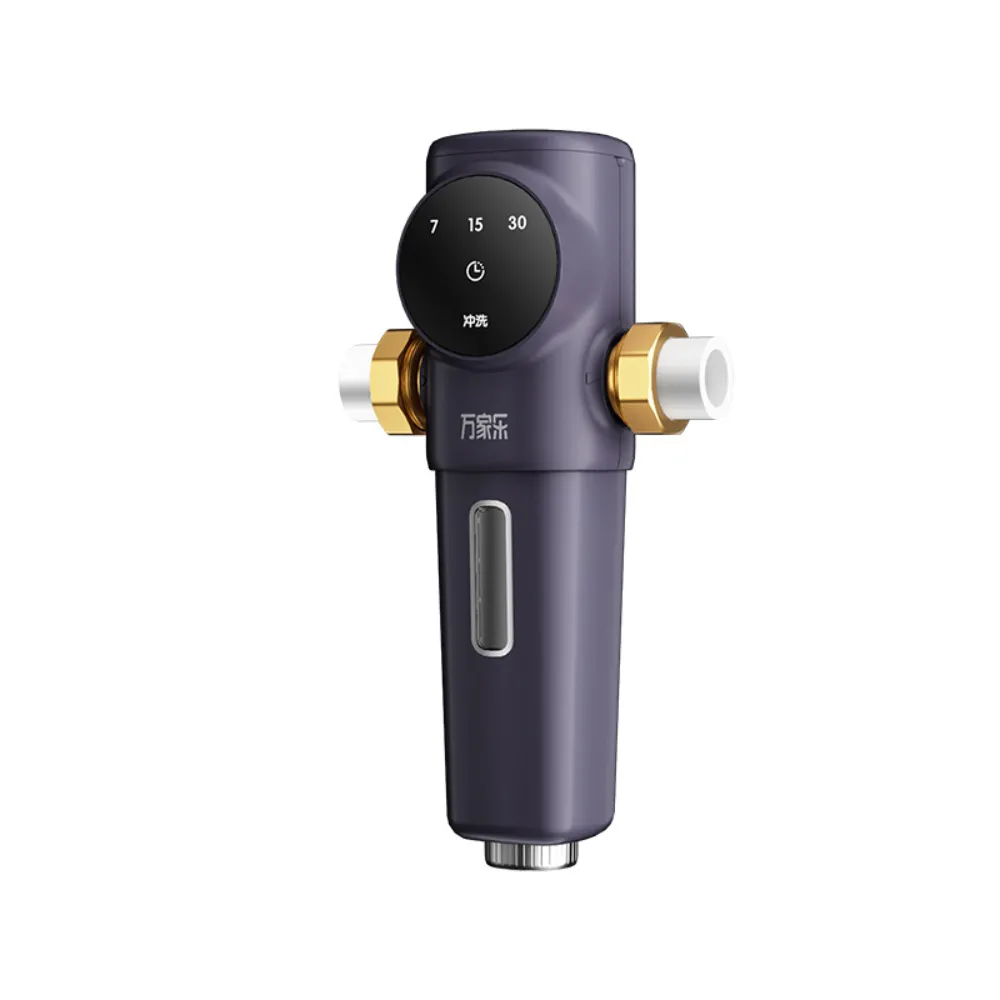

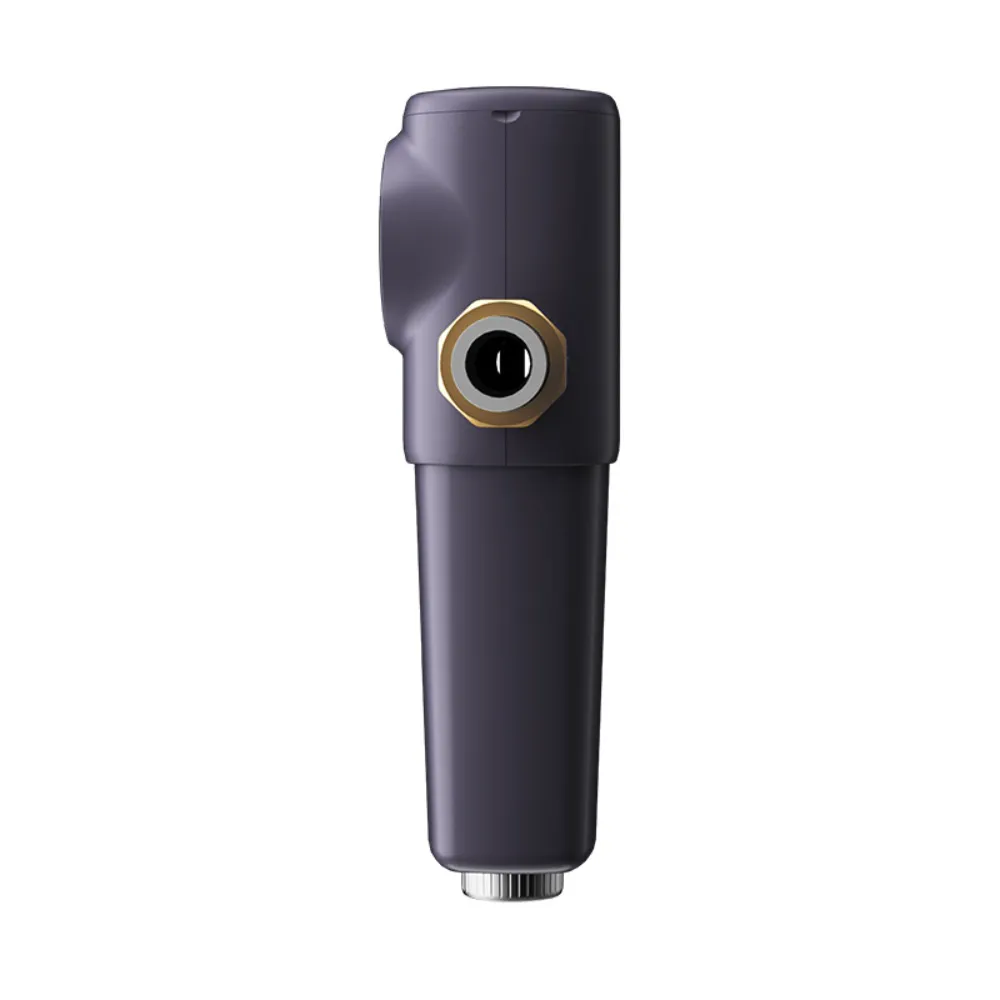

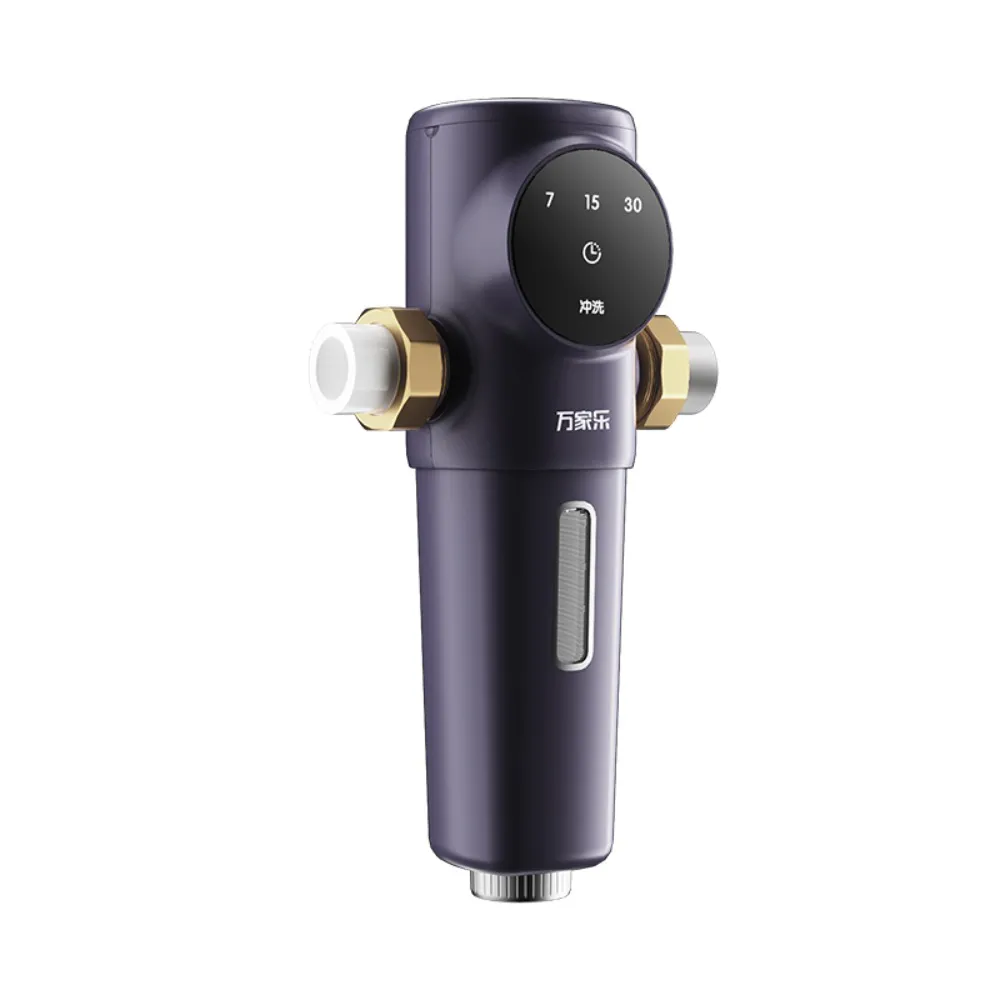

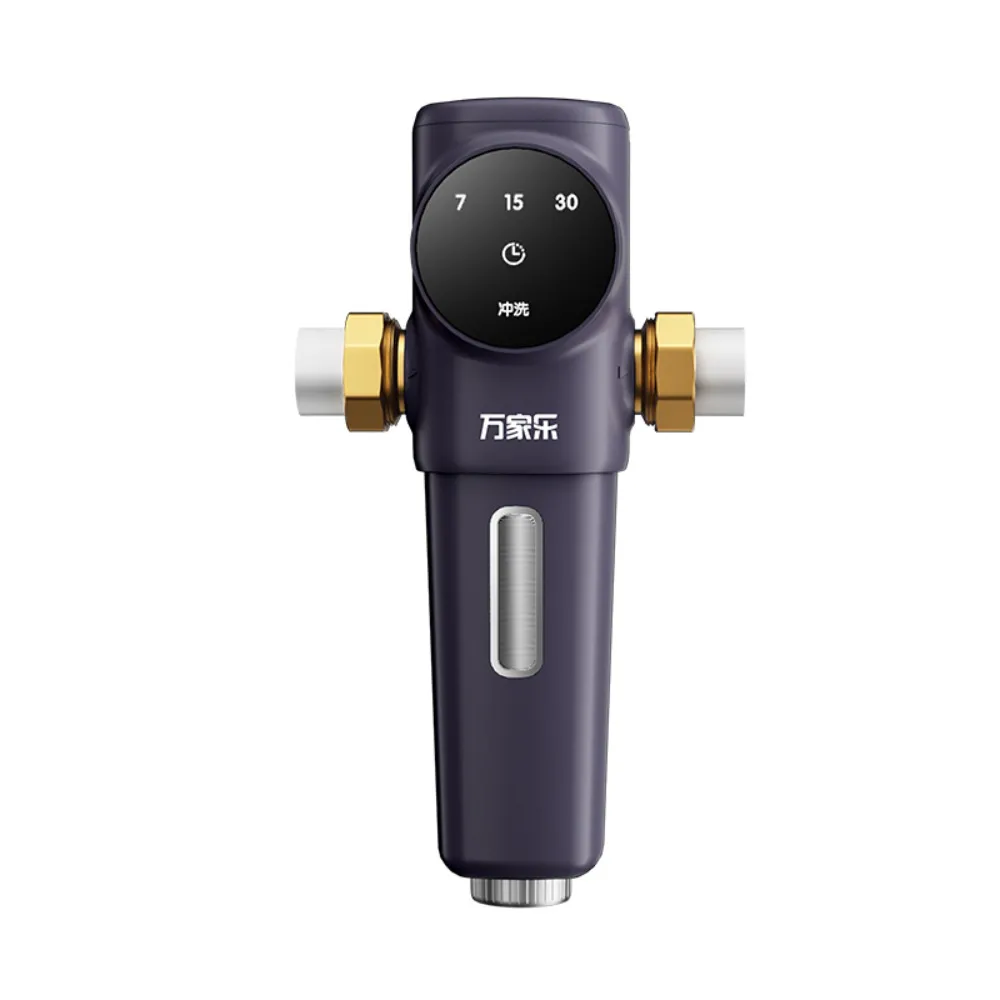

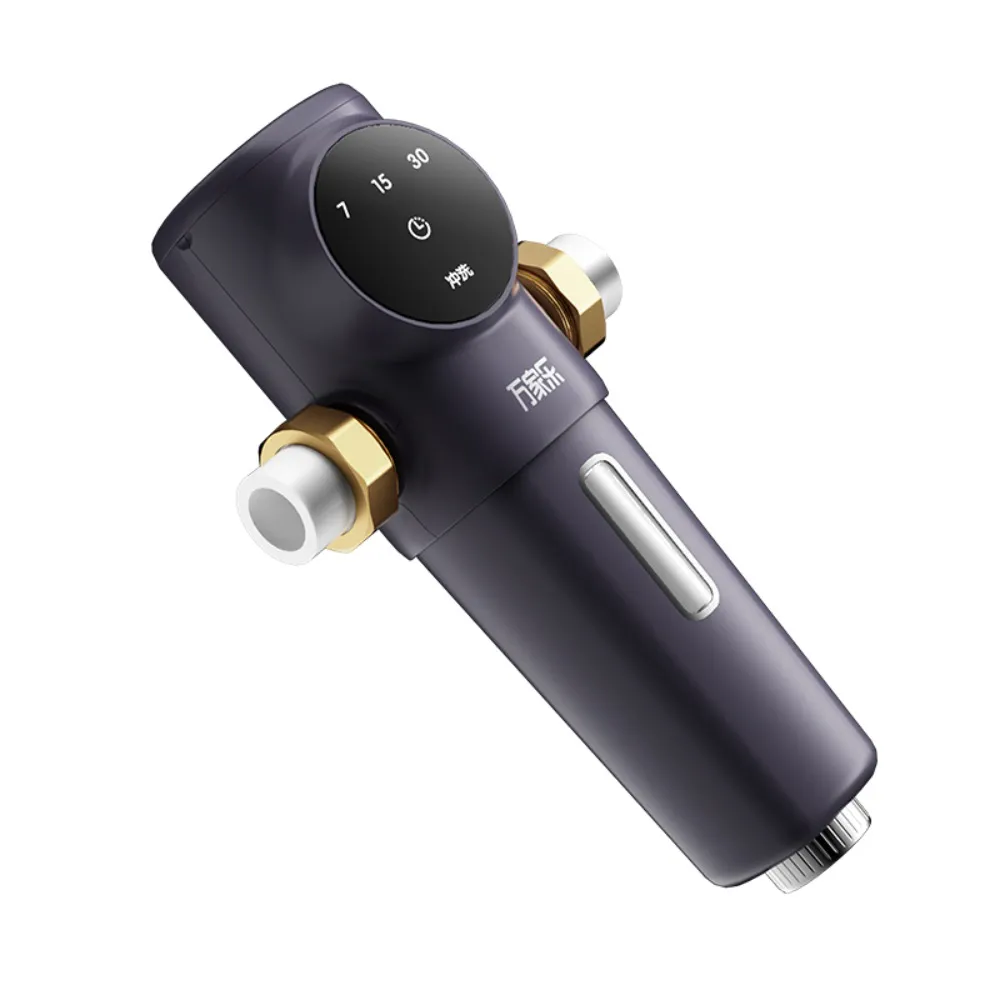

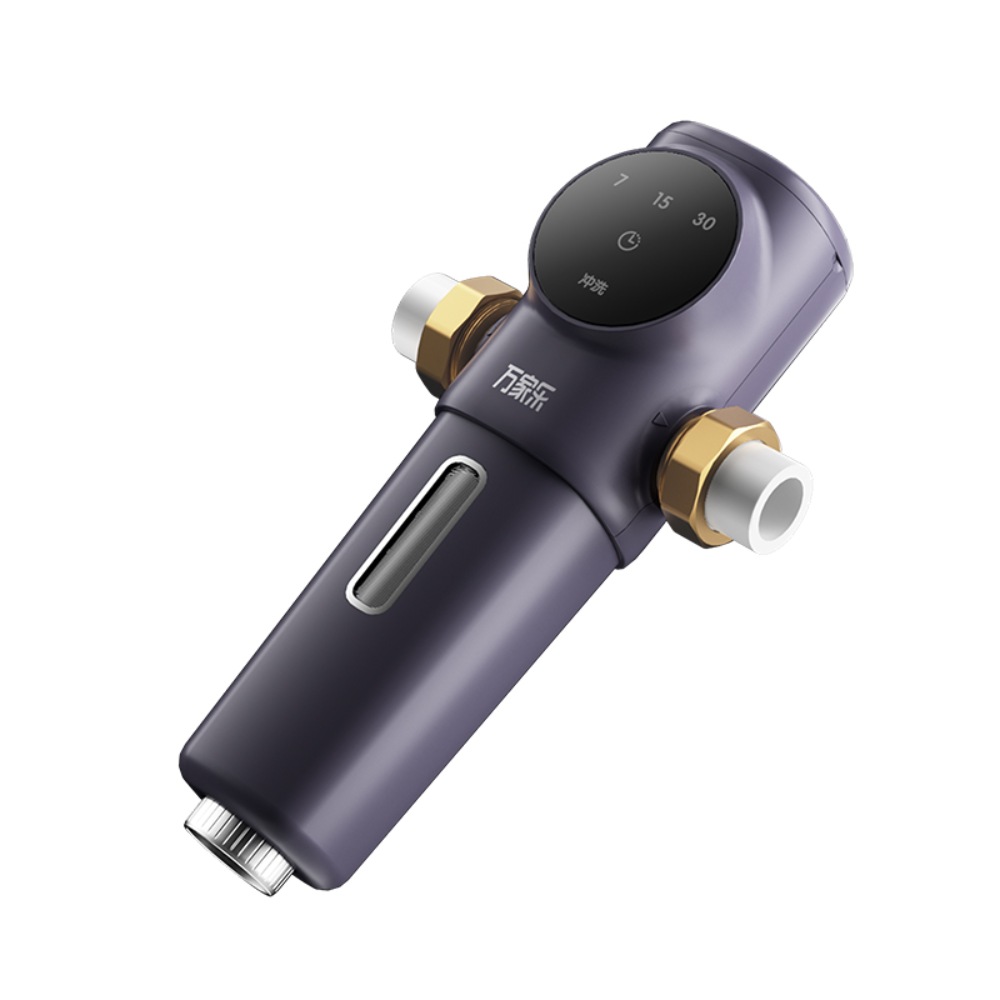

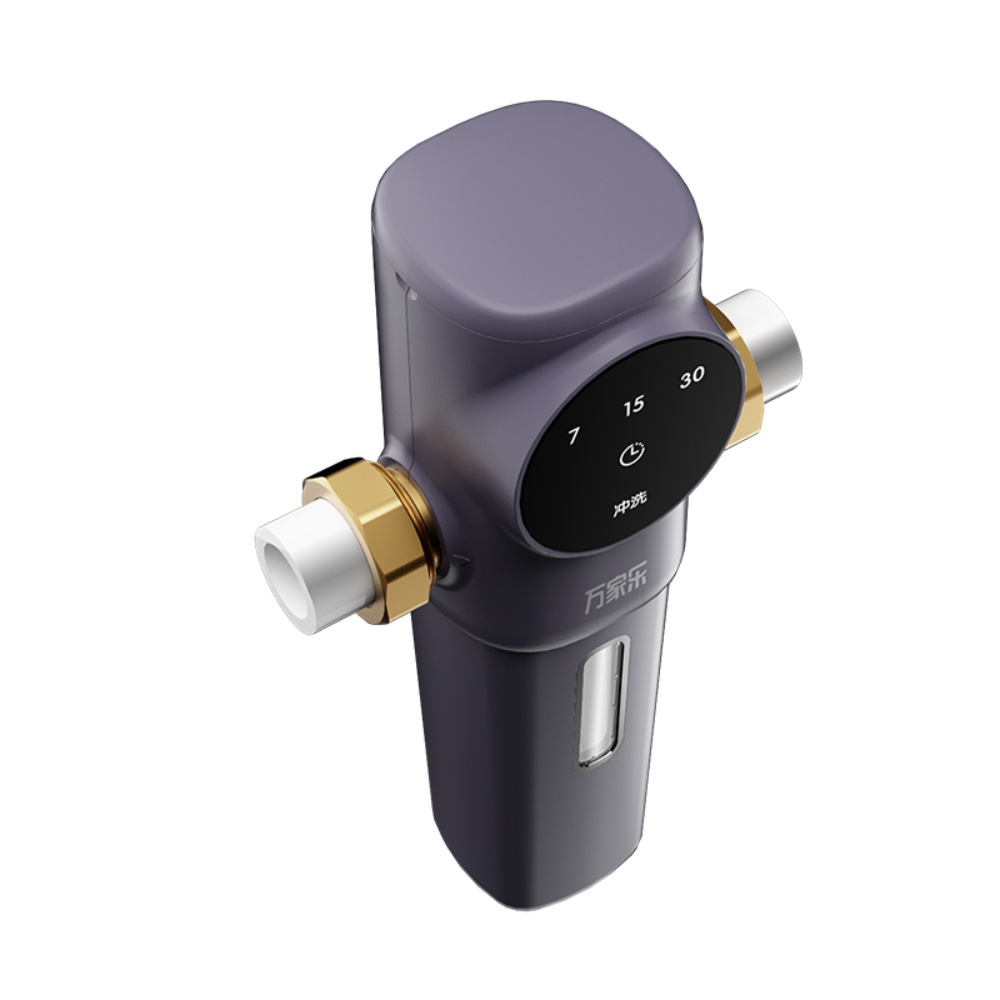

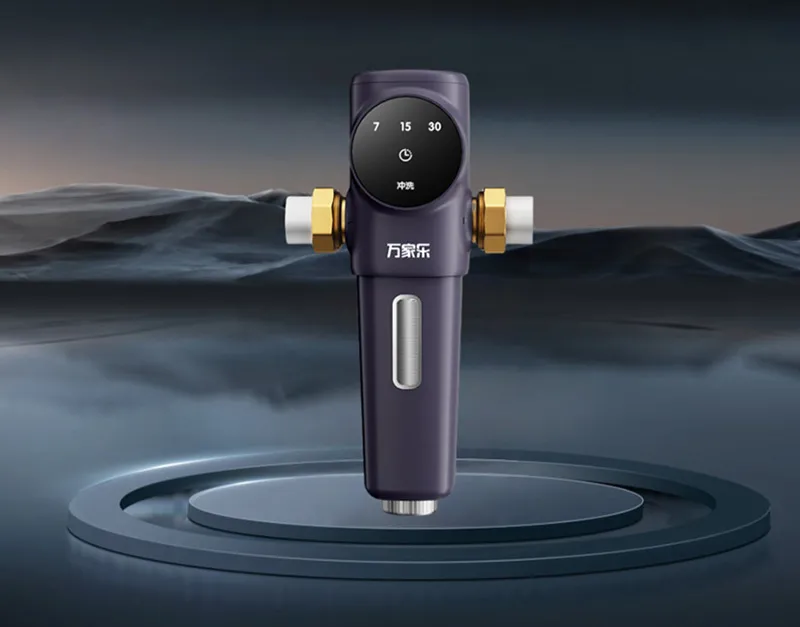

Model: CHQ-15
This high-end pre-filter features a precision 40-micron 316 stainless steel mesh for superior filtration, combined with antibacterial 59-1 copper alloy construction and PP material to prevent copper leaching. Engineered for extreme conditions with -30°C freeze-proofing, it delivers reliable whole-house water pretreatment.
The intelligent button control with LED display provides real-time monitoring and operation. Its innovative 4-mode auto-cleaning system (including timed flush and manual modes) ensures maintenance-free performance:
• Standard cleaning
• Intensive cleaning
• Timed flush
• Manual mode
Features
Suitable for Whole-Houseor Under-Sink Installation,Convenient On-Demand Use
Can be installed on the main water line forwhole-house filtration or independently atthe front end of water-using appliances fortargeted purification.

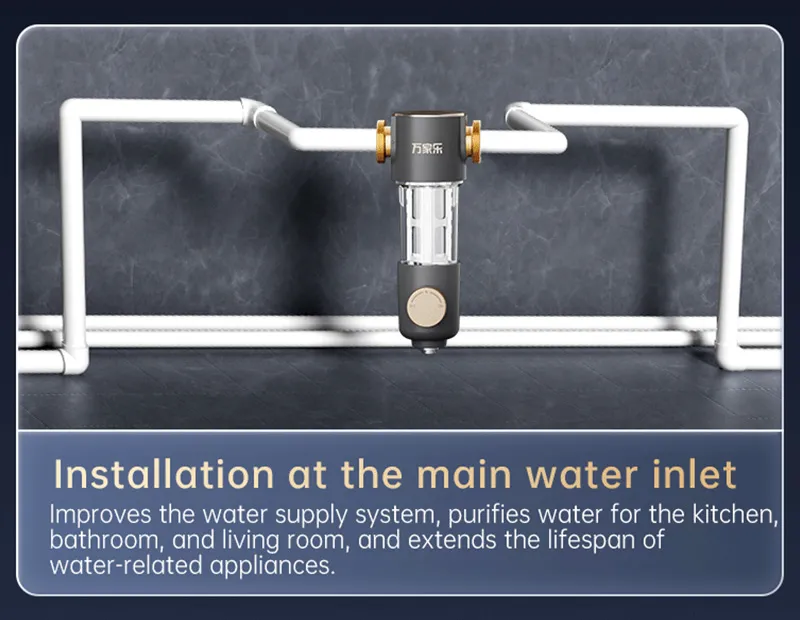

Installation at the main water inlet
Improves the water supply system, purifies water for the kitchenbathroom, and living room, and extends the lifespan ofwater-related appliances.
Suitable for Whole-Houseor Under-Sink Installation,Convenient On-Demand Use

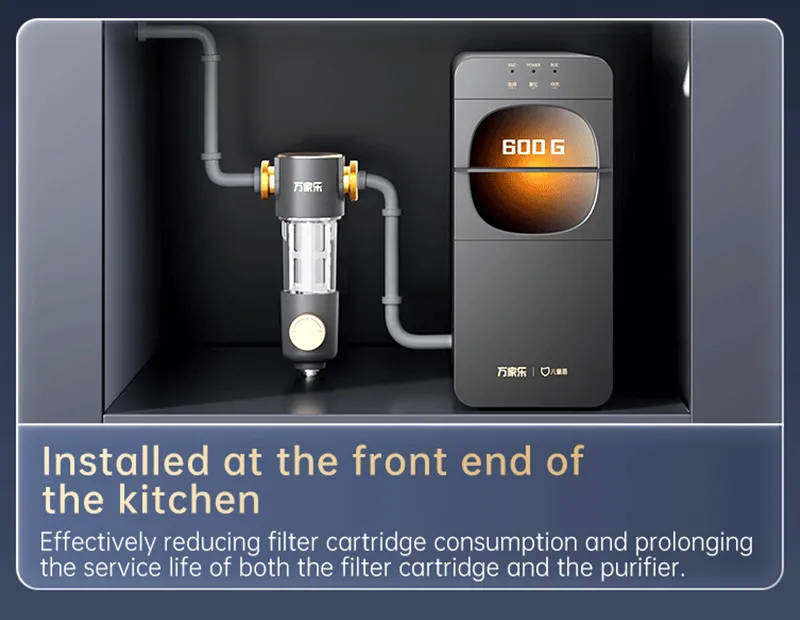

Installed at the front end ofthe kitchen
Effectively reducing filter cartridge consumption and prolongingthe service life of both the filter cartridge and the purifier.
7 tons/hour = 117 liters/minute
With a single faucet flow rateof 9 liters/minute, this isequivalent to the flow of 13faucets running simultaneously
Consistent Flow andStable Water Pressure
Easily supports multiple waterusage scenarios simultaneously.
Kitchen: Faucet for washing+ dishwasher running simultaneously
Bathing: Multiple bathroomsfor simultaneousshowers
Laundry: Washing machine + watering plants on the balcony

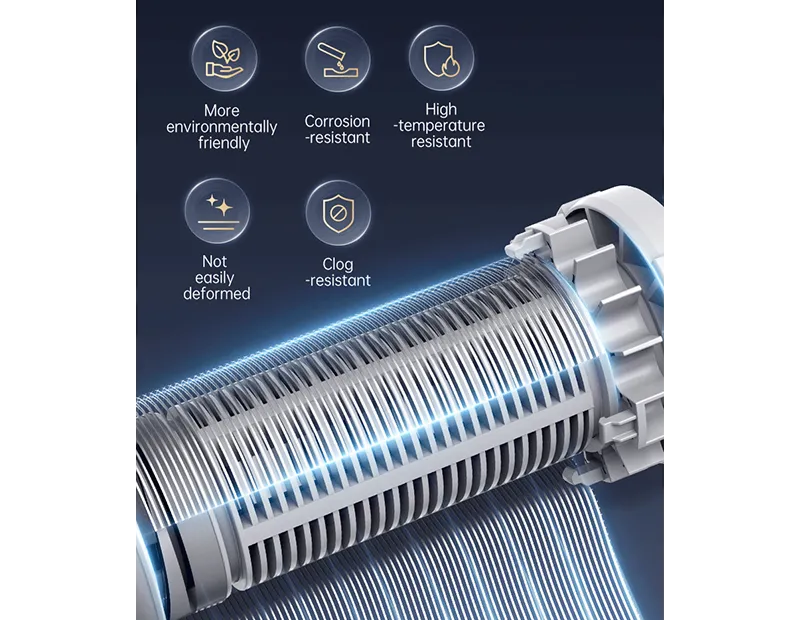

316 FOOD GRADESTAINLESS STEEL MESH,NO NEED REPLACE
More environmentally friendly
Corrosion-resistant
High-temperature resistant
Not easily deformed
Clog-resistant
Exquisite Craftsmanshipfor the Discerning
(1) Automatic Self-Cleaning Design
No need for manual washing, ensuring a cleaner result.
Exquisite Craftsmanshipfor the Discerning

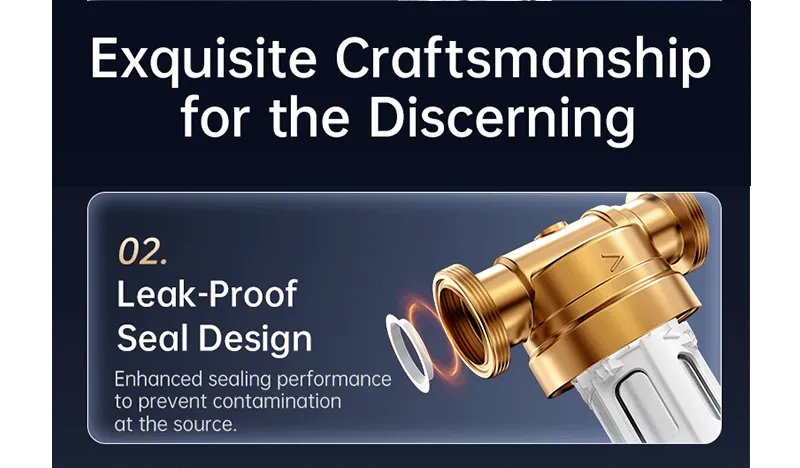

(2) Leak-Proof Seal Design
Enhanced sealing performanceto prevent contamination at the source.
Exquisite Craftsmanshipfor the Discerning

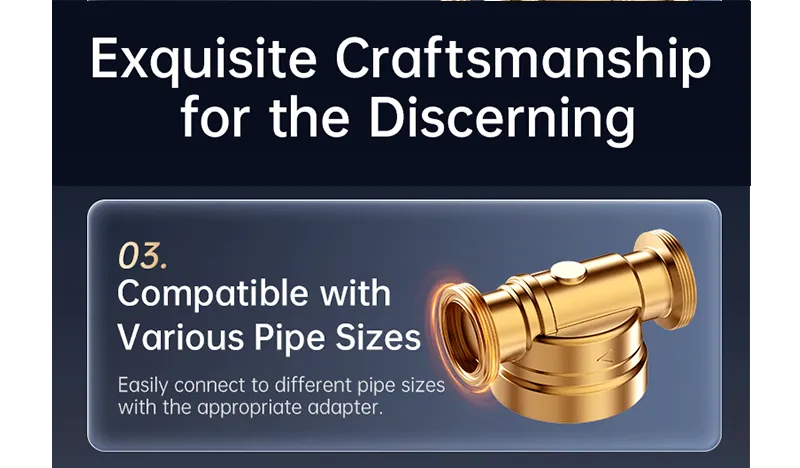

(3) Compatible with Various Pipe Sizes
Easily connect to different pipe sizes with the appropriate adapter.
Specifications
| Model | CHQ-15-7.0T |
| Total purified water volume (L) | - |
| Purified water flow rate (L/min) | 116.6 |
| Ratio of Waste Water | - |
| Applicable water temperature (℃) | 5~38 |
| Inlet water pressure (MPa) | 0.1~1 |
| Net Weight (kg) | 1.45 |
| Gross Weight (kg) | 1.9 |
| Product Sizem (mm) | 313*170*90 |
| Package size (mm) | 300*157*121 |
| Rated voltage (V)/Frequency (Hz) | - |
| Power (W) | - |
| Filter Element | Stainless Steel Filter Mesh |
| Operation Type | Computer version Key control LED Display |
| Intelligent Interaction | Automatic flushing Manual flushing |
| Safe Function | - |
