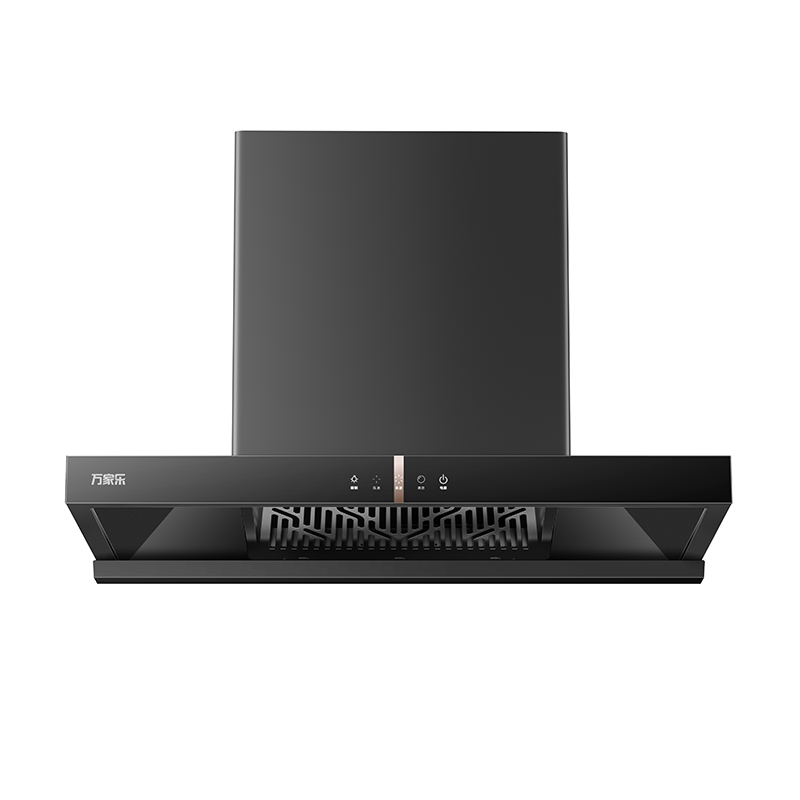

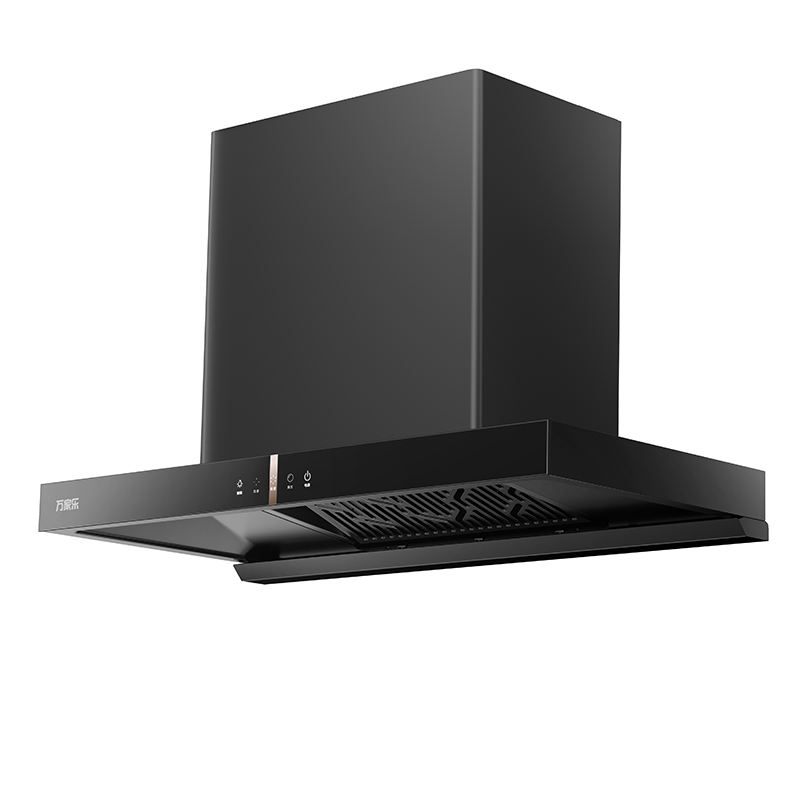

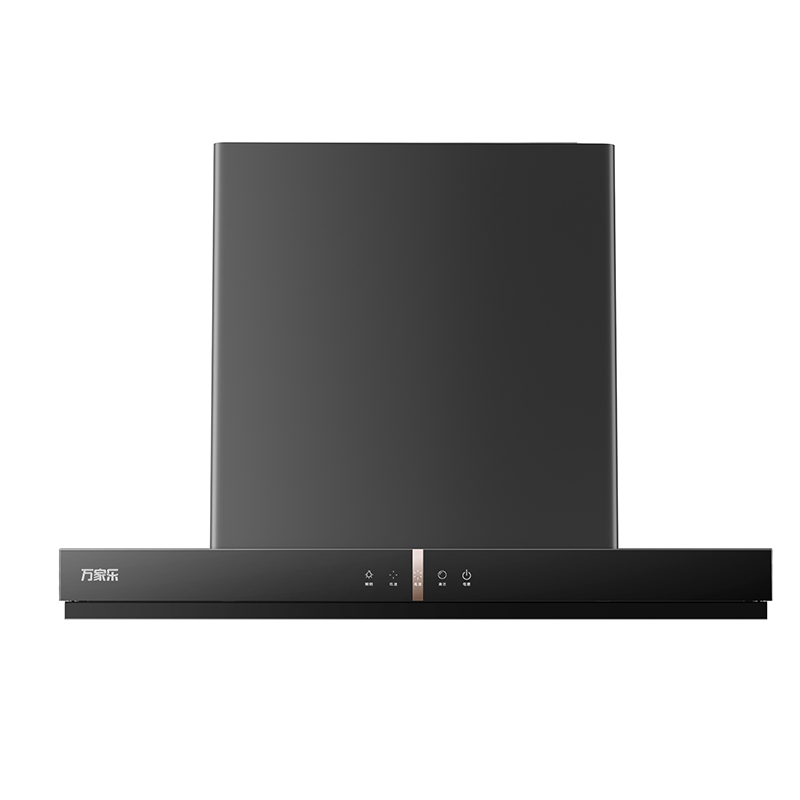

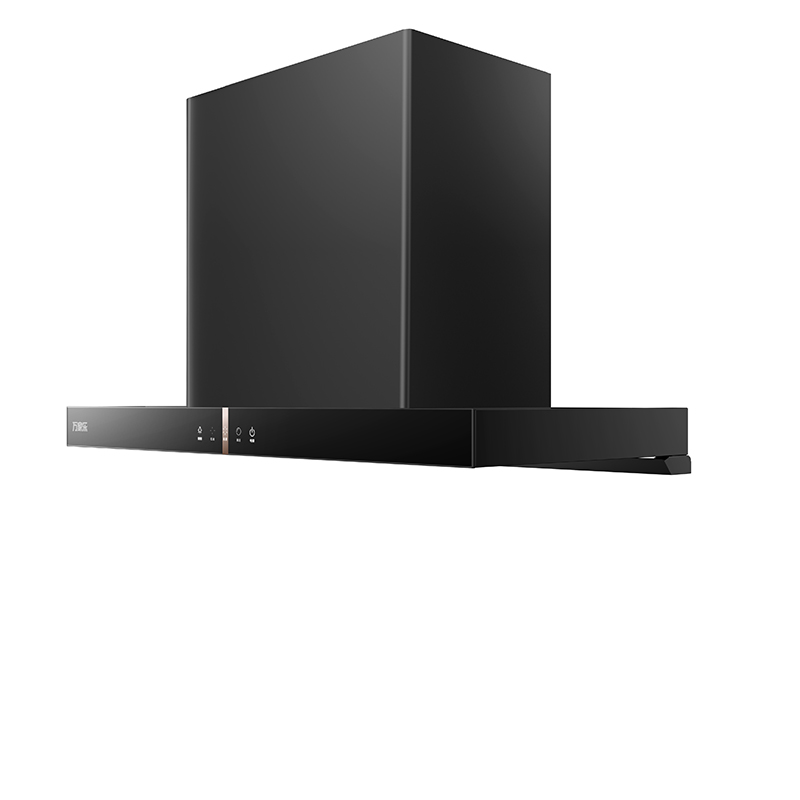

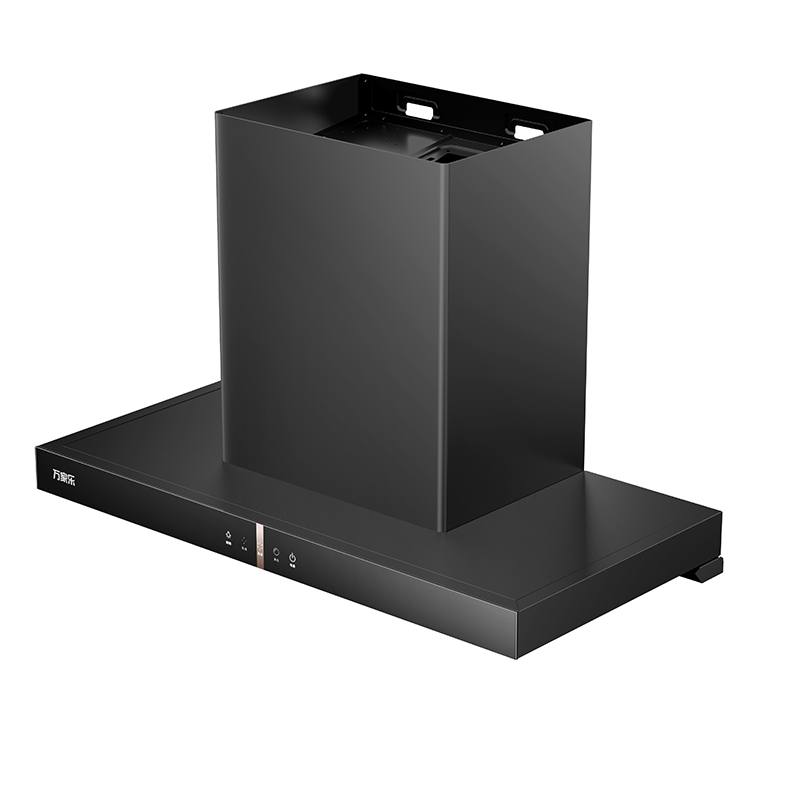

Range Hood CXW-320-V1G1

kitchen Hood With Tempered Glass First Level Energy Efficiency Hood Wall Mounted

Side Suction Series Model: CXW-320-V1G1

Overview Features Frequently Asked Questions You May Also Like

This range hood boasts 20m³/min high air volume and 450Pa max static pressure for powerful fume removal. With 895mm wide - area deep cavity and direct suction - exhaust, it captures fumes effectively. It has 450mm space - saving depth, impeller self - cleaning, vertical oil screen, delayed shutdown, Level 1 energy efficiency and a large oil cup, ensuring great performance.

Features

Macro/Comfort

Deep Cavity, Wide Suction - Strong and Stable Smoke Exhaust

Macro/Comfort V1G1 Range Hood

20m³/min High Air Volume
450Pa Strong Wind Pressure
Wide-Area Deep Cavity for Smoke Gathering
Compatible with Various Cabinets, No Head Bumping
Intelligent Impeller Cleaning
Easy-to-Clean Whole Machine

Features

MAX Clean Source Power System, Smooth Exhaust, Quiet and Powerful Suction

Reshape the overall air duct system to achieve strong power comparable to that of an inverter motor. The operating volume is as low as 54dB (A)³, and the hurricane - like suction and exhaust are smoother.

Air Duct Increased by 22.2%
Smoke Cleaning Performance is 129% of the Old Model

Dual - intake System, Doubly Fast Suction, More Efficient

The air intake area and the impeller diameter are upgraded simultaneously, enhancing the lampblack absorption speed. The smoke exhaust channel is wider and smoother, greatly improving the smoke cleaning efficiency.

High - end Quality Comes from Details

01 Full - enclosed Anti - dripping Oil Cup
As long as the body, preventing oil dripping "air raid"

02 Tree - shaped Oil - guiding Net
19° inclination, smooth oil guiding and preventing dripping

Smart cleaning Convenient and fast

03 Fog - light Lamp

Illuminate double stoves, restore the fresh color of ingredients

04 Level 1 Energy Efficiency

Energy - saving operation, save electricity and money

05 90s Delayed Shutdown
Absorb residual smoke in the kitchen for better health

Parameter	Specification	Parameter	Specification
High-speed Air Volume	20	Panel Material	Toughened Glass
Nominal Semi-anechoic Noise (A)	65dB(A)	Air Speed Gears	2 Gears
Working Air Volume	12	Control Method	Touch
Working Noise (A)	68dB(A)	Air Outlet Diameter (mm)	180
Wind Pressure (Pa)	320	Smoke Pipe Length (m)	1.8
Maximum Static Pressure (Pa)	450	Smoke Pipe Material	Aluminum Foil
Steady-state Odor Reduction	1	Motor Input Power	320
Transient Odor Reduction	0.6	Lighting Power	2W*1
Oil-fat Separation Rate	0.9	Net Weight (kg)	20
Total Pressure Efficiency at 7m³/min	0.23	Gross Weight (kg)	24.5
Maximum Total Pressure Efficiency	0	Overall Dimensions (mm)	896×465×600mm
Main Body Material	Cold-rolled Sheet Coating (Matte Black Coating)

Frequently Asked Questions

Q: How often should I clean my range hood filters?

A:
Grease filters: Clean every 1-3 months (or monthly for heavy cooking) with hot soapy water or dishwasher.
Charcoal filters (ductless models): Replace every 3-6 months.
Deep cleaning: Schedule professional servicing annually.
Q: Why is my range hood so noisy?

A:
Check for loose parts (tighten screws or mounting brackets).
Clean clogged filters (blocked airflow increases noise).
Lower fan speed if possible; higher speeds are louder.
If noise persists, the motor or fan blades may need repair.
Q: What’s the difference between ducted vs. ductless range hoods?

A:
Ducted: Vents smoke outdoors (more efficient, requires ductwork).
Ductless: Recirculates air through charcoal filters (easier installation, but less effective for heavy cooking).
Tip: Ducted is preferred for gas stoves; ductless suits electric stoves in apartments.
Q: How do I choose the right CFM (power) for my range hood?

A:
Calculate minimum CFM = Stove width (inches) × 10 (e.g., 30" stove → 300 CFM).
Gas stoves: Add 100 CFM for heavy cooking (e.g., stir-frying).
High-end models: 400-900 CFM for professional kitchens.
Q: Why is my range hood not sucking smoke properly?

A:
Common causes:
Clogged filters (clean or replace).
Duct obstructions (check for blockages).
Incorrect installation height (ideal: 24-30" above stove).
Weak motor (upgrade CFM if undersized).
