・Nano treatment impeller, smart self-cleaning
・Intelligent suction pressure adjustment and intelligent linkage of hood and hob
・Smart control by hand gestures
・Three-dimensional suspension ring for suction, more uniform negative pressure
Model: CXW-360-AT7
Features

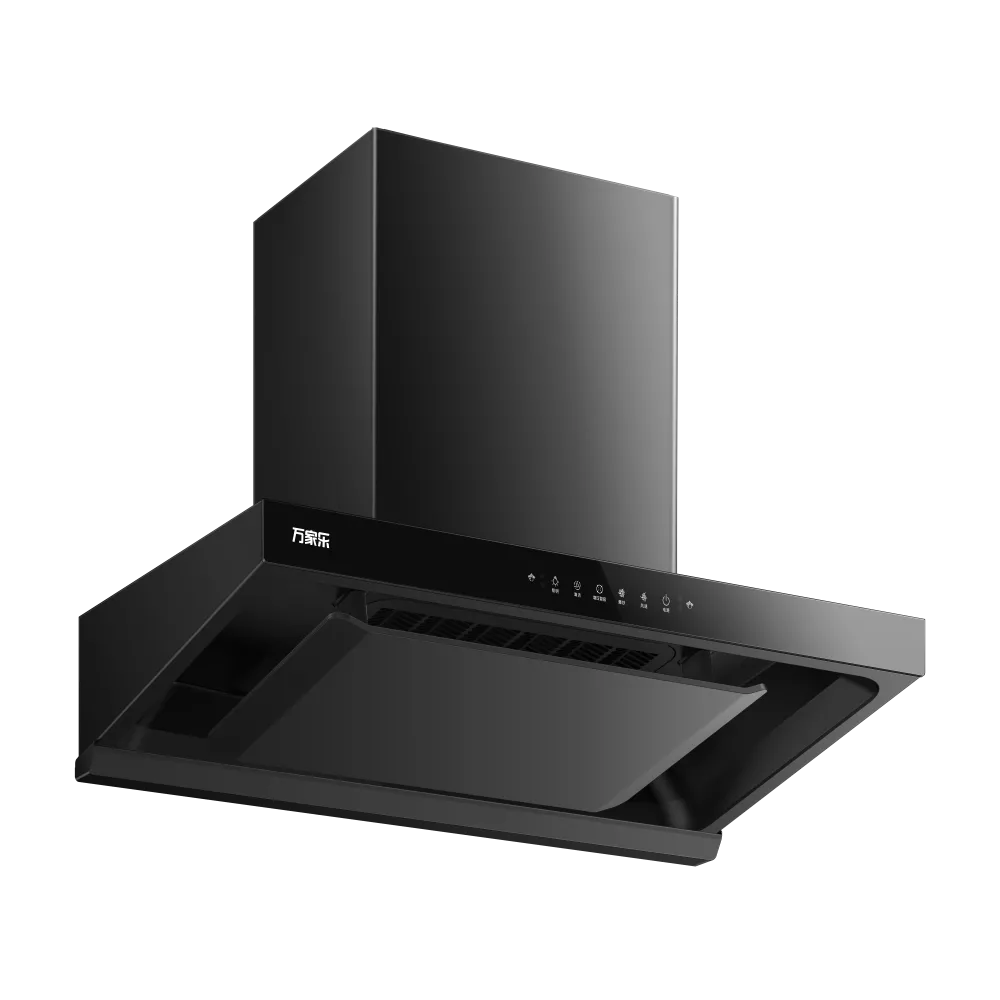

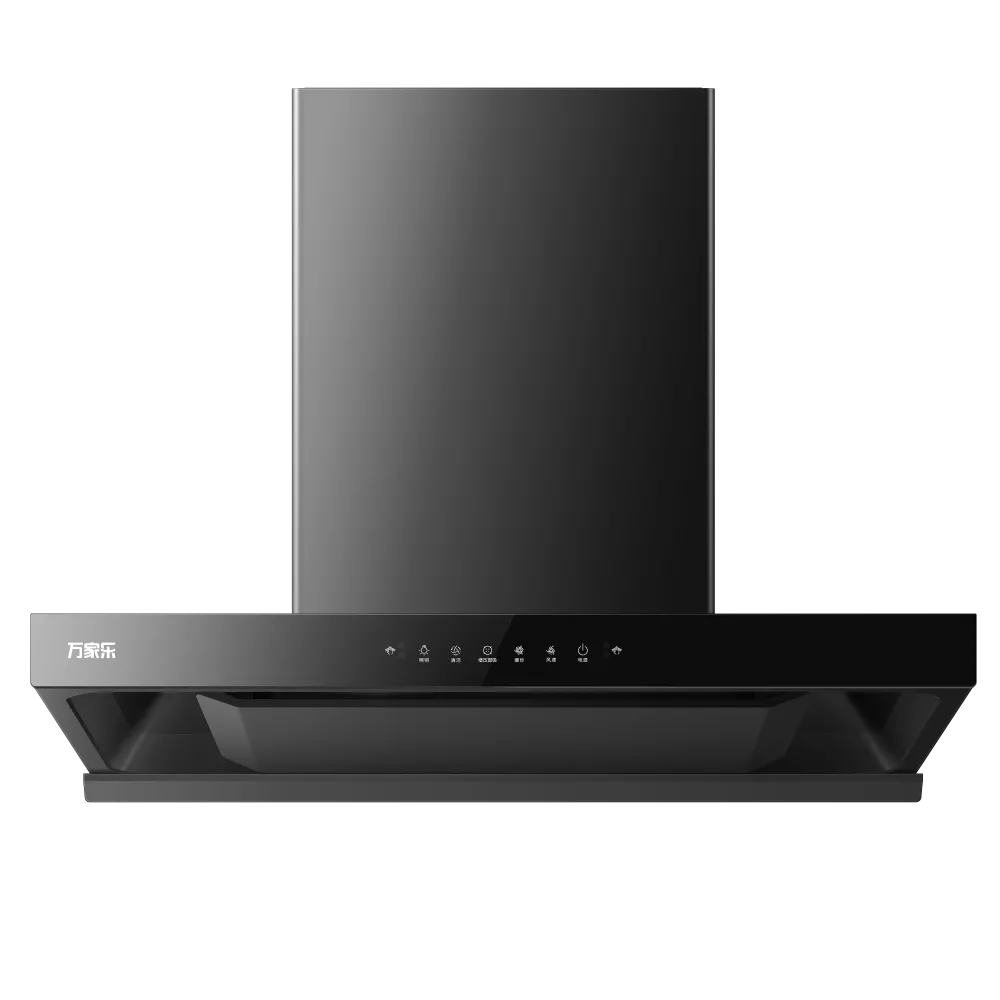

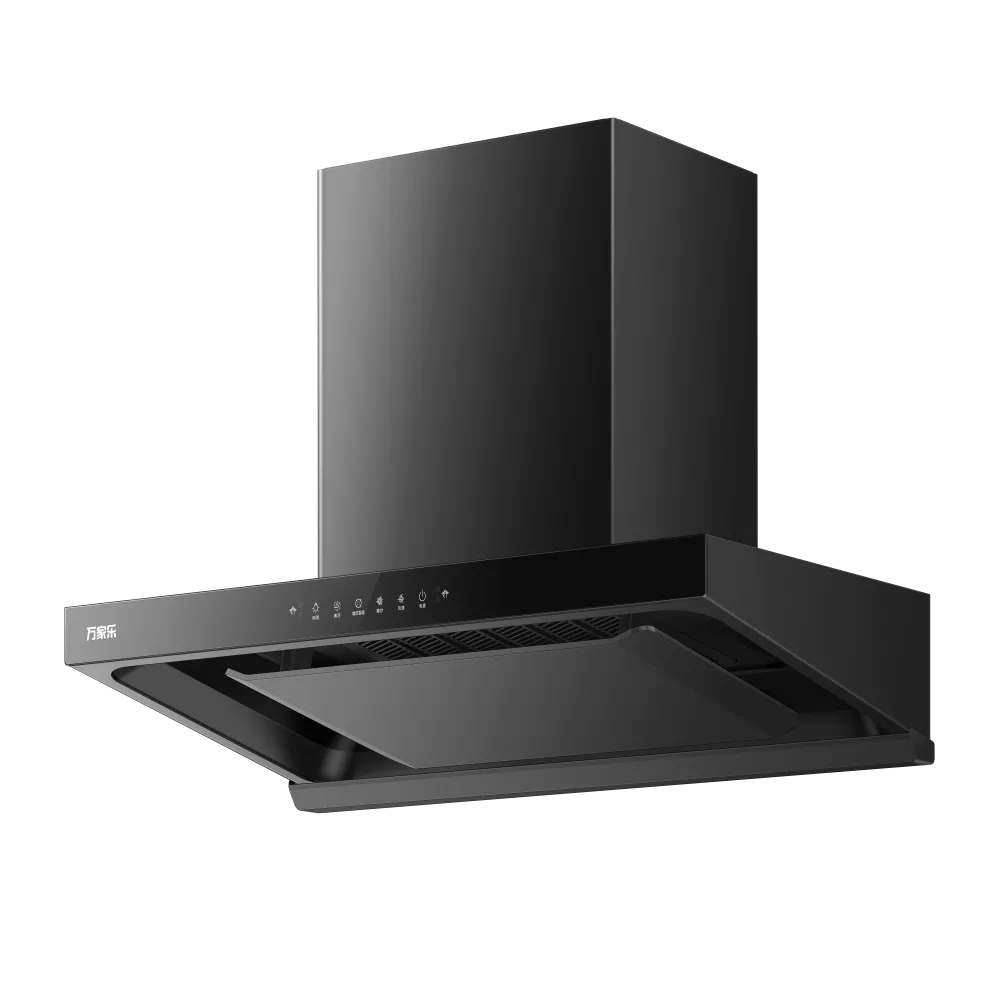

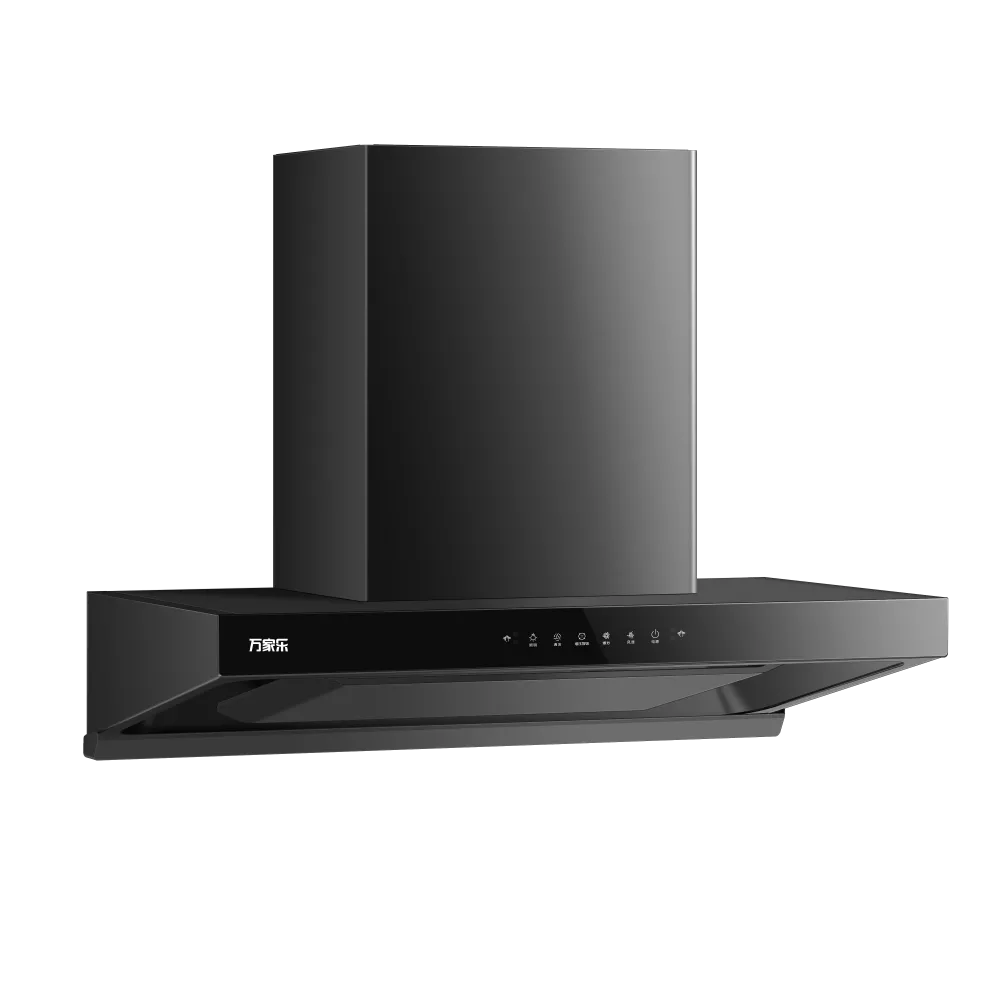

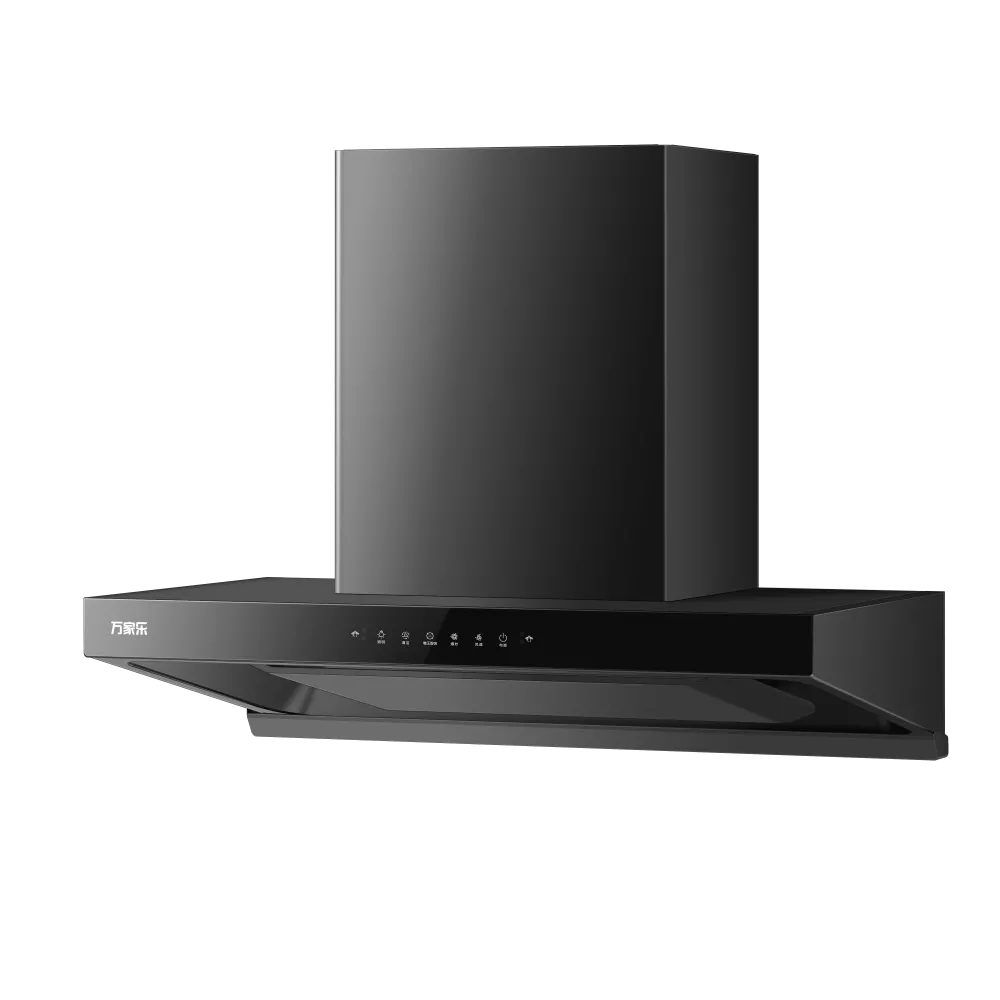

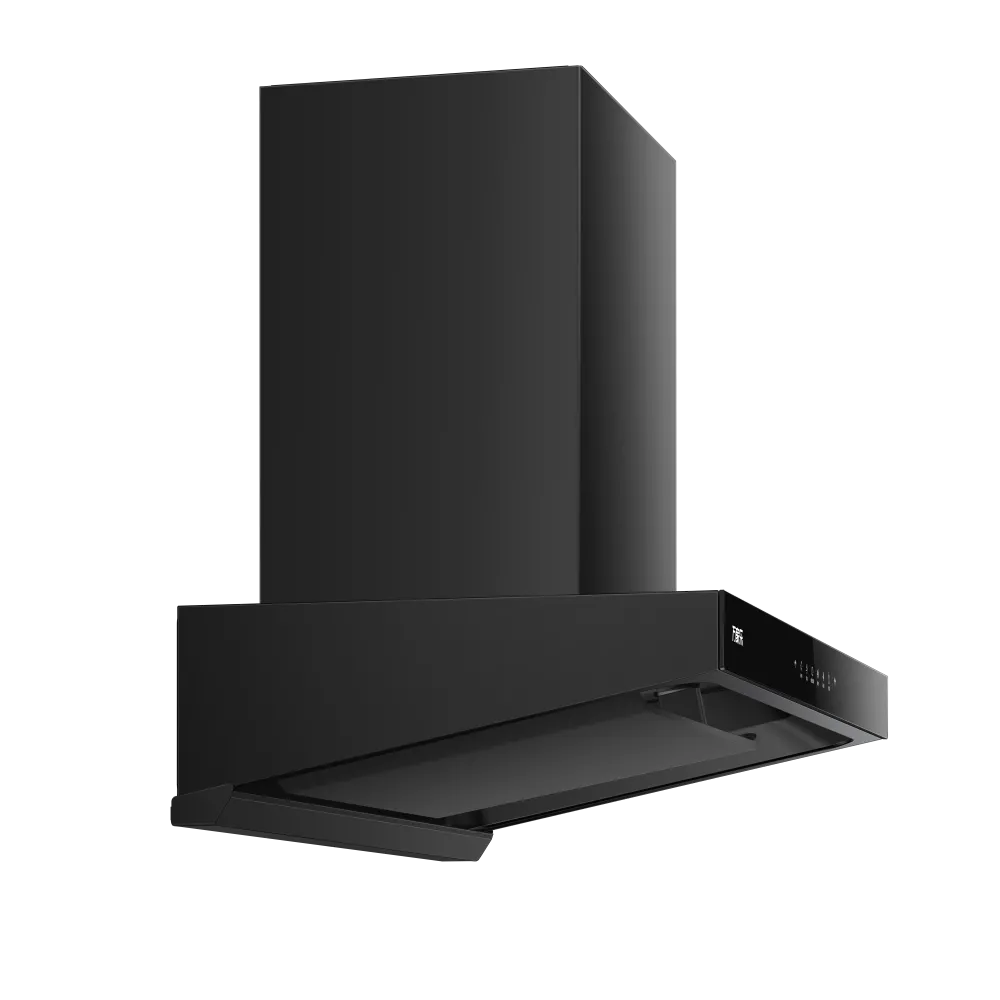

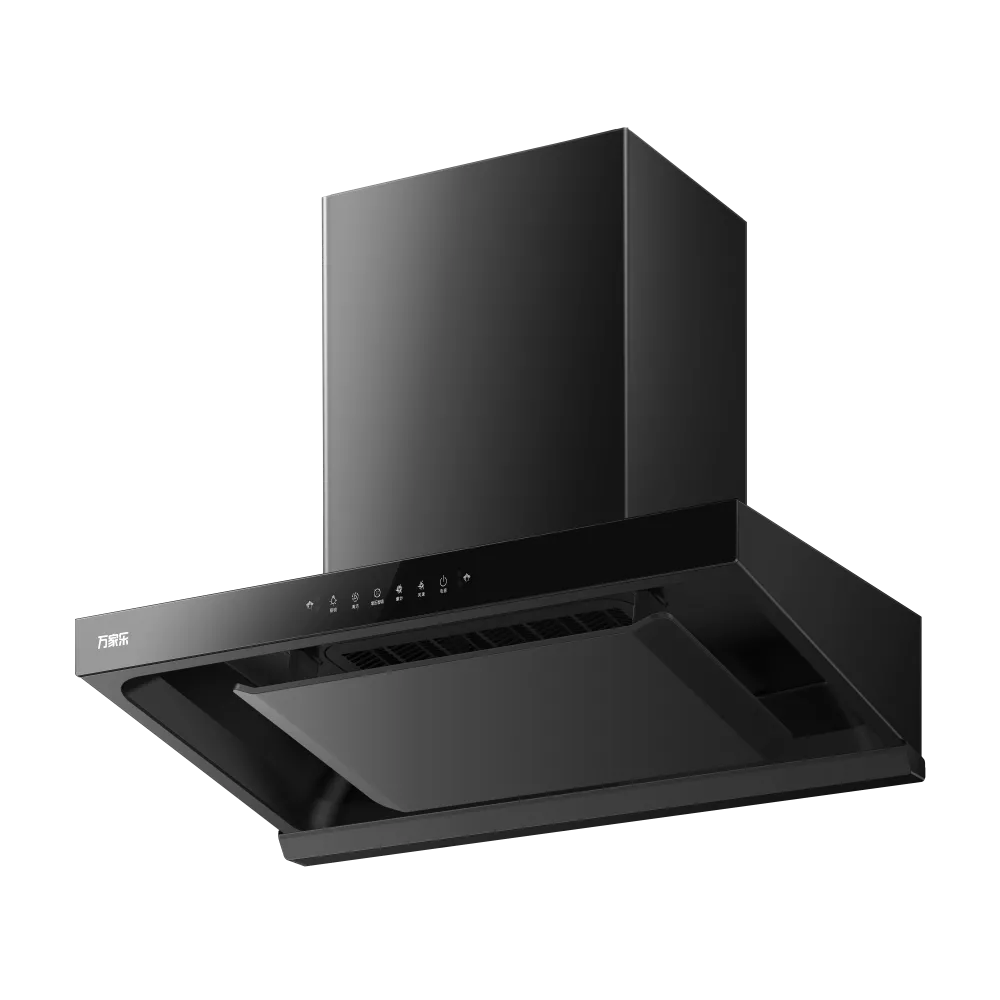

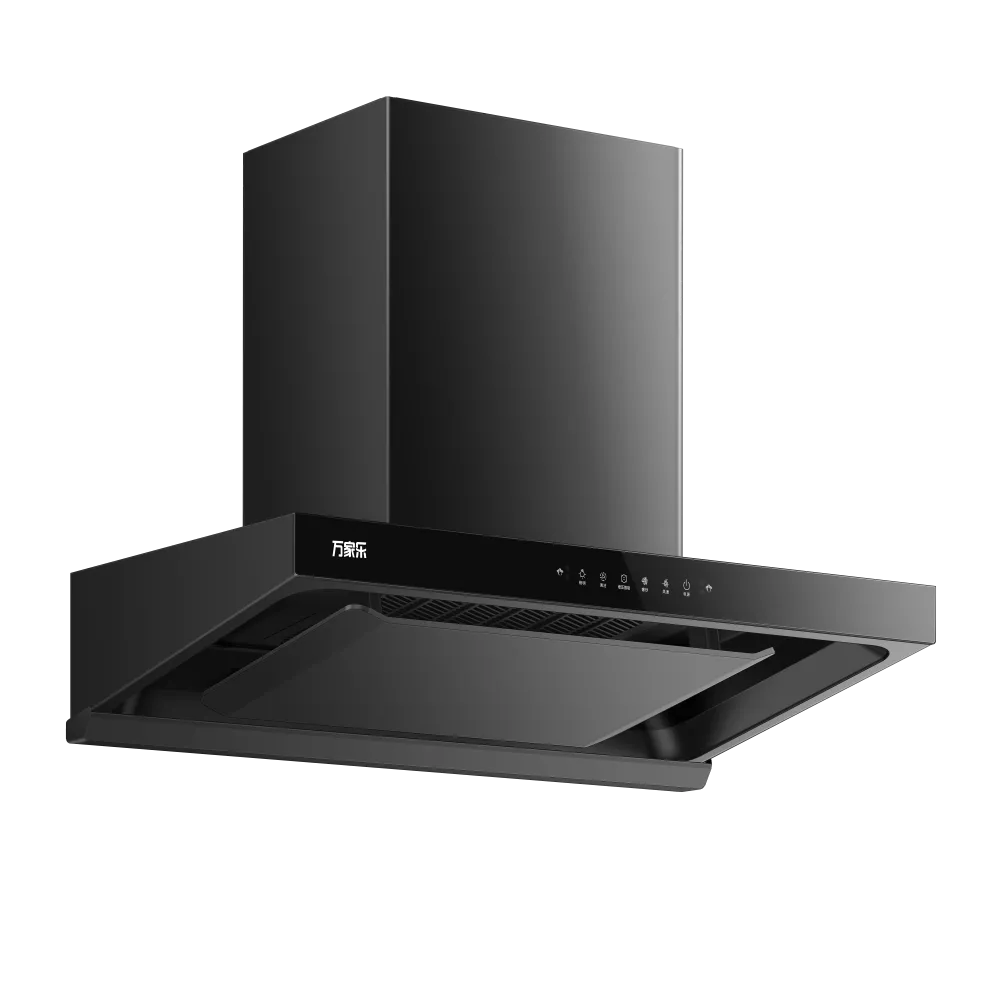

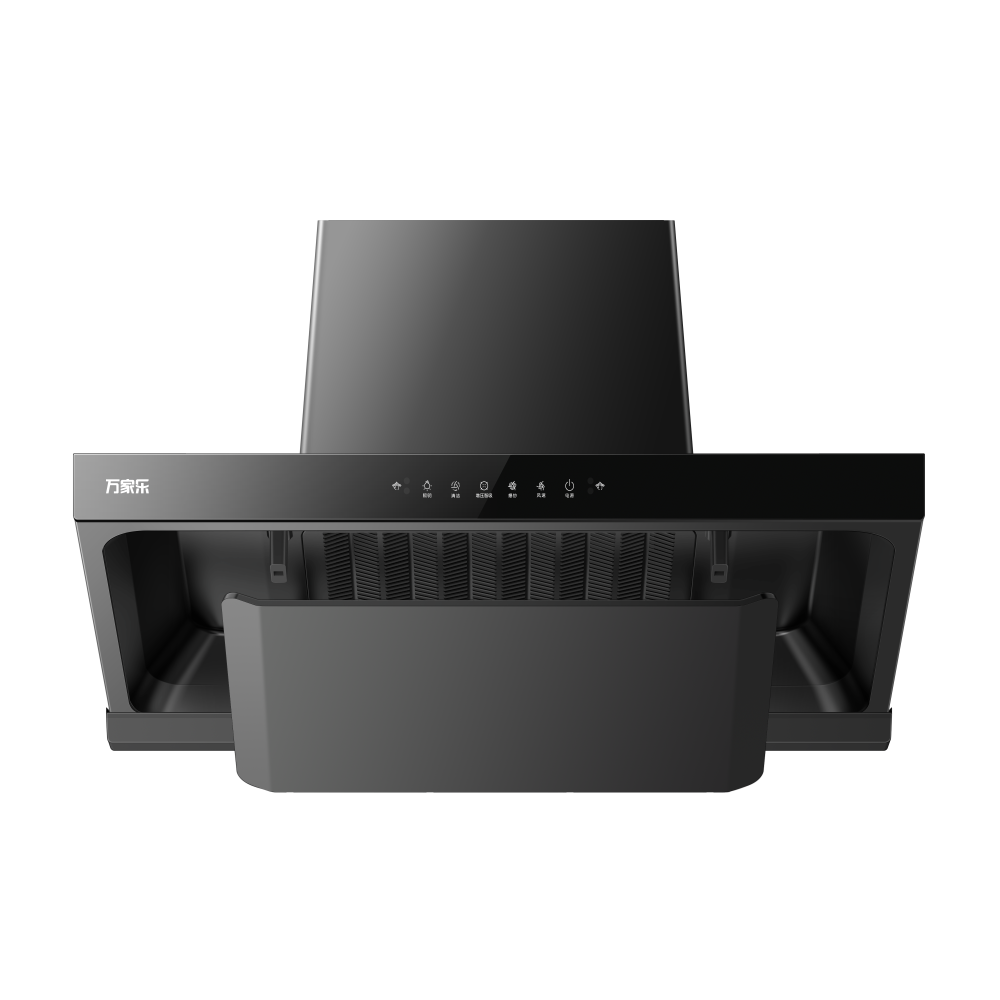

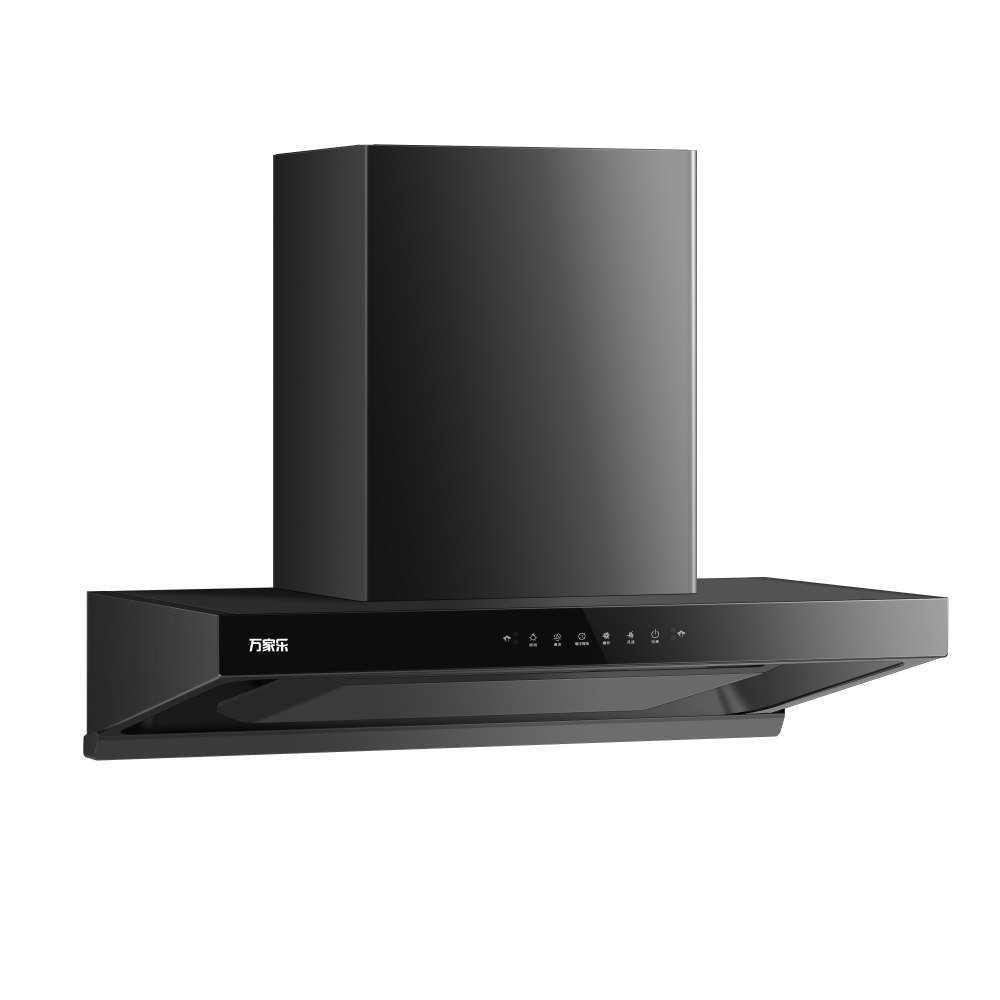

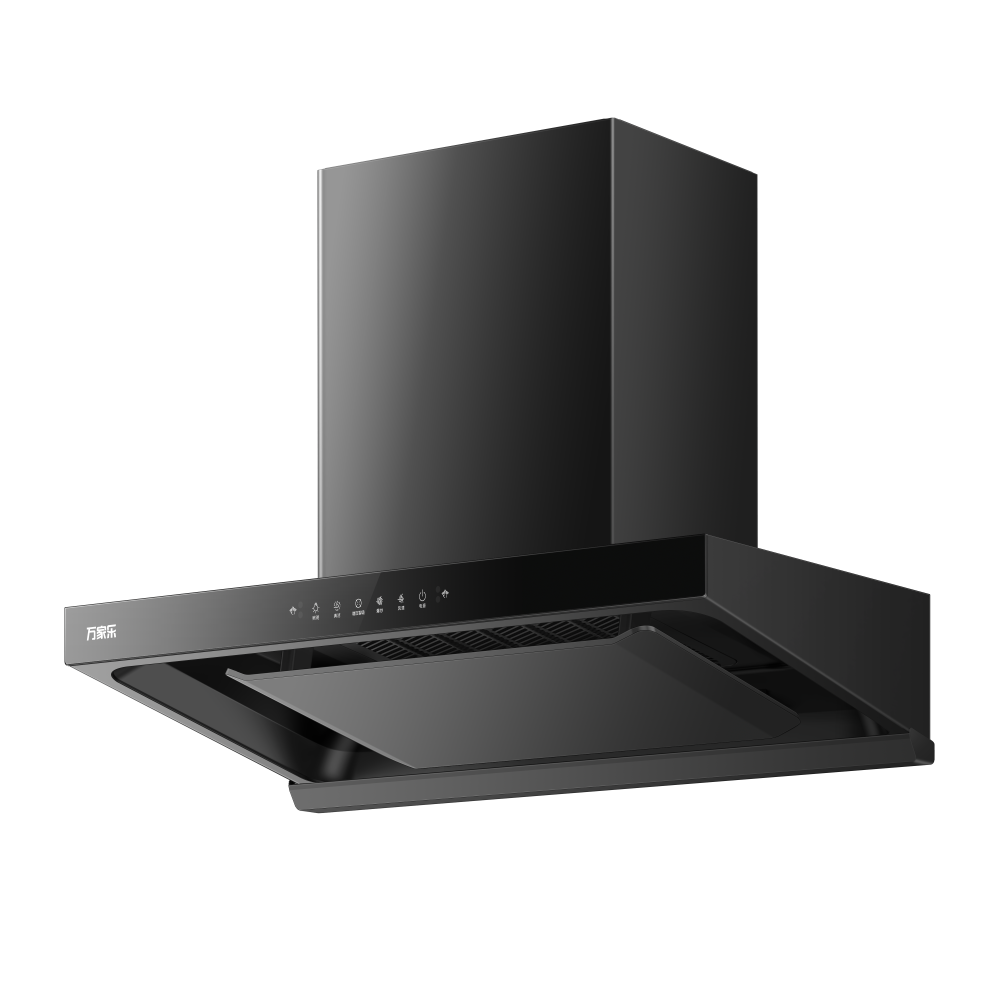

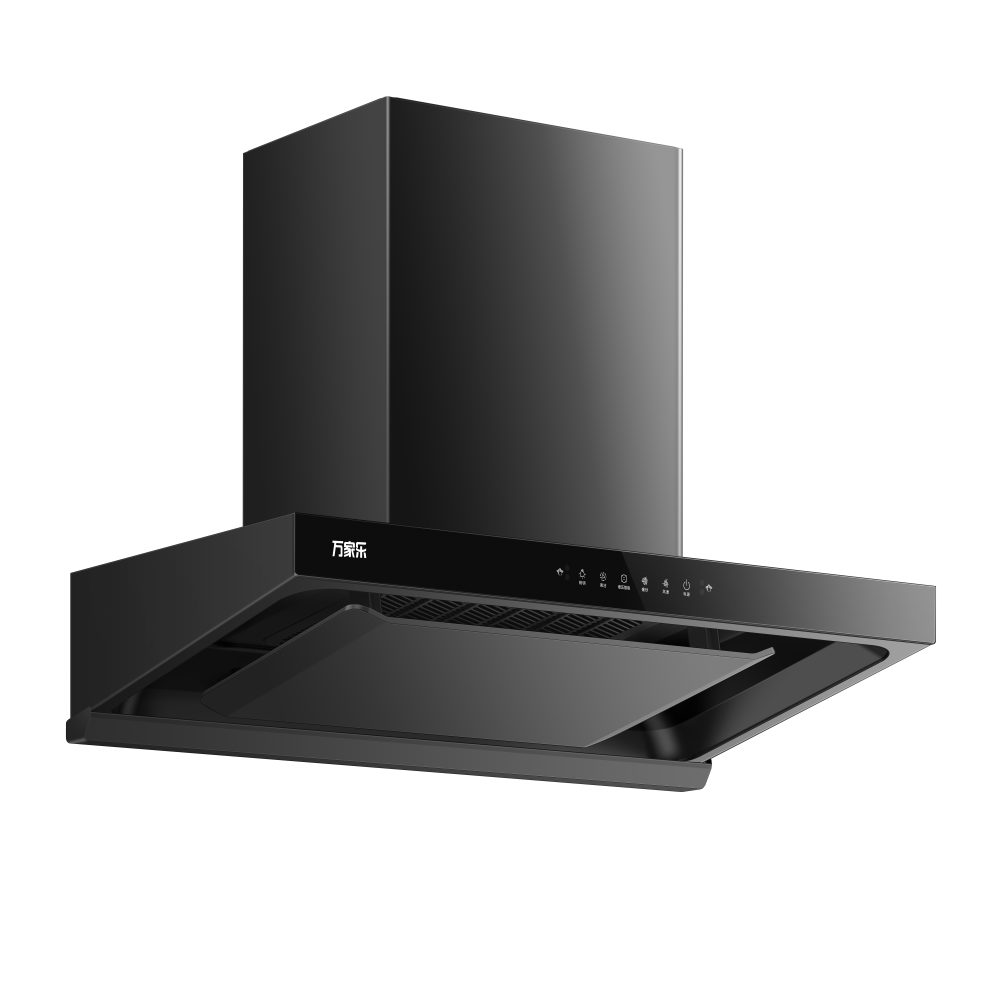

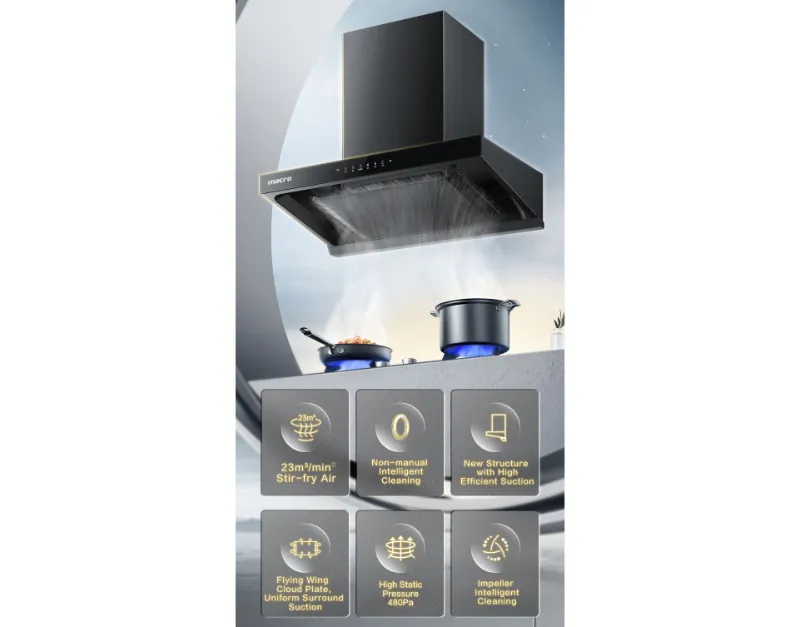

AT7 Intelligent Induction Cooker Hood
Efficient Surround Suction Intelligent Pressurized Suction and Exhaust
Full Non-manual cleaning
23m³/min Stir-fry Air
Non-manual Intelligent Cleaning
New Structure with High Efficient Suction
Flying Wing Cloud Plate, Uniform Surround Suction
High Static Pressure 480Pa
Impeller Intelligent Cleaning

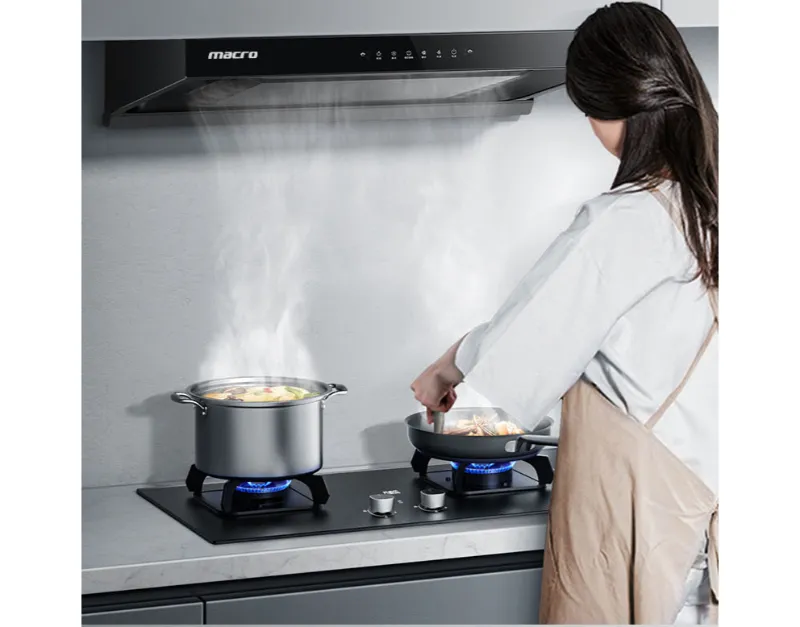

23m³/min Stir-Fry Air Instantly Absorb Oil Fume and Keep the Air Fresh
Strong air volume quickly absorbs oil fumes, keeping the kitchen air fresh after cooking

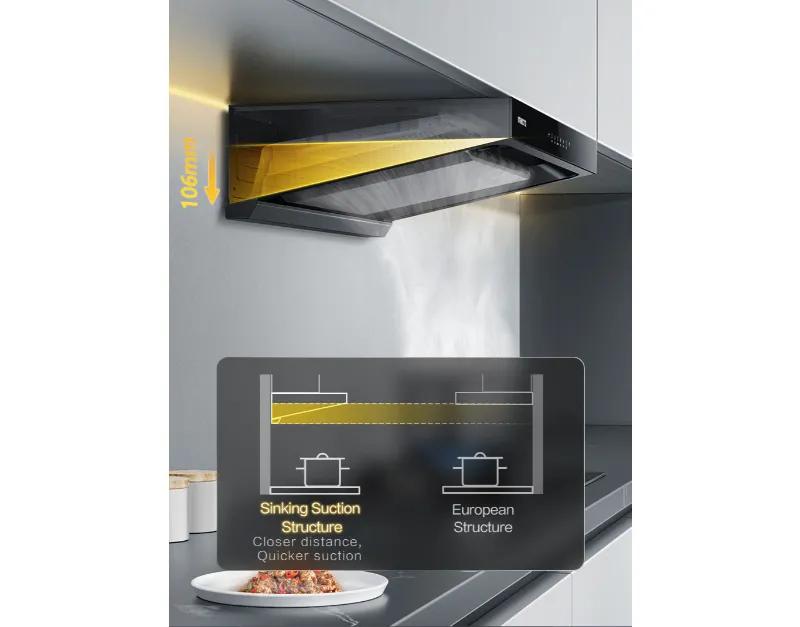

New European Style
Sinking Design
Closer to the oil fume source and more efficient suction
The sinking structure forms a strong negative pressure area and a wide suction area, covering gas hob, quickly absorbing the oil fume, so that the oil fume has nowhere to escape
Uniform Surround Suction Multi-dimensional Fast Suction
Flying Wing Cloud Plate The structure of the flying wing cloud plate is derived from the biplane technology
360° Uniform Suction
Flying Wing Cloud Plate Shunts the Oil Fume Effectively
Strong Suction of Oil Fume

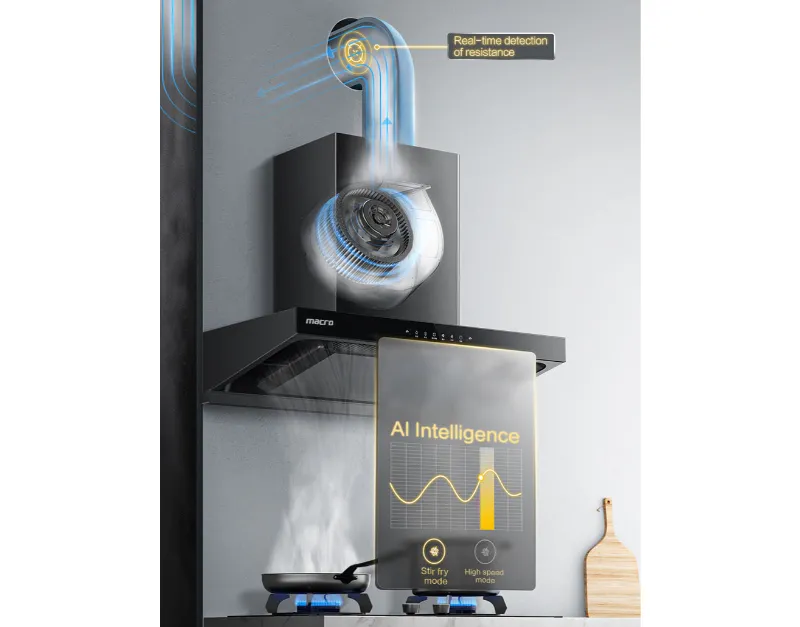

Innovative and Intelligent Pressurized Suction
Monitor the real-time resistance of the flue from the source, adjust the motor speed according to the resistance, the greater the resistance, the bigger the wind force. When it's low resistance, the hood will adjust to low speed and silence mode
480Pa Strong Low Noise Wind Pressure Effective anti-blocking and anti-backflow
High-speed exhaust of oil fume, no fear of cooking peak period, break through the wind resistance of the flue, smooth smoke exhaust, free from the trouble of oil fume blockage
Impeller Intelligent Cleaning Self-cleaning and keep the fan power as new
After every 10 hours of accumulated use, the cleaning function will be automatically activated when the device is turned off. Effectively extend the service life, maintain suction and prevent odor

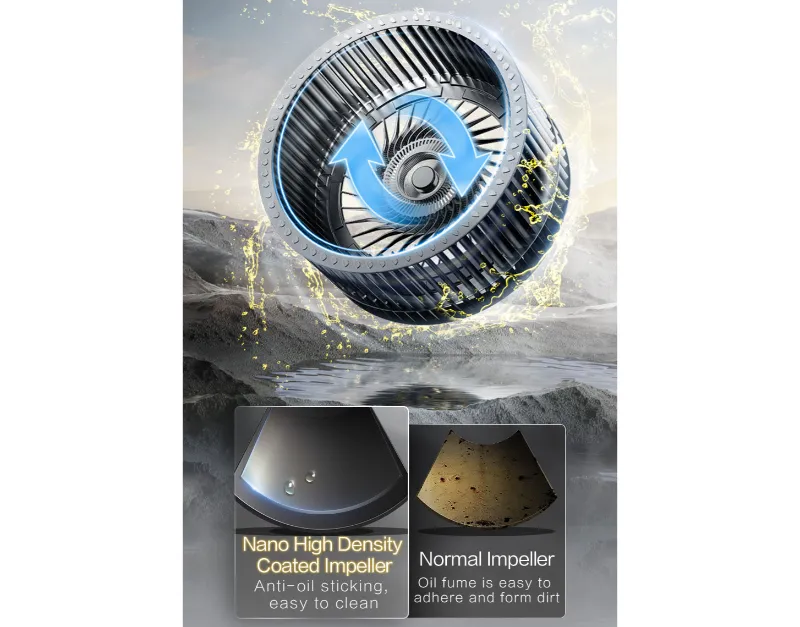

Nano High Density Coated Impeller Anti-oil sticking, easy to clean
Normal Impeller Oil fume is easy to adhere and form dirt

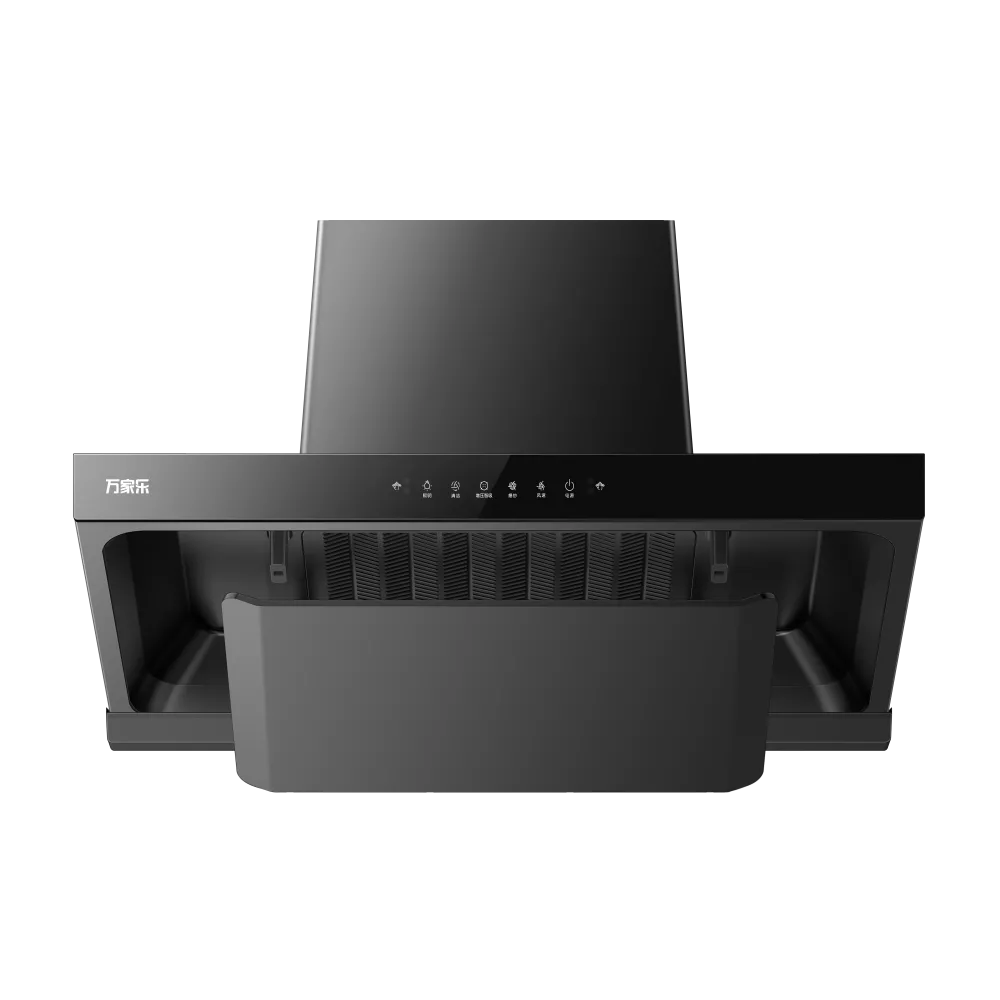

Humanized and Easily Disassemble Cloud Plates Easy External Cleaning and Care
Considerate the pain points for users and upgrade the design to a detachable structure. Make kitchen cleaning easy and fast, saving more time to enjoy life

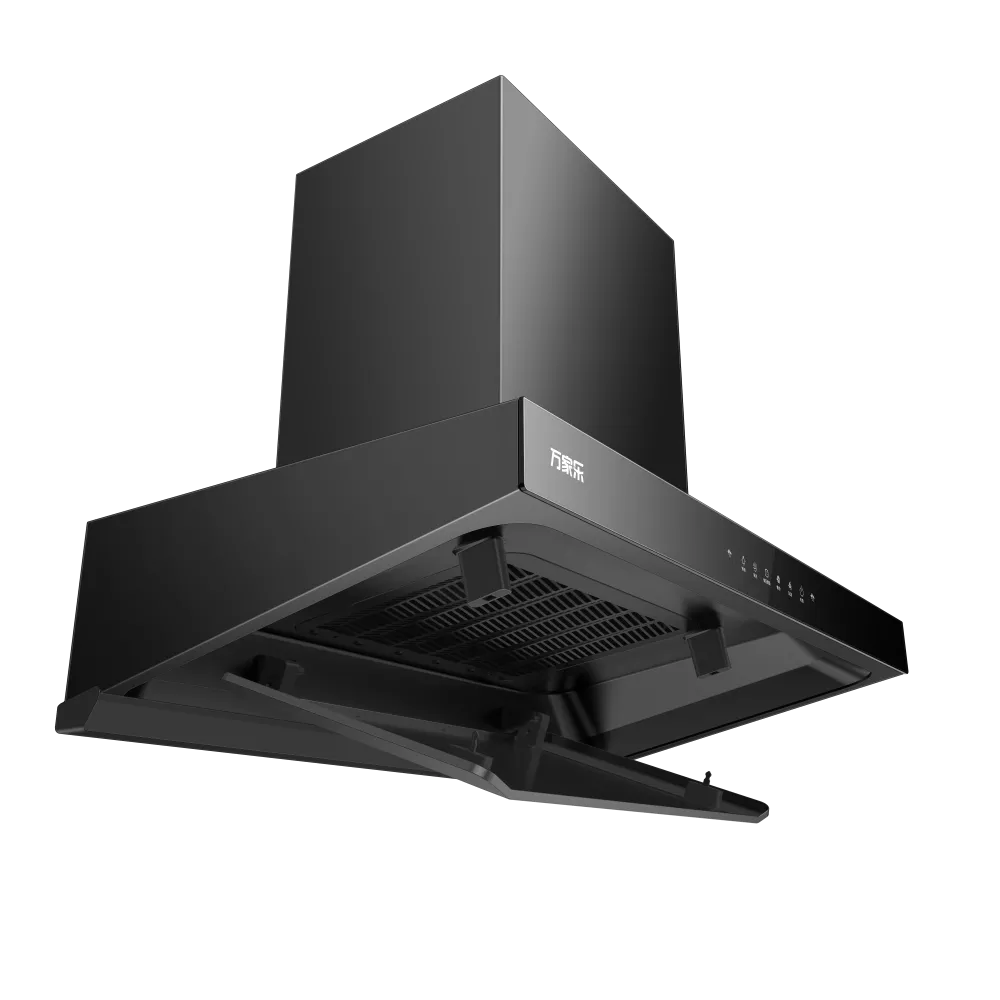

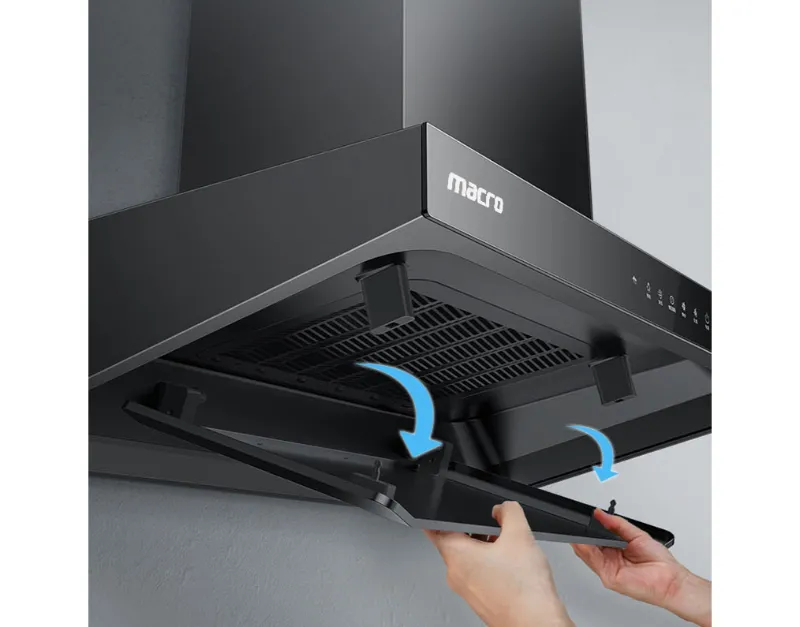

Cloud Plate Disassembly Hold the front edge of the cloud plate with both hands and pull it straight down until it disengages from the buckle. After detaching from the tail shaft buckle, the cloud plate can be removed
Specifications
| Model | CXW-360-AT7 |
| Nominal air volume m³/h | 1200 |
| Max. air volume m³/h | 1380 |
| Noise (dB) | 56 |
| Main material | Cold plate spraying |
| Number of Power level | Three speed +pressure adjustment |
| Control Type | Touch Control，hand gestures |
| Chimney pipe diameter(mm) | 180 |
| Length of chimney pipe(Meter) | 1.8 |
| Motor input power(W) | 360 |
| Net weight (kg) | 27.5 |
| Gross weight (kg) | 31 |
| Dimensions(mm) | 895×515×726 |
| Package size (mm) | 980×810×585 |
