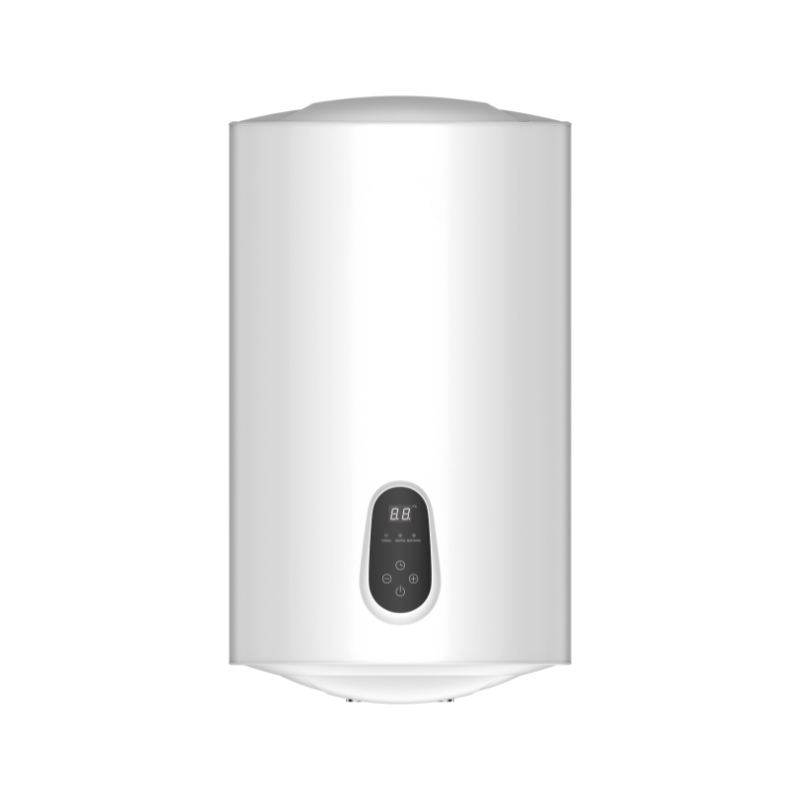

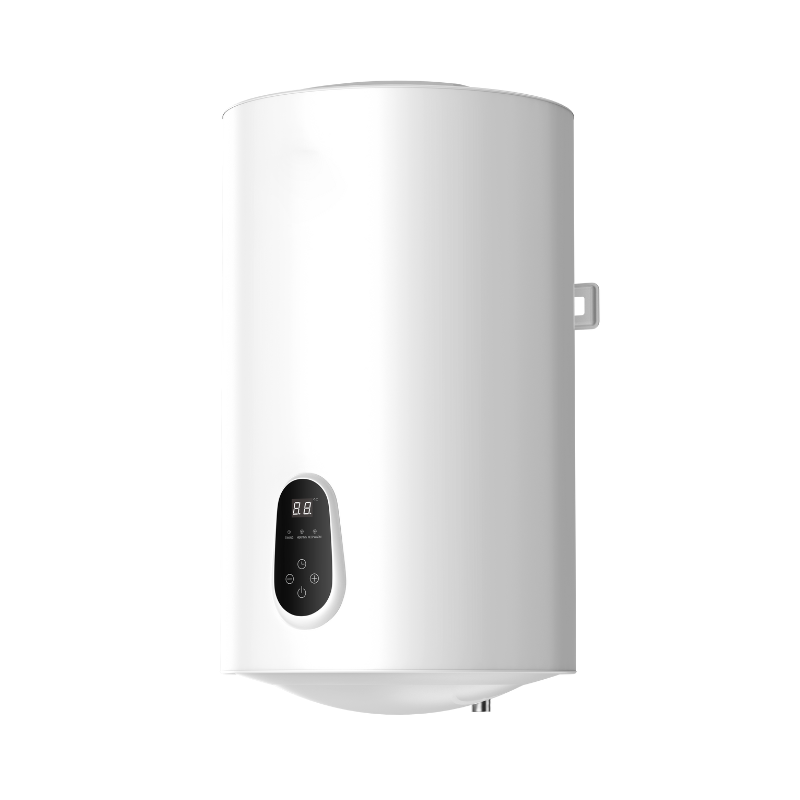

Electric Water Heater CD

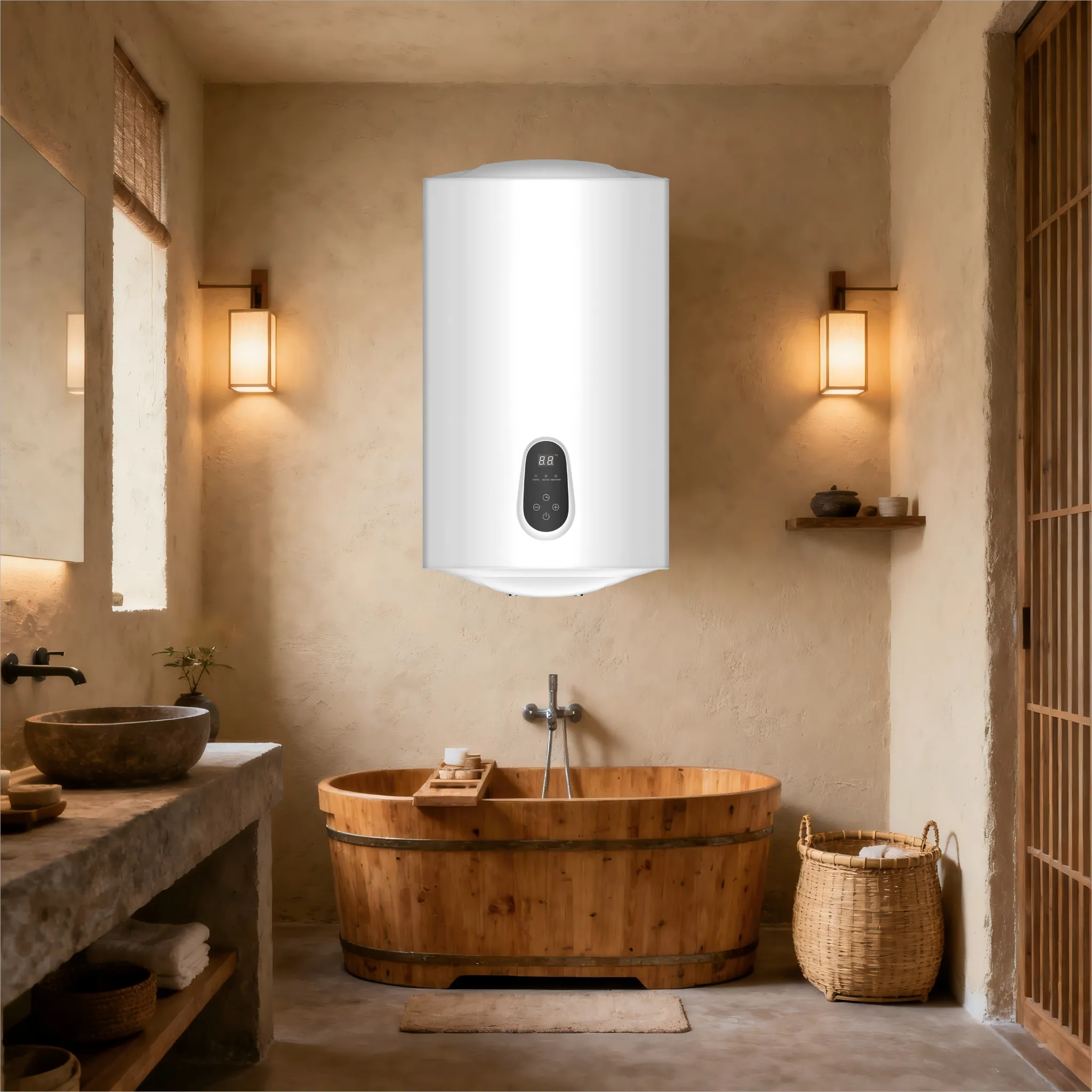

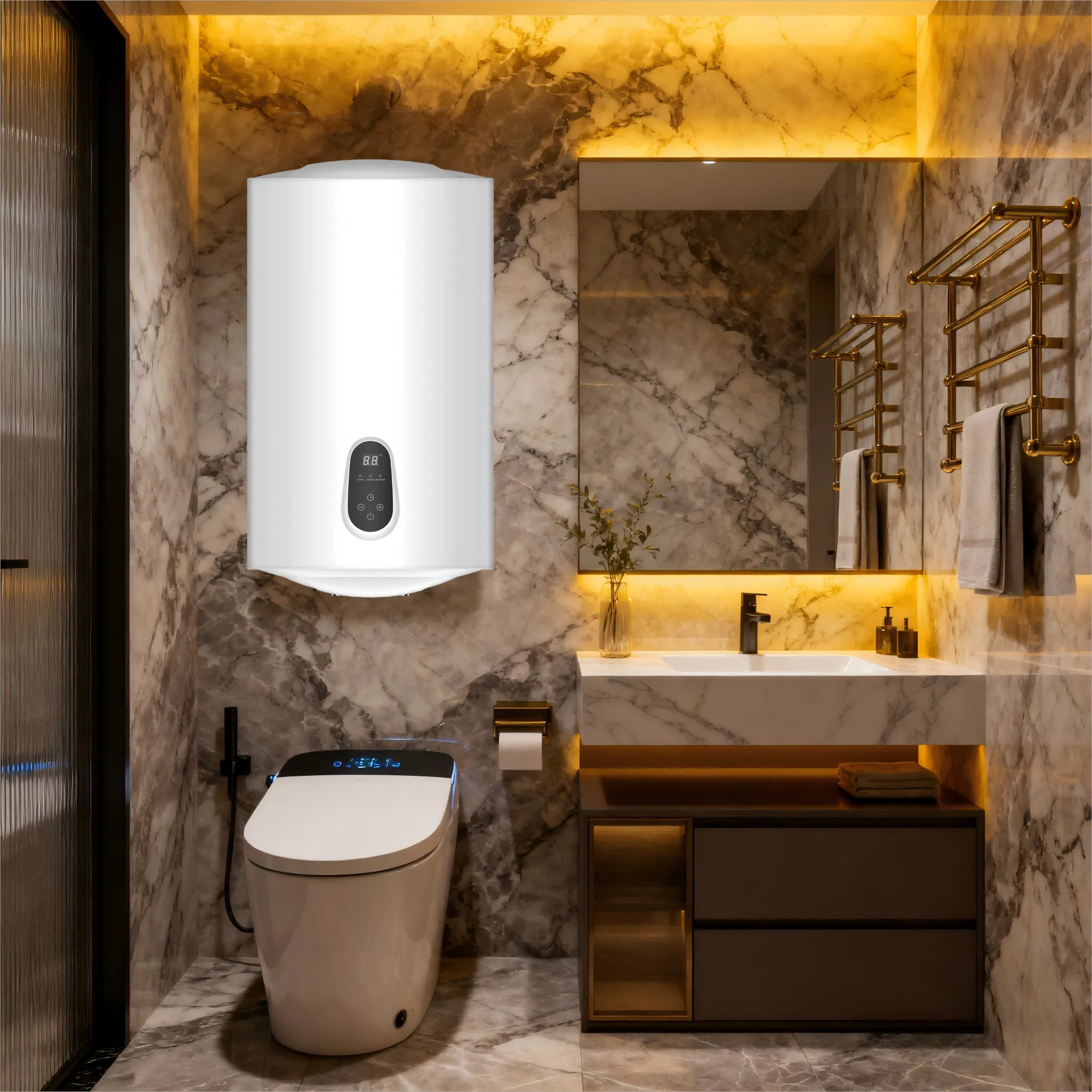

The CD Series Vertical Electric Water Heaters offer smart and efficient hot water solutions. With microcomputer temperature control, a front control box, and a countdown reservation function via touch buttons, they are easy to operate. Featuring a single - power stainless steel heating tube, they heat water efficiently. Made of metal SPCC material with powder coating, they are durable. An environmentally friendly 20mm - thick polyurethane foam insulation layer retains heat well. Equipped with a built - in magnesium rod and blue diamond enamel liner, they ensure long - term use. Available in 30L, 50L, 80L, and 100L capacities, they meet various needs and comply with CB/CE standards.

Model: CD

Color: White

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

Electric Water Heater CD

The CD Series Vertical Electric Water Heaters stand out as a smart and reliable choice for hot water supply.

In terms of control and functionality, they utilize microcomputer temperature control, operated via a front control box. The touch buttons make operation intuitive, and the countdown reservation function allows users to schedule hot water availability in advance, adding great convenience to daily life.

For heating performance, a single - power stainless steel heating tube is employed. This heating tube not only heats water quickly but also has excellent corrosion resistance, ensuring a long service life and consistent heating efficiency. The power cord is a standard ordinary plug type, and an ELCB leakage protection power cord is optional, with the plug matching the sales area to enhance safety during use.

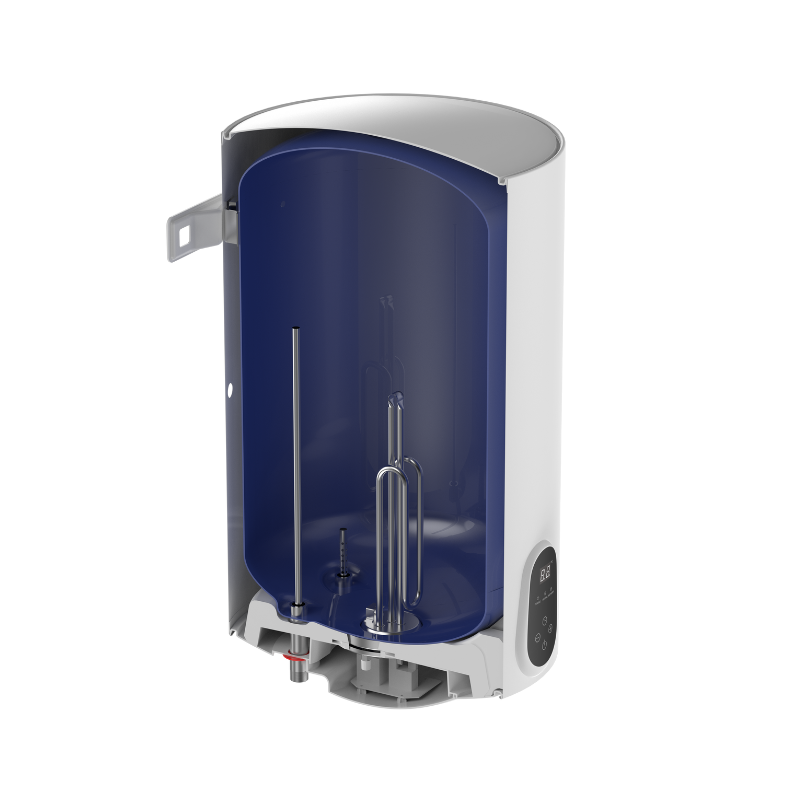

The construction of these water heaters is robust. The exterior is made of metal SPCC material with a powder coating, which is sturdy and resistant to damage, ensuring the heater can withstand daily use. The 20mm - thick environmentally friendly polyurethane foam insulation layer is highly effective at retaining heat, reducing heat loss and thus saving energy costs. Inside, a built - in Φ18*200mm magnesium rod protects the liner from corrosion, and the blue diamond enamel liner (SPCC enamel) is extremely durable, resisting rust and scaling to maintain water quality.

The CD Series comes in four rated capacities: 30L, 50L, 80L, and 100L. The product sizes vary accordingly: the 30L model has dimensions of Φ380x488, the 50L is Φ380x688, the 80L is Φ450x757, and the 100L is Φ450x897. The packaging sizes are 442x422x522, 442x422x722, 502x492x780, and 502x492x920 for the respective capacities.

Developed in accordance with CB/CE certification standards, the CD Series can pass CB/CE testing, guaranteeing it meets international safety and quality requirements. Optional features include ELCB type power cords and heating tubes made from materials such as 310S/840/800 stainless steel, copper, or stainless steel enamel (the standard heating tube is 316L stainless steel). Power options are also flexible: 220V with a power range of 1000 - 3000W or 110V with 800 - 1500W. The basic configuration, for which the quotation is provided, includes a 316L stainless steel heating tube, an ordinary power cord, and 220V/1500W power. The water heaters are packaged in regular corrugated cartons for safe transportation.

Features

Ordinary plug power cord

Optional ELCB leakage protection power cord (plug matching according to sales area)

Environmentally friendly polyurethane foam insulation layer, 20mm thickness

Specifications

Type	Product model	Rated Power	Functional introduction	Rated Capacity	Product size	Packaging size	Remarks
Vertical	CD Series	1500W	1、Microcomputer temperature control, front control box control, with countdown reservation function, touch button 2. Single power, stainless steel heating tube 3. Ordinary plug power cord, optional ELCB leakage protection power cord (plug matching according to sales area) 4. Metal SPCC material with powder coating 5. Environmentally friendly polyurethane foam insulation layer, 20mm thickness 6. Built-in φ18*200mm magnesium rod 7. Blue diamond enamel liner (SPCC enamel) 8. Developed according to CB/CE certification standards, can pass CB/CE testing	30	φ380x488	442x422x522	1. Optional: ELCB type power cords; 2. The standard heating tube is 316L stainless steel. Optional: 310S/840/800 stainless steel, copper material, or stainless steel enamel heating tubes; 3. The carton is a regular corrugated carton; 4. Optional: 220V power 1000-3000W , 110V power 800-1500W; The quotation is for the basic configuration: 316L stainless steel heating tube, ordinary power cord, 220V/1500W power;
				50	φ380x688	442x422x722
				80	φ450x757	502x492x780
				100	φ450x897	502x492x920

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
