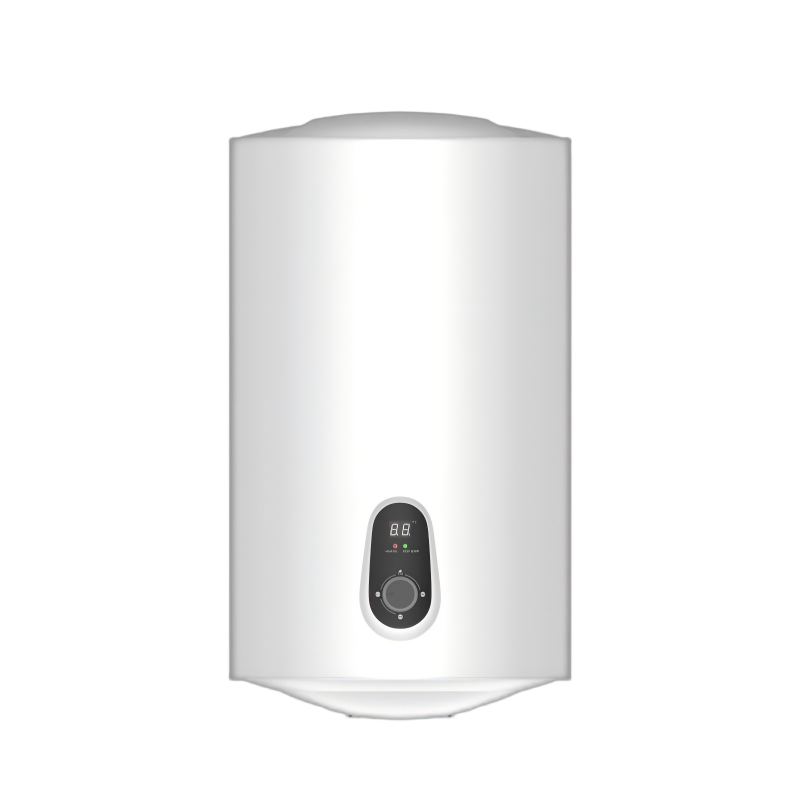

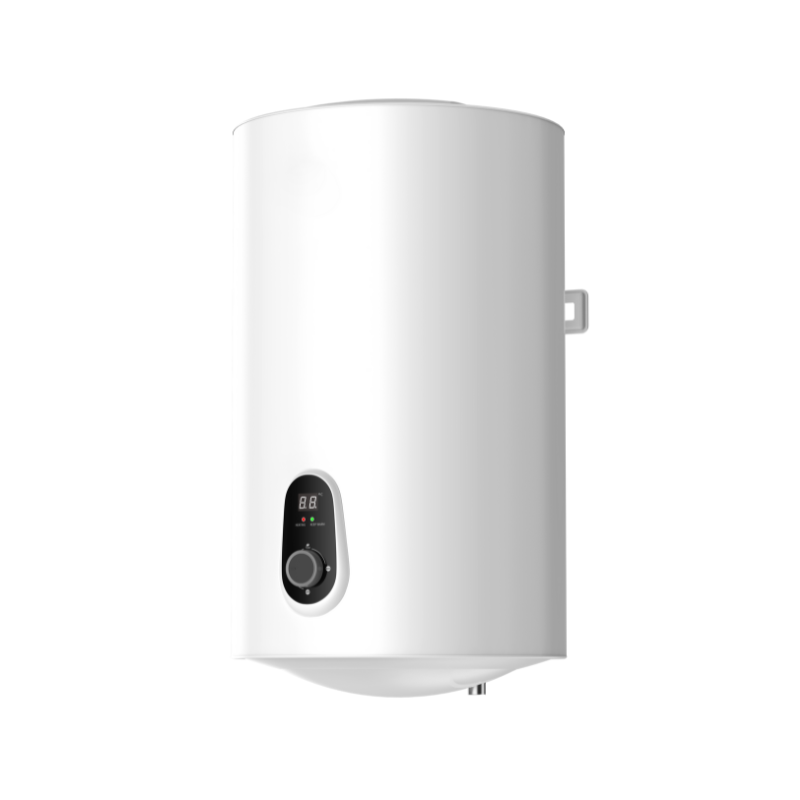

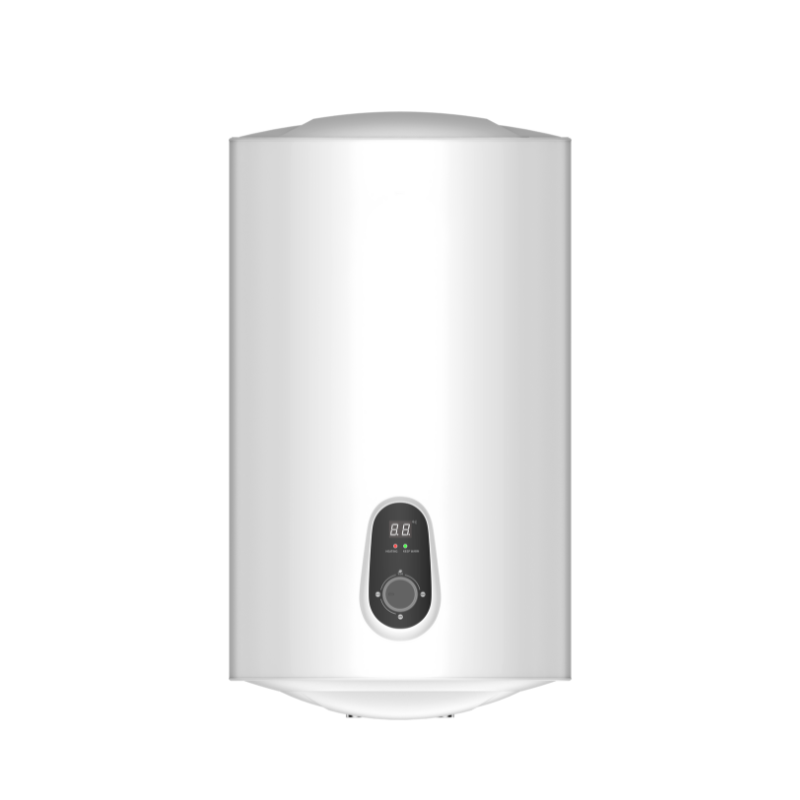

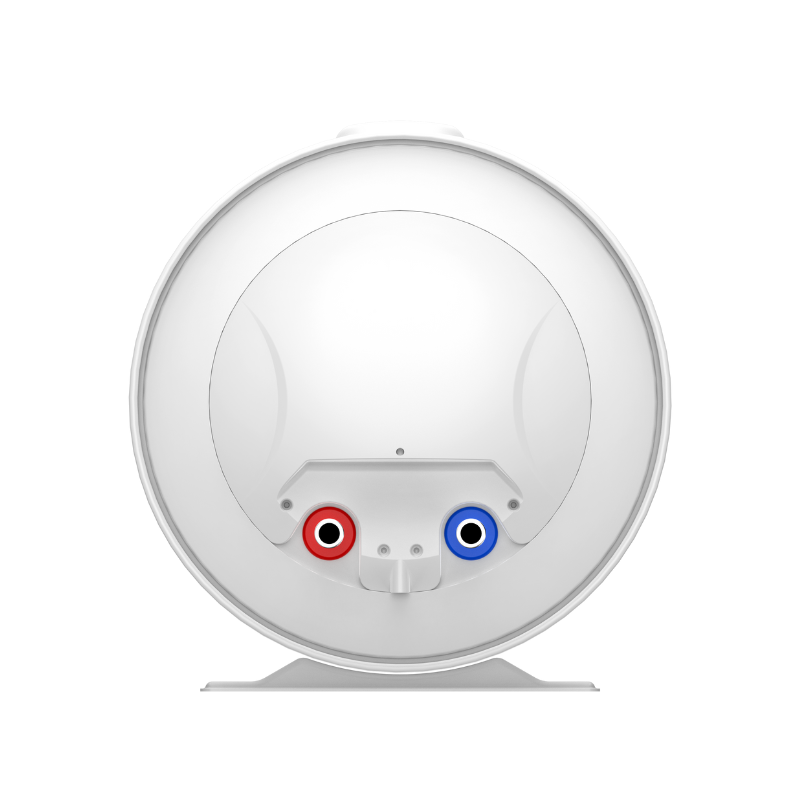

Electric Water Heater CS

The CS Series Vertical Electric Water Heaters are ideal for meeting your hot water needs. With mechanical temperature control, a liquid expansion thermostat, and digital temperature display, they offer precise temperature adjustment. Featuring a stainless steel heating tube and a blue diamond enamel liner, these heaters ensure durability and efficient heating. Available in capacities of 30, 50, 80, and 100 liters, they suit various usage requirements.

Model: CS

Color: White

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

Electric Water Heater CS

The CS Series Vertical Electric Water Heaters stand out as a reliable and efficient choice for providing hot water in homes and other settings.

Starting with temperature control, they utilize mechanical temperature regulation paired with a liquid expansion thermostat. The front control box allows for easy temperature adjustment, and a digital display clearly shows the current temperature, enabling users to have precise control over their hot water supply.

In terms of heating performance, the heaters come with a single power stainless steel heating tube. This not only ensures efficient heating but also boasts good corrosion resistance, contributing to a long service life. The power cord is a standard ordinary plug type, but an ELCB leakage protection power cord is optional, with plug matching based on the sales area for added safety.

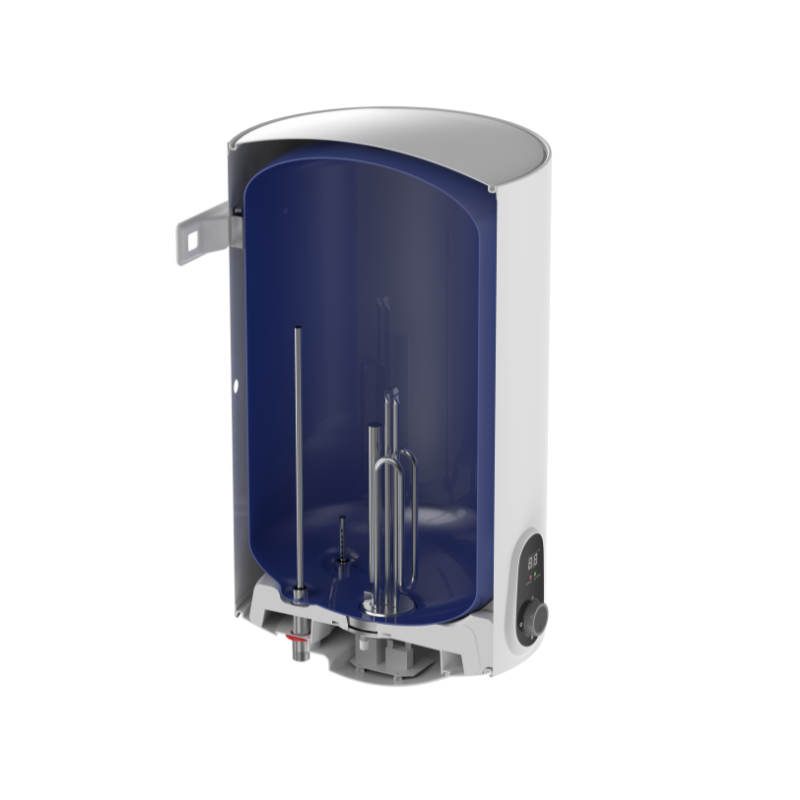

The construction of the water heaters is robust. They use metal SPCC material with a powder coating for the exterior, providing sturdiness and resistance to wear and tear. For insulation, an environmentally friendly polyurethane foam layer with a thickness of 20mm is employed, which helps in maintaining water temperature and reducing energy consumption. Inside, a built-in Φ18*200mm magnesium rod works to protect the liner from corrosion, while the blue diamond enamel liner (SPCC enamel) offers excellent durability and resistance to rust and scaling.

These water heaters are available in multiple rated capacities: 30L, 50L, 80L, and 100L, catering to different household sizes and hot water demands. The product sizes vary accordingly, with the 30L model having dimensions of Φ380x488, the 50L at Φ380x688, the 80L at Φ450x757, and the 100L at Φ450x897. The packaging sizes are 442x422x522, 442x422x722, 502x492x780, and 502x492x920 for the respective capacities.

Developed according to CB/CE certification standards, the CS Series can pass CB/CE testing, ensuring they meet international safety and quality benchmarks. Optional features include ELCB type power cords, and heating tubes made from materials like 310S/840/800 stainless steel, copper, or stainless steel enamel (the standard is 316L stainless steel). Power options are also flexible: 220V with 1000 - 3000W or 110V with 800 - 1500W (the basic configuration is 220V/1500W with a 316L stainless steel heating tube and ordinary power cord). The carton packaging is a regular corrugated carton, ensuring safe transportation.

Features

Mechanical temperature control

Liquid expansion thermostat

Front control box temperature adjustment

Digital temperature display

Single power, stainless steel heating tube

Specifications

Type	Product model	Rated Power	Functional introduction	Rated Capacity	Product size	Packaging size	Remarks
Vertical	CS Series	1500W	1. Mechanical temperature control, liquid expansion thermostat, Front control box temperature adjustment,Digital temperature display 2. Single power, stainless steel heating tube 3. Ordinary plug power cord, optional ELCB leakage protection power cord (plug matching according to sales area) 4. Metal SPCC material with powder coating 5. Environmentally friendly polyurethane foam insulation layer, 20mm thickness 6. Built-in φ18*200mm magnesium rod 7. Blue diamond enamel liner (SPCC enamel) 8. Developed according to CB/CE certification standards, can pass CB/CE testing	30	φ380x488	442x422x522	1. Optional: ELCB type power cords; 2. The standard heating tube is 316L stainless steel. Optional: 310S/840/800 stainless steel, copper material, or stainless steel enamel heating tubes; 3. The carton is a regular corrugated carton; 4. Optional: 220V power 1000-3000W , 110V power 800-1500W; The quotation is for the basic configuration: 316L stainless steel heating tube, ordinary power cord, 220V/1500W power;
				50	φ380x688	442x422x722
				80	φ450x757	502x492x780
				100	φ450x897	502x492x920

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
