Electric Water Heater ES

The ES Series Vertical Electric Water Heater is a premium solution for consistent hot water supply. Featuring mechanical temperature control with a liquid expansion thermostat and digital display, it allows easy bottom-mounted temperature adjustment. Equipped with a 1500W single power system and a durable stainless steel heating tube, it ensures efficient heating. Constructed from metal SPCC with powder coating and a 20mm environmentally friendly polyurethane foam insulation layer, it guarantees longevity and heat retention. The blue diamond enamel liner (SPCC enamel) and built-in φ18*200mm magnesium rod enhance durability. Available in 30L, 50L, 80L, and 100L capacities, it meets various household needs. It comes with an ordinary plug power cord, with an optional ELCB leakage protection cord. Developed to CB/CE certification standards, it ensures safety and quality.

Model: ES

Color: White

Innovate

Authentication

Overview Features Specifications Frequently Asked Questions You May Also Like

Electric Water Heater ES

The ES Series Vertical Electric Water Heater stands out as a versatile and reliable appliance designed to deliver consistent hot water for residential and light commercial use.

In terms of performance and efficiency, it boasts a 1500W single power output paired with a stainless steel heating tube, ensuring rapid and efficient water heating. The mechanical temperature control system, featuring a liquid expansion thermostat, allows precise temperature adjustment via the bottom-mounted control box, complemented by a digital temperature display for easy monitoring. An environmentally friendly polyurethane foam insulation layer (20mm thick) minimizes heat loss, optimizing energy efficiency.

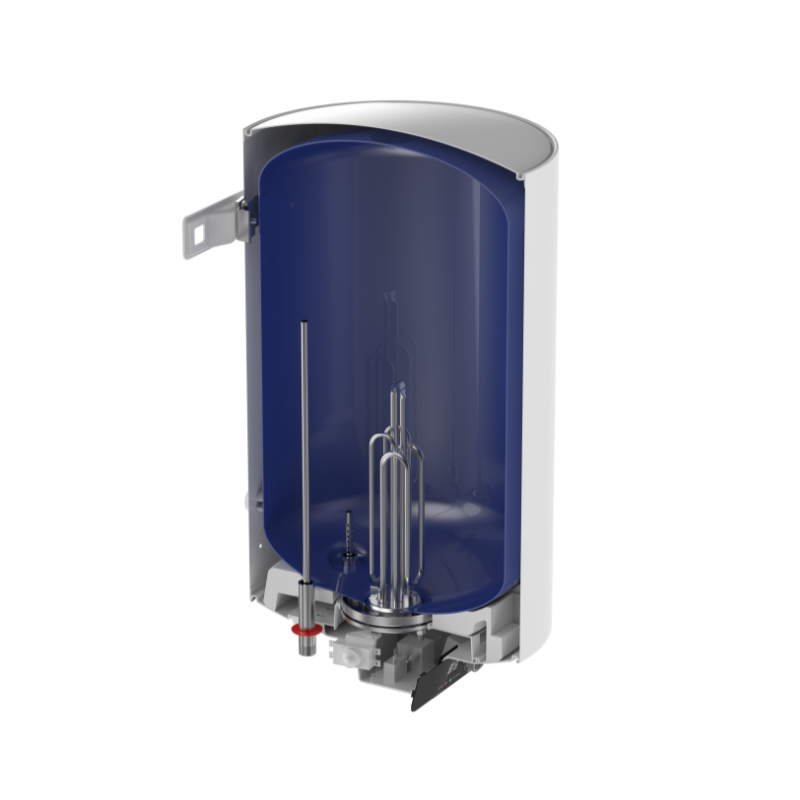

Construction and Durability are key strengths. The water heater is built with metal SPCC material finished with a powder coating for robust protection against corrosion and wear. The blue diamond enamel liner (SPCC enamel) and a built-in φ18*200mm magnesium rod work together to resist scaling and extend the appliance’s lifespan. The heating tube standard is 316L stainless steel, with options for 310S/840/800 stainless steel, copper, or stainless steel enamel tubes to suit different water conditions.

Capacity and Sizing cater to diverse requirements, with models available in 30L (φ380x506), 50L (φ380x706), 80L (φ450x775), and 100L (φ450x915). Packaging sizes vary accordingly (442x422x545, 442x422x745, 502x492x802, 502x492x942), ensuring secure transportation.

Safety and Compliance are prioritized, with the option of an ELCB leakage protection power cord (plug type adapted to the sales region) for enhanced electrical safety. The product is developed in accordance with CB and CE certification standards, ensuring it meets international quality and safety benchmarks. Additionally, power options are flexible, with 220V models ranging from 1000-3000W and 110V models from 800-1500W to accommodate different regional electrical systems.

In summary, the ES Series Vertical Electric Water Heater combines efficiency, durability, and safety, making it an ideal choice for those seeking a dependable hot water solution.

Features

Mechanical Temperature Control

Liquid Expansion Thermostat

Bottom Control Box Temperature Adjustment

Digital Temperature Display

Metal SPCC Material With Powder Coating

Specifications

Type	Product model	Rated Power	Functional introduction	Rated Capacity	Product size	Packaging size	Remarks
Vertical	ES Series	1500W	1、Mechanical temperature control, liquid expansion thermostat, bottom control box temperature adjustment，Digital temperature display 2. Single power, stainless steel heating tube 3. Ordinary plug power cord, optional ELCB leakage protection power cord (plug matching according to sales area) 4. Metal SPCC material with powder coating 5. Environmentally friendly polyurethane foam insulation layer, 20mm thickness 6. Built-in φ18*200mm magnesium rod 7. Blue diamond enamel liner (SPCC enamel) 8. Developed according to CB/CE certification standards, can pass CB/CE testing	30	φ380x506	442x422x545	1. Optional: ELCB type power cords; 2. The standard heating tube is 316L stainless steel. Optional: 310S/840/800 stainless steel, copper material, or stainless steel enamel heating tubes; 3. The carton is a regular corrugated carton; 4. Optional: 220V power 1000-3000W , 110V power 800-1500W; The quotation is for the basic configuration: 316L stainless steel heating tube, ordinary power cord, 220V/1500W power;
				50	φ380x706	442x422x745
				80	φ450x775	502x492x802
				100	φ450x915	502x492x942

Frequently Asked Questions

Q: How do I choose the right gas water heater capacity for my household?

A:
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?

A:
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?

A:
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?

A:
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?

A:
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?

A:
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
