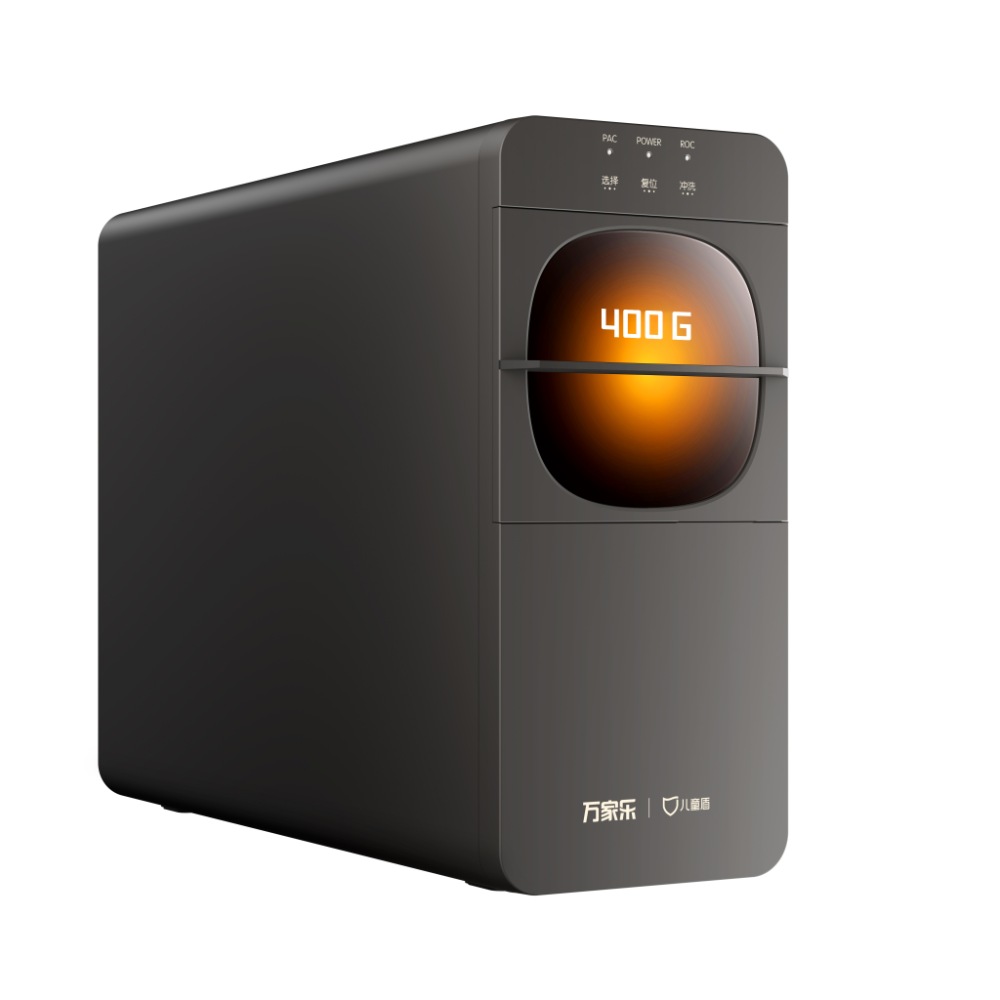

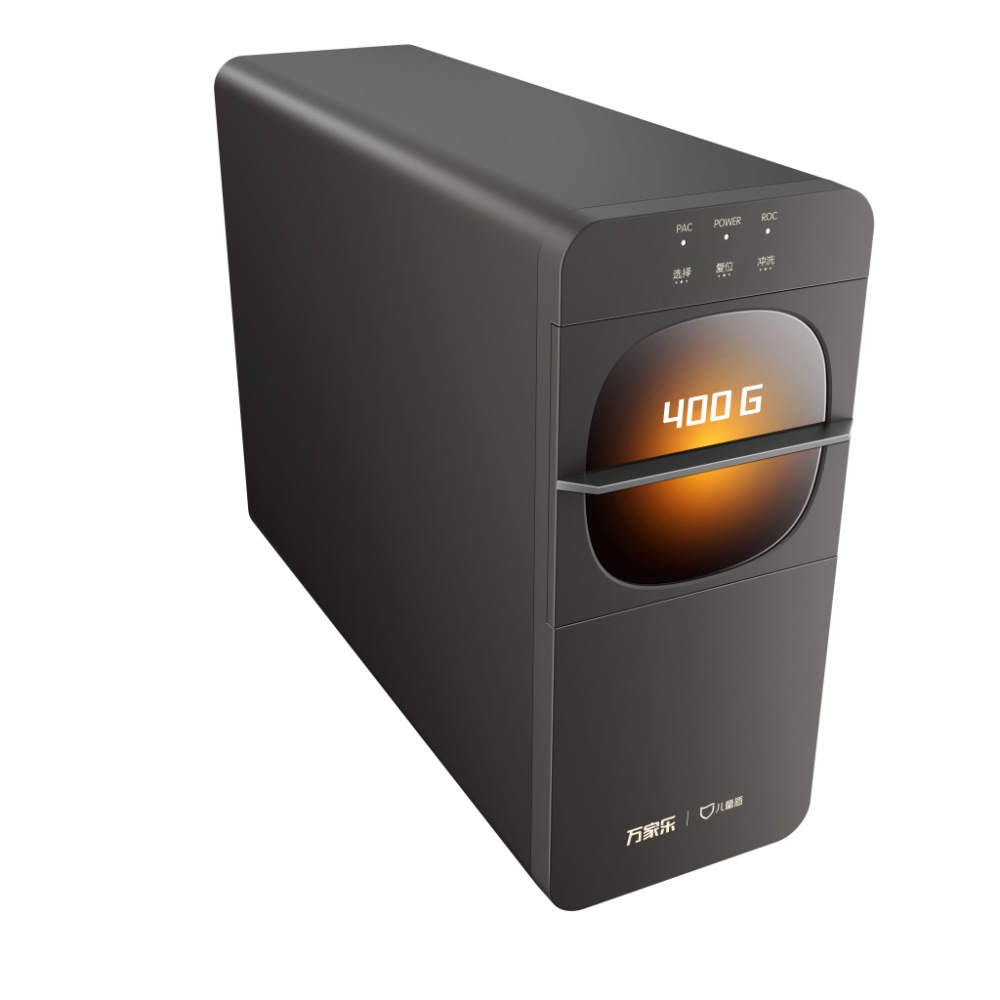

Water Purification and Heating Series
Model: CHR-CCL119-600G
Innovate
Authentication
Features

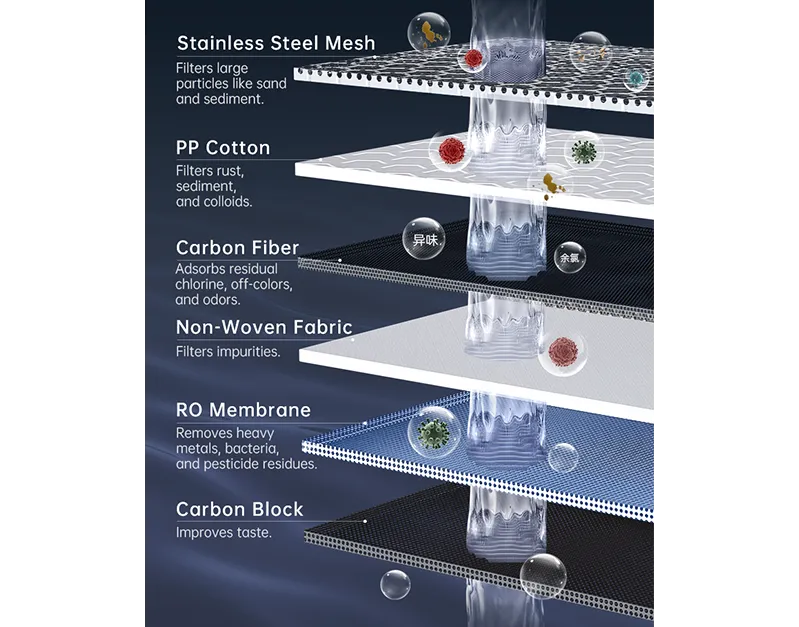

SIX-STAGE HIGH-EFFICIENCYFILTRATION FOR SAFERDIRECT DRINKING
To achieve instant filtration and drinkingMacro utilizes self-developed multi-ayerpurification technology. The six-stagehigh-precision filtration effectively removesvarious harmful substances from the water
Stainless Steel Mesh: Filters large particles like sand and sediment.
PP Cotton: Filters rust, sediment, and colloids.
Carbon Fiber: Adsorbs residual chlorine, off-colors, and odors.
Non-Woven Fabric
Filters impurities.
RO MembraneRemoves heavymetals, bacteria,and pesticide residues.
Carbon Block
lmproves taste.
PATENTEDINTEGRATED SEGMENTED FILTER CARTRIDGE REPLACE SEPARATELY TO SAVE MORE
The segmented composite integrated filter cartridgefeatures an optimized design, combining PACand ROC filters into a five-in-one module forefficient purification. This segmented replacementsystem reduces overall maintenance costs.

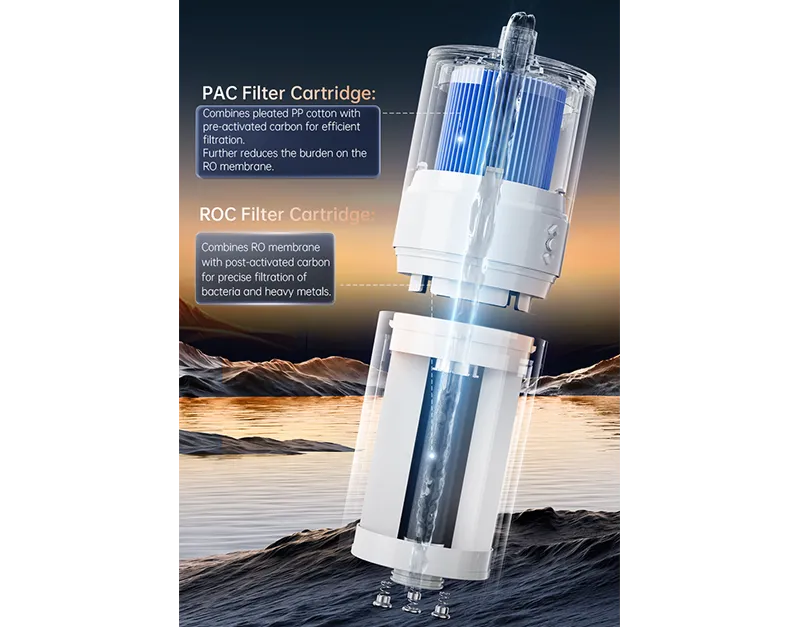

PAC Filter Cartridge:
Combines pleated Pp cotton withpre-activated carbon for efficient filtration.
Further reduces the burden on theRO membrane.
ROC Filter Cartridge:
Combines RO membrane with post-activated carbon for precise filtration of bacteria and heavy metals.

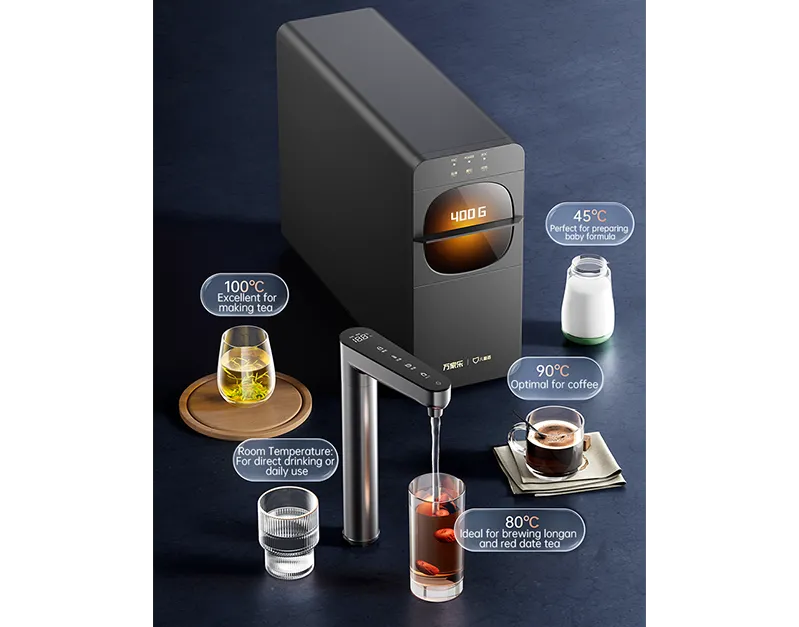

FIVE TEMPERATURE MODESTO MEET VARIOUS NEEDS
With five adjustable temperature settingsthis system offers precise and efficient hot water dispensing for multiple scenarios. Features include real-time temperature display, filter replacement reminders, and a child safety lock for added convenience and safety.

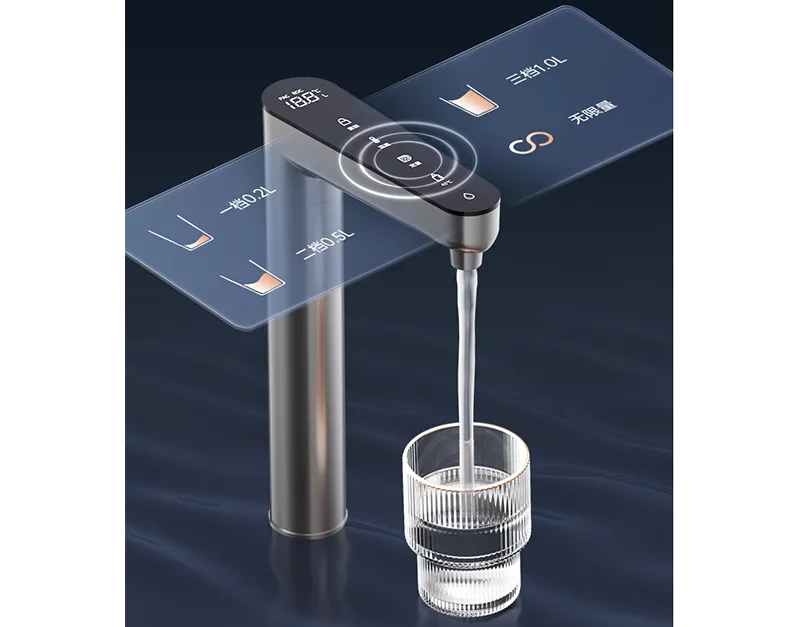

FOUR VOLUME SETTINGSFOR HASSLE-FREEWATER DISPENSING
Dispense water precisely without worrying about overflow. With a single touch of the "Volume" button on the screen, you can switch between four commonly used water volume settings. The system automatically stops when the set volume is reached, ensuring convenience and efficiency.
(After selecting the temperature, the default water volume is 1.0L. Touch the "Volume' button to cycle through 0.2L, 0.5L, 1.0L, and Unlimited options. For "Unlimited" mode, the system allows continuous water dispensing for up to 5 minutes. After 5 minutes, it automatically stops, and you must press the "Dispense" button again to continue.)

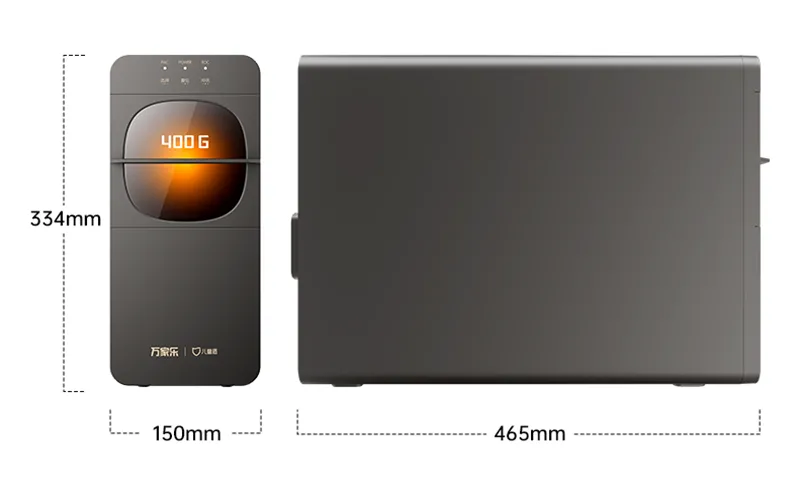

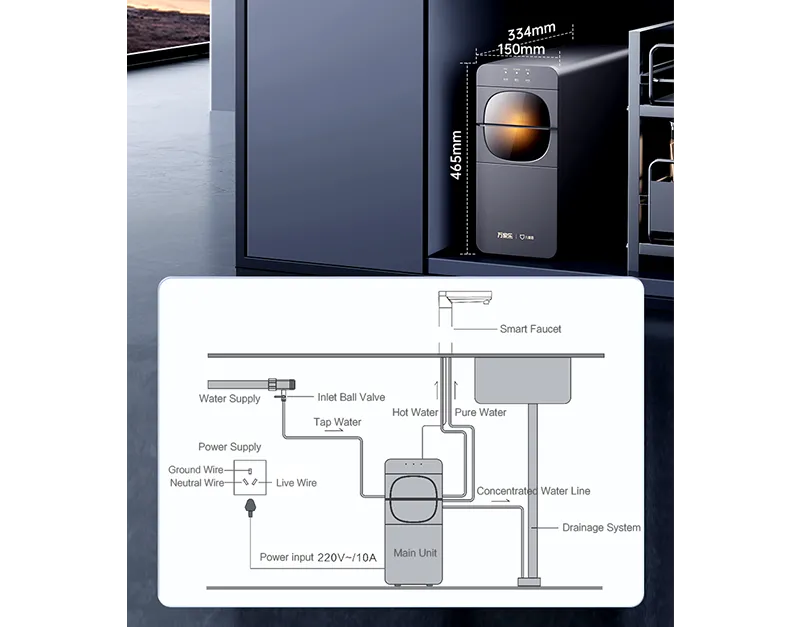

SLIM AND COMPACT DESIGN FORHASSLE-FREE INSTALLATIONIN SMALL KITCHENS
The slim and space-saving design takes up minimal room, allowing flexible installation in various spaces. Whether before or after renovation, it easily adapts to solve installation challenges in small kitchens.
Thoughtful Details, Full of Care

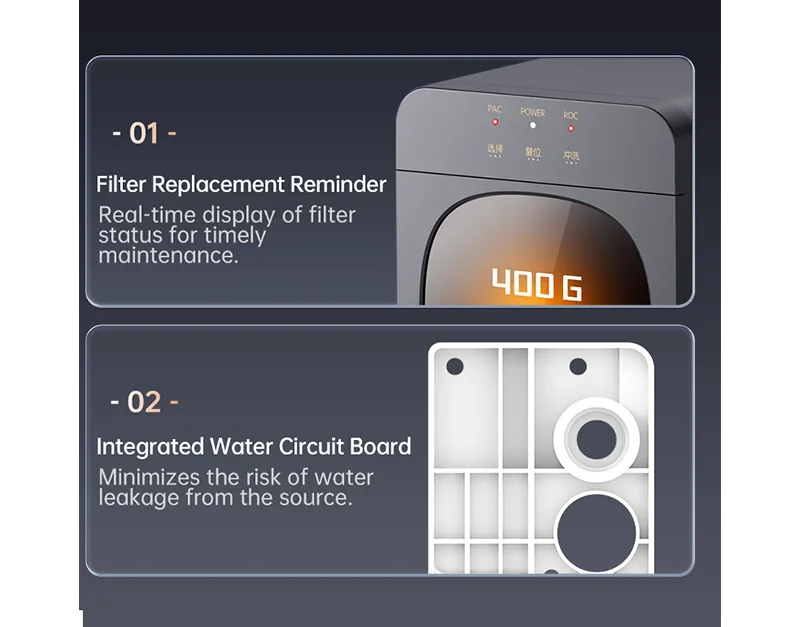

01 Filter Replacement Reminder
Real-time display of filter status for timely maintenance.
02 Integrated Water Circuit Board
Minimizes the risk of water leakage from the source.
Product Specifications
Specifications
Model | CHR-CCL119-600G |
Total purified water volume (L) | 4000 |
Purified water flow rate (L/min) | 1.05 |
Ratio of Waste Water | 2:1 |
Applicable water temperature (℃) | 5~38 |
Inlet water pressure (MPa) | 0.1~0.4 |
Net Weight (kg) | 8.5 |
Gross Weight (kg) | 11 |
Product Sizem (mm) | 150*465*334 |
Package size (mm) | 250*515*545 |
Rated voltage (V)/Frequency (Hz) | 220V~/50Hz |
Power (W) | 2200 |
Filter Element | PAC composite filter element ROC composite filter element |
Operation Type | Computer version Touch Control LED Display |
Intelligent Interaction | Filter Life Indicator Automatic Flushing Manual Flushing Intelligent Faucet |
Safe Function | Water leakage protection Time-out protection |
