Condensing;
High efficiency for modern ecological concept.

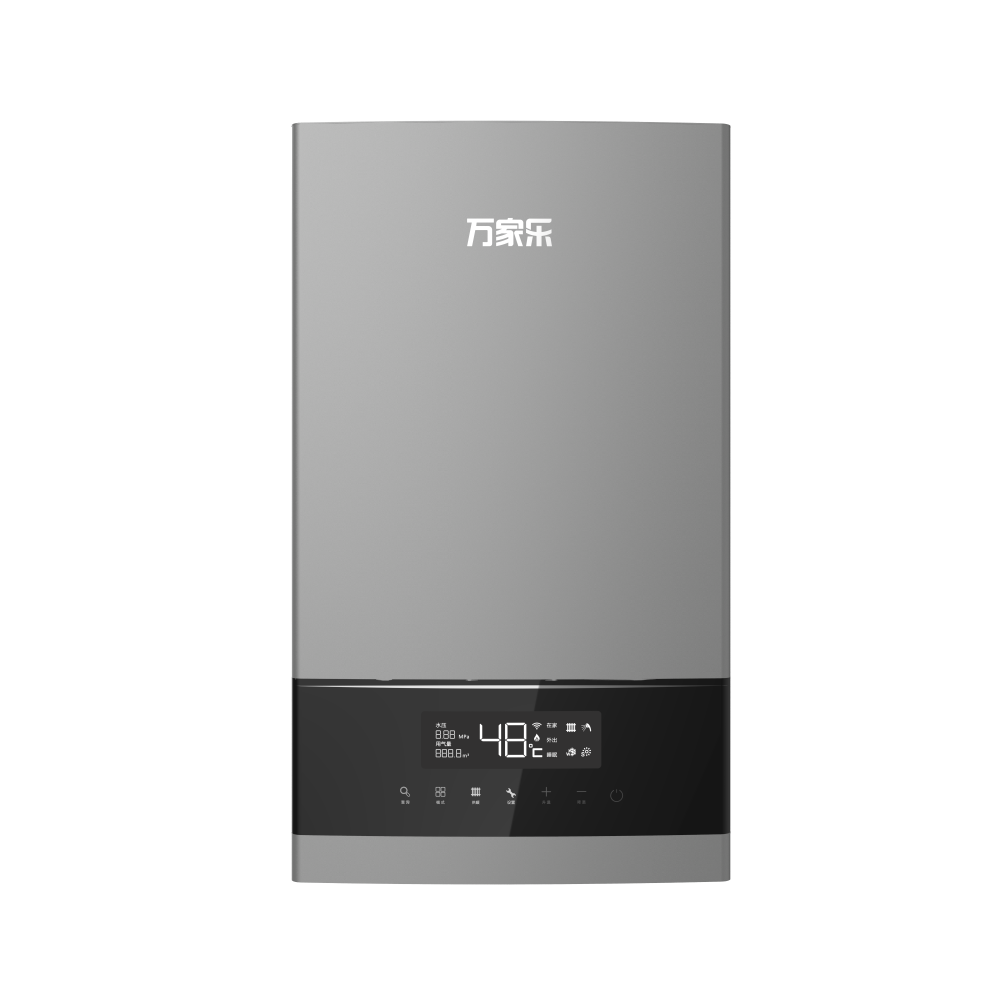

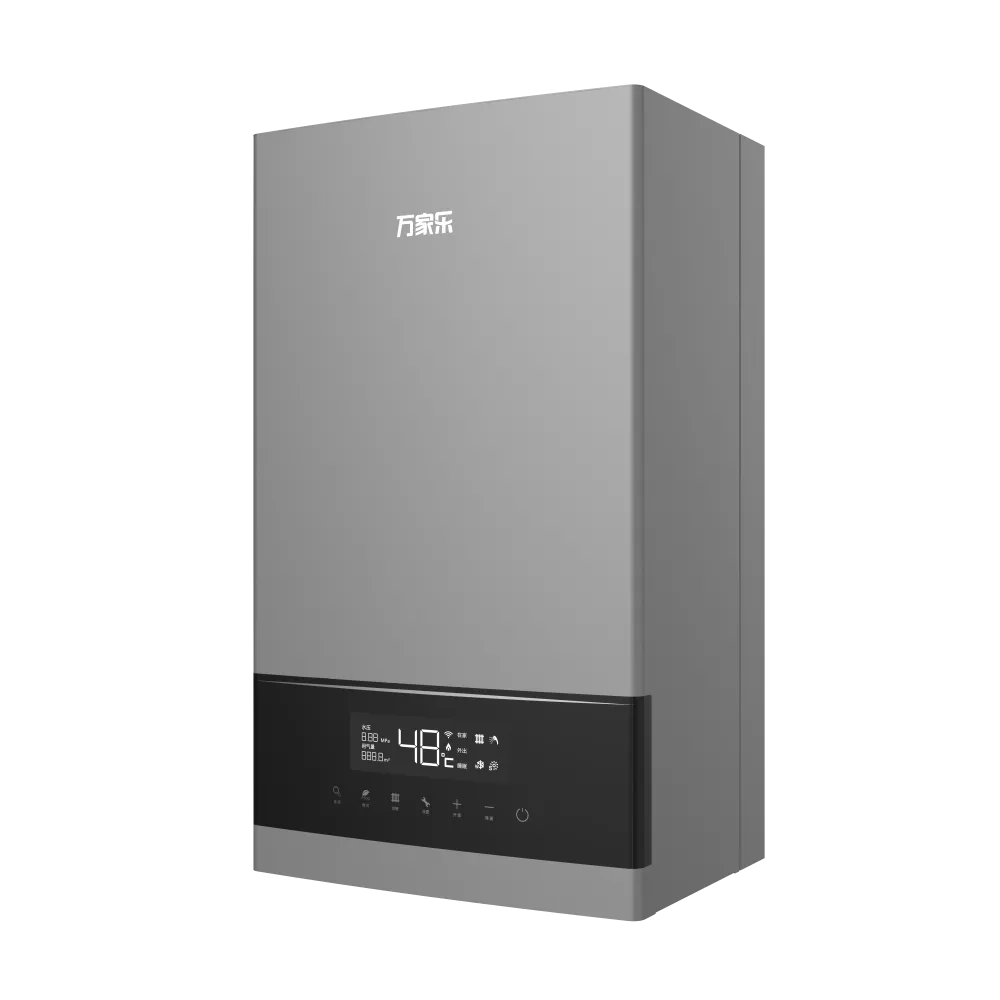

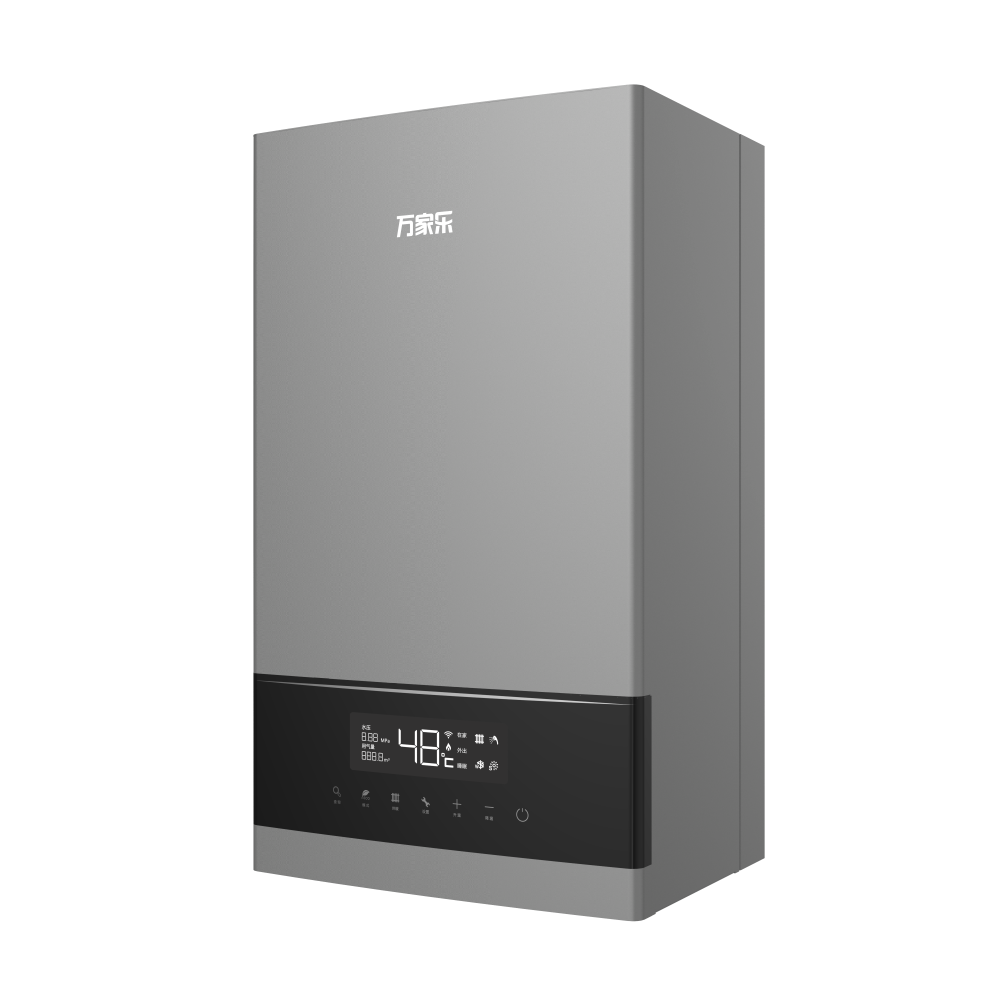

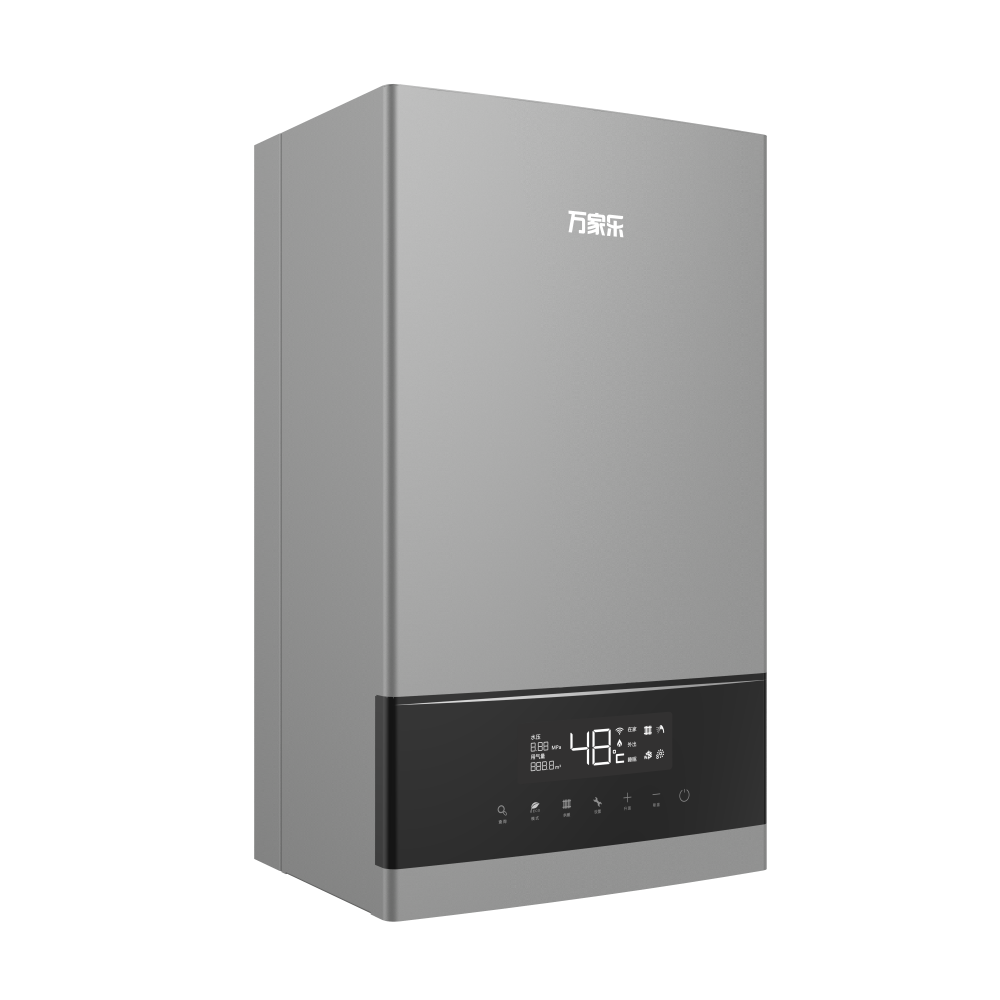

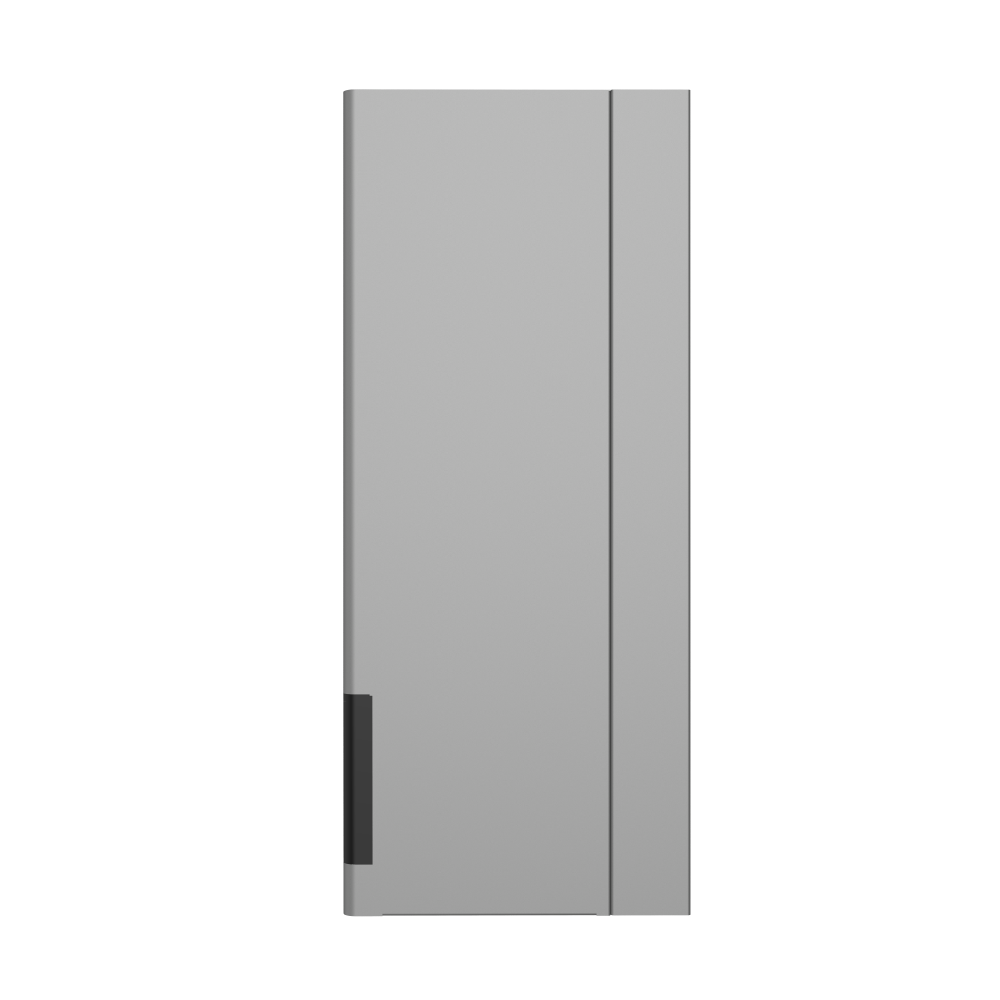

The B6A series boilers (LL1PBD20 - 20B6A, LL1PBD26 - 26B6A, LL1PBD30 - 30B6A) deliver efficient heating and DHW. With touch panel, electronic control, and functions like heating, DHW, they feature high - efficient heat exchanger tech, ECO mode, and 48 - safe protection. Adjustable heat input/output, wide temp ranges, and strong efficiency (up to 105.13% heating efficiency) suit 60 - 220㎡ areas. Quiet design and multiple protections ensure safety and comfort.

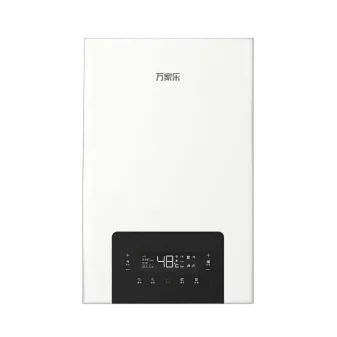

Model: B6A
The B6A boiler series offers a comprehensive solution for heating and domestic hot water needs across three models: LL1PBD20 - 20B6A, LL1PBD26 - 26B6A, and LL1PBD30 - 30B6A.
Equipped with a touch panel and electronic control, they support heating, DHW, and radiator/floor heat functions. The high - efficient heat exchanger technology, ECO mode, and noise - reduction design enhance performance and user experience.
In heating, models have max/min heat load input powers (20/7.5Kw to 29.6/10.8Kw) and output powers adjustable for 80 - 60℃ and 50 - 30℃ ranges. For DHW, max heat load input powers span 20 - 29.6Kw, with efficiencies up to 97.02%. Heating efficiencies reach up to 105.13%, ensuring energy - saving operation.
Rated power, enclosure protection (IPX4D), water temp adjustment ranges (radiator 30 - 80℃; floor heat 25 - 60℃ for heating; 35 - 60℃ for DHW), and expansion tank volumes vary by model. They cover heating areas from 60 - 220㎡, with hot water capacities meeting daily needs.
With 48 - safe protection and reliable performance, the B6A series combines efficiency, safety, and versatility for modern homes, ensuring constant warmth and convenient hot water supply.
Features

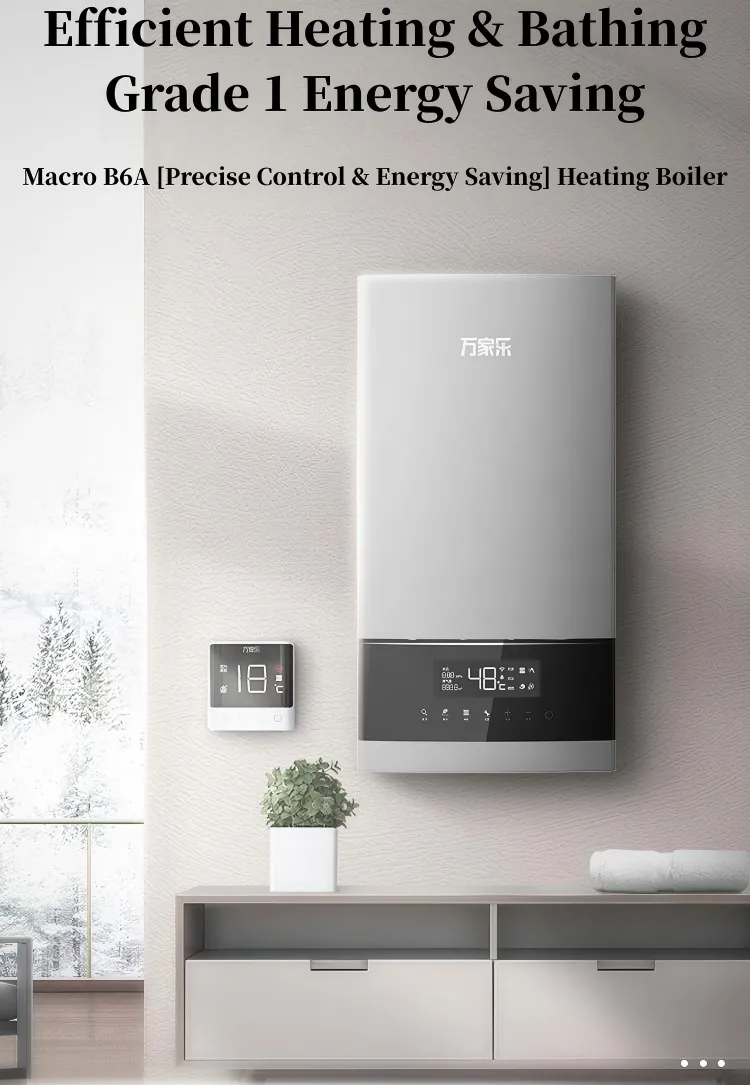

Efficient Heating & Bathing Grade 1 Energy Saving
Macro B6A [Precise Control & Energy Saving] Heating Boiler

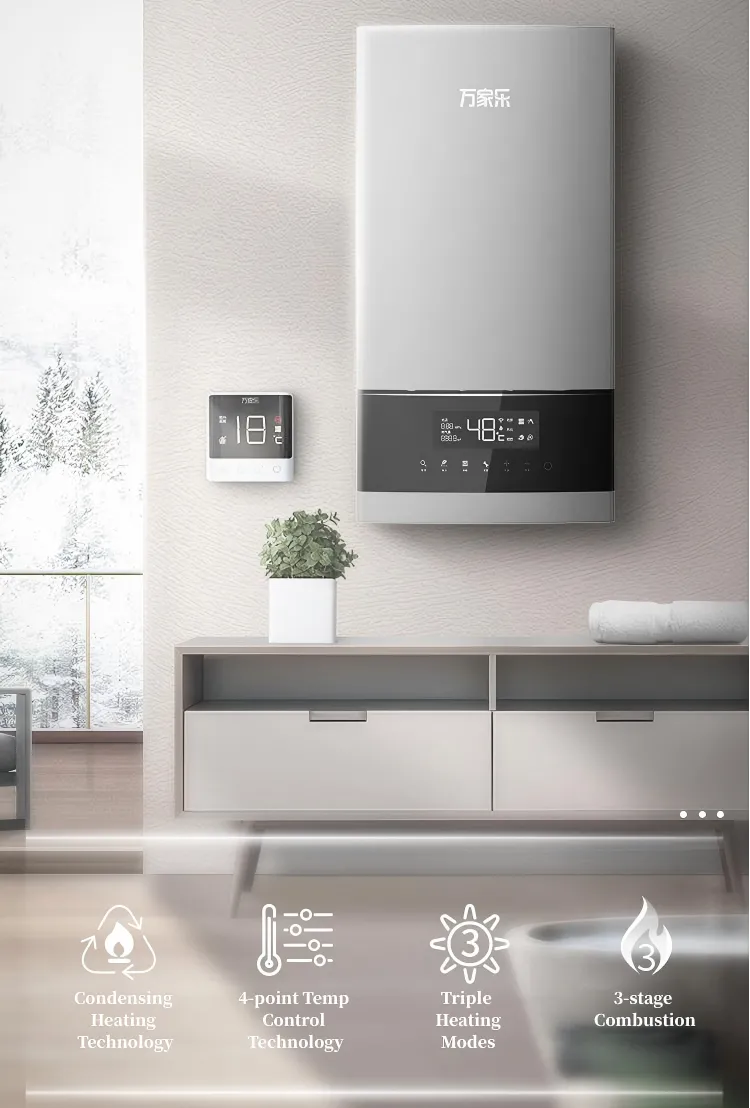

Heating & Hot Water Intelligent Control of the Whole House Temperature
Heating and bathroom adopt four-point temperature control technology,
effectively controlling temperature and shortening heating time.
Bath water temperature difference is as low as ±1℃.
There are 3 heating modes for different needs, saving time and energy.
The 3-stage combustion technology (combustion load ratio 1:8) allows adjustable firepower,
solving winter hot-water-not-hot-enough and summer hot-water-too-hot issues,
ensuring a comfortable bathing experience always.
Imported High Standard Components Quality Guaranteed
Imported High Standard Components Quality Guaranteed
Four-point Temperature Control Technology Faster heating, bath water temperature difference ±1°C
By monitoring the heating temperature at multiple points, itcan adjust the heating status in real-time.
While ensuring rapid heating, it achieves a constant hot water output temperature.
Triple Heating Modes Match different heating needs, save time and energy
Three heating modes are provided: Home, Away, and Sleep.
Users can switch freely among them.
While ensuring comfortable heating, it can effectively save energy consumption and match different heating demands.
3-stage Combustion Comfortable bathing in summer without overheating, full - load heating in winter
With intelligent 3-stage firepower adjustment, the minimum temperature rise is as low as 6K.
It easily achieves a stable hot water temperature rise in summer and a powerful firepower for a comfortable bathing experience in winter.
WIFI Remote Intelligent Control Remote scheduling for ultimate comfort
Connect to the wall - hung boiler remotely via a mobile app to achieve convenient functions such as scheduled heating and bathing. You can adjust output parameters with just one click, so you don't have to wait long for warmth.
Laminated High-precision Screen Intuitive operation and clear parameter display
The high-precision screen adopts In-Mold Decoration (IMD) technology.
Based on traditional touch - screen products, it optimizes display clarity and touch-screen feel. With a gentle touch, you can easily complete operations, and the intuitive parameter display eliminates the need for repeated confirmation.
42dB Low-noise Operation Quiet heating without disturbing family
It adopts a low-vibration design structure and sealed material treatment, suppressing the operating noise from the source and
structure, allowing users to enjoy a quieter environment.
Power-off Memory No need to reset when powered off, remembers your temperature settings
It intelligently backs up the working status.
After a power failure and restart, it automatically reads the working status information before the power outage, eliminating the need for re-setting.
Simplify your life and enjoy a more worry-free and comfortable experience.
Condensing-specific Balanced Flue Pipe Complete combustion, no fear of strong winds on high floors
The wall - hung boiler has an overall sealed design.
Utilizing the pressure difference inits structure, it uses a double - layer balanced flue pipe.
The inner layer actively expels combustion exhaust outdoors, preventing indoor leakage and exhaust - gas - related poisoning.
The outer layer draws in outside oxygen for combustion, ensuring stable burning without affecting indoor air.
Specifications
Model | LL1PBD20-20B6A | LL1PBD26-26B6A | LL1PBD30-30B6A | LL1PBD20-20R6 | LL1PBD26-26R6 | LL1PBD30-30R6 |
Max./min. heat load input power (Kw) | 20/7.5 | 25.6/8.5 | 29.6/10.8 | 20/7.5 | 25.6/8.5 | 29.6/10.8 |
Heating:Max. heat load output power (80-60℃) (Kw) | 19 | 24.6 | 28.5 | 19 | 24.6 | 28.5 |
Heating:Max. heat load output power (50-30℃) (Kw) | 20 | 26 | 30 | 20 | 26 | 30 |
Heating:Min. heat load output power (80-60℃) (Kw) | 7 | 7.8 | 10.2 | 7 | 7.8 | 10.2 |
Heating:Min. heat load output power (50-30℃) (Kw) | 7.2 | 8.2 | 10.5 | 7.2 | 8.2 | 10.5 |
DHW: Max. heat load input power (Kw) | 20 | 25.6 | 29.6 | 20 | 25.6 | 29.6 |
DHW: efficiency (%) | 96.23% | 96.72% | 97.02% | 96.02% | 96.08% | 96.25% |
Heating efficiency (%) | 101.68% | 104.01% | 105.13% | 104.06% | 102.23% | 102.79% |
Rated Max./min. power (W) | 125/110 | 135/115 | 135/115 | 108/95 | 115/98 | 120/105 |
Enclosure protection class | IPX4D | IPX4D | IPX4D | IPX4D | IPX4D | IPX4D |
Heating performance:Highest water temp. (℃) | 85 | 85 | 85 | 85 | 85 | 85 |
Heating performance:Water temp adjustment range (℃) | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 |
Heating performance:System Max. water pressure (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Heating performance:Expansion tank volumn (L) | 6 | 6 | 10 | 6 | 6 | 10 |
Heating performance:Heating area reference (m2) | 60-160 | 80-220 | 100-250 | 60-160 | 80-220 | 100-250 |
DHW performance:Water temp adjustment range (℃) | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
DHW performance:Hot water capacity △t=25K | 12 | 15 | 17 | 11 | 14 | 16 |
DHW performance:Hot water capacity △t=30K | 9 | 11 | 13 | 9 | 11 | 13 |
DHW performance:Water pressure (Mpa) | 0.02-0.8 | 0.02-0.8 | 0.02-0.8 | 0.02-0.8 | 0.02-0.8 | 0.02-0.8 |
Net weight (Kg) | 36 | 37 | 40.5 | 36.5 | 37.5 | 39 |
Product dimension L*W*H (mm) | 720*420*312 | 720*420*312 | 720*420*335 | 720*420*312 | 720*420*312 | 720*420*335 |
Package dimension L*W*H (mm) | 830*515*420 | 830*515*420 | 830*515*443 | 830*515*420 | 830*515*420 | 830*515*443 |
Frequently Asked Questions
Q: How do I choose the right gas water heater capacity for my household?
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
Q: What's the difference between a forced-draft and a balance-type gas water heater?
A forced-draft gas water heater uses a fan to exhaust combustion gases to the outside. It requires an exhaust flue connected to the outside. In contrast, a balance-type gas water heater has a sealed combustion chamber. It draws in outside air for combustion and exhausts gases outside through a coaxial flue. This makes it safer for installation in areas with limited ventilation, as it doesn't consume indoor air for combustion.
Q: How can I ensure the safety of using a gas water heater?
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can the gas water heater work in low-water-pressure conditions?
Some of our models are specifically designed to work in low-water-pressure environments. They have a low-water-pressure startup feature, which allows them to activate and operate normally even when the water pressure is relatively low. This ensures that you can still enjoy hot water in areas with limited water pressure.
