Double Circuit;
Combination of heating & domestic hot water.
The M2 series boilers stand out with a touch panel and electronic control for effortless operation. Boasting functions like heating, DHW, and compatibility with radiator/floor heat, they feature high - efficient heat exchanger tech. With ECO mode, noise - reduction design, and 48 - hour safe protection, these boilers cater to diverse heating and hot water demands, offering reliable performance across multiple models to fit different household or commercial heating area needs.

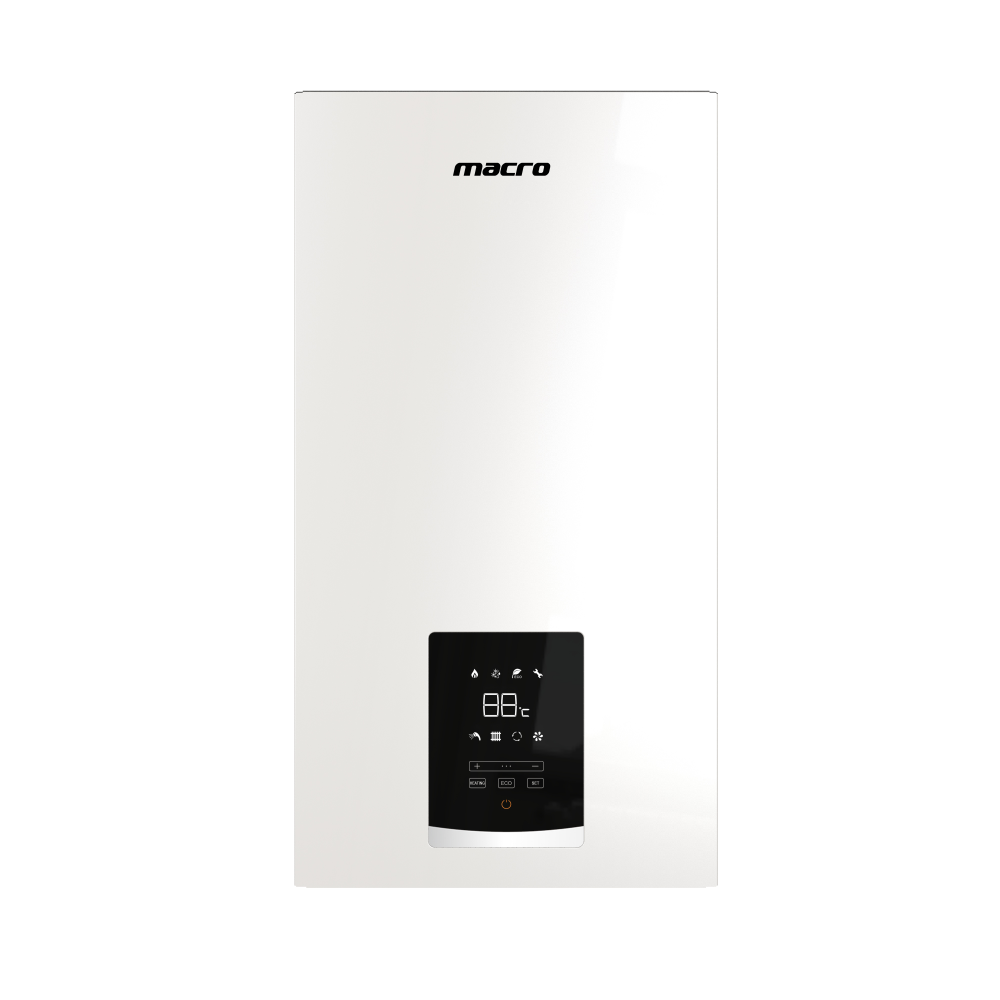

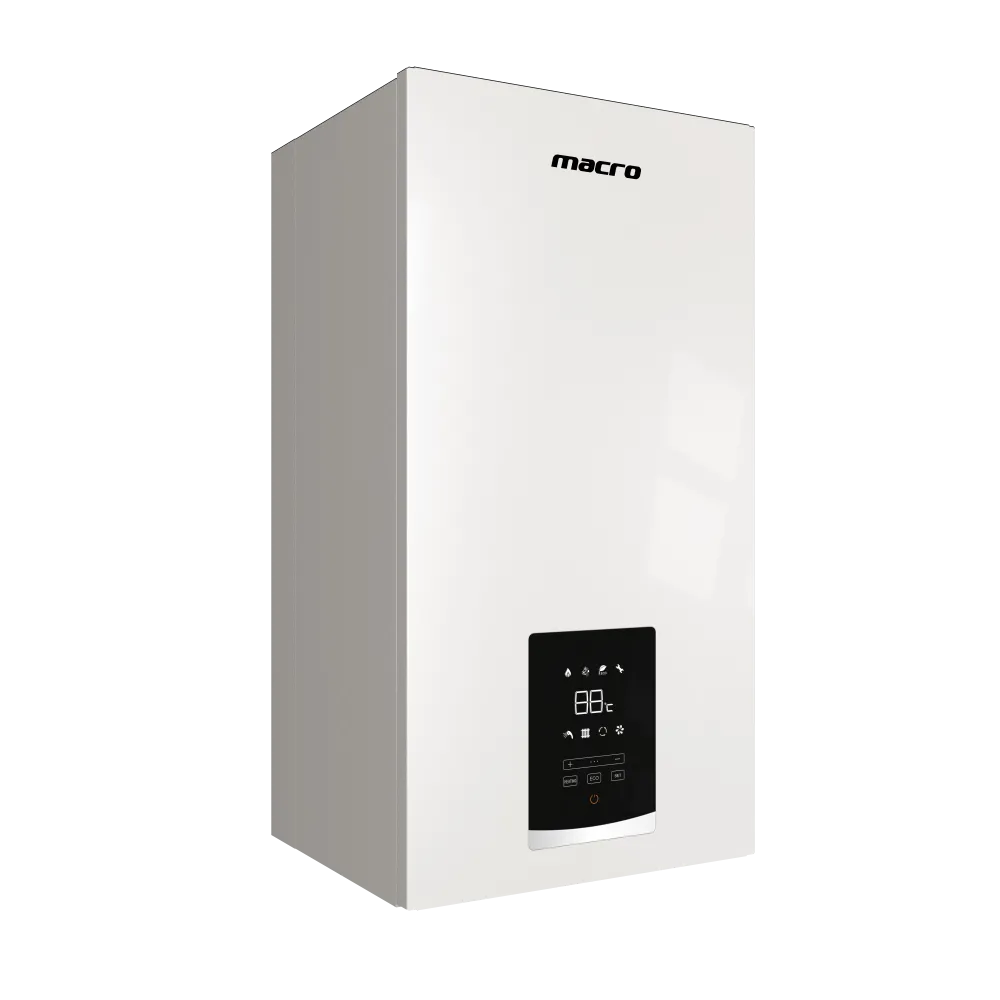

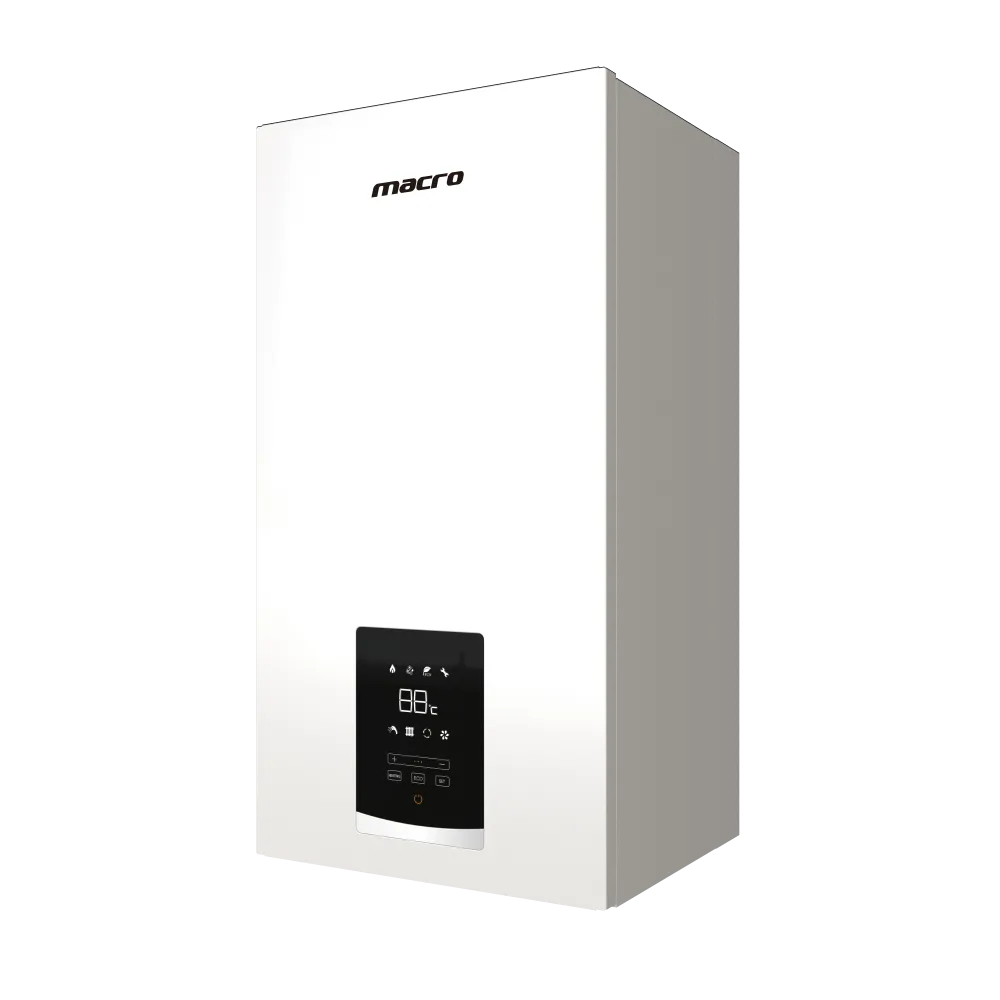

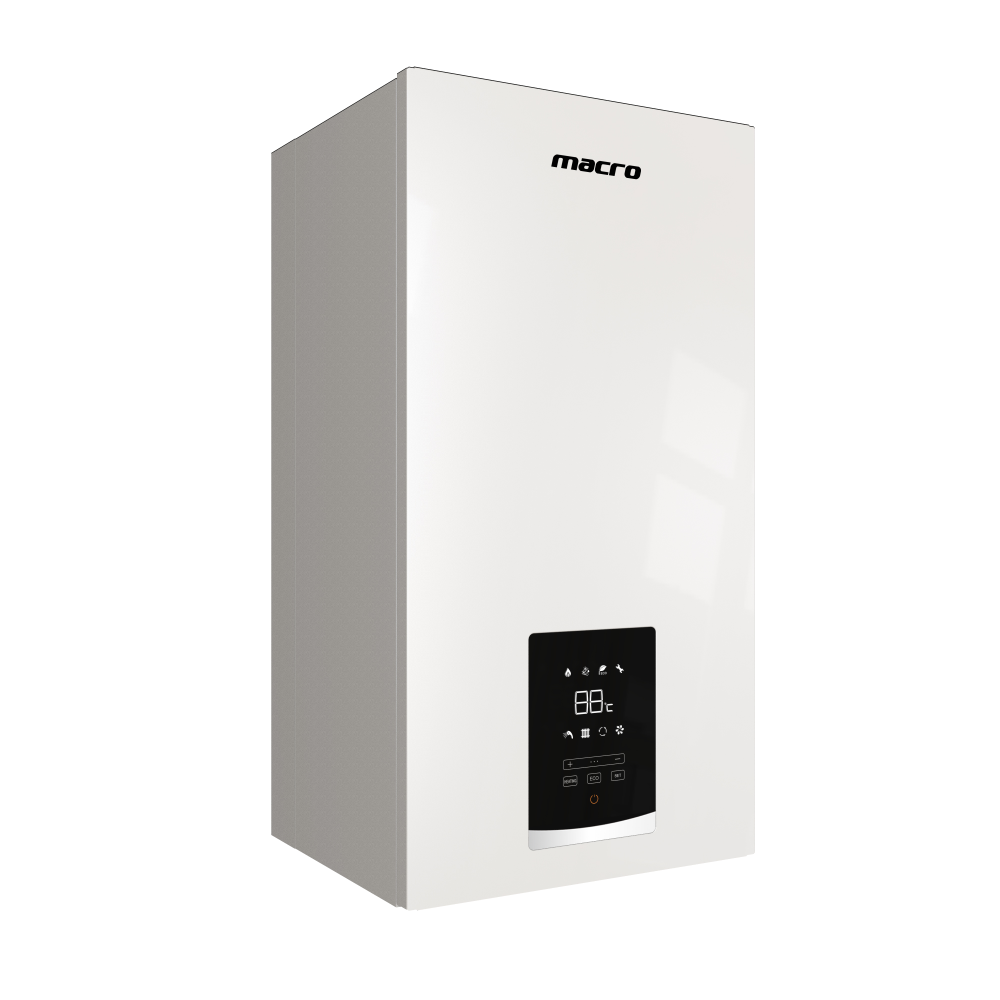

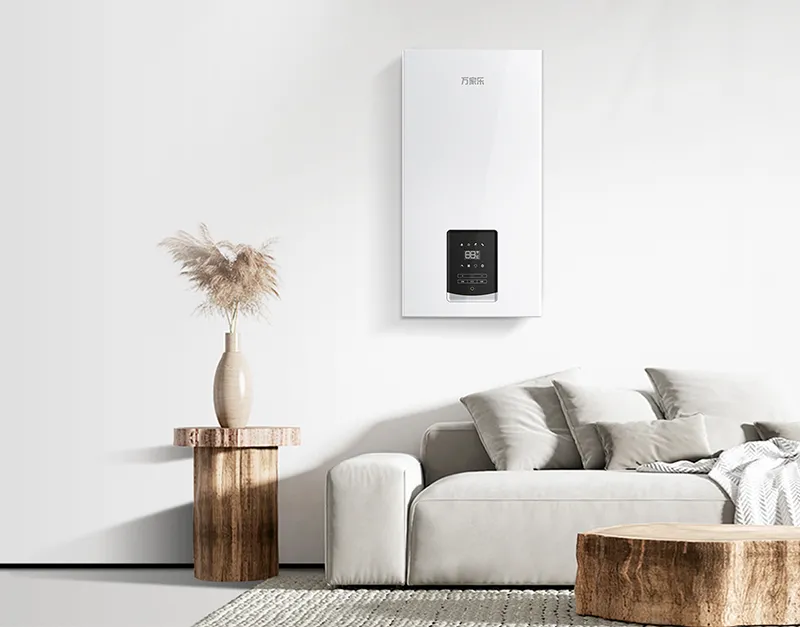

Model: M2
Innovate
Authentication
The M2 boiler series represents a comprehensive solution for heating and domestic hot water (DHW) requirements. It comes equipped with an intuitive touch panel and precise electronic control, streamlining operation. A wide array of functions, including heating, DHW, and support for radiator or floor heat systems, allows it to adapt to various application scenarios.
Leveraging high - efficient heat exchanger technology, the series ensures optimal energy utilization. The ECO mode further enhances energy - saving capabilities, while the noise - reduction design promotes a quiet working environment. Safety is prioritized with 48 - hour safe protection and an IPX4 enclosure rating.
Available in multiple models (L1PB20 - 18M2, L1PB24 - 22M2, L1PB26 - 24M2, L1PB28 - 25M2, L1PB32 - 28M2), each variant offers distinct heating system rated heat loads (from 20kW to 32kW) and outputs, as well as tailored DHW performance. Whether for smaller spaces with 60 - 150㎡ heating areas or larger setups reaching 140 - 200㎡, the M2 series delivers consistent, efficient, and safe heating and hot water supply, making it a versatile choice for both residential and light commercial use.
Features
M2 Series
Heating & Domestic gas water heater

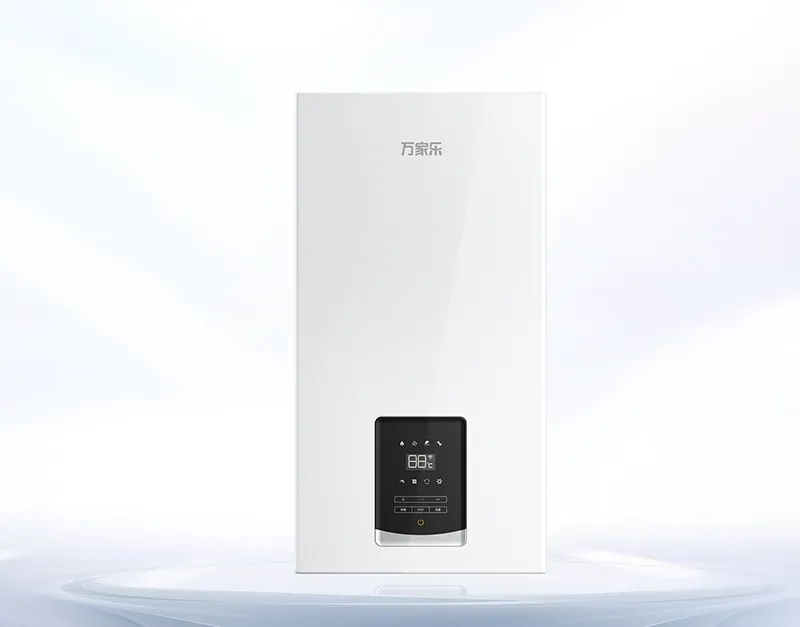

36 years of hard work Inherited quality, reliable and durable
As one of the old enterprises that were the first lot to research and develop gas appliances in China,Macro has been dedicated for 36 years
to the product philosophy with users’ experience, quality improvement and technical innovation as the core to create values for its customers.
Market survey, quality improvement and technical upgrading achievements for one generation after another focus on products of the next generation.
It has done those just for one smile from customers.Macro offers happiness for all families.

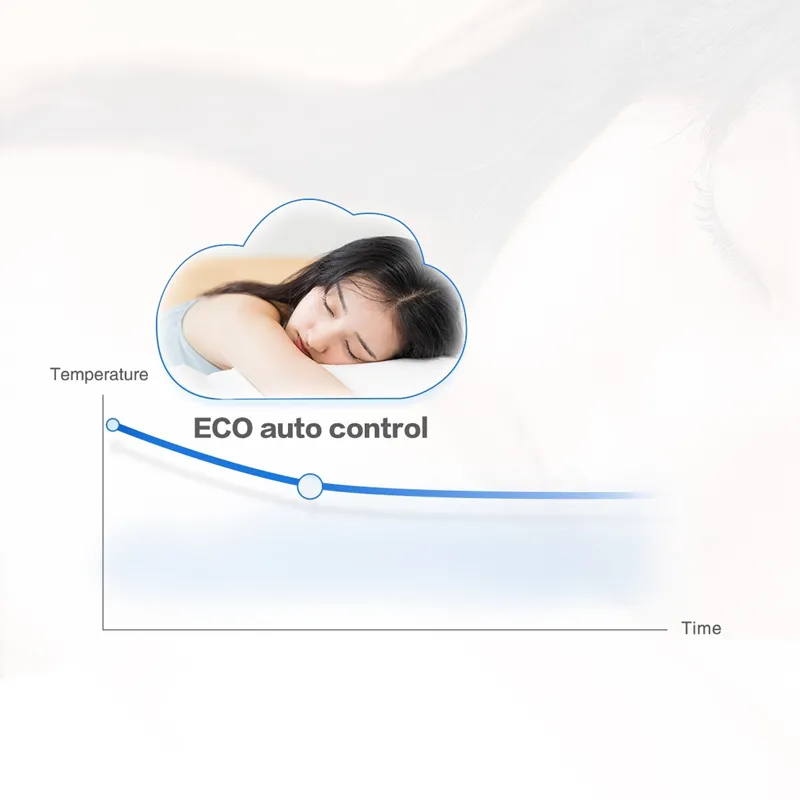

One-click ECO Save gas by 15% every day
For the M2 series of special smart ECO energy saving mode,
after one-click enabled ECO mode, the products automatically
identify users’ living rules. In the period when users sleep,
it automatically controls heating temperatures
as the ones very comfortable for sleep to achieve
the energy saving goal. Along with the WIFI module,
energy saving will be more remarkable.
WiFi smart loT (optional) One-click home heating ahead of schedule
For the M2 series of products, the 2nd generation
of Macro WiFi modules can be chosen
to achieve temperature control, machine start and stop,
Smart appointment, gas volume inquiry and other multiple
settings at any time any where by mobile phone APP
remote control. It can be enabled at the moment
of return from work, and one can enjoy comfortable warmth
when he is back home.
Double noise reduction The running volume is gentle and soft
The three-layer cavity noise reduction design
is combined with a silent combustion system,
which reduces the volume of machines to 46dB during operation,
which has surpassed the current national standard (65dB).
It is like whispering softly to allow family members
to enjoy a warm time in peace.

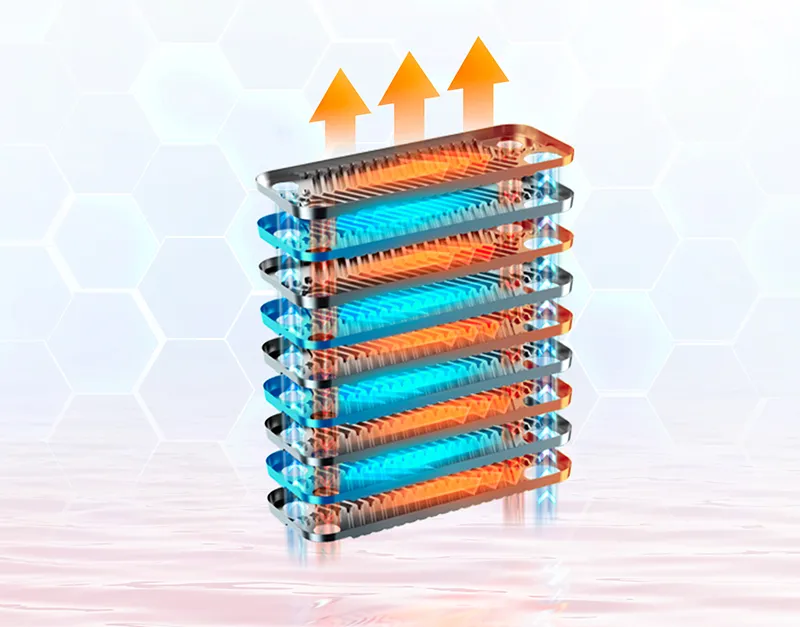

Honeycomb heat exchange
Faster domestic hot water with more constant temperature
The use of honeycomb plate heat exchange technology,
hot water for heating and domestic cold water is fully exchanged with the maximum heat exchange area without contact,
which allows domestic hot water to quickly heat up and maintain a constant temperature to improve the bathing experience.

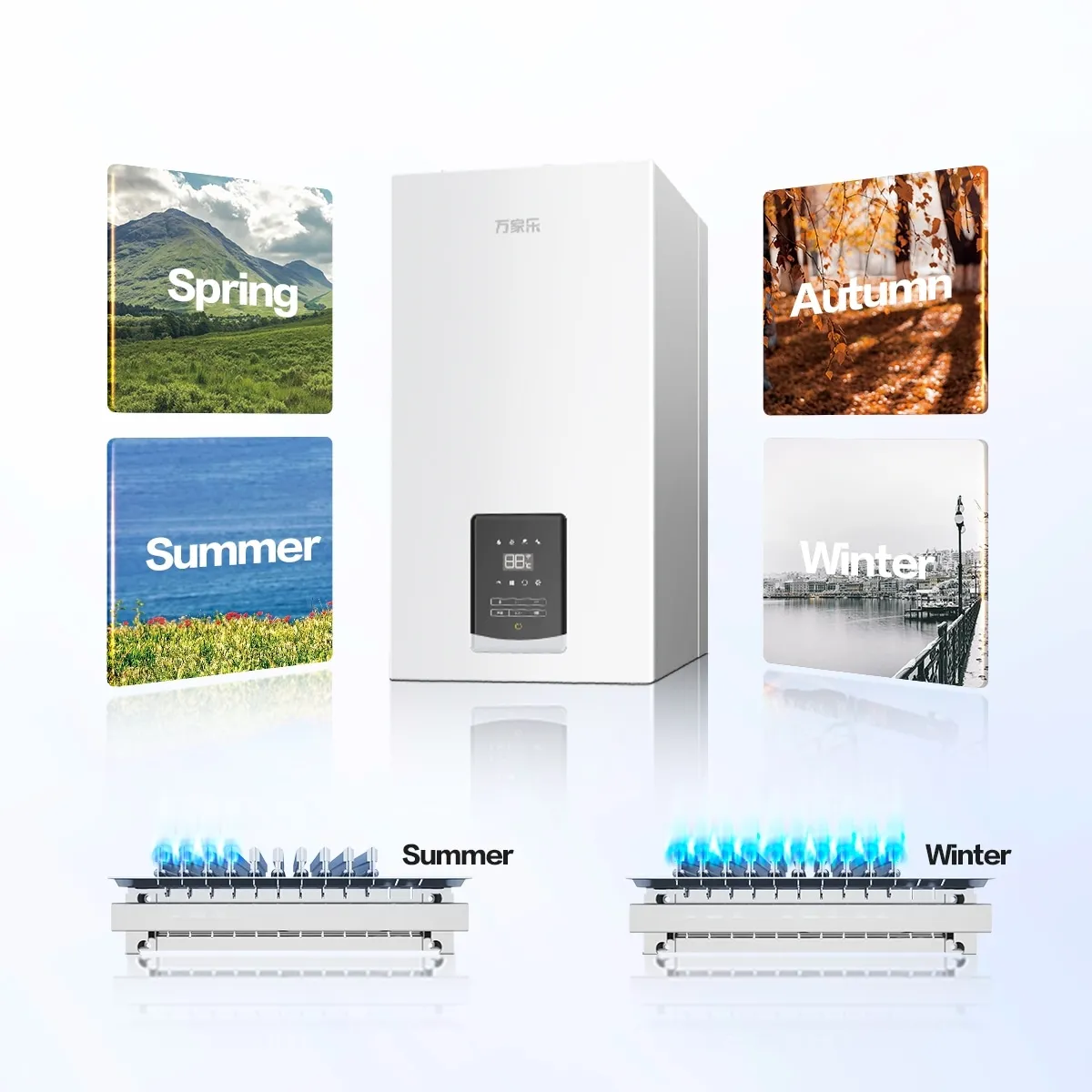

Heat segmentation adaptation Not hot in summer and warm enough in winter
In summer, the water inlet temperature is higher.
The products are automatically adaptable
to gentle heat combustion heating of part of fire rows.
The water inlet temperature in winter is lower.
The products are automatically adaptable
to full fire row combustion heating.
There is comfortable bathing experience all year round.

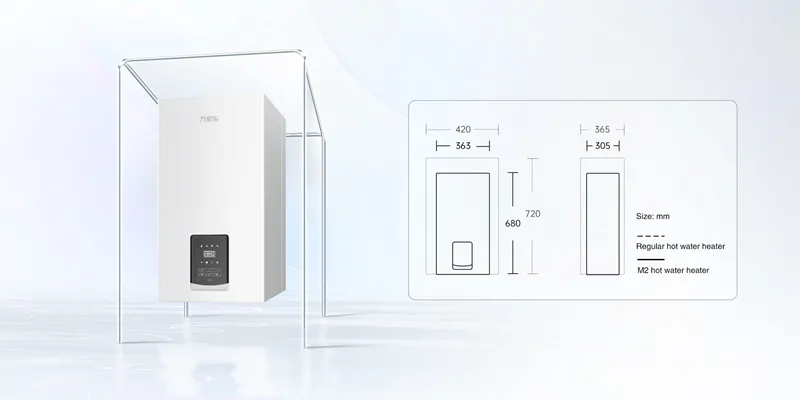

The small size does not take up space
A small figure bursts into great energy
The heating and hot water integrator is both a heater and a water heater as well, which takes into account of the dual needs of heating and bathing.
It has a small size and a 30% reduction in volume compared to conventional wall mounted boilers, which can save space and budget.

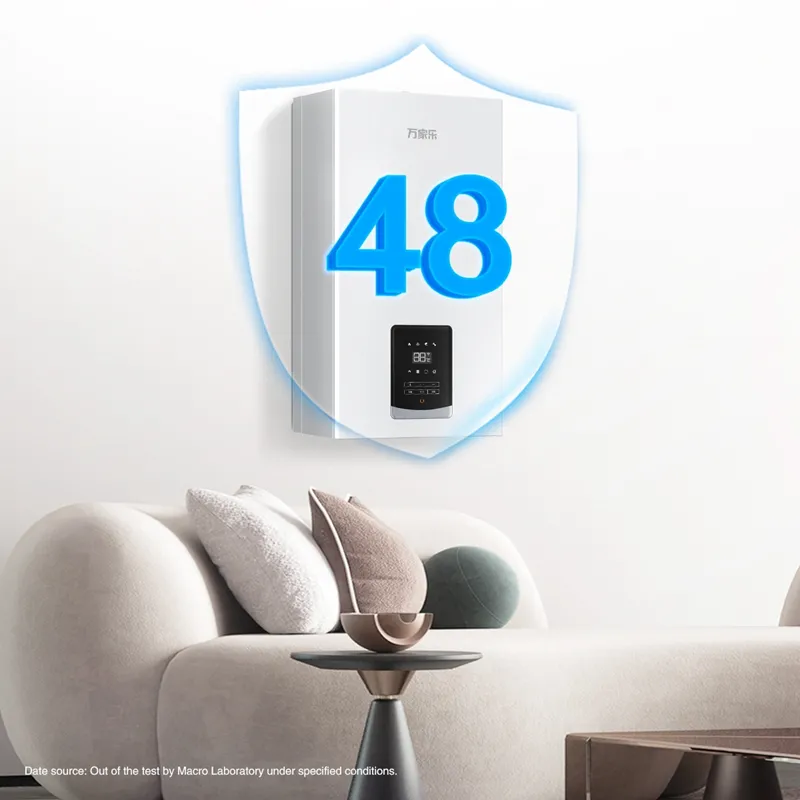

48 protective nets Allowing no risks to approach life
Worried about gas leaks? Electric leakage?
Is the temperature too high? Are you afraid of the cold in winter? ...
Macro’s wall mounted stoves have 48 active protection designs,
including triple smart anti-freezing, explosion-proof ignition,
flameout protection, anti overheating,
and anti leakage protection technology.
It is safe and has no blind spots,
which makes it safe to buy and comfortable to use.

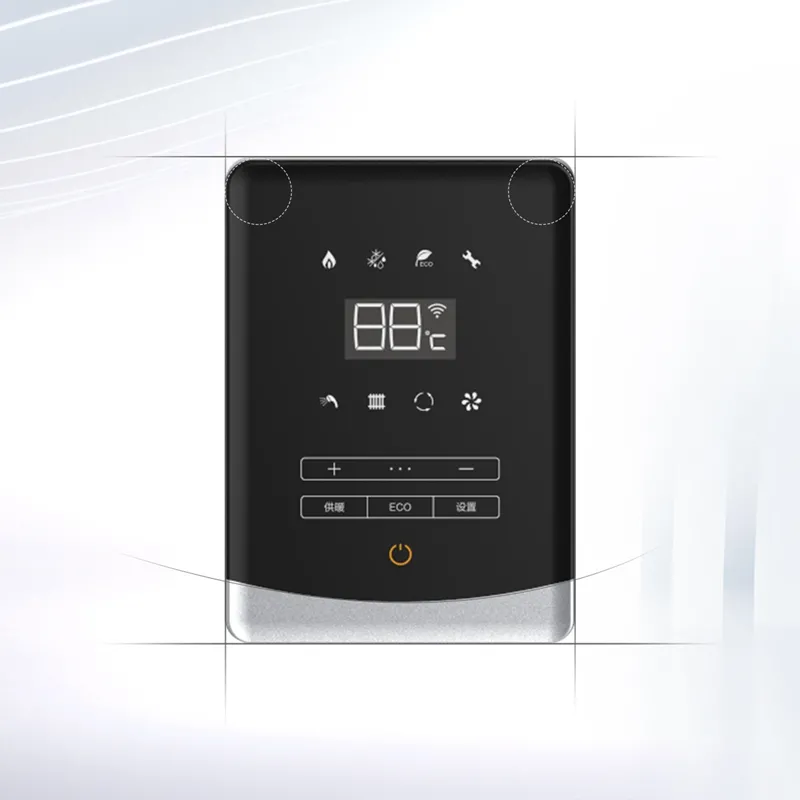

Golden ratio composition
Creating a modern aesthetic matched with black and white
The Macro M2 series gas hot water boiler uses a super textured white laminated
panel with a black large screen touch panel,
which not only gives the product a sense of technology,
but also takes into account its compatibility
with various home environments. The simple UI, soft touch,
and golden ratio all give the product a soul,
expressing Macro’s concept of user experience as the core.
Specifications
Model | L1PB20-18M2 | L1PB24-22M2 | L1PB26-24M2 | L1PB28-25M2 | L1PB32-28M2 | L1PB36-32G2 | L1PB40-36G2 |
Heating system rated max. heat load (Kw) | 20 | 24 | 26 | 28 | 32 | 36 | 40 |
Heating system rated max. heat output (Kw) | 18 | 21.6 | 23.2 | 25 | 28.5 | 32 | 36 |
Heating system rated min. heat load (Kw) | 8 | 9.5 | 11.2 | 12.5 | 12.5 | 10 | 10 |
Heating system rated min. heat output (Kw) | 7 | 8.5 | 9.5 | 10.5 | 10.5 | 8.5 | 8.5 |
Heating water temp. adjustment range ℃ | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 | Radiator 30-80; Floor heat 25-60 |
Heating area reference (m2) | 60-150 | 70-180 | 80-200 | 120-180 | 140-200 | 150-300 | 150-330 |
Domestic hot water:DHW rated heat load (Kw) | 20 | 24 | 26 | 28 | 32 | 36 | 40 |
Domestic hot water:Hot water capacity (△t=25K) | 10 | 12 | 13 | 14 | 16 | 18 | 20 |
Domestic hot water:Hot water capacity (△t=30K) | 8.5 | 10 | 11 | 12 | 13.5 | 14.5 | 16.5 |
Domestic hot water:DHW pressure range | 0.02-0.8MPa | 0.02-0.8MPa | 0.02-0.8MPa | 0.02-0.8MPa | 0.02-0.8MPa | 0.02-0.8MPa | 0.02-0.8MPa |
Domestic hot water:DHW temp. adjustment range ℃ | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
Expansion water tank capacity (L) | 6 | 6 | 6 | 6 | 6 | 10 | 10 |
Rated power (W) | 115 | 120 | 120 | 130 | 130 | 174 | 174 |
enclosure protection class | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
Net weight (Kg) | 27 | 28 | 28 | 37 | 37 | 42 | 42 |
Product dimension L*W*H (mm) | 680*363*305 | 680*363*305 | 680*363*305 | 720*420*365 | 720*420*365 | 740*480*348 | 740*480*348 |
Frequently Asked Questions
Q: How can I ensure the safety of using a gas water heater?
Our gas water heaters are equipped with multiple safety features. Most models have a “7 + 2” maximum protection system, which includes measures like over - temperature protection, anti-dry-burning protection, and flame-out protection. Additionally, features such as error warning systems and water-pressure release devices further enhance safety. Regular maintenance and inspection as per the user manual are also recommended.
Q: Can the gas water heater maintain a stable water temperature?
Yes, our gas water heaters are designed with advanced temperature control technologies. For instance, micro-flame technology allows for precise adjustment of the flame, enabling accurate temperature control. Smart self-adaptation features can also adjust to changes in water pressure and gas supply, maintaining the water temperature within a narrow range, typically ±0.5℃.
Q: How energy - efficient are these gas water heaters?
Our gas water heaters generally have high efficiency ratings, often exceeding 88%. Models with advanced features like condensing technology can further improve energy efficiency by recovering heat from the exhaust gases. Choosing a high-efficiency model not only saves on energy costs but also reduces environmental impact.
Q: Can I install a Macro wall - hung boiler by myself?
We strongly advise against self - installation. Wall - hung boilers involve gas or electrical connections and complex plumbing work. Professional installers are trained to ensure proper installation in accordance with safety standards and local building codes. They can also perform necessary commissioning to make sure the boiler operates safely and efficiently. If you attempt to install it yourself, it may void the warranty and pose safety risks.
Q: What are the key safety features of your wall - hung boilers?
Our wall-hung boilers are equipped with multiple safety protection measures, typically around 48 types. These include over-temperature protection, which prevents the boiler from overheating; anti-freeze protection to safeguard against damage in cold weather; and pressure relief protection to maintain safe operating pressures. Additionally, features like flame failure protection ensure that the gas supply is cut off if the flame goes out unexpectedly.
Q: How do I choose the right gas water heater capacity for my household?
The capacity you need depends on the number of family members and your hot water usage patterns. For example, if you have a small family with normal hot water demand, a model with a rated hot water capacity of 12 - 16L/min (like some models in our range) might be sufficient. But for larger families or those with higher hot water consumption, such as frequent bathtub filling, you may need a model with a higher capacity, like 18 - 20L/min.
