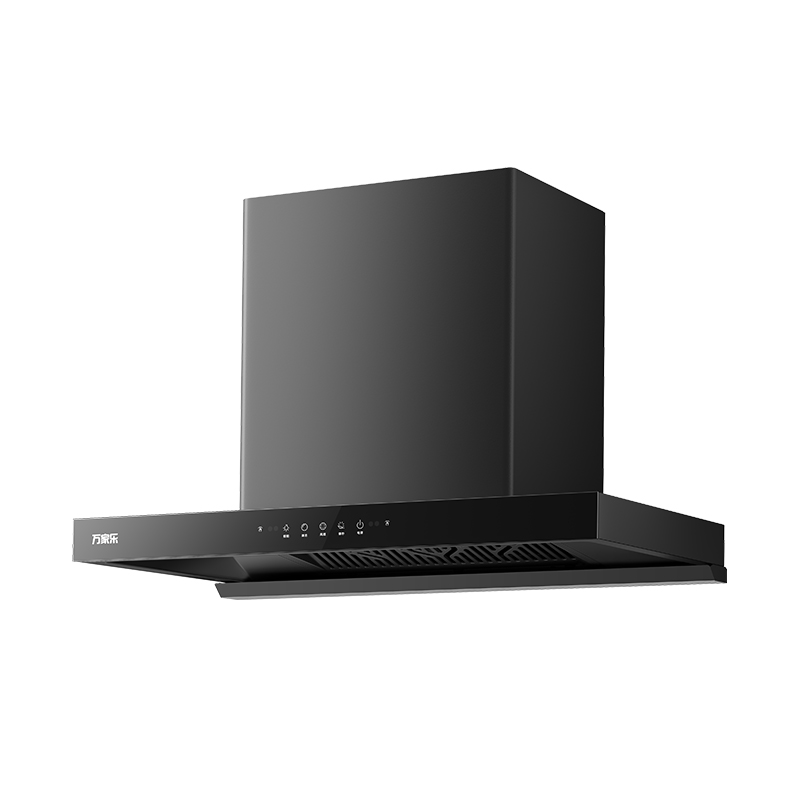

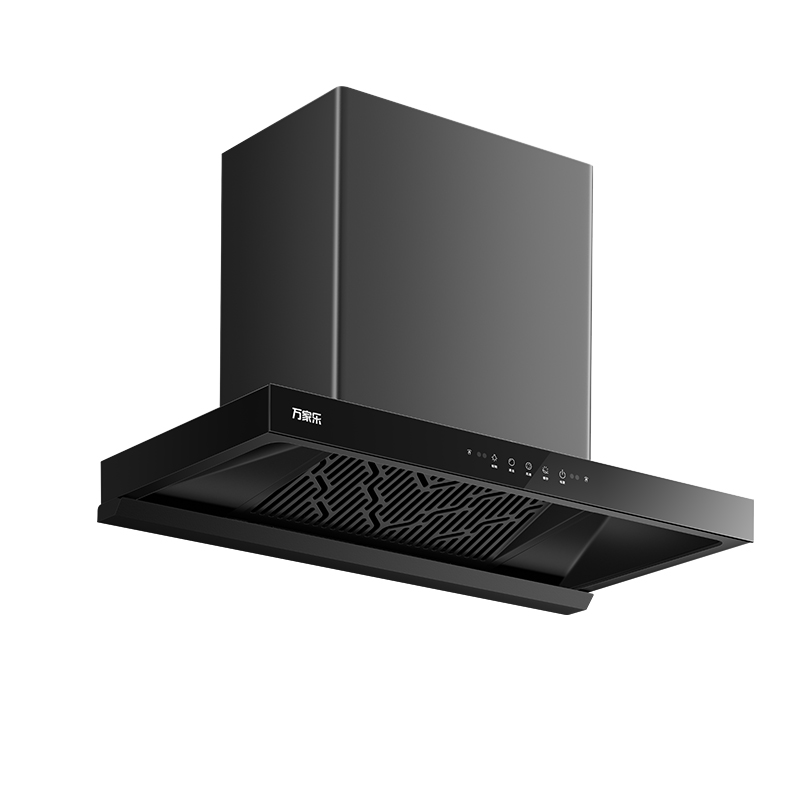

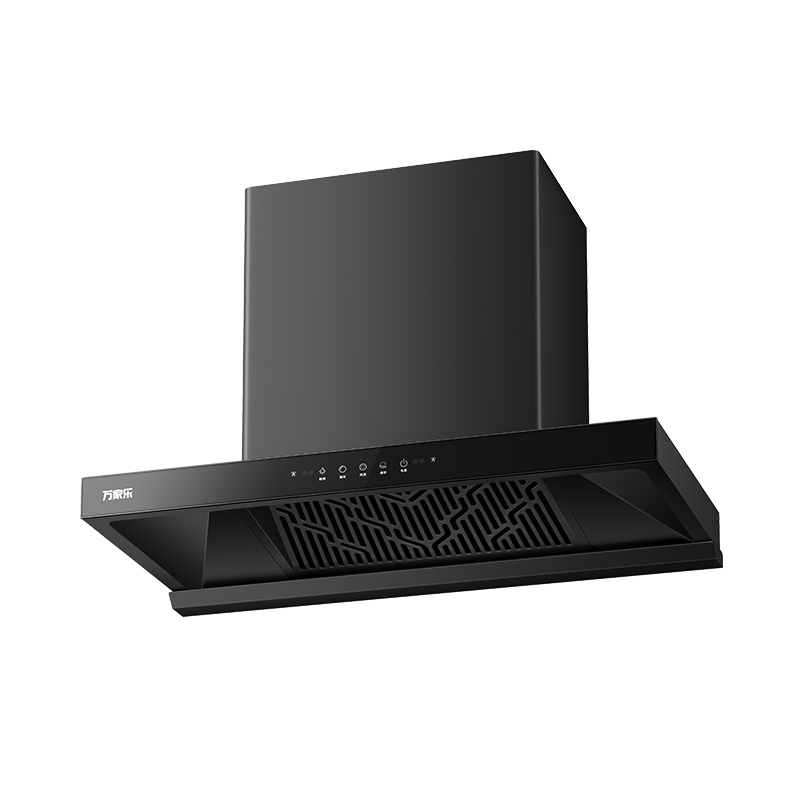

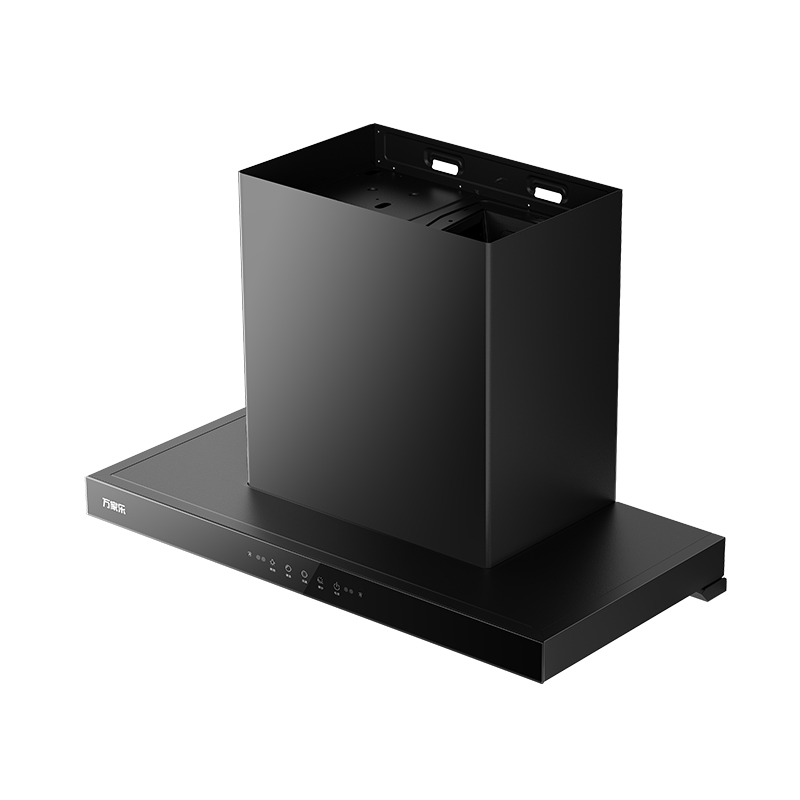

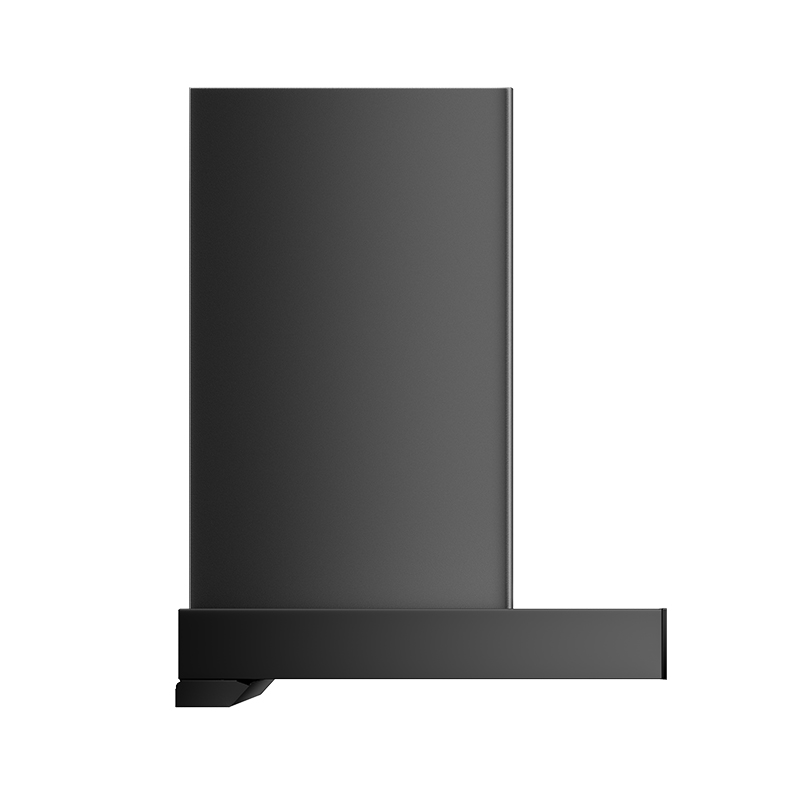

Range Hood CXW-320-T4R2

This range hood delivers powerful 22m³/min suction and 420Pa static pressure, quickly clearing fumes even during intense cooking. Its user-friendly features include a vibrant zero-motion UI, AI motion control for easy operation, an inclined oil screen, and intelligent dry cleaning—blending performance and convenience seamlessly.

Side Suction Series Model: CXW-360-M5C1

Overview Features Frequently Asked Questions You May Also Like

This 90cm range hood features nano coating technology for smart self-cleaning, making maintenance effortless. With an impressive 1500m³/h maximum airflow, it delivers powerful suction to eliminate smoke and odors effectively. The automatic plate and intelligent pressurize function work together to optimize performance, while the three-aspect noise reduction technology ensures quiet operation at just 53dB.

Constructed with durable galvanized steel spraying, it offers both strength and style. The touch control and hand gesture operation provides convenience, and the two-speed settings plus intelligent pressurize mode allow for flexible ventilation control. Powered by a 320W motor, it ensures reliable performance with a standard 180mm chimney diameter for easy installation.

Features

Macro

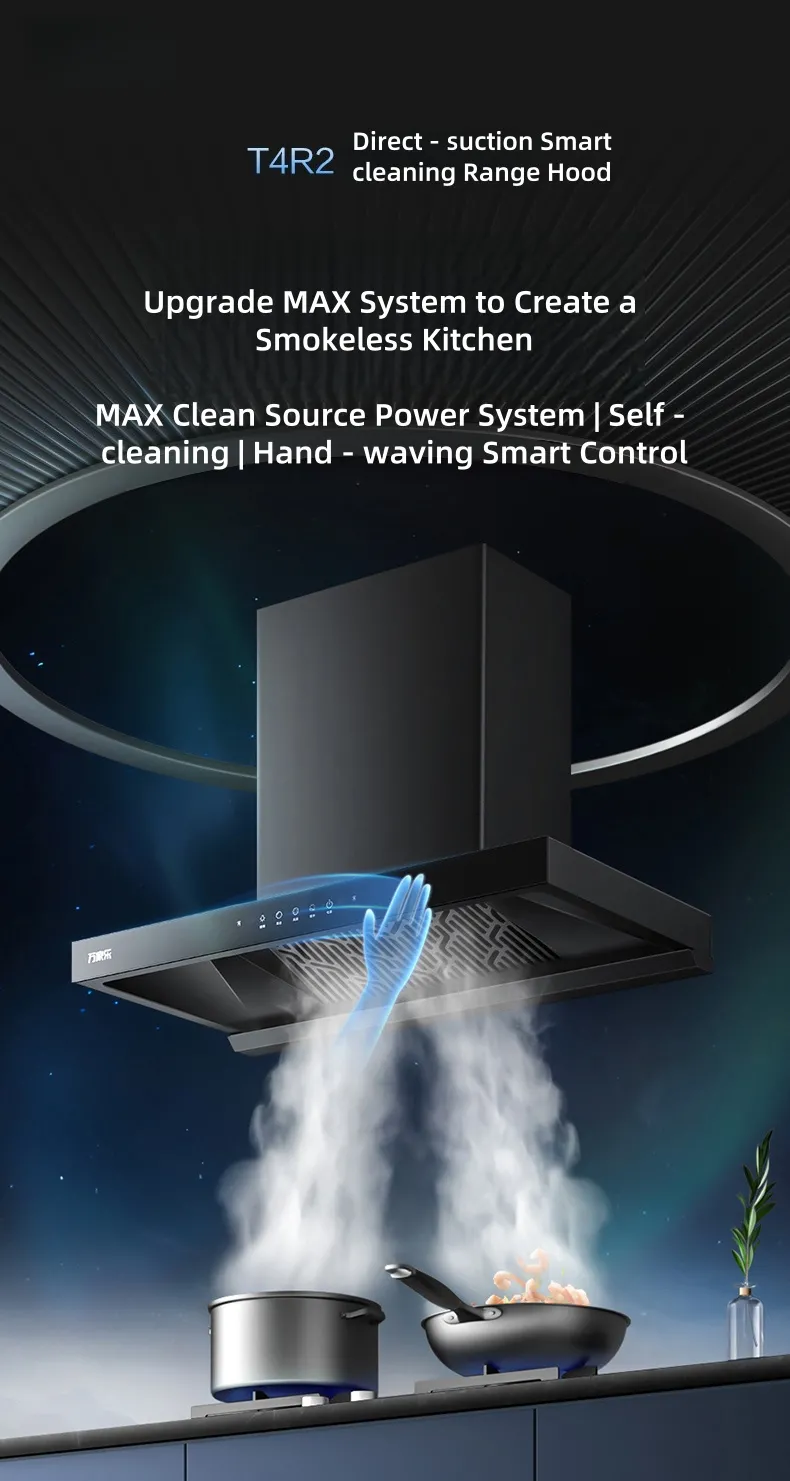

T4R2 Direct - suction Smart - cleaning Range Hood

Upgrade MAX System to Create a Smokeless Kitchen

MAX Clean Source Power System | Self - cleaning | Hand - waving Smart Control

Features

MAX Clean Source Power System
22m³/min¹ Instant Smoke Absorption
Twin - tower Smoke Gathering, Fast, Accurate and Fierce Smoke Locking

500Pa Anti - backflow
Smart Spiral Storm Cleaning, No Disassembly for Cleaning
Hand - waving Smart Control, 0 - touch and No - cleaning

"Smokeless" means that in the laboratory test environment, T4R2 is operated in the high - fire mode for long - term smoke absorption testing, and no obvious escaped lampblack is visible to the naked eye.

Features

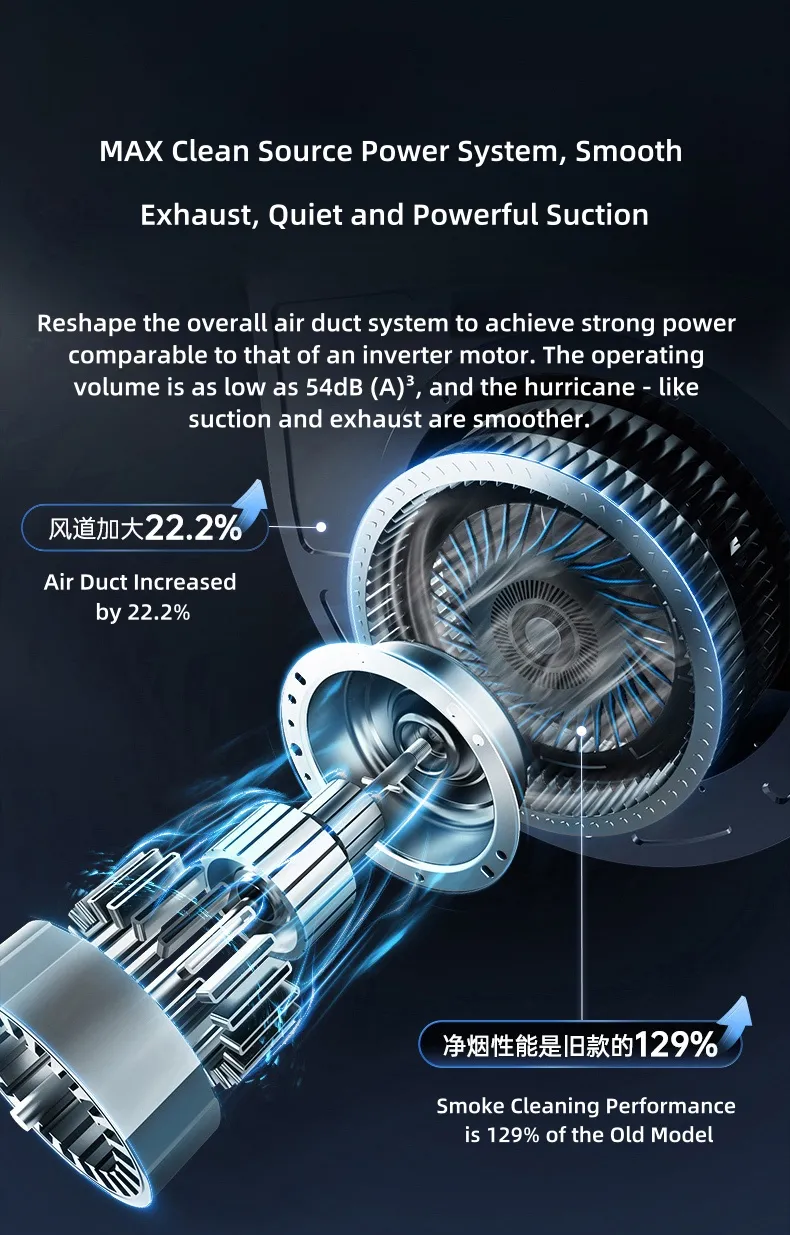

MAX Clean Source Power System, Smooth Exhaust, Quiet and Powerful Suction

Reshape the overall air duct system to achieve strong power comparable to that of an inverter motor. The operating volume is as low as 54dB (A)³, and the hurricane - like suction and exhaust are smoother.

Air Duct Increased by 22.2%
Smoke Cleaning Performance is 129% of the Old Model

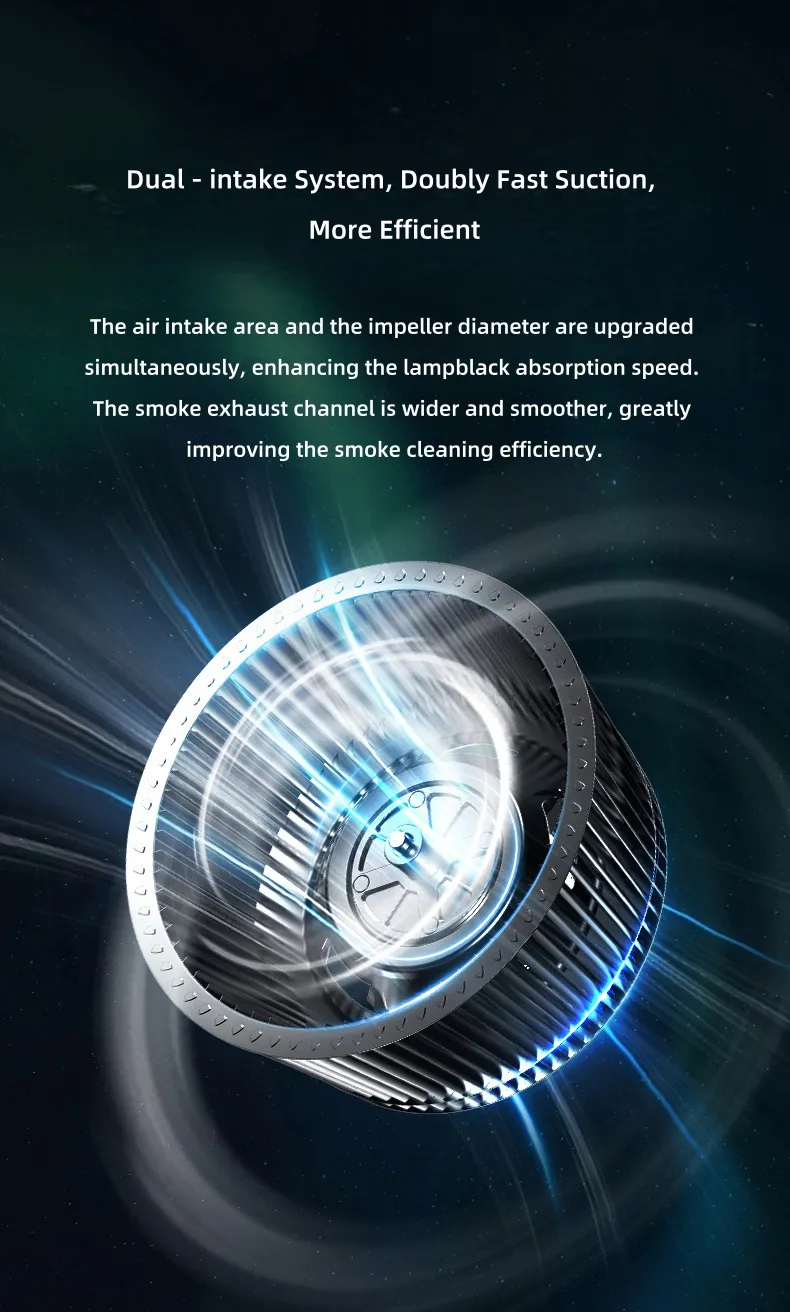

Dual - intake System, Doubly Fast Suction, More Efficient

The air intake area and the impeller diameter are upgraded simultaneously, enhancing the lampblack absorption speed. The smoke exhaust channel is wider and smoother, greatly improving the smoke cleaning efficiency.

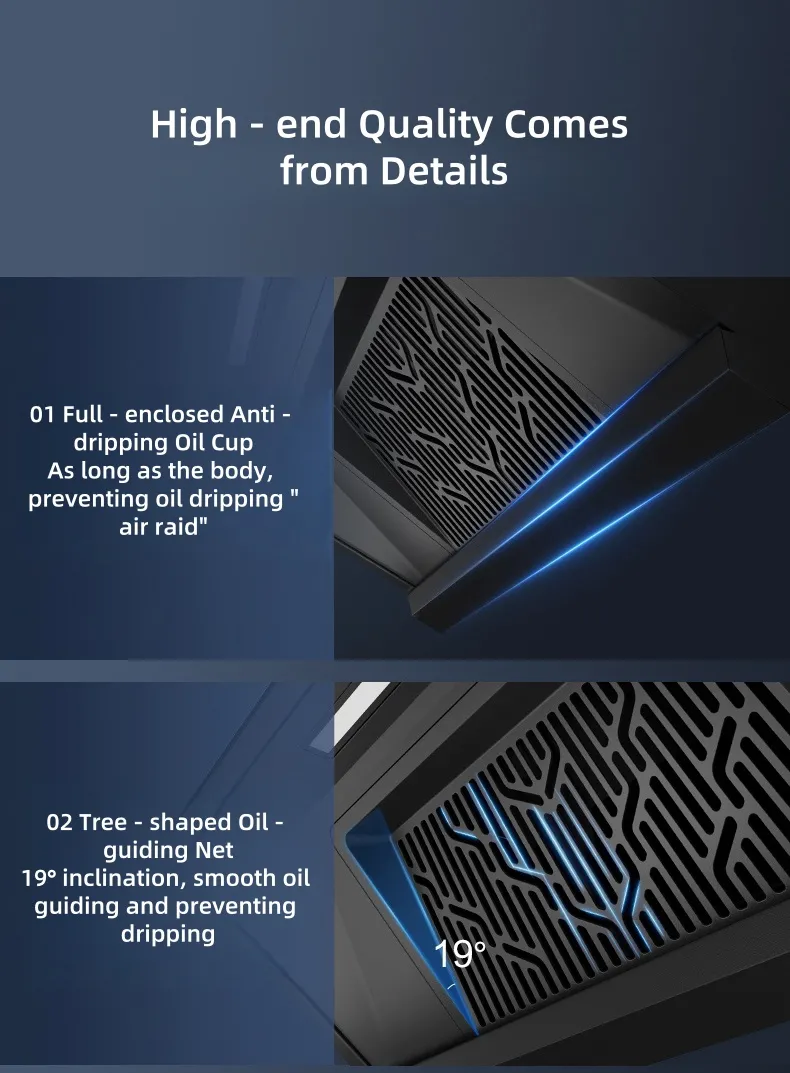

High - end Quality Comes from Details

01 Full - enclosed Anti - dripping Oil Cup
As long as the body, preventing oil dripping "air raid"

02 Tree - shaped Oil - guiding Net
19° inclination, smooth oil guiding and preventing dripping

Smart cleaning Convenient and fast

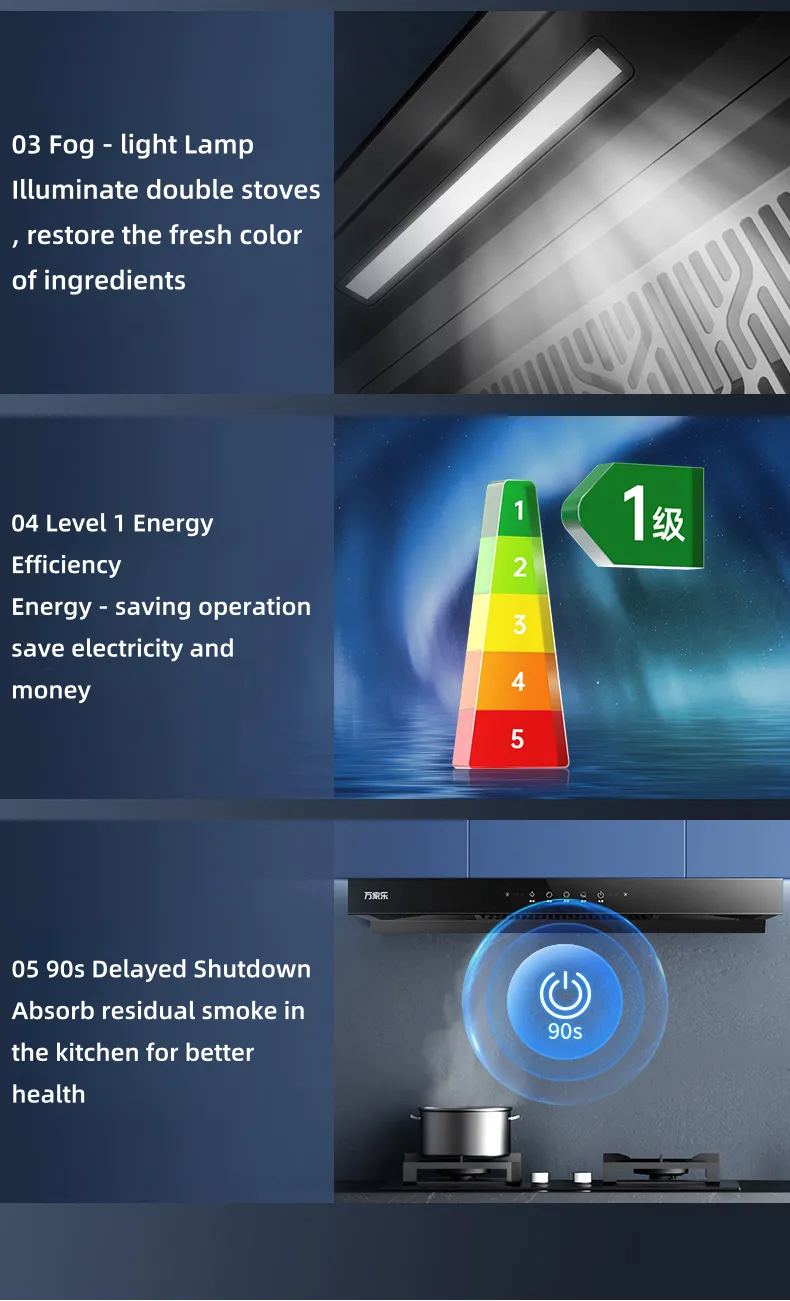

03 Fog - light Lamp

Illuminate double stoves, restore the fresh color of ingredients

04 Level 1 Energy Efficiency

Energy - saving operation, save electricity and money

05 90s Delayed Shutdown
Absorb residual smoke in the kitchen for better health

Parameter	Value	Parameter	Value	Parameter	Value
Energy Efficiency Grade	Level 1	Working Air Volume	12	Panel Material	Tempered Glass
Product Dimensions	895×450×600	Working Noise	71dB(A)	Oil Net Material	Cold Plate Spraying
Package Dimensions	1010×670×553	Low - speed Semi - anechoic Chamber Noise	59dB(A)	Air Outlet Diameter	φ180
Package Volume	0.37	High - speed Semi - anechoic Chamber Noise	65dB(A)	Smoke Pipe Diameter	φ180
Net Weight	16.5	High - fire Semi - anechoic Chamber Noise	70	Smoke Pipe Length	1.8
Gross Weight	21.5	Maximum Static Pressure	420	Power Cord Length	1.3
Low - speed Air Volume	21.5	Control Method	Touch + Gesture	Motor Input Power	300
High - speed Air Volume	18	Wind Speed Gears	3 Gears	Lighting Lamp Power	2W
High - fire Air Volume	22	Automatic Cleaning	Dry Cleaning

Frequently Asked Questions

Q: How often should I clean my range hood filters?

A:
Grease filters: Clean every 1-3 months (or monthly for heavy cooking) with hot soapy water or dishwasher.
Charcoal filters (ductless models): Replace every 3-6 months.
Deep cleaning: Schedule professional servicing annually.
Q: Why is my range hood so noisy?

A:
Check for loose parts (tighten screws or mounting brackets).
Clean clogged filters (blocked airflow increases noise).
Lower fan speed if possible; higher speeds are louder.
If noise persists, the motor or fan blades may need repair.
Q: What’s the difference between ducted vs. ductless range hoods?

A:
Ducted: Vents smoke outdoors (more efficient, requires ductwork).
Ductless: Recirculates air through charcoal filters (easier installation, but less effective for heavy cooking).
Tip: Ducted is preferred for gas stoves; ductless suits electric stoves in apartments.
Q: How do I choose the right CFM (power) for my range hood?

A:
Calculate minimum CFM = Stove width (inches) × 10 (e.g., 30" stove → 300 CFM).
Gas stoves: Add 100 CFM for heavy cooking (e.g., stir-frying).
High-end models: 400-900 CFM for professional kitchens.
Q: Why is my range hood not sucking smoke properly?

A:
Common causes:
Clogged filters (clean or replace).
Duct obstructions (check for blockages).
Incorrect installation height (ideal: 24-30" above stove).
Weak motor (upgrade CFM if undersized).
