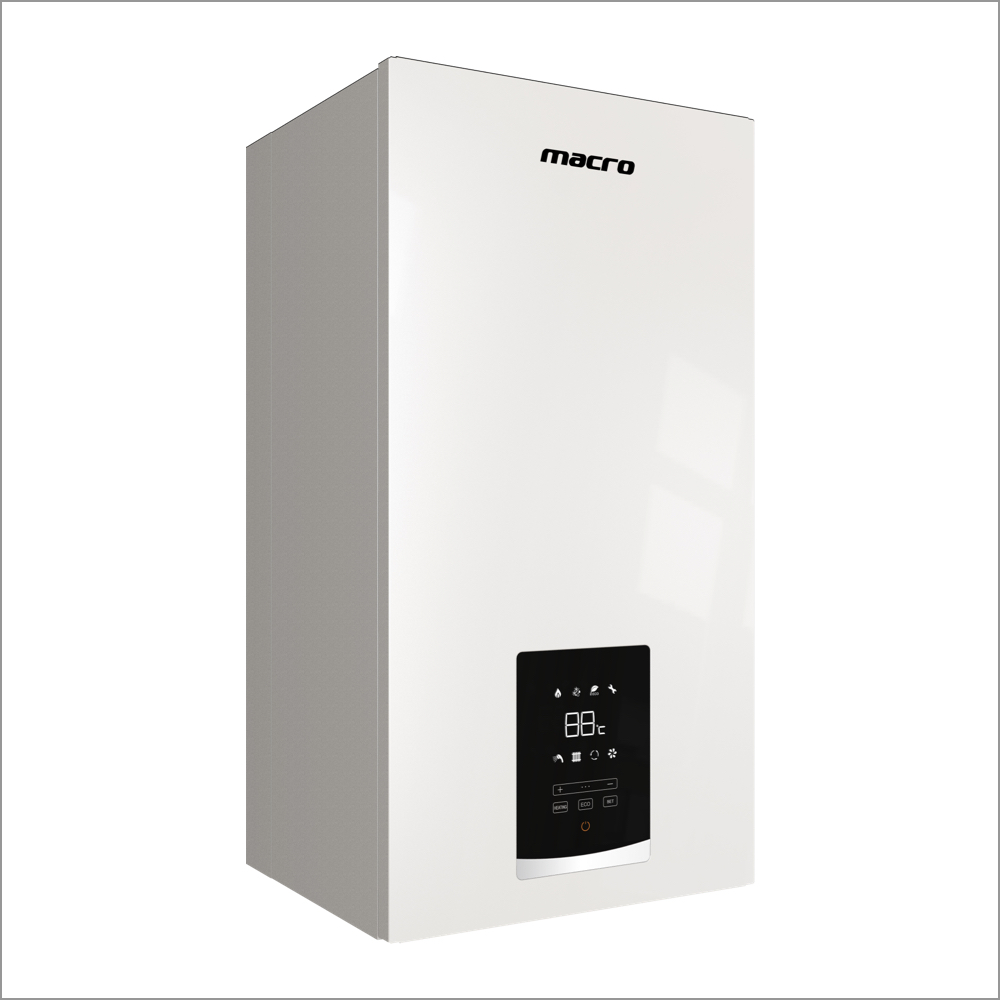

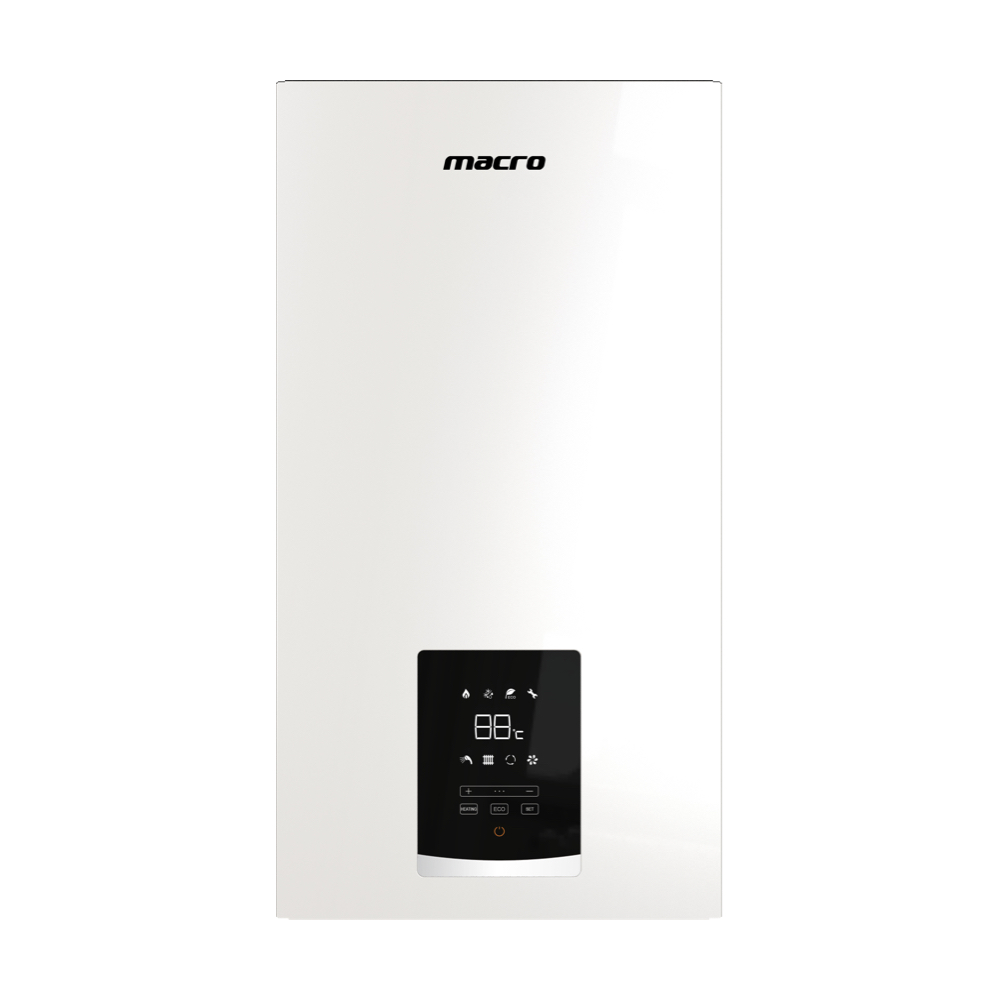

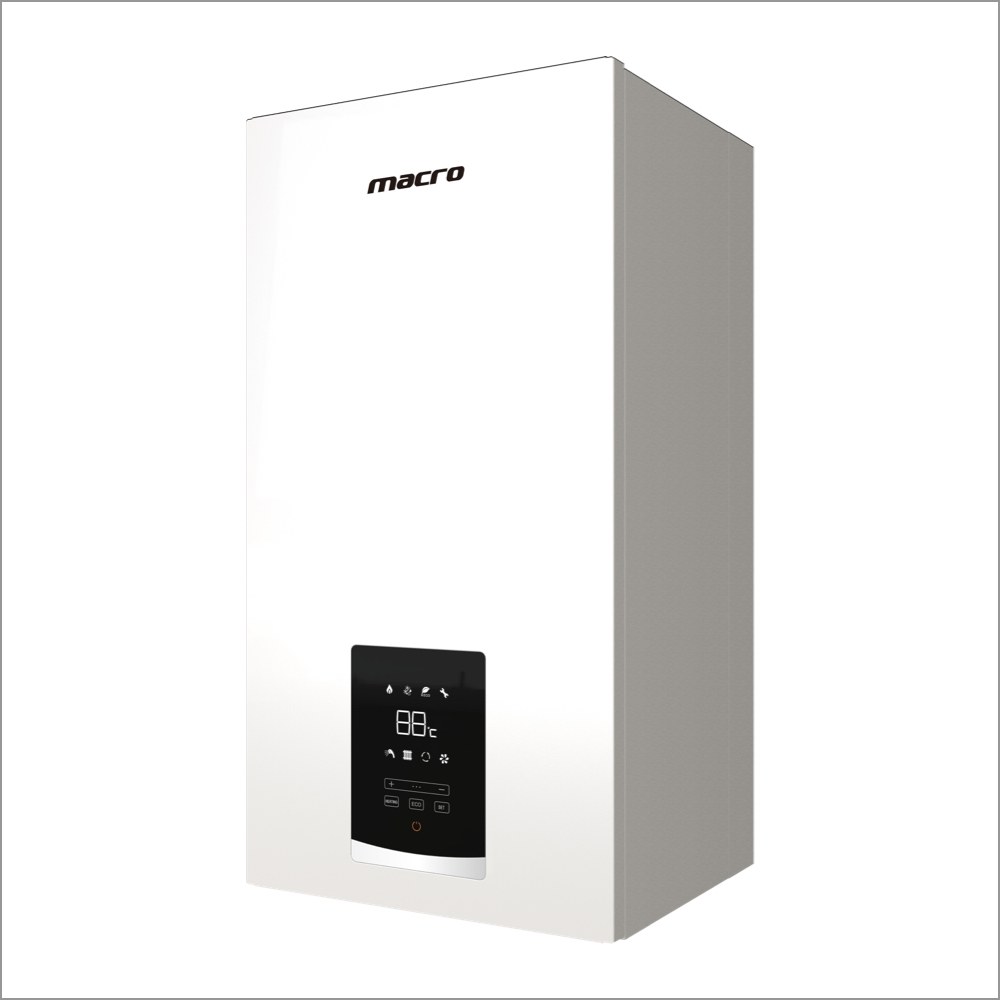

M2 Compact Design For Heating Only -Single Circuit -Macro Gas

Quick Contact

Name:
Phone:
E-mall:
Address:
Message:
Send Message

Send successfully

Please fill in all required fields

Online contact
Leave information
Back to top

Please Select Your Region

Chinese / 简体中文 Global / English Spain / Español Arabic / اللغة العربية

Single Circuit

Product Description:

· Ouch panel
· Eletronic control
· Heating function
· Radiator/floor heat
· ECO mode
· Noise reduction design
· 48 safe protection
· Optional Wifi
· Optional remote
· Optional Opentherm

Product Parameters

Model: Heating system rated max. heat load (Kw); Heating system rated max. heat output (Kw); Heating system rated min. heat load (Kw); Heating system rated min. heat output (Kw); Heating water temp. adjustment range ℃; Heating area reference (m2); Expansion water tank capacity (L); Rated power (W); enclosure protection class; Net weight (Kg); Product dimension L*W*H (mm)

L1PB20-18M2: 20; 18; 8; 7; Radiator 30-80; Floor heat 25-60; 60-150; 6; 115; IPX4; 27; 680*363*305

L1PB24-22M2: 24; 21.6; 9.5; 8.5; Radiator 30-80; Floor heat 25-60; 70-180; 6; 120; IPX4; 28; 680*363*305

L1PB26-24M2: 26; 23.2; 11.2; 9.5; Radiator 30-80; Floor heat 25-60; 80-200; 6; 120; IPX4; 28; 680*363*305

L1PB28-25M2: 28; 25; 12.5; 10.5; Radiator 30-80; Floor heat 25-60; 120-180; 6; 130; IPX4; 37; 720*420*365

L1PB32-28M2: 32; 28.5; 12.5; 10.5; Radiator 30-80; Floor heat 25-60; 140-200; 6; 130; IPX4; 37; 720*420*365

L1PB36-32G2: 36; 32; 10; 8.5; Radiator 30-80; Floor heat 25-60; 150-300; 10; 174; IPX4; 42; 740*480*348

L1PB40-36G2: 40; 36; 10; 8.5; Radiator 30-80; Floor heat 25-60; 150-330; 10; 174; IPX4; 42; 740*480*348

MORE PRODUCT

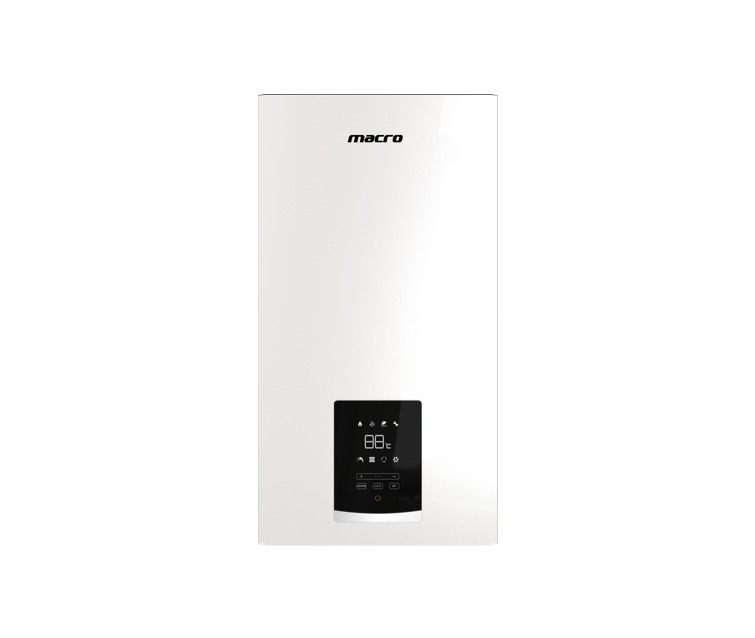

M2 Combination Of Heating & Domestic Hot Water

Learn More

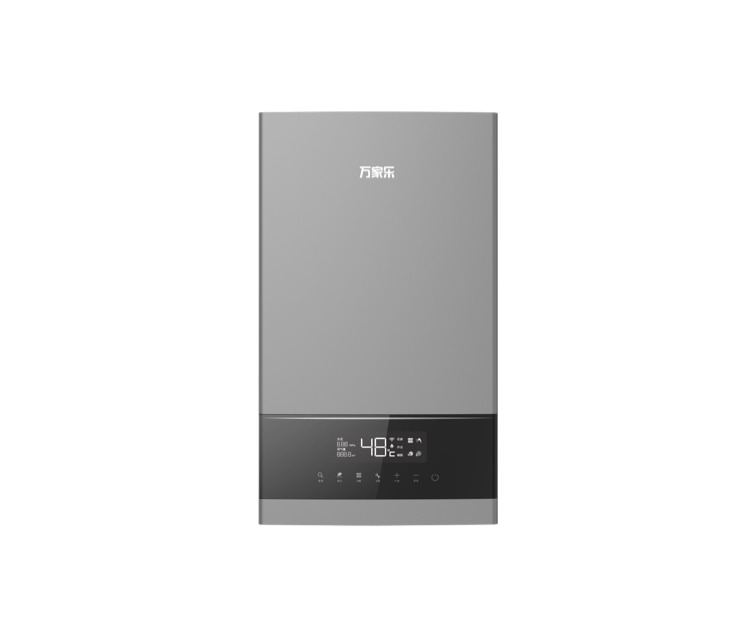

B6A High Efficiency For Modern Ecological Concept
