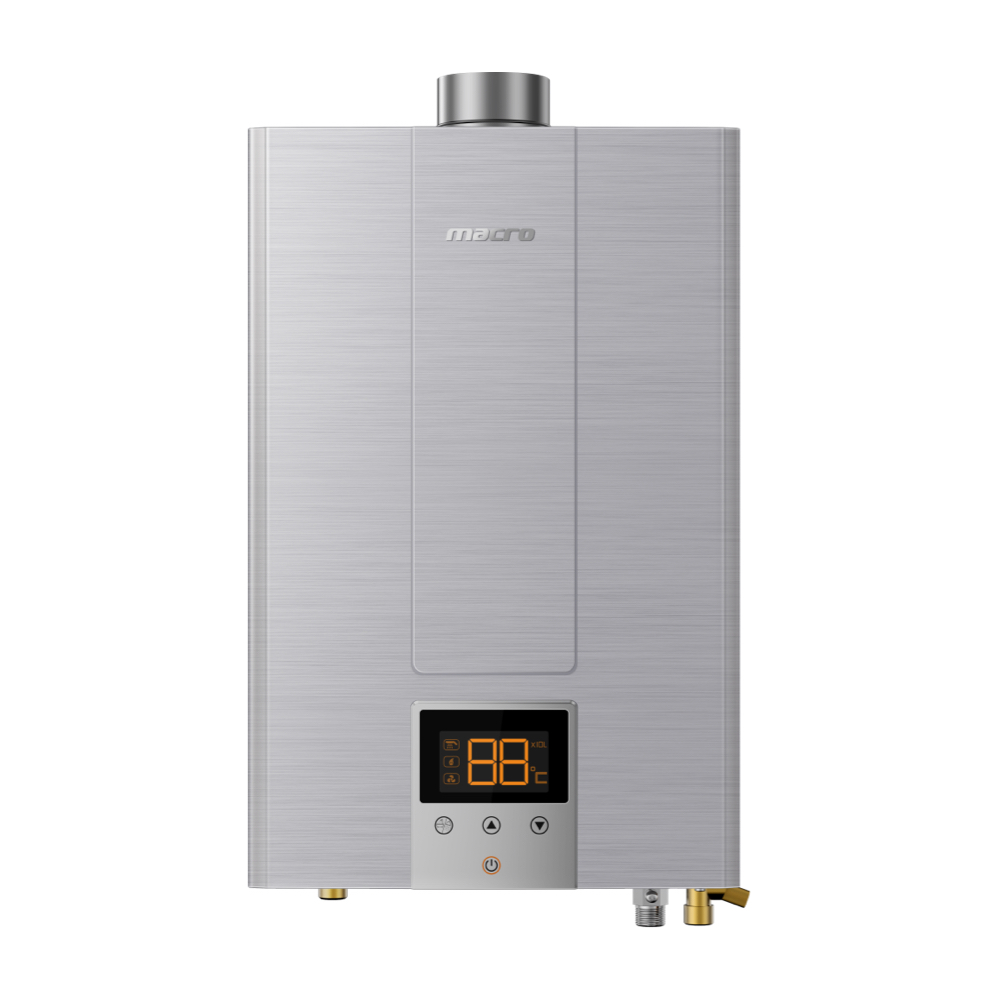

K3S series
Product Description:
K3S force flue type, which adopts smart digital control system with advanced inverter technology, realize smart self-adapation to stablize temperature, birng the best hot water experience.
Specifications:
  • 20L
  • 16L
  • 12L
Color:

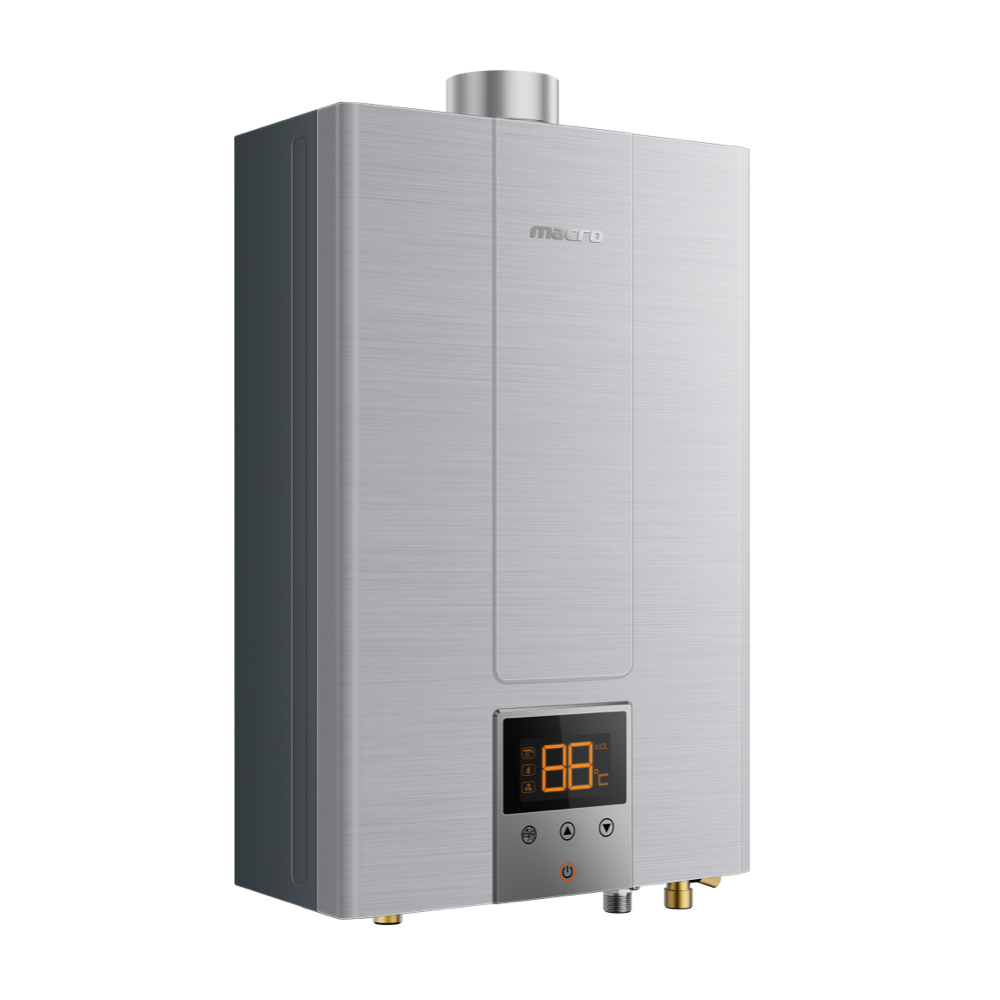

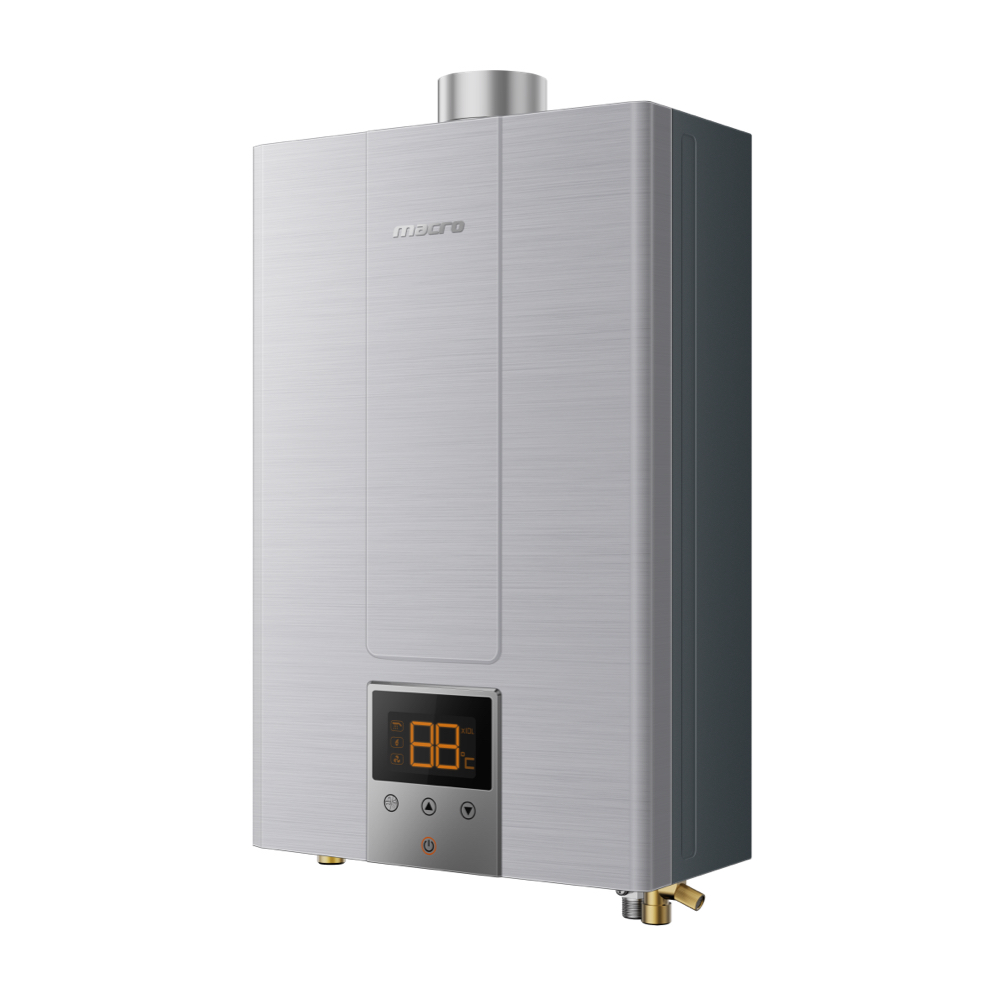

  • Silver

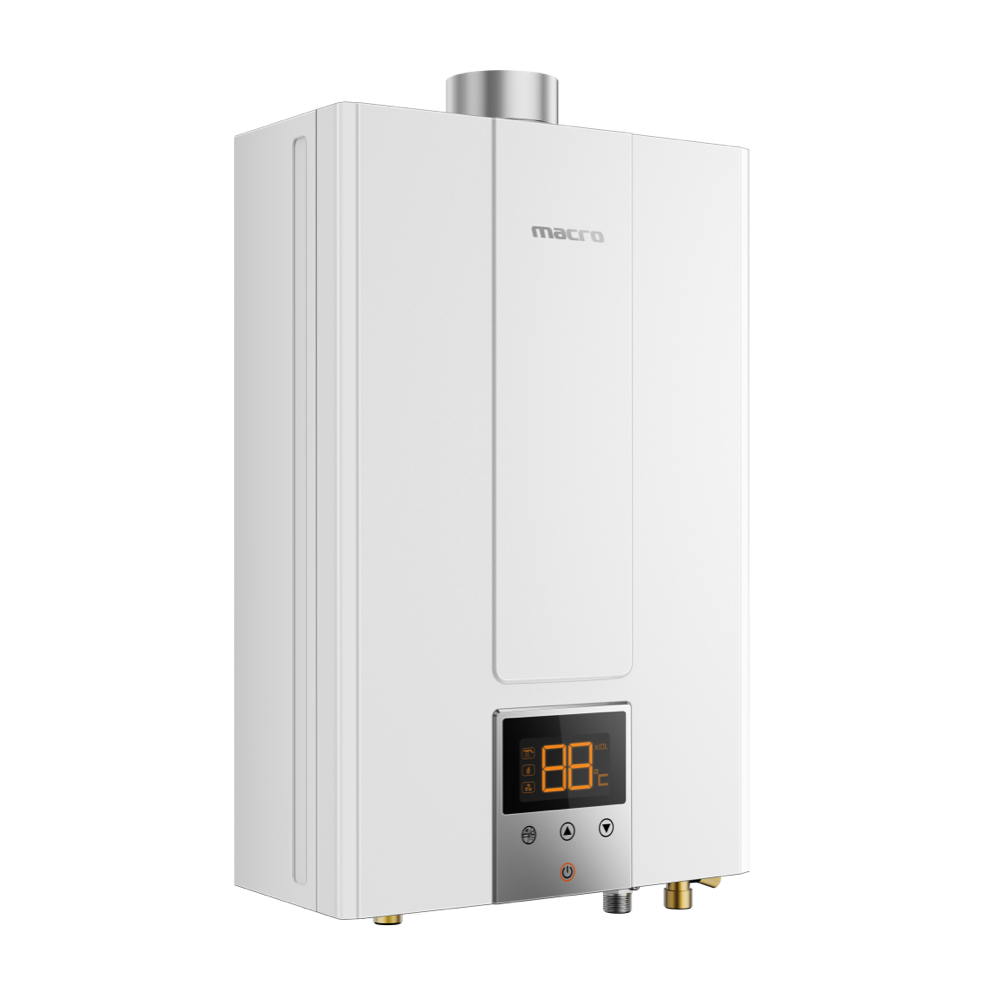

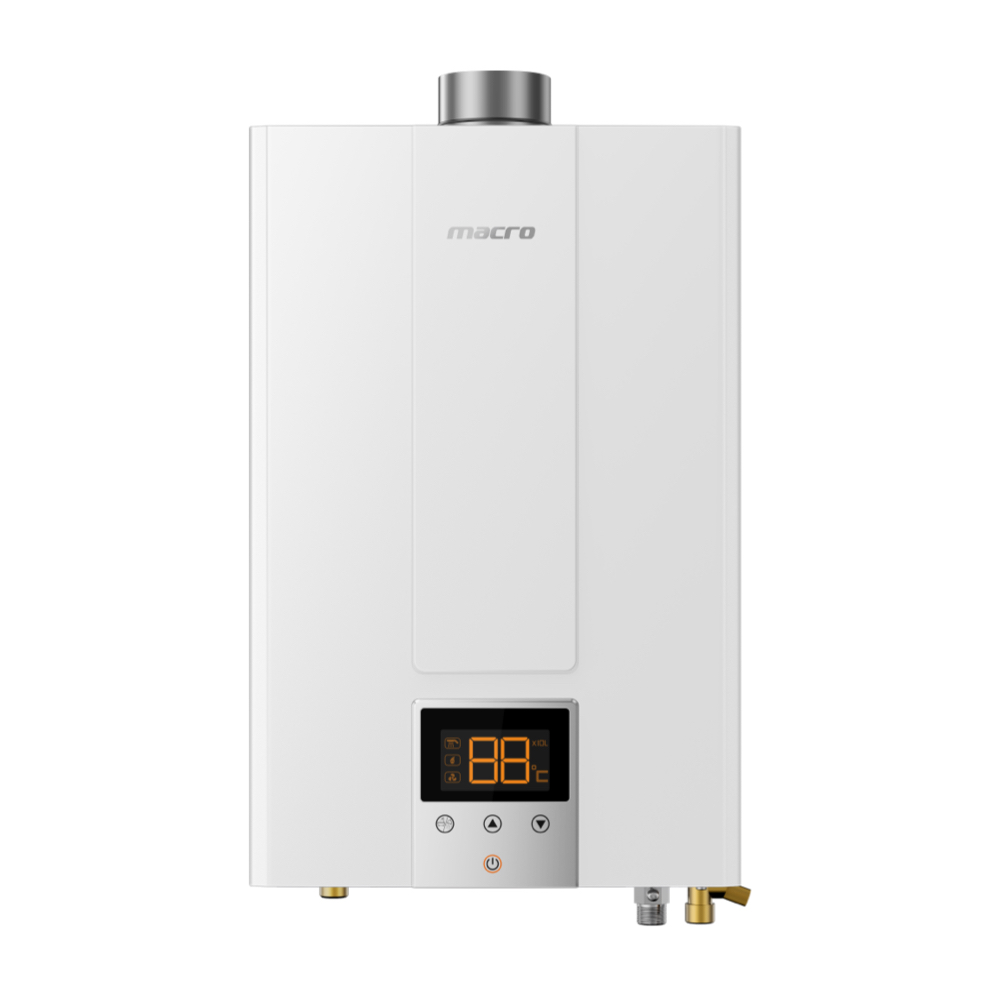

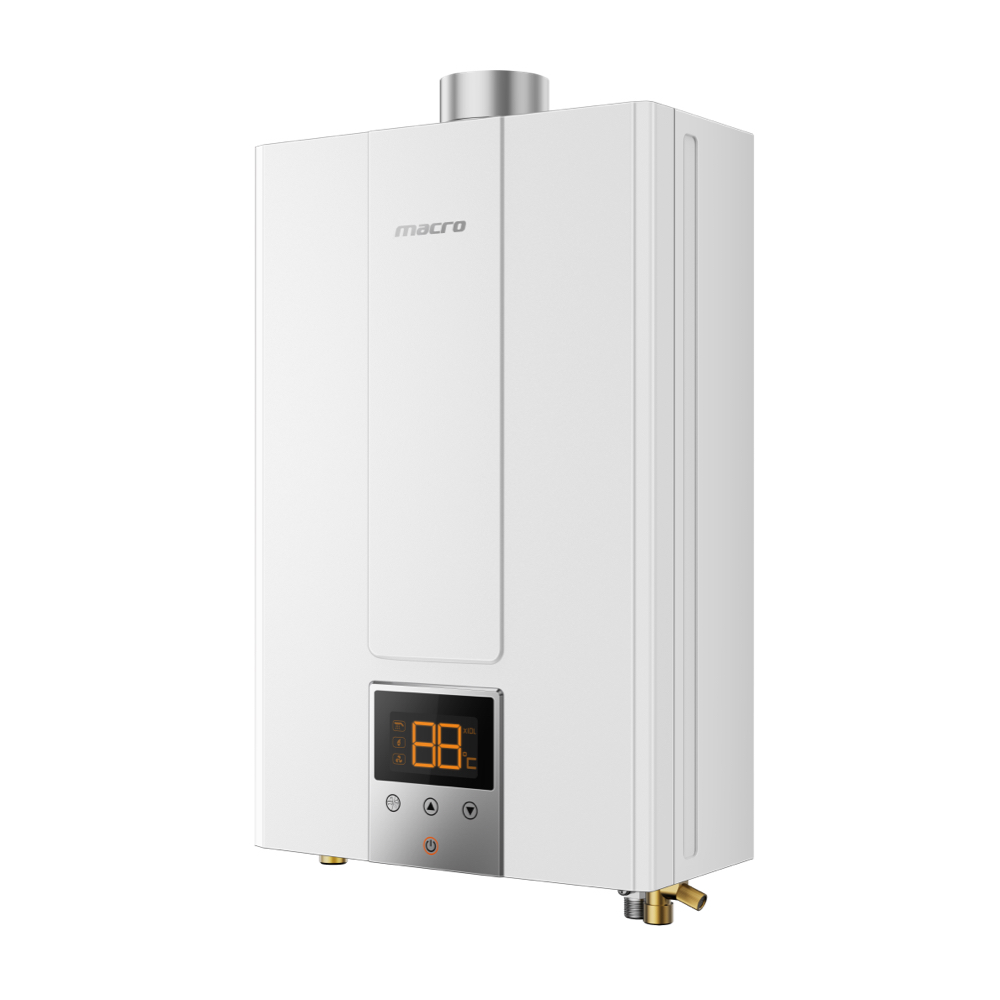

  • White
  • Features & Performance
  • Product Parameters
  • Download

Smart digital control

Macro K3S series gas water heater

Smart digital control

Macro K3S series gas water heater

Precise temperature control

Special stable temperature control technology, cozy and relax.

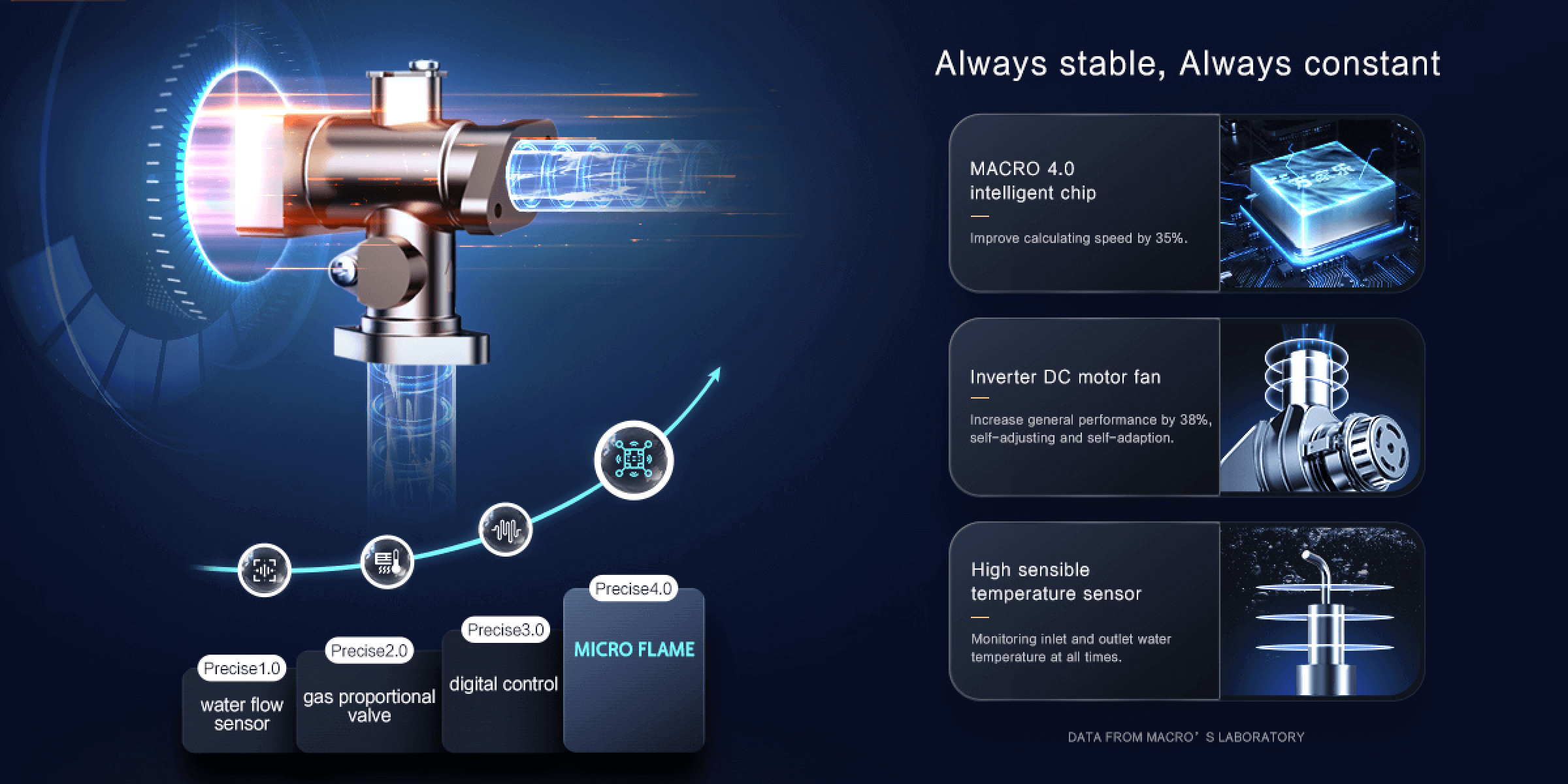

Precise temperature control 4.0, enjoy stable hot water

Integrated with 3 core control components, realize optimal gas and water match,
precisely static and dynamic control, keep hot water always stable.

Stable temperature
between turn off and turn on

Cozy bathtub mode

Special bathtub mode, realize easily fill bathtub with
satisfied hot water, enjoy more fun in bath.

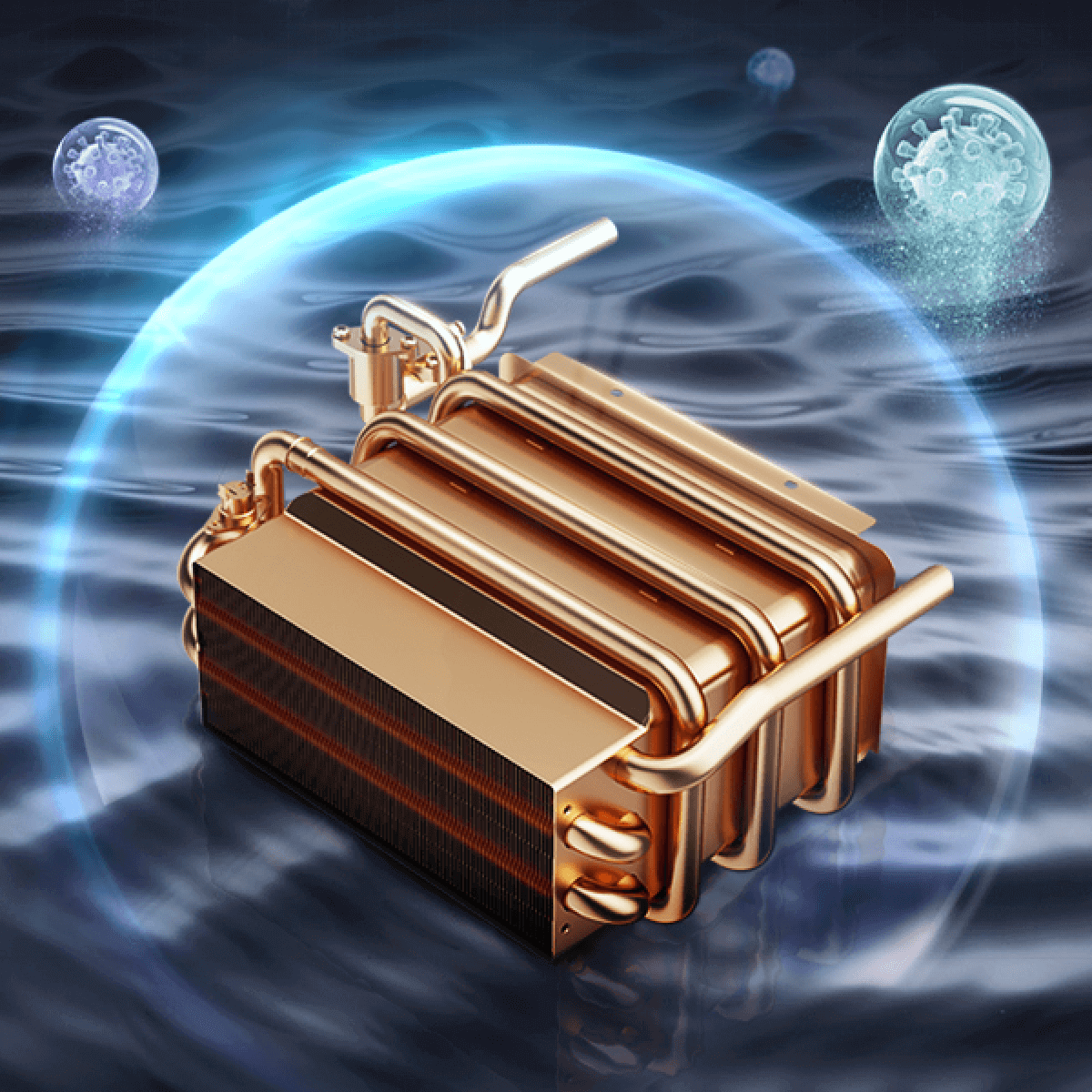

Healthy OFC heat exchanger,
caring more about hygiene of water

High purity of OFC heat exchanger,
having higher heat efficiency and bacteriostat effect.

Model
Gas Type
Rated How WaterCapacity(ΔT=25K)
Nominal Power/Rated Heat Input(kW)
Activated water flow rate

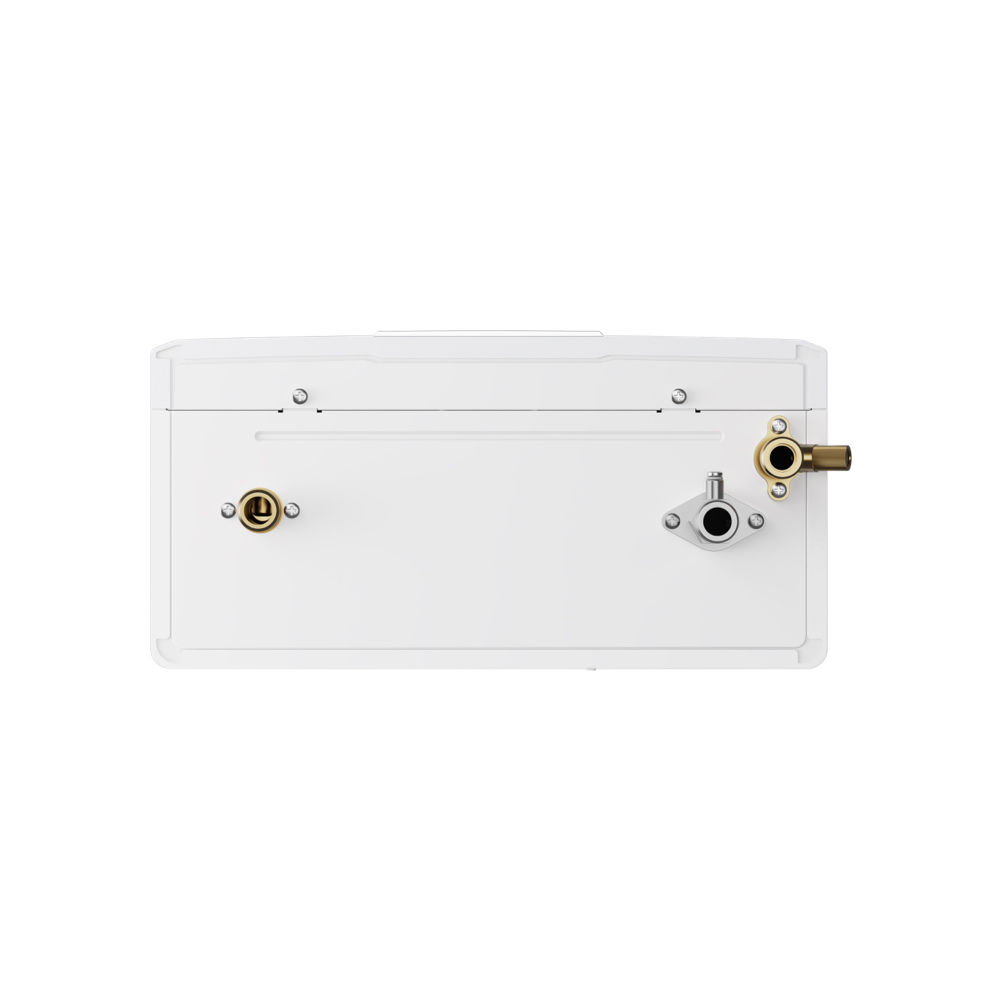

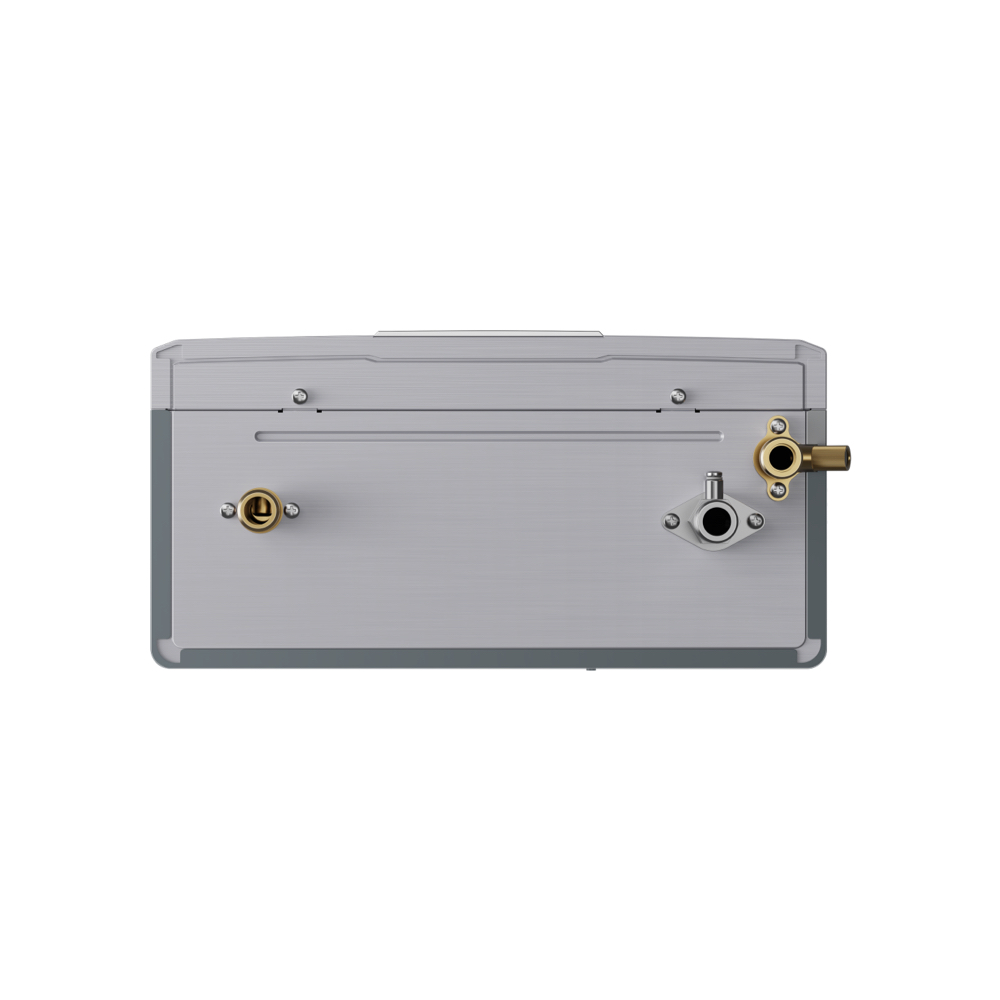

Gas Inlet
Cold Water Inlet
Hot Water Outlet

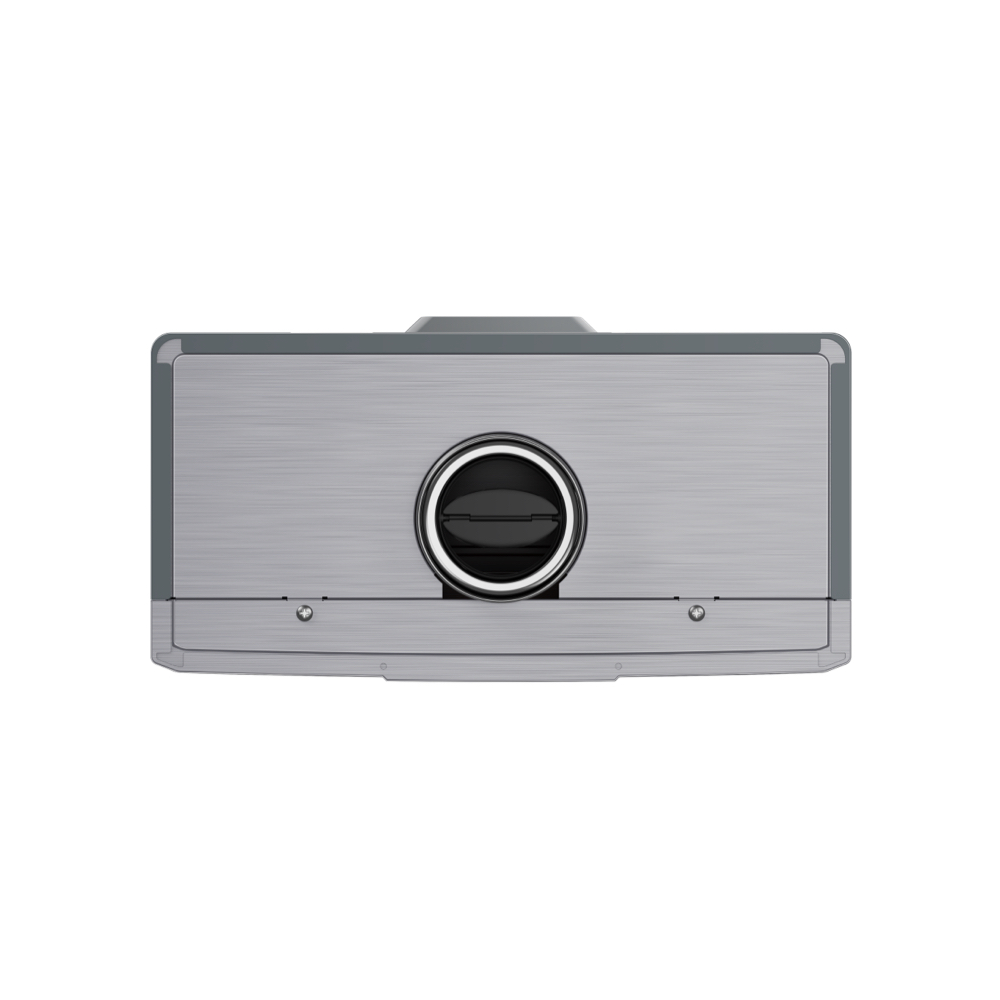

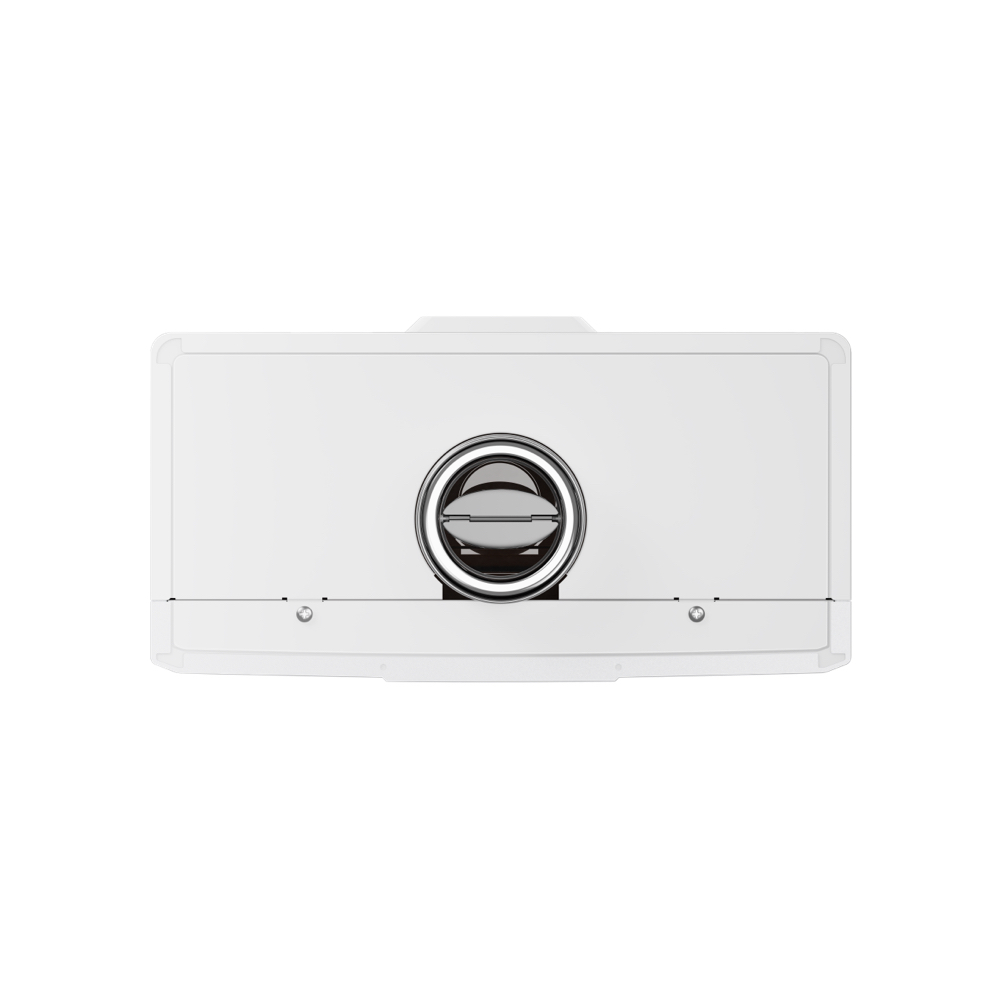

Flue Pipe / Chimney Diameter(mm)
Efficiency
N.W(kg)
G.W(kg)
Product Dimensions(mm)
Pakaging Dimensions(mm)
Loading Qty(20GP/40GP/40HQ)
JSQ24-12K3S
NG/LPG
12L/min
24
2.5L/min
G1/2
G1/2
G1/2
Φ60
>88%
9.3kg
11.5kg
525*340*170
718*413*271
397/819/931
JSQ30-16K3S
NG/LPG
16L/min
30
2.5L/min
G1/2
G1/2
G1/2
Φ60
>88%
9.9kg
12.1kg
525*340*170
718*413*271
397/819/931
JSQ36-20K3S
NG/LPG
20L/min
36
2.5L/min
G1/2
G1/2
G1/2
Φ80
>88%
10.5kg
12.7kg
525*340*170
718*413*271
397/819/931
