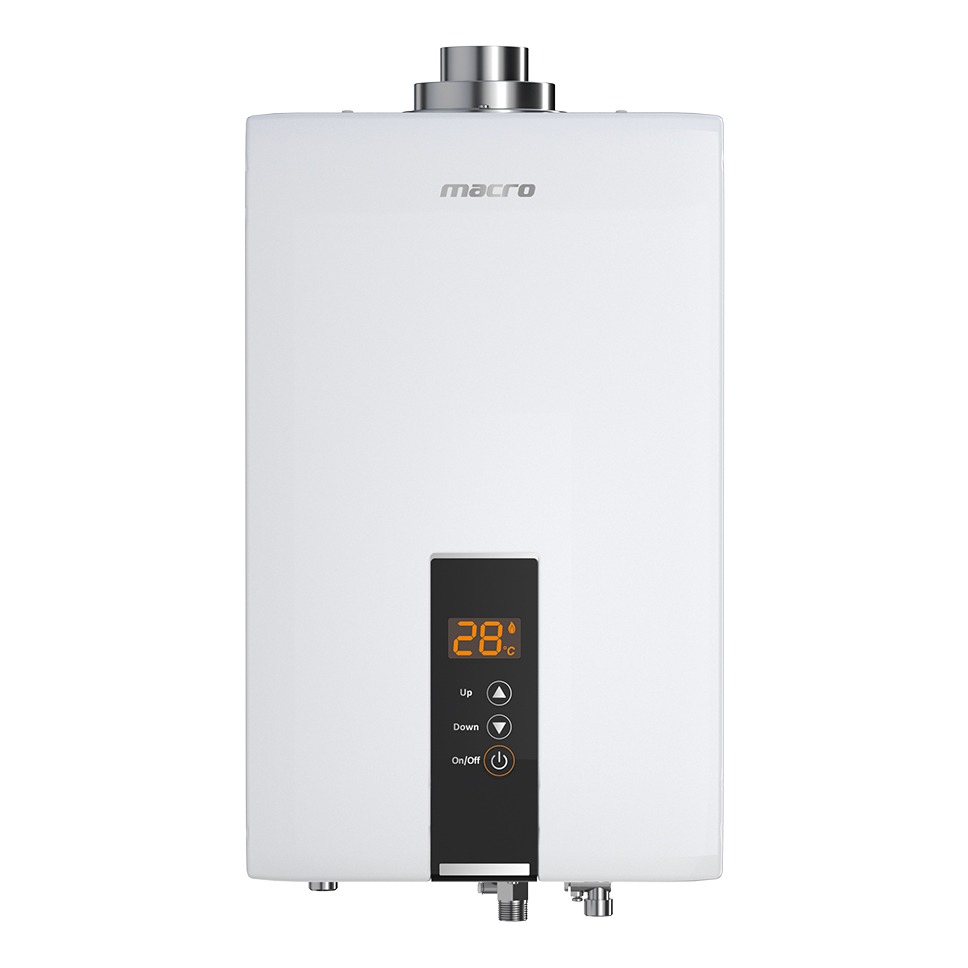

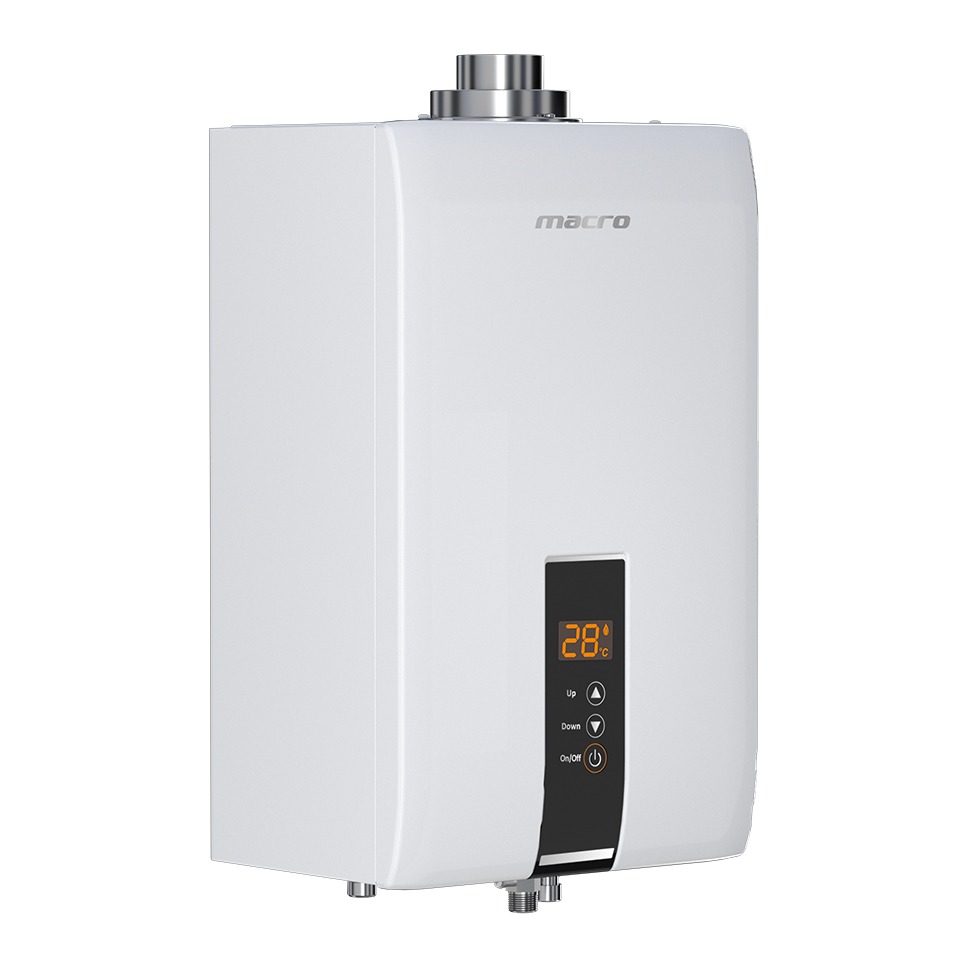

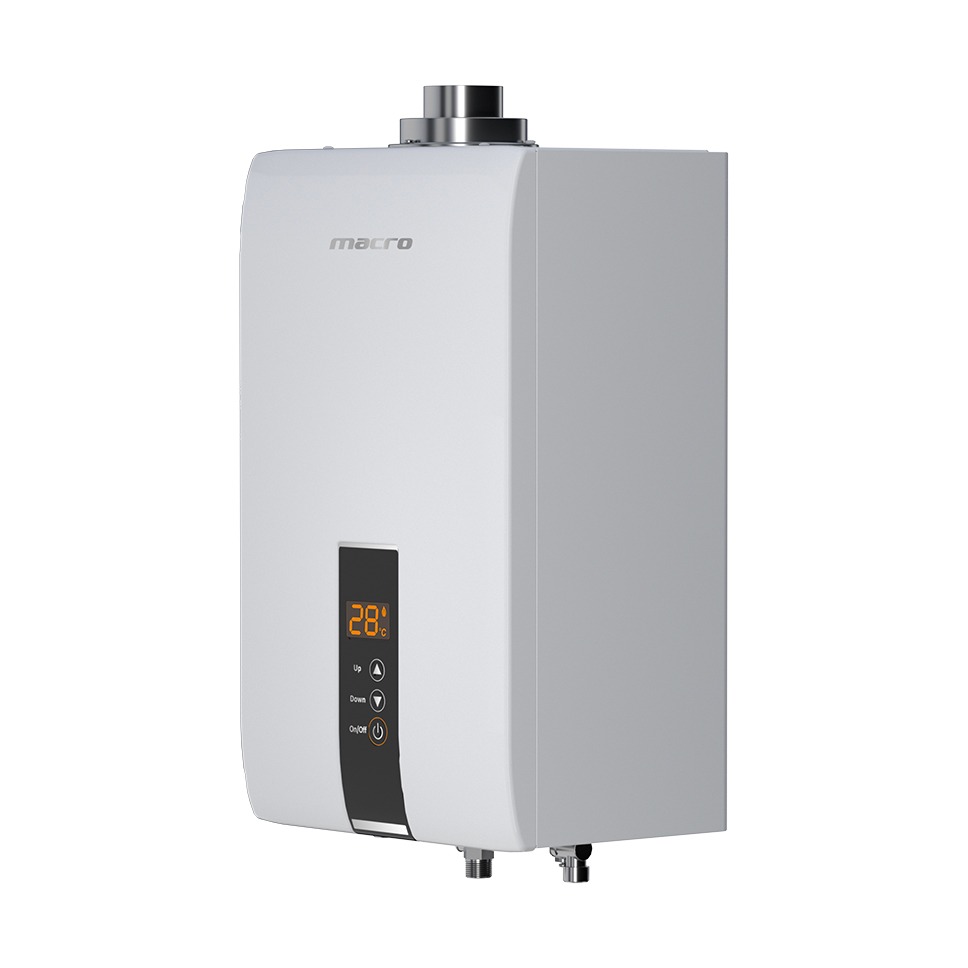

Q6S series
Product Description:
Q6S balance flue type is available to be installed inside the room, which adopts smart digital control system with advanced inverter technology, realize smart self-adapation to stablize temperature, bring the best hot water experience.
Specifications:
  • 16L
  • 14L
  • 12L
Color:
  • White
  • Features & Performance
  • Product Parameters

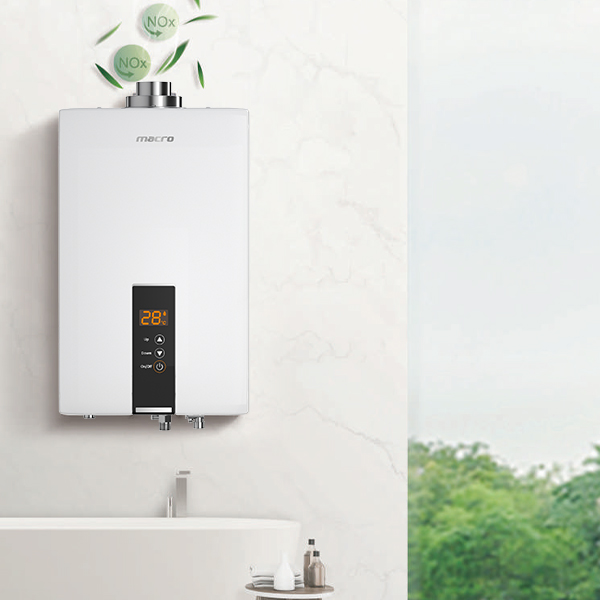

Low NOx emission for European market requirement

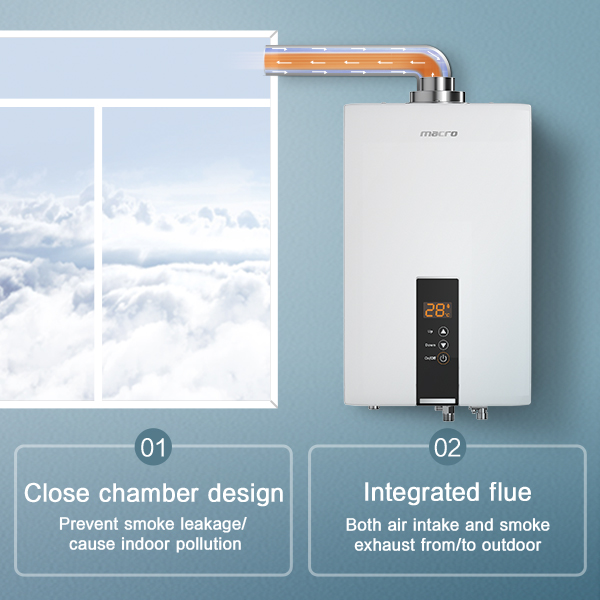

Close chamber, safe indoor indoor installation

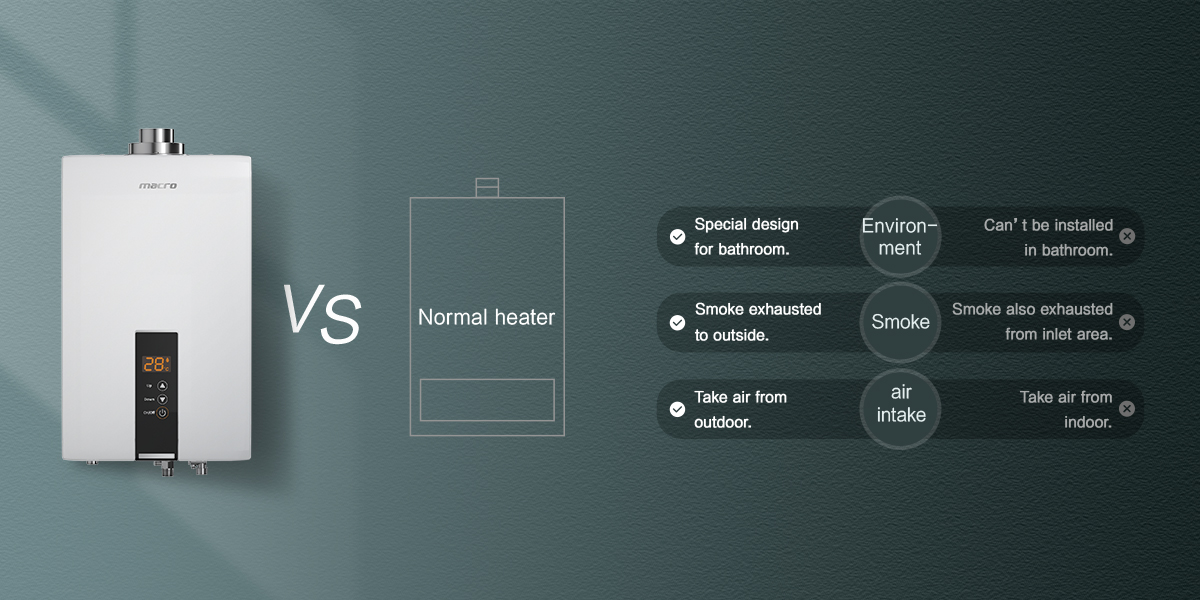

Wish to install in bathroom?

Balance flue would be a good choice.

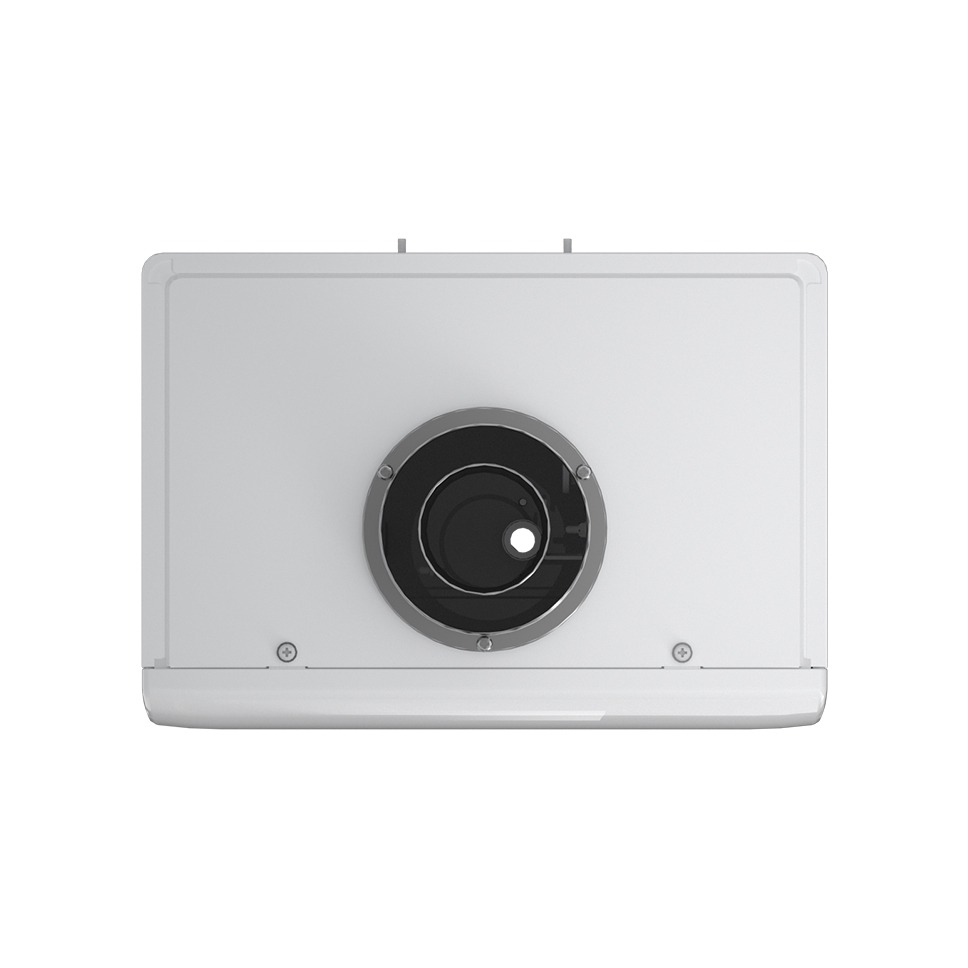

Integrated smoke exhaust
and air intake flue

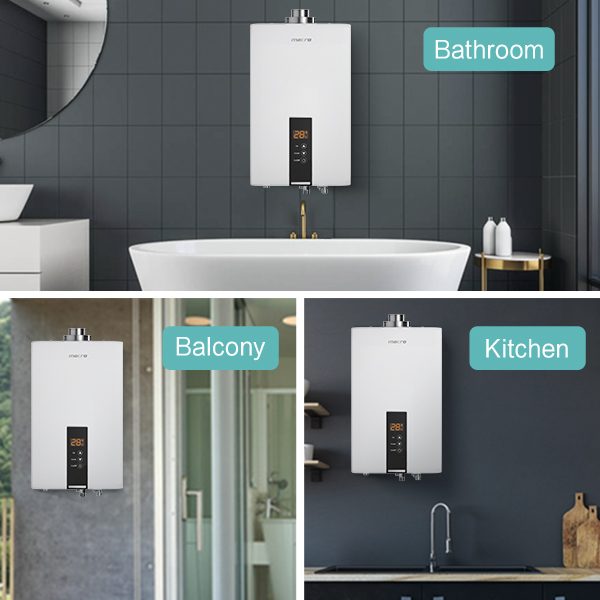

Anywhere and any places

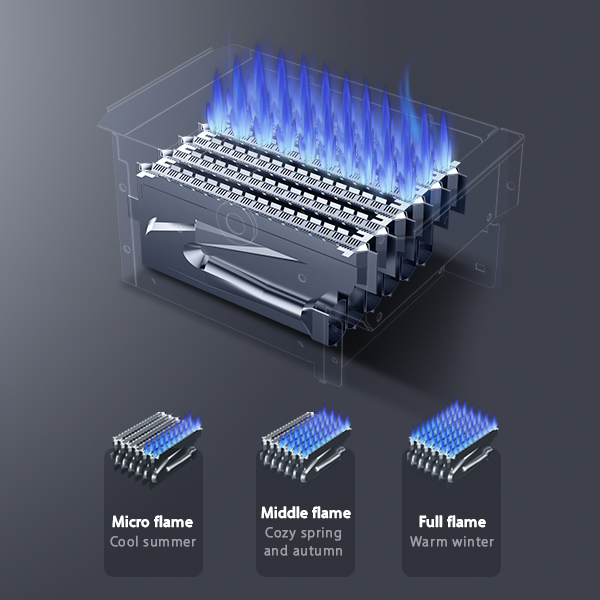

Micro flame control, bringing
cool experience in summer

Adopting micro flame technology,
working at minimum power in hot summer.

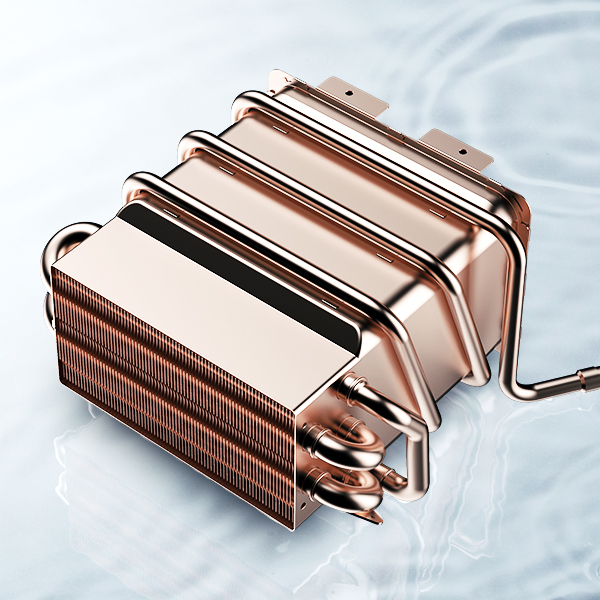

Healthy OFC heat exchanger,
caring more about hygiene
of water

High purity of OFC heat exchanger,
having higher heat efficiency and bacteriostat effect.

Multiple safe protection
care more about security

Model
Gas Type
Rated How Water Capacity(ΔT=25K)
Nominal Power / Rated Heat Input(kW)
Activated water flow rate
Gas Inlet
Cold Water Inlet
Hot Water Outlet
Efficiency
N.W(kg)
G.W(kg)
Product Dimensions(mm)
Pakaging Dimensions(mm)
Loading Qty(20GP/40GP/40HQ)
JSG24-12Q6S
NG/LPG
12L/min
24
2.5L/min
G1/2
G1/2
G1/2
>88%
13.2
17
533*330*230
717*477*330
281/554/642
JSG28-14Q6S
NG/LPG
14L/min
28
2.5L/min
G1/2
G1/2
G1/2
>88%
13.2
17
533*330*230
717*477*330
281/554/642
JSG30-16Q6S
NG/LPG
16L/min
30
2.5L/min
G1/2
G1/2
G1/2
>88%
13.2
17
533*330*230
717*477*330
281/554/642
