CXW-300-E2
Product Description:
One piece molding chamber elegant hood
· Double smoke chamber
· Smart control by hand gestures
· Impeller self-cleaning
· One piece molding set for smoke chamber
· Stainless steel body/delay
· Delay shutdow

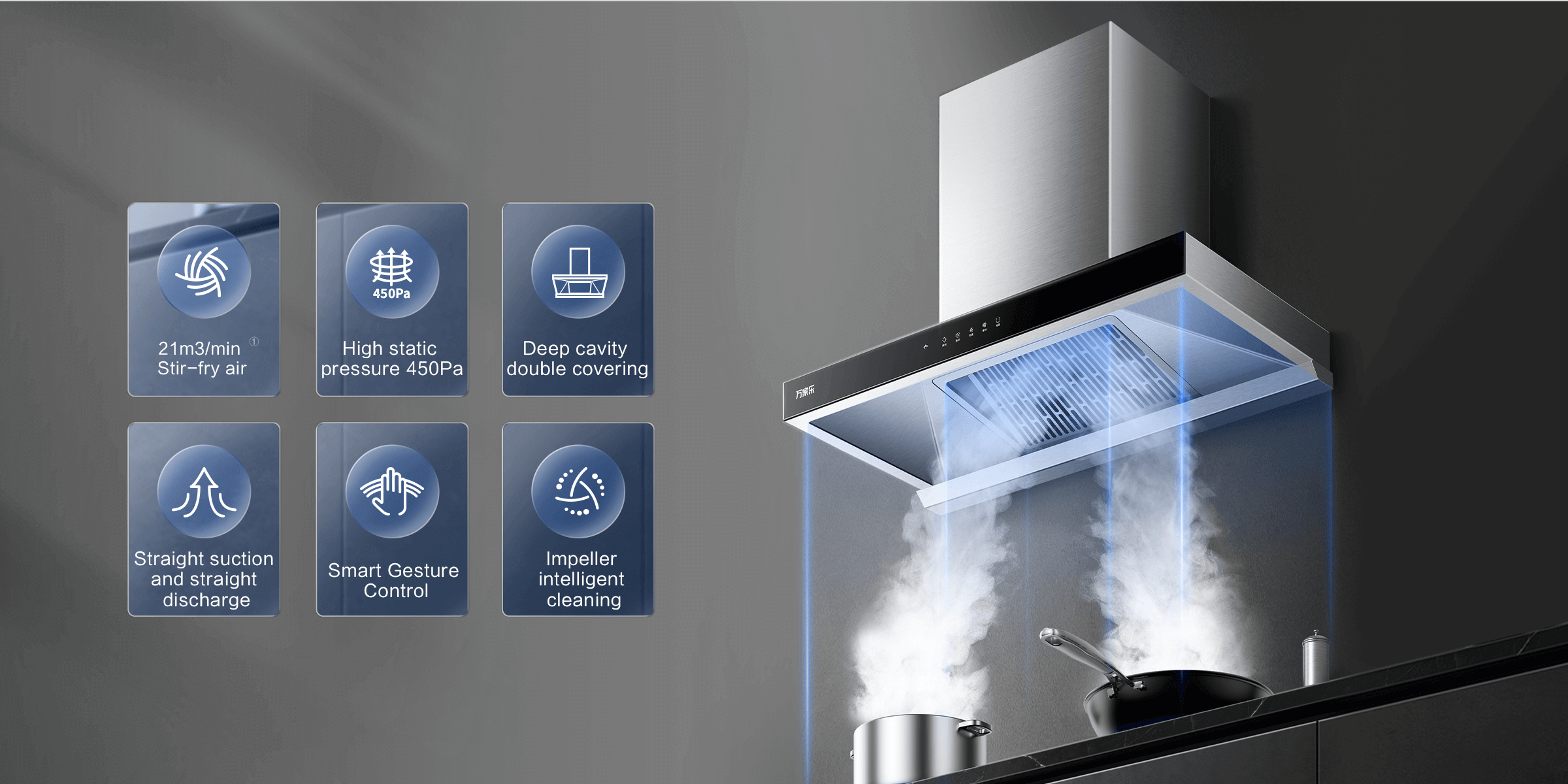

  • Features & Performance
  • Product Parameters

Deep cavity double holding together
Strong absorption and instant discharge

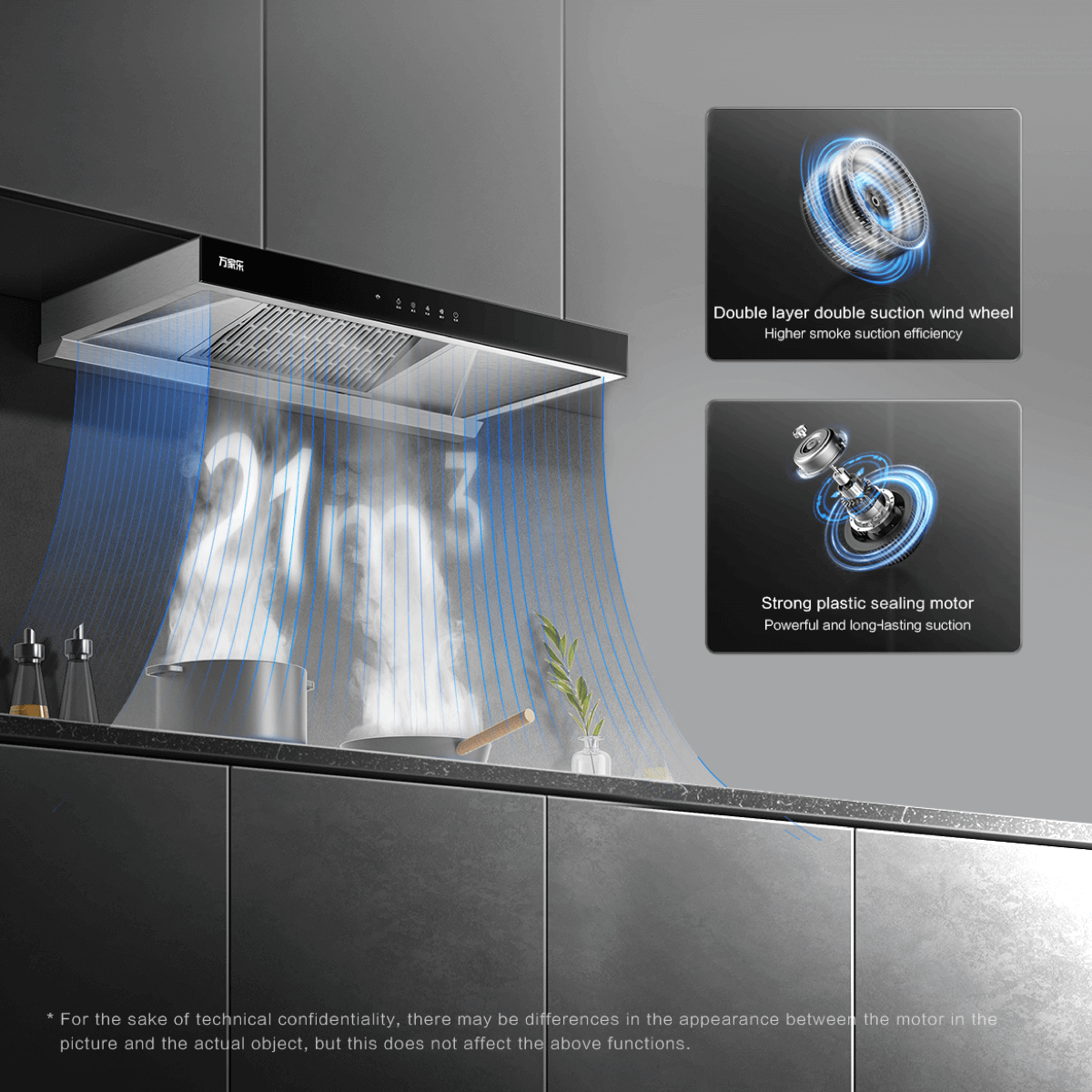

E2 high suction European style range hood.

21m³/min stir fried wind
Fully absorb surging oil
fumes at full speed

21m³/min high air volume, vigorously sucking away turbulent oil fumes.
Open kitchen, easy to stir fry, without irritating
the nose by Sichuan style stir-frying.

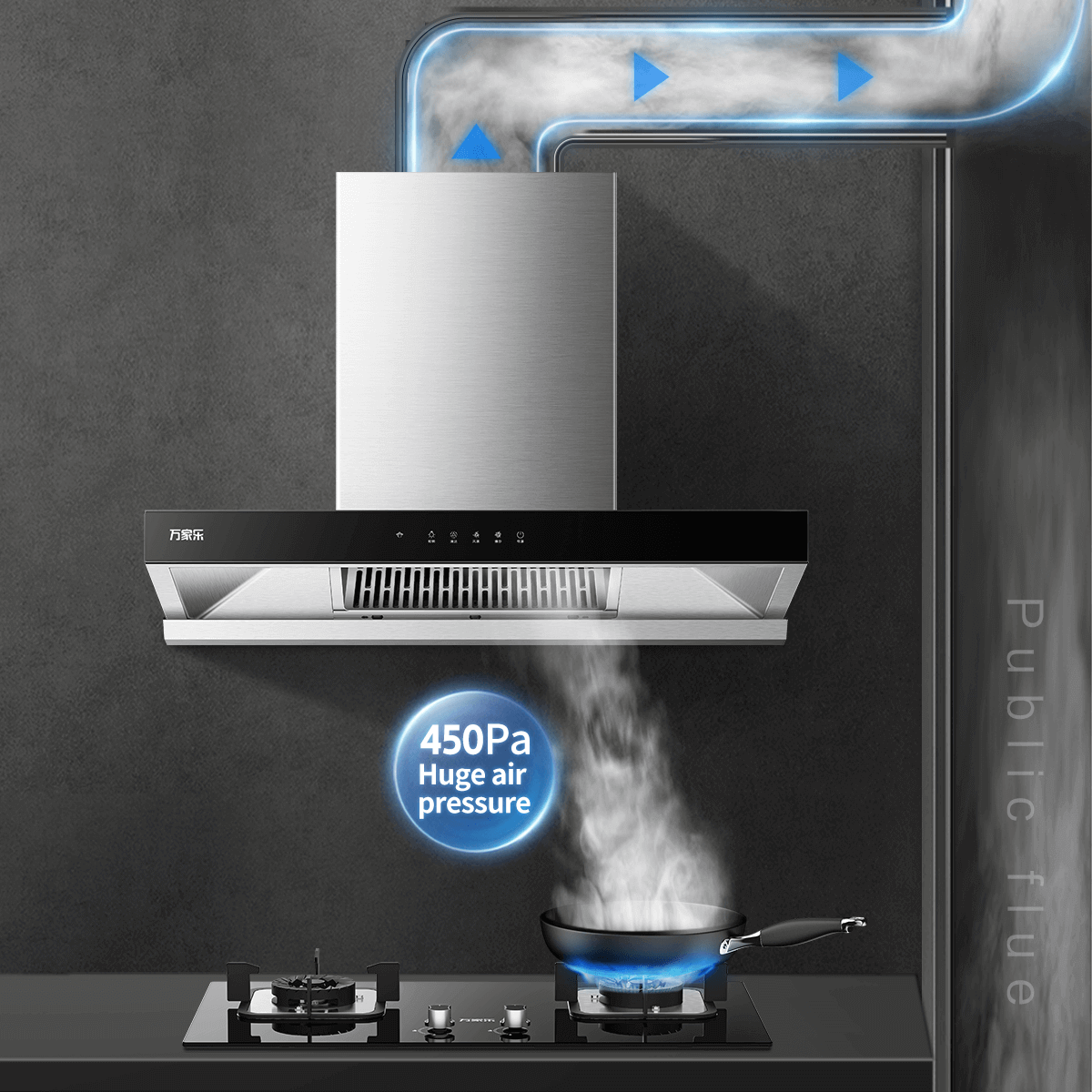

450Pa high static pressure
Exhaust of oil fumes and
prevention of reverse flow

High static pressure discharges oil fumes by force,
and high-rise residents are not afraid of the reverse flow of oil fumes.
During peaks, oil fumes out of stir frying can also be easily
and smoothly discharged, and air in kitchen is always fresh.

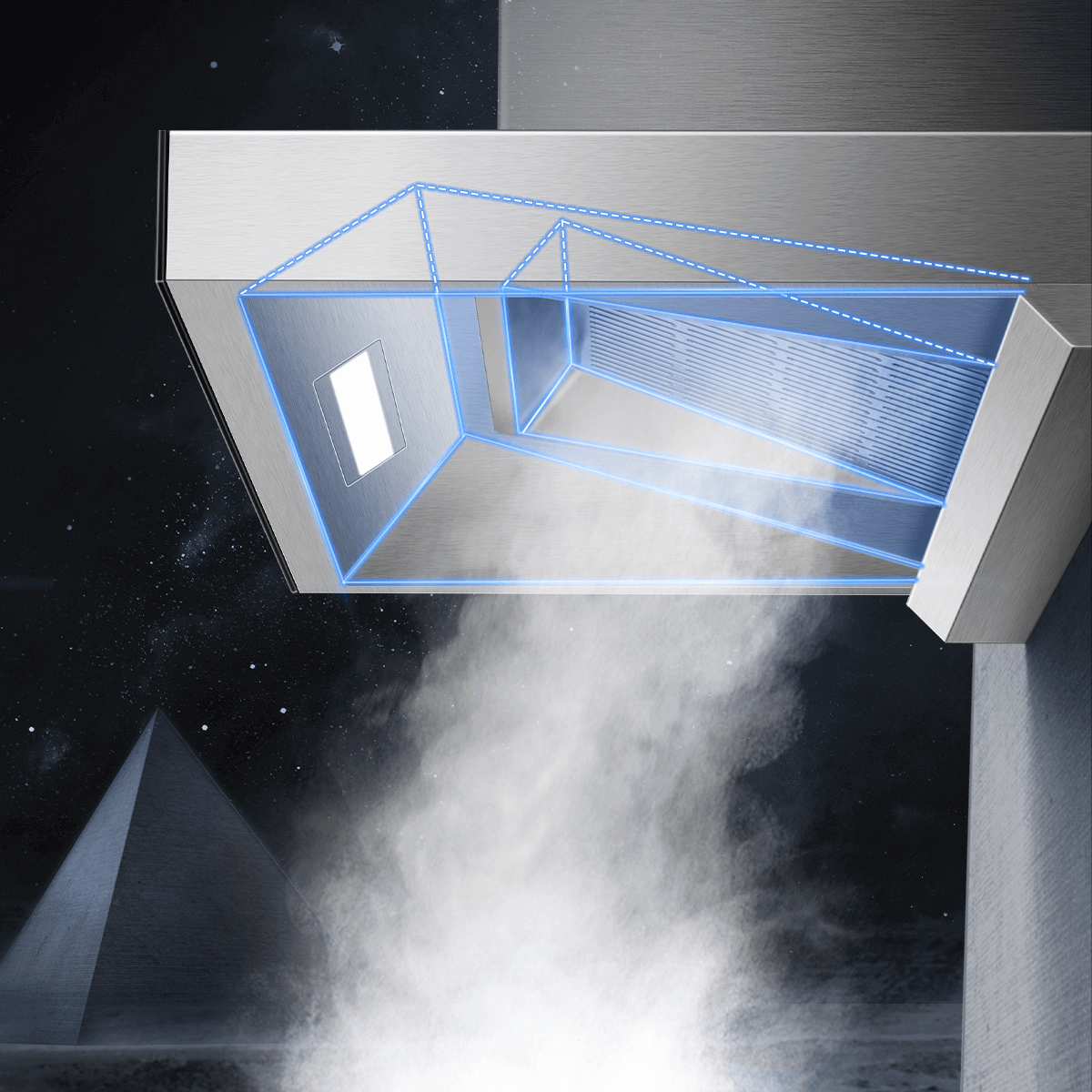

Inner and outer deep cavity
double holding together
Wide range forced holding
and locking oil fumes

Innovative pyramid style smoke collection structure,
double deepening smoke collection chamber inside and outside.
Along with 895mm wide wings, smoke holding,
absorbing and locking becomes firmer, with a wider range.

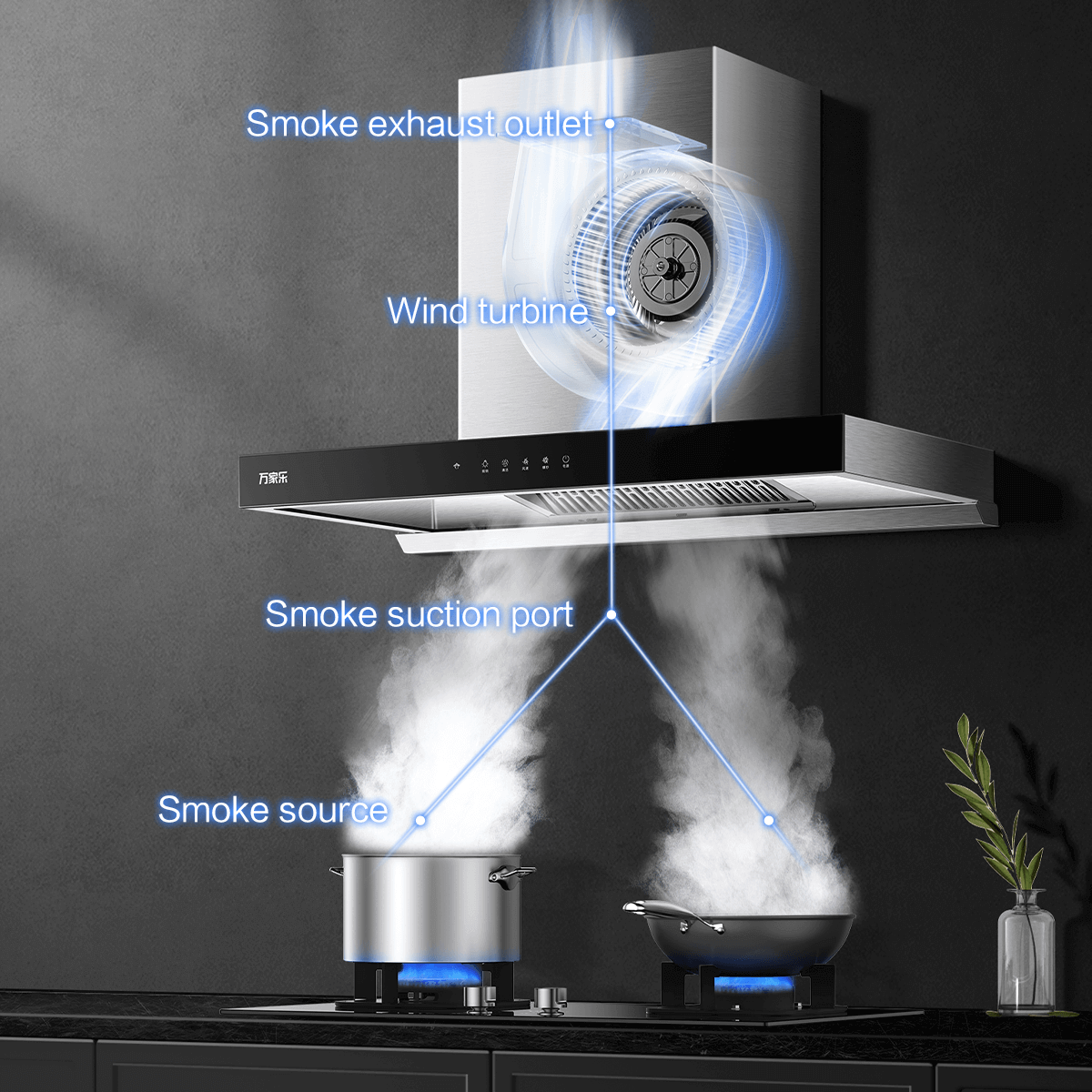

Direct smoke purification
technology Linear suction
and discharge without turning

Achieve straight-line suction and discharge on the basis of
four points and one line from smoke source, smoke outlet,
wind turbine, and smoke exhaust outlet.
It prevents oil fume from reverse flow
and stay making cooking more comfortable.

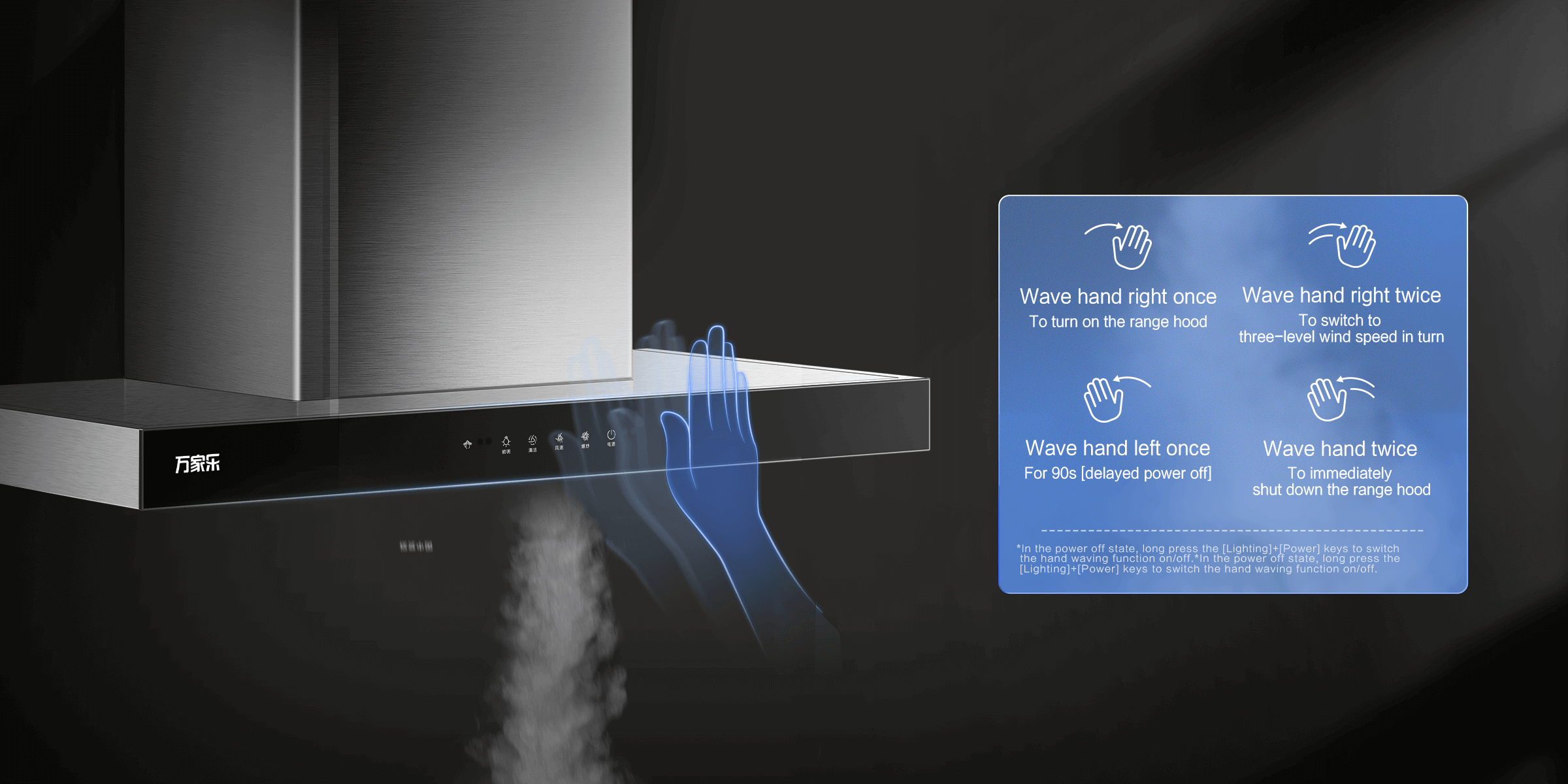

Quick control by wave of hands only
Avoiding collision making it cleaner

Along with an infrared body sensing probe, gentle wave of hand Can sensitively control air speed levels making cooking even easier

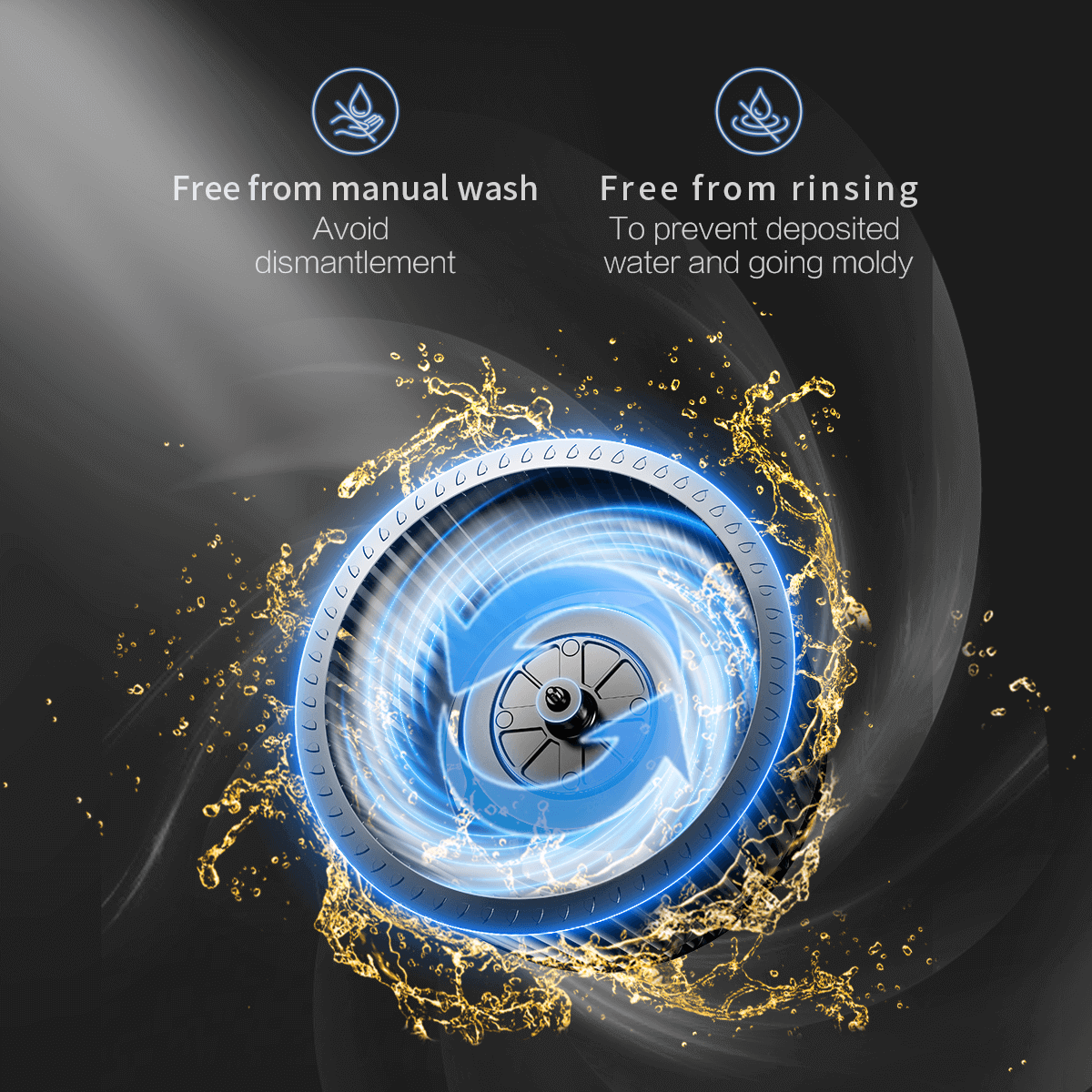

Smart impeller cleaning
Easy change into new ones
with lasting suction

After a total of 10 hours of operation, the range hood will
automatically start the cleaning function when turned off.
Keep the wind turbine clean for a long time,
and the power will be persistent as usual.

Model
Nominal air volume m³/h
Max.air volume m³/h
Noise (dB)
Main material
Number of Power level
Control Type
Chimney pipe diameter(mm)
Length of chimney pipe(Meter)
Motor input power(W)
Net weight(kg)
Gross weight(kg)
Dimensions(mm)
Package size(mm)
CXW-300-E2
1140
1260
56
Stainless steel
Two speed + stir fry
Touch Control,hand gestures
180
1.8
300
16.5
21.5
895*450*600
1010*670*553
